High End Systems SolarFrame 750 User manual

Professional Moving Head User Manual
Version 1.0.0 --- Revision A

Notice
ETC®and High End Systems®are registered trademarks of Electronic TheatreControls, Inc. ETC is registered in
the United States, China, the European Union, the Madrid Protocol, and Russia. High End Systems is registered
in the United States and is pending registration in the European Union, the United Kingdom, and the Madrid Pro-
tocol. The High End Systems globe logo is pending registration in the United States, the European Union, and
China.
All other trademarks, both marked and not marked, are the property of their respective owners.
Information and specifications in this document are subject to change without notice. High End Systems
assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.

Contents
Welcome 1
Contacting High End Systems 2
FCC Information 5
Patents 6
Terms and Conditions and Warranty Information 6
Product Modification Warning 6
Important Safety Information 7
Fixture Overview 8
Features 9
Optical 9
Mechanical 9
Colors 9
Projection 9
Display 9
Software 10
Additional 10
Safety Considerations 11
General Operation and Use Guidelines 12
Installation Instructions 13
Attachment Instructions 13
Dimensional Drawings 15
Mounting 16
Technical Specifications 17
DMX Control 19
DMX Connector Pinout 19
Terminate DMX512 19
Connect DMXCables to Fixture 20
DMX Start Address 21
Menu Navigation and Overview 22
Navigation 22
Menu Settings and Programming 23
Current Time 24
Ttl Life Hrs 24
Last Run Hrs 25
LEDHours 25
Timer PIN 25
Clr Last Run 25
LEDTime PIN 25
Clear LED Time 26
No DMX Mode 28
i

Pan Reverse 29
Tilt Reverse 29
Pan Degree 29
Encoders 29
Pan/Tilt Spd 30
Hibernation - Standby mode 30
Defogger 30
Service PIN 31
RDMUID 31
Ethernet IP 31
Ether MaskIP (SubnetMask) 32
Clr Err Info 32
Shutoff Time 32
Flip Display 33
Key Lock 33
DMX Control Protocol 39
Error Codes 44
Cleaning and Maintenance 47
ii

1
Welcome
Congratulations on your purchase of the SolaFrame 750 automated framing fixture. The SolaFrame 750 features
a compact footprint and a huge feature set that is a perfect fit for smaller to medium-sized venues.
lSmall footprint, powerful output
lFour full-curtain framing shutters
l6°-50° Zoom
lRotating Gobo Wheel
lFully-continuous Animation Wheel
lCMY/CTO- linear color mixing
lReplaceable Color Wheel
lIris, Three-facet Prism, Frost
lThree active cooling modes
This manual provides important information for installation, configuration, and maintenance of your SolaFrame
750. Related reference documentation is available for download from the website: highend.com .

Contacting High End Systems
High End Systems, Inc. is an ETC company.
Headquarters
For Customer Service or Sales support, please contact our company headquarters:
2105 Gracy Farms Lane
Austin, TX 78758 USA
tel: [phone]
fax: [phone]
Toll Free: 800.890.8989
website: highend.com
Technical Support
If you are having difficulties installing, configuring, or operating your SolaFrame 750, your most convenient
resources are the references given in this manual. To search more widely, try the High End Systems, Inc. web-
site at highend.com.
24 hour emergency support is available. Contact High End Technical Services at [phone].
2

3

4

FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the interference at his own expense.
5

Patents
NOTICE OF INTELLECTUAL PROPERTY RIGHTS
High End Systems, Inc. products are protected by one or more patents listed on the High End Systems, Inc. web-
site: https://www.highend.com/patents and/or are subject to one or more pending patents.
Terms and Conditions and Warranty Information
Complete terms and conditions and warranty information can be found on the High End Systems, Inc. website
https://www.highend.com/pub/products/HES-Warranty-Information.pdf.
Product Modification Warning
High End Systems products are designed and manufactured to meet the requirements of the United States and
International safety regulations. Modifications to the product could affect safety and render the product non-com-
pliant to relevant safety standards.
Mise En Garde Contre La Modification Du Produit
Les produits High End Systems sont conçus et fabriqués conformément aux exigences de règlements inter-
nationaux de sécurité. Toute modication du produit peut entraîner sa non conformité aux normes de sécurité en
vigueur.
Produktmodifikationswarnung
Design und Hestellung von High End Systems entprechen den Anforderungen der U.S. Amerikanischen und
internationalen Sicherheithsvorschriften. Abänderungen dieses Produktes können dessen Sicherheit bee-
inträchtigen und unter Umständen gegen die diesbezüglichen Sicherheitsnormen verstoßen.
Avvertenza Sulla Modifica Del Prodotto
I prodotti di High End Systems sono stati progettati e fabbricati per soddisfare i requisiti delle normative di
sicurezza statunitensi ed internazionali. Qualsiasi modifica al prodotto potrebbe pregiudicare la sicurezza e
rendere il prodotto non conforme agli standard di sicurezza pertinenti.
Advertencia De Modificatión Del Producto
Los productos de High End Systems están diseñados y fabricados para cumplir los requisitos de las regla-
mentaciones de seguridad de los Estados Unidos e internacionales. Las modificaciones al producto podrían
afectar la seguridad y dejar al producto fuera de conformidad con las normas de seguridad relevantes.
6

Important Safety Information
Please read all instructions prior to assembling, mounting, and operating this equipment. Continued and safe
operation of this fixture is the responsibility of the operator. This manual will give tips for that continued safe oper-
ation. At any time please contact High End Systems technical support for any safety concerns.
The following international note, caution, and warning symbols appear in margins throughout this manual to
highlight important messages.
Note: Notes are helpful hints and information that is supplemental to the main text.
CAUTION: A Caution statement indicates situations where there may be undefined or
unwanted consequences of an action, potential for data loss or an equipment problem.
CAUTION: This statement indicates that while operating, equipment surfaces may
reach very high temperatures. Allow the fixture to cool before handling or servicing.
WARNING: A Warning statement indicates situations where damage may occur, people
may be harmed, or there are serious or dangerous consequences of an action.
WARNING: RISK OF ELECTRIC SHOCK! This warning statement indicates situations
where there is a risk of electric shock.
7

Fixture Overview
1: Lens
2: Handle
3: Display
4: [MODE/ESC] button
5: Left-button
6: Down-button
7: [Enter] button
8: Right-button
9: Up-button
10: Fuse
11: Power out
12: Power in
13: 5-Pin DMX out
14: 5-Pin DMX in
15: ART-NET in
16: ART-NET out
8

Features
Optical
lLED: White 270 Watts
lExtremely long Life: >50,000 hours
lColor temperature: 7000 Kelvin
lLuminous flux: 11,300 lumens
lCRI of greater than 70
lBeam angle: Zoom from 6 to 50 degrees
lStrobe effect 1-25 HZ and pulse effect
lMotorized focus
lDimmer: 0% - 100% full range dimming
Mechanical
lPan and tilt motion with 8 or 16 bit control resolution
lSmooth, precise mechanical movement system supporting:
lPan: 540° (630° optional)
lTilt: 265°
lVariable speed pan and tilt motion
lPosition memory, auto correction if fixture is bumped
Colors
lCMY & CTO variable color mixing for infinite color possibilities
lColor wheel including seven interchangeable dichroic filters + open, indexed, rainbow effect
Projection
lRotating gobo wheel: including seven interchangeable rotating, and indexed, gobo + open
l“Slot in & out” gobo wheel system
lRotating prism
lStepless iris , 5% - 100% linear change iris, pulse iris effect
lStepless frost, 0% - 100% linear change frost
lAnimation wheel: special dynamic flame or water effects
Display
lAdvanced full color LCD screen
lInternal rechargeable battery, enable users to access menu for address modification or other settings.
lAutomatic lock out after 15 seconds (to prevent unintentional modifications)
lConvenient position reset operation: hold the left-button and right-button (Complete this position
reset while the fixture is inside the flight case)
9

Software
lFirmware upgrades are accomplished using a DMX cable with available hardware uploader
lModify the DMX address, as well as other compatible features, using RDM control
lStandalone operation with Master / Slave function
lControl channel modes: 47 channels
Additional
lInput signal isolation: guarantees stable signal transmission without interference
lAdvanced RDM function
lPatented lens defogger

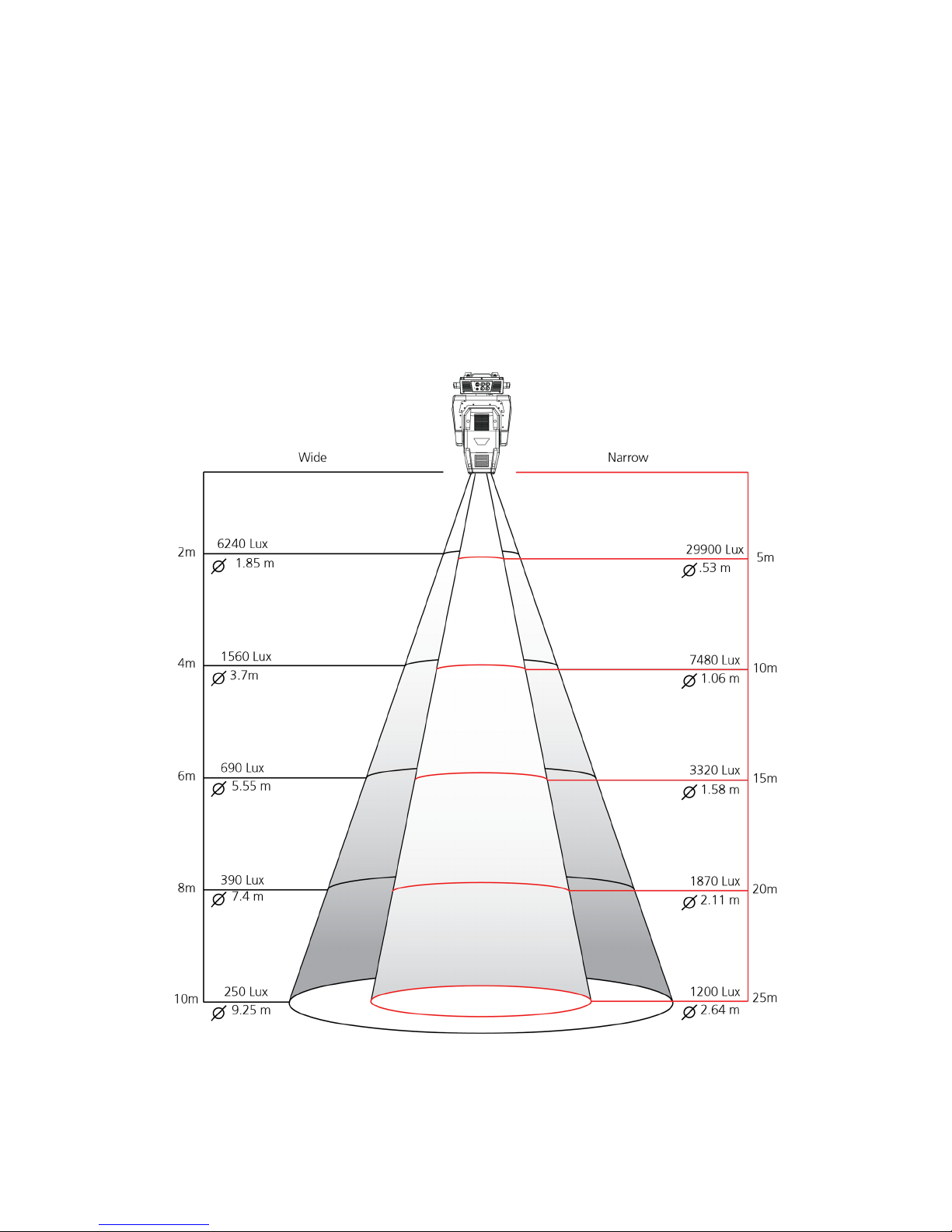

Zoom Range and Distance
10

Safety Considerations
This fixture has left the factory in perfect condition. In order to maintain this condition and to ensure safe oper-
ation, it is necessary for the user to follow the safety instructions and warning notes written in this user manual
and otherwise instructed by the manufacturer representative.
lThe SolaFrame 750 fixture is intended for professional use only. Not for residential use. Read the entire
manual before using this equipment.
lThe SolaFrame 750 fixture is not user serviceable. Field modifications of the unit will void your warranty.
WARNING: For your safety, read the following warnings and notices before use:
lDisconnect the unit from power and DMX before servicing.
lReplace fuses with the specified type and rating only.
lDo not mount the fixture on or near flammable surfaces.
lNEMA Type 1 Enclosure, indoor use, dry locations only. Do not use outdoors. This fixture is intended for
use where humidity does not exceed 90% (non-condensing).
lThis equipment is designed for operation by qualified personnel only.
lDo not use this fixture with a damaged power lead (cord set). If the lead is damaged, it must be replaced
with an equivalent type before use. Contact your local authorized dealer for spare power leads.
lDo not use this fixture if the lens is damaged. Damaged lenses must be replaced before use. Contact
your local authorized dealer for a replacement.
lWhen the fixture has been stored or transported in cold temperatures, allow it to warm to room tem-
perature for a minimum of one hour before applying power. Applying power to a cold fixture will cause
damage to the fixture and void the manufacturer warranty.
CAUTION: Hot Surfaces. Allow the fixture to cool completely before handling
and servicing.
CAUTION: Damages caused by the disregard of this user manual are not subject to
warranty. The authorized dealer will not accept liability for any resulting defects or
problems.
11

General Operation and Use Guidelines
lThis fixture is only allowed to be operated with the maximum alternating current which is stated in the
technical specifications label provided on the fixture and can be found in the Technical Specifications
on page17
lLighting effects are not designed for permanent operation. Consistent operation breaks may ensure that
the device will serve you for a long time without defects.
lDo not shake the device. Avoid brute force when installing or operating the device.
lWhile choosing the installation location, please make sure that the device is not exposed to extreme
heat, moisture or dust.
lIf you use the Omega bracket with quick lock cam in hanging the fixture, please make sure the quick lock
fasteners are turned in the quick lock holes correctly.
lOperate the fixture only after having familiarized yourself with its functions. Do not permit other persons
who are not qualified and familiar with its functions to operate the fixture. Most damages are the result of
unprofessional operation.
lPlease use the original packaging if the device is to be transported. ETC and High End Systems, Inc. will
not be responsible for the unit if packaging other than manufacturer provided packaging is used.
lFor safety reasons, please be aware that all modifications on the device are forbidden. Any modifications
will void the manufacturer warranty.
lThis manual describes the proper installation and operation of this fixture. Using this fixture in any way
other than the intended use may cause damage and may void the factory warranty.
lMisuse of this fixture, using it in a way different to the methods described in this manual, may lead to per-
sonal injury and / or equipment failure.
12

Installation Instructions
lThe installation must always be secured with a secondary safety attachment. An appropriate safety
cable is supplied.
lA safety factor of 10:1 shall be required when fixtures are hung
lUse of third party clamps are permitted, but they should comply with the local jurisdiction and be
approved by the Authority Having Jurisdiction.
lA supportive and stable surface must be used when the fixtures are placed on the feet.
lThe operating temperature range for this fixture is 0 - 45 degrees Celsius. Do not operate the fixture
outside of this range.
lNever stand directly below the installed fixture when mounting, removing, or servicing.
lAll safety and technical aspects of fixture installation shall be approved by a qualified person before
operation.
lThe installation must be regularly inspected by a qualified person.
lOverhead rigging must be performed by qualified personnel.
Attachment Instructions
CAUTION: Follow all local codes and recommended practices by the Authority Having
Jurisdiction (AHJ). The installation must only be carried out by a qualified person.
13

1. Assemble the third party clamp or Omega clamp to the Omega bracket and secure together using appro-
priately sized hardware (not provided).
2. Align the assembled Omega bracket and quick lock fasteners into the respective holes on the bottom of
the fixture upper enclosure.
3. Tighten each of the quick lock fasteners fully, turning clockwise. You will hear and feel a click when the
fastener is fully secured.
4. Repeat steps 1 through 3 for the second clamp and bracket.
5. Attach the provided safety cable through the attachment point on the bottom of the fixture upper enclos-
ure and secure to the trussing system or other safe installation point. Follow local codes and recom-
mended safety standards for securing the fixture to the installation location.
6. Attach the fixture to the installation location using the installed clamps, using the clamp manufacturers
instructions for a secure fit. When using the Omega clamp, close the safety and fully tighten the clamp
wing nut until secure.
7. Inspect the installation prior to lifting the fixture over head.
14

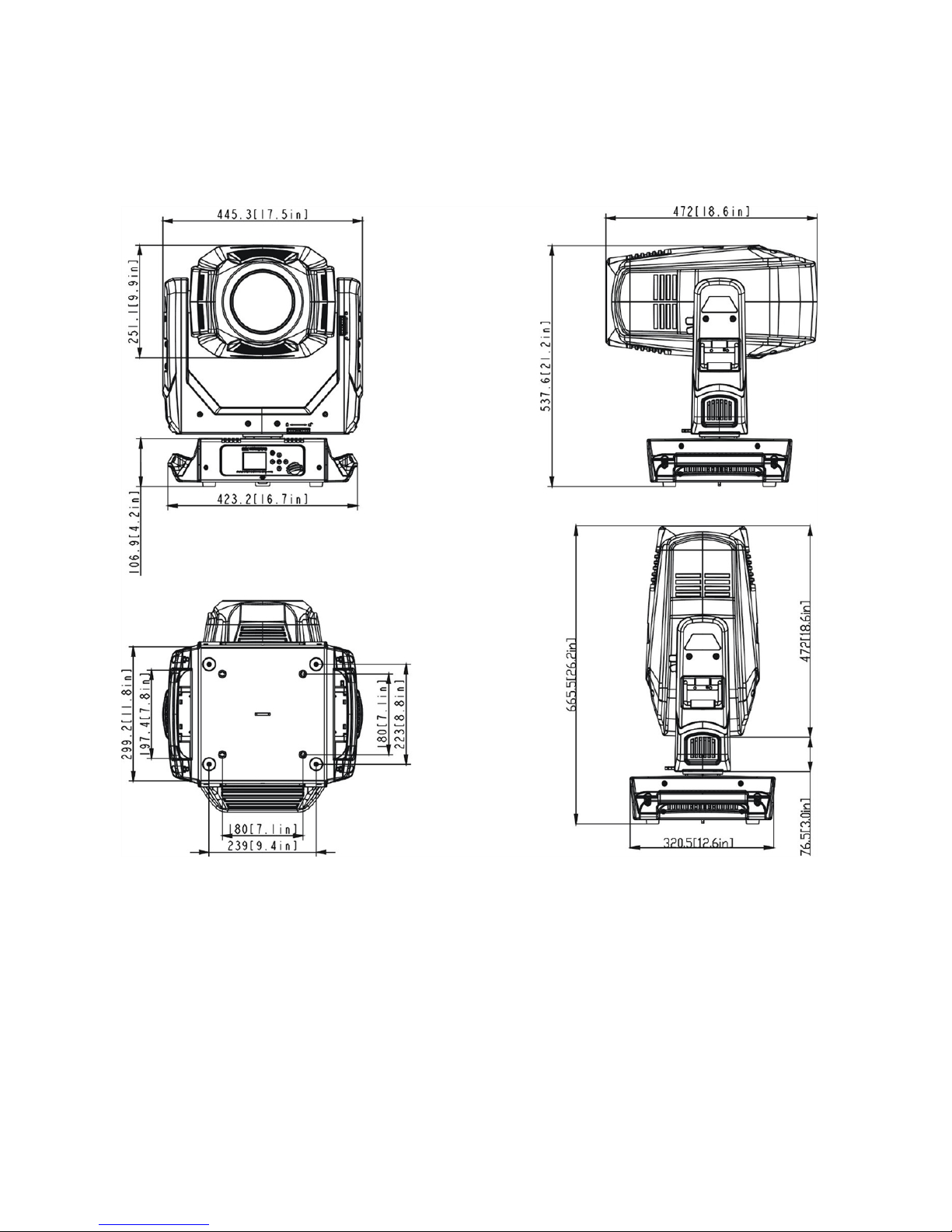

Dimensional Drawings
Dimensions shown are listed as mm [in].
15

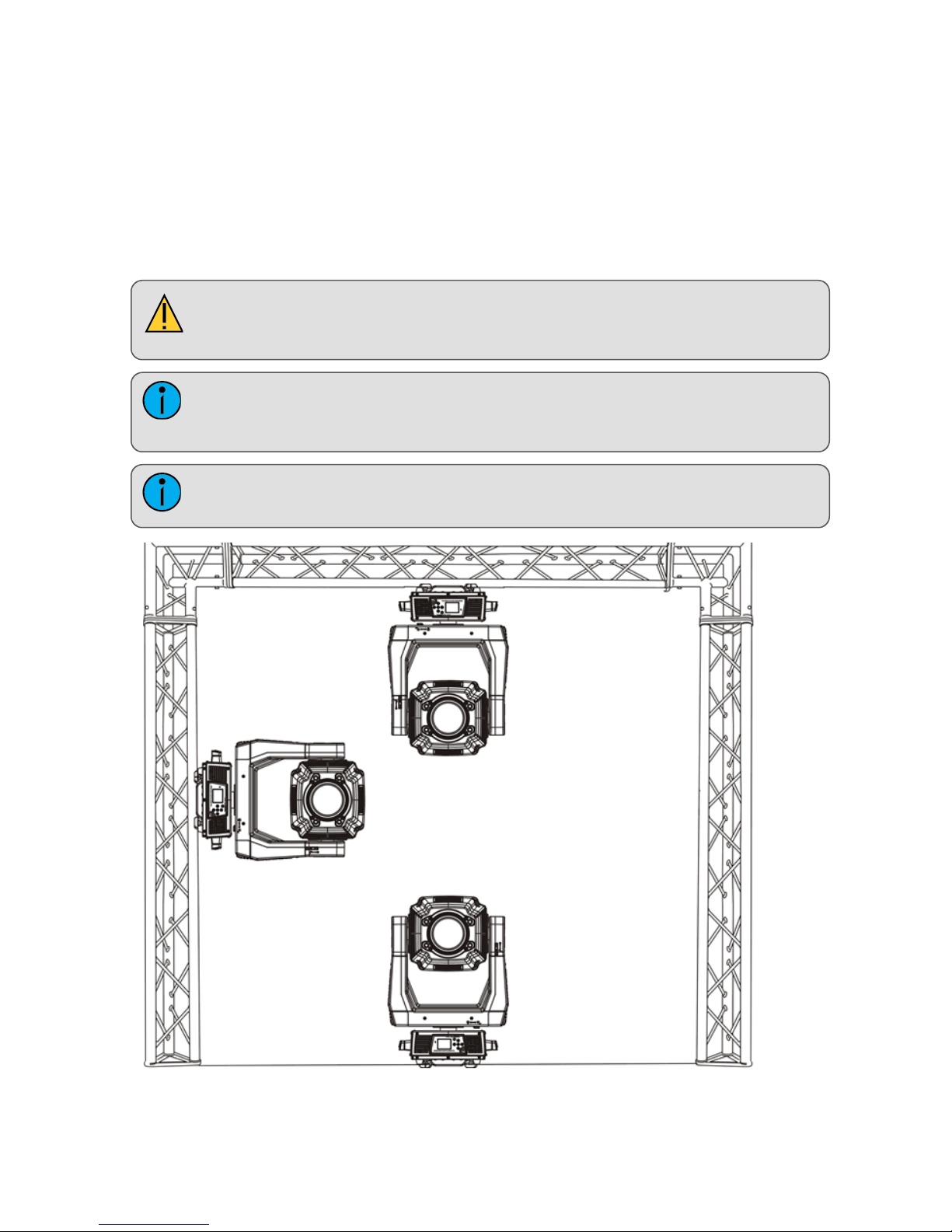

Mounting
Overhead mounting requires extensive experience, including but not limited to:
lcalculating working load limits
lknowledge of the installation material being used
lperiodic safety inspection of all installation material and the fixture
CAUTION: If you are not qualified, do not attempt the installation yourself. Improper
installation can result in bodily injury.
Note: Always use and install the supplied safety cable as a safety measure to prevent
accidental damage and/or injury in the event the clamp is improperly installed or fails.
Note: Do not mount the fixture on or near a flammable surface.
16
