HIGH ONE WF 510 D W566C User manual

981282 - WF 510 D W566C
Washing machine
Lave-linge
Wasmachine
Lavadora
INSTRUCTIONS FOR USE ....................02
CONSIGNES D'UTILISATION ....................30
GEBRUIKSAANWIJZINGEN ....................60
INSTRUCCIONES DE USO ....................90
2/2 07/2023-01

2
EN
Thank you!
Thank you for choosing this HIGHONE product.
HIGHONE products are chosen, tested, and
recommended by ELECTRO DEPOT, so you can be sure
you are getting a top-quality, easy-to-use product
that won’t let you down.
We’re confident your new device will be a pleasure
to use every day!
Welcome to ELECTRO DEPOT.

3
EN
Table of Contents
AProduct overview
CCleaning and
maintenance
BProduct usage
Installation
Operation
Cleaning and maintenance
Trouble shooting
Transport
Product fiche
Parts
Specifications

4
EN

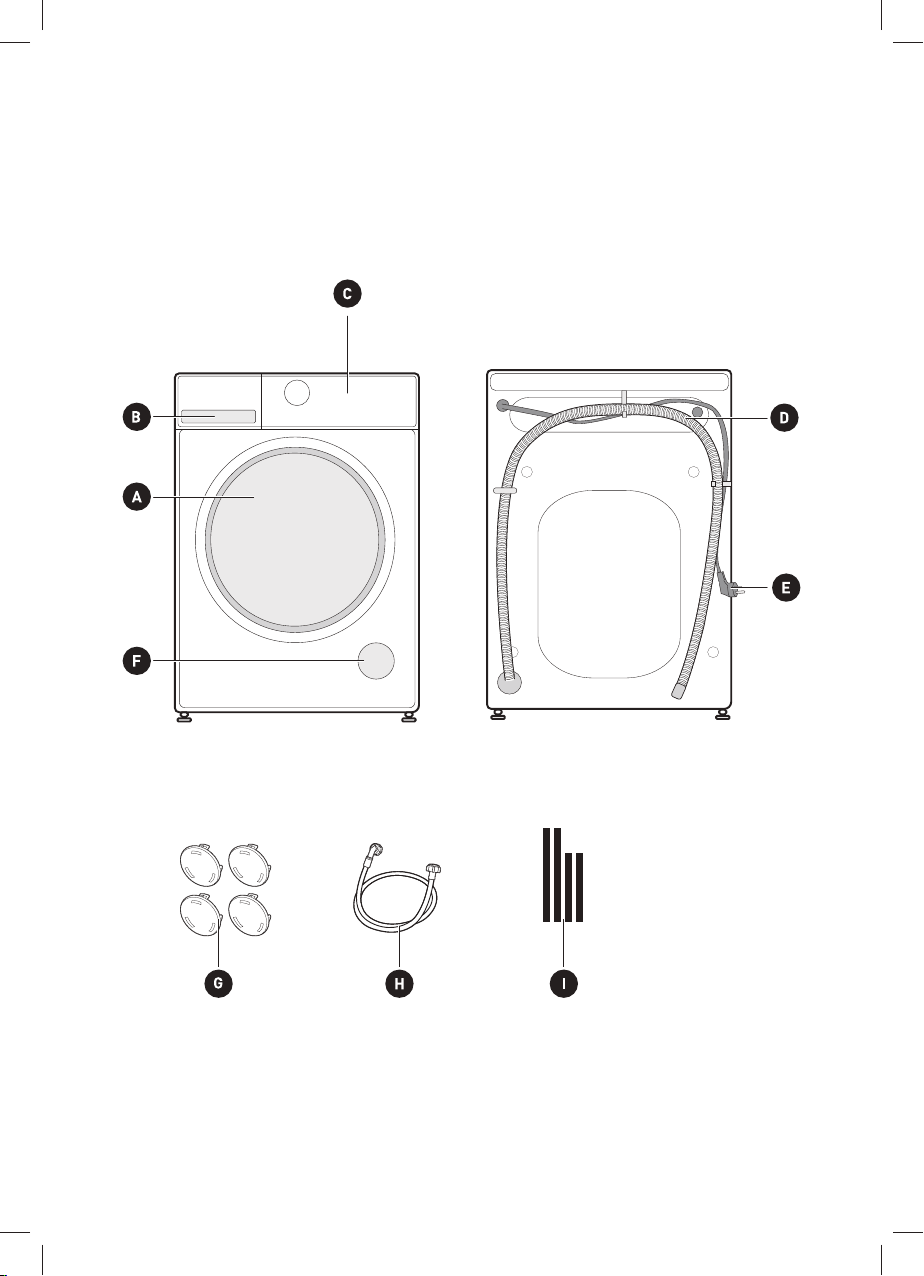

Parts
Product overview
A
Door Service flap
Detergent dispenser 4 x Cover caps
Control panel 1 x Supply hose cold water
Drain hose Acoustic sponge (optional)
Power supply cord
Note:
• The product picture is for illustration only, please refer to real product as
reference.

5
EN
Product overview
A
Specifications
Model: 981282 - WF 510 D W566C
Power Supply: 220-240V~, 50Hz
MAX. Current: 10A
Standard Water Pressure: 0,05MPa ~ 1MPa
Washing Capacity: 5,0kg
Dimension
A: 595mm
B: 850mm
C: 435mm
Weight: 52kg
Rated Power: 2000W
Reference Dimension
D: 440mm
E: 400mm
F: 900mm
G: 156mm

6
EN
Installation
Tools Needed If Installation By Yourself (not include)
Installation area
Warning!
• Stability is important to prevent the product from wandering!
• Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in
the picture.
Before installing the machine, the location characterized as follows shall be selected:
• Rigid, dry, and level surface.
• Avoid direct sunlight.
• Sufficient ventilation.
• Room temperature is above 5°C.
• Keep far away from the heat sources such as coal or gas burning appliances.
Product usage
B

7
EN
Product usage
B
Unpacking the washing machine
Warning!
• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation ! Keep all packaging well away from children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the machine and remove the base packaging.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Remove transport bolts
Warning!
• You must remove the transport bolts from the backside before using the
product.
1. Loosen the 4 transport bolts with a spanner.
2. Remove the bolts including the rubber parts and keep them for future use.
3. Close the holes using the cover caps.
Levelling the washing machine
Warning!
• The lock nuts on all four feet must be screwed tightly against the housing.

8
EN
Product usage
B
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level using
a spirit level.
Connect the water supply hose
Warning!
To prevent leakage or water damage, follow the instructions in this chapter.
• Do not kink, crush or modify water inlet hose.
Connect the water supply hose to the water inlet valve and a water tap with cold water as
indicated.
Note:
• Connect manually, do not use tools. Check if the connections are tight.
Drain Hose
Warning!
• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.
• It is not allowed to remove the buckle of drain pipe.

9
EN
Product usage
B

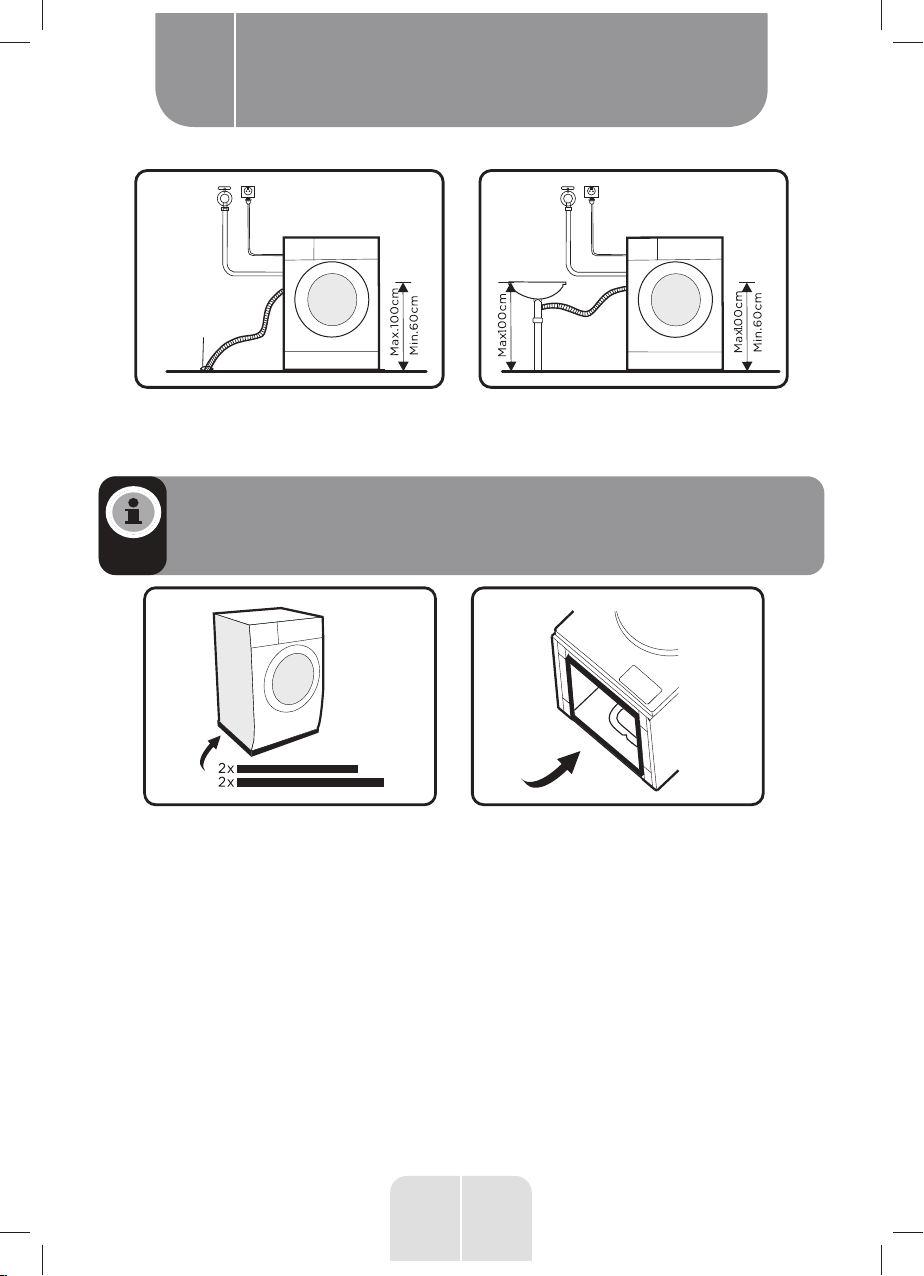

There are two ways to place the end of drain hose:
Water
trough
1. Put it into the water trough.
2. Connect it to the branch drain pipe of the trough.
Acoustic Sponge
Note:
• Please make sure to assemble the acoustic sponges, which can effectively
reduce the noise caused by the machine while working, in order to provide
you with a more peaceful and quiet living environment.
1. Get the machine laid on the floor, using some soft material like foam or clothes between
the machine and floor for a protection.
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x shorter
sponges to the shorter bottom edges.

10
EN
Product usage
B
Operation
Quick Start
Caution!
• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory.
To remove any residual water and to neutralize potential odors,
it’s recommended to clean your appliance before first use. For this
reason, recommended to clean the inner drum by running the «Drum
Clean» or other program with the optional temperature of 90 °C.
Be careful not to put laundry and detergent in the machine.

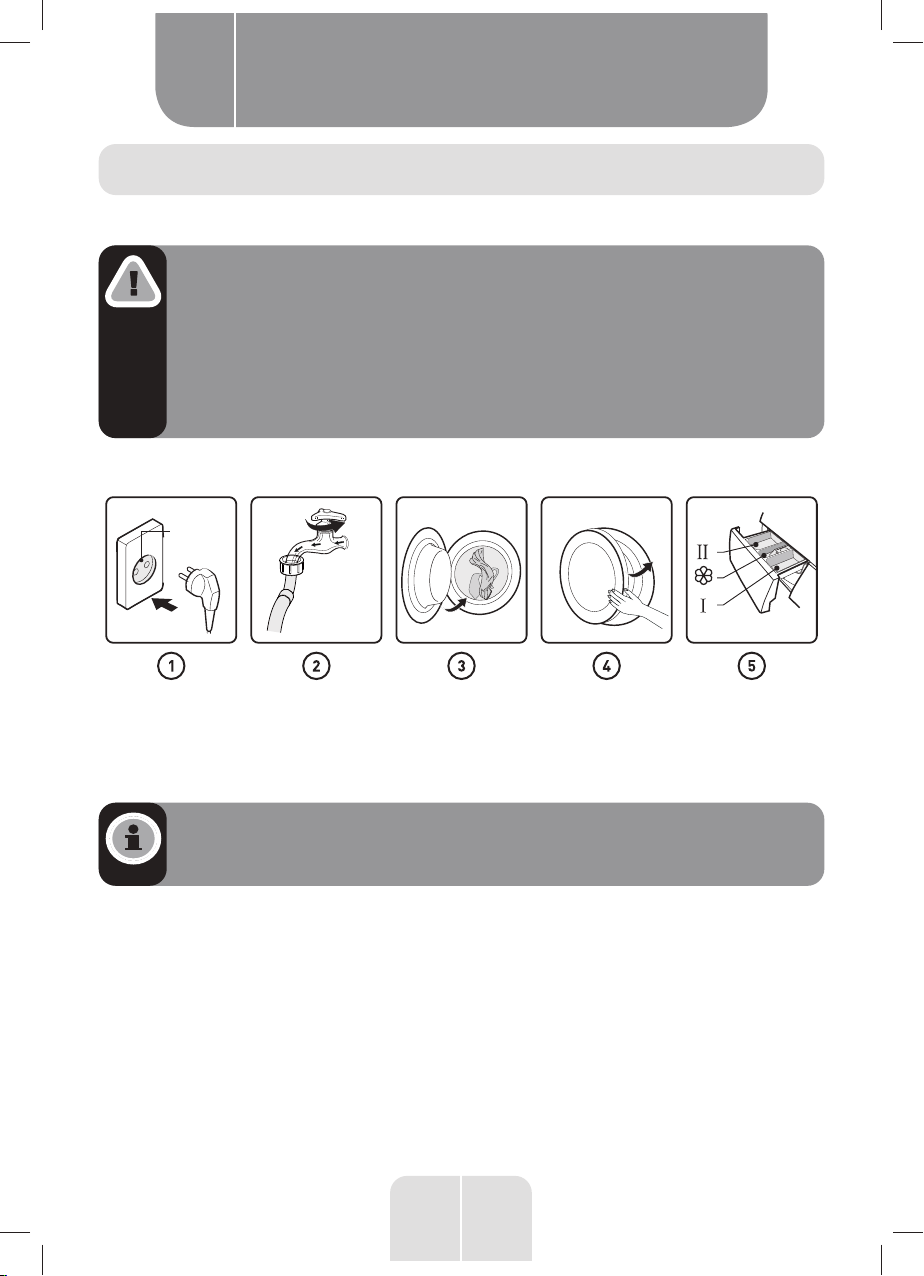

• Before Washing
earth
terminal
1. Plug in
2. Open tap
3. Load
4. Close door
5. Add detergent
Note:
• Detergent need to be added in compartment I if the pre-wash function is
selected.

11
EN
Product usage
B

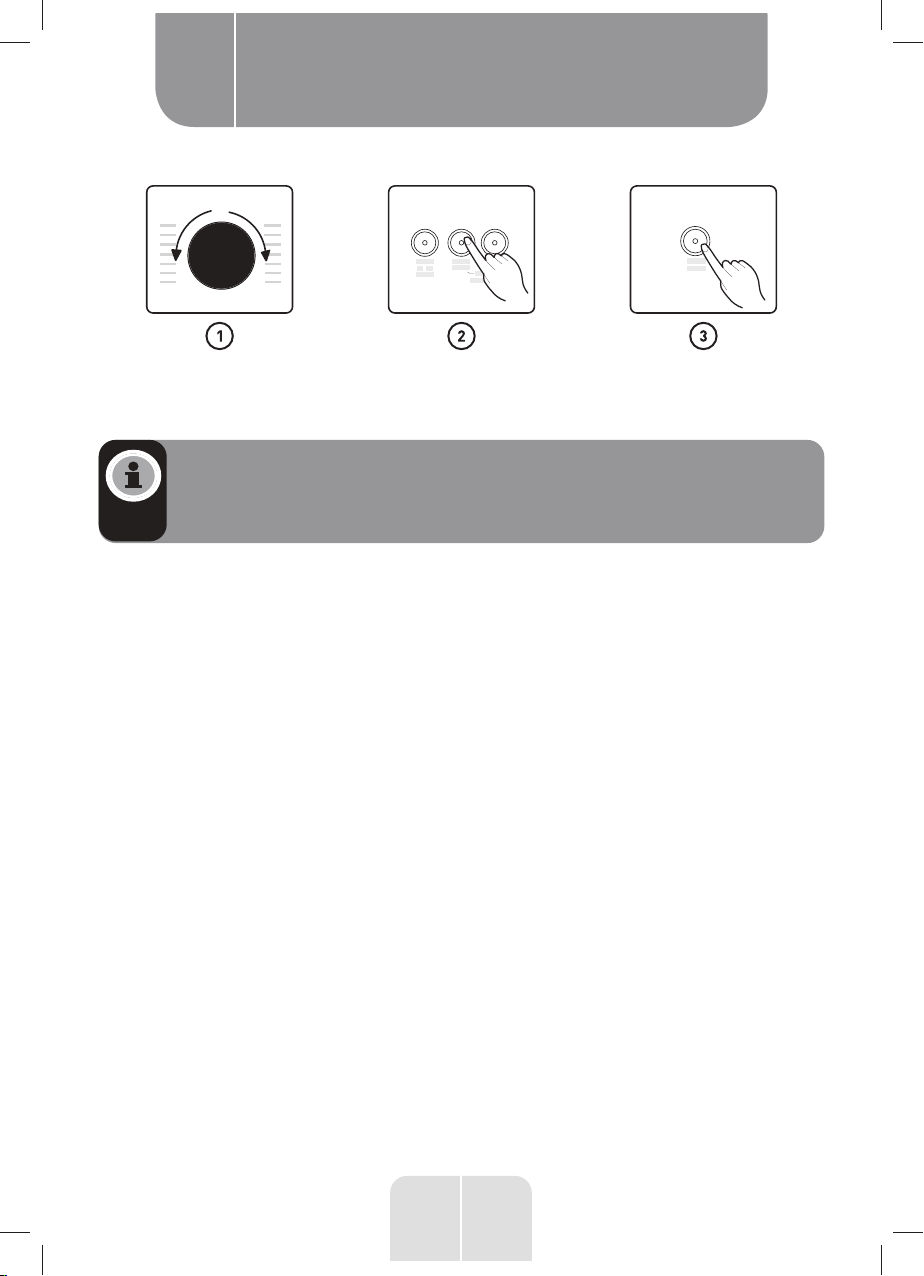

• Washing
1. Select programme
2. Select function or remain default settings
3. Press Start/Pause to start the program
Note:
1. If default is selected, step 2 can be skipped.
2. The function button line chart is for reference only, please refer to real product
as standard.
• After Washing
Buzzer beep.
Before Each Washing
• The ambient temperature of the machine should be 5°C-40°C. If used under 0°C, the inlet
valve and draining system may be damaged. If the machine is installed under freezing
conditions, it should be transferred to normal ambient temperature to ensure the water
supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash.
Use non-foaming or less-foaming detergent suitable for washing machine properly.

12
EN
Product usage
B
1. Take all items out of the pockets
2. Sort laundry according to color and textile type
3. Tie together long textile strips and belts, close zips and button
4. Put small items into a laundry bag
Warning!
• Do not wash articles that have been cleaned in, washed in, soaked in, or dabbed
with combustible or explosive substances like wax, oil, paint, gasoline, alcohol,
kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity.
Therefore it is suggested to add one or two more laundry items to the wash
so that spin can be done smoothly.
• Do not wash, spin, or dry water-proof seats, mats, or clothing.

13
EN
Product usage
B
Detergent Dispenser
Pre wash
Main wash
Softener
Release button to pull out
the dispenser
Caution!
• Detergent only need to be added in “compartment I” after selecting pre-wash
function.
• Do not put laundry beads into the detergent dispenser.
Control Panel
OFF Turn the appliance on and off.
Start/Pause Start or pause your programme.
Option This allows you to select additional functions and will
light when selected.
Programmes Available according to the laundry type.

14
EN
Product usage
B
Programme /
Synthetic   
Synthetic 40°C   
Cold Wash   
Cold Wash 20°C   
Cotton 30°C   
Cotton 40°C   
Cotton 60°C   
Cotton 90°C   
ECO 40-60  
Cotton Intensive 40°C  
Cotton Intensive 60°C  
Drum Clean 
Steam Wash  
Spin Only
Rinse&Spin 
Delicate 30°C  
Delicate  
Ends in 9H  
Ends in 6H  
Ends in 3H  
Quick Wash 45'  
Quick Wash 30'  
Quick Wash 15'  
 Means must  Means optional

15
EN
Product usage
B
Detergent Recommendation
Recommended washing
detergent
Type of laundry
and textile Wash cycles Washing temp. °C
Heavy-duty detergent
with bleaching agents
and optical brighteners
White laundry
made from boil-
proof cotton or
linen
Cotton,
ECO40-60 30/40/60/90
Colour detergent without
bleaching agent and
optical brighteners
Coloured laundry
made from cotton
or linen
Cotton,
ECO40-60,
Cold Wash
Cold/20/30/40/60/90
Color or mild detergent
without optical
brighteners
Coloured laundry
made from easy
care fibres or
synthetic materials
Cold Wash,
Synthetic Cold/20/40
Mild washing detergent Delicate textiles,
silk, viscose Synthetic Cold /40
Note:
• Agglomerating or ropy detergent or additive can be diluted in some water
before pouring it into the detergent dispenser, to avoid its inlet to get blocked
and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption.
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap
water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less
detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.
Following symptoms are a sign of detergent overdosing:
– Heavy foam formation
– Poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
– Laundry turns grey
– Built-up of limescale deposits on the drum, the heating element and/
or the laundry

16
EN
Product usage
B
Programmes
Programmes are available according to the laundry type.
Programmes
Synthetic
Wash synthetic articles, for example: shirts, coats,
blending. While washing the knitting textiles, detergent
quantity shall be reduced due to its loose string
construction and easily forming bubbles.
Cold Wash Cold water to wash clothes.
Cotton Hard-wearing textiles, heat-resistant textiles made of
cotton or linen.
ECO 40-60 Able to clean normally soiled cotton laundry declared to be
washable at 40 °C or 60 °C, together in the same cycle.
Cotton Intensive To increase the washing effects, washing time is increased.
Drum Clean
It applys 90 °C high temperature sterilization to make
the clothes washing more green. When this procedure is
performed, the clothes or other washing cannot be added.
When proper amount of chlorine bleaching agent is put in,
the barrel cleaning effect will be better. The customer can
use this programme regularly according to the need.
Steam Wash
The Steam Wash can deeply penetrate the fiber which
effectively eliminate bacterias and germs preventing odors
and protecting health.
Spin Only Spins and drains the water.
Rinse & Spin Rinses and then spins the laundry, and then drains the
water.
Delicate For delicate, washable textiles, e.g. made of silk, satin,
synthetic fibres or blended fabrics.
Ends in The function can be set with this programme, the total time
including washing time and delaying time is 3h,6h or 9h.
Quick Wash It is suitable for washing few and not very dirty clothes
quickly. The washing time is 15’, 30’ or 45’.

17
EN
Product usage
B
Note:
• Reference to your product to select the programmes.
Programme Load(kg) Display Time
5,0 5,0
Synthetic 2,5 2:20
Synthetic 40°C 2,5 2:20
Cold Wash 5,0 1:00
Cold Wash 20°C 5,0 1:01
Cotton 30°C 5,0 2:40
Cotton 40°C 5,0 2:40
Cotton 60°C 5,0 2:45
Cotton 90°C 5,0 2:50
ECO 40-60 5,0 3:08
Cotton Intensive 40°C 5,0 3:48
Cotton Intensive 60°C 5,0 3:53
Drum Clean -- 1:18
Steam Wash 5,0 0:12
Spin Only 2,5 1:27
Rinse&Spin 5,0 0:20
Delicate 30°C 2,0 0:50
Delicate 2,0 0:48
Ends in 9H 5,0 0:59
Ends in 6H 5,0 0:59
Ends in 3H 5,0 0:59
Quick Wash 45' 2,0 0:45
Quick Wash 30' 2,0 0:30
Quick Wash 15' 2,0 0:15

18
EN
Note:
• The parameters in this table are only for user’s reference. The actual
parameters maybe different with the parameters in above mentioned table.
WF 510 D W566C
Cycle
Nominal capacity in kg
Temperature setting
Cycle duration in h:min
Energy consumption
in kWh/cycle
Water consumption
in L/cycle
Highest washing
temperature °C(1)
Residual moisture in
%/ Spin speed(2)
Synthetic 2,5 Cold 2:20 0,327 50 Cold 65%/1000
Cold Wash 20°C 2,5 20 1:01 0,201 34 20 65%/1000
Cotton 60°C 5,0 60 2:45 1,175 51 60 70%/1000
ECO 40-60(3)
5,0 – 3:08 0,769 46,0 37 71,9%/1000
2,5 – 2:30 0,485 37,0 31 71,9%/1000
1,5 – 2:30 0,368 34,0 28 71,9%/1000
Cotton Intensive
40°C
5,0 40 3:48 0,994 51 40 65%/1000
Quick Wash 15’ 2,0 Cold 0:15 0,035 31 Cold 75%/800
• The above data is for reference only, and the data may change due to different actual use
conditions.
• The values given for programmes other than the ECO 40-60 programme are indicative only.
• Cold Wash 20°C is able to clean lightly soiled cotton laundry, at a nominal temperature
of 20 °C,which complies with the regulation (EU) 2019/2023.
• Compliant to EN 60456:2016+A11:2020 With(EU) 2019/2014,
(EU) 2019/2023, (EU) 2021/340, (EU) 2021/341.
The EU energy efficiency class is: S
Energy test program: ECO 40-60. Other as the default.
Half load for 5.0kg machine:2.5kg.
Quarter load for 5.0kg machine:1.5kg.
Product usage
B
