Hisense Laser Cinema User manual

USER MANUAL
Read the manual carefully and ensure you have fully understood its contents before operating this device for the first time.
English

A
Paragraphs beginning with the symbol indicate important instructions, tips or conditions for the following settings.
For your own safety and the optimal performance of your device, ensure to read the safety instructions before performing any
installation.
Compatibility with 3rd party products, software and services are not guaranteed. We cannot be held liable for any damage or loss
su󰀨ered whilst operating, using or connecting to incompatible devices or apps.
The recording and playback of content on this or any other device may require permission from the owner of the copyright or other
such rights in that content. It is your responsibility to ensure that your use of this or any other device complies with applicable
copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved
or contact the owner of the rights of the content you wish to record or playback.
Read these instructions
Follow all instructions
Heed all warnings
Keep these instructions
All rights reserved.
▌Important Notice
▌Safety Instructions
To ensure safe and correct use of this product, always comply with the following precautions to avoid dangerous situations and
damage to your unit:
The lightning flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.

B
The intended use and ambient conditions for this device
This device is intended for the rendering of video and audio signals, on a table-top, in a home or o󰀩ce environment. It must not be
used in rooms with a high level of humidity or dust concentration. The warranty is only valid if used as intended by the manufacturer.
WARNING
High humidity and dust concentration may lead to current leaks in the device. To reduce the risk of re or electrical shock:
- Do not expose this unit to rain, moisture, dripping or splashing water, and do not place objects lled with liquids, such as vases,
cups, etc. on or over the unit.
- Do not touch the device with wet hands.
- Do not expose to direct air-conditioning and keep candles or other naked ames away from the device at all times.
If the device is moved from a cold environment to a hot environment, leave it switched o󰀨 for at least an hour to avoid condensation.
If used outside, make sure it is protected from moisture.
If you notice anything unusual, immediately remove the power plug.
In case of re, use preferably a CO2 gas or powder re extinguisher. If such extinguishers are not accessible, try to isolate the electrical
supply before using a water re extinguisher.
Never place a Laser Cinema in an unstable location. A Laser Cinema may fall, causing serious personal injury or death. Many
injuries, particularly to children, can be avoided by taking simple precautions such as:
- Using cabinets or stands recommended by the manufacturer of the Laser Cinema.
- Only using furniture that can safely support the Laser Cinema.
- Ensuring the Laser Cinema is not overhanging the edge of the supporting furniture.
- Not placing the Laser Cinema on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and
Laser Cinema to a suitable support.
- Not placing the Laser Cinema on cloth or other materials that may be located between the Laser Cinema and supporting furniture.
- Educating children about the dangers of climbing on furniture to reach the Laser Cinema or its controls.
If your existing Laser Cinema is being retained and relocated, the same considerations as above should be applied.

C
Power Supply
Incorrect voltages can damage the device. Only connect this unit
to a power supply with the correct voltage and frequency noted
on the type plate, using the supplied power cable.
The power plug must be easily accessible so that the device can
be disconnected at all time. The unit is live, even if in standby
mode, as long as the unit is connected to a power outlet.
It is recommended that this unit is placed on a dedicated circuit.
- Do not overload the power outlets by connect too many
appliances to the same outlet. Overloaded wall outlets,
extension cords, etc. are dangerous and can result in electric
shock and re.
After power o󰀨, don't turn it on again in 5 seconds. Frequent
switching power supply in a short period of time can cause
abnormal device.
Power plug and power cable
- Do not touch the power plug with wet hands.
- Do not place heavy objects on the power cable. Route the
cable so that it is not kinked or laid over sharp edges, walked
on or exposed to chemicals. A power cable with damaged
insulation can cause electric shock and re.
- Pull the power plug, NOT on the cable when disconnecting.
The cable can become damaged and cause a short circuit if
pulled on.
- Do not place the power cable near a high temperature object.
- Do not move the device with the power cable plugged into a
socket.
- Do not use a damaged or loose power cable, or a damaged
socket outlet.
- Do not use any power cords other than the one supplied with
this unit.
Air ventilation and high temperatures
Install your device only where there is proper ventilation, and ensure
that there is at least 20 cm free space on the sides and 15 cm
free space on the back unit for air circulation. Excessive heat and
obstruction of ventilation could lead to re or early failure of some
electric components.
- Do not block any ventilation openings with newspapers,
tablecloths, curtains, etc.
- Do not dry clothing etc. on top of the unit.
- Take care not to touch the ventilation openings since they may

D
become hot.
- Do not insert foreign objects into the device through the vents.
Warning about o󰀨-gassing
New furniture, carpet, paint, building materials and electronics
can release chemicals into the air through evaporation. After
you set your device up and turn it on for the rst time, you may
notice a slight smell within a couple of hours. This is because
some components of device are heating up for the rst time. The
materials that we use fully meet the environmental requirements
and regulations. Your device is working just ne and the fumes
from the o󰀨-gassing will diminish eventually.
Supervision
- Do not let children play unsupervised close to the device. It
could tip over, be pushed o󰀨 or pulled down from the stand
surface and injure someone.
- Do not allow a switched-on device to run unattended.
Volume
Loud music and noises can lead to irreversible damage to your
ears. Avoid extreme volume, especially over long periods and
when using headphones.
If you hear a drumming noise in your ears, turn down the volume
or temporarily stop using headphones.
Thunder Storms
Pull out the power plug and all connected antenna cables from
the device during a thunderstorm. Overvoltage caused by
lightning strikes can damage the device via the antenna system,
as well as the wall socket.
Long periods of absence
As long as the power plug is connected to a live socket outlet,
the device will consume power even in standby mode. The power
plug and all connected antenna cables should be disconnected
out during long periods of absence.
Cleaning and care
CAUTION:
Unplug the power cord prior to cleaning the device.
Clean the device, the screen, and the remote control with a
soft, moist, clean and color-natural cloth only. Do not use any
chemicals.
- Do not subject the surfaces to insect repellent, solvent,
thinner or other volatile substances. This may degrade the
surface quality.
- Do not spray water or other liquids directly on the device.
Liquid inside the device could lead to product failure.
- The surface of the display panel is treated and may be easily
damaged. Take care not to scratch it with ngernails or other
hard objects.

E
- Also wipe the power plug with a dry cloth at regular intervals.
Service/Repair
Never remove the cover/back of the device; there are no user
serviceable parts inside. Refer all service to qualied service
personnel.
Packaging
Keep the anti-moisture materials and plastic bags out of reach of
children.
Plastic bags can cause su󰀨ocation and the anti-moisture material
is harmful if swallowed. If swallowed by mistake, force the patient
to vomit and visit the nearest hospital.
Modication
Do not attempt to modify this product in any way. Unauthorized
modication could void the warranty of this unit, cause electric
shock and res.
Remote Control batteries
- Incorrect installation may cause battery leakage, corrosion
and explosion.
- Replace only with the same or equivalent type.
- Do not mix old and new batteries.
- Do not mix di󰀨erent battery types.
- Do no use rechargeable batteries.
- Do not burn or break up batteries.
- Be sure to dispose of batteries correctly.
- Do not expose batteries to excessive heat such as sunshine,
re or the like.
Disposal
Refer to the recycling section of this manual.
Laser
Do not look directly at the lens when this device is on
because the laser light may damage your eyes!
- This product comes with a laser module. Do not tear or
modify this device in any manner; otherwise, it may result in
personal injury.
RG2
As with any bright light source, DO NOT STARE INTO THE
BEAM IEC 62471-5: 2015
CLASS 1 LASER PRODUCT
λ = 459~471nm/519~531nm/635~651nm
Wavelength 459~471nm/519~531nm/635~651nm
CLASS 1 LASER PRODUCT IEC 60825-1: 2014
CAUTION:
Use of controls or adjustments or performance of procedures
other than those specied herein may result in hazardous
radiation exposure.
- If this device requires a repair, please wear laser eye

F
protection with an optical density OD that is 4 or higher and
has a wave length of 459-651 nm.
- Do not place any water-containing vessel on this device,
such as cosmetics or liquid medicine.
- If any object or water enters this device, please unplug this
device and contact the service sta󰀨 of Hisense.
- Do not place any exposed re source (e.g. burning candle)
on this device. Keep away from high temperature and heat.
- Do not expose the battery to direct sunlight or candle light.
- Keep air vents on both sides clear from any objects to
prevent the device from overheating inside.
- To avoid a short circuit, product damage or electric shock,
do not use any sharp object or metal to touch the ports or
other openings on the Laser Cinema.
- If this device has been in a warm environment, allow any
built-up condensation to evaporate rst BEFORE you
switch the device on.
- Do not allow a child to stand on or climb up this device.
- Do not place any object above or in front of the lens
because the laser light could cause the object to become
ammable.
- Clean the lens periodically with a clean cloth and make
sure the Laser Cinema is turned o󰀨 before you start.
AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
Class II product: This symbol indicates that it does not require a safety connection of protective earthing (ground).

1
Table of Contents
Accessories List 2

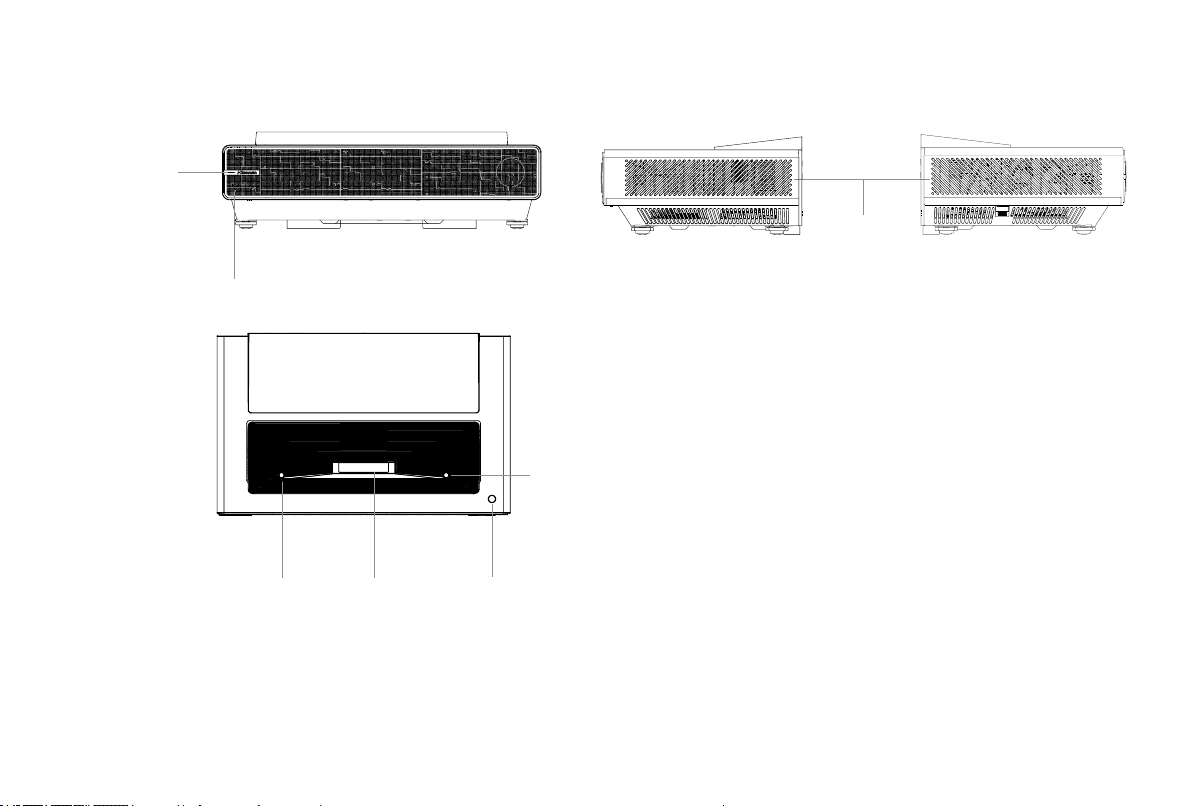

Laser Cinema Diagram 3
STEP 1. Mount the Screen 4
STEP 2. Install the Laser Cinema 4

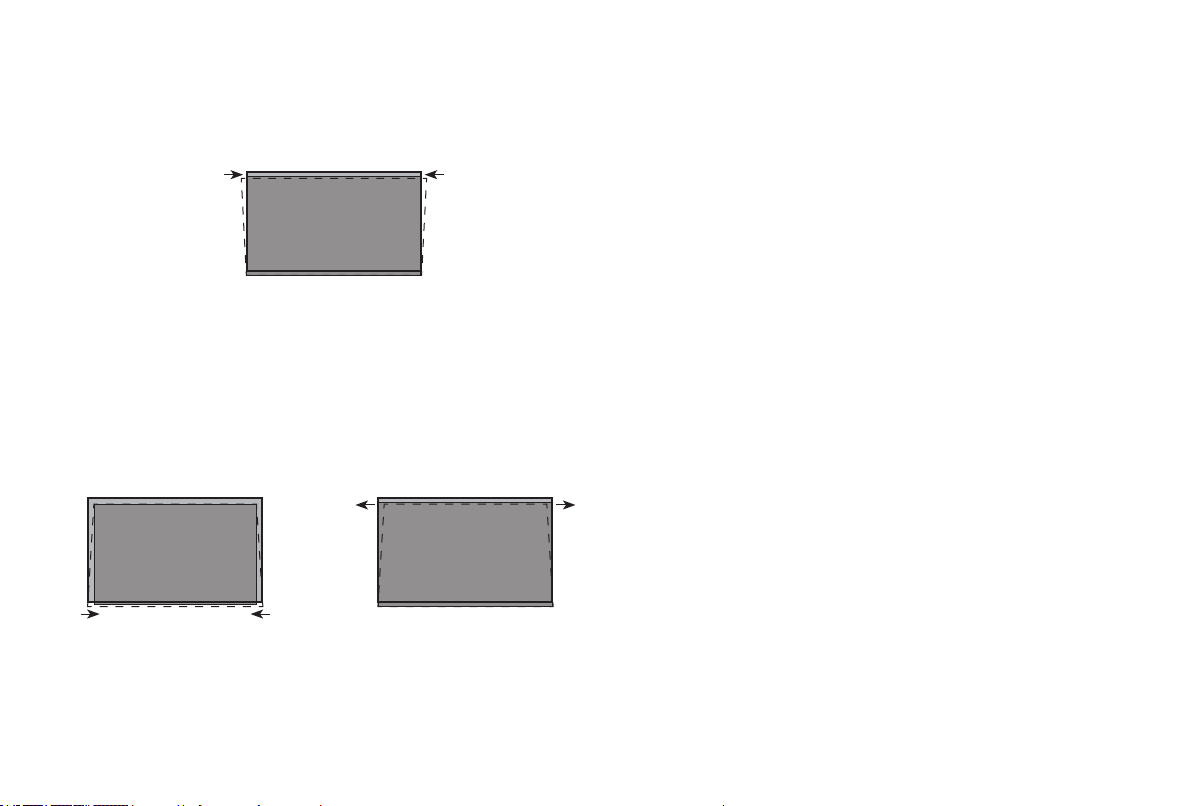

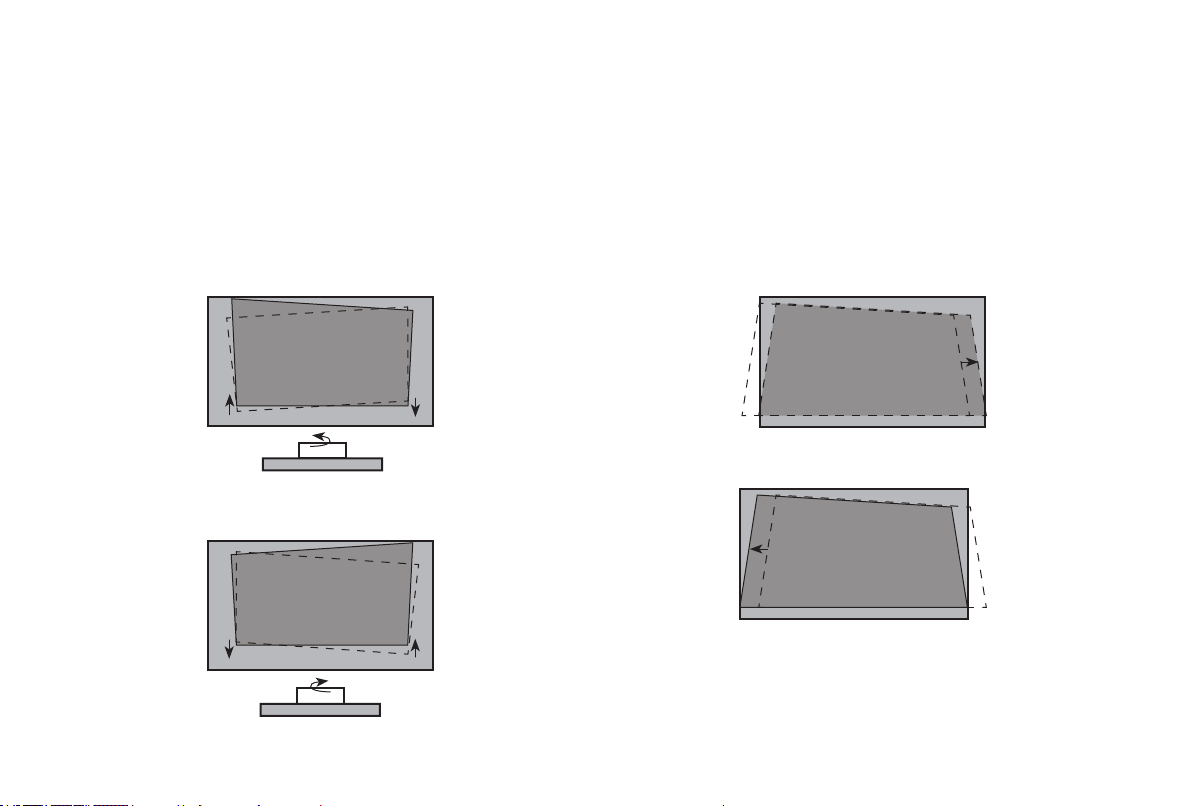

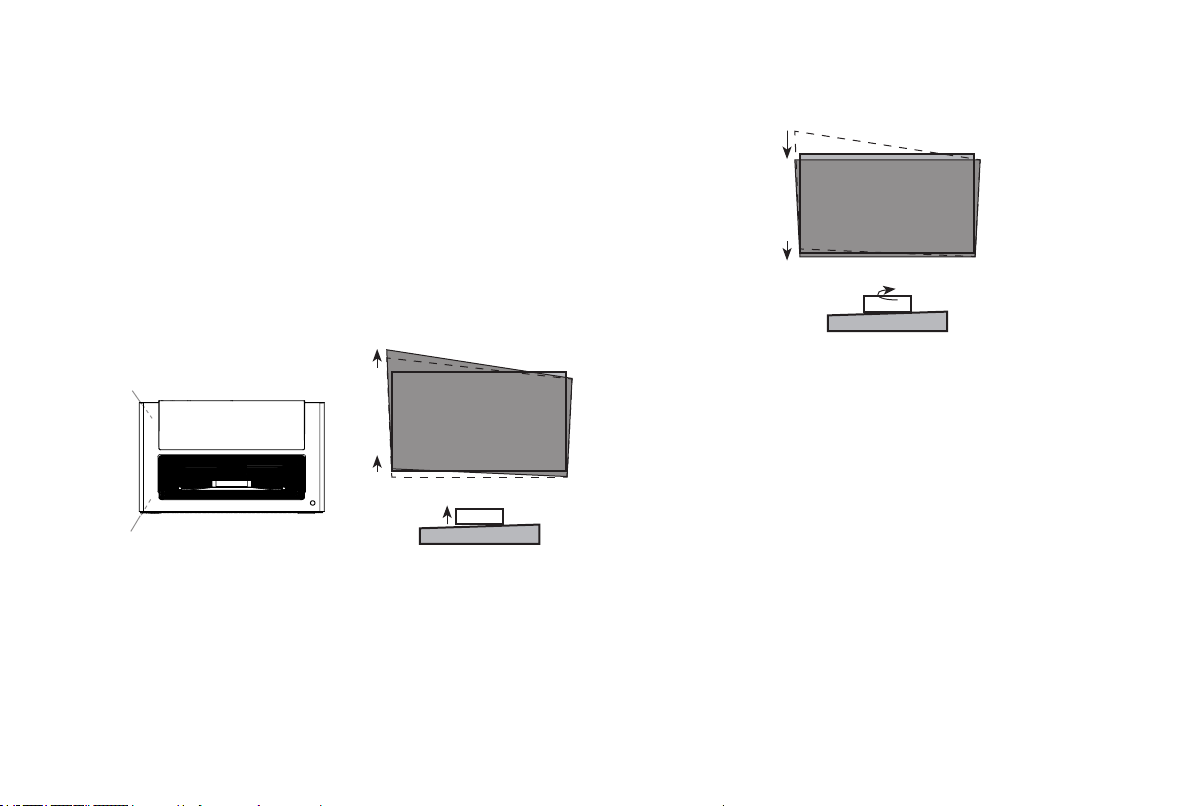

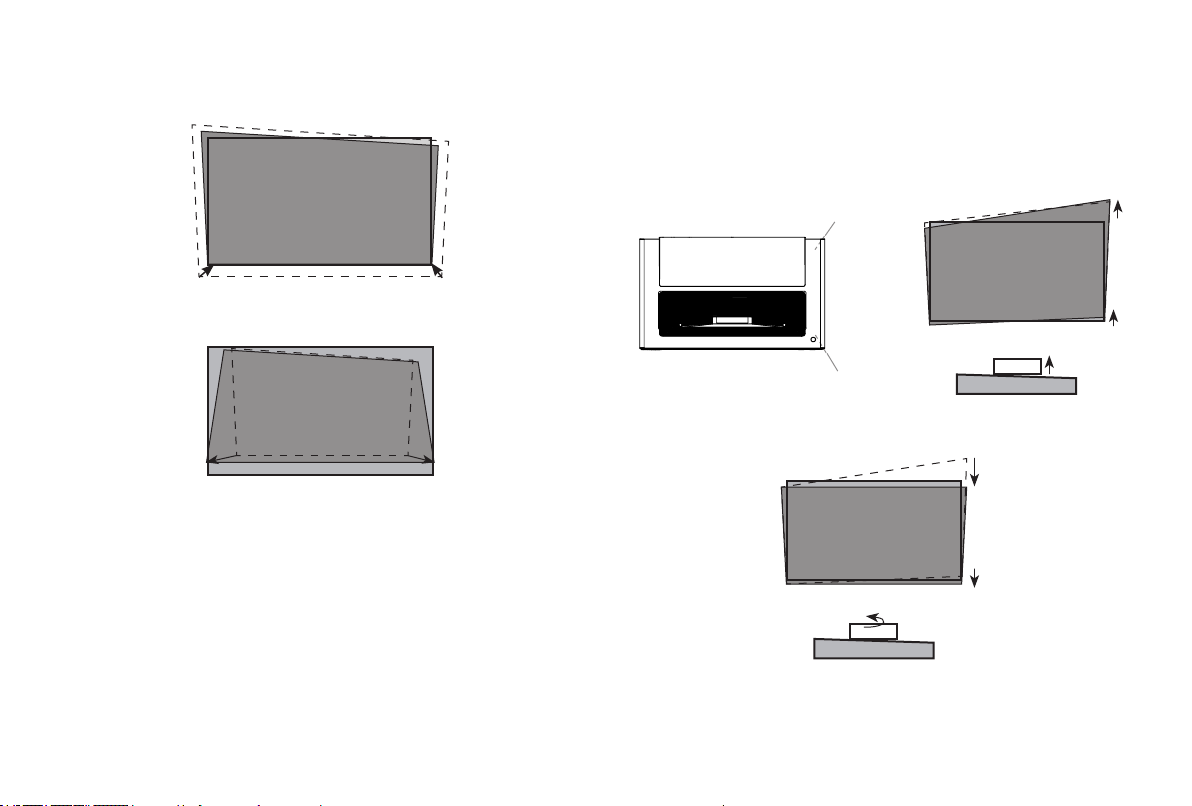

STEP 3. Adjust the Display Image and the Screen 9

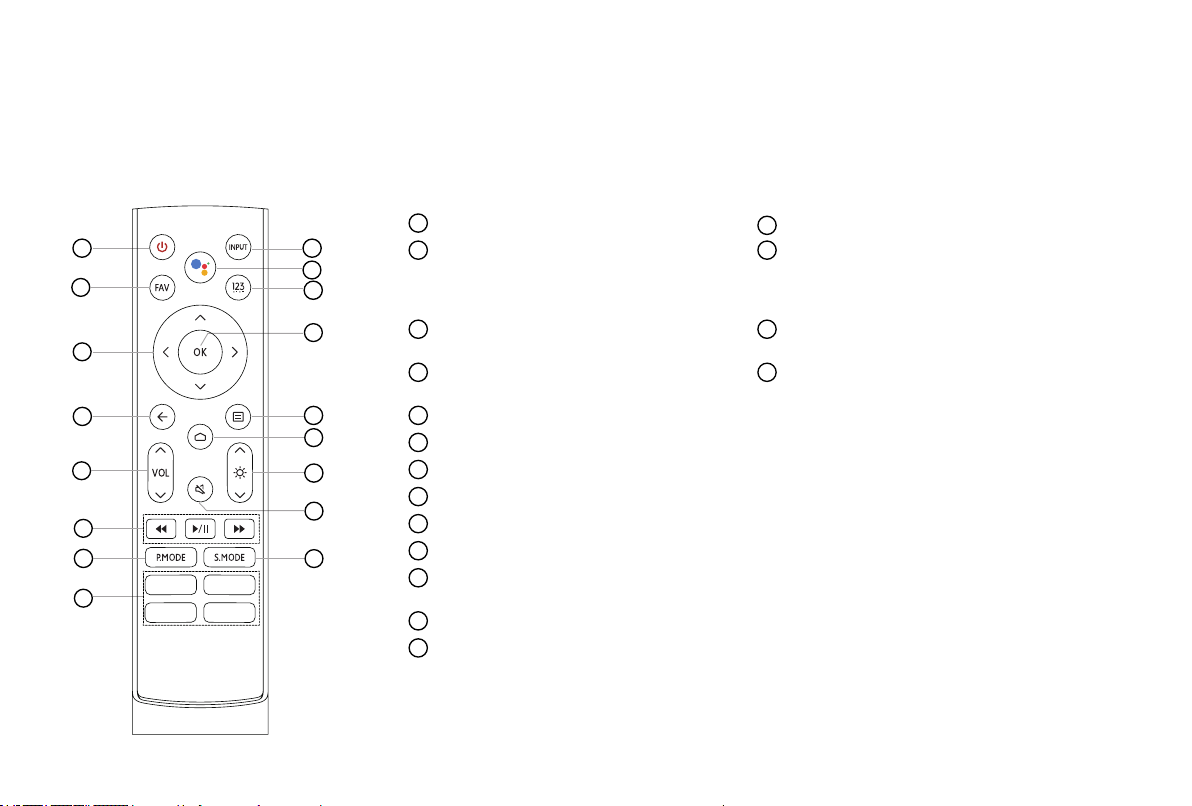

STEP 4. Use Your Remote 13
STEP 5. Proceed through the Screen Setup Menu 15
Maintenance & Quick Problem-Solving Tips 17
Product Specications 19
Recycling / Licenses 21
Congratulations on the purchase of your new Laser Cinema! This Manual will walk you through a few easy steps to set
up your Laser Cinema.
Please visit Hisense o󰀩cial website for more details.
Product image is only for reference, actual product may vary in appearance.
Parts of the software function changes with the system upgrade.

2
Accessories List
NOTE: The accessories may be di󰀨erent from the list above due to di󰀨erent models, countries/regions. Please refer to the actual
accessory bag.
• Laser Cinema × 1
• Remote control × 1
• AAA batteries × 2
• Gloves for handling the Laser Cinema × 2
• Power Cord × 1
• Wrench to adjust the bottom of the Laser Cinema × 1
• Audio Out Cable × 1
• Laser Cinema User Manual × 1
• Laser Cinema European Guarantee × 1
• Cleaning kit for the lens × 1
• C-shaped blocks × 2
• C-shaped Block Installing Instruction × 1

3
We strongly recommend that two people handle this device when moving it from one place to another. Be sure to
protect the lens when you handle this device.
Laser Cinema Diagram
Remote control receiver
Power Indicator
Air vents
Power button
Lens with laser
Eye protection sensor
Eye protection sensor

4
STEP 2 Set up the Laser Cinema
To begin setting up the Laser Cinema, we strongly recommend that TWO people move it from one place to another
because of the weight. Be sure to protect the lens when you handle this device.
STEP 1 Mount the Screen
If you purchased a screen from Hisense to include with your Laser Cinema, then refer to the Screen Installation Guide
that’s included in the package.
1. Now, to get started, we recommend that you connect all cables to the
ports on the back of the Laser Cinema before you position it. (Audio,
video, Ethernet cables and external devices are not included.)
2. Position the Laser Cinema so it is parallel with the screen
surface.
3. Plug the power cord into a wall outlet.
4. Press the POWER button to turn on the Laser Cinema.
8 in8 in
6 in
WARNING: Insufficient ventilation space will cause this device
to overheat or become damaged.
• Do not block the air vents or place any object on this device.
• Do not place this device in any narrow, enclosed or poorly
ventilated space.
At a minimum, leave the amount of space shown in the diagram
below for this device to have proper ventilation.
Laser beam
Power Cord
Wall Outlet

5

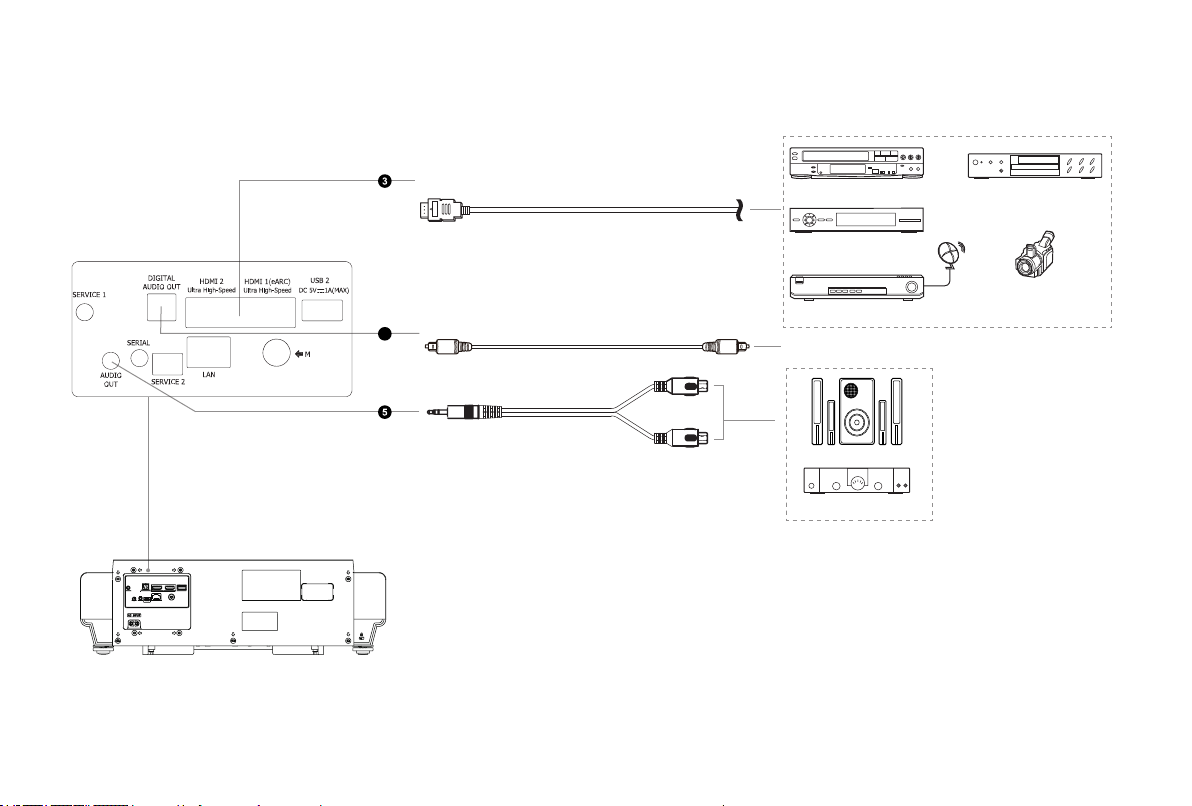

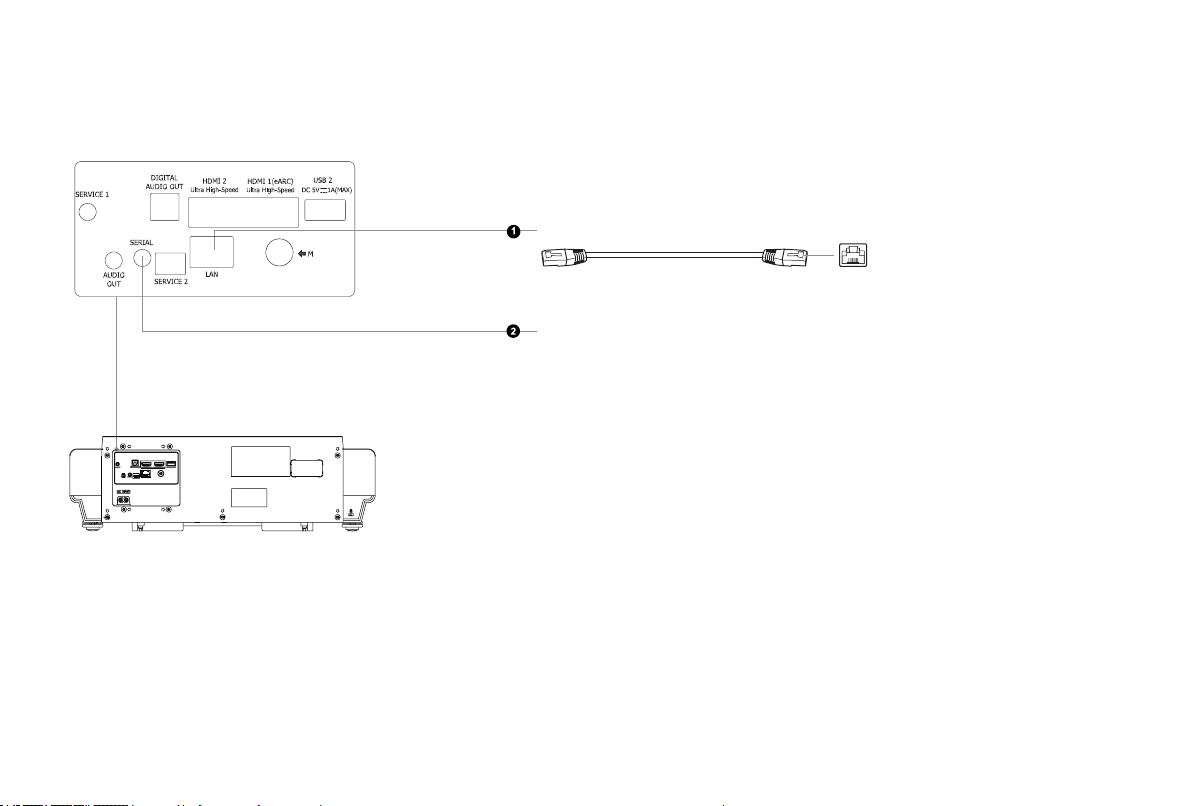

Ports to connect certain cables to
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can
a󰀨ect the quality of the picture image and color.
Ethernet (you will need a router for Internet connectivity)
It may be used to connect to a home automation system or Custom
Integrated Audio/Video (A/V) system. It is recommended that it
should only be completed by a professional installer.

6
Video Camera
DVD Player
External AV devices
VCR
Set-top Box
Satellite Receiver
HDMI
Digital audio adapter
External audio devices
Audio Amplier
Speakers
audio adapter
Red
White
4

7
NOTE:
Use the USB extension cable (included) for easier connection and disconnection.
When connecting a hard disk or a USB hub, always connect the mains adapter of
the connected device to the power supply. Exceeding a total current consumption
may result in damage. The USB2.0 device maximum current consumption is 500mA.
The USB3.0 device maximum current consumption is 1A.
If the impulse current for an individual non-standard high-capacity mobile hard disk
is greater than or equal to 1A, it may cause the Laser Cinema to reboot or lock.
The USB port supports a voltage of 5V.
USB devices for browsing photos, music and movies. This unit only recognizes USB Memory
Sticks.

8

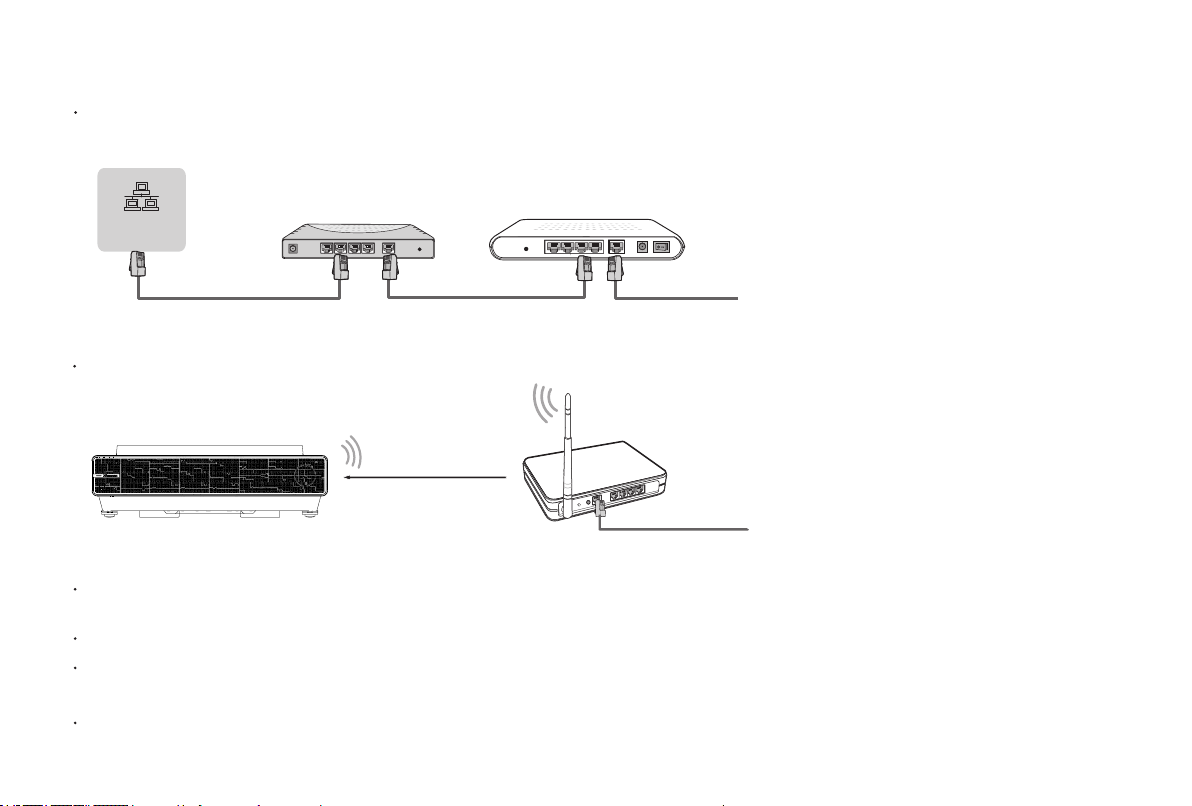

LAN (Wired setup)
Connect your Laser Cinema to your network by connecting the LAN port on the back of your Laser Cinema to an external modem
or router using a LAN (Ethernet/Cat 5) cable. See the illustration below.
Wireless setup
Connect your Laser Cinema to your network wirelessly, you need a wireless router or modem. See the illustration below.
Wireless router with DHCP
LAN Cable
Wireless LAN Adapter
built-in Laser Cinema
Laser Cinema PORT
Modem CableLAN CableLAN Cable
External Modem
(ADSL / VDSL / Cable TV)
IP Sharer (Router)
(with DHCP server)
LAN
NOTE:
You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network
adapters.
If the wireless router supports DHCP, your Laser Cinema can connect more easily to the wireless network.
If you apply a security system other than the systems listed below, it will not work with the Laser Cinema.
security system: WPA, WEP, WPA2.
In order to guarantee smooth network, the distance between router and Laser Cinema should be less than 10 metres.

9
FIT THE BOTTOM OF THE IMAGE TO THE SCREEN
• If the image shifts to the left side, then move the Laser
Cinema to the right.
If the image shifts to the right side, then move the Laser
Cinema to the left.
STEP 3 Adjust the Display Image and the Screen
Follow the steps in the order shown below, only if they apply to your situation.
NOTE: Before adjusting, fold the wall-mount bracket wands so that screen is vertically level. Rotate feet from an overlooking view,
but do not look directely at the lens when the Laser Cinema is on because the laser light may damage your eyes.
PARALLEL THE BOTTOM OF THE IMAGE WITH THE SCREEN
If the bottom of the image is lower on the left and higher on the
right, rotate the device counterclockwise.
If the bottom of the image is lower on the right and higher on the
left, rotate the device clockwise.

10
ADJUST THE UPPER-RIGHT CORNER OF THE IMAGE
1. If the top of the image is lower on the left and higher on the
right, then use the wrench to rotate the front-right foot and
the back-right foot clockwise to the same height.
2. Now, rotate the Laser Cinema counterclockwise so that the
bottom of the image is parallel with the screen.
3. Repeat the steps above until the top of the image is parallel
with the screen.
back-right foot
front-right foot
• If the bottom of the image is wider than the screen, then
move the Laser Cinema closer to the screen.
If the bottom of the image is narrower than the screen, then
move the Laser Cinema farther from the screen.
NOTE: Make sure the bottom of the image always stays
parallel with the screen. If not, rotate the Laser Cinema
following previous instructions.

11
height.
2. Now, rotate the Laser Cinema clockwise so that the bottom of
the image is parallel with the screen.
3. Repeat the steps above until the top of the image parallel
with the screen.
4. If the upper-left corner is inside the screen after adjusting, use
the wrench to rotate the front-left foot and the back-left foot
counterclockwise to the same height, and rotate the Laser
Cinema counterclockwise, to make the image is parallel with
the screen.
4. If the upper-right corner is inside the screen after adjusting,
use the wrench to rotate the front-right foot and the back-
right foot counterclockwise to the same height, and rotate
the Laser Cinema clockwise, to make the image parallel with
the screen.
ADJUST THE UPPER-LEFT CORNER OF THE IMAGE
1. If the top of the image is higher on the left and lower on the
right, then use the wrench to rotate the front-left foot and the
back-left foot of the Laser Cinema clockwise to the same
back-left foot
front-left foot

12
If the top of the image is narrower than the screen, then use
the wrench to rotate the left- and right-back feet of the Laser
Cinema clockwise, until the left and right borders of the image
are parallel with the screen borders.
Next, move the projector further from the screen to ll the image
to screen width.
If the back feet are already at their maximum height, rotate the
left- and right-front feet of the Laser Cinema counterclockwise.
Rotate the back feet clockwise Rotate the front feet
counterclockwise
FILL THE TOP OF THE IMAGE TO THE SCREEN
If the top of the image is wider than the screen, then use
the wrench to rotate the left- and right-front feet of the Laser
Cinema clockwise.
Do not look directly at the lens when this device is on because the laser light may damage your eyes!

13
STEP 4 Use Your Remote
BUTTONS ON YOUR REMOTE
NOTE: The button labels are provided as a reference. The actual appearance of the remote that is included with the Laser Cinema, may di󰀨er from
this diagram.
1Power on/off 14 Display the Home screen
2Press to enter your customized input source/
app
Press and hold to enter customization
settings
15 Brightness (up/down)
3D-pad (up/down/left/right navigation buttons) 16 Press to Mute or restore sound
Press and hold to display Accessibility menu
4Return to the previous place in the menu or
app
17 Quick access to sound mode
5Volume (up/down)
6Media content control function buttons
7Quick access to picture mode
8Quick access buttons to apps
9Change Laser Cinema input source
10 Google Assistant of Laser Cinema
11 Enter Channels/input numbers and special
function buttons
12 Confirmation button
13 Press to enter Menu
Press and hold to pair the bluetooth remote
NOTE: The included remote will vary depending on models, countries/regions. Check information
according to the actual remote in the accessory bag.
3
6
14
5
16
8
10
12
17
1
4
7
9
11
15
13
2
