DIMENSIONS
（SA-1000）
DIMENSIONS
（SK-HD1000）
Multi-Format Digital HDTV Production Camera
Sales and Engineering :
Frankfurt office
Siemensstr. 9, D-63263 Neu-Isenburg, Germany
[phone], Fax : [phone]
To ensure safe operation, please read the instruction manual before using this product.
These Specifications are subject to change without notice.
Head Office :
Head Office :
Eastern Office :
Headquarters and :
Northeast Office
West Office :
Midwest Sales :
South Sales :
Parts Center :
Latin Sales :
Beijing Branch :
Hitachi Kokusai Electric America, Ltd.
Hitachi Kokusai Electric (Shanghai) Co., Ltd. Hitachi Kokusai Electric U.K. Ltd.
Hitachi Kokusai Electric Canada, Ltd.
14-1, Sotokanda 4-choume, Chiyoda-ku, Tokyo 101-8980, Japan
Phone : [phone], Fax : [phone]
URL : http://www.hitachi-kokusai.co.jp/
150 Crossways Park Drive, Woodbury, New York 11797, U.S.A.
Phone : [phone], Fax : [phone]
371 Van Ness Way, Suite 120 Torrance, CA. 90501, U.S.A.
Phone : [phone], Fax : [phone]
Phone : [phone], Fax : [phone]
Service : ([phone]
Phone : [phone]
Service : ([phone]
Phone : [phone], Fax : [phone]
Phone : [phone], Fax : [phone]
1 Select Avenue Unit#11 Scarborough, Ontario M1V5J3, Canada
Phone : [phone], Fax : [phone]
5795 Chemin St. Francois St. Laurent, Quebec H4S 1B6, Canada
Phone : [phone], Fax : [phone]
Head Office : Windsor House, Britannia Road, Waltham Cross,
Hertfordshire EN8 7NX,United Kingdom
Phone : [phone], Fax : [phone]
General email address : [email protected]
URL : http://hitachikokusai.us
URL : http://hitachikokusai.ca
CAUTION :
Room 1413, Beijing Fortune Building, 5 Dong San Huan Bei-Lu,
Chao Yang District, Beijing
Phone : [phone]/8756, Fax : [phone]
DB-E223PPrintedinJapan（D）09-09
CERTIFATE No.
JMI-0062
ISO 9001/BS 5750Pt1
EN 29001/JIS Z9901
213
547 310
133
GAIN OUTPUT WHITE BAL
ECC
FILTER
ND
EX T
CCU
POWER
CALL
262
163
348
191
ＭＥＮＵ
ＣＡＬＬ
ＬＥＶＥＬ ＢＯＸ１ＣＲＯＳＳ ＢＯＸ２
ＭＥＭＯＲＹ
ＨＳＩＺＥ ＶＨ ＰＯＳＩ Ｖ
ＥＸＴＥＮＤＥＲ
ＶＦＳＥＬ
ＶＦ ＤＩＳＰＬＡＹ
ＮＤ
ＦＩＬＴＥＲ
ＣＣ
ＣＳ １ ＣＳ ２ １２３４
ＡＢＣＤＥＦ
３２００Ｋ
１/６４ＮＤＣＡＰ ＣＬＥＡＲＣＲＯＳＳ１/１６ＮＤ
８０００Ｋ６３００Ｋ５６００Ｋ４３００Ｋ
Ａ ＦＥＤＣＢ
４３２１ＣＡＰ
ＦＵＮＣ
ＰＯＷＥＲ ×０.８
ＲＧＢ
ＴＡＬＬＹ
ＦＲＯＮＴ
ＯＮ
ＲＥＴ １ ＲＥＴ ２
DIMENSIONS
（VF-HD500 B&W CRT Studio Viewfinder)DIMENSIONS （VF-L9HD LCD Color Studio Viewfinder）
230
102
175 185
83 86
252 65.5 140
140.4

Multi-Format Digital HDTV Production Camera
Advanced Ergonomics Design
The ultra-efficient SK-HD1000 is a member of Hitachi’s
“Green Products” Global initiative.
High-performance starts with advanced sensors Premier user of
14-bit analog-to-digital conversion
Hitachi cameras were the first on the market to recognize and
implement 14-bit analog-to-digital conversion. The SK-HD1000 takes
full advantage of the increased dynamic range output of the NEW
imagers by using 3 (Red, Green, Blue channel)14-bit analog-to-digital
converters. These high speed ADCs are the bridge between the serial
output of the CCDs and the advanced Hitachi processor. They assure
that every nuance of the image captured and, converted to electrical
energy by the sensors is interpreted in the digital domain resulting in
faithful image reproduction.
1
SK-HD1000 with VF-402 CA-HF1000 Rear Panel
The SK-HD1000 is Hitachi’s third generation HDTV camera that embodies the latest advanced digital signal processing patents
and world-renowned Hitachi technology. It is a high performance, Multi-Standard HDTV studio and field production camera
system that satisfies various TV Systems worldwide. One camera system that is now used with 50Hz or 60Hz AC line power
regions of the world having both analog and digital signals that comply to the respective countries’ TV Systems. As a standard
feature, the SK-HD1000 is a multi-format output camera system since it is able to output dual formats (SD and HD)at the same
time. Optionally available is the ability to perform as a switchable cross-converting HD camera that outputs 1080i or 720p HDTV
signal formats and SD at the same time.
The lightweight (4.4Kg (9.6lbs) : Camera head)2-piece, dockable design gives it unique attributes which provide efficient and
cost-effective adaptation to various TV program production demands. It’ s circuits’’ miniaturization yield not only the smallest
most flexible Hitachi HDTV camera to date but, one the “greenest” and most power efficient (16W camera head power
consumption)ones on the market.
Hitachi has achieved an incredibly quiet HDTV image which is the foundation
for its high performance and excellent picture quality. With the use of NEW
2.3 million pixels, micro-lens array, 1080i CCDs, the SK-HD1000 surpasses
the performance of all prior models. These new sensors enable the
SK-HD1000 to achieve outstanding resolution, dynamic range response,
sensitivity and ultra-low vertical smear characteristics. A high horizontal
resolution performance of 1100TVL (Luminance channel)is the pinnacle of
picture sharpness from any camera presently on the market and is an
attribute to the claim of having the most
transparent signal processing path of any
Hitachi digital camera manufactured to
date.The camera head is also available
with native megapixel 720P CCDs
(SK-HD1000-S4 version) with exceptional
low noise and ultra-low vertical smear
characteristics.
New low center of gravity chassis
Optimized for on-shoulder production
Lightweight, ideal for portable use
Hitachi SK-HD1000 Multi-application HDTV
Studio and Field Production Camera
Multi-Format Digital HDTV Production Camera
Hitachi’s advanced digital signal processing Digital signal transmission via Hybrid Fiber
Optical Cable
Setup memory and adjustment transfer card
Superb High Definition picture reproduction
& enhancement tools
The SK-HD1000 camera system utilizes industry standard Hybrid Fiber-
optic cable connectors made of high-strength stainless steel to insure
durability and reliable performance under the most demanding TV Studio
and Field production circumstances. All command audio and video
signals to and from the camera are digitally transmitted hence, totally
immune to EMI/ RFI interference. Camera power and cable condition
supervision are also performed when using the Hybrid Fiber-Optic Cable
(HFOC). Full Auxiliary (up to 4 analog or digital, HD or SD)video return
and individual Teleprompter facilities are also available with the SK-
HD1000 transmission system. The maximum HFOC length with applied
camera power and fully operational facilities is 1,000 meters* (3,280
feet*).
Unique to cameras in the SK-HD1000’ s price range are optical power
meters at the camera head (via engineering menu)and on the front of the
CU-HD1000 camera control unit. These meters indicate the optical
condition of both the receive and, transmit signals independently to
accurately depict the proximity to the “digital cliff”, maximum cable
distance or provide basic HFOC diagnostics in the field.
*HFOC distance with applied CCU power differs depending on the system configuration.
It is dependant on the type of lens used, viewfinder, studio Adaptor, teleprompter and
other accessories that may be connected and thereby consuming power otherwise
available for the camera head.
Each essential part of the Hitachi SK-HD1000 camera system has its
own DSP processor. Different DSP ICs are used independently for the
HDTV camera head processing, the transmission system and the
Camera Control Unit (CCU)processing. The new, power-efficient Digital
Signal Processor LSI’ s are designed under the 65nm rule with dynamic
processing capability in excess of 30-bits per pixel, per RGB channel.
Hitachi’ s DSP processors are designed for and, can adopt to
progressive readout HDTV sensors. The processing dynamic headroom
of the SK-HD1000 in theory (14-bit), allow for signals in excess of 85dB
to be faithfully reproduced. Additional digital encoding at the camera
head and CCU provides low interference and high signal integrity for
both digital and analog outputs.
An outstanding overall signal-to-noise ratio specification of 60dB is
achieved by use of our own low-noise circuit technology. The standard
sensitivity is rated at F10 with 2000 lx.
Even at high gain, clear images are obtained with little noise.
2
Luminance response tools
Selectable gamma tables
In addition to normal gamma point and balance adjustments, the
SK-HD1000 offers a multi-point gamma table that provides the user
with exposure control over just the darkest points in the image. It
enables adjustment of the initial gamma gain to optimize the repro-
duction of dark scene components. Hitachi’ s DSPs assure that no
additional noise components are introduced in the image even with
the most aggressive Gamma Table settings. Additionally, this function
does not change any of the other parameters of the video signal thus
maintaining overall exposure, detail,color reproduction and composition.
Black stretch
The SK-HD1000’s Black stretch function allows for better reprod-
uction of dark or underexposed areas by evenly raising the luminance
response without changing the pedestal or white clip/ knee settings.
It is especially useful in high contrast image venues, outdoors or
sports production.
Linear and auto-knee
Like the peak video level control function of the white clip; the linear
knee function is made up of the actual knee (level compression)point
and its slope which improve overexposed portions of the picture by
compressing the video past a certain point. These points are user
adjustable.
The auto knee provides the perception of a wider dynamic range by
dynamically compressing (varying knee and slope)the video level in
accordance to the strength of its over-exposure.
A small plug-in setup card (SD card)stores the user setup and Scene
File information. The adjustment data can then be recalled and used for
future scenes and productions thereby assuring the exact video “look”
and characteristics as the original Scene File and adjustment settings.
A single cameras’ setup data can also be transferred to quickly adjust a
group of cameras to be used
in a production.
Access to setup card data and
transfer is also available from
the SU-1000 master setup panel.
StandardGamma HighGammaTableON(Simulatedimage）

Multi-Format Digital HDTV Production Camera
Advanced Ergonomics Design
The ultra-efficient SK-HD1000 is a member of Hitachi’s
“Green Products” Global initiative.
High-performance starts with advanced sensors Premier user of
14-bit analog-to-digital conversion
Hitachi cameras were the first on the market to recognize and
implement 14-bit analog-to-digital conversion. The SK-HD1000 takes
full advantage of the increased dynamic range output of the NEW
imagers by using 3 (Red, Green, Blue channel)14-bit analog-to-digital
converters. These high speed ADCs are the bridge between the serial
output of the CCDs and the advanced Hitachi processor. They assure
that every nuance of the image captured and, converted to electrical
energy by the sensors is interpreted in the digital domain resulting in
faithful image reproduction.
1
SK-HD1000 with VF-402 CA-HF1000 Rear Panel
The SK-HD1000 is Hitachi’s third generation HDTV camera that embodies the latest advanced digital signal processing patents
and world-renowned Hitachi technology. It is a high performance, Multi-Standard HDTV studio and field production camera
system that satisfies various TV Systems worldwide. One camera system that is now used with 50Hz or 60Hz AC line power
regions of the world having both analog and digital signals that comply to the respective countries’ TV Systems. As a standard
feature, the SK-HD1000 is a multi-format output camera system since it is able to output dual formats (SD and HD)at the same
time. Optionally available is the ability to perform as a switchable cross-converting HD camera that outputs 1080i or 720p HDTV
signal formats and SD at the same time.
The lightweight (4.4Kg (9.6lbs) : Camera head)2-piece, dockable design gives it unique attributes which provide efficient and
cost-effective adaptation to various TV program production demands. It’ s circuits’’ miniaturization yield not only the smallest
most flexible Hitachi HDTV camera to date but, one the “greenest” and most power efficient (16W camera head power
consumption)ones on the market.
Hitachi has achieved an incredibly quiet HDTV image which is the foundation
for its high performance and excellent picture quality. With the use of NEW
2.3 million pixels, micro-lens array, 1080i CCDs, the SK-HD1000 surpasses
the performance of all prior models. These new sensors enable the
SK-HD1000 to achieve outstanding resolution, dynamic range response,
sensitivity and ultra-low vertical smear characteristics. A high horizontal
resolution performance of 1100TVL (Luminance channel)is the pinnacle of
picture sharpness from any camera presently on the market and is an
attribute to the claim of having the most
transparent signal processing path of any
Hitachi digital camera manufactured to
date.The camera head is also available
with native megapixel 720P CCDs
(SK-HD1000-S4 version) with exceptional
low noise and ultra-low vertical smear
characteristics.
New low center of gravity chassis
Optimized for on-shoulder production
Lightweight, ideal for portable use
Hitachi SK-HD1000 Multi-application HDTV
Studio and Field Production Camera
Multi-Format Digital HDTV Production Camera
Hitachi’s advanced digital signal processing Digital signal transmission via Hybrid Fiber
Optical Cable
Setup memory and adjustment transfer card
Superb High Definition picture reproduction
& enhancement tools
The SK-HD1000 camera system utilizes industry standard Hybrid Fiber-
optic cable connectors made of high-strength stainless steel to insure
durability and reliable performance under the most demanding TV Studio
and Field production circumstances. All command audio and video
signals to and from the camera are digitally transmitted hence, totally
immune to EMI/ RFI interference. Camera power and cable condition
supervision are also performed when using the Hybrid Fiber-Optic Cable
(HFOC). Full Auxiliary (up to 4 analog or digital, HD or SD)video return
and individual Teleprompter facilities are also available with the SK-
HD1000 transmission system. The maximum HFOC length with applied
camera power and fully operational facilities is 1,000 meters* (3,280
feet*).
Unique to cameras in the SK-HD1000’ s price range are optical power
meters at the camera head (via engineering menu)and on the front of the
CU-HD1000 camera control unit. These meters indicate the optical
condition of both the receive and, transmit signals independently to
accurately depict the proximity to the “digital cliff”, maximum cable
distance or provide basic HFOC diagnostics in the field.
*HFOC distance with applied CCU power differs depending on the system configuration.
It is dependant on the type of lens used, viewfinder, studio Adaptor, teleprompter and
other accessories that may be connected and thereby consuming power otherwise
available for the camera head.
Each essential part of the Hitachi SK-HD1000 camera system has its
own DSP processor. Different DSP ICs are used independently for the
HDTV camera head processing, the transmission system and the
Camera Control Unit (CCU)processing. The new, power-efficient Digital
Signal Processor LSI’ s are designed under the 65nm rule with dynamic
processing capability in excess of 30-bits per pixel, per RGB channel.
Hitachi’ s DSP processors are designed for and, can adopt to
progressive readout HDTV sensors. The processing dynamic headroom
of the SK-HD1000 in theory (14-bit), allow for signals in excess of 85dB
to be faithfully reproduced. Additional digital encoding at the camera
head and CCU provides low interference and high signal integrity for
both digital and analog outputs.
An outstanding overall signal-to-noise ratio specification of 60dB is
achieved by use of our own low-noise circuit technology. The standard
sensitivity is rated at F10 with 2000 lx.
Even at high gain, clear images are obtained with little noise.
2
Luminance response tools
Selectable gamma tables
In addition to normal gamma point and balance adjustments, the
SK-HD1000 offers a multi-point gamma table that provides the user
with exposure control over just the darkest points in the image. It
enables adjustment of the initial gamma gain to optimize the repro-
duction of dark scene components. Hitachi’ s DSPs assure that no
additional noise components are introduced in the image even with
the most aggressive Gamma Table settings. Additionally, this function
does not change any of the other parameters of the video signal thus
maintaining overall exposure, detail,color reproduction and composition.
Black stretch
The SK-HD1000’s Black stretch function allows for better reprod-
uction of dark or underexposed areas by evenly raising the luminance
response without changing the pedestal or white clip/ knee settings.
It is especially useful in high contrast image venues, outdoors or
sports production.
Linear and auto-knee
Like the peak video level control function of the white clip; the linear
knee function is made up of the actual knee (level compression)point
and its slope which improve overexposed portions of the picture by
compressing the video past a certain point. These points are user
adjustable.
The auto knee provides the perception of a wider dynamic range by
dynamically compressing (varying knee and slope)the video level in
accordance to the strength of its over-exposure.
A small plug-in setup card (SD card)stores the user setup and Scene
File information. The adjustment data can then be recalled and used for
future scenes and productions thereby assuring the exact video “look”
and characteristics as the original Scene File and adjustment settings.
A single cameras’ setup data can also be transferred to quickly adjust a
group of cameras to be used
in a production.
Access to setup card data and
transfer is also available from
the SU-1000 master setup panel.
StandardGamma HighGammaTableON(Simulatedimage）

Multi-Format Digital HDTV Production Camera
3
Lens optimization
Gray-Scale automatic setup
The SK-HD1000 offers the Gray-Scale Automatic Setup function to
optimize the optical parameters that could negatively affect the image
you are trying to capture and faithfully reproduce. The Gain, Gamma,
and Flare are the video signal functions that vary from lens to lens.
Color reproduction excellence
Picture sharpness enhancement
Triple-masking
The triple-masking function includes the 12-vector, linear matrix and,
Skin-tone masking provide the user wide latitude in subject image color
control. The 12-vector color corrector provides independent control of
the hue and saturation for six primary and six secondary combinations
of colors. The 6-axis linear matrix provides overall color control thereby
providing the user with excellent and precise color rendition control.
Skin-tone masking
The Skin-tone masking function provides “fine Painting” (hue and saturation)
of Skin tones without affecting other colors in the scene. This functions
additional and independently from the linear and 12-vector-masking
functions thereby adding an additional color-correction (Triple-masking)
Channel to the overall image color control.
Automatic vertical modulation shading adjustment
The SK-HD1000 assures that with any lens used, an even, chroma
response will be attained by the automatic vertical modulation shading
correction function. At the simple push of a button, this function
provides separate memory of lens’ modulation shading characteristics
to optimize the X1 and X2 lens extender positions.
Chroma Saturation
In addition to the extensive colorimetry controls offered in the
SK-HD1000, the overall color saturation can be varied to achieve
“dramatic” or artistic “effects” .
Knee Saturation
The Knee Saturation function dynamically restores color saturation to
scene highlights above the Knee point. Color-saturated highlights lost
in overexposed scenes are now visible. This function provides
excellent results in ; for example when imaging : high-contrast, sunny
outdoor scenes, fireworks, concerts, theatre stage lighting, and
colored night scenes.
Absolute detail control
Hitachi provides 3 major detail controls designed to precisely place,
control and shape the picture sharpness characteristics of the
SK-HD1000.
High-chroma detail
The High-chroma detail adjustments allow precise control of the detail
level in highly color-saturated portions of the picture such as the petals
of a rose or a colorful fabric.
Skin-tone Detail
The Skin-tone Detail functions allow a flesh color-based softening of
the image to achieve the impression of more youthful TV personalities.
2 individual memories exist as well as a function to automatically
detect the hue, saturation and luminance of the Skin-tone to be
affected. This function is not limited to Skin-tones only ; it can
increase or decrease the sharpness of any pair of colors in the image.
Master Detail items
Master Detail items are available to adjust varied parameters of the
detail signal to taste or to achieve a desired “look” in your productions.
Some of these adjustments are ; H/V detail, crisp, level dependence,
knee detail, limiter, source, frequency and balance.
SkintonemaskingOFF
KneeSaturationOFF KneeSaturationON(Simulatedimage）
Skin-toneDetailOFF Skin-toneDetailON(Simulatedimage）
SkintonemaskingON(Simulatedimage）
High-chromadetailOFF High-chromadetailON(Simulatedimage）
Colorcorrected(Simulatedimage） OriginalImage
4
Versatile CCD drive functions
Four modes of shutter operation are provided in the SK-HD1000 camera
system :
Five PRESET electronic shutter speeds. For stopping action or fast
moving objects in the image.
LOCK SCAN to image non-synchronous displays without flicker.
Automatic Electronic Shutter (AES)maintains the video level when the
maximum F-stop shooting condition is reached.
Charge Controlled Frame (CC FRM)offers improved vertical resolution.
Very useful in capturing highly detailed static images.
Motorized and remotely controlled optical filters
In traditional photography, ND filters are used for depth of field control.
Four optical ND filters are provided as standard on a motorized,
remotely controlled filter wheel. These are: Clear, 4-point Cross,
1/16ND, 1/64ND. A second remotely controlled optical wheel is
available in the S2 & S4(720P) camera head versions with colour
temperature filters for 3200K, 4300K, 6300K & 8000K
Full auto mode
The AES and automatic iris maintain the video level even with rapidly
changing light intensity. These functions are accessed via the menu
system or the shutter buttons provided on the RU-1200VR/JY and
SU-1000 remote control panels.Full-time Auto White balance (FAW)
corrects in real-time for color temperature variations due to changing
types of lighting conditions on the scene object.
ECC
(Electronic Color Compensation)
Due to the wide gain characteristics of the SK-HD1000, the ECC
function compensates for color temperature electronically by providing
preset gains to equal color temperature gradations of 3200K, 4300K,
5600K, 6300K and 8000K.Only ECC 5600K only in the S2 & S4(720P)
camera head versions.The ECC can be controlled by the remote
control panel and the base station like an optical filter. The setting can
be stored in the Scene files and its status can be displayed on the view
finder and the monitor output.
Optical and image capture functions
Programmable soft-switches (CS-1, CA-CS)
The cameraperson can assign Zebra, marker, VF Detail, Quick Focus or
FAW to the CS-1 switch via the operation menu. The CA-CS switch
can take on the functions of VF Detail on/off, marker-1 or marker-2
on/off.

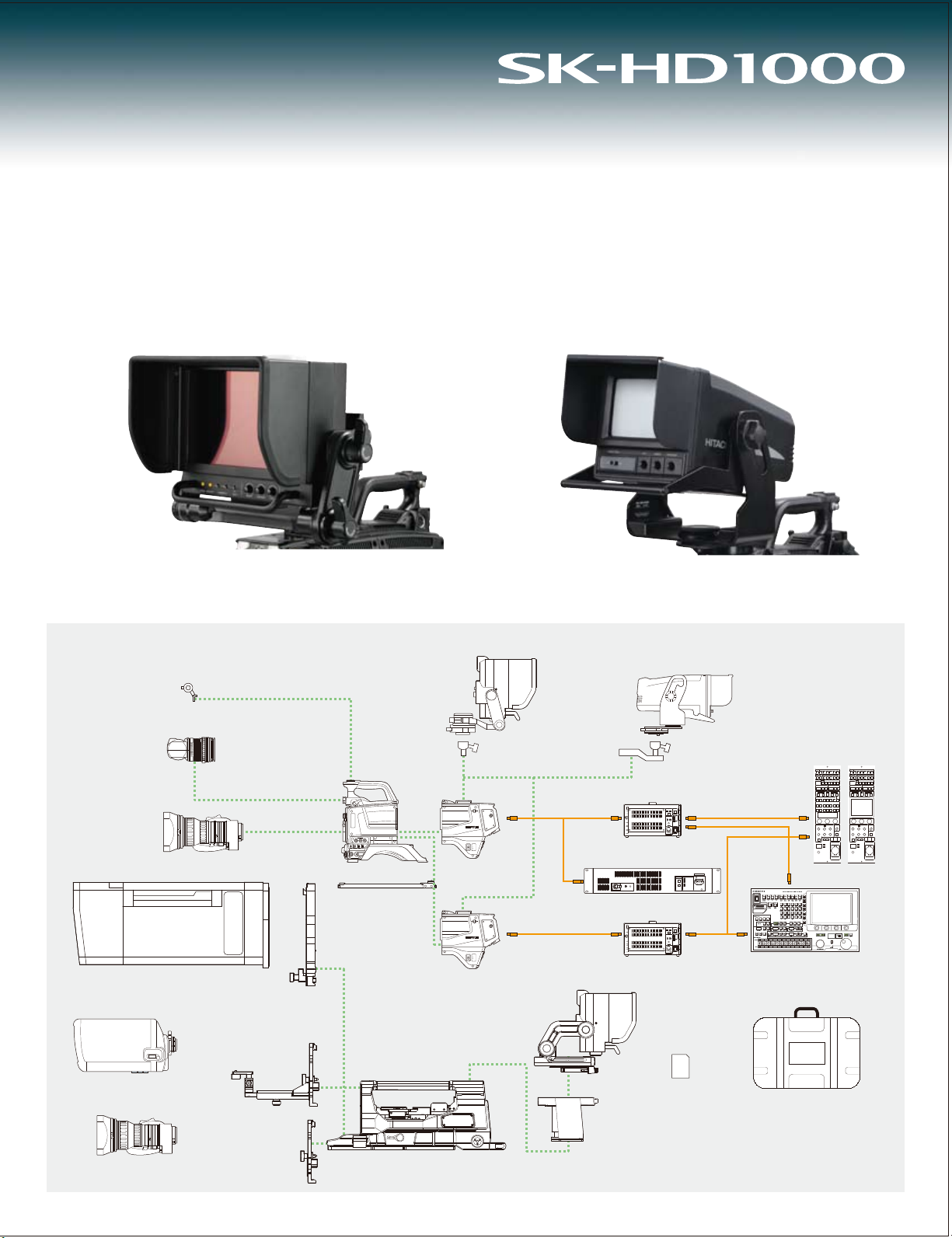

Viewfinder options
Three viewfinder options are offered with the SK-HD1000 camera
system. Black & White CRT-type viewfinders are manufactured for ENG
(2-inch)and OB (5-inch). These are of high-brightness and contrast
making them ideal for easy visibility in field production.
A 9-inch color TFT-LCD screen viewfinder is offered for critical viewing
such as encountered in studio productions.
Viewfinder markers & functions
The SK-HD 1000 provides an excellent gamut of thoughtful viewfinder
markers and functions to aid the cameraman in providing outstanding
results during a TV program production.
All VF parameters can be stored in 4 dedicated memories which can
catalog preferences for different camerapersons, programs, shooting
condition or event period.
Programmable functions include; color/mono, detail, crisp, safety zone,
2 movable markers, center cross-hair, 2 movable effects boxes, variable
aspect ratio side panels, side panel contrast/ bright, 2-mode zebra and
variable line display level polarity.
Camera head inputs & outputs
The camera head provides 2 buffered HD-SDI, 1 SD analog teleprom-
pter out, and 1 HD-SDI switchable as Monitor or VF and RET video
output via BNC connectors. The MIC-1 channel is switchable with
balanced XLR input connector located at the front of the camera
(shotgun mic)or at the rear of the CA-HF1000. All the microphone
input provides phantom power supplies and accept mic or line levels.
These IOs satisfy a wide variety of production requirements and are
provided as with most broadcast-grade cameras.
Ease of use characteristics & functions
The SK-HD1000 incorporates heavy duty mounts for both the ENG and Studio viewfinders.
Comprehensive cameraperson operation panel
In Studio and Field production, the SK-HD1000 provides the camera-
person with a wide array of controls for intercom audio, program audio,
aux video switching controls, script lamp connector, dual-tally and call
functions that are the norm in high-end broadcast cameras. These
functions along with available 100W of teleprompter monitor power
and dedicated prompter SD signal make the SK-HD1000 a logical
choice for sophisticated productions.
Viewfinder status displays
Iris F-stop, Lens Externder position, Shutter speed, Optical and ECC
filter in use, and Gain setting are all displayed or defeated via menu
selection. Menu selection also includes the over-level or between
range-type zebra are also provided.
Quick focus
The Quick Focus function automatically opens the iris then sets the
video level with the electronic shutter. The resulting shallow depth of
focus, allows the cameraman to set the exact focus with ease.

Multi-Format Digital HDTV Production Camera
3
Lens optimization
Gray-Scale automatic setup
The SK-HD1000 offers the Gray-Scale Automatic Setup function to
optimize the optical parameters that could negatively affect the image
you are trying to capture and faithfully reproduce. The Gain, Gamma,
and Flare are the video signal functions that vary from lens to lens.
Color reproduction excellence
Picture sharpness enhancement
Triple-masking
The triple-masking function includes the 12-vector, linear matrix and,
Skin-tone masking provide the user wide latitude in subject image color
control. The 12-vector color corrector provides independent control of
the hue and saturation for six primary and six secondary combinations
of colors. The 6-axis linear matrix provides overall color control thereby
providing the user with excellent and precise color rendition control.
Skin-tone masking
The Skin-tone masking function provides “fine Painting” (hue and saturation)
of Skin tones without affecting other colors in the scene. This functions
additional and independently from the linear and 12-vector-masking
functions thereby adding an additional color-correction (Triple-masking)
Channel to the overall image color control.
Automatic vertical modulation shading adjustment
The SK-HD1000 assures that with any lens used, an even, chroma
response will be attained by the automatic vertical modulation shading
correction function. At the simple push of a button, this function
provides separate memory of lens’ modulation shading characteristics
to optimize the X1 and X2 lens extender positions.
Chroma Saturation
In addition to the extensive colorimetry controls offered in the
SK-HD1000, the overall color saturation can be varied to achieve
“dramatic” or artistic “effects” .
Knee Saturation
The Knee Saturation function dynamically restores color saturation to
scene highlights above the Knee point. Color-saturated highlights lost
in overexposed scenes are now visible. This function provides
excellent results in ; for example when imaging : high-contrast, sunny
outdoor scenes, fireworks, concerts, theatre stage lighting, and
colored night scenes.
Absolute detail control
Hitachi provides 3 major detail controls designed to precisely place,
control and shape the picture sharpness characteristics of the
SK-HD1000.
High-chroma detail
The High-chroma detail adjustments allow precise control of the detail
level in highly color-saturated portions of the picture such as the petals
of a rose or a colorful fabric.
Skin-tone Detail
The Skin-tone Detail functions allow a flesh color-based softening of
the image to achieve the impression of more youthful TV personalities.
2 individual memories exist as well as a function to automatically
detect the hue, saturation and luminance of the Skin-tone to be
affected. This function is not limited to Skin-tones only ; it can
increase or decrease the sharpness of any pair of colors in the image.
Master Detail items
Master Detail items are available to adjust varied parameters of the
detail signal to taste or to achieve a desired “look” in your productions.
Some of these adjustments are ; H/V detail, crisp, level dependence,
knee detail, limiter, source, frequency and balance.
SkintonemaskingOFF
KneeSaturationOFF KneeSaturationON(Simulatedimage）
Skin-toneDetailOFF Skin-toneDetailON(Simulatedimage）
SkintonemaskingON(Simulatedimage）
High-chromadetailOFF High-chromadetailON(Simulatedimage）
Colorcorrected(Simulatedimage） OriginalImage
4
Versatile CCD drive functions
Four modes of shutter operation are provided in the SK-HD1000 camera
system :
Five PRESET electronic shutter speeds. For stopping action or fast
moving objects in the image.
LOCK SCAN to image non-synchronous displays without flicker.
Automatic Electronic Shutter (AES)maintains the video level when the
maximum F-stop shooting condition is reached.
Charge Controlled Frame (CC FRM)offers improved vertical resolution.
Very useful in capturing highly detailed static images.
Motorized and remotely controlled optical filters
In traditional photography, ND filters are used for depth of field control.
Four optical ND filters are provided as standard on a motorized,
remotely controlled filter wheel. These are: Clear, 4-point Cross,
1/16ND, 1/64ND. A second remotely controlled optical wheel is
available in the S2 & S4(720P) camera head versions with colour
temperature filters for 3200K, 4300K, 6300K & 8000K
Full auto mode
The AES and automatic iris maintain the video level even with rapidly
changing light intensity. These functions are accessed via the menu
system or the shutter buttons provided on the RU-1200VR/JY and
SU-1000 remote control panels.Full-time Auto White balance (FAW)
corrects in real-time for color temperature variations due to changing
types of lighting conditions on the scene object.
ECC
(Electronic Color Compensation)
Due to the wide gain characteristics of the SK-HD1000, the ECC
function compensates for color temperature electronically by providing
preset gains to equal color temperature gradations of 3200K, 4300K,
5600K, 6300K and 8000K.Only ECC 5600K only in the S2 & S4(720P)
camera head versions.The ECC can be controlled by the remote
control panel and the base station like an optical filter. The setting can
be stored in the Scene files and its status can be displayed on the view
finder and the monitor output.
Optical and image capture functions
Programmable soft-switches (CS-1, CA-CS)
The cameraperson can assign Zebra, marker, VF Detail, Quick Focus or
FAW to the CS-1 switch via the operation menu. The CA-CS switch
can take on the functions of VF Detail on/off, marker-1 or marker-2
on/off.
Viewfinder options
Three viewfinder options are offered with the SK-HD1000 camera
system. Black & White CRT-type viewfinders are manufactured for ENG
(2-inch)and OB (5-inch). These are of high-brightness and contrast
making them ideal for easy visibility in field production.
A 9-inch color TFT-LCD screen viewfinder is offered for critical viewing
such as encountered in studio productions.
Viewfinder markers & functions
The SK-HD 1000 provides an excellent gamut of thoughtful viewfinder
markers and functions to aid the cameraman in providing outstanding
results during a TV program production.
All VF parameters can be stored in 4 dedicated memories which can
catalog preferences for different camerapersons, programs, shooting
condition or event period.
Programmable functions include; color/mono, detail, crisp, safety zone,
2 movable markers, center cross-hair, 2 movable effects boxes, variable
aspect ratio side panels, side panel contrast/ bright, 2-mode zebra and
variable line display level polarity.
Camera head inputs & outputs
The camera head provides 2 buffered HD-SDI, 1 SD analog teleprom-
pter out, and 1 HD-SDI switchable as Monitor or VF and RET video
output via BNC connectors. The MIC-1 channel is switchable with
balanced XLR input connector located at the front of the camera
(shotgun mic)or at the rear of the CA-HF1000. All the microphone
input provides phantom power supplies and accept mic or line levels.
These IOs satisfy a wide variety of production requirements and are
provided as with most broadcast-grade cameras.
Ease of use characteristics & functions
The SK-HD1000 incorporates heavy duty mounts for both the ENG and Studio viewfinders.
Comprehensive cameraperson operation panel
In Studio and Field production, the SK-HD1000 provides the camera-
person with a wide array of controls for intercom audio, program audio,
aux video switching controls, script lamp connector, dual-tally and call
functions that are the norm in high-end broadcast cameras. These
functions along with available 100W of teleprompter monitor power
and dedicated prompter SD signal make the SK-HD1000 a logical
choice for sophisticated productions.
Viewfinder status displays
Iris F-stop, Lens Externder position, Shutter speed, Optical and ECC
filter in use, and Gain setting are all displayed or defeated via menu
selection. Menu selection also includes the over-level or between
range-type zebra are also provided.
Quick focus
The Quick Focus function automatically opens the iris then sets the
video level with the electronic shutter. The resulting shallow depth of
focus, allows the cameraman to set the exact focus with ease.

56
Multi-Format Digital HDTV Production Camera

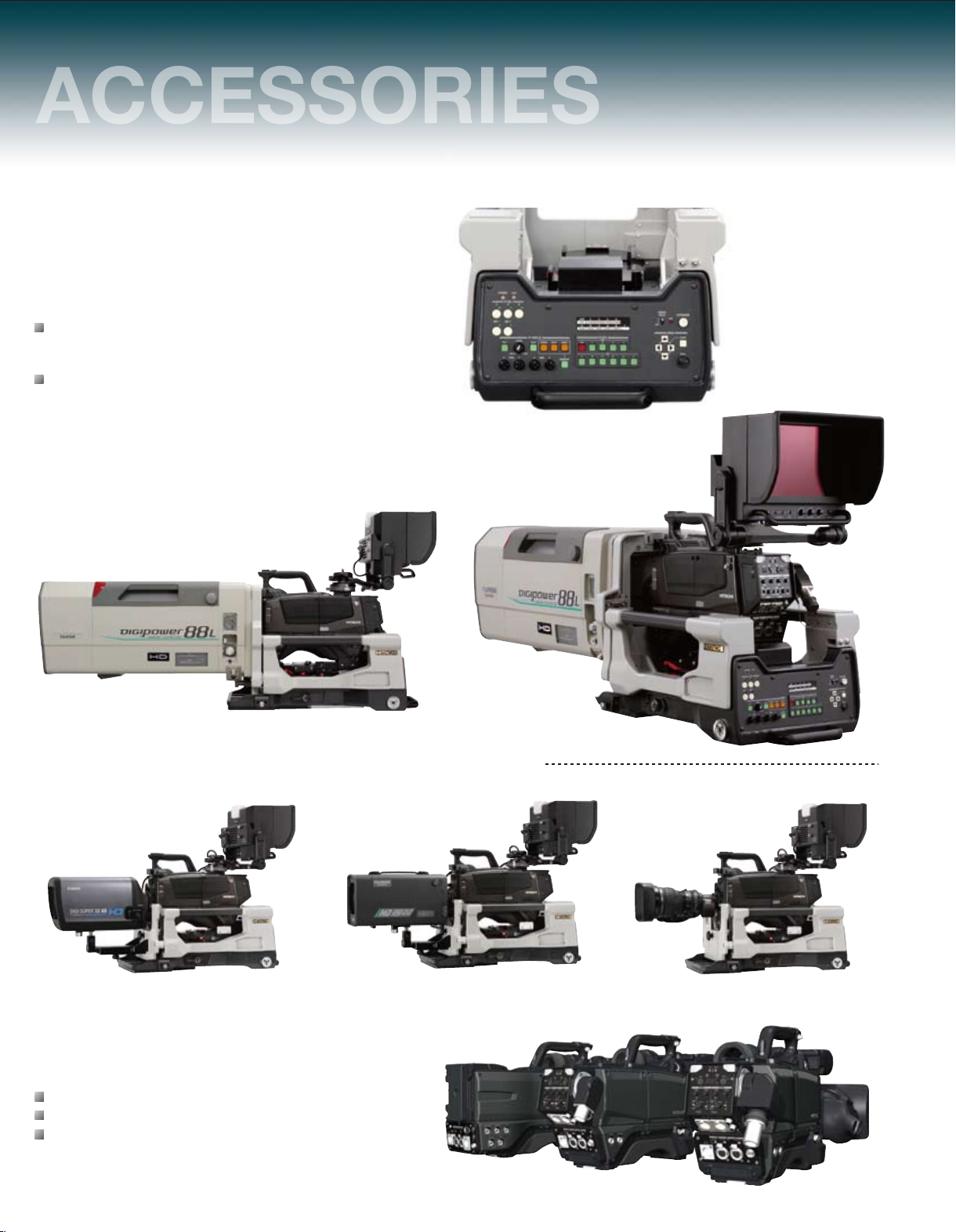

ACCESSORIES
Additional lens mounting options for the SA-1000
Flexible Choice of Camera Control Units
TU-HD1000/CX-HD1000 Digital Triax System
With consideration to our customers and advancements in
production workflows that require hand-held cameras to be used
with large lenses in studio or field HD productions, Hitachi offers the
SA-1000 studio Adaptor.
The SA-1000 serves primarily as a mechanical lens supporter and it
also offers these important features.
The ability to use “Hanger-type” box lenses and “Bayonet-type”
hand-held portable lenses without removing the camera from the
SA-1000.
Functions routinely required by the cameraperson in Studio and
Field production are brought out from the camera menu system
and grouped in the SA-1000’s rear operation panel for easy access.
Hitachi’s efforts at providing an advanced level of studio camera
features with this Studio Adaptor include a “Cable-less” and
“tool-less” camera interface which increases the systems’ reliability
and Hitachi retains the flexibility of having 2 choices for viewfinders
when using the SK-HD1000 in this configuration.
Three models of Camera Control Units are offered for the SK-HD1000
camera system. The CU-HD1000,TU-HD1000 and the CU-3300
CCUs serve applications for Studio and Field production.
The CU-HD1000/TU-HD1000 offer the ability of 50/60Hz line power
switching. They have compliant with RoHS/ WEEE directives* and as
a standard function, the ability to output 1080i or 720p. Its reduced
size (half-rack width/ 3RU’s high), weight (7kg approx.)and improved
power consumption make it ideal for OB applications**. CU-HD1000
also includes a unique optical power meter that indicates the status
of the HFOC.
The CU-3300 is (88mm)high and, of 2-RU EIA 19-inch rack width. It
offers additional IOs (input, outputs)to improve its flexibility and use in
elaborate technical installations.
Both CCUs are of easy-to-maintain modular design; employ the same
control panels, data cables and peripherals. Other common CCU
features include;
*RoHS stands for the “restriction on the use of certain hazardous substances
in electrical and electronic equipment”. It is a European Directive aiming to
control the use of certain hazardous substances in the production of new
electrical and Electronic equipment (EEE).
** (See detailed specifications on the last page of this brochure)
Simultaneous HDTV/ SDTV, digital and analog video outputs
3 clean HD-SDI and SD-SDI outputs
Analog RGB or Y, B-Y, R-Y component outputs
4 auxiliary returns
Dedicated teleprompter channel
ARIB-type color bar output
2 channel balanced analog Mic audio outputs or embedded
HD-SDI digital audio,
Genlock with composite or tri-level sync
2-tally (Red/Green)system.
2-channel, 2W/4W intercom system.
RS-232C remote control
TRUNK (RS-422) option
LM-C1000
Dockable:
One camera body to suit multiple configurations
Dockable: One camera body to suit multiple configurations
CU-HD1000
Fiber cable AdaptorHDTV dockable recorder Triax cable Adaptor
Hybrid Fiber-optic cable Adaptor
Triax cable Adaptor
P2 Solid-State HDTV recorder
Hitachi's Digital Triaxial cable transmission system addresses two
application requirements posed by our customers worldwide.
It is the next best, completely digital, signal transport compared to
that using fiber-optic cable. No other HDTV triaxial cable
transmission system comes close.
Second, in applications where traditional triax is already in use,
substantial savings in the cabling infrastructure can be realized by
employing Hitachi HDTV Digital Triax cameras.
Hitachi's patented Digital Triax System consists of the camera head
triax adaptor and the corresponding TU-HD1000 camera control unit.
The main advantages and characteristics are:
Hitachi's patented, fully digital, bi-directional signal
transmission system
Employs no RF modulation or modems
Little to no signal degradation.
Capitalizes on reduced costs and flexibility of triaxial
copper cable.
Includes 1080i/ 720p cross-converter for HD-SDI outputs
Build in, high-performance SDTV up/ down converters
Similar IO's as the CU-HD1000
SA-1000 Studio Adaptor
CX-HD1000 Triax adaptor
TU-HD1000 Triax base station
Unique Optical Power Meter
CU-HD1000 Rear Panel
LM-B1000/SA-1000
(for Large Box Lens)
SA-1000 Rear Panel
LM-F1000/SA-1000
(for Fujinon Small Box Lens)
LM-C1000/SA-1000
(for Canon Small Box Lens)
LM-P1000/SA-1000
(for Portable Lens)

56
Multi-Format Digital HDTV Production Camera
ACCESSORIES
Additional lens mounting options for the SA-1000
Flexible Choice of Camera Control Units
TU-HD1000/CX-HD1000 Digital Triax System
With consideration to our customers and advancements in
production workflows that require hand-held cameras to be used
with large lenses in studio or field HD productions, Hitachi offers the
SA-1000 studio Adaptor.
The SA-1000 serves primarily as a mechanical lens supporter and it
also offers these important features.
The ability to use “Hanger-type” box lenses and “Bayonet-type”
hand-held portable lenses without removing the camera from the
SA-1000.
Functions routinely required by the cameraperson in Studio and
Field production are brought out from the camera menu system
and grouped in the SA-1000’s rear operation panel for easy access.
Hitachi’s efforts at providing an advanced level of studio camera
features with this Studio Adaptor include a “Cable-less” and
“tool-less” camera interface which increases the systems’ reliability
and Hitachi retains the flexibility of having 2 choices for viewfinders
when using the SK-HD1000 in this configuration.
Three models of Camera Control Units are offered for the SK-HD1000
camera system. The CU-HD1000,TU-HD1000 and the CU-3300
CCUs serve applications for Studio and Field production.
The CU-HD1000/TU-HD1000 offer the ability of 50/60Hz line power
switching. They have compliant with RoHS/ WEEE directives* and as
a standard function, the ability to output 1080i or 720p. Its reduced
size (half-rack width/ 3RU’s high), weight (7kg approx.)and improved
power consumption make it ideal for OB applications**. CU-HD1000
also includes a unique optical power meter that indicates the status
of the HFOC.
The CU-3300 is (88mm)high and, of 2-RU EIA 19-inch rack width. It
offers additional IOs (input, outputs)to improve its flexibility and use in
elaborate technical installations.
Both CCUs are of easy-to-maintain modular design; employ the same
control panels, data cables and peripherals. Other common CCU
features include;
*RoHS stands for the “restriction on the use of certain hazardous substances
in electrical and electronic equipment”. It is a European Directive aiming to
control the use of certain hazardous substances in the production of new
electrical and Electronic equipment (EEE).
** (See detailed specifications on the last page of this brochure)
Simultaneous HDTV/ SDTV, digital and analog video outputs
3 clean HD-SDI and SD-SDI outputs
Analog RGB or Y, B-Y, R-Y component outputs
4 auxiliary returns
Dedicated teleprompter channel
ARIB-type color bar output
2 channel balanced analog Mic audio outputs or embedded
HD-SDI digital audio,
Genlock with composite or tri-level sync
2-tally (Red/Green)system.
2-channel, 2W/4W intercom system.
RS-232C remote control
TRUNK (RS-422) option
LM-C1000
Dockable:
One camera body to suit multiple configurations
Dockable: One camera body to suit multiple configurations
CU-HD1000
Fiber cable AdaptorHDTV dockable recorder Triax cable Adaptor
Hybrid Fiber-optic cable Adaptor
Triax cable Adaptor
P2 Solid-State HDTV recorder
Hitachi's Digital Triaxial cable transmission system addresses two
application requirements posed by our customers worldwide.
It is the next best, completely digital, signal transport compared to
that using fiber-optic cable. No other HDTV triaxial cable
transmission system comes close.
Second, in applications where traditional triax is already in use,
substantial savings in the cabling infrastructure can be realized by
employing Hitachi HDTV Digital Triax cameras.
Hitachi's patented Digital Triax System consists of the camera head
triax adaptor and the corresponding TU-HD1000 camera control unit.
The main advantages and characteristics are:
Hitachi's patented, fully digital, bi-directional signal
transmission system
Employs no RF modulation or modems
Little to no signal degradation.
Capitalizes on reduced costs and flexibility of triaxial
copper cable.
Includes 1080i/ 720p cross-converter for HD-SDI outputs
Build in, high-performance SDTV up/ down converters
Similar IO's as the CU-HD1000
SA-1000 Studio Adaptor
CX-HD1000 Triax adaptor
TU-HD1000 Triax base station
Unique Optical Power Meter
CU-HD1000 Rear Panel
LM-B1000/SA-1000
(for Large Box Lens)
SA-1000 Rear Panel
LM-F1000/SA-1000
(for Fujinon Small Box Lens)
LM-C1000/SA-1000
(for Canon Small Box Lens)
LM-P1000/SA-1000
(for Portable Lens)

Studio and Field Production Viewfinders
8
Multi-Format Digital HDTV Production Camera
VF-HD500 Viewfinder/AT-550
VF-L9HD Viewfinder/AT-951
2-inch viewfinder
VF-402
Lens
9-inch Viewfinder
VF-L9HD
5-inch Viewfinder
VF-HD500
Viewfinder adaptor
AT-550
Camera head
Viewfinder adaptor
AT-950/951
Viewfinder adaptor
AT-90
Viewfinder adaptor
AT-500
Tripod adaptor
TA-Z3
Cable adaptor
CA-HF1000
Triax adaptor
CX-HD1000
Camera control unit
CU-HD1000
RU-1200JY
RU-1200VR
Setup control unit
SU-1000
Remote control cableFiber cable
Triax cable
Triax Base stasion unit
TU-HD1000
The SK-HD1000 camera system offers two choices for Studio or Field
production viewfinders. Model VF-L9HD is a color 9-inch TFT-LCD screen
designed for critical color viewing of the image. The LCD screen offers
a
wide viewing angle and fast transient response time for a lag-less, crisp
image similar to a CRT-type screen. It is most suitable where precise
composition and color evaluation of the image are required. The VF-HD
500 model is a monochrome 5-inch CRT-type unit that is more suited for
Sports and OB applications where high-brightness and contrast are
required. Both our Studio and Field production viewfinders can be out-
fitted with alternate mounts thereby decreasing the overall system cost.
System configuration chart
Camera control unit
CU-3300-S7/S8
Buildup Adaptor
Memory card (SD card)
Carring case
CL-1000
BU-1000
Viewfinder adaptor
Lens Mountor
LM-B1000
Portable
Zoom Lens
Studio Adaptor
SA-1000
AT-S900
Large Box Lens
Lens Mountor
LM-C1000 (for Canon)
LM-F1000 (for Fujinon)
Lens Mountor
LM-P1000
Portable Zoom Lens
Small Box Lens
Microphone adaptor
ＭＨ-1000
(for SK-HD1000/SU-1000)
RU-1500JY
Remote control units
SU-1000 Setup Control Unit
7
VR Remote Control Unit
RU-1200JY/ VR&RU-1500JY
The SU-1000 Setup Control Unit is used for the adjustment of camera
parameters in a multi-camera production environment.
This unit provides full control of the SK-HD1000 camera systems.
Utilizing a new wide touch screen LCD panel that expands control
functions. It is connected directly to each CCU in parallel fashion via
serial data cable with a distance of up to 100 meters. 12 cameras can
be directly controlled from the SU-1000. Camera control can be
extended from 12 cameras up to 48 cameras(option).
The compact and lightweight SU-1000 features Color LCD indicators in
the display section to easily identify and access the provided control
parameters. The unit is sufficiently small and lightweight enough to be
used in space deprived locations such as encountered on a broadcast
OB Van.
The SU-1000 has these primary functions:
Selection of a single camera or groups of cameras to be controlled.
On/Off control of all functions.
Control of all variable data adjustments including Iris & Master black.
Selection of storage and operation data files.
Transfer of files and data between cameras or groups of cameras.
Adjustment and file data (write/ read) from SD memory card
Video output selection including external video switcher control
(source or sink).
Ethernet connectivity and cabling
The RU-1200JY/VR Remote Control Unit is a new design of remote
operation panels for the Hitachi SK-HD1000. Painstaking attention has
been paid to making the most commonly used controls and functions
directly and instantaneously accessible to the video control engineer.
It is an ideal production tool that enhances any HD studio or field
production.
The RU-1200JY and RU-1200VR are completely identical in their
functions except the iris and master black adjustments, for which the
“JY-type” uses a joystick type control while the “VR-type” uses rotary
knobs.
The RU-1500JY has all the functionality of the RU-1200JY, but with
touchscreen panel operation and Ethernet connectivity and cabling.
RU-1200JY RU-1500JY
RU-1200VR
SU-1000
ACCESSORIES
BLACK
LINEAR 1
DETAIL LEVEL

Studio and Field Production Viewfinders
8
Multi-Format Digital HDTV Production Camera
VF-HD500 Viewfinder/AT-550
VF-L9HD Viewfinder/AT-951
2-inch viewfinder
VF-402
Lens
9-inch Viewfinder
VF-L9HD
5-inch Viewfinder
VF-HD500
Viewfinder adaptor
AT-550
Camera head
Viewfinder adaptor
AT-950/951
Viewfinder adaptor
AT-90
Viewfinder adaptor
AT-500
Tripod adaptor
TA-Z3
Cable adaptor
CA-HF1000
Triax adaptor
CX-HD1000
Camera control unit
CU-HD1000
RU-1200JY
RU-1200VR
Setup control unit
SU-1000
Remote control cableFiber cable
Triax cable
Triax Base stasion unit
TU-HD1000
The SK-HD1000 camera system offers two choices for Studio or Field
production viewfinders. Model VF-L9HD is a color 9-inch TFT-LCD screen
designed for critical color viewing of the image. The LCD screen offers
a
wide viewing angle and fast transient response time for a lag-less, crisp
image similar to a CRT-type screen. It is most suitable where precise
composition and color evaluation of the image are required. The VF-HD
500 model is a monochrome 5-inch CRT-type unit that is more suited for
Sports and OB applications where high-brightness and contrast are
required. Both our Studio and Field production viewfinders can be out-
fitted with alternate mounts thereby decreasing the overall system cost.
System configuration chart
Camera control unit
CU-3300-S7/S8
Buildup Adaptor
Memory card (SD card)
Carring case
CL-1000
BU-1000
Viewfinder adaptor
Lens Mountor
LM-B1000
Portable
Zoom Lens
Studio Adaptor
SA-1000
AT-S900
Large Box Lens
Lens Mountor
LM-C1000 (for Canon)
LM-F1000 (for Fujinon)
Lens Mountor
LM-P1000
Portable Zoom Lens
Small Box Lens
Microphone adaptor
ＭＨ-1000
(for SK-HD1000/SU-1000)
RU-1500JY
Remote control units
SU-1000 Setup Control Unit
7
VR Remote Control Unit
RU-1200JY/ VR&RU-1500JY
The SU-1000 Setup Control Unit is used for the adjustment of camera
parameters in a multi-camera production environment.
This unit provides full control of the SK-HD1000 camera systems.
Utilizing a new wide touch screen LCD panel that expands control
functions. It is connected directly to each CCU in parallel fashion via
serial data cable with a distance of up to 100 meters. 12 cameras can
be directly controlled from the SU-1000. Camera control can be
extended from 12 cameras up to 48 cameras(option).
The compact and lightweight SU-1000 features Color LCD indicators in
the display section to easily identify and access the provided control
parameters. The unit is sufficiently small and lightweight enough to be
used in space deprived locations such as encountered on a broadcast
OB Van.
The SU-1000 has these primary functions:
Selection of a single camera or groups of cameras to be controlled.
On/Off control of all functions.
Control of all variable data adjustments including Iris & Master black.
Selection of storage and operation data files.
Transfer of files and data between cameras or groups of cameras.
Adjustment and file data (write/ read) from SD memory card
Video output selection including external video switcher control
(source or sink).
Ethernet connectivity and cabling
The RU-1200JY/VR Remote Control Unit is a new design of remote
operation panels for the Hitachi SK-HD1000. Painstaking attention has
been paid to making the most commonly used controls and functions
directly and instantaneously accessible to the video control engineer.
It is an ideal production tool that enhances any HD studio or field
production.
The RU-1200JY and RU-1200VR are completely identical in their
functions except the iris and master black adjustments, for which the
“JY-type” uses a joystick type control while the “VR-type” uses rotary
knobs.
The RU-1500JY has all the functionality of the RU-1200JY, but with
touchscreen panel operation and Ethernet connectivity and cabling.
RU-1200JY RU-1500JY
RU-1200VR
SU-1000
ACCESSORIES
BLACK
LINEAR 1
DETAIL LEVEL

SPECIFICATIONS
Multi-Format Digital HDTV Production Camera
10
TU-HD1000 Triax base station
SU-1000 Setup Control UnitRU-1200VR/JY Operation Control Panel
Dimensions
Mass
Power input
Operational temperature
“VR” Knob version : 102 (W) x 340 (D) x 55 (H) mm
“JY” Joystick version : 102 (W) x 370 (D) x 55 (H) mm
1.5Kg, 3.3lbs.
+12VDC
0°C to 40°C, 32°F to 104°F
CU-HD1000 Camera Control Unit
DIMENSIONS
（SU-1000）
DIMENSIONS
（CU-HD1000）
Genlock
Digital Return 1/2/3/4
Analog Return 1/2
Prompt
Intercom ( Headset )
Communication
Intercom
PGM
R/G TALLY
REMOTE 1
REMOTE 2
Output signals
ENCR
R-Y or
R
Y or
G
B-Y or
B
Digital Out
PIX ( R,G,B,ENCR )
WFM OUT (R,G,B,ENCR)
MIC OUT 1
MIC OUT 2
Intercom ( headset )
Remote 1
Remote 2
Communication
Intercom
TALLY OUT
R/G Tally
WFM control
Power supply voltage
HFOC maximum cable distance
Operating temperature
Mass
Power consumption
BNC, B-BST 0.45Vp-p/75ohm (loop through)
HDTV tri-level sync 0.60Vp-p/75 Q (loop through)
BNC, HD SDI or SD SDI
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
5-pin XLR, -60dBm
0dBm , 600Ω/ 4Wire
0dBu or -15dBu ,200Ω at 2Wire 0dBm/ 600Ω
DC or contact supply
1.5Vp-p or RS-232C (Switchable)
1.5V p-p
3x BNC, VBS 1.0Vp-p/75 Ω
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω,
VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, VS 1.0Vp-p/ 75Ω
1x BNC, VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω
VS 1.0Vp-p/ 75Ω (Selectable)
3x BNC, HD-SDI (Embedded audio available)
3x BNC, HD-SDI or SD-SDI selectable
(
Embedded audio available
)
HD-SDI or SD-SDI selectable PIX
(
Embedded audio available
)
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 5-pin, 0dBu Max +15dB
1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C
(
Switchable
)
1x 4-pin, 1.5Vp-p
1x D-sub 25-pin
0dBm , 600Ω with 4-Wire, 0dBu or -15dBu, 200Ω with 2-Wires
1x D-sub 9-pin
Contact or Voltage selectable
1x D-sub 15-pin WFM 0-7, 0/5V,
CU-HD1000J AC100V @ 50/60Hz
CU-HD1000U AC117V @ 60Hz
CU-HD1000E AC230V @ 50Hz
1,000 meters* (3,280 feet*)with CCU power
0°C to 40°C, 32°F to 104°F
7kg, 15.4lbs.
210W approx. (AC operation, including SK-HD1000,
VF-402 and AUX POWER OUT 100VA)
Input signal
Dimensions
Power input
Mass
Operational temperature
Power consumption
VE (Video Engineer)Switch input : Contact closure
385 (W)x 255 (D)x 65 (H)mm
100/117/220/240VAC, 50/60Hz, auto-sensing.
4.1Kg , 9lbs.
0°C to 40°C, 32°F to 104°F
Approx. 33VA
Genlock
Digital Return 1/2/3/4
Analog Return 1/2
Prompt
Intercom ( Headset )
Communication
Intercom
PGM
R/G TALLY
REMOTE 1
REMOTE 2
Output signals
ENCR
R-Y or
R
Y or
G
B-Y or
B
Digital Out
PIX ( R,G,B,ENCR )
WFM OUT (R,G,B,ENCR)
MIC OUT 1
MIC OUT 2
Intercom ( headset )
Remote 1
Remote 2
Communication
Intercom
TALLY OUT
R/G Tally
WFM control
Power supply voltage
Operating temperature
Mass
Power consumption
BNC, B-BST 0.45Vp-p/75ohm (loop through)
HDTV tri-level sync 0.60Vp-p/75 Q (loop through)
BNC, HD SDI or SD SDI
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
5-pin XLR, -60dBm
0dBm , 600Ω/ 4Wire
0dBu or -15dBu ,200Ω at 2Wire 0dBm/ 600Ω
DC or contact supply
1.5Vp-p or RS-232C (Switchable)
1.5V p-p
3x BNC, VBS 1.0Vp-p/75 Ω
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω,
VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, VS 1.0Vp-p/ 75Ω
1x BNC, VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω
VS 1.0Vp-p/ 75Ω (Selectable)
3x BNC, HD-SDI (Embedded audio available)
3x BNC, HD-SDI or SD-SDI selectable
(
Embedded audio available
)
HD-SDI or SD-SDI selectable PIX
(
Embedded audio available
)
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 5-pin, 0dBu Max +15dB
1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C
(
Switchable
)
1x 4-pin, 1.5Vp-p
1x D-sub 25-pin
0dBm , 600Ω with 4-Wire, 0dBu or -15dBu, 200Ω with 2-Wires
1x D-sub 9-pin
Contact or Voltage selectable
1x D-sub 15-pin WFM 0-7, 0/5V,
TU-HD1000J AC100V @ 50/60Hz
TU-HD1000U AC117V @ 60Hz
TU-HD1000E AC230V @ 50Hz
0°C to 40°C, 32°F to 104°F
7.9kg
210W approx. (AC operation, including SK-HD1000,
VF-402 and AUX POWER OUT 100VA)
216
118 (7.8)(5.8)
400 (2.9)
ＣＵ−ＨＤ１０００
ＳＥＴＵＰＣＯＮＴＲＯＬＵＮＩＴＳＵ−１０００


4.5 4.5
4.54.5 246
255
376
385 65
221.5
(16.8)
2
9
VF-HD500 B&W CRT Studio Viewfinder
TV System
Construction
CRT
Camera mounts
Resolution
50 or 60Hz, 1080i
High-impact plastic
5-inch B&W 4 : 3 CRT with removable hood
2X, AT-500/ AT-550
750TVL
VF-402 B&W CRT ENG Viewfinder
TV System
Construction
CRT
User-comfort
Resolution
Functions
Internal Tally
Tally controls
Mass
Power Consumption
50 or 60Hz 1080i
Metal die-cast chassis and mount
2-inch B&W 16:9 CRT with removable Diopter (CRT Focus ring)
VF angle rotation, X-Y mechanical movement, anti-fog lens,
rubber eyecup.
650TVL
Bright, Contrast, Peaking, knobs VR front-facing
Red/ Green, Front-facing high brightness LEDs.
Tally OFF, NORMAL, HIGH
0.76kg, 1.7Ibs
5W (approx)
Functions
Internal Tally
Tally controls
Mass
Power consumption
Bright, Contrast, Peaking, knobs VR front-facing
Red/ Green, Front-facing high brightness lamp
Tally On/ Off
1.8Kg, 4lbs.
15W (approx)
SK-HD1000 Camera Head
CX-HD1000 Triax Camera Adaptor
Imaging Device
Effective pixels
Optical system
Optical Filters
Sensitivity
Signal to Noise Ratio
Horizontal resolution
Depth of modulation
Registration
Lens mount
Gain selection
Electronic Shutter
Power consumption
Dimensions
Mass
Operating temperature
Camera head
Input & Output
CCU connector
Video transmission system
Intercom
Program audio
Teleprompter power output
Microphones
Return/ Aux switcher
Video Inputs & Outputs
Other I/O
Mass
VF-L9HD LCD Color Studio Viewfinder
TV System
Construction
Display
Camera mounts
Functions
Internal Tally
Tally controls
Mass
Power consumption
50/60Hz, 1080i/ 720p auto-switching
Metal chassis and mount
9-inch, color TFT-LCD, 800 (H)x 450 (V),
6500°K with removable hood
2X, AT-90/ AT-950
Chroma, Backlight, Marker-1/2 On/Off, Bright,
Contrast, Peaking, knobs VR front-facing, Power On/Off
Red/ Green, Front-facing high brightness LEDs.
Tally OFF, NORMAL, HIGH
1.8Kg, 4lbs.
18W (approx)
1X-Triax connector
Fully digital, bi-directional, 10-bit, 4 : 2 : 2 sampling,
SMPTE-274M
2X channel, 5-pin each XLR, channel selection,
MIC on/off, volume
2X, PGM audio level controls w/ Chnl1 & Chnl2 intercom mix
1X 5-pin, 230VAC, 60W~100W, external prompter Tally drive out.
(depending on configuration accessories )
Chnl1 & 2 Line or MIC level select (MENU ),
with phantom power on/off
2-channel, 4-input remote AUX/VF video select connector
(RET control )
2X HD-SDI out, 1X SD analog teleprompter out switchable
with, 1X Genlock in (Tri-level )
1X 29-pin (for SA-1000 cable-less interface ).
1X 4-pin script lamp +12VDC (1.0A max).
1X 5-pin VF AUX return
(for use in cranes or extended Head/VF configurations ).
1X 4-pin XLR, 12VDC, power input.
2.6Kg
CA-HF1000 Fiber Camera Adaptor
CCU connector
Video transmission system
Intercom
Program audio
Teleprompter power output
Microphones
Return/ Aux switcher
Video Inputs & Outputs
Other I/O
Mass
1X-type HFOC female connector (LEMO/Tajimi Type )
SMPTE-304M-type
Fully digital, bi-directional, 10-bit, 4 : 2 : 2 sampling,
SMPTE-274M
2X channel, 5-pin each XLR, channel selection,
MIC on/off, volume
2X, PGM audio level controls w/ Chnl1 & Chnl2 intercom mix
1X 5-pin, 230VAC, 60W~100W, external prompter Tally drive out.
(depending on configuration accessories )
Chnl1 & 2 Line or MIC level select (MENU ),
with phantom power on/off
2-channel, 4-input remote AUX/VF video select connector
(RET control )
2X HD-SDI out, 1X SD analog teleprompter out switchable
with, 1X Genlock in (Tri-level )
1X 29-pin (for SA-1000 cable-less interface ).
1X 4-pin script lamp +12VDC (1.0A max).
1X 5-pin VF AUX return
(for use in cranes or extended Head/VF configurations ).
1X 4-pin XLR, 12VDC, power input.
2.2Kg, 4.8lbs.
SK-HD1000 SK-HD1000-S2 SK-HD1000-S4
( 3X - RGB )2/3-inch, 16:9, 1.0 M Pixel
Super-Advanced, micro-lens IT-CCD.
( 3X - RGB ) 2/3-inch, 16:9, 2.3 M Pixel
Super-Advanced, micro-lens IT-CCD.
1,920(H)X 1,080(V).1,296(H)X 726(V).
F1.4 prism.
2X motorized filter wheel w/5 filter positions.
ND CAP, 1:CLEAR, 2:1/4ND, 3:1/16ＮD, 4:1/64ND
CC A:CROSS, B:3200k, C:4300K, D:6300K, E:8000K
ECC (Electronic Color Corrector)5600K.
1X motorized filter wheel w/4 filter positions.
1: Clear, 2: Cross, 3:1/16ND, 4:1/64ND.
ECC (Electronic Color Corrector)with 5 settings.
(3200k,4300K,5600K,6300K,8000K)
F10 @2000lx, 3200K, 89.9% reflectance.
60dB (typical)
1100 TV Lines (at center)
58dB (typical)
700 TV Lines (at center)
40% typical 27.5MHz (720p)
(530TVL at center, 27.5 MHz)
60% (typical)(800TV Lines at center, 27.5 MHz, 1080i)
Overall 0.01% (excluding lens limitations).
B4 bayonet-type
L (low)-3, 0dB.
M (medium)0, +3, +6, +9, +12, +15, +18, +21dB.
H (high)+3, +6, +9, +12, +15, +18, +21, +24dB.
1/100, 1/250, 1/500, 1/1000, 1/2000(1080/59.94i), AES, CC Frame
1/60, 1/250, 1/500, 1/1000, 1/2000)1080/50i)
Camera head 16 W Head only (without VF, lens).
133 (W)x 191 (H)x 262 (D)mm.
2.2Kg, 4.8lbs. Camera head.
-10ºC to +45ºC, 14ºF to 113ºF.
1X BNC HD-SDI VF out (Character ON/OFF)or HD-SDI RET out.
4-pin Multi connector for remote control panel,
20-pin Multi VF connector, 12-pin Multi LENS connector,
3-pin XLR MIC-1 connector, SD Memory Card Slot.

SPECIFICATIONS
Multi-Format Digital HDTV Production Camera
10
TU-HD1000 Triax base station
SU-1000 Setup Control UnitRU-1200VR/JY Operation Control Panel
Dimensions
Mass
Power input
Operational temperature
“VR” Knob version : 102 (W) x 340 (D) x 55 (H) mm
“JY” Joystick version : 102 (W) x 370 (D) x 55 (H) mm
1.5Kg, 3.3lbs.
+12VDC
0°C to 40°C, 32°F to 104°F
CU-HD1000 Camera Control Unit
DIMENSIONS
（SU-1000）
DIMENSIONS
（CU-HD1000）
Genlock
Digital Return 1/2/3/4
Analog Return 1/2
Prompt
Intercom ( Headset )
Communication
Intercom
PGM
R/G TALLY
REMOTE 1
REMOTE 2
Output signals
ENCR
R-Y or
R
Y or
G
B-Y or
B
Digital Out
PIX ( R,G,B,ENCR )
WFM OUT (R,G,B,ENCR)
MIC OUT 1
MIC OUT 2
Intercom ( headset )
Remote 1
Remote 2
Communication
Intercom
TALLY OUT
R/G Tally
WFM control
Power supply voltage
HFOC maximum cable distance
Operating temperature
Mass
Power consumption
BNC, B-BST 0.45Vp-p/75ohm (loop through)
HDTV tri-level sync 0.60Vp-p/75 Q (loop through)
BNC, HD SDI or SD SDI
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
5-pin XLR, -60dBm
0dBm , 600Ω/ 4Wire
0dBu or -15dBu ,200Ω at 2Wire 0dBm/ 600Ω
DC or contact supply
1.5Vp-p or RS-232C (Switchable)
1.5V p-p
3x BNC, VBS 1.0Vp-p/75 Ω
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω,
VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, VS 1.0Vp-p/ 75Ω
1x BNC, VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω
VS 1.0Vp-p/ 75Ω (Selectable)
3x BNC, HD-SDI (Embedded audio available)
3x BNC, HD-SDI or SD-SDI selectable
(
Embedded audio available
)
HD-SDI or SD-SDI selectable PIX
(
Embedded audio available
)
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 5-pin, 0dBu Max +15dB
1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C
(
Switchable
)
1x 4-pin, 1.5Vp-p
1x D-sub 25-pin
0dBm , 600Ω with 4-Wire, 0dBu or -15dBu, 200Ω with 2-Wires
1x D-sub 9-pin
Contact or Voltage selectable
1x D-sub 15-pin WFM 0-7, 0/5V,
CU-HD1000J AC100V @ 50/60Hz
CU-HD1000U AC117V @ 60Hz
CU-HD1000E AC230V @ 50Hz
1,000 meters* (3,280 feet*)with CCU power
0°C to 40°C, 32°F to 104°F
7kg, 15.4lbs.
210W approx. (AC operation, including SK-HD1000,
VF-402 and AUX POWER OUT 100VA)
Input signal
Dimensions
Power input
Mass
Operational temperature
Power consumption
VE (Video Engineer)Switch input : Contact closure
385 (W)x 255 (D)x 65 (H)mm
100/117/220/240VAC, 50/60Hz, auto-sensing.
4.1Kg , 9lbs.
0°C to 40°C, 32°F to 104°F
Approx. 33VA
Genlock
Digital Return 1/2/3/4
Analog Return 1/2
Prompt
Intercom ( Headset )
Communication
Intercom
PGM
R/G TALLY
REMOTE 1
REMOTE 2
Output signals
ENCR
R-Y or
R
Y or
G
B-Y or
B
Digital Out
PIX ( R,G,B,ENCR )
WFM OUT (R,G,B,ENCR)
MIC OUT 1
MIC OUT 2
Intercom ( headset )
Remote 1
Remote 2
Communication
Intercom
TALLY OUT
R/G Tally
WFM control
Power supply voltage
Operating temperature
Mass
Power consumption
BNC, B-BST 0.45Vp-p/75ohm (loop through)
HDTV tri-level sync 0.60Vp-p/75 Q (loop through)
BNC, HD SDI or SD SDI
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
BNC, VS or VBS 1.0Vp-p/75ohm (loop through)
5-pin XLR, -60dBm
0dBm , 600Ω/ 4Wire
0dBu or -15dBu ,200Ω at 2Wire 0dBm/ 600Ω
DC or contact supply
1.5Vp-p or RS-232C (Switchable)
1.5V p-p
3x BNC, VBS 1.0Vp-p/75 Ω
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω,
VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, VS 1.0Vp-p/ 75Ω
1x BNC, VS 1.0Vp-p/ 75Ω (Selectable)
1x BNC, NTSC : 0.7Vp-p, PAL : 0.525Vp-p/ 75Ω
VS 1.0Vp-p/ 75Ω (Selectable)
3x BNC, HD-SDI (Embedded audio available)
3x BNC, HD-SDI or SD-SDI selectable
(
Embedded audio available
)
HD-SDI or SD-SDI selectable PIX
(
Embedded audio available
)
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x BNC, VS or VBS 1.0Vp-p/ 75Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 3-pin, 0dBm/ 600Ω
1x XLR, 5-pin, 0dBu Max +15dB
1x 4-pin, 1.5Vp-p or 1x D-sub, 9-pin RS-232C
(
Switchable
)
1x 4-pin, 1.5Vp-p
1x D-sub 25-pin
0dBm , 600Ω with 4-Wire, 0dBu or -15dBu, 200Ω with 2-Wires
1x D-sub 9-pin
Contact or Voltage selectable
1x D-sub 15-pin WFM 0-7, 0/5V,
TU-HD1000J AC100V @ 50/60Hz
TU-HD1000U AC117V @ 60Hz
TU-HD1000E AC230V @ 50Hz
0°C to 40°C, 32°F to 104°F
7.9kg
210W approx. (AC operation, including SK-HD1000,
VF-402 and AUX POWER OUT 100VA)
216
118 (7.8)(5.8)
400 (2.9)
ＣＵ−ＨＤ１０００
ＳＥＴＵＰＣＯＮＴＲＯＬＵＮＩＴＳＵ−１０００


4.5 4.5
4.54.5 246
255
376
385 65
221.5
(16.8)
2
9
VF-HD500 B&W CRT Studio Viewfinder
TV System
Construction
CRT
Camera mounts
Resolution
50 or 60Hz, 1080i
High-impact plastic
5-inch B&W 4 : 3 CRT with removable hood
2X, AT-500/ AT-550
750TVL
VF-402 B&W CRT ENG Viewfinder
TV System
Construction
CRT
User-comfort
Resolution
Functions
Internal Tally
Tally controls
Mass
Power Consumption
50 or 60Hz 1080i
Metal die-cast chassis and mount
2-inch B&W 16:9 CRT with removable Diopter (CRT Focus ring)
VF angle rotation, X-Y mechanical movement, anti-fog lens,
rubber eyecup.
650TVL
Bright, Contrast, Peaking, knobs VR front-facing
Red/ Green, Front-facing high brightness LEDs.
Tally OFF, NORMAL, HIGH
0.76kg, 1.7Ibs
5W (approx)
Functions
Internal Tally
Tally controls
Mass
Power consumption
Bright, Contrast, Peaking, knobs VR front-facing
Red/ Green, Front-facing high brightness lamp
Tally On/ Off
1.8Kg, 4lbs.
15W (approx)
SK-HD1000 Camera Head
CX-HD1000 Triax Camera Adaptor
Imaging Device
Effective pixels
Optical system
Optical Filters
Sensitivity
Signal to Noise Ratio
Horizontal resolution
Depth of modulation
Registration
Lens mount
Gain selection
Electronic Shutter
Power consumption
Dimensions
Mass
Operating temperature
Camera head
Input & Output
CCU connector
Video transmission system
Intercom
Program audio
Teleprompter power output
Microphones
Return/ Aux switcher
Video Inputs & Outputs
Other I/O
Mass
VF-L9HD LCD Color Studio Viewfinder
TV System
Construction
Display
Camera mounts
Functions
Internal Tally
Tally controls
Mass
Power consumption
50/60Hz, 1080i/ 720p auto-switching
Metal chassis and mount
9-inch, color TFT-LCD, 800 (H)x 450 (V),
6500°K with removable hood
2X, AT-90/ AT-950
Chroma, Backlight, Marker-1/2 On/Off, Bright,
Contrast, Peaking, knobs VR front-facing, Power On/Off
Red/ Green, Front-facing high brightness LEDs.
Tally OFF, NORMAL, HIGH
1.8Kg, 4lbs.
18W (approx)
1X-Triax connector
Fully digital, bi-directional, 10-bit, 4 : 2 : 2 sampling,
SMPTE-274M
2X channel, 5-pin each XLR, channel selection,
MIC on/off, volume
2X, PGM audio level controls w/ Chnl1 & Chnl2 intercom mix
1X 5-pin, 230VAC, 60W~100W, external prompter Tally drive out.
(depending on configuration accessories )
Chnl1 & 2 Line or MIC level select (MENU ),
with phantom power on/off
2-channel, 4-input remote AUX/VF video select connector
(RET control )
2X HD-SDI out, 1X SD analog teleprompter out switchable
with, 1X Genlock in (Tri-level )
1X 29-pin (for SA-1000 cable-less interface ).
1X 4-pin script lamp +12VDC (1.0A max).
1X 5-pin VF AUX return
(for use in cranes or extended Head/VF configurations ).
1X 4-pin XLR, 12VDC, power input.
2.6Kg
CA-HF1000 Fiber Camera Adaptor
CCU connector
Video transmission system
Intercom
Program audio
Teleprompter power output
Microphones
Return/ Aux switcher
Video Inputs & Outputs
Other I/O
Mass
1X-type HFOC female connector (LEMO/Tajimi Type )
SMPTE-304M-type
Fully digital, bi-directional, 10-bit, 4 : 2 : 2 sampling,
SMPTE-274M
2X channel, 5-pin each XLR, channel selection,
MIC on/off, volume
2X, PGM audio level controls w/ Chnl1 & Chnl2 intercom mix
1X 5-pin, 230VAC, 60W~100W, external prompter Tally drive out.
(depending on configuration accessories )
Chnl1 & 2 Line or MIC level select (MENU ),
with phantom power on/off
2-channel, 4-input remote AUX/VF video select connector
(RET control )
2X HD-SDI out, 1X SD analog teleprompter out switchable
with, 1X Genlock in (Tri-level )
1X 29-pin (for SA-1000 cable-less interface ).
1X 4-pin script lamp +12VDC (1.0A max).
1X 5-pin VF AUX return
(for use in cranes or extended Head/VF configurations ).
1X 4-pin XLR, 12VDC, power input.
2.2Kg, 4.8lbs.
SK-HD1000 SK-HD1000-S2 SK-HD1000-S4
( 3X - RGB )2/3-inch, 16:9, 1.0 M Pixel
Super-Advanced, micro-lens IT-CCD.
( 3X - RGB ) 2/3-inch, 16:9, 2.3 M Pixel
Super-Advanced, micro-lens IT-CCD.
1,920(H)X 1,080(V).1,296(H)X 726(V).
F1.4 prism.
2X motorized filter wheel w/5 filter positions.
ND CAP, 1:CLEAR, 2:1/4ND, 3:1/16ＮD, 4:1/64ND
CC A:CROSS, B:3200k, C:4300K, D:6300K, E:8000K
ECC (Electronic Color Corrector)5600K.
1X motorized filter wheel w/4 filter positions.
1: Clear, 2: Cross, 3:1/16ND, 4:1/64ND.
ECC (Electronic Color Corrector)with 5 settings.
(3200k,4300K,5600K,6300K,8000K)
F10 @2000lx, 3200K, 89.9% reflectance.
60dB (typical)
1100 TV Lines (at center)
58dB (typical)
700 TV Lines (at center)
40% typical 27.5MHz (720p)
(530TVL at center, 27.5 MHz)
60% (typical)(800TV Lines at center, 27.5 MHz, 1080i)
Overall 0.01% (excluding lens limitations).
B4 bayonet-type
L (low)-3, 0dB.
M (medium)0, +3, +6, +9, +12, +15, +18, +21dB.
H (high)+3, +6, +9, +12, +15, +18, +21, +24dB.
1/100, 1/250, 1/500, 1/1000, 1/2000(1080/59.94i), AES, CC Frame
1/60, 1/250, 1/500, 1/1000, 1/2000)1080/50i)
Camera head 16 W Head only (without VF, lens).
133 (W)x 191 (H)x 262 (D)mm.
2.2Kg, 4.8lbs. Camera head.
-10ºC to +45ºC, 14ºF to 113ºF.
1X BNC HD-SDI VF out (Character ON/OFF)or HD-SDI RET out.
4-pin Multi connector for remote control panel,
20-pin Multi VF connector, 12-pin Multi LENS connector,
3-pin XLR MIC-1 connector, SD Memory Card Slot.

DIMENSIONS
（SA-1000）
DIMENSIONS
（SK-HD1000）
Multi-Format Digital HDTV Production Camera
Sales and Engineering :
Frankfurt office
Siemensstr. 9, D-63263 Neu-Isenburg, Germany
[phone], Fax : [phone]
To ensure safe operation, please read the instruction manual before using this product.
These Specifications are subject to change without notice.
Head Office :
Head Office :
Eastern Office :
Headquarters and :
Northeast Office
West Office :
Midwest Sales :
South Sales :
Parts Center :
Latin Sales :
Beijing Branch :
Hitachi Kokusai Electric America, Ltd.
Hitachi Kokusai Electric (Shanghai) Co., Ltd. Hitachi Kokusai Electric U.K. Ltd.
Hitachi Kokusai Electric Canada, Ltd.
14-1, Sotokanda 4-choume, Chiyoda-ku, Tokyo 101-8980, Japan
Phone : [phone], Fax : [phone]
URL : http://www.hitachi-kokusai.co.jp/
150 Crossways Park Drive, Woodbury, New York 11797, U.S.A.
Phone : [phone], Fax : [phone]
371 Van Ness Way, Suite 120 Torrance, CA. 90501, U.S.A.
Phone : [phone], Fax : [phone]
Phone : [phone], Fax : [phone]
Service : ([phone]
Phone : [phone]
Service : ([phone]
Phone : [phone], Fax : [phone]
Phone : [phone], Fax : [phone]
1 Select Avenue Unit#11 Scarborough, Ontario M1V5J3, Canada
Phone : [phone], Fax : [phone]
5795 Chemin St. Francois St. Laurent, Quebec H4S 1B6, Canada
Phone : [phone], Fax : [phone]
Head Office : Windsor House, Britannia Road, Waltham Cross,
Hertfordshire EN8 7NX,United Kingdom
Phone : [phone], Fax : [phone]
General email address : [email protected]
URL : http://hitachikokusai.us
URL : http://hitachikokusai.ca
CAUTION :
Room 1413, Beijing Fortune Building, 5 Dong San Huan Bei-Lu,
Chao Yang District, Beijing
Phone : [phone]/8756, Fax : [phone]
DB-E223PPrintedinJapan（D）09-09
CERTIFATE No.
JMI-0062
ISO 9001/BS 5750Pt1
EN 29001/JIS Z9901
213
547 310
133
GAIN OUTPUT WHITE BAL
ECC
FILTER
ND
EX T
CCU
POWER
CALL
262
163
348
191
ＭＥＮＵ
ＣＡＬＬ
ＬＥＶＥＬ ＢＯＸ１ＣＲＯＳＳ ＢＯＸ２
ＭＥＭＯＲＹ
ＨＳＩＺＥ ＶＨ ＰＯＳＩ Ｖ
ＥＸＴＥＮＤＥＲ
ＶＦＳＥＬ
ＶＦ ＤＩＳＰＬＡＹ
ＮＤ
ＦＩＬＴＥＲ
ＣＣ
ＣＳ １ ＣＳ ２ １２３４
ＡＢＣＤＥＦ
３２００Ｋ
１/６４ＮＤＣＡＰ ＣＬＥＡＲＣＲＯＳＳ１/１６ＮＤ
８０００Ｋ６３００Ｋ５６００Ｋ４３００Ｋ
Ａ ＦＥＤＣＢ
４３２１ＣＡＰ
ＦＵＮＣ
ＰＯＷＥＲ ×０.８
ＲＧＢ
ＴＡＬＬＹ
ＦＲＯＮＴ
ＯＮ
ＲＥＴ １ ＲＥＴ ２
DIMENSIONS
（VF-HD500 B&W CRT Studio Viewfinder)DIMENSIONS （VF-L9HD LCD Color Studio Viewfinder）
230
102
175 185
83 86
252 65.5 140
140.4
