Hitachi CM 1786M-AD User manual

COLOUR MONITOR
CM 1786M-AD
17 MVX VddSupersCan 17s
User’s Manual
: _
READ THE INSTRUCTION INSIDE CAREFULLY.
KEEP THIS USER’S MANUAL FOR FUTURE REFERENCES.

_.’
_.
%,
.,
” ;_’
.:
),. ,
T. ,
;~’ ,
,.,. ’
).
‘.,
T,.
,’ ,:

For U.K. Customers
THIS PRODUCT IS SUPPLIED WITH A TWO PIN MAINS
PLUG FOR USE IN MAINLAND EUROPE. FOR THE U.K.,
PLEASE REFER TO THE NOTES ON THIS PAGE.
Note:
Electrical Connection
Your monitor requires an electrical supply of 240 volts - 50 Hertz and should
be protected by a 5 amp fuse. Your equipment is supplied with a plug
incorporating a 5 amp fuse fitted to the mains lead. If the plug that is fitted
to the equipment is not suitable for your socket outlet, it must be cut off and
the appropriate plug fitted. The cut off plug should be disposed of, do not
insert it into a 13 amp socket to prevent the hazard of electric shocks. With
plugs not incorporating a fuse, the circuit must be protected by a 5 amp fuse.
Warning: This equipment must be earthed.
Important
Your equipment is supplied with a mains lead, the wires of which are
coloured in accordance with the following code: Green and Yellow - Earth,
Blue - Neutral, Brown - Live.
Green & Yellow
to Earth
Blue to Neutral
Brown to Live
Fuse
Cord Clamp

As the colours of the wires in your mains lead in this equipment may not
correspond with the markings identified with the terminals of your plug,
proceed as follows:
The wire which is coloured Green and Yellow must be connected to the
terminal in the plug which is marked with the letter E or by the symbol or
coloured Green or Green and Yellow.
The wire which is coloured Brown must be connected to the terminal which
is marked with the letter L or coloured Red.
The wire which is coloured Blue must be connected to the terminal which
is marked N or coloured Black.
The plug moulded on to the cord incorporates a fuse. For replacement, use
a 5 amp BS1326 fuse. Only ASTA approved fuses should be used. The fuse
cover / carrier must be refitted when changing the fuse. In the event of
losing the fuse cover / carrier, the plug must not be used until a replacement
has been obtained from your nearest electrical stockist and fitted. The
colour of the fuse cover / carrier is that of the coloured marks on the insert
in the base of the plug.

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Important Safety
Instructions
Read all of these instructions.
Save these instructions for later use.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water.
Do not place this product on an unstable cart, stand, or table. The
product may fall, causing serious damage to the product.
Slots and openings in the cabinet and the back or bottom are provided
for ventilation, to ensure reliable operation of the product, and to
protect it from overheating; these openings must not be blocked or
covered.
The openings should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should never be placed
near or over a radiator or heat register. This product should not be
placed in a built-in installation unless proper ventilation is provided.
This product should be operated from the type of power source
indicated on the marking label. If you are not sure of the type of power
available, consult your dealer or local power company.
This product is equipped with a three-wire grounding type plug, a plug
having a third (grounding) pin. This plug will only fit into a grounding
type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the purpose of the grounding-type plug.
Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
If an extension cord is used with this product, make sure that the total
ampere ratings on the products plugged into the extension cord do not
exceed the extension cord ampere rating. Also, make sure that the

total of all products plugged into the wall outlet does not exceed 15
amperes.
12. Never push objects of any kind into this product through cabinet slots
as they may touch dangerous voltage points or short out parts that
could result in a risk of fire or electric shock. Never spill liquid of any
kind on the product.
13. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks.
Refer all servicing to service personnels.
14. Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
l When the power cord or plug is damaged or frayed.
lIf liquid has been spilled into the product.
l If the product has been exposed to rain or water.
l If the product does not operate normally when the operating
instructions are followed. Adjust only those controls that are
covered by the operating instructions since improper adjustment
of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to
normal operation.
l If the product has been dropped or the cabinet has been damaged.
lIf the product exhibits a distinct change in performance, indicating
a need for service.
15. Plug on the power supply cord is used as the disconnect device, the
socket-outlet shall be installed near the equipment and the shall be
easily accessible.
ii

Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and if not installed in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on? the user is encouraged to try to correct the
interference by one or more of the following measures:
a Reorient or relocate the receiving antenna.
a Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
e Consult the dealer or an experienced radio/TV technician for help.
Warning: A shielded-type power cord is required in order to meet FCC
emission limits and also to prevent interference to the nearby radio and
television reception. It is essential that only the supplied power cord be
used.
Use only shielded cables to connect I/O device to this equipment.
You are cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void your authority to operate
the equipment.
DOC compliance notice
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the Radio Interference
Regulations of the Canadian Department of Communications.
DOC avis de conformation
Le present appareil numerique n’cmet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la Class B
prescrites dans le reglement sur le brouillage radioclectrique edict6 par le
MinistrCr des Communications du Canada.

Low Radiation
Following the trend in the computer market toward low radiation, this
equipment has been tested and found to comply with Swedish regulatory
agency guidelines.
Research has shown that magnetic field emissions from computer monitors
may pose a very real health hazard to users, and this has become a great
concern to many people. Consequently, we are offering this low- radiation
display in response to the magnetic field emission issue.
The Swedish guidelines defines a level of induction and strength permissible
for magnetic field emissions. Magnetic field emissions for the equipment is
significantly lower than the Swedish guideline of 25 nT.
Liabiliiy Disclaimer
The product described in this manual is warranted in accordance with the terms of the
applicable manufacturer product specifications. Product performance is affected by
system configuration, software, application, customer data, and operator system control,
among other factors. While the product is compatible with the standards for which they
are advertised, product implementation may vary from user to user.
The suitability of this product for a specific application must be determined by the
customer and is not warranted by the manufacturer. This manual aims to teach the user
how to install and operate the product. The information contained herein is as accurate as
possible; however, updates may have been made since the time of printing. The
manufacturer assumes no responsibilities for damage incurred directly or indirectly from
errors, omissions, or discrepancies between the product and the manual.
Trademarks
Product and brandnames mentioned in this manual are for identification purposes only
and may be trademarks and/or registered trademarks of their respective holders.

:::::::<::::<:
:::::q::::::.
:::::w
:.:::::::::&
$ggg
Table of Contents
This manual provides information needed to unpack, install, and operate
the monitor, and describes the generic version of the equipment.
Equipment manufactured after the publication of this manual may have
specifications other than those stated in this manual. Please contact your
dealer for verification.
Table of Contents
Section 1. Introduction
Section 2. Precautions

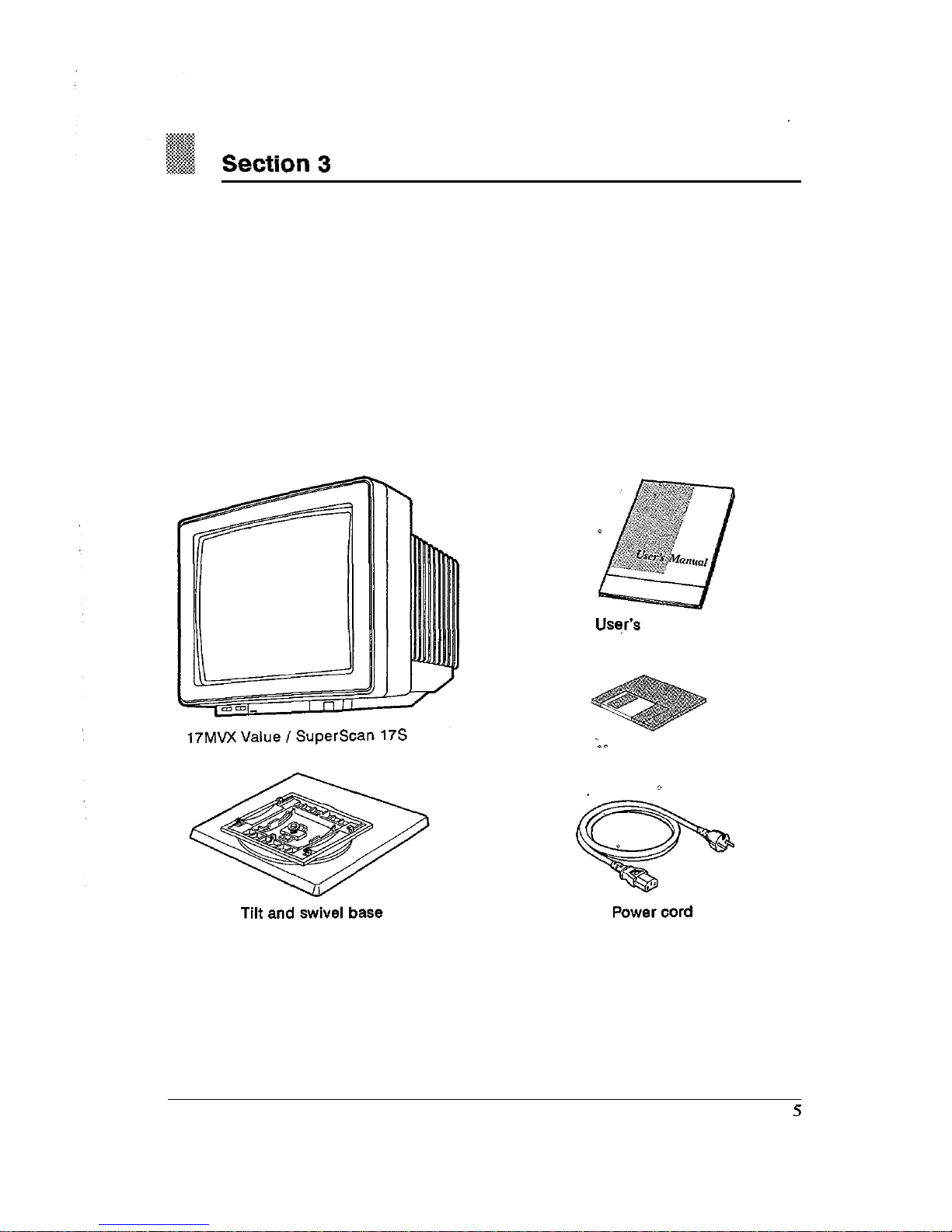

Section 3. Unpacking
Section 4. Getting Acquainted
4.1. User Controls and Indicators ..................
.6
4.2. Display Adjustment Controls ..................
.6
4.3. Preset and User Modes ......................
8
4.4. Installing the Tilt and Swivel Base ...............
.9
Section 5. Installation Instructions
Section 6. Advanced Display Adjustment
6.1. Using the < Function > Button .................
12
6.2. Making Color Adjustments ...................
13
6.3. Making Pincushion Adjustments ................
14
6.4. Enabling /Disabling the Power Saving Function .......
14
Section 7. Specifications
7.1. CRT (Cathode Ray Tube) ...................
.16
7.2. Input Signals ...........................
-16
7.3. Deflection Characteristics ....................
16
7.4. Recommended Resolution ...................
.16
7.5. Display Size ...........................
.16
7.6. Operator Controls .........................
17
7.7. Power Requirements ......................
.17
7.8. Dimension(WxHxL) .....................
.17
7.9. Signal Connector ........................
.17
7.10. Power Management ........................
17
1

Section 8. Power Management Utility
8.1. Using Power Management under DOS ............
18
8.2. Help Menu ............................
.19
8.3. Power Management for Windows ................
19
Notes to users: The power management utility diskette contains the files
OFFH.COM and OFFHSCR which allows the user to set the idle time
required before the monitor goes into the power saving mode. This software
is not required to operate the monitor as a display device or to comply with
Energy Star and DPMS, but is a special offer to allow you to take advantage
of power saving features without the need of a DPMS compliant system. :
While efforts have been made to ensure compatibility, it can not be
guaranteed that this package will work as it is described in the operator’s
manual with all PCs and video cards. The manufacturer makes no claim or
warranty on this package.
2

:::$$&;::
::::::).:.:$>
~~ Section 1
Introduction
The 17MVX Value I SuperScan 17s are two microprocessor based,
intelligent scanning 17-inch color monitors best suited for various
applications from word processing to spreadsheets to CADKAE. Their
microprocessor intelligence provides a wide range of signal compatibility
and allows easy adjustment of screen configurations with various display
modes.
Some of the 17MVX Value I SuperScan 17s features are as follows:
lAutomatically scans the horizontal frequency from 30 to 64 KHz and
the vertical frequency from 50 to 100 Hz.
lThe monitor is equipped with a power-saving feature that automatically
powers down the monitor after a user-defined period of inactivity. The
power saving feature is compatible with VESA DPMS-compliant
display cards.
l All parameters in each of the display modes reside in the
microprocessor-based control system. Settings are built in for existing
VGA standards, super VGA (800 x600), 8514/A (1024x768 interlaced),
1024 x 768 non-interlaced, and 1280 x 1024 modes.
l Front panel controls to adjust the H-size, H-phase, V-size, and
V-position in each display mode according to user preference. Each
new setting is stored and recalled each time a mode change is effected.
l Color display adjustment system allows users to individually adjust red,
green, and blue colors on screen.
lThe power supply may be operated within a 100 to 240 VAC range and
the detachable power cord meet all recognized international
requirements.
3

::::g$:g
. . . . . . . . . . . . . .
$$$$$J
$$g Section 2
Precautions
To prevent injury to yourself and/or damage to the monitor, please read and
adhere to the following suggestions:
1. Never connect the monitor to any outlet with a voltage or frequency other
than that indicated on the monitor backplate.
2. Never connect the monitor to direct current.
3. Do not open the monitor cabinet.
4. If the monitor is not operating properly, contact your dealer. DOnot
open the monitor housing under any circumstances.
By opening the monitor housing you will expose yourself to high voltage
and possible severe electrical shocks.
5. Do not place the monitor under direct sunlight, near heating appliances,
or in areas with excessive light and moisture.
6. Keep the monitor in a well-ventilated area and keep the monitor
ventilation holes free from obstructions.
7. If any abnormal sound, smoke, or odor comes from the monitor, unplug
the monitor’s power cord immediately and contact your dealer.
8. Do not rest the monitor or any other heavy objects on the power cord.
A damaged power cord can cause fires or electrical shocks.
9. Keep the monitor away from high capacity transformers, electric motors,
and other strong magnetic fields.
4

Unpacking
Carefully unpack the monitor from the shipping carton and avoid using
sharp objects in opening the carton. Save the packing materials and carton
for use in reshipping the monitor in the future.
The monitor comes with the tilt and swivel base detached. Please follow the
instructions contained in Section 4.4 to install the tilt and swivel base.
Usqr’s manual Usqr’s manual
b i
Power management utility disk
Fig. 1. Please check that all of the above items are present once you have
unpacked the monitor.
5

$$$$$g
:::::::::::::::
j#@ Section 4
Getting Acquainted
4.1. User Controls and Indicators
1. Power Switch. A push-on/push-off type switch used to turn the monitor
power On or Off.
2. Power-on indicator. This LED lights green when power is applied to the
monitor.
3. Brightness Control. This control allows adjustment of overall picture
brightness to a comfortable viewing level in varying degrees of room
lighting. Press the corresponding <+>or c - >buttons to change the
overall picture brightness.
4. Contrast Control. This control is used to adjust
the display to the
preferred contrast level. Press the corresponding <+ >or
<- >
buttons to change the overall picture contrast.
4.2. Display Adjustment Controls
The monitor contains preset display information on all of the available
display modes and no user-adjustments are normally required. However,
the front panel push buttons may be used for display adjustment in any of
the display modes if necessary.
Once set, the settings will be automatically saved and recalled each time a
mode change is effected.
When shipped from the factory, the front panel push buttons may be used
to perform the following adjustments:
1. H-phase. Used to adjust the proper horizontal display position.
2. H-width. Used to adjust the picture width to the desired level.
6

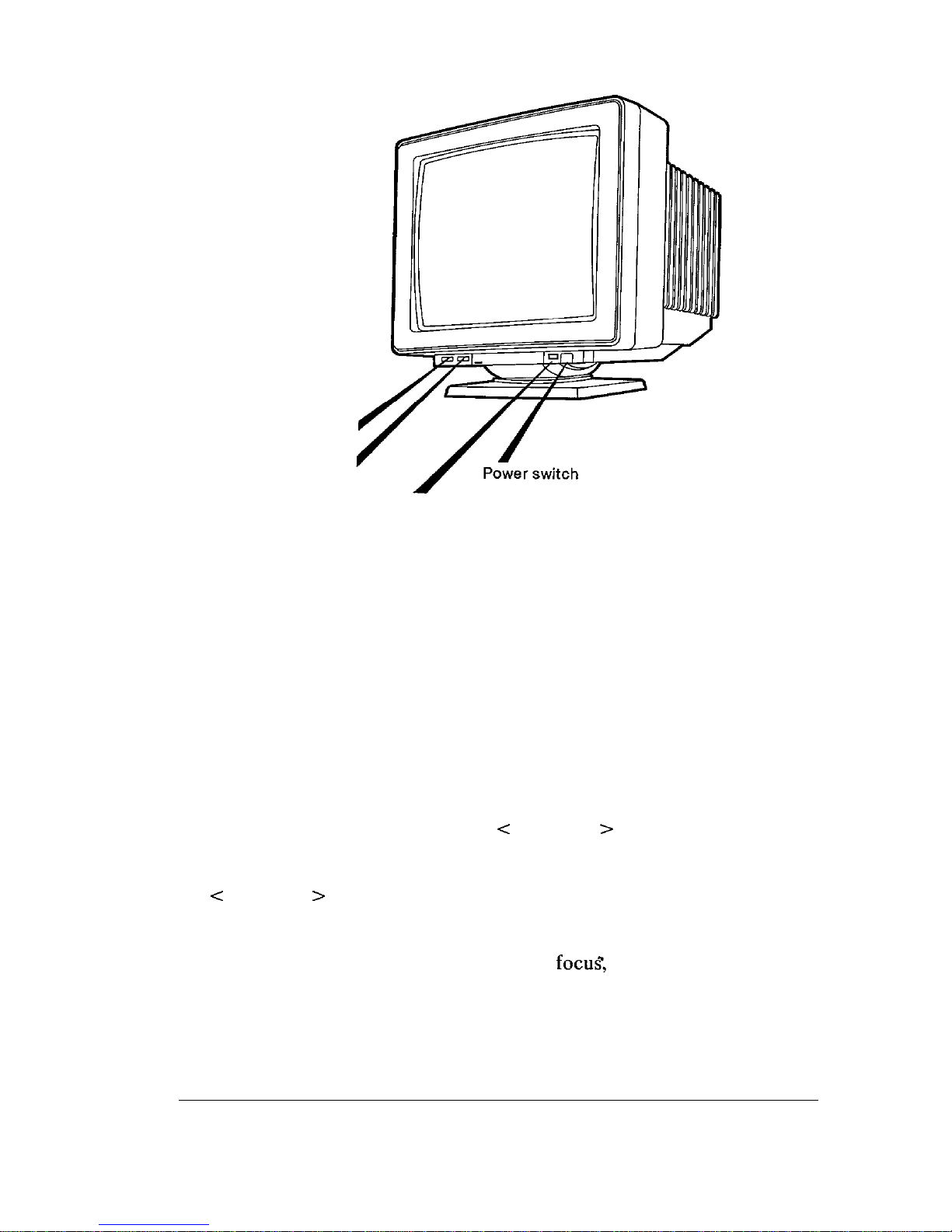

Contrast
Brightness
Power-on LED
Fig. 2. Frontpanel controls.
3. V-size. Used to adjust the overall picture to the preferred height.
4. V-shift. Used to adjust the proper vertical display position.
5. Reset. Used to return the display parameters of the current display
mode to the factory default settings. The LED display blinks two times
indicating that the settings have been changed to default.
The Reset button will only recall the factory defaults of the display mode
currently in use. The other display modes are not affected.
6. Function. Press and release the < Function > button to set the front
panel controls to the alternate mode for picture geometry and color
adjustments. Refer to Section 6.1 for more information on the use of the
c Function > button.
7. Degauss. This control eliminates the built-up of stray magnetic fields
which affect the purity of screen colors, focus: and convergence.
8. Tilt. Use a small screwdriver to rotate this control clockwise or counter-
clockwise for picture rotation (tilt) adjustment.
7

I
H-width
Reset
1
--
Fig. 3. Press down on the release tab to access the display adjustment controls.
4.3. Preset and User Modes
The monitor incorporates 10 preset modes and four user modes. The preset
modes are defined as follows:
Display mode
Resolution
fH, fV
Polarity
VGA 640 x 350 31.5 KHz, 70 Hz +, -
VGA 720 x 400 31.5 KHz, 70 Hz -9 +
VGA 640 x 480 31.5 KHz, 60 Hz -3 -
SVGA 800 x 600 35.2 KHz, 56 Hz
8514/A 1024 x 768 35.5 KHz, 87 Hz
VESA 640 x 480 37.8 KHz, 72 Hz
VESA 1024 x 768 48.9 KHz, 60 Hz
VESA 800 x 600 48 KHz, 72 Hz
VESA 1024 x 768 57 KHz, 70 Hz
CAD I CAE 1280 x 1024 64 KHz, 60 Hz
8

4.4. Installing the Tilt and Swivel Base
The monitor is designed to be mounted to the tilt and swivel base with which
it was shipped. To install the tilt and swivel base, proceed as follows:
1. Place the monitor upside down on a smooth and stable surface.
2. The monitor bottom side contains mounting holes for the tilt and swivel
base. These holes are represented as shaded areas in Figure 4.
3. Make sure that the claws on the tilt and swivel base slips into their
corresponding mounting holes on the monitor bottom surface. Push the
tilt and swivel base all the way toward the front of the monitor until it
snaps into place.
Fig. 4. Installing the tilt and swivel base.
9

.. .. . . .. . ..A.
:;:::::::::;:::
::::::::::::y:
jj$$jj Section 5
Installation Instructions
The monitor can be used with any IBM personal computer or compatible
equipped with display cards capable of any of the following modes: VGA,
super VGA, 8514/A, non-interlaced 1024 x 768, and 1280 x 1024 modes.
Proceed to install the monitor as follows:
1. Turn off the power to the monitor, the computer system, and other
attached devices.
2. If the display adapter is not yet installed in the computer system, install
it according to the instructions accompanying the display card.
3. Connect the video cable on the monitor to the Spin output of the
display adapter and tighten the fastening screws.
adapter
Fig. 5. Rearpanel connectors.
