Please read this manual thoroughly before use, and keep it handy for future reference.
Design and specifications are subject to change without notice.
3-AXIS VANDAL
DOME CAMERA
HSG(I)-H7DxF3S22/ NO BRAND
09-17-M13
50303601 M.J.KWON
A
12-12-M13
12-12-M13
12-12-M13
12-12-M13
rev.B - 17p Demension 수정 재고소진 후 적용
B12-12-M13
50303601 M.J.KWON

3-AXIS VANDAL
DOME CAMERA

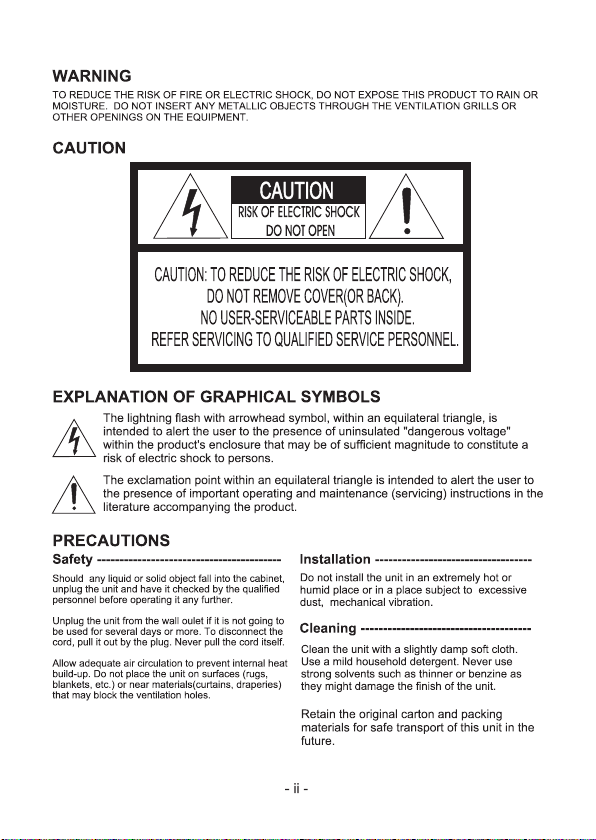

FCC INFORMATION : This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
CAUTION : Changes or modifications not expressly approved by the party
responsible for compliance could void the user`s authority to operate the equipment.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numéique de la classe A est conforme à la norme NMB-003 du Canada.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

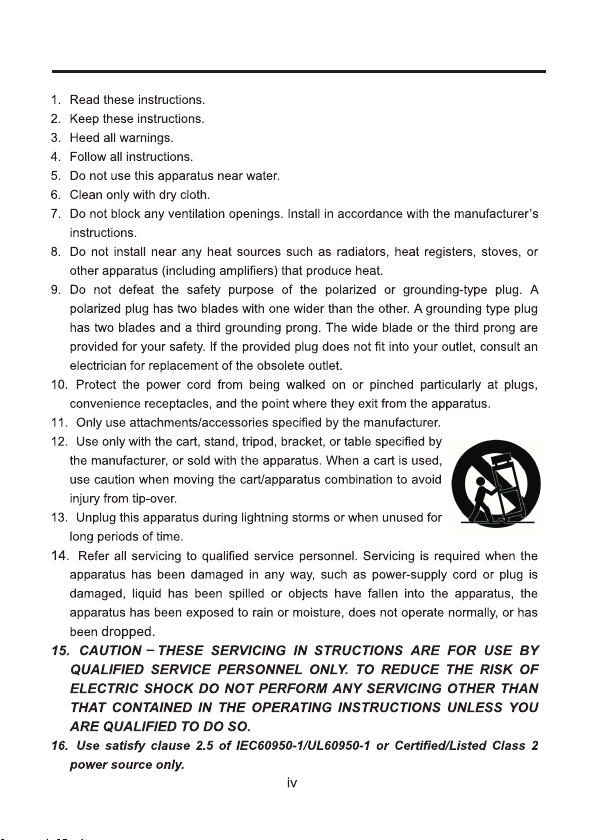

IMPORTANT SAFETY INSTRUCTIONS

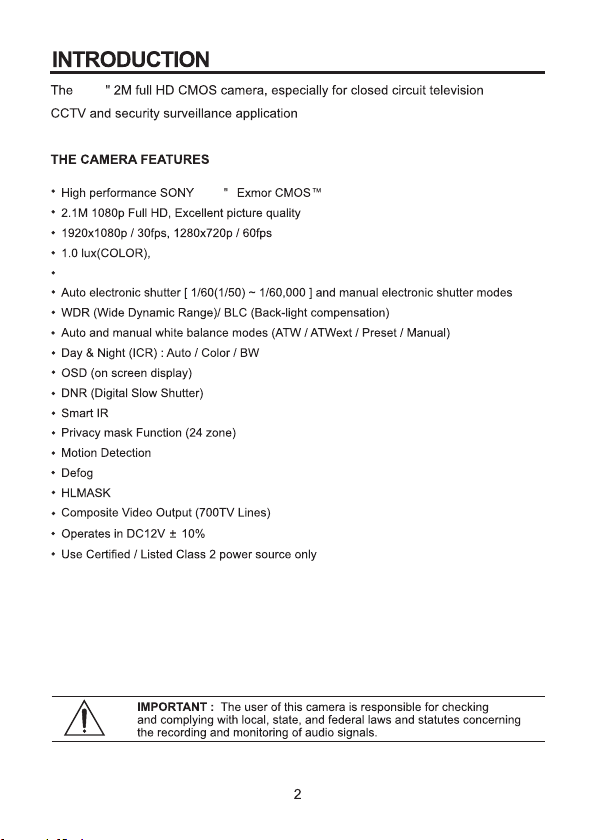

1/2.8
1/2.8
0.1 lux(B/W)
1.0 lux(COLOR), 0 lux (B/W, IR LED ON) : IR Model option
(IR Model option)

3.7 mm Fixed

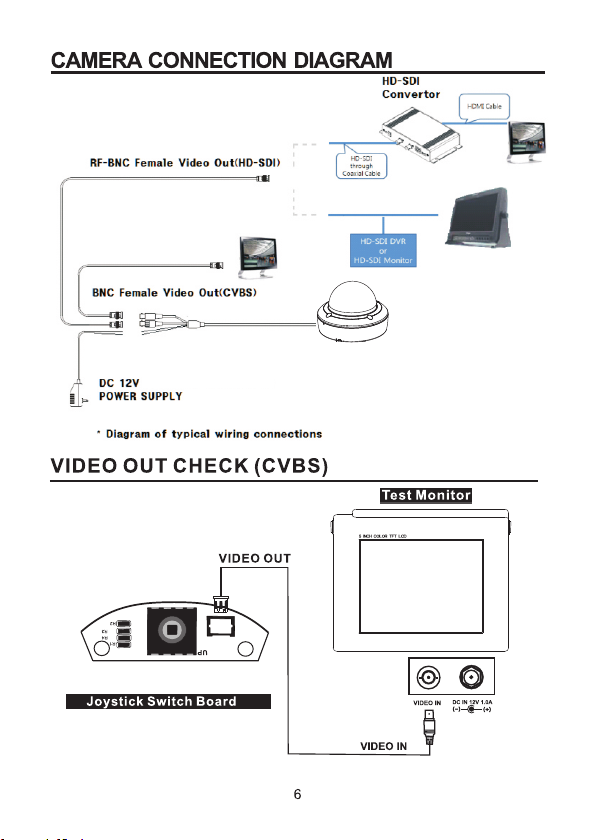

4. CVBS Video : BNC connector used to connect the camera to a monitor, switcher, etc.
3. HD-SDI Video : BNC connector used to connect the camera to a monitor, HD-SDI DVR, etc.
4

4
PT-Plug
PT-Plug

PTS1 5x30 <4X>
PTS1 5x30
Tighten a mounting screws.
2.
3.
4.

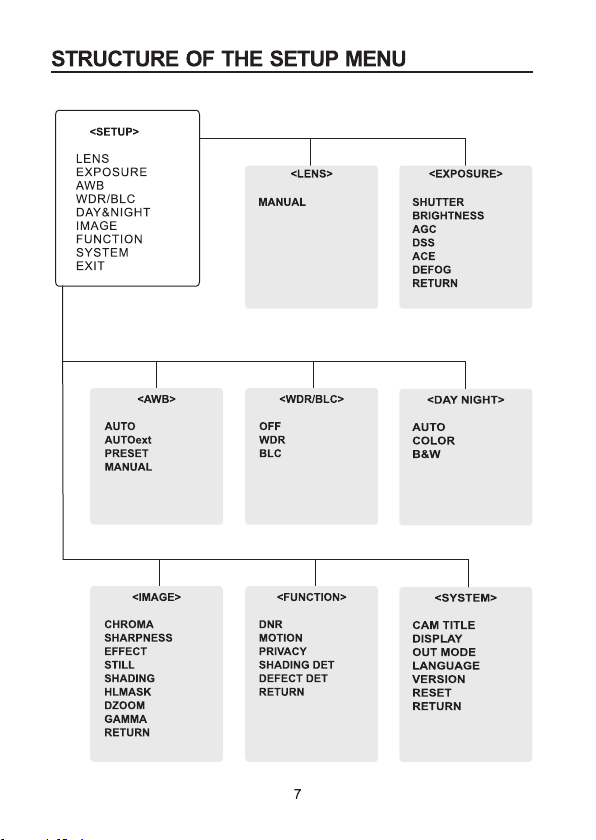

CN1
SPOT
LEFT
DOWN
RIGHT

The MANUAL mode

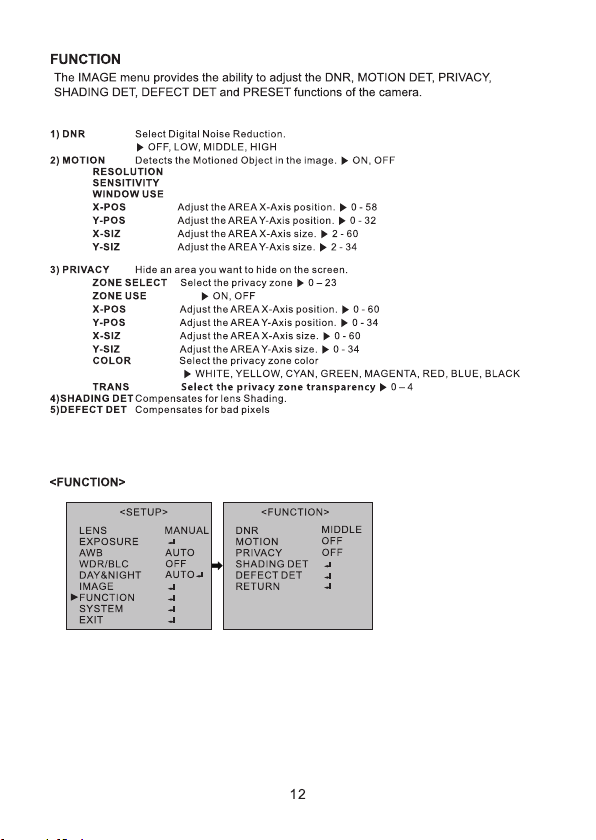

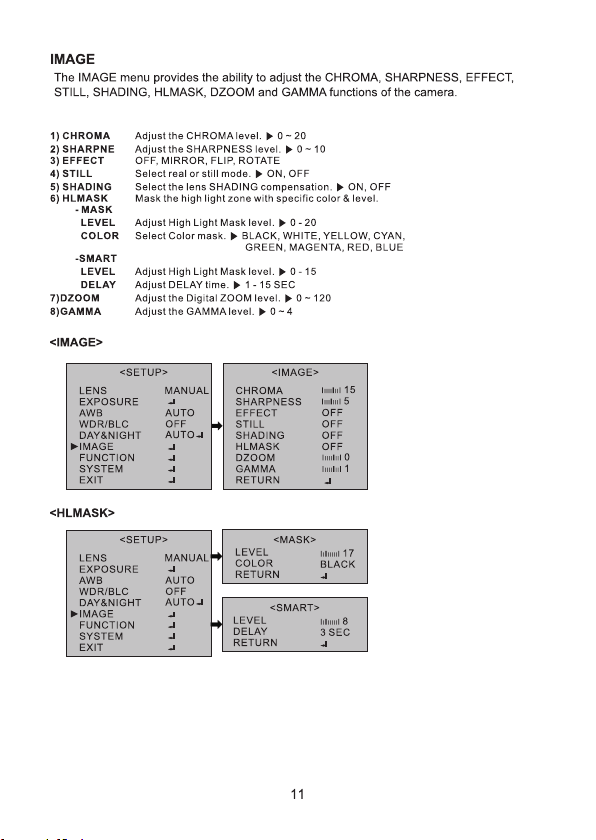

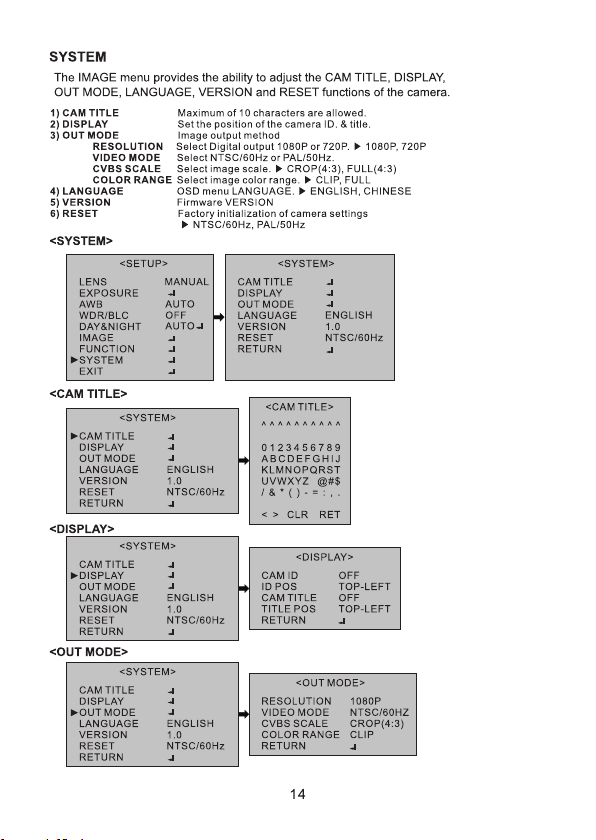

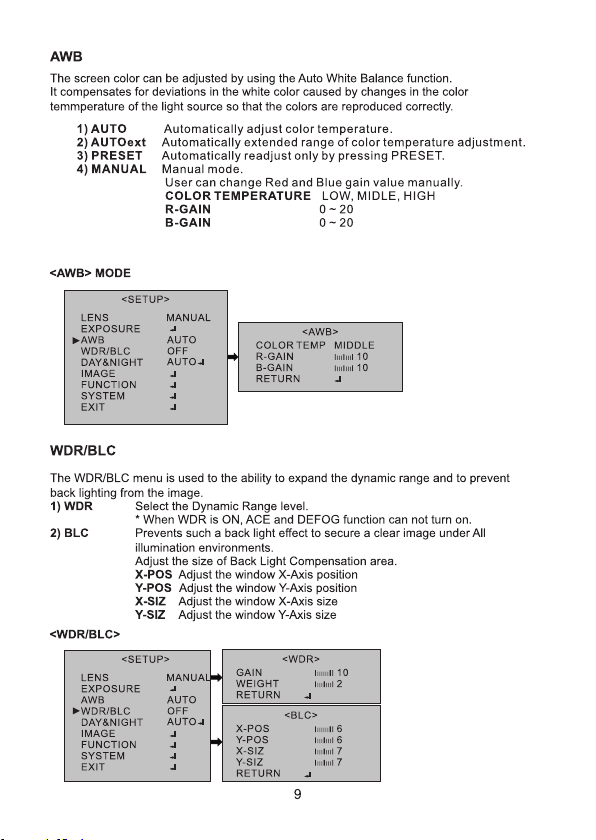

AGC
