Asoni CAM632 User manual

H.264 10X Network Speed Dome
CAM632
User’s Manual
Date: 7/20/2012
Firmware Version: V1.0.32

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................6
Cable Connections................................................................................................................6
I/O Connections....................................................................................................................7
A. Monitor Setting................................................................................................................9
B. IP Assignment................................................................................................................10
4. Live Video..........................................................................................................................12
5. Configuration ....................................................................................................................19
A. System ...........................................................................................................................19
System Information.............................................................................................................19
User Management ..............................................................................................................23
System Upgrade.................................................................................................................25
System Logs.......................................................................................................................26
B. Video/Audio Setting ......................................................................................................27
Video Format ......................................................................................................................27
Image Setting......................................................................................................................30
C. Network Setting.............................................................................................................31
Network Setting ..................................................................................................................31
Mail / FTP / Samba Setting.................................................................................................35
PPPoE Setting....................................................................................................................38
DDNS Setting .....................................................................................................................39
D. Event Handling..............................................................................................................41
Event Setting ......................................................................................................................41
I/O Setting...........................................................................................................................46
Schedule.............................................................................................................................48
6. OSD Menu..........................................................................................................................50
A. System Info....................................................................................................................52
B. Display ...........................................................................................................................53
C. Camera...........................................................................................................................54

2
D. Scan................................................................................................................................62
E. Control ...........................................................................................................................65
F. Privacy Mask .................................................................................................................67
G. Alarm..............................................................................................................................69
H. Initialize..........................................................................................................................69
7. Network Configuration.....................................................................................................71
A. Intranet Only..................................................................................................................71
Connects to PC Directly......................................................................................................71
Connects to an Exist LAN...................................................................................................72
B. Internet Only..................................................................................................................73
Connects to ADSL with Fixed Public IPAddress.................................................................73
Connects to ADSL with Floating Public IPAddress (PPPoE)..............................................74
C. Intranet + Internet..........................................................................................................76
Connects to Internet with Fixed Public IPAddress..............................................................76
Connects to Internet with Floating Public IPAddress..........................................................78
8. Factory Default..................................................................................................................79

3
1. Preface
This camera is a network speed dome camera. It builds in web server. User views
real-time video via IE browser. It supports H.264, JPEG and MPEG4 (3GPP Only) video
compression which provides smooth and high quality video.
This camera is equipped with high resolution CCD sensor and 10X zoom lens that can
used for wide angle observation and detail viewing to the far-end object as well.
The PT mechanism provides controllable pan (360o) and tilt (180o) functions, giving users
the capability to manipulate the camera for precise locating on targets for monitoring. The
built-in micro-controller allows users to program up to 128 presets for quick and accurate
capture to specific view positions.
Majority of image related functions (such as DSP functions, lens functions, special effects
of video…) are managed via OSD (On-Screen-Display) menu. These functions are
explained in the section of OSD with details. The CCD can be set up for automatic
switching to black-white mode for improving image quality in weak-light or dark condition.
2. Product Specifications
H.264 / MJPEG / MPEG4 (3GPP Only) compression formats. Supports resolution up
to 30/25 fps @ Full D1 (720x480 / 720x576)
H.264 / MJPEG / MPEG4 (3GPP Only) triple streaming.
Self-Contained HTTP Web Server providing Internet capability for remote access
10X optical zoom and 10X digital zoom
Continuous panning for 360o; Tilt for 180o
Fast moving speed, up to 240oper second
Programmable for view position, speed and dwell
View position preset, up to 128 points
Auto-pan, 4 groups of tour and 4 programmable patterns for patrol
Day & Night functionality for 24-hours surveillance
Online firmware upgrade

4
Hardware
CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB
Image Sensor 1/4" Sony SuperHAD CCD, 540 TV lines
Lens 1/4", 10X Zoom Lens 3.8 ~ 38 mm, F1.8 ~ 2.8
Day / Night Auto / Manual, Mechanical IR Cut Filter
Illumination Color mode: 0.7 lux
Black/White mode: 0.02 lux
ICR On: 0.005 lux
Video Out 1 Analog video out (BNC connector)
Digital I/O 1 Digital in / 1 Relay out
Power Supply DC 12V, 1.5A
Power Consumption Max. 15 Watt
Dimensions Φ135 x H196 mm
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, NTP, SMTP, FTP, PPPoE, DHCP, DDNS, UPnP
System
Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120
PAL: 720x576, 704x576, 352x288, 176x144
Compression Format H.264 / MJPEG / MPEG-4 (3GPP only)
Frame Rate Up to 30 FPS
Triple Streaming Yes (2 for live view, 1 for 3GPP)
3GPP Yes, Live view with 3G mobile phone
Video Bitrate Adjustment CBR, VBR
Pan / Tilt / Zoom Control Yes, remotely
Zoom Ratio Optical 10X, Digital 10X
Pan Angle 360o, continuous
Tilt Angle 180o, continuous
Pan/ Tilt Speed Call preset: 240o/sec
Auto scan: Variable speed, up to 120o/sec
Manually: Variable speed, up to 240o/sec
Preset Point 128 Preset points
Patrol Patrol for presets, Group patrol, Pattern patrol, Auto pan
Focus/ Iris Auto / Manually
Motion Detection Yes, 3 different areas
Event Trigger Motion Detection, Digital In
Triggered Action Send Email, Send to FTP, Relay Out

5
Pre/ Post Alarm Yes, configurable
Security Password protection
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 10 clients simultaneously
Web browsing requirement
OS Windows 2000, XP, Vista, Windows 7
Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above
Suggested Hardware Intel Core 2 Duo 1.66GHz, RAM: 1GB
Graphic card: 128MB onboard RAM
* Specifications are subject to change without notice

6
3. Product Installation
Cable Connections
Power Jack:
To connect the included power adapter.

Video Output: The BNC connector allows connect to the analog display to
output analog video for locally monitoring.
Terminal Block:
The terminal block provides Digital In and Relay Out:
1. DI
2. GND
3. Relay_NC
4. Relay_Com
5. Relay_NO
Network Connector:
The RJ-45 connector allows connect the Ethernet cable.





7
1. Connect the cable of Digital I/O and Video output if you want to use these
functionalities.
2. Connect Ethernet cable for network connection.
3. Connect power adapter to turn on the camera.
4. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
I/O Connections
I/O terminal connector – used in application, for e.g., motion detection, event triggering,
alarm notifications. It provides the interface to:
1 set of Digital Input (DI + GND) – The digital inputs for connecting devices that
can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 set of Relay Output (Relay_NO + Relay_Com or Relay_NC + Relay_Com) –The
output to Relay switch of the alarm device such as LEDs, Sirens, etc.
Digital IN
Relay Out

8
Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
DI: Max. 50mA, 12VDC.
Relay output
Relay_Com:Common pin.
Relay_NO (Normally Open): Max. 1A / 24VDC or 0.5A / 125VAC.
Relay_NC (Normally Close): Max. 1A / 24VDC or 0.5A/ 125VAC.
Door/Window
Contacts

9
A. Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to “Highest (32bit)”.

10
B. IP Assignment
Always consult your network administrator before assigning an IP address to your
camera in order to avoid using a previously assigned IP address.
MAC Address: Each network camera has a unique Ethernet address (MAC address)
shown on the sticker of the device.
One final note, although the IP Search is able to find and configure any network
device on the LAN except those that are behind a router, it is a good idea to set the
host PC to the same subnet. In order to connect to the Web-based user interface of
the network camera, the host PC must be in the same subnet. For more information
about subnets, please consult your network administrator.

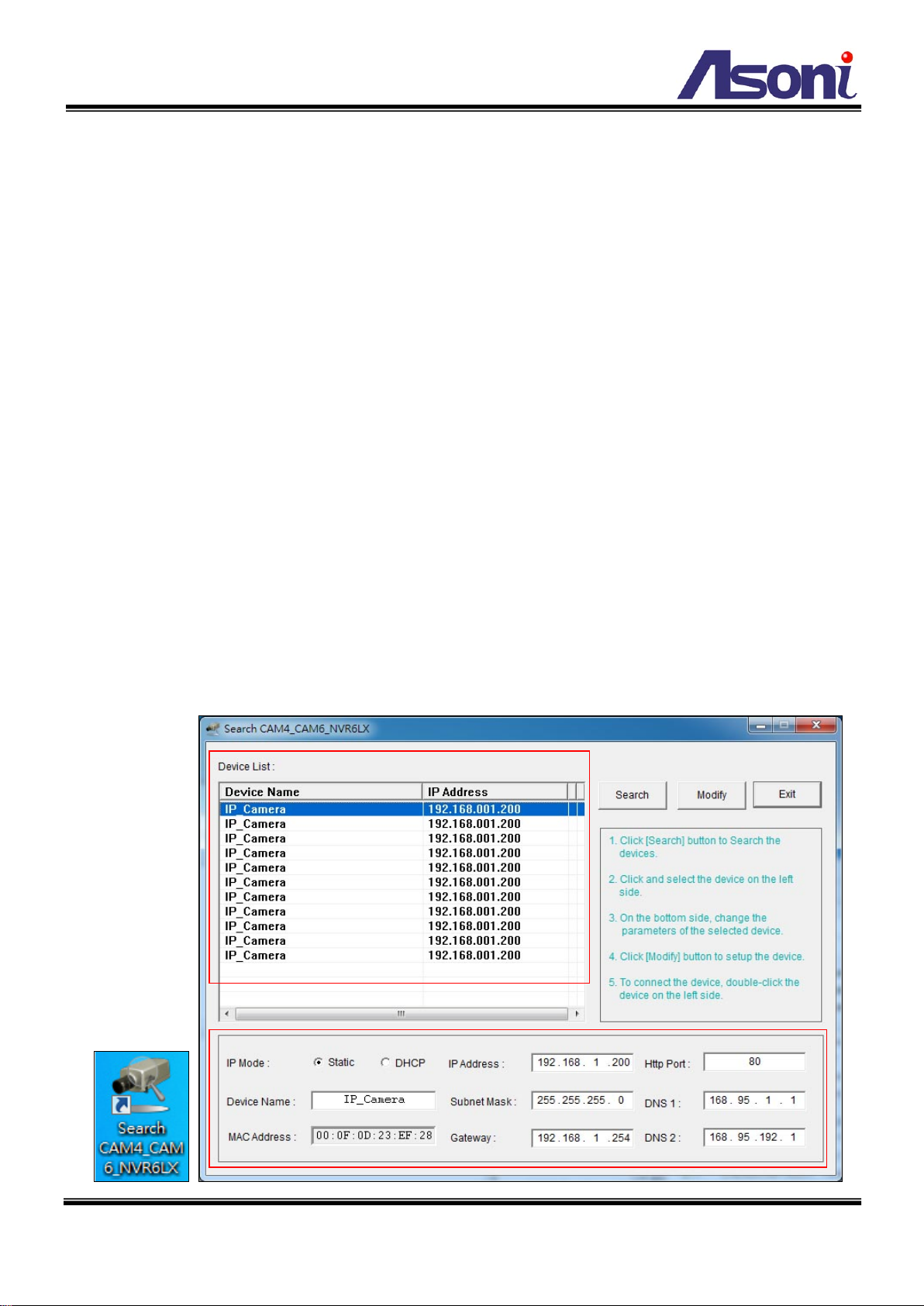

“Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the network camera in Local Network (LAN).
The software can be installed from the attached software CD.
1. Once “Asoni IP Search” has been successfully installed on the computer, double
click the “Search CAM4_CAM6_NVR6LX” icon on the desktop.






11
2. IP Search searches all the network devices which connect to the intranet and lists
on the window. Click [Search] button to search again.
3. From the list, click and select the device with the MACAddress that corresponds to
the device that is to be configured.
4. The network configuration of the selected device will show on the bottom, filling in
the Device Name, IPAddress, Subnet Mask, Gateway and the others.
5. Click [Modify]button to save the settings into the device.
6. Wait for few seconds to let the device update the settings, and then click [Search]
button again to re-search the network devices.
7. Double-click the network device listed on the window, It will open an IE browser and
connect to this device directly.

12
4. Live Video

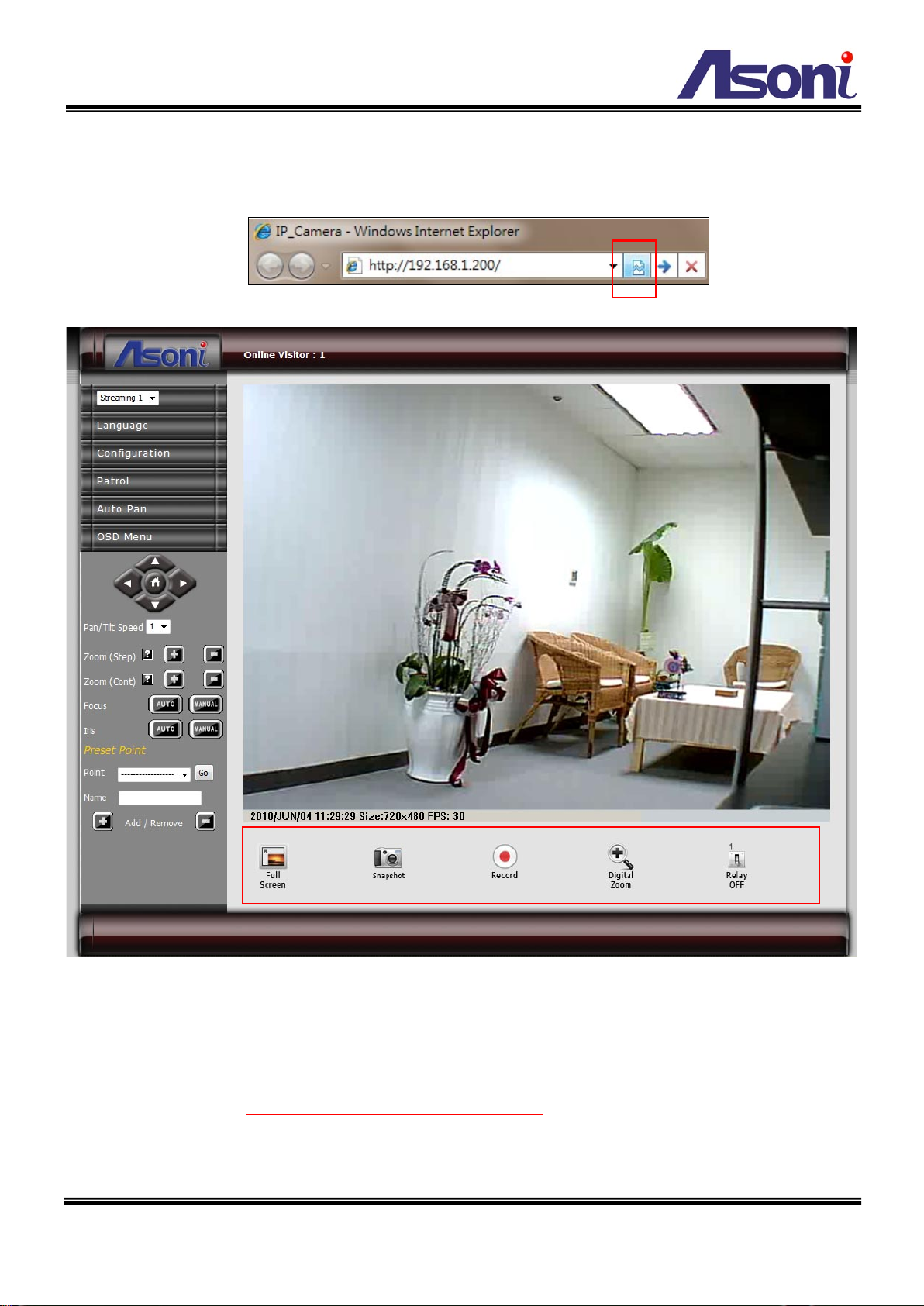

Start the IE browser, type the IP address of the
network camera in the address field:
http://<IP of camera>
If the “HTTP Port” has been changed from “80”,
type the URL as:
http://<IP of camera>:<HTTP Port>
After link to the camera, it will show a dialogue
box. Key-in the user name and password to
log-in and open the web page of camera.
The default user name and password are “admin” and “admin”.
For the first time to view the camera video via IE, it will ask you to install theActiveX
component.
If the installation failed, please check the security setting for the IE browser.
1. In IE, click on [Tools] [Internet Options…]
2. Click on [Security] Tab [Custom Level…]
3. In Security Settings, under [Download unsigned ActiveX controls], select
“Enable” or “Prompt”.
4. In Security Settings, under [Initialize and script ActiveX controls not marked as
safe], select “Enable” or “Prompt”.
5. When pop-up window with warning message, click [Yes] to save the settings.

13
1
2
3
4
5
When popup the following dialogue box, click [Yes].

14
The web page of the device shows as following.
If you are using IE 8.0 or above, please click “Compatibility View” icon to make this web
page works properly:
Streaming : Select the streaming 1 or 2 from the pull-down list to display.
Language : Change the display language temporarily.
Note: The display language is changed temporarily for current connection, and it
doesn’t change the default language. To change the default language, please
go to Configuration System Information page.
Configuration : Go into the configuration page to set the parameters if necessary.
Status Bar : Shows system date/time, video resolution and video refresh rate (FPS).
⑤
③
②
①
⑦
④
⑧
⑥
⑩
⑨

15
Online Visitor : Shows how many users connect to this device.
OSD Menu :This camera has many functions available to users for setting and
adjusting. Most advanced functions are accessible through OSD (On-Screen-Display)
Menu. Please refer to OSD Menu chapter for the operation.
P/T Control Panel, Zoom, Focus and Iris :
Pan/Tilt
Control
Pan / Tilt the camera: Press direction button to pan or tilt camera.
Move camera back to
the home position: Click button.
Speed Adjust the speed of the
camera movement: Select the speed from the pull-down list, higher value is faster.
Zoom (Step) Adjust the zoom ratio
step by step: Click or button to zoom-in or
zoom-out the camera.
Zoom (Cont) Adjust the zoom ratio
continuously:
Pressing or button to zoom-in or
zoom-out, the camera will keep zooming until
you release the button.
Note: Since the video transfer will be delayed
with slow network, it is difficult to stop
the zooming at the correct position,
please do not use this operation via
Internet.
Focus Adjust the focus:
Click to adjust focus automatically.
Click and then click or to
manually adjust focus.
Iris Adjust the Iris:
Click to adjust iris automatically.
Click and then click or to
manually adjust iris.

16
Preset Point :This camera supports 128 preset points.
Preset Point
Set / Change Preset
Point:
Select the preset from pull-down list, move
camera to the desired position, input a name in
“Name” box, and then click button.
Go to Preset Point: Select the preset from pull-down list and then
click [Go], camera will go to the position.
Remove Preset Point: Select the preset from pull-down list and then
click button.
Patrol :Click button to open the Patrol control panel.
Patrol
Choose the patrol
mode from the
pull-down list. There
are 11 modes are
available:
All Points: To make camera move around all preset
points stored in the camera.
You can set up the speed
and dwell in OSD Menu Scan All Preset.
Point 1~4: This camera automatically grouping the first
16 presets stored in it into 4 groups. The 4 groups can
run separately, at their own speed and dwell length
per group. This mode makes camera move around all
the preset 1 to 4 (group 1) sequentially. You can set
up the speed and dwell in OSD Menu Scan 
Group Scan.
Point 5~8: This mode makes camera move around all
the preset 5 to 8 (group 2) sequentially. You can set
up the speed and dwell in OSD Menu Scan 
Group Scan.
Point 9~12: This mode makes camera move around all
the preset 9 to 12 (group 3) sequentially. You can set
up the speed and dwell in OSD Menu Scan 
Group Scan.
Point 13~16: This mode makes camera move around all
the preset 13 to 16 (group 4) sequentially. You can set
up the speed and dwell in OSD Menu Scan 
Group Scan.

17
Pattern 1~4: To make camera patrol the selected
pattern. Pattern is a function allows you create
specific path with individually-defined stops.
You can
create the pattern in OSD Menu Scan Pattern.
Selected Group: To make camera move around all the
selected groups. You can select the groups in different
combinations in OSD Menu Scan Tour Scan.
Selected Point: To make camera move around all the
selected presets (among 1 to 32). You can select the
presets in OSD Menu Scan Patrol.
Start “Patrol”: Click button.
Stop “Patrol”: Click button.
Auto Pan : Click button to open the Auto-Pan control panel.
This camera provides 3 modes for auto pan function.
Pan/Tilt
(L<->R)
Continuous panning
between two
positionsA and
positions B:
The positionA can be set by clicking button
(Left-Limit); the position B can be set by clicking
button (Right-Limit).
Start “Auto Pan”: Click button.
Stop “Auto Pan”: Click button.
Other
Mode
Choose theAuto
Pan mode from the
pull-down list. There
are 2 modes are
available:
Auto Pan-Only: This is for continuous panning between
two positionsA/ B. Camera will not move in vertical
direction, however. To start this mode, please enter
OSD Menu Scan Auto Pan Pan Only and
complete the settings of start position, end position,
moving speed and dwell first.
Auto Pan-Circle: To perform continuous panning in 360o.
To start this mode, please enter OSD Menu Scan
Auto Pan Circle and complete the settings of

18
start position and panning speed first.
Start “Auto Pan”: Click button under the pull-down list.
Stop “Auto Pan”: Click button under the pull-down list.
Function Buttons : Click these buttons will perform the following functions.
Full Screen : Click this button or double-click the video, the video will change
to full screen mode.
Press [Esc] key or double-click the video again, it will back to normal mode.
Snapshot : Click this button to take snapshot of the video. The image will be
displayed in a pop-up window, click to save as a jpg picture.
Record : Click this button to record the video into the local PC. It will ask you
where to save the video. To stop recording, click this button again.
The saved video format is AVI. The recorded file can be played by Microsoft
Media Player. Note, H.264
decoder must be installed to play the recorded file.
You can install “FFdshow” from the included CD for the decoder.
Digital Zoom : Click this
button, a pop-up window
appears. You can enable /
disable the digital zoom, and
adjust the ratio.
Relay Out (ON/OFF Switch) : Click the button to manually turn on / off the
Relay via the built-in Relay Out.
Relay Out (Time Switch) : Click the button to manually turn on the Relay via
the built-in Relay Out, after the interval time is passed, the Relay will be
turned off automatically. The interval time can be set up in Configuration 
Event Handling I/O.

19
5. Configuration
Click [Configuration] button to get into the configuration page. Click [Live View]
button to back to the Live-View page.
A. System
System Information
Set up the camera name, select language, and set up the camera time.
System Information
