HKBN SMART ID QL8S User manual

1
Winnie the Pooh Smart Desk Lamp
with Wireless Charger (Model：QL8S)
v.20210923
HKBN Smart User Guide

2
Table of contents
Product Description ............................................................................3
Download HKBN Smart App................................................................4
Add Device..........................................................................................5
Control Device ....................................................................................9
−Introduction of Control Panel...................................................9
−Switch On/Off ........................................................................10
−Adjust Color Temperature and Brightness .............................11
−Scene Mode ...........................................................................12
Scene (Smart Action).........................................................................13
Automation (Smart Action)...............................................................15
Device Information ...........................................................................18
−Page Layout............................................................................18
−Check for Firmware Upgrade .................................................19
−Remove Device.......................................................................20
Product Specifications.......................................................................21
Product Maintenance and Warranty ................................................22

3
Product Description
Name: Winnie the Pooh Smart Desk Lamp with Wireless Charger
Model: QL8S
Product Features:
1. Adjust brightness, colour temperature via HKBN Smart App
2. Cantonese voice controls*
3. Eye Comfort Sensor: Auto brightness adjustment for your environment
4. Wider Lighting Angle: Flexible 3 elbow joints with wide angle bending
*Voice Control works with Siri shortcuts on specified iOS devices.

4
Download HKBN Smart App
OR
Scan the QR code below
Search and download “HKBN Smart”
APP in Apple App Store OR Google
Play Store

5
Add Device
1. You must first connect your phone to a 2.4GHz Wi-Fi network when
adding device;
2. Tap “Devices” on the bottom menu (image 1);
3. Tap “Add Device” button OR “+” icon at top right corner if you already
have paired device (image 2);
(image 1)
(image 2)

6

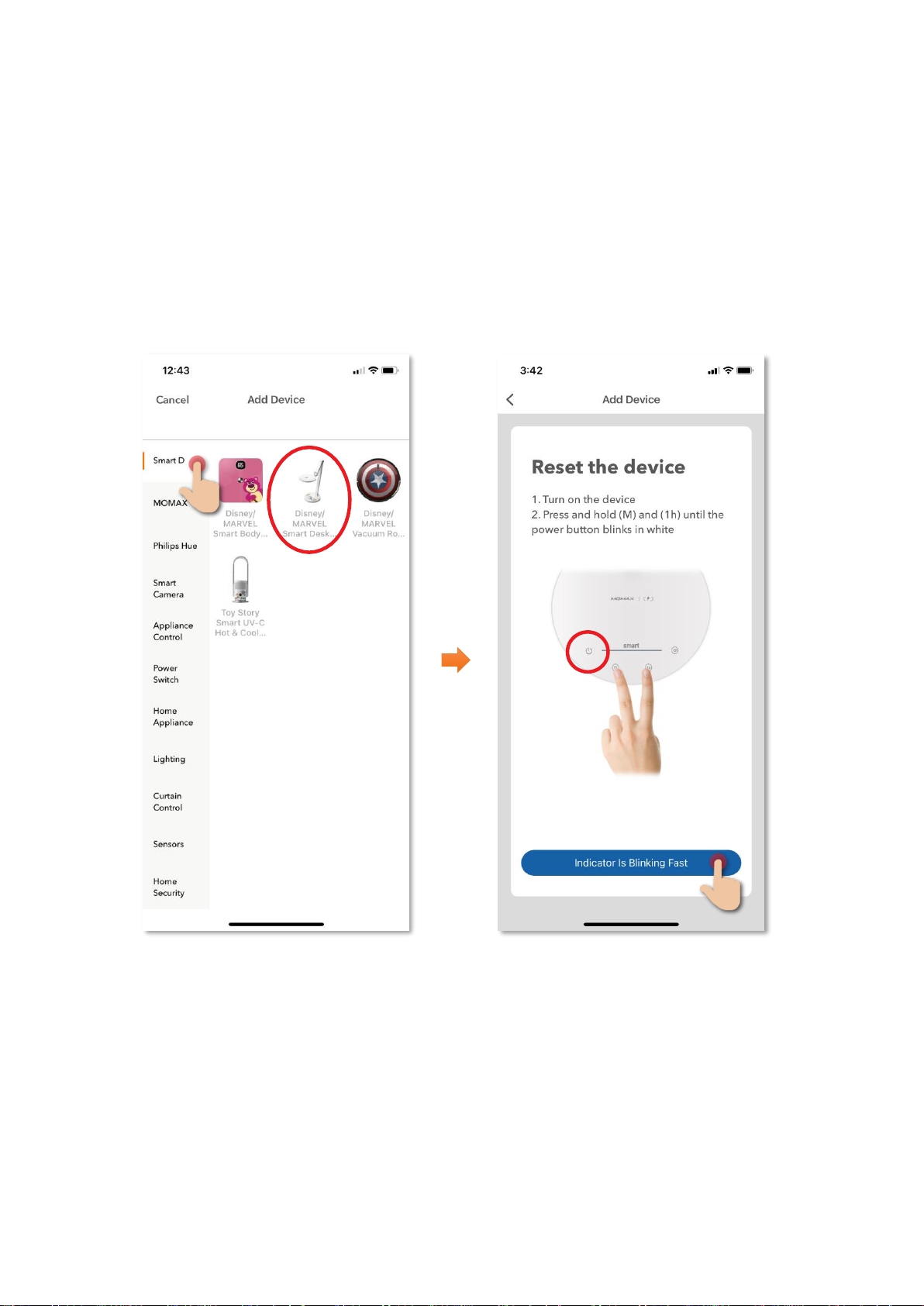

4. Tap “Disney/MARVEL Smart Desk Lamp”from left menu “Smart D”
(image 3);
5. Power on the device (keeps the light OFF), then press and hold (M) and
(1h) until the power button blinks in white (image 4);
(image 3)
(image 4)

7
6. Select Wi-Fi network and enter password*, and then tap “Next” (image
5);
7. Please wait a moment while our device is in pairing process (image 6).
*Important tips: Wi-Fi requirement
⚫Currently all smart devices are compatible to 2.4GHz network only. Please make sure
that your device and mobile are connected with 2.4GHz but not 5GHz Wi-Fi network.
⚫If you have 2.4GHz and 5GH Wi-Fi channel and they are using same SSID, we suggest
to edit it to different name before pairing. If you insist to use the same SSID on two
channels, please turn off the 5GHz channel first before pairing.
⚫
(image 5)
(image 6)

8
8. After device added successfully, you can change the device name and
assign it to the located room. (You can also change the device name
and room location later in device setting page and room management
page.) And you can find the added device in the “Device” page.
Device
Name
Room
Selection
Disney/MARVEL Smart Desk Lamp
Disney/MARVEL Smart Desk Lamp

9
Control Device
•Introduction of Control Panel
Device Information
Brightness adjustment
White Mode
On/Off control
Scene Selection
White Mode

10
•Switch On/Off
You can press the button to turn on/off your desk lamp remotely.
