56” CEILING FAN
Owner’s Manual
Model #51637, 51638
To obtain service, please contact the Service Department:
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
RATED FOR
WET LOCATION

PACKAGE CONTENTS
2
HARDWARE CONTENTS
1. Canopy
2. Canopy Cover
3. Mounting Bracket Screw
(x4)
4. Mounting Bracket
5. Downrod
6. Downrod Pin
7. Downrod Clip
8. Yoke Cover
9. Set Screw (x2)
10. Motor Screw (x6)
11. Motor Assembly
12. Fitter Plate
13. Fitter Plate Screw (x3)
14. Switch Housing
15. Switch Housing Screw (x3)
16. Switch Housing Cap
17. Blade Balancing Kit
18. Owner’s Manual
19. Hardware Kit
20. Blade (x3)
AA. Wire Connector (x3)
DD. Pull Chain Extension
JJ. Secondary Support Screw
KK. Support Washer
MM. Secondary Spring Washer
Unpack your fan and check the contents. You should have
the following items:
PACKAGE CONTENTS
HARDWARE CONTENTS
Note: Some extra hardware has been included. The quantity
listed above is the number required for installation.
HARDWARE CONTENTS
JJDD
TOOLS REQUIRED (not included)
Tools required for assembly: Electrical tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, Wire Cutters
and Wire Strippers
Helpful Tools: AC Tester Light, Tape Measure, and Wiring Handbook
Hardware
Kit
Owner’s
Manual
KK MM
12
11
9
8
10
7
6
5
4
16
19
20
AA
17
18
13
3
14
15
2
1

3
A. 15.9 in. B. 12.7 in. C. 7.4 in. D. 5.13 in.
DIMENSION REFERENCE
MOUNTING OPTIONS
Downrod Mount
Angle Ceiling Mount (Up to 16 degrees)
Two Mounting Options
Choose one of the following mounting options:
Downrod Mount is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is
not steeper than 16°.
C
D
B
A

4
READ ALL SAFETY INFORMATION AND INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN INSTALLING THE
FAN AND SAVE INSTRUCTIONS.
All set screws of the fan must be checked and retightened where necessary before installation.
To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades or cleaning fan. Do not insert foreign objects in between rotating fan blades.
Before changing the fan direction, turn o the fan and wait for the fan blades to stop completely.
The safeguards provided by these safety instructions and by the separate installation instructions are not meant
to cover all possible conditions and situations that may occur. It must be understood that common sense, caution
and care are factors which can not be built into this product. These factors must be supplied by the person(s)
installing, caring for and operating the fan.
The fan weight is Net Weight: 15.63 lbs (7,09 kg). Be sure the outlet box (not included) is securely attached to the
building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device (if applicable).
CAN ICES-005 (B) / NMB-005 (B)
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
HKC-US
3350 Player’s Club Parkway, #225
Memphis, TN 38125
1-877-706-3267
SAFETY INSTRUCTIONS
CAUTION:

WARNING:
To avoid risk of electric shock, be sure to shut o power at the main fuse or circuit breaker box before
installing or servicing this xture. Turning o the electrical power by using the light switch is not
sucient to prevent electrical shock.
To reduce the risk of injury, install the fan so that the blades are at least 7 feet (2.1 Meters) above the
oor and at least 18 inches (0.5 Meters) from the tip of the blades to the wall.
To reduce the risk of re, electric shock, or personal injury, mount to outlet box marked “acceptable for
fan support” and use mounting screws provided with the outlet box.
The installation has to be in accordance with the National Electrical Code, ANSI/NFPA 70-1999 and
local codes. If you are unfamiliar with the methods of installing electrical wiring, seek the services of a
qualied licensed electrician.
Using a full-range dimmer switch to control fan speed will cause a loud humming noise from the fan. To
reduce the risk of re or electric shock, do NOT use a full-range dimmer switch to control the fan speed.
SAFETY INSTRUCTIONS
5

Downrod
Clip
Set Screw
Yoke
Downrod
Pin
Downrod
6
Motor Screw
ASSEMBLY INSTRUCTIONS
1
3
Mounting Bracket Screw
2
4
2. Loosen all four mounting bracket screws located on the
mounting bracket and completely remove the two screws
from the round holes in the canopy. Save the screws for
later. Remove the canopy from the mounting bracket.
Then, install the mounting bracket to the outlet box (sold
separately) using the screws and washers provided with
the outlet box.
WARNING: To reduce the risk of re, electric shock,
or personal injury, mount to the outlet box marked
“acceptable for fan support” and use the mounting screws
and washers provided with the outlet box.
3. Remove the 6 Phillips-head motor screws from the top
part of the motor and set aside for later use.
1. Turn OFF the electrical power at the main fuse or circuit
breaker.
DANGER: Failure to disconnect the power supply prior to
installation may result in serious injury or death.
4. Remove the downrod clip and downrod pin from the
downrod. Then, loosen but do not remove the two set
screws at the top of the yoke.

7
Tab
Slot
Downrod
7. Install the ball end of the downrod into the opening of
the mounting bracket. Rotate the downrod until the tab in
the mounting bracket is seated in the slot in the downrod
ball.
WARNING: The fan and/or downrod should not rotate in
the mounting bracket, if installed correctly. Failure to align
the slot in the downrod ball with the tab on the mounting
bracket may result in fan falling causing serious injury or
death.
ASSEMBLY INSTRUCTIONS
Mounting
Bracket
Downrod Pin
Downrod Clip
Yoke
Downrod Set Screw
Canopy
Braided
Cable
Yoke Cover
Downrod
Yoke
7
6
5

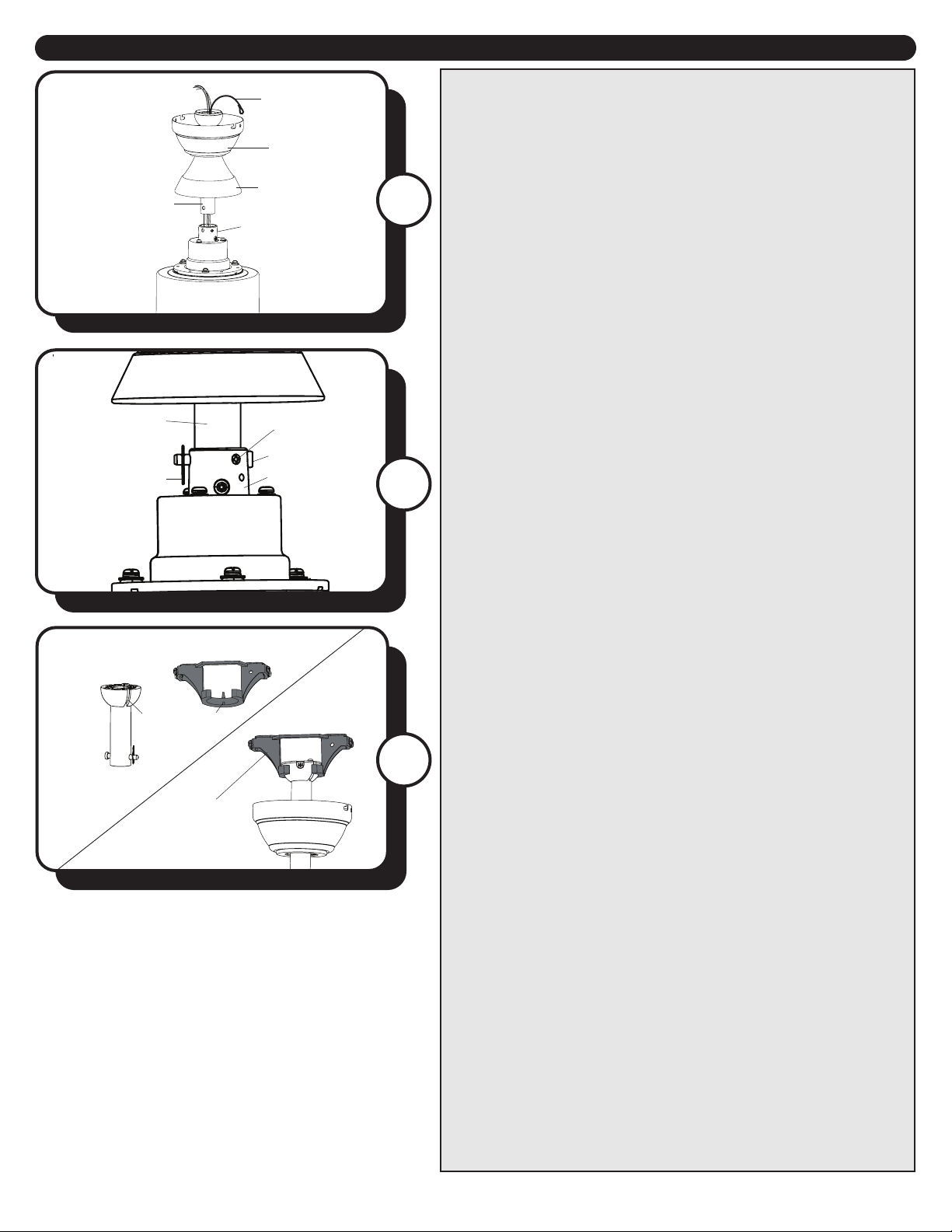

6. Slide the downrod into the yoke of the motor assembly,
align the holes, then re-install the downrod pin and
downrod clip. Secure with the two set screws and slide
the yoke cover down until it rests on top of the motor
assembly.
Note: With wiring extending out of the downrod,
measure 8 inches of lead wire and cut the excess wire with
wire cutters (not included). Then strip 1/2” of insulation
from the end of each wire.
WARNING: Do not cut braided cable.
5. Insert the downrod through the canopy and yoke cover.
Feed the wires and braided cable from the fan through
the downrod.

8
ASSEMBLY INSTRUCTIONS
Secondary
Support
Screw
Open Loop Support
Washer
Secondary
Spring
Washer
10

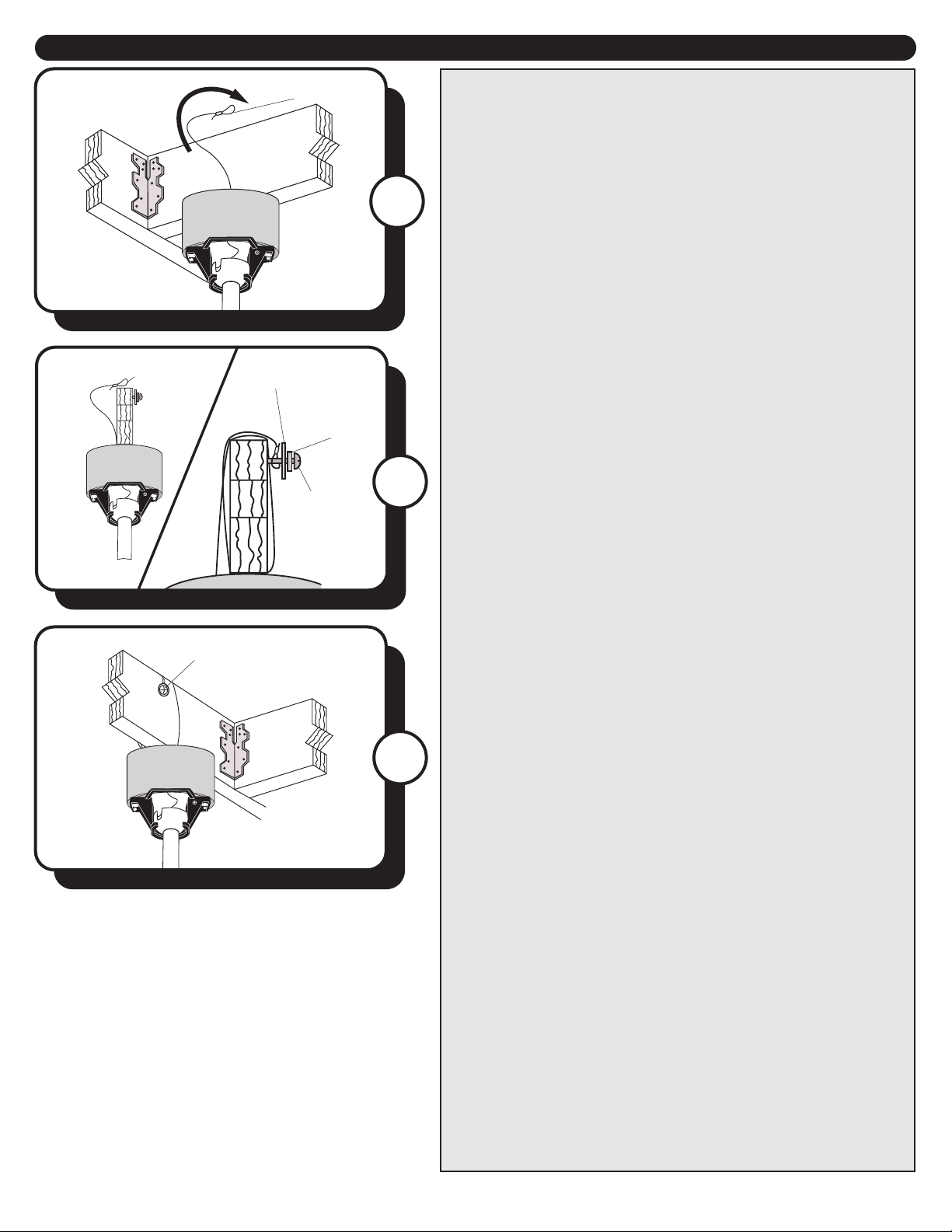

9. Install secondary support screw, secondary spring
washer, and support washer partly into the side of the
brace installed in the ceiling. Then lift the braided cable up
and over the ceiling brace and place the open loop of the
braided cable around the secondary support screw.
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
10. Tighten the secondary support screw securing the
braided cable.
9
8
Secondary
Support Screw
Braided Cable
Outlet
Box
Brace
SECONDARY HANGING SYSTEM
For installation in the United States: Building codes
in the U.S.A. do not require installation of a Secondary
Hanging System. If desired, the braided cable can be cut
and removed using wire cutters (sold separately). Skip to
Step 11.
For installation in Canada: In compliance with building
codes in Canada, installation of the Secondary Hanging
System is required.
8. Feed the loop of the braided cable, preassembled to the
motor assembly, up through the outlet box mounted in
the ceiling.

9
ASSEMBLY INSTRUCTIONS
Motor Screw
Blade
Canopy
Mounting Bracket Screw
J-shaped
slot
Round
Hole
Black (Hot)
Wire Connector
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
13
14
12
11
WARNING: Do NOT
wire the fan motor to a
variable-speed (dimmer)
wall control.
12. Raise the canopy, ensure the two mounting bracket
screws are aligned with the J-shaped slots in the canopy.
Then turn the canopy in a clockwise direction until the
mounting bracket screws are completely engaged in
the J-shaped slots. Install the two previously removed
mounting bracket screws in the round holes. Securely
tighten all mounting bracket screws.
13. Install the blade to the top side of the motor with
motor screws previously removed. Tighten with Phillips
screwdriver (not included). Repeat for each blade.
11. Use wire connectors to connect the fan wires to the
power supply wires according to the wiring diagram and
the following instructions:
• Connect the green wire from the downrod and mounting
bracket to the bare/green (ground) supply wire.
• Connect the white wire from the fan to the white
(neutral) supply wire.
• Connect the black and blue wires from the fan to the
black (hot) supply wire.
Important: After the connections have been made, the
wires should be turned upward and pushed carefully
up into the outlet box. Place the black and white wire
connections on opposite sides of the outlet box.
14. Remove one of the three tter plate screws
preassembled to the tter plate and loosen the other two
but do not remove. Connect the 9-pin connector from
the tter plate to the 9-pin connector from the switch
housing. Align the keyhole slots in the switch housing with
the loosened screws in the tter plate. Turn switch housing
clockwise and replace the previously removed tter plate
screw. Tighten all screws.
Fitter Plate Screw
Fitter Plate
Keyhole Slot
9-pin
Connector
Switch
Housing

10
ASSEMBLY INSTRUCTIONS

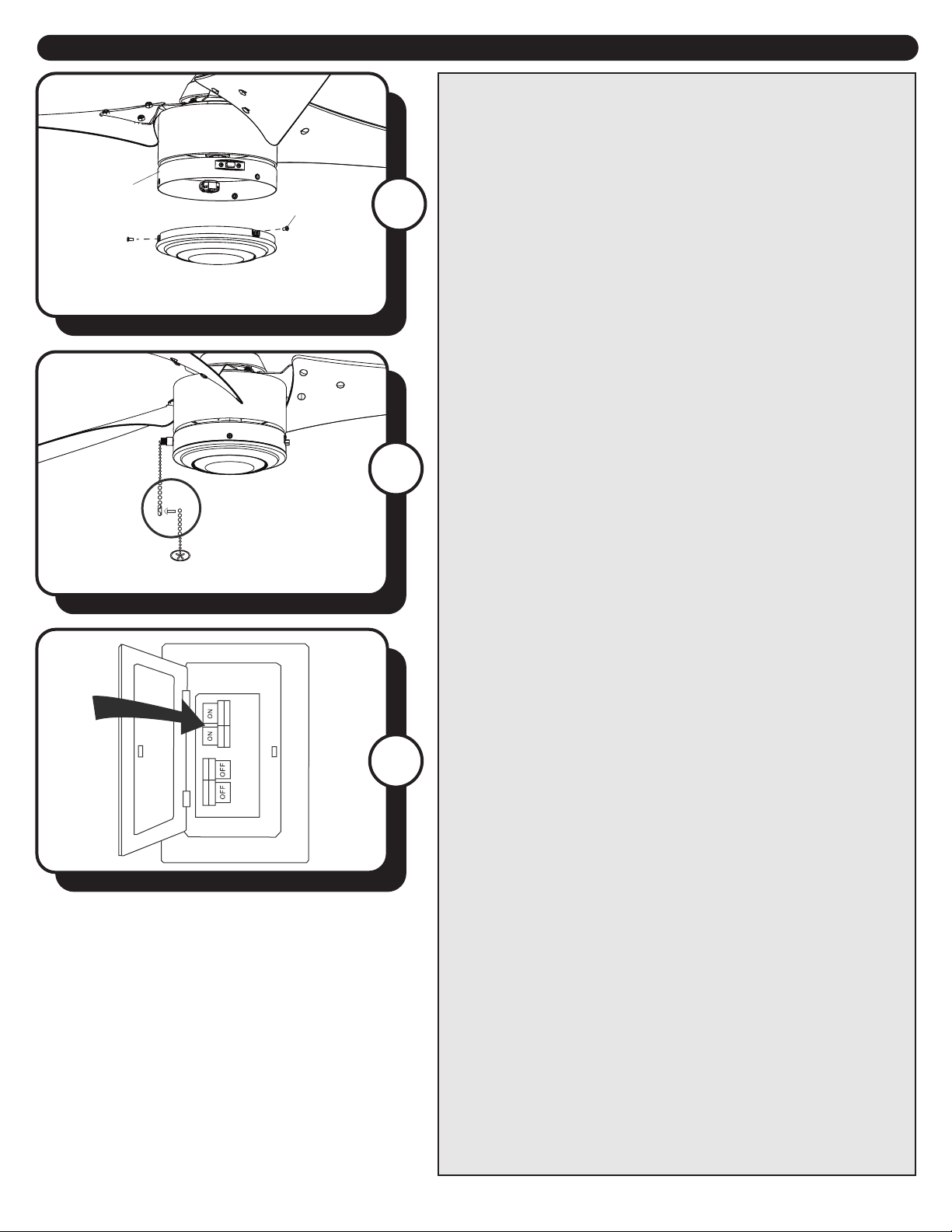

15. Remove the three switch housing screws from the
switch housing cap. Align the holes in the switch housing
cap with the holes in the switch housing. Then secure the
switch housing cap using the three previously removed
switch housing screws.
15
16
17
Switch
Housing
Screw
17. Turn ON the electrical power at the main fuse or circuit
breaker and the wall switch.
Assembly is complete.
16. Attach pull chain extension to the pull chain.
Switch
Housing
Switch Housing Cap
Pull Chain Extension

11
Reverse
Switch
Fan Pull
Chain
OPERATING INSTRUCTIONS
1. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a dierence in your
comfort.
In warmer weather, push the reverse switch left which
will result in downward airow creating a wind chill
eect.
In cooler weather, push the reverse switch right which
will result in upward airow that can help move stagnant,
hot air o the ceiling area.
Important: Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate.
2. The fan pull chain has four positions to control fan
speed. One pull is HIGH, two is MEDIUM, three is LOW
and four turns the fan OFF.
1
2

12
PROBLEM SUGGESTED REMEDY
TROUBLESHOOTING
If you have diculty operating your new ceiling fan, it may be the result of incorrect assembly, installation or
wiring. In some cases, these installation errors may be mistaken for defects. If you experience any faults, please
check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing diculty in
installation, please contact the Service Department: 1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
WARNING: To reduce the risk of re, electrical shock or personal injury, shut o the power supply to fan before
you begin any maintenance tasks.
1. Fan does not start:
2. Fan is noisy:
3. Fan wobbles:
1. Make sure that the wall switch is turned ON.
2. Check main and branch circuit fuses or circuit breakers.
3. Check all wire connections from household supply wires to the fan.
4. Make sure forward/reverse switch pushed completely left or right. Fan will not operate
when switch is in the middle.
1. Make sure all screws in motor assembly are snug, but not overtightened.
2. Make sure the screws that attach the blade to the motor are tight.
3. Make sure wire connectors are not rattling against each other or against the interior wall
of the switch housing.
4. Make sure wire connectors are not rattling against each other or against the interior wall
of the canopy.
5. Some fan motors are sensitive to signals from Solid State variable speed controls. DO NOT
USE a Solid State variable speed control.
6. Ensure fan does not wobble excessively (see Fan wobbles solutions below).
1. Ensure the mounting bracket is tightened securely to outlet box and outlet box is
mounted rmly to ceiling joist.
2. Ensure all blades are tightened securely to motor.
3. Switch one blade with a blade from the opposite side. Or balance the fan using the blade
balancing kit.
4. If blade wobble is still noticeable, interchanging two adjacent (side by side) blades can
redistribute the weight and possibly result in smoother operation.

13
Model Name: 56” Ceiling Fan
Model No: 51637 - Matte Black
51638 - Pewter
LIMITED LIFETIME WARRANTY
To obtain Service, please contact the Service Department:
1-877-706-3267, 8 a.m. - 5 p.m. Central, Monday - Friday.
Set forth below, the manufacturer, Hong Kong China Electric appliance Company (HKC) warrants the fan
motor for this ceiling fan to be free from defects in workmanship and material for the life of the product.
Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the
motor and parts made in whole or in part with glass) to be free from defects in workmanship and material
for a period of one year after the date of purchase by the original purchaser at retail.
All claims must be made by the original purchaser, whether such purchaser purchased the product through a
store or contractor. Ceiling fan part defects must be reported within the rst year from the date of purchase.
Parts made in whole or in part with glass and the nishes of metal and other surfaces are not warranted.
Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any
part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this
warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-
licensed electrician will render the warranty invalid.
HKC’s sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated
above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential
damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other
failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential
damages so this limitation may not apply to you.
If the original purchaser ceases to own the fan, this warranty is voided.
Should the purchaser encounter a problem with your fan related to defects in workmanship or materials
within the warranty period associated with the defective part, HKC agrees to replace the defective part
without charge, or at its option, to replace the ceiling fan with a comparable or superior model.
HKC’s warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime
warranty. All other express and implied warranties, including, without limitation, the implied warranty of
tness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do
not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.
