Hogtunes 5X7REV/RG User manual

5X7REV/RG
INSTALLATION MANUAL
5X7REV/RG
INSTALLATION MANUAL
INSTALLATION MANUAL
INCLUDES:
(1) Hogtunes NCA 70.2 Amplifi er • (1) Pair Hogtunes 572.2-AA
Speakers • (1) Road Glide Adaptor Kit
For Use on All 1998 and Newer FLTR Road Glide
Models With Factory or After Market Radio
*** Not for use on CVO model bikes with factory amplifi er installed

Thank you for choosing the Hogtunes Model 5x7REV/RG front speaker and
amp kit for Road Glides. Since positive word of mouth is the best way to
grow our business, we want your new system to work as well as it was
designed to. If you have any questions or concerns, we are here to help.
Adjusting Your System--Please Read!
In order to make your new system perform as good as it was designed,
please take a minute to understand and follow these tips:
1) Set your “Automatic Volume Control” (AVC) to 3 bars. After extensive
on road testing, we found that this AVC position works and sounds best.
Your new amplifi er has been specifi cally set-up for this radio setting.
2) Your Hogtunes system is designed specifi cally for a motorcycle at speed.
Exhaust noise and wind noise have been taken into careful consideration
in how your system performs. How your new system sounds in a driveway
or garage is radically different from how it will sound at highway speeds.
Although your system was set-up with a factory radio with its bass and
treble controls in the middle position, if you feel the need to make
adjustments, please do so (carefully) at your normal cruising speed.
3) If you have an aftermarket car radio on your bike, everything will work
fi ne, but please remember that car radios are designed to work in an
environment with little or no exhaust or wind noise. Many car radios have
“features” such as equalizers, loudness contours, surround effects, etc., all
designed for a quiet environment, and all of which will hurt your ability to
hear your motorcycle system at speed if left on. Please take a minute and
turn as much of these “features” off. With a car radio in your bike, the
only adjustments you should be able to access for best performance are
volume, bass, treble, balance, and fader.
4) If you’re using an external device to supply music through the radios
aux port, we have an article on our website that can help make your
peripheral audio device sound as good as it can. The article is at:
http://www.hogtunes.com/techzone_fi les/Level_matching.pdf
Hogtunes Contact Information:
Email: [email protected]
Tel: [phone]
A video version of this manual is available at
www.hogtunes.com.
If you still need
assistance, please consider a professional
installation by your motorcycle dealer.

5X7REV/RG
INSTALLATION INSTRUCTIONS
Step #1: Remove the main power and ground wire from the battery. Remove your
outer fairing/headlamp assembly, and set it aside. Refer to a service
manual if you need help with either of these.
Note: A towel on the front
fender can help prevent scratches or “dings” from dropped tools or
fasteners etc.
Expletives will also be kept to a minimum!
Expletives will also be kept to a minimum!
Step #2: • On the brake side inside of the of the inner fairing, you will see a wire
“strap” that secures a 3 wire harness (black, blue, and brown) to the
bike. Take the wire out of this strap and let it hang.
• The “A” arrow in fi gure 1.1 below is where a larger factory “Molex”
plug is secured to the bike (if present). Pull down on this Molex to
unclip it from the frame, and let it hang for now.
Note: Newer model bikes have this Molex located elsewhere.
• Using a small fl at head screwdriver, locate and adjust the 3 position
switch on the end of the amplifi er to the “+3” position.
• The “B” and “C” arrows in fi gure 1.1 show the nuts that need to be
removed on the brake side of the bike so the steel plate the amp is
installed to can attach on the 2 main studs.
• Once the plate is on, re-install these nuts to factory torque
specifi cations.
• The Molex that was removed from the frame (arrow “A”) can be
re-secured to other wire harnesses using supplied zip ties (if Molex
is present).
Figure 1.1
Amplifi er
correctly
positioned
on bike
3
A
B
C

Step #3: Unplug the factory wires at each speaker. Remove the 3 torx head screws
and “speed nut” that hold the stock grill/speaker in place and remove
from the bike. Put the factory grills/speakers, and factory torx head
screws aside. Separate the 5x7 from their grills. Locate the “baggie” in
your kit with 6 smaller Phillips head screws.
Using these supplied Phillips
Using these supplied Phillips
head screws (only)
head screws (only)
and the stock “speed nut”, install each 5x7 grill to the
bike.
HOGTUNES accepts no responsibility for inner fairing
HOGTUNES accepts no responsibility for inner fairing
damage if factory torx head screws are used!
damage if factory torx head screws are used!
Install the new
speakers to the grills noting that the speakers must be oriented so the wire
connectors are closest to the radio.
AMPLIFIER WIRE COLOR CODES
4
AMPLIFIER WIRE COLOR CODES

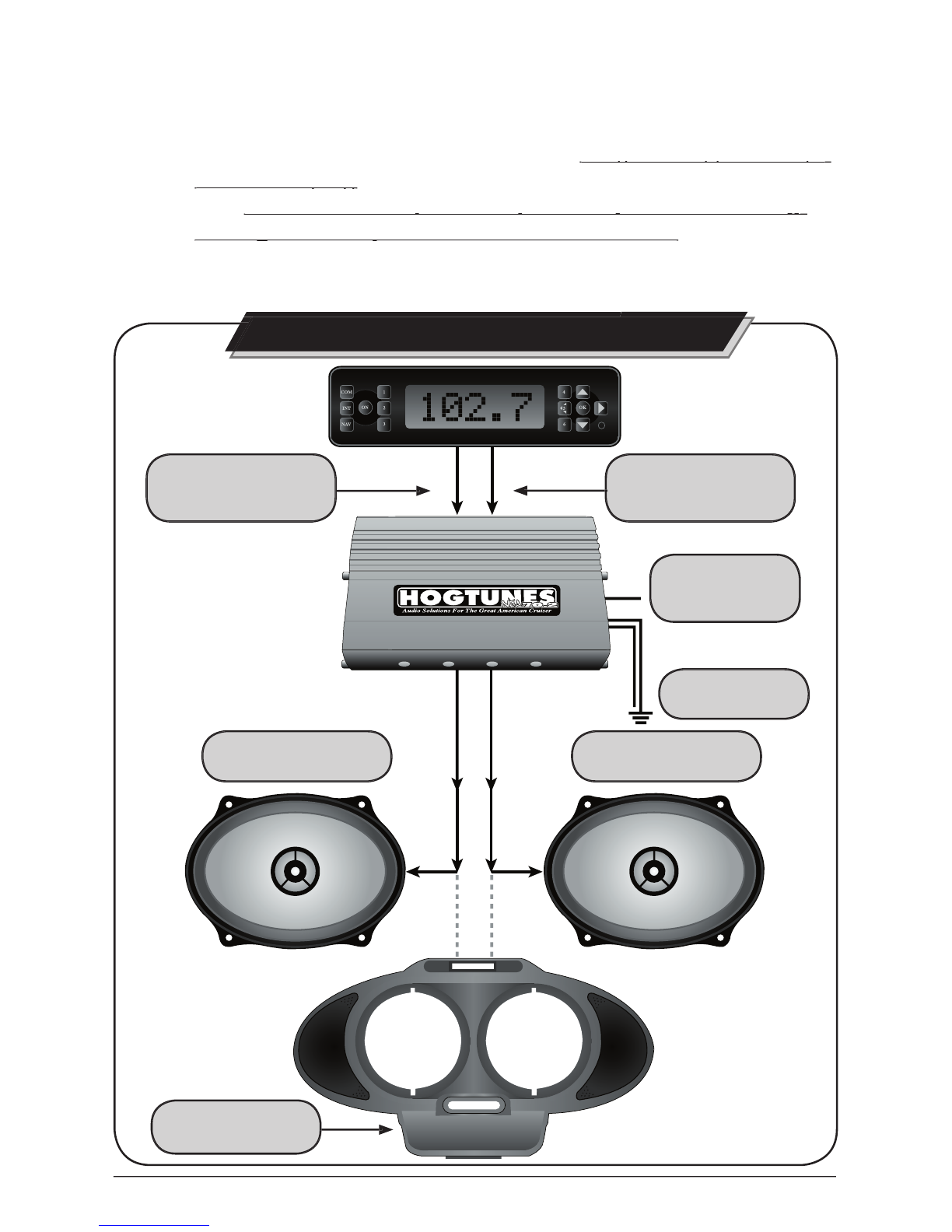

AMPLIFIER WIRING DIAGRAM
Brake-side factory
speaker wire plugs into
green/black on amp
Brown/Black wire plugs
into clutch-side speaker
Blue/Black wire plugs
into Brake side speaker
Optional HF-2RG
Tweeter Pod
Clutch-side factory
speaker wire plugs into
yellow/black on amp
Orange wire goes
to center pin on
cigarette lighter
Power and ground
DIRECT to battery

AMPLIFIER WIRE COLOR CODES
YELLOW/BLACK:
Clutch Side Amplifi er Input From Factory Radio
YELLOW/BLACK: Clutch Side Amplifi er Input From Factory RadioYELLOW/BLACK:
BROWN/BLACK:
Clutch Side Amplifi er Output to Front Speaker
GREEN/BLACK:
Brake Side Amplifi er Input From Factory Radio
BLUE/BLACK:
Brake Side Amplifi er Output to Front Speaker
ORANGE:
Remote Turn On Lead
RED:
12v Positive--Attaches Directly to “+” Battery Post
BLACK:
12v Negative--Attaches Directly to “-” Battery Post
BLACK: 12v Negative--Attaches Directly to “-” Battery PostBLACK:
WIRING THE AMPLIFIER
Step #1: Plug the 2 connectors of the main wire harness into “Power” and “Audio
Input” on the amplifi er. Tighten (snug) the 2 small fl athead screws on the
power connector to prevent it from backing out while riding.
Step #2: On the input harness, locate the yellow/black pair of wires with the male
connectors and plug them into the factory speaker wires on the clutch
side of the bike. Also on the input harness, locate the green/black pair
of wires with the male connectors and plug them into the factory speaker
wires on the brake side of the bike. The connectors are sized correctly,
and will only go in one way. Note: The blue 4 pin plug with black wires
on the input harness is an “expansion port” which used to send music to
a second amp, or is used to send radio power to run other speakers on
the bike. You can see how the expansion port can be used further on in
this manual.
Step #3: On the opposite side of the amp are 3” (75mm) wires ending with a 4
pin black connector. This plug sends amplifi ed power to your speakers.
Locate the 4 pin black plug wire harness with brown/black and blue/
black wires, and plug it into the amplifi ed output plug. The blue/black
wires will plug directly to the speaker on the brake side of the bike. The
brown/black wires will plug directly to the speaker on the clutch side of
the bike.
Step #4: The orange wire is the “remote turn on lead” and tells the amp to turn on
whenever it sees +12v (.5 amp min.). Unplug the factory center wire (+)
on the cigarette lighter. Plug the orange lead from the amplifi er directly
onto the lighter using the female connector. Plug the factory lighter wire
to the male “take off” connector which is part of the amps orange turn
on lead. Important: If you do not attach the orange wire from the amp to
the center wire at the cigarette lighter, the amplifi er will not turn on. If the
factory fuse for your cigarette lighter is blown, and your cigarette lighter
does not work, your amplifi er will not turn on.
5

6
Step #5: • On the brake side of the bike, in front of the gas tank, on the side
of the frames backbone, you will see a rectangular opening where
a large wire harness, (and throttle/idle cables on 98-07 bikes) pass
through from the fairing side of the bike. The red and black wires for
the amp will pass from the fairing side through the large opening under
the radio, and through the rectangular opening.
•
Take the rubber cover off the inline fuse holder, and remove the fuse,
the fuse holder will pass through the rectangular opening much easier.
Once through the opening, be sure to replace the fuse!
• “Fishing” a small piece of wire through this opening fi rst, taping the
red and black wires to the fi sh, and then using the fi sh to feed the wires
through may reduce install time! The harness is designed to be routed
between the frame backbone and gas tank on the brake side of the
bike ,and come out just behind the gas tank.
•
You MAY
need to undo the back bolt of the gas tank and pivot the tank
up to allow the harness to pass through at the back of the gas tank. Be
sure to re-install this bolt and torque to factory specs!
•
For 07+ bikes
, Loosen the tank console and run wires up and over the
gas tank, but under the tank console. There is a provision on the front of
the tank console for wires to pass.
• Secure the amplifi ers harness to the bikes factory harness’ using
zip ties.
Step #6: Attach the red wire to the positive (+) battery terminal, and the black
wire to the negative (-) battery terminal. The factory battery wires are
also re-installed at this point. Secure the 5x7Amp/RG harness to the
bikes factory harness’ along the frame and behind the tank using sup-
plied zip ties.
Step#7: Turn the bikes ignition to the “ACC” position, and turn the radio on at low
volume making sure the system is working. Using supplied zip ties, “clean
up” the wiring inside the fairing. You will see a large wire harness right
under the back of the radio that sits just behind the “hooks” the outer fair-
ing clips onto. You should zip tie any Hogtunes wire to this main harness
so that no wires are in the way of these hooks. Otherwise the outer fairing
will not go on. Following this important step will also help keep expletives
to a minimum!
Step#8: Go to the inside cover of this manual and follow the steps to set up your
system so it will sound as good on a bike at speed as it was designed to

SYSTEM UPGRADE #1
This system is an easy way to add rear speakers to your bike if you’ve added a
King Tour-Pak®. Hogtunes rear speaker pods come with a wire harness set up for
quick detach tour paks that will plug right into the expansion port on the amp.
Important: Since the RADIO power will be used to power the rear
speakers, you must use rear speakers specifi c to your year of bike!!
Use expansion port to send
radios built in power to a
second set of speakers
(rears on Non-Ultra Models)
Optional HF-2RG
Tweeter Pod
7

8

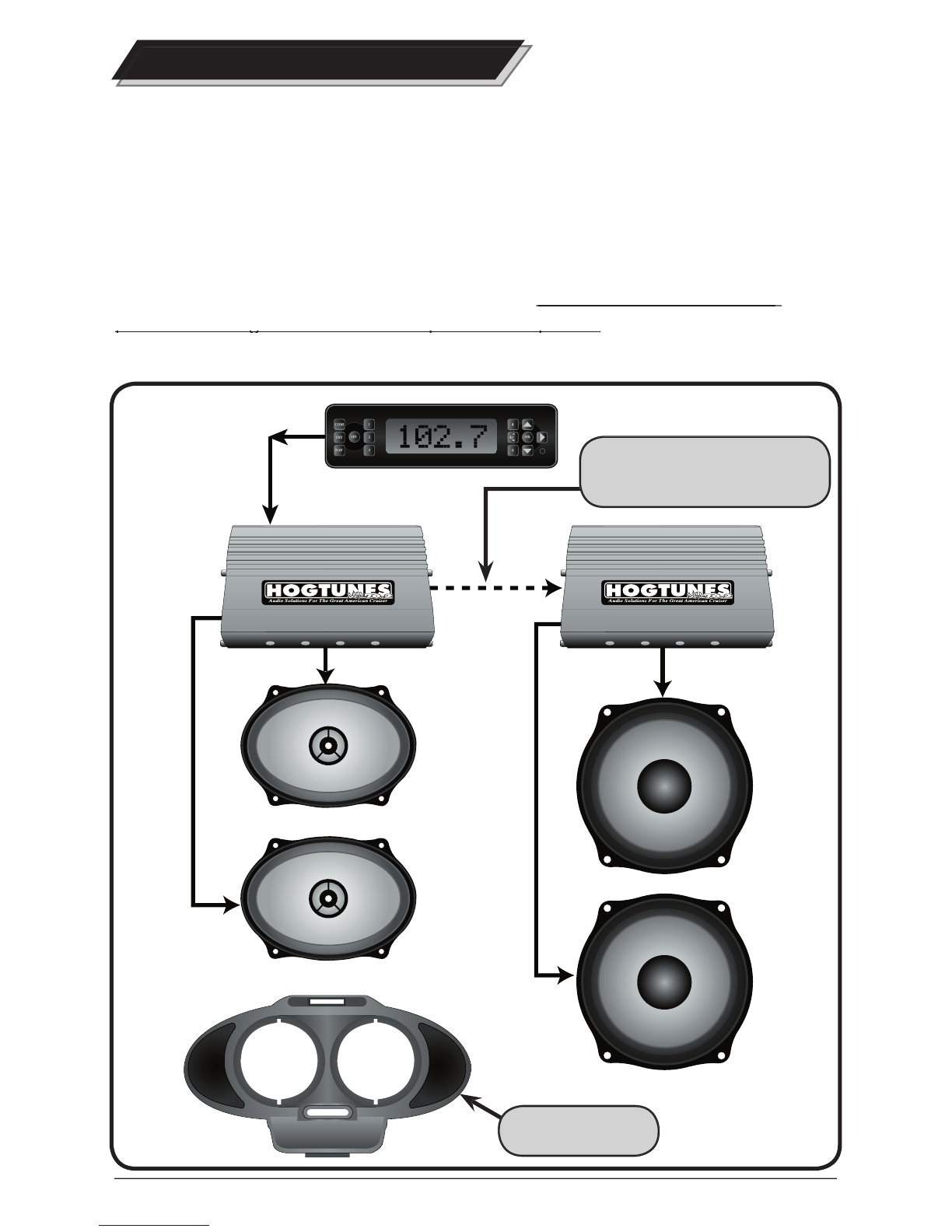

SYSTEM UPGRADE #2
This system has the incredible power of 2 NCA 70.2 to your bike! The fi rst amp
will run the 5x7” fairing speakers, and HF2-RG Tweeter Pod (if present). The
second amplifi er is used to power a set of rear speakers, or speakers in your Ultra
Classic style fairing lower glove boxes.
NOTE:
If you have added Ultra Classic Style Vented (2005+) Fairing Lowers to
your bike, the simplest thing to do is purchase a Hogtunes FL7-Rev kit. This kit
comes with a NCA 70.2 amp, and 7” woofers.
For Road Glide models, the
For Road Glide models, the
purchase of Hogtunes RG 40.4 adaptor kit is required!!
purchase of Hogtunes RG 40.4 adaptor kit is required!!
The metal plate in that
kit is used to bolt the second amplifi er into your fairing
Optional HF-2RG
Tweeter Pod
Use supplied blue plug send
signal from expansion port of fi rst
amp to input of second amp

9
SYSTEM UPGRADE #3
This system uses a Hogtunes NCA-40.4 160 watt 4 channel amp and a NCA
70.2 for the ultimate in power! As shown below, the typical system would have 2
channels of the 40.4 power the 5x7’s while the other 2 channels power the rear
speakers. The bypass out of 40.4 is used to send music to the NCA 70.2 which
powers the fairing lower speakers. The beauty of this system is that all plugs that
go the speakers are the same. If you decide you would like more amplifi er power
to your rear speakers, by simply moving a couple of plugs around, you can apply
the higher power amp to which ever speakers you like to custom “tune” the system
for your requirements.
Use supplied blue plug send
signal from expansion port of fi rst
amp to input of second amp
Optional HF-2RG
Tweeter Pod

WARRANTY INFORMATION
Hogtunes speakers are warranted for a period of 20 years to the original
purchaser. Hogtunes Amplifi ers are warranted for 1 year from original purchase
date. Proof of purchase is required for all warranty claims.
All Warranty claims
All Warranty claims
must be made through the dealer this product was originally purchased from.
must be made through the dealer this product was originally purchased from.
Speakers found to be defective during the warranty period will be repaired or
replaced (with a product deemed to be equivalent) at Hogtunes sole discretion.
Amplifi ers will be repaired.
What Is Not Covered:
1) Any expense related to the removal or re-installation of Hogtunes products.
2) Repairs to these products performed by anyone other than Hogtunes.
3) Subsequent damage to any other components.
4) Any product purchased from a non-authorized Hogtunes dealer.
5) Damage to Hogtunes products due to an accident or collision.
6) Hogtunes Amplifi ers with broken or removed “warranty void” stickers.
TECHNICAL SPECIFICATIONS
Hogtunes NCA-70.2 Amplifi er
Hogtunes NCA-70.2 Amplifi er
Rated Power at 2 Ohms: 70 Watts/Channel (@1% THD)
Actual
Power at 2 Ohms: 77 Watts/Channel (@1% THD)
Actual
Power at 4 Ohms: > 50 Watts/Channel (@1% THD)
Effi ciency: >66%
Fuse: 15 amp
Hogtunes #572.2-AA Speakers
Hogtunes #572.2-AA Speakers
Power Handling: > 75 Watts RMS
Frequency Response: 55hz-25Khz
Sensitivity : 93 db 1watt/1meter
Nominal Impedance: 2.0 Ohms
Harley-Davidson, Electra Glide, Road Glide, Street Glide, Ultra Classic, Tri Glide CVO,
Screamin Eagle and Tour-Pak® are Trademarks, and/or Registered Trademarks of Harley-
Davidson, Inc., Milwaukee, Wisconsin, USA, and if Used or Implied are for Reference Only.
There is No Affi liation Between Harley-Davidson, Inc., and Hogtunes Inc.
10

11

Hogtunes products will play much louder than the
Original Equipment, which can be a distraction to
the rider and/or passenger. Please use caution
when adjusting, or playing your stereo
at high volume,
especially in traffi c
especially in traffi c
.
You are a valued customer so please:
Ride Alert
Arrive Alive!
www.hogtunes.com
