  9. HOLECTRON xLine User manual

HOLECTRON xLine User manual

Installation guide
xLine
1 2
34
5
• Product installation must be carried out by a qualified professional.
• Before installing make sure, that electrical power is turned OFF.
• Before installing make sure, that the fixing area can bear the total weight of the luminaire.
• Pay attention to polarity when connecting (installing) the product.
• Do not operate if the luminaire has been damaged.
• To protect the surface from dirt and fingerprints, we recommend the use of protective gloves during installation.
• Product warranty does not cover any damage caused by faulty installation and/or misuse.
• For further information, please contact the manufacturer.
HOLECTRON | Salininku st. 84, LT-02223 Vilnius, Lithuania | Email: [email protected] | www.holectron.com 1/2

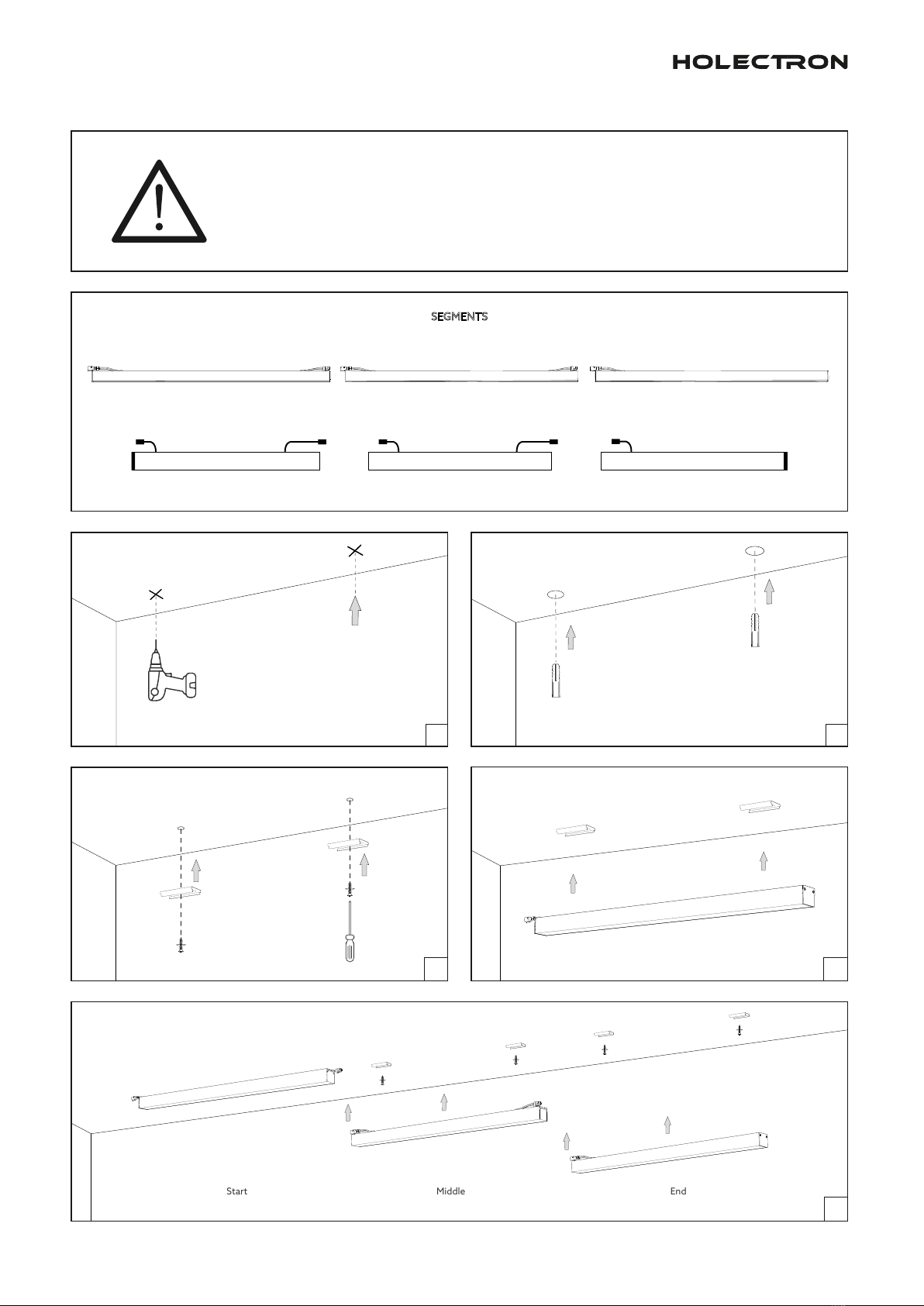

SEGMENTS
START MIDDLE END
CLICK
CLICK
CONTINUOUS LINE CONNECTION SCHEMATICS
CLICK
CONNECT
CONNECT
CLICK
Start
Middle
End
6 7
8
HOLECTRON | Salininku st. 84, LT-02223 Vilnius, Lithuania | Email: [email protected] | www.holectron.com 2/2
INSTALLATION COMPLETED
CONNECT LEAD CABLE
TO THE START SEGMENT
WIRING
Power supply
Controller
Lead cable
Luminaire
1 2 34
+: Common (+)
1: Common (-)
2: Not in use (-)
3: Not in use (-)
4: Not in use (-)
+: Common (+)
1: Warm (-)
2: Cool (-)
3: Not in use (-)
4: Not in use (-)
+: Common (+)
1: White (-)
2: Red (-)
3: Green (-)
4: Blue (-)
White
Tunable white
+: Common (+)
1: Red (-)
2: Green (-)
3: Blue (-)
4: Not in use (-)
RGB
RGB + white
