VistaCam 1100
Waterproof HD IP
Camera
Setup Guide
Document Version: 1.0
Copyright 2015. All Rights Reserved.
All trademarks and trade names are the properties of their respective
owner

ii

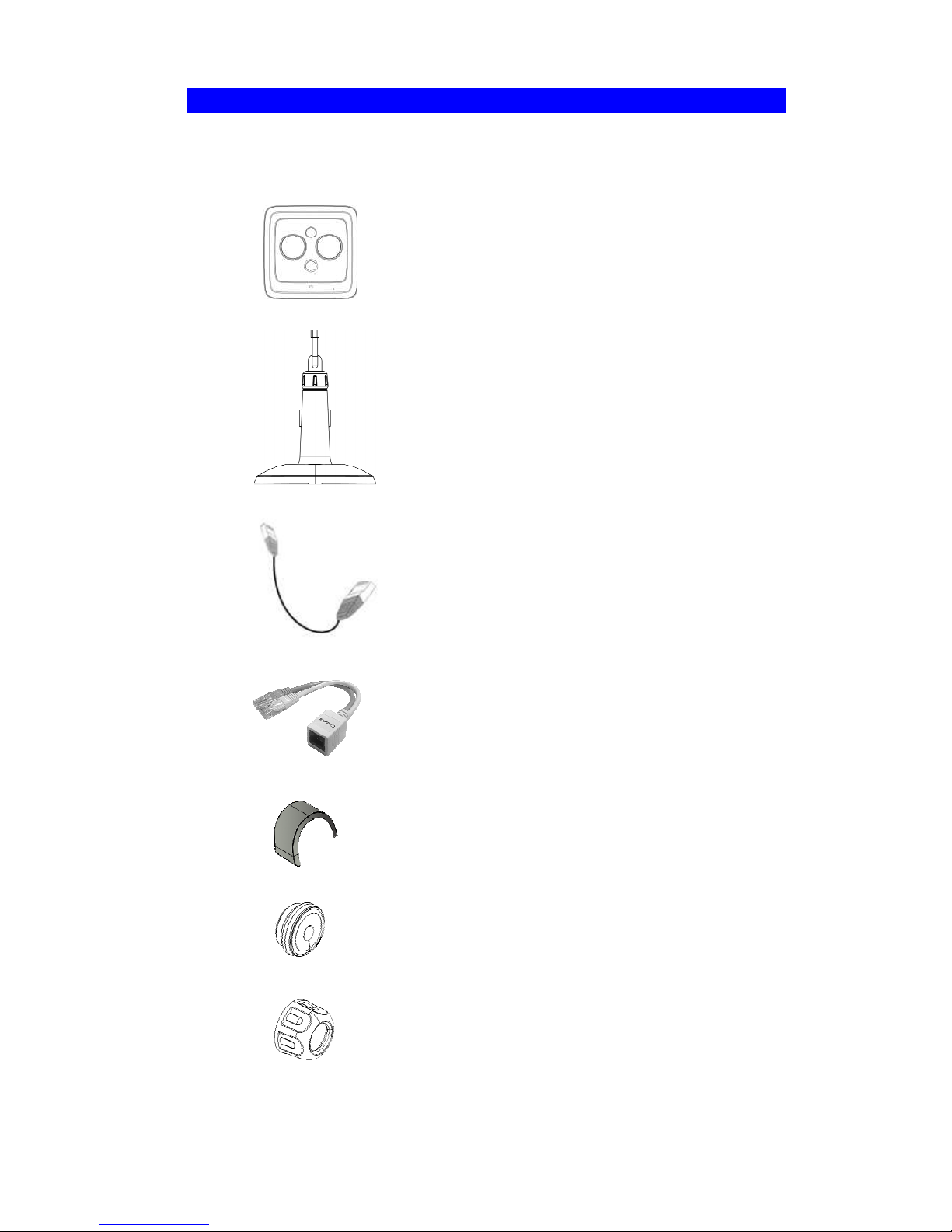

Package Contents
The following items should be included: If any of these items are
damaged or missing, please contact your service provider immediately.
1. Broad View Camera * 1
2. Wall-mount Stand * 1
3. Ethernet cable 8P8C (length 5M) * 1
4. Y-cable (RJ45) * 1
5. Cable Clip * 1
6. RJ45 Rubber Hood * 1
7. Screw/Anchor * 2

iii
8. RP131 (Wireless PoE Adapter) * 1

1
Chapter 1
Introduction
This Chapter provides details of the Waterproof HD IP
Camera's features, components and capabilities.
Overview
The VistaCam 1100 Waterproof HD IP Camera has an Integrated
Microcomputer and a Mega Pixel OmniVision CMOS sensor, enabling it
to display high quality live streaming video.
The Waterproof HD IP Camera can be either used as a wired camera
through PoE switch or a Wi-Fi IP camera with the provided Wireless
PoE adapter (RP131).
This weather-resistant camera, which with the IP65 rated housing, lets
you keep an eye on your belongings - even in harsh conditions such as
rain and dust. It is also an all-in-one camera that has automatic and
manual day/night switching, IR illumination and PIR sensor.
Features
• Standalone Design: The Waterproof HD IP Camera is a
standalone system with built-in CPU and Video encoder. It requires
only a power source and a connection to your Router.
• Dual Video Support: The Waterproof HD IP Camera can support
H.264 and MJPEG video for different image compression.
• Day/Night Switch: With the day/night switching feature, you are
able to view and record better images even in the dark of night.
• Wired and Wireless Network Support: The Waterproof HD IP
Camera supports either wired or wireless transmission (with RP131).
• PoE Support. You can use PoE (Power over Ethernet) to provide
power to the Waterproof HD IP Camera, so only a single cable
connection is required.
• PIR (Passive Infrared Sensor) Support. The Waterproof HD IP
Camera is embedded with a PIR Sensor, which senses infrared light
radiating from human bodies in its field of view. This feature is very
helpful in enhancing home security systems.
1

2
Internet Features
• User-definable HTTP/HTTPS port number. This allows Internet
Gateways to use "port mapping" so the Waterproof HD IP Camera
and a Web Server can share the same Internet IP address.
• DDNS Support. In order to view video over the Internet, users must
know the Internet IP address of the gateway used by the Waterproof
HD IP Camera. But if the Gateway has a dynamic IP address, DDNS
(Dynamic DNS) is required. Since many existing Gateways do not
support DDNS, this function is incorporated into the Waterproof HD
IP Camera.
• NTP (Network-Time-Protocol) Support. NTP allows the
Waterproof HD IP Camera to calibrate its internal clock from an
Internet Time-Server. This ensures that the time stamp on Video
from the Waterproof HD IP Camera will be correct.

3
Chapter 2
Basic Setup
This Chapter provides details on how to setup and mount
the VistaCam 1100 Waterproof HD IP Camera.
System Requirement
To use the wired LAN interface, a standard 10/100BaseT hub or switch
and network cable is required.
Physical Details – VistaCam 1100 Waterproof HD IP
Camera
Front Panel - VistaCam 1100 Waterproof HD IP Camera
Figure 1: Front Panel – Waterproof HD IP Camera
1. Light Sensor This sensor is used to detect light condition in
the environment.
2. Lens No physical adjustment is required or possible
for the lens, but you should ensure that the lens
cover remain clean. The image quality is
degraded if the lens cover is dirty or smudged.
2

4
3. PIR Sensor
This is hardware sensor to detect motion.
4. Power/Network
/Heater LED On (Green) - Power on.
Off (Green) - No power.
Blinking (Green) - The LED will be blinking every
3 seconds while booting.
Fast Blinking (Green) - Data is being transmitted
or received via the LAN port.
On (Blue) - Firmware upgrade is failed.
Off (Blue) - Firmware upgrade is successful.
Blinking (Blue) - The LED will be blinking rapidly
during the FW upgrading.
On (Red) - The heater is active.
Off (Red) - The heater is off.
Rear Panel - VistaCam 1100 Waterproof HD IP Camera
Figure 2: Rear Panel – Waterproof HD IP Camera

5
1. LAN port The supplied Ethernet cable can provide the power
to the Waterproof HD IP Camera and also connect
the device to your router.
Note:
• The Wireless and LAN interfaces cannot be
used simultaneously. Recommended to use
Y-cable for RP131 configuration only. The LAN
cable should be always connected in order to
provide electrical power to the camera.
• The wireless interface will be disabled only
when the RP131 is power off or disconnected.
2. Reset
Button This button is recessed; a pin or paper clip can be
used to press it. It can be activated at any time
when the camera is powered on.
• Reset to default manufacturer values and
reboot. When pressed and held for 10 seconds,
settings of the Waterproof HD IP Camera will be
set to their default manufacturer values.
Note: After this procedure is completed, the
LED will blink once to confirm that the reset was
successfully completed.

6
Setup the VistaCam 1100 Waterproof HD IP Camera
Step 1 - RP131 Configuration
This configuration will set wireless connectivity of the camera via
RP131.
1. Assemble the Camera
A. Hold the screw of the camera up.
B. Attach the back of the camera to the stand and turn the camera
clockwise to attach it to the stand.
C.Attach the rubber hood and screw to the LAN cable.
2. Connect the Camera
A. Connect the yellow connector of the provided Y-cable to the
Wireless PoE Adapter and the white connector to a Home
Gateway.
B. Use the Ethernet cable to connect the LAN port of Y-cable and
the camera.
C.Connect Wireless PoE Adapter to the power outlet. Please refer
to the manual for the WiFi configuration.
VistaCam 1100
3. Check the LEDs
The Power LED will start blinking during startup. After startup is
completed, the Power LED should remain ON.
4. Wireless Configuration (RP131)
Push the WPS button on the RP131 and on your router to establish an
encryption-secured wireless connection between the camera and the
router automatically.

7
• WPS PBC Mode. When pressed and released (less then 3
seconds), the RP131 will be in the WPS PBC mode (Auto link
mode).
• WPS Pin Code Mode. When pressed and held for over 3
seconds, the RP131 will be in the WPS Pin Code mode.
The Wireless and LAN interfaces cannot be used
simultaneously. Using the Y-cable is recommended for
RP131 configuration. After you configure the Wireless
settings on the Waterproof HD IP Camera and ensure
they are correct, you can unplug the Y-cable and power
off the camera. The Waterproof HD IP Camera will be in
wireless interface when you power on the camera again.
Step 2 - Installation
Portal Server Home Monitor Gateway RP131 Wi-Fi PoE Adapter VistaCam 1100
1. Disassemble the Camera
A. Unplug the Y-cable and power off the camera
B. Locate the camera and the Wireless PoE Adapter in the desired
place.
2. Connect Camera
A. Connect the provided Ethernet cable to the Wireless PoE Adapter
and the camera.
B. Connect the Wireless PoE Adapter to the power outlet.

8
Mounting the Waterproof HD IP Camera
Note: Please ensure camera is configured and added to the network
before permanent mounting.
1. Identify the location for mounting the camera.
2. Install and drive two screws 2/3 of the way into the wall.
3. Remove the cover of the stand
4. Align the two mounting holes at the bottom of the camera stand
with the two screws, and mount the camera stand onto the wall.
5. Attach the Ethernet cable to the notch of the camera stand and
use the cable clip to control the cable.

9
6. Attach the cover back to the stand.
7. Connect one end of the Ethernet cable to the LAN port of the
camera and the other end to Wireless PoE Adapter.

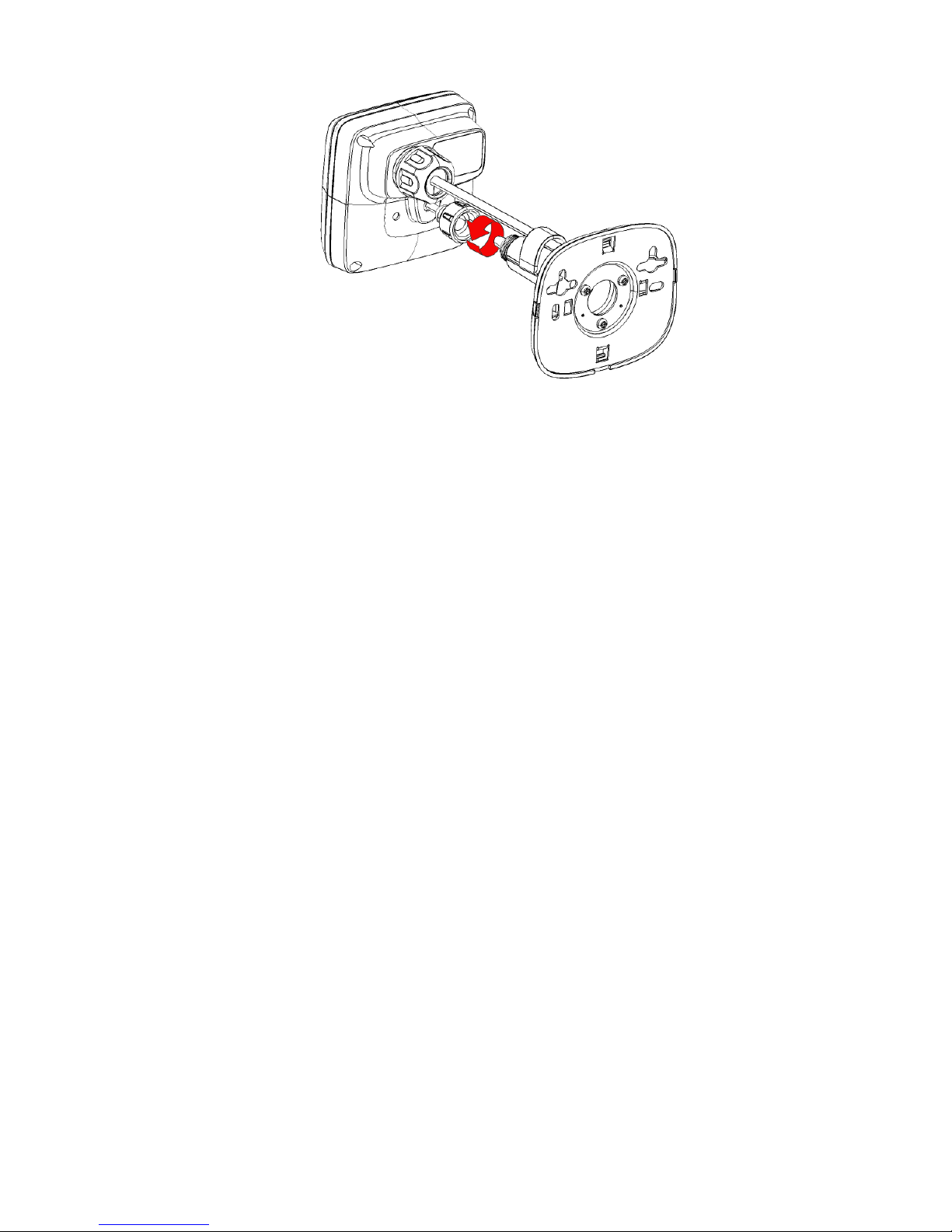

8. Screw/attach the camera onto the camera stand.

10
9. Make sure the Waterproof HD IP Camera is firmly fixed on the
wall. Adjust the camera to the preferred position.

11
Appendix A
Specifications
VistaCam 1100 Waterproof HD IP Camera
Model VistaCam 1100 Waterproof HD IP Camera
Dimensions 83mm (H) * 83mm (W) * 45.5mm (D)
Operating
Temperature -20°C to 50°C
Storage
Temperature -40°C to 70°C
Network Protocols TCP/IP, HTTP, HTTPS, DHCP, SMTP, FTP,
UPnP, DDNS, NTP, RTP, RTCP, RTSP, SMB,
DNS
Network Interface RJ-45 with PoE Connection
Wireless interface External RP131 Wireless Module
LEDs 1
Power Adapter RP131 (Wireless PoE Adapter)
Regulatory Approvals
FCC Statement
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly
approved by the party responsible for compliance could void the user's authority to
operate this equipment. (Example - use only shielded interface cables when
connecting to computer or peripheral devices).
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
A

12
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
CE Approvals
The Waterproof HD IP Camera and the Ethernet Waterproof HD IP Camera meet the
guidelines of the European Union and comply with the 99/5/EEC and RTTE 99/5EG
directives, including the following standards:
• EN60950-1
• EN55024
• EN55022/24
This is a Class B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
This product is UL and cUL certified and comply with UL60950-1 Information
Technology Equipment applicable requirement.
