HOME NETWERKS SMARTVENT 7148-01-AX User manual

Homewerks.com
SMARTVENT
BATHROOM VENTILATION FAN
WITH ALEXA BUILT-IN, LED LIGHT,
AND BLUETOOTH®SPEAKERS
MODEL #7148-01-AX
Español p. 16
08/10/2020
Home NetWerks
SIMPLE SOLUTIONS FOR A SMARTER HOME
Questions, problems, missing parts? Before returning to your retailer, call our customer service department
at 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday.
READ AND SAVE THESE INSTRUCTIONS
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its afliates.
The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. Other third-party brands and names are the property of their respective owners.
Home NetWerks, Homewerks, Homewerks Worldwide, the Homewerks house design, and all related logos are trademarks owned by
Homewerks Worldwide, LLC
U.S. Pat. No. 9,398,357

2Homewerks.com
TABLE OF CONTENTS
Product Specications........................................................................................................................2
FCC Compliance ................................................................................................................................2
Package Contents ..............................................................................................................................3
Hardware Included .............................................................................................................................3
Safety Information ..............................................................................................................................4
Preparation.........................................................................................................................................4
Installation Instructions.......................................................................................................................6
Wall Switch Operation ........................................................................................................................8
Setting Up and Pairing Your Alexa Bath Fan to the Home NetWerks Connect App ..........................9
Operating the Bath Fan Using Alexa Commands...............................................................................9
Connecting your BLUETOOTH®Device to the Speaker ..................................................................10
Additional Functions .........................................................................................................................10
Care and Cleaning............................................................................................................................ 11
Troubleshooting................................................................................................................................12
Warranty ...........................................................................................................................................14
PRODUCT SPECIFICATIONS
Airow: 110 CFM LED light power consumption: 18W
120V, 60Hz LED light brightness: 800 lumens
Duct diameter: 4 in. LED light color (CCT): 2200K Warm White / 3000K
Soft White / 4000K Cool White / 5000K Daylight
Sound output: 1.5 Sones
Total power consumption: 50W Night light color (CCT): 2200K Warm White
Fan power consumption: 28W Weight: 12.8 lbs.
Exhaust fan speed: 920 RPM
FCC COMPLIANCE
NOTICE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Changes or modications made to this equipment not expressly approved
by the party responsible for compliance could void the user's authority
to operate the equipment.
Federal Communication Commission (FCC) Radiation Exposure Statement:
When using the product, maintain a distance of 20cm from the body to
ensure compliance with RF exposure requirements.
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interfer-
ence that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or TV interfer-
ence caused by unauthorized modications or changes to this equipment.
Such modications or changes could void the user’s authority to operate
the equipment.
FCC ID:2AW5J-7148-01-AX

3
Homewerks.com
PACKAGE CONTENTS
A
B
G
C
D
E
F
PART DESCRIPTION QTY PART DESCRIPTION QTY
AFan Housing with BLUETOOTH®
Speakers 1D Suspension Bracket 1
E Suspension Bracket 1
BGrille with Amazon Alexa
and LED Light 1F 4 in. Duct Adapter 1
G Wall Switch 1
C Suspension Bracket 1
HARDWARE CONTENTS (not actual size)
AA BB
Wood Screw
M4 x 30 Machine Screw M4 x 10
Qty. 9 Qty. 4

4Homewerks.com
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
the product.
• Always disconnect the power supply prior to servicing
the fan, motor or junction box.
• Follow all local building, safety and electrical codes
as well as NEC (National Electrical Code) and OSHA
(Occupational Safety and Health Act).
• Electric Service supply must be 120 volts, 60 hertz.
• This product must properly connect to the grounding
conductor of the supply circuit.
• Do not bend or kink the power wires.
• Do not use this fan with any solid state control device,
such as a remote control, dimmer switch, or certain
timers. Mechanical timers are not solid state devices.
• Do not install in a ceiling with insulation greater than
R40.
• Duct work should be installed in a straight line with
minimal bends.
• Duct work size must be the same size as the discharge
and should not be reduced. Reducing the duct size
may increase fan noise.
WARNING: To reduce the risk of re, electric shock,
or injury to persons, observe the following:
1. Use this unit in the manner intended by the manufac-
turer. If you have any questions, please call customer
service.
2. Before servicing or cleaning unit, switch power off at
service panel and lock the service disconnecting means
to prevent power from being switched on accidentally.
When the service disconnecting means cannot be
locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by
a qualied person(s) in accordance with all applicable
codes and standards, including re-rated construction.
4. Sufcient air is needed for proper combustion and
exhausting of gases through the ue (chimney) of fuel
burning equipment to prevent backdrafting. Follow the
heating equipment manufacturer´s guideline and safety
standards such as those published by the National Fire
Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE) and local code authorities.
5. When cutting or drilling into the wall or ceiling, do not
damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must
be marked as appropriate for the application and be
connected to a GFCI (Ground Fault Circuit Interrupter) –
protected branch circuit.
8. This ventilation fan is intended to be installed at least
3.28 ft. (1 m) from the showerhead when installing over
a bathtub or shower. Installation within a shower stall
is not recommended for this unit, unless the 3.28 ft.
(1 m) distance can be met.
CAUTION
• For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and
vapors.
• Not for use in cooking areas.
• To reduce the risk of injury to persons, install
the fan at least 7 feet (2.1 m) above the oor.
CAUTION: Installation of this unit requires the power to be OFF until installation is complete. If you encounter issues
with the unit not powering up, please review the troubleshooting section of the instruction manual. If you require additional
assistance, please call 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday. DO NOT RETURN TO STORE.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and
hardware contents. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts at 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday.
Tools Required for Assembly (not included): Hammer, Flathead Screwdriver, Wire Connectors, Nails, Duct Tape, Phillips
Screwdriver, Electrical Tape, and Utility Knife or Drywall Saw.
Helpful Tools (not included): Electric Drill, Drill Bits
IMPORTANT: 2.4 GHz Wi-Fi connection and Amazon Alexa account are required for full functionality.

5
Homewerks.com
PREPARATION (Continued)
WARNING: RISK OF ELECTRIC SHOCK! Ensure the electricity to the wires you are working on
is shut off. Either remove the fuse or turn off the circuit breaker before removing the existing
bath fan or installing the new one.
Before removing your current ventilation fan, verify the wall switch box has the required wires necessary
for this installation. These wires are power (black) and neutral (white), as shown in the wiring diagram
below. If you do not see both of these wires, consult a licensed electrician.
Check area above installation location to be sure that wiring can run to the planned location and that
duct work can be run and the area is sufcient for proper ventilation.
Inspect duct work and wiring before proceeding with installation.
Before installation, provide inspection and future maintenance access at a location that will not interfere
with installation work.
You may need the help of a second person to install this fan; one person on the attic side and one on
the room side.
Installation may vary depending on how the previous bath fan was installed. Supplies necessary for
the installation of your bath fan are not all included; however, most are available at your local
home improvement or hardware store.
DIMENSIONS
Ceiling
Opening (L)
Ceiling
Opening (W)
Ceiling
Opening (H)
Housing
Dimension (L)
Housing
Dimension (W)
Housing
Dimension (H)
9-1/4 in. 9-1/4 in. 5-29/32 in. 9 in. 9 in. 5-25/32 in.
IMPORTANT: ATTIC ACCESS IS REQUIRED FOR PROPER INSTALLATION.
WIRING
All wiring must be connected for full functionality. Do not use metal wall plate with switch.
ATTENTION:
The switch included with this ventilation
fan requires a neutral wire connection.
If a neutral line is not present, one must
be run by a qualied electrician.
NOTE: This switch is intended to only
operate independently with this bath
fan, connections to other electrical
xtures is prohibited and could cause
electrical issues.
If you require assistance, please call
1-877-319-3757 before attempting this
switch installation.
switch/red switch/black
AC 120V/60Hz
ground/green
fan/black
house neutral/white
fan neutral/white
Green
Red
White
Black

6Homewerks.com
INSTALLATION INSTRUCTIONS
BEFORE INSTALLATION
WARNING: RISK OF ELECTRIC SHOCK! Ensure the electricity
to the wires you are working on is shut off. Either remove the
fuse or turn off the circuit breaker before removing the existing
bath fan or installing the new one.
1. Remove existing fan.
If you are not replacing an existing fan, skip to step 4.
1
2. Measure the opening to ensure it is large enough to
accommodate the 9 in. x 9 in. dimensions of the new
fan housing (A).
2
3. If this fan is not replacing an old fan, be sure to cut a
9-1/4 in. x 9-1/4 in. opening for the fan housing (A). 3
9-1/4"
9-1/4"
4. Insert suspension bracket (C) into the tabs on the fan
housing (A) on the side with the duct opening. Insert
suspension bracket (D) into the tabs on the opposite side of
the fan housing (A) and then slide suspension bracket (E)
into suspension bracket (D).
A
C
ED
4

7
Homewerks.com
INSTALLATION INSTRUCTIONS (Continued)
5. Position the fan housing (A) so the bottom edge of the fan
housing (A) is ush with the ceiling board. Do not the ush
mount the fan housing (A) to the joist.
Attach the end of each of the suspension brackets (C, D, E)
to the ceiling joists using wood screws (AA).
5
AA
AA
AA
A
C
D
E
6. Secure the suspension brackets (C, D, E) to the fan housing (A)
using machine screws (BB). 6
BB
BB
A
C
D
E
7. Slide the duct connector (F) into the tabs on the fan housing (A)
until the duct connector (F) snaps rmly into place over the
opening in the fan housing (A).
NOTE: Remove the protective tape on the duct adapter (F) ap.
7
A
F
8. Install the wall switch according to the wiring diagram on page 5.
Remove the wiring box cover from the fan housing (A). Pull the
house wires through the hole in the wiring box cover. Using the
quick connectors, connect the house wiring to the wall switch (G)
and fan housing (A). 14 AWG is the smallest conductor that
should be used for branch circuit wiring. Please refer to the
wiring diagram on page 5 to ensure proper wire connections are
made. Carefully push the wire connections into the wiring box and
reattach the wiring box cover.
NOTE: Do not use metal wall plate with the wall switch (G), as it
may cause interference with the fan operation.
CAUTION: The switch included with this ventilation fan requires
a neutral wire connection. If a neutral line is not present, one
must be run by a qualied electrician. If you require assistance,
please call 1-877-319-3757 before attempting switch installation.
CAUTION: This switch is intended to only operate with this
bath fan. Connections to other electrical xtures are prohibited
and could cause electrical issues.
8
A
Quick
connector

8Homewerks.com
INSTALLATION INSTRUCTIONS (Continued)
9. Connect a 4 in. circular duct to the fan housing (A), securing
it with duct tape or a clamp. Vent the duct to the outside. 9
A
10. Join the connectors from the fan housing (A) to the grille (B).
The grille (B) must be connected BEFORE turning on power
to the fan.
10 A
B
3-hole 4-hole 5-hole
11. Attach the grille (B) by pinching the mounting springs and
inserting them into the narrow rectangular slots in the fan
housing (A).
Turn on the power source. Test the unit.
11
Slots in fan
housing
Mounting
springs
A
B
WALL SWITCH OPERATION
Button Action
• Short press to turn light ON/OFF
• Long press for 8 seconds to initiate the switch
pairing process
• Short press to adjust brightness
• Short press to mute Alexa microphone ON/OFF
• Long press for 5 seconds to activate
BLUETOOTH®pairing
• Short press to activate Alexa
• Long press for 5 seconds to start or restart the WiFi
pairing process
• Short press to turn on fan
• Long press for 8 seconds to activate a factory reset
• Short press to turn light and fan ON/OFF together
• Long press for 3 seconds to power ON/OFF
CAUTION: If you long press the ( ) button on the LED wall switch, you will need to repeat the setup process.

9
Homewerks.com
SETTING UP AND PAIRING YOUR ALEXA BATH FAN TO THE HOME NETWERKS CONNECT APP
1. Connect your phone or smart device to a steady 2.4 GHz WiFi connection that can be accessed where your bath fan
will be installed.
2. Download the Home NetWerks Connect app from your smart device compatible app store. If you don’t have
an Amazon Alexa account, download the Amazon Alexa app from the app store and choose “Create a
new account”.
3. If using IOS, open the Amazon Alexa app and log in to your Amazon Alexa account with your User ID and Password,
then click “Sign In”. IMPORTANT: If using Android, this step is not needed.
4. Turn on the bath fan at the LED wall switch by pressing the ( ) button for at least 3 seconds, until you hear a click.
The bath fan grille will light up.
5. The bath fan speaker will say “Now in set-up mode”. If you do not hear "Now in set-up mode", long press the ( )
button on the LED wall switch for 5 seconds to enter set-up mode.
6. Open the Home NetWerks Connect app on your smart device and follow the instructions provided in the app.
7. In the Home NetWerks Connect app, select “Add device” and then “Next.”
8. Click “Indicator is Blinking” and the app will search for the bath fan. Once the app has discovered the bath fan,
identied as 7148_01_AX_####, click “Set up this device”.
9. Set up WiFi for the bath fan by entering the password for the same 2.4 GHz WiFi signal your smart device is connected to
and click “Next”. The app will then connect the bath fan to WiFi. Once the bath fan is connected to WiFi, click “Next”.
10. The Home NetWerks Connect app will now search for and install the latest version of the rmware. Please be patient while
the rmware is updated to provide you with the best experience.
11. A list of available names will appear in the app and 7148_01_AX_#### will be selected as the default setting. Click
"Next" in the upper right corner of the app screen to proceed to the next step.
12. Now the Home NetWerks Connect app will need you to log in to your Amazon Alexa account. Click “Sign in with
Amazon”, then enter the User ID and Password for your Amazon account, and click “Sign In”. If using Android, select
"Keep signed in".
13. After logging in to Amazon, choose your preferred language.
14. When the next Amazon Alexa screen says “Alexa is ready”, click “Next” and then “Next” again.
15. In order to pair the bath fan to the Home NetWerks Connect app, you will need to create a User ID and Password for
the app. Click “Log in” and then click “Sign Up” at the bottom of the page. Enter a User ID & Password, using at least 8
characters with one number and one letter included, and sign in.
16. The screen will say your device is not paired. Click "Pair Device".
17. After pairing the bath fan to the app, the commands in this step will activate the special skills needed to control additional
functions of the bath fan. “Linkplay Smart Home” and “Home NetWerks Smart Fan” skills will be added to your Amazon
Alexa account. Click “Connect” on the next screen. Connect the Linkplay Smart Home and Home NetWerks Smart Fan
skills by clicking "Link". To nish the process, click “Done”.
You have successfully completed the set-up process and your Home NetWerks SmartVent fan is ready for use. You can now
speak your commands or questions to Alexa, control the fan via the Home NetWerks Connect app, or use the included wall switch!
OPERATING THE BATH FAN USING ALEXA COMMANDS
Once the initial set-up process is complete, the name of the bath fan will automatically be updated from
7148_01_AX_#### to BATHROOM. The following commands can be used with Alexa in your bath fan:
- Alexa, turn on BATHROOM light.
- Alexa, turn off BATHROOM light.
- Alexa, dim BATHROOM light.
- Alexa, brighten BATHROOM light.
- Alexa, change BATHROOM light to daylight.
- Alexa, change BATHROOM light to cool white.
- Alexa, change BATHROOM light to soft white.
- Alexa, change BATHROOM light to warm white.
- Alexa, turn on BATHROOM night light.
- Alexa, turn off BATHROOM night light.
- Alexa, turn on BATHROOM fan.
- Alexa, turn off BATHROOM fan.
- Alexa, ask smartfan to run for “x” minutes on BATHROOM.
IMPORTANT: If you rename the bath fan from BATHROOM to a custom name, your Alexa commands will need to be
directed to the new name. For example, if you renamed the fan as BATH, your command would be “Alexa, turn on the BATH
light” or “Alexa, turn off the BATH fan”.

10 Homewerks.com
OPERATING THE BATH FAN USING ALEXA COMMANDS (Continued)
You can also ask Alexa to do other things for you in addition to operating the bath fan. Examples include:
- Alexa, play music.
- Alexa, play Amazon music.
- Alexa, play Spotify.
- Alexa, turn up the volume.
- Alexa, turn down the volume.
- Alexa, order more shampoo.
- Alexa, what is the trafc on the way to work?
- Alexa, what is the temperature outside?
CONNECTING YOUR BLUETOOTH®DEVICE TO THE BATH FAN SPEAKER
1. To play your personal music les, you need a wireless BLUETOOTH® device. After the rmware upgrade is completed
during the initial set-up and pairing, you will be able to connect your BLUETOOTH®device directly to the bath fan
speaker.
2. Set your device to a midrange volume level before connecting to the bath fan speakers.
• The optimal volume setting for the BLUETOOTH®speakers is 70% or lower. Settings higher than 70% may cause
sound distortion.
3. Long press the ( ) button on the LED wall switch to activate BLUETOOTH® ().
4. From the Home screen on your smart device, choose Settings > BLUETOOTH®, to search for BATHROOM.
NOTE: While your device can maintain multiple pairing records, it can only connect to one accessory at
a time. This prevents your device from sending your data to the wrong BLUETOOTH®accessory.
5. Select BATHROOM from the list of available BLUETOOTH device options. If BATHROOM does not appear on the list,
speak “Alexa, Bluetooth Mode” and then “BATHROOM”.
6. When pairing is complete, use the bath fan’s BLUETOOTH®speakers to play audio from your device.
7. If preferred, you can also connect to your BLUETOOTH®device via the Home NetWerks Connect app. Download and
open the Home NetWerks Connect app and follow the steps in the prior section to pair your Alexa bath fan to the Home
NetWerks Connect app.
8. To switch to a WiFi connection, just speak “Alexa.....” and the device will automatically switch back to a WiFi connection.
9. To switch back from a WiFi connection to BLUETOOTH®, press play from your BLUETOOTH®device.
SPOTIFY CONNECT
Use your phone, tablet, or computer as a remote control for Spotify.
Go to spotify.com/connect to learn how.
ADDITIONAL FUNCTIONS
RENAMING A BATH FAN
1. If you have purchased more than one Home NetWerks Alexa bath fan, you will need to change the name
of the second fan to avoid duplication. You can also choose to change the name of a Home NetWerks Alexa bath fan
from BATHROOM to a customized name, if that is your preference.
2. From the Device List screen in your Home NetWerks Connect app, click the Gear icon ( ) and choose “Rename”.
3. Select from the list of options on the screen or select “Custom” to create your own name. Once you have chosen the
new name for your bath fan, click “Finish” in the top right corner.
4. Please allow 20 seconds for the bath fan to refresh with the new name before using commands.
UPGRADING THE FIRMWARE
Periodically a new rmware version will be released and your Home NetWerks bath fan will need to be updated for maximum
functionality and security. From the pop-up window, click "Upgrade". Do not turn off the power to the bath fan while the rmware
is updated via WiFi.

11
Homewerks.com
CARE AND CLEANING
CAUTION: Before attempting to clean the xture, disconnect the power to the xture by turning the breaker
off or removing the fuse from the fuse box.
• See safety information before proceeding. Routine maintenance should be done at least once a year.
• Never use solvents, thinner or harsh chemicals for cleaning the fan.
• Do not allow water to enter the motor.
• Do not immerse metal parts in water.
• Do not immerse resin parts in water more than 140°F.
• Do not immerse speakers in water.
BEFORE CLEANING
WARNING: RISK OF ELECTRIC SHOCK! Ensure the electricity is
shut off at the main breaker box. Either remove the fuse or turn
off the circuit breaker before cleaning.
1. Remove the grille (B) by squeezing the mounting springs and
pulling the grille (B) down from the fan housing (A). Disconnect
the electrical connections from the fan housing (A) to the
grille (B) by pulling the connectors apart. Wipe grille (B) with
a damp cloth.
CAUTION: Do not immerse grille in water.
1A
B
3-hole 4-hole 5-hole
2. Remove dust and dirt from the fan housing (A) with a vacuum
cleaner. 2
3. Wipe the fan housing (A) with a damp cloth and wipe dry. 3

12 Homewerks.com
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
The fan seems louder than
it should be.
The CFM is too great for the space. Be sure the CFM rating on the fan matches the
square footage of your room.
The damper is damaged or not working properly.
Check the damper to ensure it is opening and
closing properly. If the damper has become
damaged, please call Customer Service.
The bend in the duct is too close to the fan
discharge.
Be sure you do not have any sharp bends in the
duct within 18 in. of the fan discharge.
The fan discharge is reduced to t a smaller duct. Use the recommended size ducting to reduce fan
noise.
The fan body is not attached securely. Be sure the fan is securely attached to the ceiling
joists.
The fan is not clearing the
humidity from the room.
There is insufcient airow intake in the room.
Be sure a door or window is slightly ajar or open to
allow airow. The fan is not able to draw air out of
the room without enough airow.
There is insufcient CFM.
NOTE: Using a tissue is not the correct method for
determining if the fan is operating properly. If the fan
clears steam from the room within approximately
15 minutes of completing your shower, then the
fan is operating properly.
Be sure the CFM rating of the fan matches the
square footage of your room.
The BLUETOOTH®device
will not pair with the fan. Another device is already paired. Make sure BLUETOOTH®signal is turned off on other devices.
The switch will not power up. There is a wiring issue at the switch, or the power
is not turned on at the fuse box or circuit breaker.
Check the wiring diagram on page 5 and conrm
wiring is correct. Verify the power is turned on.
The switch has power, but
the fan does not.
The grille is not receiving a signal from the switch.
Turn off power. Disconnect the grille for 5 seconds,
then reconnect the grille and test. Repeat as
necessary.
Long press the ( ) button for 8 seconds to
enable the switch pairing process.
The speaker and the smart device are not
connected to the same WiFi network.
Ensure your smart device is connected to the
same WiFi network that the speaker was
congured to.
Neutral wire connection from the switch to the fan
is not engaging.
Run a dedicated neutral wire from the switch to the
fan. Consult an electrician if necessary.
The wall switch does not
work with the bath fan. Wall switch is not paired to the bath fan. Press the ( ) button on the wall switch for 5
seconds to initiate the switch pairing process.
CARE AND CLEANING (Continued)
4. Join the connectors from the fan housing (A) to the grille (B). Attach
the grille (B) by pinching the mounting springs and inserting them
into the narrow rectangular slots in the fan housing (A).
Turn on the power source. Test the unit.
4A
B
3-hole 4-hole 5-hole

13
Homewerks.com
TROUBLESHOOTING (Continued)
PROBLEM POSSIBLE CAUSE SOLUTION
The Home NetWerks fan
cannot be discovered by
the Home NetWerks
Connect app.
The fan is not in set-up mode.
Long press the ( ) button on the LED wall switch
for 5 seconds to enter set-up mode. The bath fan
speaker will say “Now in set-up mode”. Follow the
steps in the Pairing your Alexa Bath Fan to the
Home NetWerks Connect App section on page 9.
The fan and the mobile device are not connected
to the same WiFi network.
Ensure that your mobile device is connected to the
same WiFi network that the fan was congured on.
Alexa is not responding.
The microphone on the bath fan is muted.
If the red LED indicator is illuminated on the fan,
the microphone is muted. Press the ( ) button on
the wall switch to unmute the microphone. The red
LED indicator on the fan will turn off.
The bath fan may have lost the WiFi signal or the
connection to the Home NetWerks Connect app.
Follow the steps in Pairing your Alexa Bath Fan to
the Home NetWerks Connect App on page 9.
The Amazon Alexa and Home NetWerks Connect
apps are logged into different accounts.
Sign out of the Amazon Alexa and Home NetWerks
Connect apps. Sign into each again using the
same account.
There is no sound coming
from the speaker.
A software problem has occurred.
Press them ( ) button on the wall switch for 3
seconds to turn the power off. Then press the ( )
button on the wall switch again for 3 seconds to turn
the power back on.
Perform a factory reset by pressing the ( )
button for 8 seconds. NOTE: This will delete
all user settings. After the factory reset, the speaker
will need to be set up again. Follow the instructions
on page 9.
Volume is turned down or off. Turn up or turn on the volume.
The bath fan is having
WiFi connectivity issues.
There is an unsteady network connection.
Make sure that your bath fan is within range of
your WiFi router and has a strong and stable
connection.
Other devices are causing interference.
Check that your bath fan is away from any other
devices that cause interference, such as microwaves,
baby monitors, or other electronic devices.
WiFI is not connected because the password
was entered incorrectly.
Verify you have the correct WiFi password. If your
WiFi password recently changed, update your
device's WiFi settings.
Network congestion is causing poor signal
strength.
If you have several devices connected to your WiFi
network, try removing some of them to reduce
congestion.
No WiFi signal is being received.
The fan is 2.4GHz WiFi compatible. Please make
sure your smart device and bath fan are connected
to 2.4GHz.

14 Homewerks.com
FAN – LIMITED 3-YEAR WARRANTY
If the fan fails due to a defect in materials or workmanship at any time during the rst THREE years of ownership, the manufacturer will
replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused, altered, damaged,
misused, cut or worn. This warranty does not cover use in commercial applications. Use only manufacturer-supplied genuine warranty
repair replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The manufacturer DISCLAIMS all
other implied or express warranties including all warranties of merchantability and/or tness for a particular purpose. As some states do
not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives
you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement
as well as incidental and consequential damages connected with the above are excluded. Any damage to this product as a result of
neglect, misuse, accident, improper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday.
BLUETOOTH® SPEAKER – LIMITED 1-YEAR WARRANTY
If the BLUETOOTH® speaker fails due to a defect in materials or workmanship at any time during the rst year of ownership, the
manufacturer will replace it free of charge, postage-paid at their option. This warranty does not cover products that have been abused,
altered, damaged, misused, cut or worn. This warranty does not cover use in commercial applications. Use only manufacturer-supplied
genuine warranty repair replacement parts to repair this fan. Use of non-genuine repair parts will void your warranty. The manufacturer
DISCLAIMS all other implied or express warranties including all warranties of merchantability and/or tness for a particular purpose. As
some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This
warranty gives you specic legal rights, and you may have other rights that vary from state to state.
This warranty is limited to the replacement of defective parts only. Labor charges and/or damage incurred during installation, repair,
replacement
as well as incidental and consequential damages connected with the above are excluded. Any damage to this product as a result of
neglect, misuse, accident, improper installation or use other than the purpose SHALL VOID THIS WARRANTY.
Shipping costs for return product as part of a claim on the warranty must be paid for by the customer.
Inquiries regarding warranty claims can be directed to 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday.
AMAZON ALEXA – LIMITED 1-YEAR WARRANTY
Products covered by this warranty are identied at https://www.amazon.com/devicewarranty
If you purchased your Amazon Device or Accessory (the “Device”) from Amazon.com or from authorized resellers located in the United States,
the Warranty for the Device is provided by Amazon.com Services LLC, 410 Terry Ave. North, Seattle, WA 98109-5210, United States. If you
purchased your Device from any other Amazon website or from authorized resellers located in other countries, the warranty for the Device is
provided by the entity identied at https://www.amazon.com/devicewarrantyprovider. The provider of this warranty is sometimes referred to
herein as “we.”
When you purchase a new or Certied Refurbished Device , we warrant the Device against defects in materials and workmanship under
ordinary consumer use for one year from the date of original retail purchase. During this warranty period, if a defect arises in the Device,
and you follow the instructions for returning the Device, we will at our option, to the extent permitted by law, either (i) repair the Device
using either new or refurbished parts, (ii) replace the Device with a new or refurbished Device that is equivalent to the Device to be
replaced, or (iii) refund to you all or part of the purchase price of the Device. This limited warranty applies, to the extent permitted by
law, to any repair, replacement part or replacement device for the remainder of the original warranty period or for ninety days, whichever
period is longer. All replaced parts and Devices for which a refund is given shall become our property. This limited warranty applies only
to hardware components of the Device that are not subject to accident, misuse, neglect, re or damage from other external causes,
alteration, repair, or commercial use.
INSTRUCTIONS: For specic instructions about how to obtain warranty service for your Device, please contact Customer Service using
the contact information on the left side of this page. In general, you will need to deliver your Device in either its original packaging or in
equally protective packaging to the address specied by Customer Service. Before you deliver your Device for warranty service, it is
your responsibility to remove any removable storage media and back up any data, software, or other materials you may have stored
or preserved on your Device. It is possible that such storage media, data, software or other materials will be destroyed, lost or reformatted
during service, and we will not be responsible for any such damage or loss.

15
Homewerks.com
AMAZON ALEXA – LIMITED 1-YEAR WARRANTY (Continued)
LIMITATION: TO THE EXTENT PERMITTED BY LAW, THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
AND IN LIEU OF ALL OTHER WARRANTIES AND REMEDIES, AND WE SPECIFICALLY DISCLAIM ALL STATUTORY OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
AND AGAINST HIDDEN OR LATENT DEFECTS. IF WE CANNOT LAWFULLY DISCLAIM STATUTORY OR IMPLIED WARRANTIES,
THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH WARRANTIES SHALL BE LIMITED IN DURATION TO THE DURATION
OF THIS EXPRESS LIMITED WARRANTY AND TO REPAIR OR REPLACEMENT SERVICE.
SOME JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG A STATUTORY OR IMPLIED WARRANTY LASTS, SO
THE ABOVE LIMITATION MAY NOT APPLY TO YOU. WE ARE NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR UNDER ANY OTHER LEGAL THEORY. IN
SOME JURISDICTIONS THE FOREGOING LIMITATION DOES NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY
STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS, SO THE ABOVE EXCLUSION
OR LIMITATION MAY NOT APPLY TO YOU. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF DIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. THIS
“LIMITATIONS” SECTION DOES NOT APPLY TO CUSTOMERS IN THE EUROPEAN UNION.
This limited warranty gives you specic rights. You may have additional rights under applicable law, and this limited warranty does not
affect such rights.
You can nd the Customer Service contact information and other applicable terms and Device information (including in other languages)
at https://www.amazon.com/devicesupport.

16 Homewerks.com
VENTILADOR DE BAÑO
SMARTVENT CON ALEXA
INTEGRADO, LUZ LED Y
ALTAVOCES BLUETOOTH®
MODELO 7148-01-AX
Home NetWerks
SIMPLE SOLUTIONS FOR A SMARTER HOME
¿Tiene preguntas, problemas, o faltan piezas? Antes de regresar a la tienda, llame al Servicio al Cliente,
1-877-319-3757, de lunes a viernes de 7:30 a.m. a 4:30 p.m., hora estándar central.
CONSERVE ESTE MANUAL PARA USO FUTURO
Amazon, Alexa y todos los logotipos relacionados son marcas comerciales de Amazon.com, Inc. o sus aliados.
La palabra y logotipos de BLUETOOTH®son propiedad de Bluetooth SIG, Inc. Otras marcas y nombres de terceros son propiedad de sus respectivos dueños.
Home NetWerks, Homewerks, Homewerks Worldwide, el diseño de la casa Homewerks y todos los logotipos relacionados son marcas comerciales propiedad
de Homewerks Worldwide, LLC.
Número de patente de EE.UU. 9,398,357

17
Homewerks.com
TABLA DE CONTENIDO
Especicaciones del producto .........................................................................................................17
Cumplimiento de la normas FCC ....................................................................................................17
Contenido del paquete ....................................................................................................................17
Materiales incluidos..........................................................................................................................18
Información sobre seguridad ...........................................................................................................19
Preparación .....................................................................................................................................19
Instrucciones de installación ............................................................................................................21
Funcionamiento del interruptor de pared..........................................................................................23
Conguración y emparejamiento del ventilador Alexa con la aplicación Home NetWerks Connect ...24
Funcionamiento del ventilador con los comandos de Alexa.............................................................24
Conexión de su dispositivo BLUETOOTH®a los altavoces .............................................................25
Funciones adicionales......................................................................................................................25
Cuidado y limpieza ..........................................................................................................................26
Solución de problemas.....................................................................................................................27
Garantía............................................................................................................................................29
ESPECIFICACIONES DEL PRODUCTO
Flujo de aire: 110 CFM Consumo eléctrico del LED: 18 W
120 V, 60Hz Brillo del LED: 800 lumenes
Diámetro del conducto: 4 pulg Color de luz LED (CCT): 2200K Blanco cálido /
3000K Blanco suave / 4000K Blanco frío / 5000K
Luz diurna
Volumen sonoro: 1,5 sone
Consumo de energía total: 50 W
Consumo de energía del ventilador: 28 W Color de la luz nocturna: 2200K Blanco cálido
Velocidad del ventilador: 920 RPM Peso: 5,8 kg
CUMPLIMIENTO DE LA NORMAS FCC
AVISO: Este equipo ha sido sometido a prueba y se halló que cumple con los
límites establecidos para la clase B de dispositivos digitales, conforme a la
Parte 15 de las Normas de FCC. Estos límites se establecen para brindar
protección razonable contra interferencia dañina en una instalación
residencial.
Este equipo genera, utiliza y puede irradiar energía de frecuencias de radio
y, si no se instala conforme a las instrucciones, puede provocar interferencia
dañina a las comunicaciones de radio. A pesar de esto, no existe garantía de
que la interferencia no se produzca en una instalación en particular.
Si este equipo produce interferencia dañina a la recepción de radio o televisión,
lo que puede determinarse encendiendo y apagando el equipo, se insta al
usuario a intentar corregir la interferencia mediante uno de los siguientes
métodos:
– Cambie la orientación o ubicación de la antena receptora.
– Aumente la separación entre el equipo y el receptor.
– Conecte el equipo en un enchufe que esté en un circuito diferente al
cual está conectado el receptor.
– Consulte con el representante o con un técnico perimentado en radio y
relecisión para solicitar asistencia.
Los cambios o modicaciones que on estén expresamente aprobados
por la parte responsable del cumplimiento anulan la autoridad del usuario
de operar el equipo.
Declaración de exposición a la radiación de la Comisión Federal de Comuni-
caciones (FCC):
Cuando utilice el producto, mantenga una distancia de 20 cm del cuerpo para
garantizar el cumplimiento de los requisitos de exposición a RF.
Este dispositivo cumple con la parte 15 de las reglas de la FCC. La operación
está sujeta a las siguientes dos condiciones:
(1) este dispositivo no puede causar interferencias dañinas y
(2) este dispositivo debe aceptar cualquier interferencia recibida, incluida la
interferencia que pueda causar un funcionamiento no deseado.
NOTA: El fabricante no es responsable de ninguna interferencia de radio o
televisión causada por modicaciones o cambios no autorizados en este
equipo. Tales modicaciones o cambios podrían anular la autoridad del
usuario para operar el equipo.
Identicación de la FCC: 2AW5J-7148-01-AX

18 Homewerks.com
CONTENIDO DEL PAQUETE
A
B
G
C
D
E
F
PIEZA DESCRIPCIÓN CANTIDAD PIEZA DESCRIPCIÓN CANTIDAD

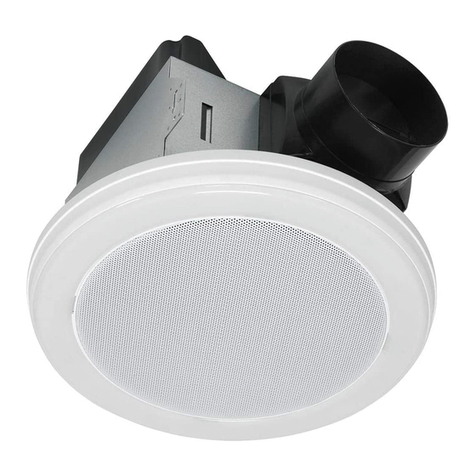

ACaja del ventilador con
altavoz BLUETOOTH®1D Soporte de suspensión 1
E Soporte de suspensión 1
BRejilla con Amazon Alexa
y luz LED 1FAdaptador de conducto
de 4 pulg. 1
G Interruptor de pared 1
C Soporte de suspensión 1
MATERIALES INCLUIDOS (Los materiales no se ilustran en tamaño real)
AA BB
Tornillo para
madera
M4 x 30mm
Tornillo para
metales
M4 x 10mm
Cantidad 9 Cantidad 4

19
Homewerks.com
INFORMACIÓN SOBRE SEGURIDAD
Por favor, lea y comprenda este manual en su totalidad antes de intentar de ensamblar, operar o instalar el producto.
• Siempre desconecte la fuente de alimentación antes de
darle servicio al ventilador, motor o caja eléctrica.
• Siga todos los codigos locales de construccion,
de seguridad y electricos asi como el NEC (Codigo
Electrico Nacional) y OSHA (Ley de Salud y
Seguridad Ocupacional).
• El suministro del servicio electrico debe ser de
120 voltios, 60 hertz.
• Este producto debe estar correctamente conectado al
conductor de conexion a tierra del circuito de alimenta-
cion.
• No doble ni retuerza los cables de energia.
• No use este ventilador con ningún dispositivo de control
de estado sólido, como un control remoto, interruptor de
atenuación o ciertos temporizadores. Los temporiza-
dores mecánicos no son dispositivos de estado sólido.
• No instale en un techo con aislamiento mayor de R40.
• Conductos se deben instalar en una línea recta con
curvas mínimas.
• El tamaño del conducto debe ser de mismo tamaño
que la descarga y no debe ser reducido. Reducir el
tamaño del conducto puede aumentar el ruido del
ventilador.
ADVERTENCIA: Para reducir el riesgo de incendio,
choque eléctrico o lesiones a las personas, respete
lo siguiente:
1. Use esta unidad en la manera prevista por el fabri-
cante. Si tiene alguna pregunta, por favor llame al
Servicio al Cliente.
2. Antes de dar servicio o limpiar esta unidad apague la
fuente de alimentación en el panel y bloquélo para evitar
que se encendia la alimentación accidentalmente. Si
no puede bloquear el panel, marque claramente el panel
con una etiqueta de advertencia para evitar que se
encienda la alimentación.
3. El trabajo de instalación y el cableado eléctrico debe
ser hecho por una persona calicada, de acuerdo con
todos los códigos y normas aplicables, incluyendo la
construcción con clasicación ignífuga.
4. Se necesita suciente aire para una combustión apro-
piada y el escape de los gases a través del conducto
(chimenea) del equipo que quema combustible para
evitar contratiraje. Siga las guias del fabricante de
equipo de calefacción y las normas de seguridad como
las publicadas de la Asociación Nacional de Protección
contra Incendios (NFPA), y de la Sociedad Estadoun-
idense de Ingenieros en Calefacción, Refrigeración y
Aire Acondicionado (ASHRAE), y las autoridades de
código local.
5. Cuando corte o perfore en la pared o techo, no dañe
el cableado eléctrico u otros servicios ocultos.
6. Los ventiladores con conductos siempre deben ser
ventilados al exterior.
7. Si esta unidad se va a instalar sobre una bañera o
ducha, se debe marcar según sea apropiado para la
aplicación y conectarse a un circuito de derivación
protegido GFCI (Interruptor de circuito de falla a tierra).
8. Este ventilador está diseñado para instalarse por lo
menos a 1 m del cabezal de la ducha cuando
se instala sobre una bañera o ducha. La instalación
dentro de una cabina de ducha no se recomienda a
menos que se pueda alcanzar la distancia de 1 m.
PRECAUCIÓN
• Para uso de ventilación general solamente. No
lo use para desalojar materiales y vapores
peligrosos o explosivos.
• No debe usarse en área de cocina.
• Para reducir el riesgo de lesiones a las personas,
instale el ventilador al menos a 7 pies (2.1m)
sobre el piso.
PRECAUCIÓN: La instalación de esta unidad requiere que la energía esté apagada hasta que se complete la instalación.
Si encuentra problemas con la unidad que no se enciende, revise la sección de solución de problemas del manual de
instrucciones. Si necesita asistencia adicional, llame al 1-877-319-3757, de 7:30 a.m. a 4:30 p.m., HCE, de lunes a viernes.
NO REGRESE A LA TIENDA.
PREPARACIÓN
Antes de comenzar a ensamblar este producto, asegurese de que todas las piezas esten presentes. Compare las piezas con
la lista de contenido del paquete y herraje incluido. Si hace falta alguna pieza o se encuentra danada, no intente ensamblar
el producto. Pongase en contacto con el Servicio al Cliente para piezas de repuesto 1-877-319-3757, de 7:30 a. m. a 4:30 p. m.,
hora central estándar, de lunes a viernes.
Herramientas necesarias para armar (no incluidas): Martillo, destornillador de cabeza plana, conectores de cables, clavos,
cinta adhesiva, destornillador de estrella, cinta aislante y cuchillo multiuso o sierra para paneles de yeso.
Herramientas útiles (no incluidas): Taladro eléctrico, brocas de taladro

20 Homewerks.com
PREPARACIÓN (Continuación)
IMPORTANTE: Se requiere una conexión Wi-Fi de 2.4 GHz y una cuenta de Amazon Alexa para una funcionalidad
completa.
ADVERTENCIA: RIESGO DE DESCARGA ELECTRICA. Asegurese de cortar el suministro electrico en los cables
con los que trabajara. Extraiga los fusibles o apague el cortacircuitos antes de quitar el ventilador de baño
existente o instalar uno nuevo.
Antes de quitar su ventilador actual, verique que su caja de interruptores en la pared tenga los cables de
suministro necesarios para esta instalación. Estos cables de alimentación (negro) y neutro (blanco) como
se muestra en el diagrama de cableado a continuación. Si no ve estos dos cables, consulte a un electricista
autorizado.
Compruebe el área sobre la ubicación de instalación para asegurarse de que el cableado puede correr a la ubicación
prevista y que los conductos se puede correr y el área es suciente para una ventilación adecuada
Inspeccione los conductos y el cableado antes de proceder con la instalación.
Antes de la instalación, proporcione acceso para la inspección y el mantenimiento en un lugar que no interera con el
trabajo de instalación.
Es posible que necesite la ayuda de una segunda persona para instalar este ventilador; una en el lado del ático y otra en
el lado de la habitación.
La instalacion puede variar dependiendo de cómo se instaló el ventilador anterior. Los suministros necesarios para la
instalación de su ventilador de baño no están todos incluidos; sin embargo, la mayoría están disponibles en su tienda de
artículos del hogar o ferretería local.
DIMENSIÓN
Aperturo
de techo (La) Aperturo de techo (An) Aperturo de techo (Al) Dimensiones de caja (La) Dimensiones de caja (An) Dimensiones de caja (Al)
23,5 cm 23,5 cm 15,0 cm 22,9 cm 22,9 cm 14,7 cm
IMPORTANTE: SE REQUIERE ACCESO AL ÁTICO PARA UNA INSTALACIÓN ADECUADA.
CABLEADO
Todo el cableado debe estar conectada a la funcionalidad completa. No use una placa de pared de metal con el interruptor.
ATENCIÓN:
una conexión de cable neutro dedicado. Si no
hay una cable neutro, uno debe ser ejecutado
NOTA: Este interruptor está diseñado para
funcionar solo de manera independiente con
este ventilador de baño. Las conexines a otros
accesorios eléctricos están prohibidas y podrían
causar problemas eléctricos.
Si necesita ayuda, por favor llame al
1-877-319-3757 antes de intentar instalar
el interruptor.
interruptor / rojo interruptor / negro
casa neutro / blanco
AC 120 V /60Hz
tierra / verde
Ventilador
Blanco
Rojo
Verde
Negro
ventilador / negro
ventilador neutro / blanco
