Under Counter Freezer
Instruction Manual
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Model number: HUCFZ2B

Before using the Appliance
Safety Instructions …………………………………………………………………… 3
Appliance Safety …………………………………………………………………… 4
Electrical Safety …………………………………………………………………… 4
Before Switching on …………………………………………………………………… 5
Installing and switching on
the Appliance …………………………………………………………………… 5
The Appliance and the
Compartments …………………………………………………………………… 6
Usage Information
Thermostat Setting …………………………………………………………………… 7
Important Notes …………………………………………………………………… 8
Product Specification …………………………………………………………………… 8
Connection to the Mains
Supply …………………………………………………………………… 9
Transportation and Handling …………………………………………………………………… 10
Where to put your Appliance …………………………………………………………………… 10
Reversing the Door …………………………………………………………………… 11
Installation …………………………………………………………………… 12
Power Failure …………………………………………………………………… 13
Cleaning and Maintenance …………………………………………………………………… 14
Troubleshooting …………………………………………………………………… 15
Warranty …………………………………………………………………… 16
Notes …………………………………………………………………… 17
Notes …………………………………………………………………… 18
Contents

Before using the appliance
Safety Instructions
• This model contains R600a refrigerant (the coolant Isobutane), a natural gas that is
environmentally friendly but also combustible. When transporting and installing the unit,
care must be taken to ensure that none of the refrigeration circuit components become
damaged. In the event of damage avoid any naked flames or any sources of ignition and
ventilate the room in which the unit is placed for a few minutes.
Warning: Keep the ventilation openings in the appliance enclosure, clear of obstruction.
• Do not use mechanical devices or other artificial means to accelerate the defrosting
process.
• Do not use electrical appliances in the freezer appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a
safety measure before storing it, to protect children from locking themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be
disposed of properly. Entrust the disposal of a scrap unit categorically to the competence
of your local waste disposal service and contact your local authority or your dealer if you
have any questions. Please ensure that the pipe work of the unit does not get damaged
prior to being picked-up by the relevant waste disposal service.
Important note:
Please read this booklet before installing and switching on this appliance. The
manufacturer assumes no responsibility for incorrect installation and usage as described in
this booklet.
Caution: Risk of fire – do not store flammable liquid or other flammable material in this
appliance.
3
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com

Appliance Safety
Warning:
•This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack ofexperience and knowledge if
they have been given supervision or instruction concerning use ofthe appliance in a
safe way and understand the hazards involved.Children shall not play with the
appliance.
•Do not use adaptors , multiple receptacles or extension leads.
•Do not plug in damaged plugs.
•Do not pull, twist or damage the power cable.
•Do not put the appliance or any other objects on the power cord.
•This appliance is designed for the use by adults, do not allowchildren to play with the
appliance or let them hang over the door.
•Do not plug-in or un-plug the appliance withwet hands to prevent electrical shock.
•Do not place explosive or flammable material in your freezer for your own safety.
•Effervescent (fizzy) drinks should not be stored in the freezer.
•Do not cover the body or the top of the appliance with lace. This affects the
performance of your freezer.
•Fix down the accessories in the appliance during transportation to prevent damage
to them.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the same
as that indicated on the rating plate.
•This product is designed to operate on 220 – 240V AC; 50Hz. Connection to any other
power source may damage the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.
•If the plug has to be changed because it is not suitable for your socket, or becomes
damaged in any way, it should be cut off and an appropriate plug fitted following the
wiring instructions on Page 9. This should be carried out by a qualified electrician. The
plug removed must be disposed of safely, as insertion into a 13 Amp socket is likely to
cause an electrical hazard.
4

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Before Switching On:
•Let the appliance rest for 3 hours before plugging into the main power to ensure proper
performance.
•There can be an odour when you first switch on the appliance, this is normal and will
disappear when the appliance starts to cool.
•Before using your appliance, add a teaspoon ofbicarbonate of soda to warm water and with a
damp clothe wipe down all parts ofthe newappliance, then repeat the process witha clean
damp clothe and dry.(ENSURE THEAPPLIANCE IS NOT CONNECTED TO THE POWER WHEN
PERFORMING THIS TASK)
Installing and Switching on the Appliance
•Operating voltage for your fridge is 220-240V at 50Hz.
•If you need help or are unsure how to install the unit, please contact Customer Services
on 0845 208 8750 or visit www.productcareuk.com.
•Before plugging in the power supply, ensure that the voltage on the nameplate
corresponds to the working voltage of your electrical system in your home.
•Insert the plug into an efficient Ground (Earth) connection.Ifthe socket has no Ground
(Earth) contact or the plug does not match, we suggest you call an authorised electrician for
assistance.
•We do not take responsibility of the damages that occur due to Ungrounded (Un- earthed)
usage.
•Place your freezer in a place that is not exposed to direct sunlight.
•Your appliance should be placed at least 500 mm away from stoves, ovens and other
heating cores.
•It should never be used outdoors or left in the rain.
•Do not place anything on your appliance and install your freezer in a suitable place so that
there is at least 300 mm clear above the appliance.
•Ifplacing your freezer next to kitchen cabinets, leave 50 mm between them.
•The rear of the appliance should be at least 60 mm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface. To level the appliance
use the adjustable feet on the front of the appliance.
•Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
•Do not place hot food or containers in the freezer as this can damage your appliance.
5

THEAPPLIANCE AND THE COMPARTMENTS
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit us at
www.productcareuk.com
Item Quantity
Plastic drawers 3
Instruction Booklet 1
Parts may vary according to the appliance model.
6

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Temperature selection
The temperature of the freezer is controlled manually by the knob – see below. However
the number shown on the knob does not correspond to a temperature. The larger the
number, the lower the interior temperature will be. ‘0’ represents ‘off’ and ‘4’ and ‘5’
represents normal use. ‘1’ is the warmest setting and ‘7’ is the coldest.
Allow to stand for a minimum of 3 hours before plugging in to the mains
The temperature in the appliance is controlled by the temperature control dial located on
the frame above the freezer drawers. Rotate the control knob left or right to regulate the
temperature inside the freezer.
On the temperature control, ‘1’ is the warmest setting and ‘7’ is the coldest setting. Under
normal conditions the temperature control should be set between ‘4’ and ‘5’.
Once the temperature control has been set, close the door and plug in the appliance. We
recommend that the door is not opened for a minimum of 2.5 hours to allow the appliance
to reach the standard operating temperature.
Note: The standard operating temperature for the freezer compartment should be
between -18°C and -25°C.
USAGE INFORMATION
Thermostat Setting
7

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
IMPORTANT NOTES:
The cooling gas which circulates in the freezer circuit may make a slight noise
(bubbling sound) even when the compressor is not running.This is quite normal.
If these sounds are different check that ;
•The appliance is level.
•Nothing is touching the rear of the appliance.
If the problem persists after you have followed all the instructions above, please
consult Product Care on 0845 208 8750.
•Compressor protection function will be activated after sudden power breakdowns
or after unplugging the appliance, because the gas in the cooling system will
not have stabilized sufficiently. Your freezer will start after a short period oftime, this
is quite normal.
•Ifyou do not use your appliance for a long period oftime (e.g.in summer holidays)
unplug it.Clean and leave the door open to prevent humidity and bad odours.
• Energy efficiency performance rating: A+
• Star rating: 4
• Net capacity: 71 Litre / 2.51 cubic feet
• 3 Plastic drawers
• Reversible door
• Adjustable Thermostat
• Adjustable feet
• Dimensions (CMs): (H)83.9 x (W)48.6 x (D)53.6
Voltage: 220 – 240V
Frequency: 50Hz
Product Specification
8
Climate Class
N/ST 16 C -38 C

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
For UK use only – Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
The GREEN/YELLOWwire is the EARTH and must be connected to the
terminal which is marked with the letter Eor by the earth symbol or coloured
GREEN or
GREEN/YELLOW.
The BLUEwire is the NEUTRAL and must be connected to the
terminal marked with the letter N or coloured BLACK. The BROWN
wire is the LIVE wire and must be connected to the terminal
marked with the letter L or coloured RED.
Always ensure that the plug cord grip is fastened correctly.
If a 13A (BS1363) fused plug is used it must be fitted with a
13amp fuse conforming to BS1362 and be BSI or ASTAapproved.
Connection to the mains supply
9

Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the base and
rear corners of cabinet. Lift the freezer carefully. Never use the door handles for lifting. To
move the appliance on a flat level surface, tilt it slightly backwards onto the two rear
rollers and push backwards.
This unit is heavy and could cause injury – We recommend two person handling.
*DIAGRAM USED FOR ILLUSTRATION PURPOSES ONLY. IT MAY DIFFER FROM THE PURCHASED APPLIANCE.
This appliance should only be placed on a flat, firm surface.
Do not place your appliance on a carpeted surface as this will prevent
adequate ventilation.
Choose a dry and well-ventilated space. No less than 50mm must be left
around the sides to allow efficient cooling.
Choose a location away from a heat source, e.g. direct sunlight, a radiator or
oven.
The appliance should be positioned so that the plug is easily accessible.
Do not place your appliance on a carpeted surface as this will prevent
adequate ventilation.
Where to put your Appliance
10

You will need to tilt the fridge backward to access the lower hinge which holds screws. Do
not tilt more than 45 degrees and do not lay the fridge flat on its side.
For your own safety, a minimum of 2 people should lift or tilt this product.

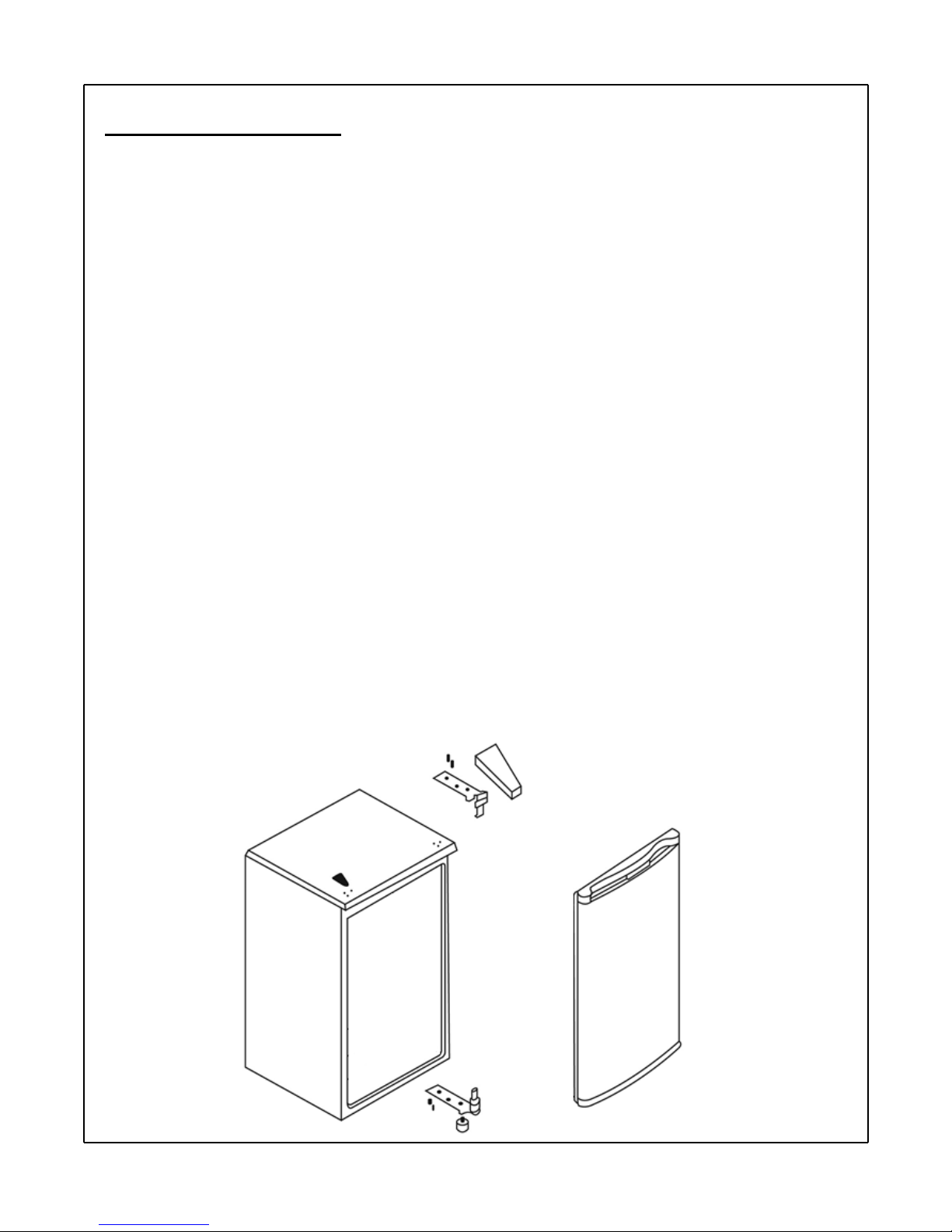

Reversing the door:
•Remove the upper hinge cover first.
•Remove the screws that hold the upper hinge (right side) to the body of the appliance.
•Remove the upper hinge.
•Lift the door and place it on a padded surface to prevent scratching.
•Reverse the whole cover plate from the left hand side to the right hand side.
•Remove the two screws that hold the lower hinge and remove the lower hinge.
•Remove the left front foot and transfer it to the right hand side.
•Before fitting the lower hinge, swap over the hinge pin and the foot to the other side.
•Then install the lower hinge onto the left hand side of the lower frame with the screws .
•Position the door in place, making sure the door sits onto the lower hinge.
•Align the door in the closed position, secure the upper hinge in the top left hand side
with the screws. Remember do not tighten the two screws until the top of the door is
level with the top of the freezer.
•Install the upper hinge cover on the upper hinge.
Reversing the door
11

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Installation
After installation, do not switch the power to the appliance on for at least 3 hours – the
unit needs to stand. The unit should be kept away from direct sunlight. If the appliance is
located on carpet, damage may be caused to the carpet due to heat being emitted from
the unit.
Remove all transport tapes and foam protection pieces . Clean the interior of the freezer
with a cloth dampened in lukewarm water. Wipe with clear water and wipe dry.
When the appliance has been positioned, adjust the two front feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening /closing. See
below.
Once the appliance has been standing for 4 hours, plug in the freezer, locate the
thermostat knob inside the compartment and set to “4" position and switch on the power.
The compressor will begin to work. Close the door.
12

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Power Failure
If there is a power failure during the storage of frozen foods, keep the door closed. If the
temperature within your freezer should rise, do not refreeze the food without checking it's
condition.
Ice Cream: Once thawed should be discarded.
Fruit and Vegetables: If soft should be cooked and used up.
Bread and Cakes: Can be refrozen without danger.
Shellfish: Should be refrigerated and used up quickly.
Cooked Dishes: i.e. casseroles should be refrigerated and used up.
Large Pieces of Meat: Can be re-frozen providing there are ice crystals remaining within
them.
Small Joints: Should be cooked and then re-frozen as cooked dishes.
Chicken: Should be cooked and re-frozen as a fresh dish.
Storage Advice
Store fresh food in airtight boxes or wrap in bags or foil which is suitable for freezing.
Do not allow frozen food into direct contact with food to be frozen.
Pre frozen food must be place in the freezer as quickly as possible after purchasing.
To prevent frost damage to fresh vegetables or fruits they must be processed appropriately
before being placed into the freezer compartment.
13

To Defrost the Freezer
1. Try to use as much as possible of the food in the freezer, before defrosting. However, any
food that is left, wrap in layers of newspaper or blankets.
2. Switch the appliance off at the wall socket and remove the plug.
3. Open the freezer door.
4. Place a suitable container to collect the water created from the defrosted ice.
5. After defrosting, clean and dry the interior.
6. Switch the appliance on and replace any frozen food.
Defrosting can be speeded up by putting bowls of hot (not boiling) water in the freezer and
loosening the frost with a suitable plastic scraper.
Never use sharp metal tools as it may damage the appliance.
Never use an electrical heater, this may cause an electric shock.
Internal Cleaning
Disconnect the appliance from the power supply before cleaning.
Do not pour water over the appliance.
The cavity should be cleaned periodically using a solution of bicarbonate of soda and
lukewarm water.
Clean the accessories separately with soap and water. Do not put them in the dishwasher.
Do not use abrasive products, detergents or soaps. After washing, rinse with clean water
and dry carefully. When the cleaning operations are complete, reconnect the plug with dry
hands.
External Cleaning
Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
There are sharp edges on the underside of the product so care should be taken when
cleaning.
When the Appliance is Not in Use
When the appliance is not in use for long periods, disconnect from the electricity supply,
empty all of the food and clean the inside. Leave the door open to prevent the build-up of
odours.
CLEANING AND MAINTENANCE
14

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
Pr
oblem
So
lution
The
freezer doesn't work.- Check that the appliance is switchon.
- Check that there has not been a power cut.
- Check that the plug is faulty.
- Check that the fuse has not blown.
- Check that the voltage is correct for the appliance.
The
temperature inside the appliance - Check that there is not to muchfood in the appliance.
is
not cold enough. - Check that the thermostat is set to a suitable temperature.
- Check that the appliance is not placed in direct sunlight, or to
near to a heating source.
- Check that the ambient temperature is within the operation
limits of the appliance.
- Opening the doors frequently will also reduce the temperature
within the freezer.
The
temperature within the appliance is - Reduce the working temperature by adjusting the thermostat to
to
cold. a lower setting.
The
outer surfaces of the appliance are wet. - Caused by condensation - dry the outer of the appliance carefully.
E
xcess ice or frost has built up inside the
appliance.
- Check that the door has not been left open.
- Check that the door gasket is clean and undamaged.
U
nusual noises - Check that the appliance is on a flat, level surface and is stable.
- Check the spacing's around the appliance(not touching other items).
Troubleshooting
15

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
This product is guaranteed for 12 months from the date ofthe original purchase.Ifany
defect arises due to faulty materials or workmanship the faulty product must be returned to
the place ofpurchase.
Refund or replacement is at the discretion of the retailer.
The following conditions apply:
•The product must be returned to the retailer with the original proofof purchase.
•The product must be installed and used in accordance with the instructions contained
in this instruction guide and any other instructions for use whichhas been supplied.
•It must be used for domestic purposes only and for its intended use.
•This warranty does not cover wear and tear, damage, misuse or consumable parts.
This does not affect your statutory rights.
Produced for:
G2S Limited
Unit 12, Lodge Bank Industrial Estate
Horwich
BL6 5HY
Warranty
16

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
17
Notes:

For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
18
Notes:

This symbol is known as the 'Crossed-out wheelie bin Symbol'. When this symbol is
marked on a product/batteries, it means that the product/batteries should not be
disposed of with your general household waste. Only discard electrical/electronic/battery
items in separate collection schemes, which cater for the recovery and recycling of
materials contained within. Your co-operation is vital to make sure the success of these
schemes and for the protection of the environment. For your nearest disposal facility, visit
www.recycle-more.co.uk or ask in store for details.
We reserve the right due to possible changes to design to alter the instruction manual
without prior notice.
Revision 2
For Customer Services & Spare Parts
please call
0845 208 8750
Opening times: Monday - Friday
8am – 6pm & Saturday 9am –1pm
or visit us at
www.productcareuk.com
For Customer Services & Spare Parts please call 0845 208 8750
Opening times: Monday - Friday 8am – 6pm & Saturday 9am – 1pm or visit
us at www.productcareuk.com
