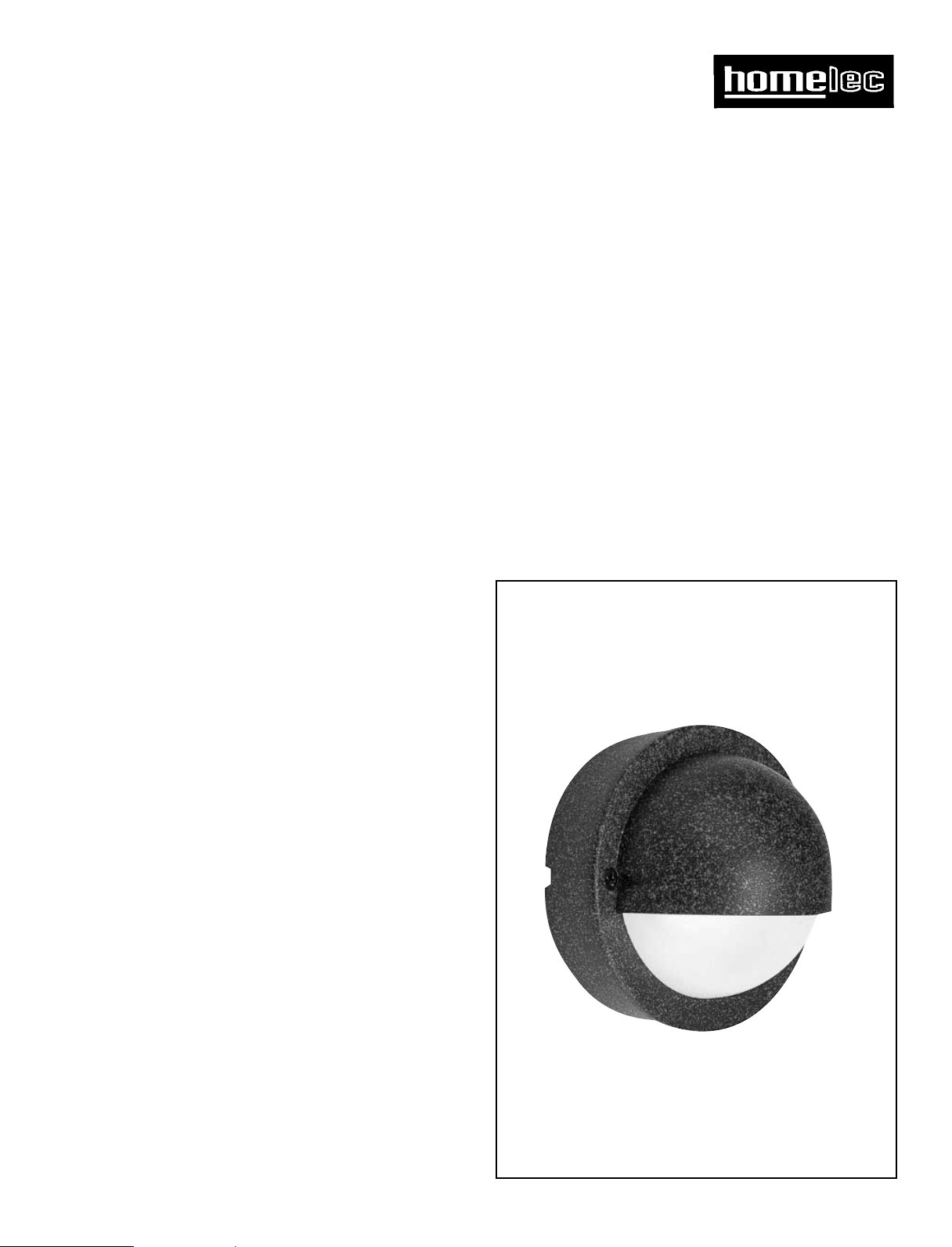

Homelec PREMIER RANGE User manual

90-OM1864-P1
90-OM1864
90-OM1864-P4
14
Kingsway House, Laporte Way,
Luton, Bedfordshire LU4 8RJ
Tel: [phone]
PREMIER
RANGE
Thank you for your purchase of Premier Lights.
The Premier garden lighting range offers the ideal
lighting effect to any garden and feature
weatherproof transformers that can be positioned
outside safely. The transformer is equipped with
a photo-cell which switches the lights on at dusk
and off at dawn. Keep a copy of these
instructions for future reference.
Please read these instructions fully
before commencing the installation:
SAFETY INSTRUCTIONS
• These lights are only to be connected to a 12V
low voltage lighting system.
• Only use either lights provided with this kit or
compatible lights from the Homelec range.
• Only use the transformer supplied or a
transformer from the Homelec Premier garden
lighting range.
• Disconnect the power before changing a lamp
and ensure the lamp is cool before handling.
• Ensure the cable is routed so as not to be a trip
hazard.
• Ensure that the wattage of all the lights
combined does not exceed the rating of the
transformer.
• The transformer must be plugged in indoors.
• Only adjust the cable and lights when the power
is switched off.
• If in doubt, consult a qualified electrician.
INSTRUCTION MANUAL
CATALOGUE NUMBERS : DT DLK4
Specification :
Transformer
Input : 230V~50Hz
Output : 12V~96W, 8A
Light Fittings
Lamp Voltage : 12V~
Lamp rating : 7W max.
Lamp type : wedge
If you chose to extend the cable, use Homelec
catalogue number CBLI-10 only. The longer the
cable, the dimmer the lights will be. We
recommend a maximum cable length of 30m,
however even at this length the lights will not be
at their full brightness.
Light & Transformer Warranty
It is unlikely that this transformer and light
fittings will fail in normal use due to faulty
materials or workmanship within 5 years for the
transformer and within 10 years for the light
fittings. If it does, Homelec undertake to repair or
replace it provided it has been installed, used and
maintained correctly in accordance with these
instructions, such that the transformer has not
been subjected to repair, opened or taken apart.
This guarantee does not cover lamps and the
finish of any product. This does not affect your
statutory rights.
This product is subject to Homelec’s Standard
Terms & Conditions of Sale.

90-OM1864-P390-OM1864-P2
32
Problem Suggested RemedyPossible Cause
1. Lights will not switch on at
dusk.
No power. Ensure transformer is plugged in
and power is switched on.
2. Only some of the lights
switch on at dusk.
Terminal spikes in the light power
connector have not made contact
with the core of the cable.
Straighten the terminal spikes and
reattach the power connector to
the low voltage lighting cable.
Low voltage cable has not been
connected to the transformer.
Ensure the low voltage cable is
connected to the transformer.
Artificial light affecting the
sensor e.g. street lights.
Mount the sensor where the
artificial lights will not affect the
sensor.
Lamp not correctly fitted into the
lampholder.
Ensure the lamp is correctly
fitted.
The lamp has blown. Replace the lamp.
Trouble Shooting :
Kit Contents :
AWLG-3
4 Deck Lights
4 Threaded Caps
4 Inserts
2 Fixing Screw Packs
5 7W 12V Wedge lamps
1 96W Transformer
15m approx. Cable
Installation :
1. Locate the transformer in a suitable position,
considering that the transformer has to be
plugged in indoors.
2. Unwind and lay out the cable to its full length
along the line where the Deck lights will be
positioned, starting at the position where the
transformer is to be located.
Assembly of Lights :

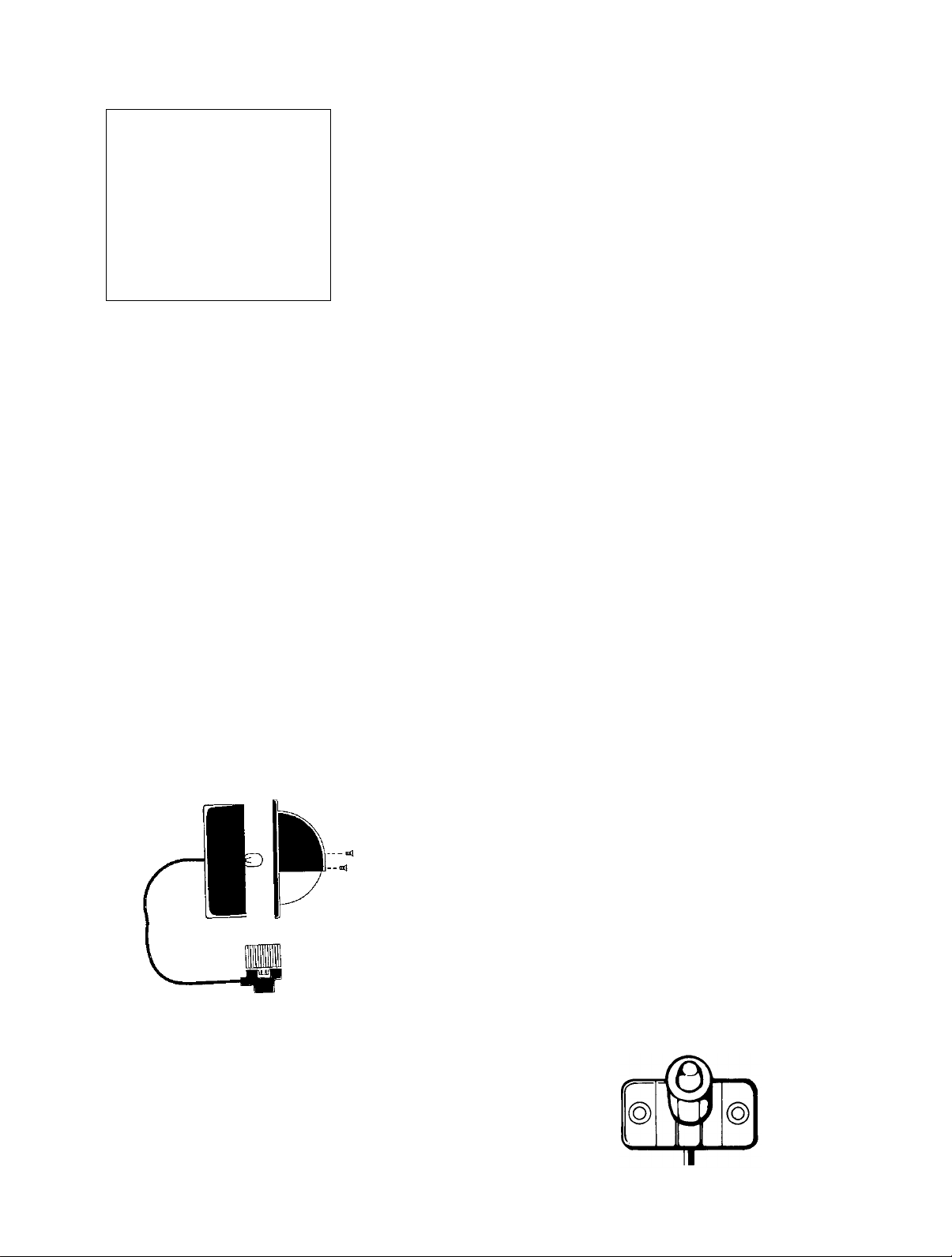

1. Remove the two screws on the Deck light, and
then remove the cover and the lens.
2. Using the screws provided, fix the Deck light in
the desired position.
3. Replace the lens and cover.
4. Repeat for the remaining Deck lights.
5. Attach the Deck light power connector by the
following method. Place the plastic insert in
the wiring channel, aligning the holes with the
terminal spikes. Lay the cable in the plastic
insert so that the terminal spikes align with the
centre of each core of the cable. Whilst
holding the cable in place, screw on the
threaded cap. The cap will force the terminal
spikes to pierce the cable, holding it in place.
6. Repeat for the remaining Deck lights.
Ensure you have followed all of the steps
above and the Deck lights are fully
assembled and connected to the low voltage
cable before connecting the low voltage
lighting cable to the transformer.
Transformer Installation :
1. The recommended transformer mounting
location is a minimum of 30cm above the
ground and located where its power cord is
within reach of a standard 230V power socket
outlet located indoors, or a suitable
weatherproof socket if used outdoors.
The transformer is equipped with a photo-cell
which will automatically turn the lights on at
dusk and off at dawn. To accurately do this,
the photo-cell must be mounted (using the
screws provided) in an area where it will be
exposed to the natural light of the rising and
setting sun. Avoid heavily shaded areas or
areas where artificial light may shine onto the
photo-cell. Light from automobiles,
streetlights, porch light, etc. may cause your
lights to turn off prematurely.
Note : the photo-cell may be mounted
horizontally or vertically. If you chose to
mount the transformer indoors, the photo-cell
must be placed in a window.

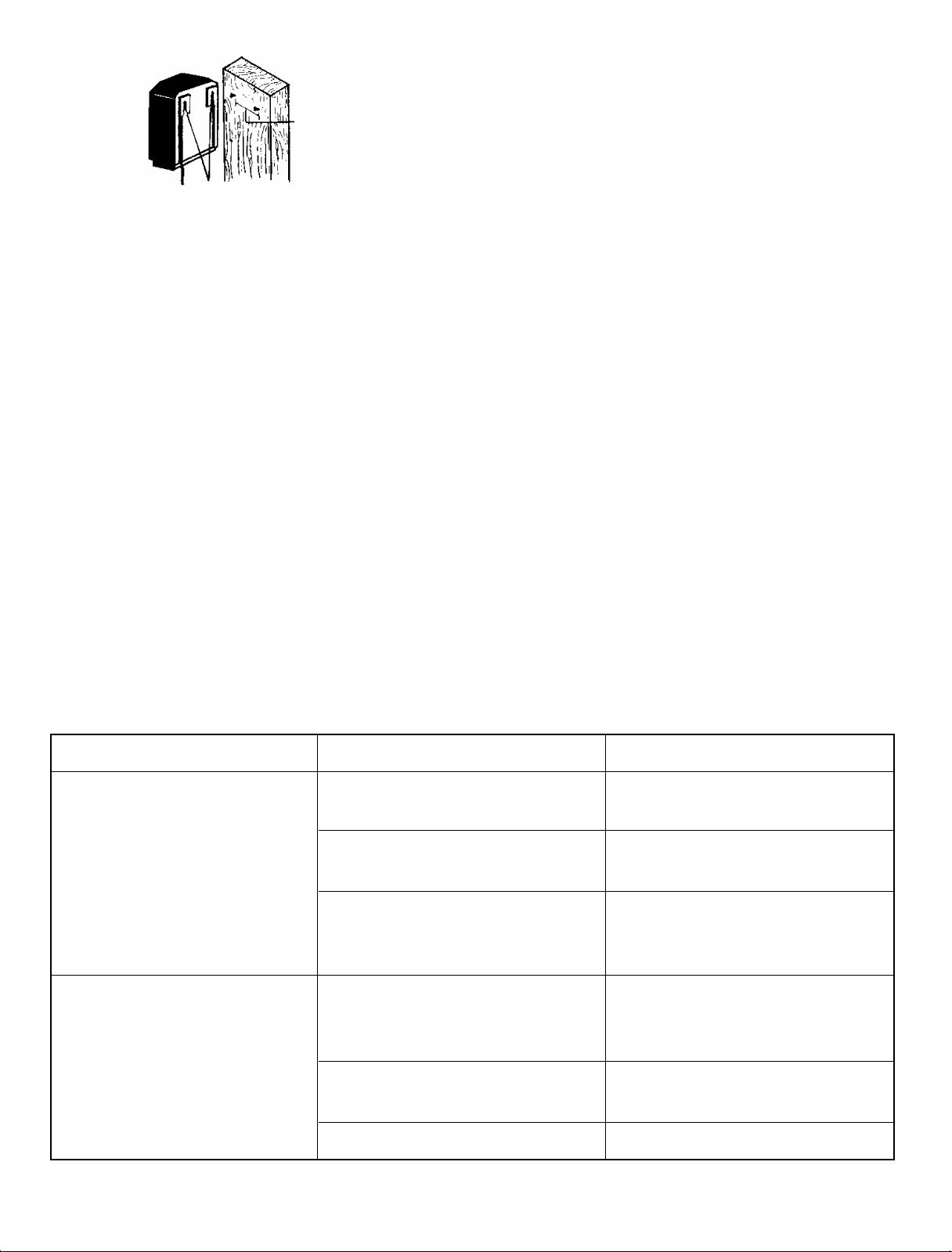

2. You may hang the transformer indoors or
outdoors on a wall, fence, post etc. by using
the screws provided. The screw locations are
to be positioned so they will slide onto the
slots on the rear of the transformer.
There are not any user serviceable parts within
the transformer.
Wiring Instructions :
1. Strip away 15mm of insulation off of both wires
at one end only of the low voltage lighting
cable.
2. Remove the terminal cover at the bottom of the
transformer. Loosen the two terminal screws
and wrap one of the stripped wires around each
terminal screw. Tighten the screw ensuring that
all strands of the wire at captured under the
terminal screw heads. Replace the terminal
cover.
Do not loop the low voltage cable back to the
transformer.
The transformer may now be plugged into an
appropriate socket. Please note the lights will
not come on until dusk. If you require the lights
not to be operated by the photo-cell on the
transformer, it may be wrapped in insulation
tape to shut out the light from the sensor.
Lamp Replacement :
1. Switch off the power supply to transformer and
ensure the lamp is cool before handling.
2. Unscrew the post from the base.
3. Replace the lamp with a lamp of the same style
and rating.
4. Reassemble in reverse order.
8 CM
Mounting Slots

90-OM1864-P390-OM1864-P2
32
Problem Suggested RemedyPossible Cause
1. Lights will not switch on at
dusk.
No power. Ensure transformer is plugged in
and power is switched on.
2. Only some of the lights
switch on at dusk.
Terminal spikes in the light power
connector have not made contact
with the core of the cable.
Straighten the terminal spikes and
reattach the power connector to
the low voltage lighting cable.
Low voltage cable has not been
connected to the transformer.
Ensure the low voltage cable is
connected to the transformer.
Artificial light affecting the
sensor e.g. street lights.
Mount the sensor where the
artificial lights will not affect the
sensor.
Lamp not correctly fitted into the
lampholder.
Ensure the lamp is correctly
fitted.
The lamp has blown. Replace the lamp.
Trouble Shooting :
Kit Contents :
AWLG-3
4 Deck Lights
4 Threaded Caps
4 Inserts
2 Fixing Screw Packs
5 7W 12V Wedge lamps
1 96W Transformer
15m approx. Cable
Installation :
1. Locate the transformer in a suitable position,
considering that the transformer has to be
plugged in indoors.
2. Unwind and lay out the cable to its full length
along the line where the Deck lights will be
positioned, starting at the position where the
transformer is to be located.
Assembly of Lights :
1. Remove the two screws on the Deck light, and
then remove the cover and the lens.
2. Using the screws provided, fix the Deck light in
the desired position.
3. Replace the lens and cover.
4. Repeat for the remaining Deck lights.
5. Attach the Deck light power connector by the
following method. Place the plastic insert in
the wiring channel, aligning the holes with the
terminal spikes. Lay the cable in the plastic
insert so that the terminal spikes align with the
centre of each core of the cable. Whilst
holding the cable in place, screw on the
threaded cap. The cap will force the terminal
spikes to pierce the cable, holding it in place.
6. Repeat for the remaining Deck lights.
Ensure you have followed all of the steps
above and the Deck lights are fully
assembled and connected to the low voltage
cable before connecting the low voltage
lighting cable to the transformer.
Transformer Installation :
1. The recommended transformer mounting
location is a minimum of 30cm above the
ground and located where its power cord is
within reach of a standard 230V power socket
outlet located indoors, or a suitable
weatherproof socket if used outdoors.
The transformer is equipped with a photo-cell
which will automatically turn the lights on at
dusk and off at dawn. To accurately do this,
the photo-cell must be mounted (using the
screws provided) in an area where it will be
exposed to the natural light of the rising and
setting sun. Avoid heavily shaded areas or
areas where artificial light may shine onto the
photo-cell. Light from automobiles,
streetlights, porch light, etc. may cause your
lights to turn off prematurely.
Note : the photo-cell may be mounted
horizontally or vertically. If you chose to
mount the transformer indoors, the photo-cell
must be placed in a window.
2. You may hang the transformer indoors or
outdoors on a wall, fence, post etc. by using
the screws provided. The screw locations are
to be positioned so they will slide onto the
slots on the rear of the transformer.
There are not any user serviceable parts within
the transformer.
Wiring Instructions :
1. Strip away 15mm of insulation off of both wires
at one end only of the low voltage lighting
cable.
2. Remove the terminal cover at the bottom of the
transformer. Loosen the two terminal screws
and wrap one of the stripped wires around each
terminal screw. Tighten the screw ensuring that
all strands of the wire at captured under the
terminal screw heads. Replace the terminal
cover.
Do not loop the low voltage cable back to the
transformer.
The transformer may now be plugged into an
appropriate socket. Please note the lights will
not come on until dusk. If you require the lights
not to be operated by the photo-cell on the
transformer, it may be wrapped in insulation
tape to shut out the light from the sensor.
Lamp Replacement :
1. Switch off the power supply to transformer and
ensure the lamp is cool before handling.
2. Unscrew the post from the base.
3. Replace the lamp with a lamp of the same style
and rating.
4. Reassemble in reverse order.
8 CM
Mounting Slots

90-OM1864-P1
90-OM1864
90-OM1864-P4
14
Kingsway House, Laporte Way,
Luton, Bedfordshire LU4 8RJ
Tel: [phone]
PREMIER
RANGE
Thank you for your purchase of Premier Lights.
The Premier garden lighting range offers the ideal
lighting effect to any garden and feature
weatherproof transformers that can be positioned
outside safely. The transformer is equipped with
a photo-cell which switches the lights on at dusk
and off at dawn. Keep a copy of these
instructions for future reference.
Please read these instructions fully
before commencing the installation:
SAFETY INSTRUCTIONS
• These lights are only to be connected to a 12V
low voltage lighting system.
• Only use either lights provided with this kit or
compatible lights from the Homelec range.
• Only use the transformer supplied or a
transformer from the Homelec Premier garden
lighting range.
• Disconnect the power before changing a lamp
and ensure the lamp is cool before handling.
• Ensure the cable is routed so as not to be a trip
hazard.
• Ensure that the wattage of all the lights
combined does not exceed the rating of the
transformer.
• The transformer must be plugged in indoors.
• Only adjust the cable and lights when the power
is switched off.
• If in doubt, consult a qualified electrician.
INSTRUCTION MANUAL
CATALOGUE NUMBERS : AWLG-3
Specification :
Transformer
Input : 230V~50Hz
Output : 12V~96W, 8A
Light Fittings
Lamp Voltage : 12V~
Lamp rating : 7W max.
Lamp type : wedge
If you chose to extend the cable, use Homelec
catalogue number CBLI-10 only. The longer the
cable, the dimmer the lights will be. We
recommend a maximum cable length of 30m,
however even at this length the lights will not be
at their full brightness.
Light & Transformer Warranty
It is unlikely that this transformer and light
fittings will fail in normal use due to faulty
materials or workmanship within 5 years for the
transformer and within 10 years for the light
fittings. If it does, Homelec undertake to repair or
replace it provided it has been installed, used and
maintained correctly in accordance with these
instructions, such that the transformer has not
been subjected to repair, opened or taken apart.
This guarantee does not cover lamps and the
finish of any product. This does not affect your
statutory rights.
This product is subject to Homelec’s Standard
Terms & Conditions of Sale.
