9D VR Cinema Operating Instruction
Thank you for buying of our VR Equipment. Please read the instruction
carefully before using and safe keeping. The content or because the
errata change caused by product improvement, We at any time has
explanation without notice. The content will be incorporated into the
revised printing instruction for use.

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
Content
1．Preparation before starting ................................................................ 1
1. The connection of egg chair and one machine ............................. 1
2.Button function detailed ............................................................... 1
2. Steam room setting .............................................................................. 2
1. Power on ...................................................................................... 2
2. glasses are connected normally.................................................... 2
3. Straighten glasses ......................................................................... 3
4. Open steam VR ............................................................................. 4
5. Opening steam menu ................................................................... 4
6. Entering operative room setting ................................................... 5
7. Setting sensor ............................................................................... 6
8. Calibration center ......................................................................... 7
9. Calibrating the center point .......................................................... 7
10. Finishing ..................................................................................... 8
3. Play and stop the movie ....................................................................... 9
1.The film played .............................................................................. 9
2. The film stop ................................................................................ 9
3.System function and sound adjustment ...................................... 11
4. Setup and account ............................................................................. 12
1. Enter background ....................................................................... 12

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
2. Test ............................................................................................. 13
3. Language switching .................................................................... 14
4.Password change ......................................................................... 14
5. Common problems and analysis ........................................................ 17
6. Daily maintenace ............................................................................... 18
7. Productparameter .............................................................................. 19

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
1
1．Preparation before starting
1.The connection of egg chair and one machine
1.1.1
Connect the egg chair and one machine according to figure 1.1.1
2.Button function detailed
1.2.1
Open the main switch and press the boot button (the host must start).
The main extension switch button can make the screen switch.

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
2
2. Steam room setting
Note: rooms need to be set up:
Get the machine installed after the first boot use;
The role and position in the game without glasses found in the game.
The game does not feel the ground height
1. Power on
After power on, press the computer to start the key, the red light on the
start button and flashing state, indicating that the computer is started,
after the completion of the boot will display the picture on the computer
monitor.
2. glasses are connected normally
First, in the lower right corner of the desktop, click to open the assistant
figure 2.1.1; selection of equipment into the Dapeng assistant page after
the connection, check the USB and HDMI are connected, connected
glasses that normal connection, as shown in Figure 2.2.2.

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
3
2.2.1
2.2.2

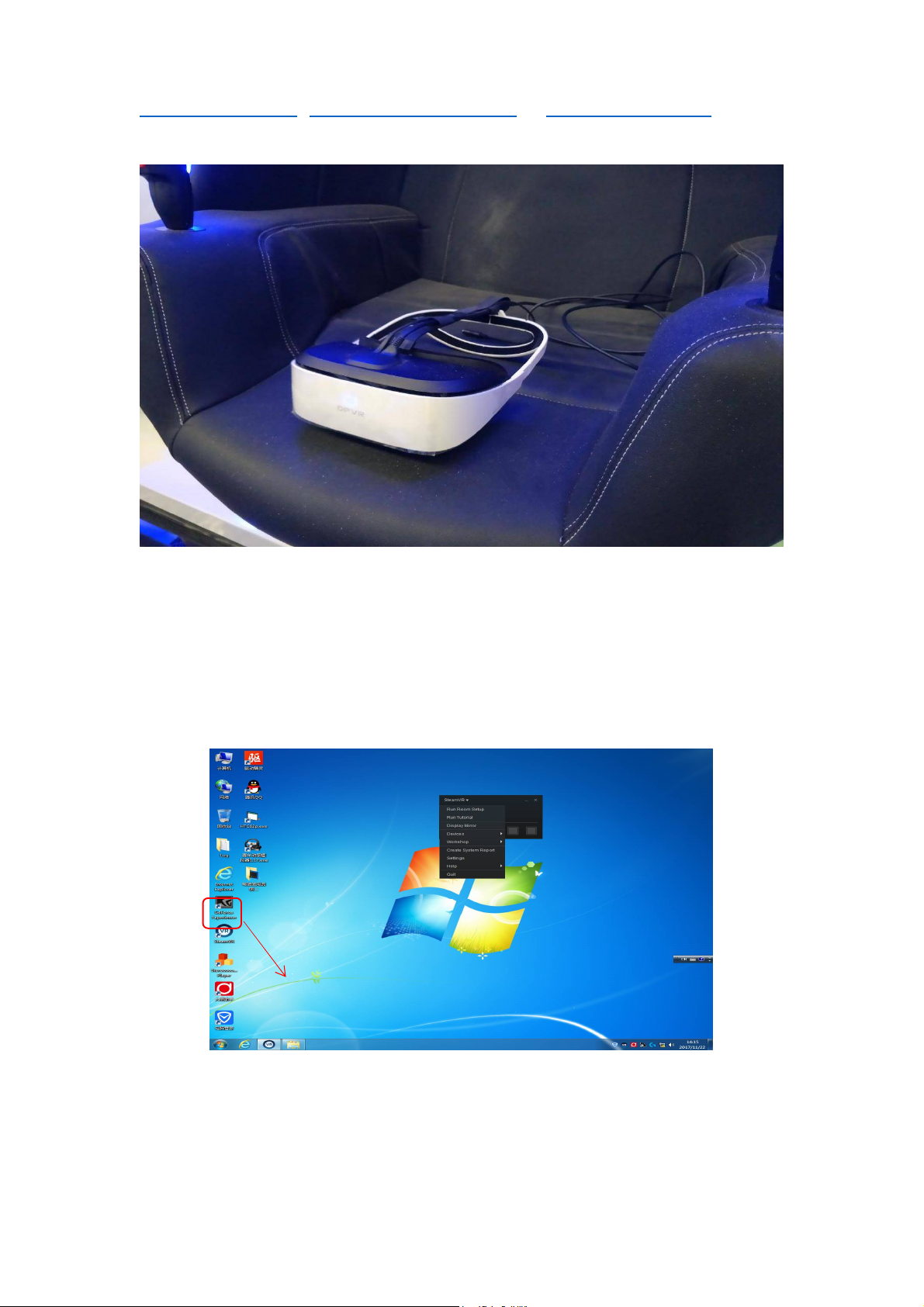

3. Straighten glasses
The glasses should be placed on the top of the egg chair, and the glasses
are straight ahead, as shown in figure 2.3.1:
Click
Device
Click device

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
4
2.3.1
4. Open steam VR
Open the steam VR directly in the desktop as the image,Figure 2.4.1 is
Steam VR Icon
2-4-1
5. Opening steam menu
Click the Steam VR in the steam vr window, and then a drop-down menu
Put your glasses on the seat, straight ahead
Click

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
5
appears. If the drop-down menu is English language, you do not worry
about it. Since the steam VR software is the steady version, it will be
restored to Chinese in following steps.
here is the drop-down menu in English language as image 2-5-1show
2-5-1
6. Entering operative room setting
Select the first item to run out the room setting, then a window will
appear and begin to set out. Select the stand only mode directly, as
image 2-6-1 show.
Click Run room

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
6
click
2.6.1
7. Setting sensor
Firstly check the helmet is connect normally after entering, as the green
icon becomes grey one, that means the glasses is not connected well. If
the helmet icon is green, we could just click the next step directly, as
image 2-7-1 show.
2.7.1
click

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
7
8. Calibration center
When you arrive at this interface, put the helmet in place and put it in
the position of the machine station. The direction of the glasses is the
front of the game, as shown in the picture. Therefore, in the following
setting, you need to keep the glasses still, and the setting of the interface
is shown in the picture. After setting the glasses, click the center of
calibration, waiting for the bar to become full,indicating the setting of
success,then click next directly, as shown in figure2-8-1
2-8-1

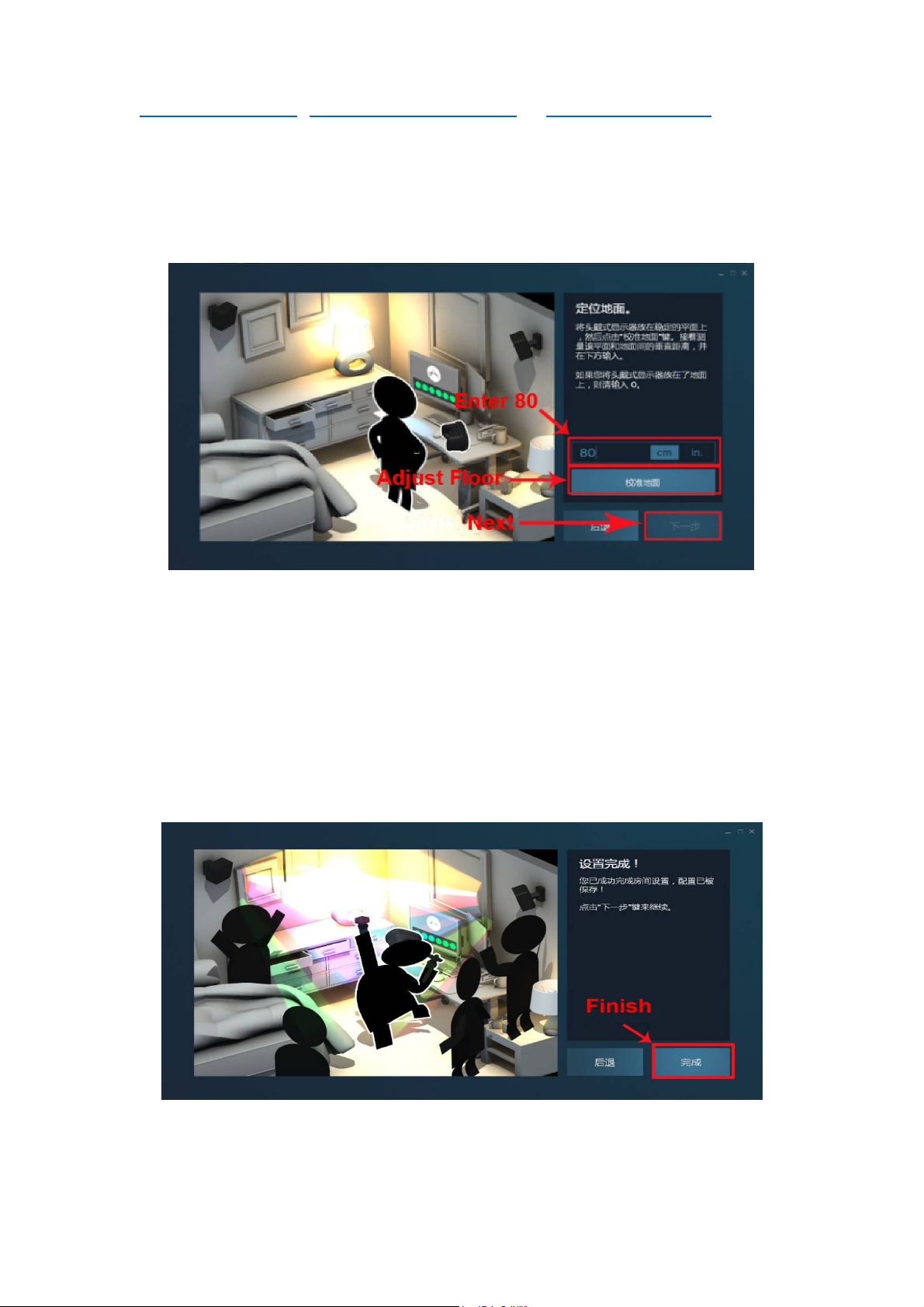

9. Calibrating the center point
When we enter the interface, we should post the helmet in a right place
on the motion mount, which the direction of the glasses should be the
front of the game, shown as below picture. In the next setting, we should
keep the glasses still, the setting interface is shown as picture. When the
glasses is stabled, click the center point, wait the scroll to full which

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
8
means the setting is successful, then click the next step directly, as image
3-9-1 show.
3.9.1
10. Finishing
The setting is finished when we come to this step, just click the finish
directly. If there another window appears, we just click the X in the
upper right to close the window, as image 3-10-1 show.
3.10.1

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
9
Choose the game
Choose play glasses
Click Start
3. Play and stop the movie

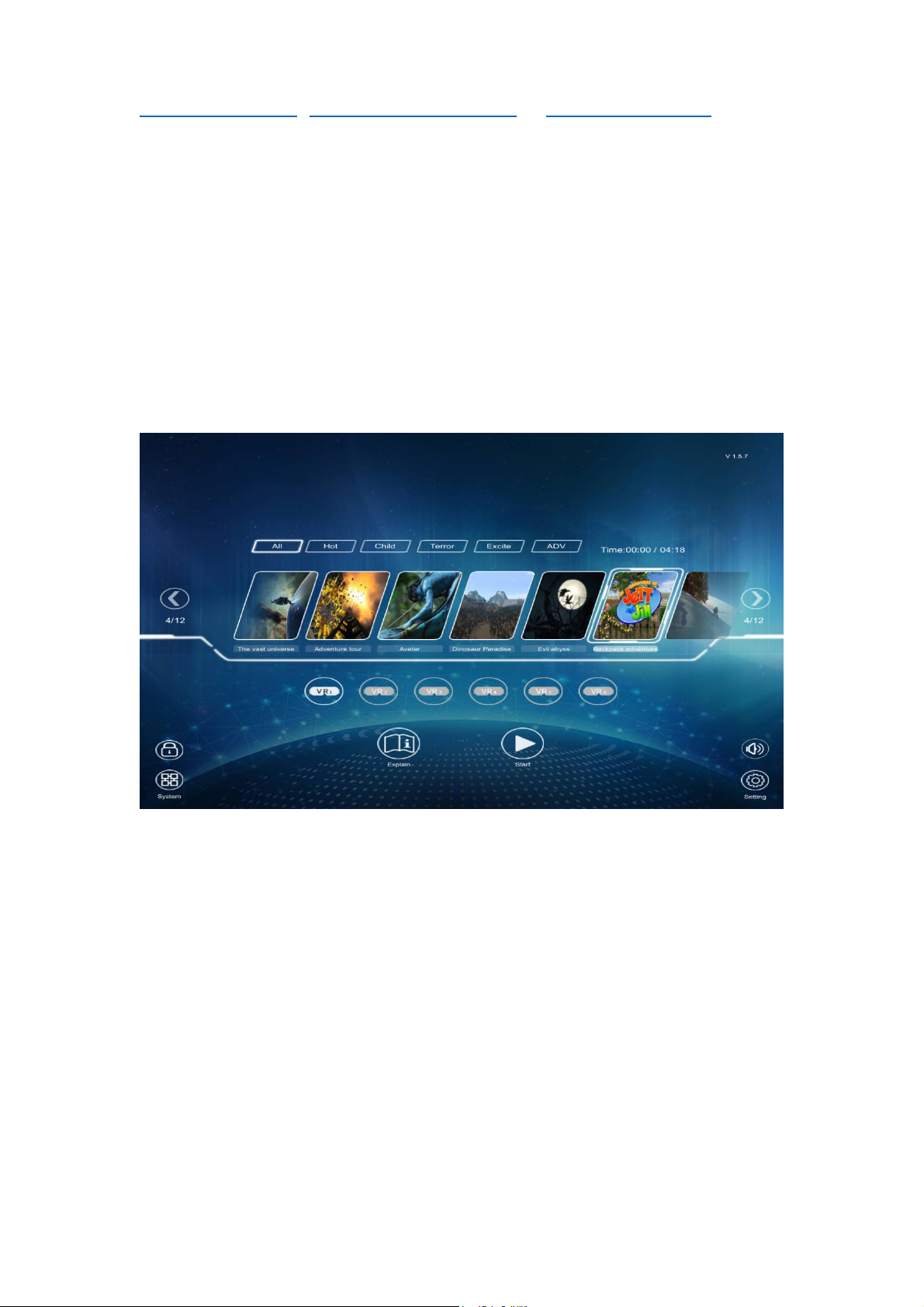

1.The film played
After starting up, the software will be automatically activated, and the
image is shown in figure 2.1.1. If the software is not self-initiated, click
on desktop Egg Chair. Exe can start the software.
2.1.1
Click on the sequence of steps in figure 2.1.1.
2. The film stop
After you click the start button, the picture becomes shown in figure
2.2.1.

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
10
stop playing
2.2.1
Notes:
1. part of the 9D movie needs ESC+ to click the stop button to stop.
2.9D movie loading time depending on the game at different times,
generally between 3-5 seconds (click on the start will appear progress
bar). Don't stop during game loading, otherwise it may go wrong.

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
11
Click on system expansion
Sound control button
3.System function and sound adjustment
2.3.1
1. to simplify the user's operation, click the "system" button in the player
to realize the restart and shutdown of the computer, and withdraw from
the current player.
2. click the sound control button in the player, then drag the slider to
quickly adjust the sound size.
Matters needing attention：
The main switch cannot be turned off immediately after the computer is
shut down. This behavior may cause hardware damage.

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
12
2,Enter password
through key
1. Click the settings button on the home page
Click”OK”button
Functional panel
4. Setup and account

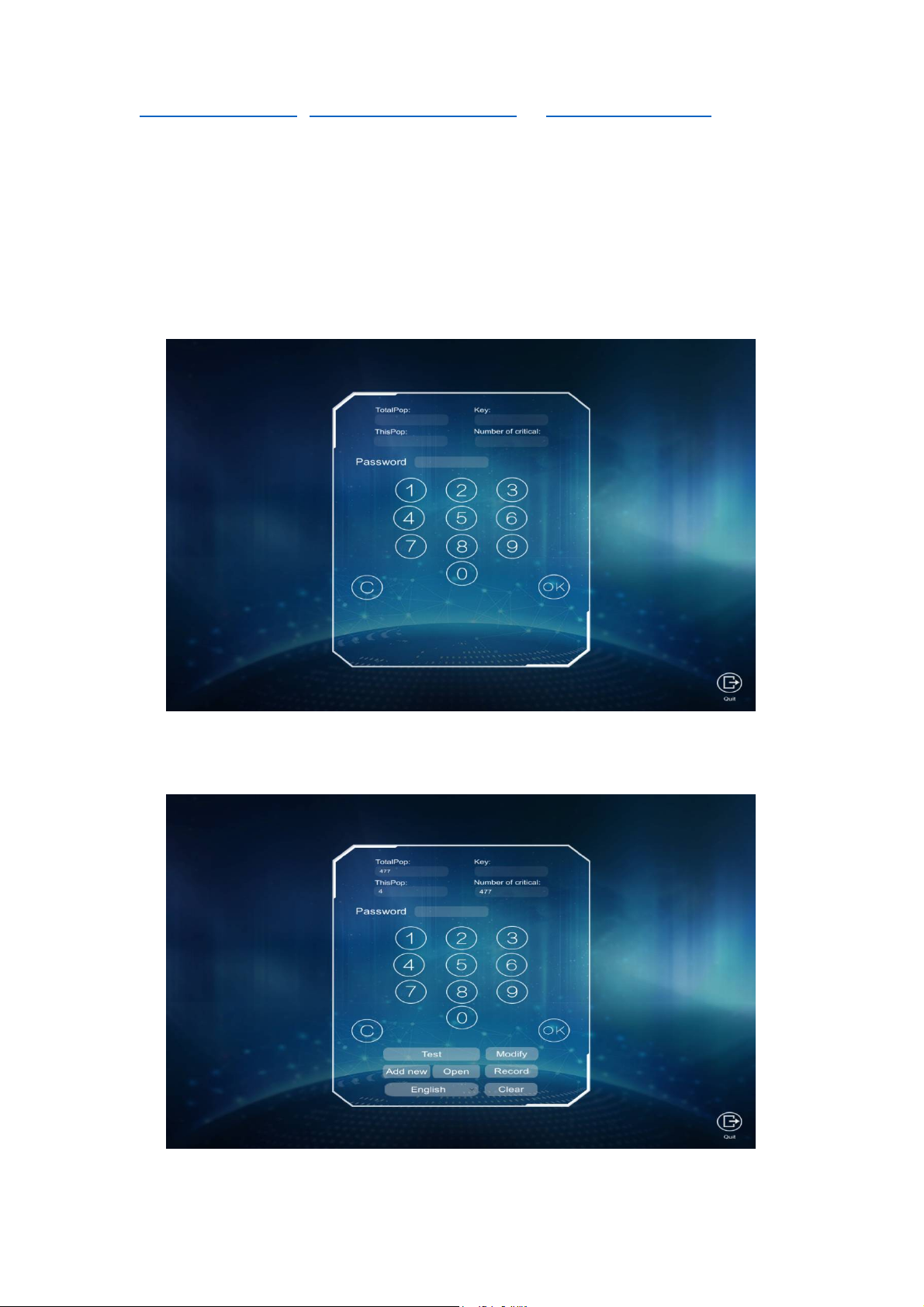

1. Enter background
After clicking the settings button, appear the 3.1.1 picture.
3.1.1
Enter the password and confirm it, and enter the picture 3.1.2.
3.1.2

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
13
Click on the white area to select
Click on "up" and "down" to
test the electric cylinder
2. Test
Click on the test button of figure 3.1.2, you can see Figure 3.2.1,
according to figure 3.2.1 operation can.
3.2.1
Double egg chair can test the electric cylinder only 1, 2, 3.
Click again and uncheck after check.
Click on the white area to select
Click on "open" and "close" to test special effects

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
14
3. Language switching
3.3.1
The user selects one of the four languages supported by the current
version according to the actual situation
After you select the language, press the OK button to switch to the
language
4.Password change
Click the "change password" of figure 3.1.2 to enter the page of figure
3.4.1。
ClickSelect Language

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
15
3.4.1
After entering the screen, the system will ask for an old password, then
enter the new password, and finally confirm the new password, and
follow the instructions.
5. Check the account
Click on the "detailed record" of figure 3.1.2 to see the detailed usage
record.
Input the old password and new password according to the hint
Enter the password,then click”OK”

HomingGame 9D VR Cinema Operating Instruction
www.hominggame.com|www.game-made-in-china.com | [e-mail]
Wechat | Whatsapp | Mobile Phone:[phone](Any Question feel free to contact us)
16
3.5.1
Use record details
