Quick Start Guide
HN-IRDNS200
1080P HD IR Dome PoE IP Camera

Contents
NO. Item Quantity
1 Dome IP Camera 1
2 Quick Start Guide 1
3 CD (Manuals & Software) 1
4 Screws Pack 1
5 Drill Template 1
6 Waterproof Components for RJ45 1
7 Installation Guide 1
QuickReference
Default Static IP: 192.168.1.168
HTTP Port: 80
RTSP Port: 554
Main Stream: rtsp://ipaddress:port/0
Sub Stream: rtsp:// ipaddress:port/1

Tri Stream: rtsp:// ipaddress:port/2
HTTPS Port: 443
ONVIF Port: 8999
HIKVISION Protocol Port: 8000
JEPG Address: http://ipaddress:http port/snap.jpg
FFMPEG Address:
rtsp://username:password@ipaddress:rtsp port/0 (or 1,2)
For example: rtsp://admin:[email protected].1.168:554/0
Default Passwords: Username: admin Password: admin
Device ID: Please check the label on the camera (package),
or (Configuration-Network-Advanced Setup-p2p)
DHCP disabled in default, to enable DHCP, please check
“Quick Configuration Tool” chapter bellow
PoE Standards: IEEE 802.3af

Captcha: Please check the label on the camera (package),
you need it when you add device in mobile app.
Software Supported:Blue Iris, iSpy, Synology, Zoneminder
etc. NAS supported
NVR Supported: Hikvision and other onvif NVRs
VMS Compatible List: original VMS Lite (Windows, Mac),
Milestone
、 Exacq 、 Avigilon 、 MARCH 、 Axxon 、 Nuuo
Browser Supported: IE 8-11 (Windows), Safari (Mac)
Dimensions andAppearance (mm)

No. Description No. Description
1 Reset 3 DC 12V Power
2 Audio Input 4 Network (PoE)
Press and hold the RESET button for 10 seconds to restore
factory default settings.
It is recommended to connect the camera to the PoE Router
or an external PoE switch. If using a DC power adapter with

the camera, a REGULATED power supply is REQUIRED for
use with this camera. You could buy UL listed Power adapter
from Honic Store.
Insert SD Card
This camera has internal microSD card slot to record video
data if with microSD card inserted.
When inserting / replacing the SD card, make sure that power
is off and that recording has been deactivated (Deactivated in
default) in the browser (Configuration > System > SD Card >
Rec Setup > Deselect Enable Record; Activate recording again
in the same dialog). To get to the back of the main board, you
may have to loosen the 3 screws at the back of the eyeball body,
then you could find the micro SD card slot.
MicroSD card NOT included; Support max 128GB.
Discharge Your Static Electricity and work carefully.

Make sure that power is off.
Make sure fitting the waterproof rubber ring when
assembling the eyeball body.
Insert the SD card
Insert the microSD card and gently press with the hex wrench
as indicated by the arrow until you hear click. Make sure that
the SD card is fully inserted.
ToInstalltheCamera

General Guidelines
1. Try to place the camera in a position that a potential
security threat will find it difficult to avoid detection. A
strategy which is often effective is to monitor entrances
and exits - after all, a security threat has to get in
somewhere.
2. The internal components of the camera can be damaged
by prolonged exposure to direct sunlight. Don’t let
direct sunlight into the lens!
3. The camera gets great images when it’s in the shade,
looking at subjects that are well lit. Don’t place the
camera in bright light and have it facing shade or
darkness.
4. Bright light sources to the sides of, or behind the
subject will interfere with your images.
5. The camera’s night vision will give well-exposed

images if the area is dark. However, if there’s a bright
point source in the camera’s view (a streetlight, car
headlights or similar) then it might not engage night
vision mode.
6. Typically, the best view is obtained approximately 7ft
(2m) to 10ft (3m) high, looking slightly downwards.
7. The camera’s casing is resistant to water, different
weather conditions and tampering. It would take an
overwhelming event of this kind to damage the housing
of the camera (severe weather such as hurricanes or
someone intentionally damaging the lens would be
enough). However, the cable and connector are
vulnerable and require protection.
InstallationDiagram

Ensure the camera is working correctly prior to permanent
installation by temporarily connecting the camera(s) and
cable(s) to the NVR or computer.
Installation Diagram
Please check the installation guide in the package for details.

If you install the camera outside of your home, we highly
recommend using waterproof tape to wrap all the trail cables
connection areas. Use as much as is necessary for the layer of
tape to protect the connections. This will help prevent water or
moisture from leaking into the cables which can cause the
cable connections to degrade over time or stop working.
ConnectingtheCamera
1. Connect the Ethernet cable to the camera.

A 12V DC power adapter (NOT included) is only required if
connecting the camera’s Ethernet cable to a router or switch
that does not support PoE.
2. Connect the other end of the Ethernet cable to the NVR’s
PoE ports. The camera may take up to 1 minute to power up
after being connected to the NVR.
OR
Connect the other end of the Ethernet cable to a router or
switch on your network. See the NVR Instruction Manual for
details on connecting the camera to your NVR.

Support Onvif NVRs, Onvif port in default: 8999
Support Hikvision NVRs, protocol port in default: 8000
Support XM (Xmeye) NVRs, port: 8000 (Configuration-
Network-Basic Setup-Select XM protocol Enable)
SetDiagram

Cable Extension Options
Extend the Ethernet cable run for your camera up to 300ft.
See table below. It is recommended to use UL CMR
approved cables.
Cable Type Max Cable Run
Distance
Max # of
Extensions
Cat5e or higher
Ethernet cable
300ft / 92m 3
You can use a RJ45 Coupler (not included) or switch (not
included) to connect male ends of Ethernet cable together.
QuickConfigurationTool
Install IP Search Tool
Windows: install “IP Search Tool” from CD in the package or
download it from www.herospeed.net--Tools--Search Tool
(Windows).
Mac: download “IP Search Tool” from www.herospeed.net--
Tools--Search Tool (Windows).

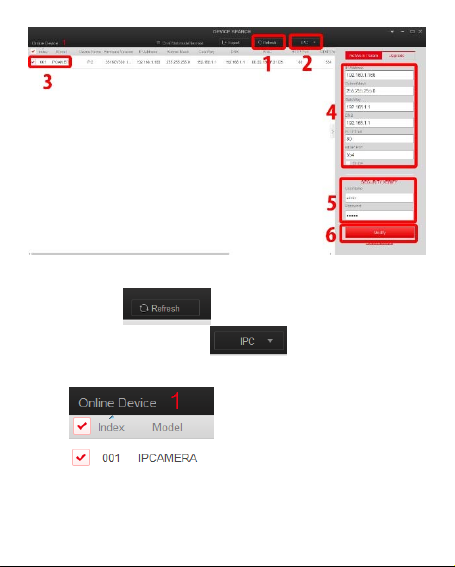

Open IP Search Tool
1. Refresh
2. Change “All” to “IPC”
3. Select the IPC

4. Change parameters or Enable DHCP (optional)
5. Input password (admin in default)
6. Modify

For the best security, Honic recommends you use a static
IP setting and standard port forwarding.
Assign an IP address to the IP Camera by using the first 3
sets of numbers of your default gateway.
For example, my default gateway is 192.168.0.1
Need change IP camera address to 192.168.1.xxx
Access the Camera b
y
Browser
Windows: IE 8-11
Mac: Safari
1. Open your browser, input the IP address of your camera
(default IP is 192.168.1.168) in the address bar and then
press Enter to open the login page.
2. Install “ActiveX control”

An ActiveX control is necessary in your computer for the
first time when install IP camera, Click the
“DOWNLOAD” to install ActiveX control as show
below.
3. Complete the installation, reopen the web browser, input
IP camera address, and input the username and password
and then login. (default IP: 192.168.1.1, default
username: admin, password: admin)

Strongly suggest you to modify the user name and
password to improve security level.
4. If there is problem to install Active X plugin in IE
browser, Please check the following:

IE browser—Tool—Internet Option—Security—
Customized Level—ActiveX controls and plug-ins,
Enable all the options bellow—OK
