Nite Track™Marine

User’s Manual

Rev. 012722

Hooker Electric, Inc.

5094 NE 12th Ave

Oakland Park, FL 33334-4917

Local: 1 (954) 530-6908

Toll Free: 1 (855) HOOK-ONE

For product purchase, please visit www.hookerelectric.com or email

[email protected] for more information.

Nite Track™ uses the latest in CCD (Charge Coupled Device) technology which

produces images that are more detailed than what thermal imaging can produce.

Additionally, CCD produces a better depth of eld, unlike image intensication

technologies.

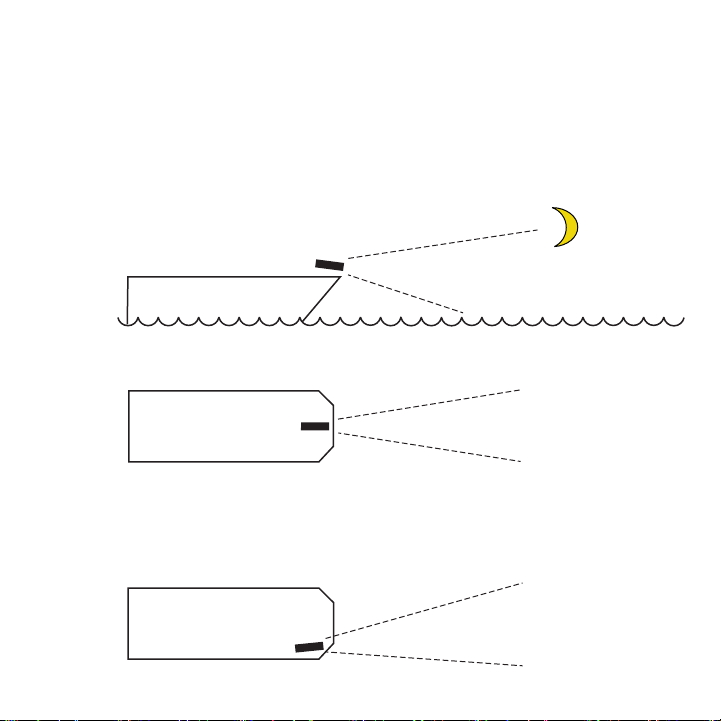

Nite Track™ uses on-board near IR illumination. When switched on, these small

illuminators emit a 12 degree beam of IR light that’s near the peak spectral

response of the CCD chip set. While essentially invisible to humans, the CCD

sensor “see’s” this light much as a human eye will see a spotlight. This allows a

user to illuminate a close in terrain or shoreline feature even in zero light condi-

tions. Nite Track™ utilizes one illuminator, located underneath the CCD sensor.

It provides uniform illumination overlaying the lens eld of view.

Nite Track™Technology

Nite Track™Lux Value: .00005 Lux - (the Canon color video camera, priced at

$30k, recently marked down to $20k, has a lux rating of .0005 Lux)

Nite Track™ Resolution: 752(V) X 582(H) lines of resolution (LOR), or 437,664

Pixels. 7” Nite Track™ Monitor – 400(V) X 800(H) LOR, or 320,000 Pixels

Nite Track™Frame Refresh: Rate 60 Frames per Second

Power Consumption: Nite Track™ Sensor Alone 200 milliamps. W/Sensor, IR

Illuminator & Monitor 600 milliamps.

Nite Track™Interface: Nite Track will interface with all MFD’s that are 2013

model year or newer (2013 was the year all models were equipped with video-in

ports). Nite Track™ will interface with Raymarine MFD’s 2013 to present.

Technical Specications

Nite Track™Limited Warranty

Nite Track™ products are carefully constructed and thoroughly tested prior to

shipment. All products purchased are warranted to be free of defects in material

and workmanship for one year from the date of purchase. The warranty is

limited to the original purchaser and is non-transferable.

Should the product fail due to defect of material or workmanship, your unit will

be repaired or replaced. To obtain warranty service, you must notify Hooker

Electric, the dealer the unit was purchased from. You must provide them the

following:

• A copy of sales receipt or other proof of purchase

• Brief description of failure

• Return address, daytime phone number

Hooker Electric will be issued a Return to Manufacturer Authorization (RMA)

number. Any return freight or postage must be pre-paid by customer.

Our obligation under this warranty is limited to the repair and/or replacement of

the defective unit with respect to material or workmanship defects, when it is

returned. This warranty does not cover damage due to misuse, tampering,

improper installation or operation, lack of reasonable care or unauthorized

modication, damage from transit, submersion or acts of God. If the Product

has had its serial number or dating defaced, altered or removed, warranty will be

voided

No person, agent, distributor or dealer or company is authorized to make any

warranties or to promise remedies in addition to or inconsistent with those

stated above.
