Host HOST1102UR User manual

Model:
HOST1102UR
HOST1103UR
HOST1114UF
Read this instruction
manual carefully
before use
Display fridge/Freezer
Instruction manual
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 1HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 1 2022/8/17 16:232022/8/17 16:23

2
Safety Instructions
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components or service panels on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- BS EN Codes of Practice
- Fire Precautions
- IEE Wiring Regulations
- Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT allow oil or fat to come into contact with the plastic
components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be
sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical
position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit
before cleaning.
• Keep all packaging away from children. Dispose of the
packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a
recommended qualified technician in order to avoid a hazard.
• Children should be supervised to ensure that they do not play
with the appliance.
• HOST recommend that this product is connected to a circuit
protected by an appropriate RCD (Residual Current Device).
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 2HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 2 2022/8/17 16:232022/8/17 16:23

3
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• HOST recommend that this appliance should be periodically
tested (at least annually) by a Competent Person. Testing
should include, but not be limited to: Visual Inspection, Polarity
Test, Earth Continuity, Insulation Continuity and Functional
Testing.
Caution: Risk of Fire
• Do not store explosive substances such as aerosol cans with
a flammable propellant in this appliance.
Warning: Keep all ventilation openings clear of obstruction.
Unit should not be boxed in without adequate ventilation.
• Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food
storage compartments of the appliance.
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 3HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 3 2022/8/17 16:232022/8/17 16:23

4
Installation
Note: A bracket is used to support the door during transportation. On receipt please remove the bracket.
Note:
Not for use in vans or trailers, food trucks or similar vehicles.
If the unit has not been stored or moved in an upright position, let it stand upright for
approximately 12 hours before operation. If in doubt allow to stand.
1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are
thoroughly removed from all surfaces.
2. To optimize performance and longevity, ensure a minimum clearance of 2.5cm is maintained between
the unit and walls and other objects, with a minimum 20cm clearance on the top. NEVER LOCATE
NEXT TO A HEAT SOURCE.
Note:
Before using the appliance for the first time, clean the shelves and interior with soapy water.
The appliance is supplied with feet by default. However, castors can be supplied as an option.
Reversing the door (Excluding model Host1114UF)
(Note: The drawings in this section are for illustrations only and maybe slightly different from actual
appliances concerning the appearance.)
Depending on the location of the appliance, it may be necessary to change the direction the door opens
by changing the side of the door handle.
To reverse the door handle:
1. The door handle is on the left side. Disassemble the right lower hinge.
Door handle
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 4HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 4 2022/8/17 16:232022/8/17 16:23

5

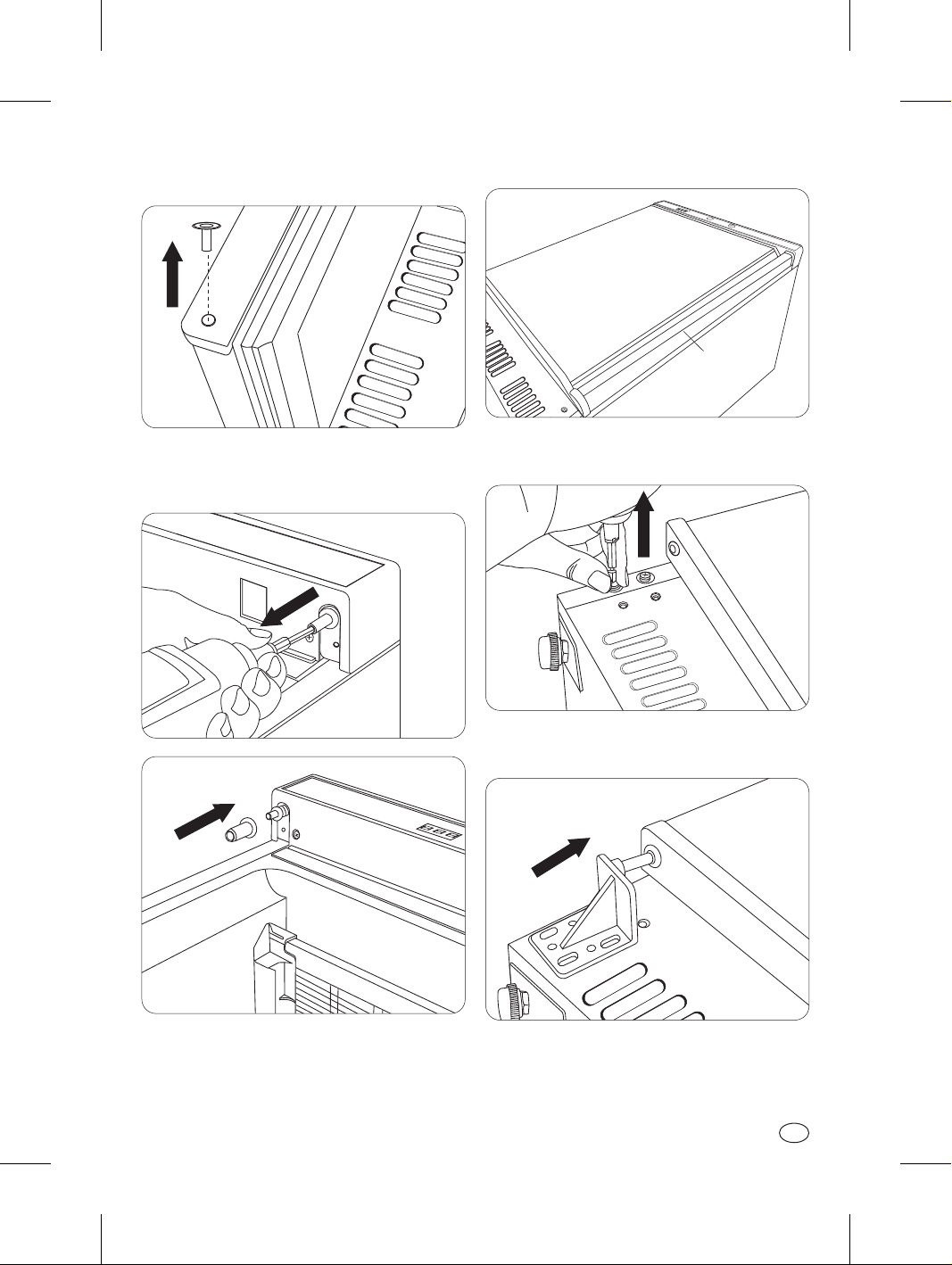

2. Remove the door from the right upper hinge.
Then remove the hinge sleeve from the door
top.
3. Remove the right upper hinge and install it
on the left side. Afterwards, install the hinge
sleeve onto the hinge.
4. Reverse the door and hang it onto the left
upper hinge.
Door handle
5. Remove the pre-mounted screws on the left
lower side.
6. Install the previously removed right lower hinge
on the left side.
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 5HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 5 2022/8/17 16:232022/8/17 16:23

6
7. Secure the hinge in place using the previously
removed screws.
8. Now the door handle is installed on the right
side.
Operation
Control Panel
The control panel is located on the front of the
appliance.
Turn On
1. Close the door of the appliance.
2. Connect the appliance to a mains power
supply.
Set the Operating Temperature
1. Press the SET button for 3 seconds. The
display will flash.
2. Press the or buttons to display the
required temperature.
3. Press the SET button to store the temperature.
Manual Defrost
Press and hold the defrost button “aux” for
2 seconds to begin a manual defrost. The defrost
light illuminates.
Storing Food
To get the best results from your HOST appliance,
follow these instructions:
• Only store foodstuffs in the appliance when it
has reached the correct operating temperature.
• Do not place uncovered items as below inside
the appliance, as this can lead to a damaged
and leaking evaporator, and thus void your
warranty: hot food, hot liquids, acidic fluids,
acidic products.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods
of time.
Lock/Unlock the Doors
• A lock is fitted to the doors to ensure foodstuffs
are kept secure within your HOST appliance.
• Use the keys provided to lock/unlock the door.
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 6HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 6 2022/8/17 16:232022/8/17 16:23

7
Cleaning, Care & Maintenance
Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
Condensation will form in refrigeration with frequent opening of the doors and on hot humid days,
please ensure condensation is allowed to drain properly or is wiped dry.
Cleaning the Condenser
Periodically cleaning the condenser can extend the life of the appliance.
HOST recommend that a qualified technician should clean the condenser.
Troubleshooting
A qualified technician must carry out repairs if required.
Fault Probable Cause Solution
The appliance is not
working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug or lead is damaged Replace plug or lead
Fuse in the plug has blown Replace the fuse
Mains power supply fault Check mains power supply
The appliance turns
on, but the temperature
is too high/low
Too much ice on the evaporator Defrost the appliance
Condenser blocked with dust Clean the condenser
Doors are not shut properly Check doors are shut and seals are not
damaged
Appliance is located near a heat
source or air flow to the condenser
is being interrupted
Move the refrigerator to a more suitable
location
Ambient temperature is too high Increase ventilation or move appliance to a
cooler position
Unsuitable foodstuffs are being
stored in the appliance
Remove any excessive hot foodstuffs or
blockages to the fan
Appliance is overloaded Reduce the amount of food stored in the
appliance
The appliance is
leaking water
The appliance is not properly
levelled
Adjust the screw feet to level the appliance
(if applicable)
The discharge outlet is blocked Clear the discharge outlet
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 7HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 7 2022/8/17 16:232022/8/17 16:23

8
Fault Probable Cause Solution
The appliance is
leaking water
Movement of water to the drain is
obstructed
Clear the floor of the appliance
(if applicable)
The water container is damaged Consult a qualified technician
The drip tray is overflowing Empty the drip tray (if applicable)
The appliance is
unusually loud
Loose nut/screw Check and tighten all nuts and screws
The appliance has not been
installed in a level or stable
position
Check installation position and change if
necessary
The display lamp does
not light
Lamp needing replacing Consult a qualified technician
Technical Specifications
Model Voltage Power Current Temperature
Range
Capacity
(litres) Refrigerant Dimensions H x W x D mm
Weight
(kg)
HOST1102UR 230V~
50Hz
185W 1.5A 2°C to 8°C 400 R600a 1850 x 600 x
600
72
HOST1103UR 230V~
50Hz
185W 1.5A 2°C to 8°C 600 R600a 1895 x 777 x
735
93
HOST1114UF 230V~
50Hz
500W 2.35A -10°C to
-20°C
365 R290 1855 x 600 x
620
76
Note: Due to our continuing program of research and development, the specifications herein may subject
to change without notice.
Optimal Storage temperature
for food storage:
4°C (for HOST1102UR and HOST1103UR);
-18°C (for HOST1114UF)
Impact of temperature settings
on food waste:
This appliance shall be operated in its designated
operating range to reduce food waste from spoilage
Ordering spares parts: To order spare parts, please visit the link below:
www.host-appliances.com
Then type the relative item code and Spares
Minimum period of spares
parts to be available:
Door handles, door hinges, knobs, dials and buttons, door
gaskets, peripheral trays, baskets and racks for storage,
as appropriate to the appliance, will be made available
to both end users and professional users for a minimum
of eight years after the last unit of the model is placed on
the market. A broader selection of parts will also be made
available to Professional users for this period
To find the model information
on the product:
The location of the model No. is on the plate on the interior
right-hand wall (and on the rear) of the appliance
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 8HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 8 2022/8/17 16:232022/8/17 16:23

9
Service
Should your appliance have a fault, please visit the Service section of the HOST website.
Electrical Wiring
The appliance is supplied with a 3 pin BS1363 plug and lead.
The plug is to be connected to a suitable mains socket.
The appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must not
be disposed of as household waste. To help prevent possible harm to human health and/
or the environment, the product must be disposed of in an approved and environmentally
safe recycling process. For further information on how to dispose of this product correctly,
contact the product supplier, or the local authority responsible for waste disposal in your
area.
HOST parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written permission of HOST.
Every effort is made to ensure all details are correct at the time of going to press, however, HOST reserve the right to change specifications
without notice.
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 9HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 9 2022/8/17 16:232022/8/17 16:23

We {Host} of {Host House,Newhouse Farm Industrial Estate, Mathern, Chepstow, NP16 6UP} hereby declare that the equipment is in
conformity with the requirements of the following Regulations:
Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Ecodesign for Energy-related Products Regulations 2010 (as amended)
We hereby declare that:
Equipment Model number HOST1102UR Upright Display Fridge White - 400Ltr
HOST1103UR Upright Display Fridge White - 600Ltr
HOST1114UF Glass Door Display Freezer White - 365Ltr
is in conformity with the applicable requirements of the following documents
Ref. No.
Edition/date
BS EN 60335-1
2012 +A11:2014 +A13:2017
BS EN 60335-2-89
2010 +A1:2016 +A2:2017
BS EN 62233
2008
BS EN 55014-1
2017
BS EN 55014-2
2015
BS EN 61000-3-2
2014
BS EN 61000-3-3
2013
I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced
specifications and is in accordance with the requirements of the Regulations:
Signed by:
Full Name Jess Attree
Title: General Manager
Location: Chepstow, Great Britain
Date: 10th August 2022
UKCA Declaration of Conformity
DocuSign Envelope ID: A041EEBA-EF35-4361-9E96-FD9EF75C521D
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 10HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 10 2022/8/17 16:232022/8/17 16:23

HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 11HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 11 2022/8/17 16:232022/8/17 16:23

HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_2022/08/17
www.host-appliances.com
HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 12HOST1102UR_HOST1103UR_HOST1114UF_EN_A5_v1_20220817.indb 12 2022/8/17 16:232022/8/17 16:23
