HP MediaSmart CHPTOH-0711 User manual

HP MediaSmart 1080p LCD HDTV
User Guide
HP SL4782N 47-Inch MediaSmart 1080p LCD High-Definition Television
HP SL4282N 42-Inch MediaSmart 1080p LCD High-Definition Television
Regulatory model: CHPTOH-0711, CPTOH-0707

The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
HP assumes no responsibility for the use or reliability of its software
on equipment that is not furnished by HP.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied,
reproduced, or translated to another language without the prior
written consent of HP.
Hewlett-Packard Company
P.O. Box 4010
Cupertino, CA 95015-4010
USA
Copyright © 2007–2008 Hewlett-Packard Development
Company, L.P.
This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights. Use
of this copyright protection technology must be authorized by
Macrovision, and is intended for home and other limited
pay-per-view viewing uses only unless otherwise authorized by
Macrovision. Reverse engineering or disassembly is prohibited.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC.
DivX, DivX certified, and associated logos are trademarks
of DivXNetworks, Inc. and are used under license.
Microsoft, Windows Vista, and Windows XP are U.S. registered
trademarks of Microsoft Corporation.
The Windows logo and Windows Vista are trademarks or registered
trademarks of Microsoft Corporation in the United States and/or
other countries/regions.
HP supports lawful use of technology and does not endorse or
encourage the use of our products for purposes other than those
permitted by copyright law.
The information in this document is subject to change without notice.
n
Text set off in this manner indicates
information you need.
!
Text set off in this manner indicates
important information you need.
c
CAUTION: Text set off in this manner
indicates that failure to follow directions
could result in damage to equipment or
loss of information.
w
WARNING: This symbol is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
e
DANGEROUS VOLTAGE: Text set off in this
manner indicates the presence of
uninsulated voltages within the product
enclosure that may be of sufficient
magnitude to constitute a risk of electrical
shock to persons.

iii
Important Safeguards
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
eCAUTION: RISK OF ELECTRICAL SHOCK w
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
eTHIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGES” WITHIN THE PRODUCT’S ENCLOSURE THAT MAY BE OF
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRICAL SHOCK TO PERSONS.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
wTHIS SYMBOL IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT
OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION: DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD,
BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS
PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY
WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY
THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE
MANUFACTURER’S INSTRUCTIONS WHEN INSTALLING THE PRODUCT
AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE
MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE
MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN
SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO
OVERTURN.

iv HP MediaSmart HDTV User Guide
Federal Communication Commission Interface Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Closed caption notice
This television receiver provides display of television closed captioning in accordance with § 15.119 of the FCC Rules.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operations in the 5.15–5.25GHz band are restricted to indoor usage only. IEEE 802.11b or 802.11g operation of
this product in the U.S.A. is firmware-limited to channels 1 through 11.
Modifications
Caution: Pursuant to 47CFR15.21 of the FCC Rules, any changes or modifications to this equipment not expressly
approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Industry of Canada Radio Statement
This device has been designed to operate with the antennas listed below, and having a maximum gain of 5.1 dB.
Antennas not included in this list or having a gain greater than 5.1 dB are strictly prohibited for use with this device.
The required antenna impedance is 50 ohms.
Wireless LAN Antennas (internal to the TV):
SL4282N: Wistron NeWeb Corp. 50.3YJ09.001
SL4782N: Wistron NeWeb Corp. 50.3YK05.001

v
Canadian Regulatory Notice
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device
Caution: The device for the band 5150–5250 MHz is only for indoor usage to reduce potential for harmful
interference to co-channel mobile satellite systems.
IC Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment
should be installed and operated with minimum distance 20 cm between the radiator and your body.
Cables
Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods in order to
maintain compliance with FCC Rules and Regulations.
RESPONSIBLE PARTY
Hewlett-Packard Company
Attn: Product Regulations Manager
10955 Tantau Avenue
Cupertino, CA 95014-0770 USA
Important Safety Instructions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if
improperly handled. This product has been engineered and manufactured with the highest priority on safety. However,
improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following
instructions when installing, operating, and cleaning the product. To ensure your safety and prolong the service life of
your television, please read the following precautions carefully before using the product.
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with a soft cloth. If needed, dampen
cloth with water. Never use solvents or abrasive
cleaning solutions to clean this product or
permanent damage may result.
7Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus (including amplifiers) that
produce heat.
9Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A
grounding-type plug has two blades and a third
grounding prong. The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.

vi HP MediaSmart HDTV User Guide
11 Only use attachments/accessories specified by
the manufacturer.
12 Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer, or
sold with the apparatus. When a
cart is used, use caution when
moving the cart/apparatus
combination to avoid injury from
tip-over.
13 Unplug this apparatus during lightning storms or
when unused for long periods of time.
14 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, the power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
15 Power Sources—This product should be operated
only from the type of power source indicated on
the marking label. If you are not sure of the type of
power supply to your home, consult your product
dealer or local power company. For products
intended to operate from battery power, or other
sources, refer to the operating instructions.
16 Overloading—Do not overload wall outlets,
extension cords, or integral convenience
receptacles as this can result in a risk of fire or
electric shock.
17 Replacement Parts—When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer
or have the same characteristics as the original
part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
18 Safety Check—Upon completion of any service or
repairs to this product, ask the service technician
to perform safety checks to determine that the
product is in proper operating condition.
19 The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus.
20 WARNING: Plug the power cord into a power
outlet where access to the power cord connector is
readily accessible in case power disconnection is
required.
21 Servicing: The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel.
Water and Moisture—Do not use this product near water; for example, near a bath tub, wash bowl, kitchen sink,
or laundry tub; in a wet basement; or near a swimming pool; and the like.
Stand—Do not place the product on an unstable cart, stand, tripod, or table. Placing the product on an unstable
base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use
only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these
vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do
not place the product on a bed, sofa, rug, or other similar surface, since they can block ventilation openings. This
product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase
or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.
The display panel used in this product is made of glass. Therefore, it can break when the product is dropped or
applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.
Heat—The product should be situated away from heat sources such as fireplaces, chimneys, radiators, heat
registers, stoves, or other products (including amplifiers) that produce heat.
Lightning—For added protection for this television equipment during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This
will prevent damage to the equipment due to lightning and power-line surges.

vii
Power Lines—An outside antenna system should
not be located in the vicinity of overhead power
lines or other electric light or power circuits, or
where it can fall into such power lines or circuits.
When installing an outside antenna system,
extreme care should be taken to keep from
touching such power lines or circuits as contact
with them might be fatal.
Outdoor Antenna Grounding—If an outside
antenna is connected to the television equipment,
be sure the antenna system is grounded so as to
provide some protection against voltage surges
and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70,
provides information with regard to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to
grounding electrodes, and requirements for the
grounding electrode.
To prevent fire, never place any type of candle or flames on the top or near the TV set.
To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids,
such as vases, should be placed on the product.
To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.
Turn off the main power and unplug the AC cord from the wall outlet before handling.
2
1
1
2
3
4
5
6
7
3
4
5
6
7
Antenna Grounding
Antenna Grounding
Grounding Component
Electric Service Equipment
Ground Clamps
Ground Clamp
Grounding Conductors (NEC Section 810-21)
Antenna Discharge Unit (NEC Section 810-20)
Antenna Lead in Wire
Power Service Grounding Electrode System
(NEC Art 250, Part H)
Reference

viii HP MediaSmart HDTV User Guide
Important Information
The TV must be serviced by an authorized service
technician. The TV is not user-serviceable.
Changes can damage your TV and void your
warranty. Changes or modifications not expressly
approved by the manufacturer could void the user’s
authority to operate the equipment.
Recycling Information
For information about how to recycle this product
through HP, see:
http://www.hp.com/recycle
Other recycling options may also be available in your
area. If located within the U.S. and Canada, you may
also call (1) [phone].
Materials disposal
This HP product contains the following materials that
might require special handling at end-of-life:
Mercury in the fluorescent lamp in the LCD.
Disposal of mercury may be regulated because of
environmental considerations. For disposal or
recycling information, please contact your local
authorities or the Electronic Industries Alliance (EIA)
(http://www.eia.org).
Cleaning precautions
Unplug the TV before cleaning the screen.
Using solvents such as alcohol, or abrasive materials
such as a premoistened or chemically treated towel,
may affect the screen coating or bezel paint.
Do not expose the product to volatile gases or fluids
such as pesticides.
Do not put the TV in contact with vinyl or rubber
products for an extended period of time. Extended
contact may result in the removal of the coating or
degradation of the surface.
Lifting precautions
The TV is heavy; be sure to use ergonomically correct
lifting procedures when moving the TV.
Due to the size and weight of the TV, it is
recommended that a minimum of two people move it.
To transport the TV, grasp the left and right ends of the
panel in the areas below and above the screen. Do not
lift the TV by the attached stand.
Never place the display with the glass screen facing
downward, unless it is protected with pads.
n
To maintain the high-gloss finish on your
new HDTV, HP recommends cleaning the TV
only with a Microfiber cloth.

Table of Contents
Table of Contents ix
Table of Contents
Important Safeguards..................................... iii
Federal Communication Commission Interface
Statement.......................................................iv
Important Safety Instructions..............................v
Important Information .................................... viii
Getting to Know Your TV................. 1

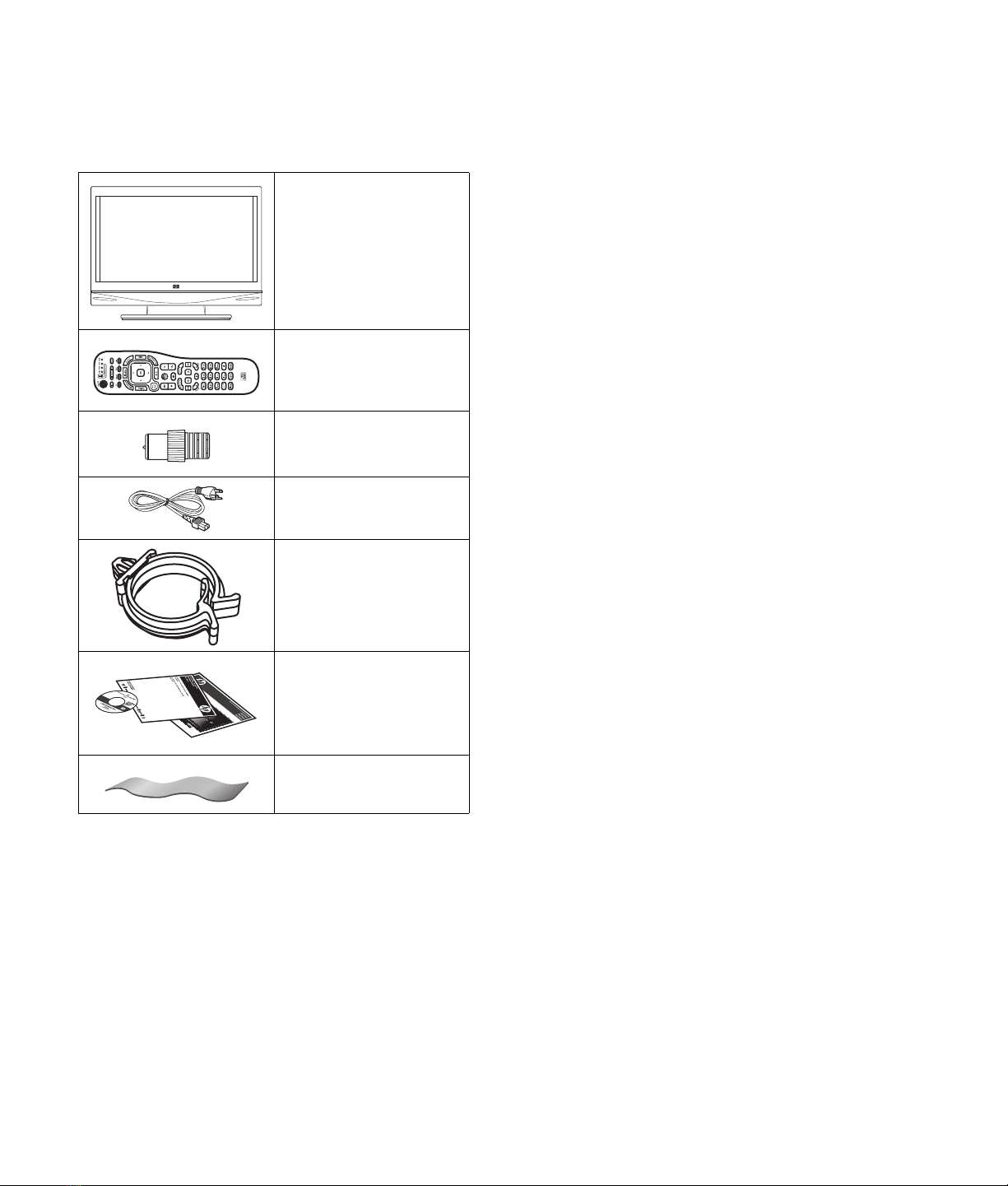

Identifying Items in the Box .................................... 2

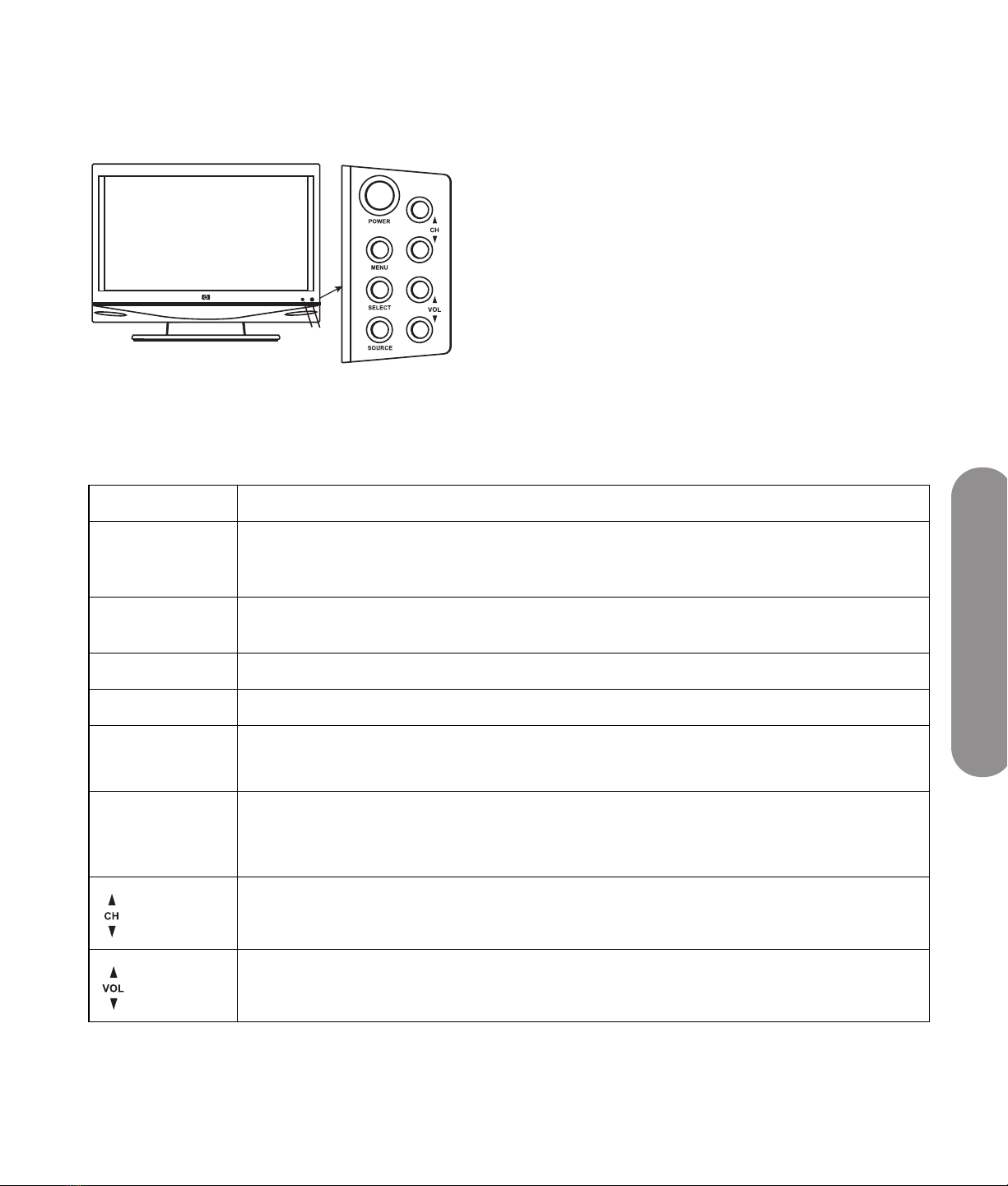

Locating TV Controls and Connectors...................... 3
Cleaning ............................................................. 6
Cleaning precautions ...................................... 6
Cleaning the TV.............................................. 6
Setting Up the TV ............................ 7
Selecting a Good Location..................................... 7
Lifting the TV .................................................. 9
Connecting to the TV........................................... 10
Choosing the AV connection to use................. 10
Connecting the TV signal sources.................... 11
Connecting the cable TV or off-the-air
broadcast antenna........................................ 11
Connecting cable or satellite with a
set-top box................................................... 12
Connecting a DVD player, VCR, DVR,
game console, or camcorder.......................... 14
Connecting a VCR for recording..................... 17
Connecting a PC ..........................................17
Connecting an external sound system.............. 18
Connecting the TV to your home
network (LAN) .............................................. 21
Connecting power to the TV...........................22
Removing or attaching the stand.....................23
Turning On the TV ......................... 25
Turning the TV On and Off ..................................25
Using the First-Time Setup Wizard ........................ 26
Setting Up the TV for
Digital Media.................................27
Verifying the TV connections...........................27
Completing the initial TV setup........................27
Setting up the TV home network......................27
Setting up and using Windows Media
Center Extender............................................31
Operating the TV...........................33
Using the Remote Control.....................................33
Using universal remote controls.......................33
Installing or replacing remote control
batteries.......................................................33
Identifying the remote control buttons...............34
Selecting a Device to Control ...............................39
Selecting the Input Source....................................40
Selecting the last source.................................40
Adjusting the Volume ..........................................40
Muting the sound ..........................................40
Changing Channels ............................................41
Selecting the last channel...............................41
Selecting a favorite channel ...........................41
Displaying program information......................41
Changing the View by Using the Aspect Button ......42
Turning On Captions...........................................43
Setting the SAP/MTS Stereo Mode........................43
Setting the Sleep Timer ........................................43
Adjusting the TV Settings......................................43
Opening and closing the OSD........................43
Using the Media Center Green Start Button............44
Operating a DVD Player or Other Device ..............46
Programming the Remote Control for a Home
Entertainment Device...........................................50
Programming the device code ........................50
Programming the device code by using auto
setup mode ..................................................52
Manufacturer’s codes ....................................53

xHP MediaSmart HDTV User Guide
Changing the TV Settings...............67
Using the OSD Menus......................................... 67
Using the Picture Menu........................................ 68
Adjusting the picture image ........................... 69
Using the Audio Menu ........................................ 70
Adjusting the audio....................................... 70
Using the Channel Menu ..................................... 72
Using the Parental (Control) Menu ........................ 72
Using the password ...................................... 73
Setting parental controls ................................ 73
Temporarily releasing a blocked program........ 77
Reactivating parental controls after a
temporary release......................................... 77
Using the Setup Menu ......................................... 78
Using the Time menu..................................... 78
Using the Caption (Closed Caption) menu ....... 79
Using the menu ............................................ 79
Selecting the OSD language .......................... 80
Starting the Setup Wizard ............................. 80
Changing the input labels.............................. 80
Setting the Standby Mode.............................. 81
Returning to Default Settings........................... 81
Using Digital Media.......................83
Using the Media Main Menu ............................... 83
Identifying Media remote control buttons ......... 84
Using context buttons .................................... 87
Searching.................................................... 87
Viewing Photos .................................................. 88
Playing photos or a slideshow........................ 88
Watching a slideshow while listening
to music....................................................... 88
Changing slideshow options .......................... 88
Watching Video Files.......................................... 89
Changing Videos options .............................. 89
Listening to Music ............................................... 90
Playing music............................................... 90
Watching a slideshow while listening
to music....................................................... 91
Using Online Media ........................................... 91
Selecting Servers ................................................ 91
Changing Settings ..............................................92
Viewing current network settings .....................92
Changing network settings .............................92
Using the Demo option ..................................93
Changing the Language option.......................93
Using the Windows Media Center option ........94
Viewing the DivX registration code..................94
Using Reset Options ......................................94
Changing the Slideshow options.....................94
Changing the Videos options..........................95
Changing the Servers option ..........................95
Updating software ........................................95
Turning off the Screen Saver...........................95
Using Help.........................................................96
Using the Media Center Extender Feature ..............96
Sharing Media ...................................................96
Adding media to share on the computer ..........96
Sharing with a network drive..........................97
Using MediaSmart Services Gateway Software ......97
Using the HP Server software..........................98
Using the HP Server Main Menu .....................98
Finding Answers to Questions ..... 101
Understanding TV Terms ....................................101
What are analog TV, digital TV, and
high-definition TV (HDTV)? ...........................101
What is the difference between
progressive and interlaced signal formats
for digital TVs? ...........................................101
What is variable aspect ratio?......................102
What is HDMI?...........................................102
Identifying Cable Usage ....................................103

Table of Contents
Table of Contents xi
Answering MediaSmart HDTV Frequently
Asked Questions .............................................. 105
Do I need a Media Center PC to use my
MediaSmart HDTV? .................................... 105
Why does MediaSmart HDTV use Windows
Media Player?............................................ 105
What version of Windows Media Player
works with the MediaSmart HDTV? ............... 105
Can my MediaSmart HDTV software be
updated?................................................... 105
Can MediaSmart HDTV play AAC format
and other music file types?........................... 105
What is the wireless type to use to stream
video to my MediaSmart HDTV?................... 105
Can I play recorded TV shows or
downloaded shows or movies from my
Media Center PC on my
MediaSmart HDTV? .................................... 105
Can I stream a DVD movie from my PC to
the MediaSmart HDTV? ............................... 106
How do I create an account for my
online service? ........................................... 106
Can I share media from a storage device
attached to the network?.............................. 106
Specifications.............................. 107
PC Compatibility Chart ..................................... 111
Supported Media File Types .............................. 112
Digital media formats: Codecs versus file
containers.................................................. 112
Supported media........................................ 113
Troubleshooting .......................... 115

xii HP MediaSmart HDTV User Guide

Getting to Know Your TV
Getting to Know Your TV 1
Getting to Know Your TV
Congratulations!
Your HP MediaSmart high-definition television (HDTV)
not only features exceptional picture quality, but also
brings your digital entertainment and your treasured
photo and music libraries from your computer to your
television. By delivering exceptional visual
performance and a digital media experience that is
uniquely personal, we hope the HP MediaSmart HDTV
will forever change your expectation of what a
television should be.
HP Visual Fidelity Engine
Your HP MediaSmart HDTV features the HP Visual
Fidelity Engine, which delivers unparalleled
performance in beautiful 1080p full high-definition
(HD) resolution. The HP 3D Color Enrichment System
generates rich colors and deep blacks, while our
Photorealistic Sharpness Enhancement delivers
superior detail. Complimented with three HDMI
(High-Definition Multimedia Interface) inputs, the
HP MediaSmart HDTV delivers the utmost picture
quality from next generation HD game consoles and
video players.
Your world in high definition
The HP MediaSmart HDTV enables you to enjoy digital
photos, music and videos stored on computers and
devices across your home network. This content is
aggregated for you to browse from a single interface
on your MediaSmart TV. The HP MediaSmart HDTV
also provides online access to thousands of movies
available to rent or own—and the simple HP interface
enables you to begin watching movies moments after
downloading has begun.
The HP MediaSmart HDTV also acts as a Windows®
Media Center Extender to access the Windows Media
Center on your Microsoft®Windows Vista®Home
Premium or Home Ultimate operating system. With it,
you can access the Windows Media Center Media
Library, live TV, recorded TV, and other features
provided by Microsoft.
You can use any universal plug and play
(UPnP)-compliant program to stream media to the TV.
HP recommends and supports Windows Media
Player 11.
The next generation of wireless
networking
Your MediaSmart HDTV also features integrated
802.11n wireless networking, which enables the
streaming of high-definition video while providing
compatibility to existing 802.11b/g/a Wi-Fi networks.
An industry first, having 802.11n in your HDTV
future-proofs your investment for many years to come.
HP legendary quality and unmatched
Support
We are proud that you selected the HP MediaSmart
HDTV, and we will continue to stand by you with
HP award-winning support. HP Total Care includes
24/7 telephone assistance and one full year of free
in-home service, should you ever need it.
All specifications represent the typical specifications provided by
HP’s component manufacturers; actual performance may vary, either
higher or lower.
High-definition source content varies, and depends on source input,
signal aspect ratio, and other factors. HD content may require a
separately purchased service contract or other fees. HD content may
not be available in your service area; check with service provider.
Media streaming requires a computer with the Microsoft
Windows XP with SP2 or Windows Vista operating system, or a
DNLA-compliant media server. A home network is also required and
is sold separately.
Internet use requires separately purchased Internet service. For
wireless access, a wireless access point may be required and is not
included. Downloaded content may require additional fees.
Windows Media Center Extender functionality requires a computer
with the Windows Vista Home Premium or Home Ultimate operating
system. Accessing live TV functionality through the Windows Media
Center Extender requires a computer with a TV tuner and a live TV
signal.
The specifications of the 802.11n WLAN (wide local area network)
are draft specifications and not final. If the final specifications differ
from the draft specifications, it may affect the ability of this device to
communicate with other 802.11n WLAN devices.
Some features may not be available on computers with a 64-bit
operating system.

2HP MediaSmart HDTV User Guide
Identifying Items
in the Box
Television with stand
attached
Universal remote
control
Ant/Cable adapter
AC power cord
Cable clamp
Documentation and
Installation CD (with
User Guide)
Microfiber cleaning
cloths

Getting to Know Your TV
Getting to Know Your TV 3
Locating TV Controls and Connectors
The TV contains controls (indicators and buttons) and connectors.
TV Controls
The TV indicators are located on the front of the TV, and the buttons are located on the right side.
AB
TV button Description
A: Power light Power light
shows whether the TV is on or off. The light is blue when the TV is plugged in
but turned off. The light is amber while the TV is powering up after you turn it on, and then it
goes off after about 30 seconds. The light is off when the TV is not plugged in.
B: Remote
control sensor Remote control sensor is the location where you point the remote control.
POWER Power turns the TV on or off.
MENU Menu opens (or closes) the onscreen display (OSD).
SELECT
[PC Auto Sync]
Select starts the Auto Sync function for a connected PC signal source (PC Input).
In an OSD menu, selects the highlighted item.
SOURCE Source selects the input source: Press Source to open the list of input sources. Press the
Channel buttons to select the input source, and then press Select. Press Source to close the list.
In an OSD menu, functions as the Back button, or moves up one item or menu level.
Channel buttons select the next lower or higher channel.
In an OSD menu, move up or down in the menu.
Volume buttons increase or decrease the sound level.
In an OSD menu, move right or left in the menu, or adjust an item.

4HP MediaSmart HDTV User Guide
TV connectors
The connectors are located on the left side (A), center (B), and right side (C) of the rear of the TV.
Service Port
Serial
RS-232
Audio Output
R
L
Lock
Digital
(Optical)
LAN
Audio In
12
12
ANT/Cable In
AV Input
HDMI 1
HDMI 2
HDMI 3
RL
Video
Y
Pb
Pr
Audio
S-Vid
R
L
Audio
VGA
Audio
L/R
R
L
PC Input
Standard Definition Input Component High Definition Input Digital High Definition Input
B
C
A

Getting to Know Your TV
Getting to Know Your TV 5
Left side TV
labels (A) Description
ANT/Cable In Connect a coaxial cable
from an off-the-air
antenna or cable signal
source.
Standard
Definition Input:
AV Input 1:
S-Vid, Video,
Audio L and R
AV Input 2:
S-Vid, Video,
Audio L and R
For each AV Input
connector set:
Connect an S-Video
cable and left-right audio
cables from optional
equipment.
Or
Connect a composite
video cable and left-right
audio cables from
optional equipment.
(Audio L and R
connectors are shared
within the AV
connector set.)
!
Both the S-Vid and Video connectors share
Audio L and R connectors. (The AV Input 1
set of S-Vid and Video connectors share
Audio connectors; the AV Input 2 S-Vid and
Video connectors share Audio connectors.)
Do not connect video cables to both the
S-Vid and Video connectors in a set.
Left side TV
labels (A) Description (continued)
Component
High
Definition
Input:
1: Y, Pb, and
Pr, and Audio
L and R
2: Y, Pb, and
Pr, and Audio
L and R
Connect component video
cables and left-right audio
cables from optional
equipment. Supports 480i,
480p, 720p, and 1080i
analog standard and
high-definition format inputs.
The TV automatically
determines what has been
connected. Some set-top
boxes must be set for a
specific output resolution.
Digital High
Definition
Input:
HDMI 1 (with
Audio In
LandR)
HDMI 2
HDMI 3
Supports 480i, 480p, 720p,
1080i, and 1080p digital
format inputs. The TV
automatically determines
what has been connected.
Some set-top boxes must be
set for a specific output
resolution.
For each HDMI connector:
Connect an HDMI cable
from optional digital,
high-definition equipment.
For HDMI 1 with Audio In
LandR:ConnectaDVI
(digital video interface)
cable and DVI-to-HDMI
converter, and left-right
audio cables from optional
DVI equipment.
PC Input:
VGA
Audio L/R
Connect a VGA (video
graphics array) cable and
an audio cable from your PC
(Line Out) to use the TV as a
monitor.

6HP MediaSmart HDTV User Guide
Cleaning
Cleaning precautions
Unplug the TV before cleaning the screen.
The TV screen has a special antiglare coating. Using
solvents such as alcohol, or abrasive materials such as
a premoistened or chemically treated towel, may affect
the screen coating or bezel paint.
Do not expose the product to volatile gases or fluids
such as pesticides.
Do not put the TV in contact with vinyl or rubber
products for an extended period of time. Extended
contact may result in the removal of the coating or
degradation of the surface.
Cleaning the TV
To maintain the high-gloss finish on your new HDTV,
HP recommends cleaning the TV only with a
Microfiber cloth such as the one included in the box.
Microfiber cloths contain a blend of synthetic fibers
designed to clean the surface of the TV without
scratching. All cloths specifically labeled as
“Microfiber” on the packaging are suitable for use on
this TV and can be purchased at a variety of
retail outlets.
To clean the screen, spray a soft lint-free cloth with
water to lightly moisten it. Gently wipe the screen, but
without pressing on it.
To clean the outer cabinet, use the same method.
Do not use liquid or aerosol cleaners.
Center TV
labels (B) Description
Audio Output:
Digital
(Optical)
Audio Output
L and R
For sound to an external
audio system:
Connect an optical cable
for digital sound out to
an optional external
digital audio system.
Connect left-right audio
cables for stereo sound
out to an optional
external (analog) audio
system. Use the left
(white) connector for
mono sound
(single cable).
Serial RS-232 Used for control
purposes only.
Service Port Used for service
purposes only.
LAN (Wired) Connect an Ethernet cable to
your wired home network.
Kensington
Lock slot Use to attach a lock to secure your TV.
!
Wireless local area network (LAN)
antennas (not shown) are internal to the TV
and can be used to connect the TV to your
wireless home network.
Right side TV
label (C) Description
AC In Connect the included AC
power cord.
NOTE: Use only the
provided power cord.
n
To maintain the high-gloss finish on your
new HDTV, HP recommends cleaning the TV
only with a Microfiber cloth.

Setting Up the TV
Setting Up the TV 7
8
Setting Up the TV
HP recommends professional installation from an authorized installer to ensure maximum enjoyment of your TV. Before
starting installation, be sure to read all the safety information and precautions; see the following topics:
“Important Safeguards” on page iii.
“Important Safety Instructions” on page v.
“Important Information” on page viii.
Selecting a Good Location
When selecting the location for your TV, consider the
following conditions:
Power cord length: Choose a location with easy
access to an AC power outlet.
Cable lengths and distances to attached units:
Check that cables can reach the TV.
Do not install the TV on an unstable cart or stand;
the unit may fall over and cause injury.
Do not install the TV where it has a protruding
edge such as on a small table where the display
overhangs the table surface.
Do not hang the TV from the ceiling; the unit may
fall and cause injury.
Avoid direct sunlight that may damage the display
or interfere with the operation of the remote
control.
Avoid areas of high humidity or damp conditions
that may cause fire or electrical shock.
Do not install TV near appliances such as a
microwave, or near a heat source such as a
fireplace or radiator.
Do not place the TV on a sloped or
unstable surface.
Provide a minimum of 4 inches (10 cm) of
ventilation clearance around the TV.
Wall-mounting: Your TV can be wall-mounted by
using an HP-approved wall-mounting kit (sold
separately):
LCD TV Flat Mount, Model PY043AA#ABA
LCD TV Tilting Mount, Model PY044AA#ABA
To remove the TV stand, see “Removing or
attaching the stand” on page 23. Then follow the
installation instructions provided with the
wall-mounting kit. HP recommends professional
installation if you want to wall-mount your TV.
Consider the wireless network type: The
MediaSmart HDTV is equipped with an
IEEE 802.11n wireless module, which also
supports the other standards of 802.11a/b/g.
HP recommends use of a dual-band IEEE 802.11n
Wi-Fi network (access point/router and PC
network card) for best wireless performance.
n
To view high-definition programming,
you must have connected to the TV a
high-definition signal source such as an
off-the-air high-definition antenna or cable
HD signal, a cable or satellite provider
HD set-top box, or an HD-DVD player. All
sources, except an HD antenna or cable
HD signal, must connect to one of the
High Definition Input connector sets on
the TV.
You may view high-definition digital media
through your home network.
