HPM LBL014KWE User manual

Oroya LED Outdoor Light
Instruction Manual
Cat. LBL014KWE, LBL014KBL
1 Specifications
Cat No. LBL014KWE, LBL014KBL
Supply voltage 230-240V a.c. 50Hz
Input power 12W
Power output 11W
Lumens output 870lm
Colour temperature Cool White 4000K Nominal
Colour rendering index (CRI) 80+
Beam angle 120o
Dimmable No
Lifespan (in open air at 25°C) 25,000h
Protection class Class II
IP rating IP65
Size Ø270 x 90mm
Weight (excl packaging) 0.6kg
2 Installation

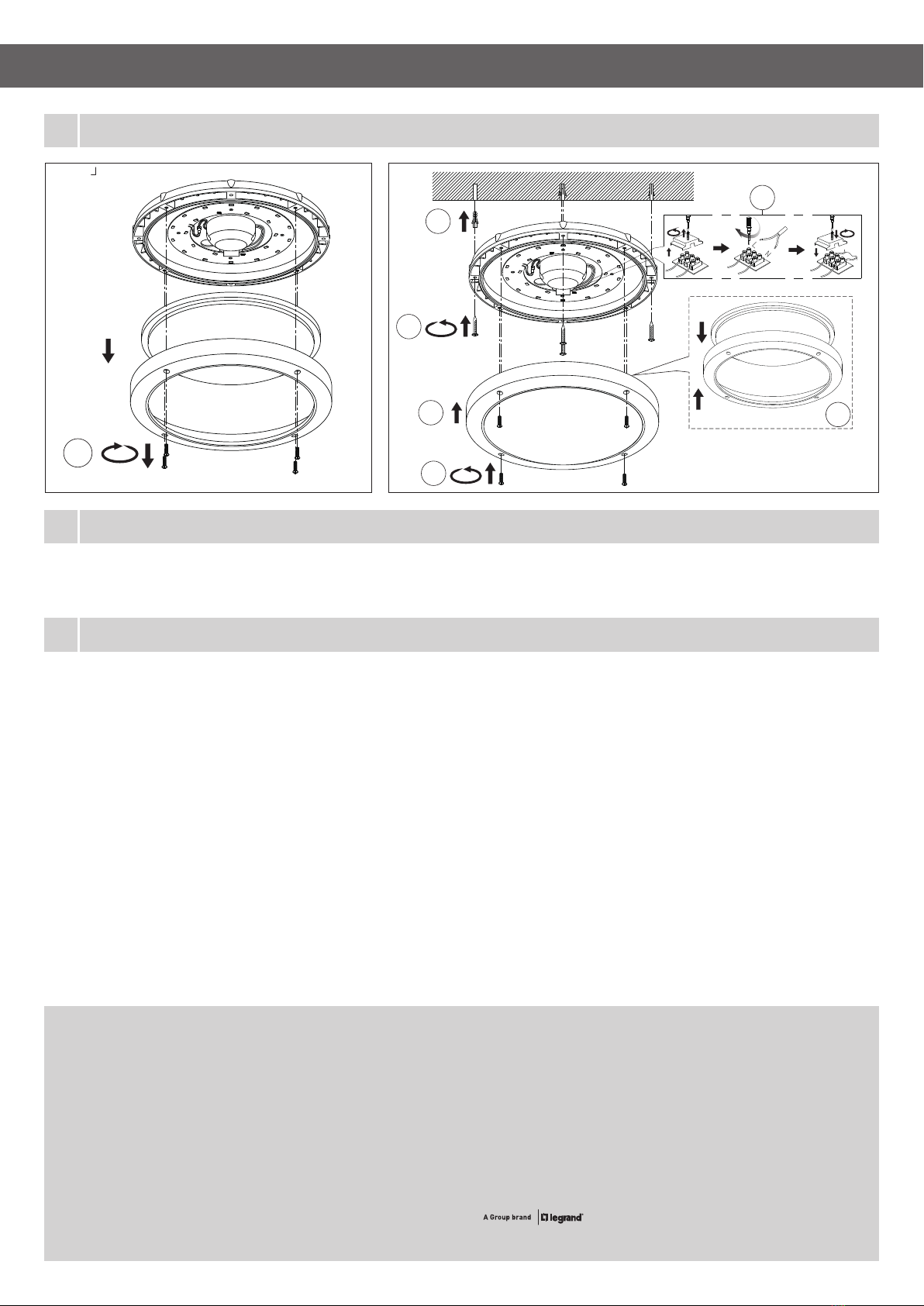

1. Remove the cover and diffuser from the fitting by loosening the mounting screws (figure 1).
2. Use the fitting as a template to mark the screw positions onto the wall / ceiling (figure 2).
3. Insert the mains wiring through the silicone grommet located near the terminal block.
4. Install the fitting onto the wall / ceiling (figure 3).
5. Remove the terminal block cover and connect the mains wiring to the terminal block as marked on the fitting. Ensure that the wires are secure and no bare
wires are exposed (figure 4).
6. Install the terminal block cover back onto the terminal block (figure 4).
7. Apply silicone to the grommet area where the mains wiring enters the fitting. This is to ensure the IP rating is maintained.
8. Install the diffuser and cover back onto the fitting and tighten the mounting screws (figures 5, 6 & 7).
9. DO NOT MEGGER TEST.
This product must be installed by a licensed electrician.

Warranty
HPM Legrand warrants this product for a period of 5 years from the date of
purchase when used in accordance with these instructions and considering the
disclaimers listed herein.
These goods come with guarantees that cannot be excluded under the Australian
and New Zealand Consumer Laws. You are entitled to a replacement or a refund
for a major failure and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired if the goods fail to be
acceptable quality and the failure does not amount to a major failure.
See the Warranty card enclosed with this product for further details.
LE07093AHB HPML1352
1. This product must be installed and used as per these instructions.
2. An IP rating of IP65 is generally considered suitable for external walls with supplementary protection such as overhanging eaves.
3. The IP rating of this product is only valid when installed on a flat and non-porous surface. Additional sealing may be required for
irregular surfaces.
4. The mounting screws on this product should be tightened to a maximum torque of 0.8Nm. Over tightening may damage the product.
5. This product contains no serviceable parts and no attempt should be made to repair it. If the product is faulty it should be discarded.
6. This product is not suitable for installation in hazardous and/or corrosive areas.
7. Electrical installations periodically receive transient over-voltages. This product has been designed to minimise the effect of such
voltages on connected equipment. It may not give full protection for extreme over-voltage transients such as those resulting from a
close lighting strike.
8. This product utilises intellectual property in the form of registered designs, trademarks, and/or patents. Such intellectual property
remains the property of HPM Legrand in all cases.
9. HPM Legrand reserves the right to modify the specification of this product at any time.
10. This product has been designed to operate in ambient temperatures -10°C to 45°C.
11. Stated lifespan is an average. Actual lifespan will vary according to individual circumstances.
12. Extended exposure to UV rays (such as exposure to direct sunlight) may cause discolouration of this product.
13. The material in this product may vary in colour from batch to batch. Colour matching from one batch to another cannot be guaranteed.
3 Maintenance / cleaning
1. This product should only be cleaned with a damp cloth. Cleaning agents and solvents should not be used.
2. This product should not be cleaned with a hose.
2 Installation (cont.)
1
3
4
5
7
2
6
1
3
4
5
7
2
6
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
HPM Legrand Australia
1300 369 777
www.hpm.com.au
HPM Legrand New Zealand
0800 476 009
www.hpm.co.nz
ABN: 31 000 102 661
4 Disclaimers
