Hunt CCTV HTP-T32G28D User manual
HTP‐T32G28D
H.264IPDOMECAMERA
UserManualVer.1.0
HTP-T32G28D User Manual
-1-
Safety Precaution
Make sure to turn off the power before installing HTP-T32G28D.
Do not install under the direct sunlight or in dusty areas.
Make sure you use the product within the temperature and humidity specified in the specification.
Do not operate the product in the places with vibration or strong magnetic fields.
Do not put electrically conductive materials into the product unless specified in the manual.
Do not open the top cover of the product. It can cause an static shock and damage the
components.
In order to prevent overheating, make sure there is at least 10 cm of space between the wall and
the product.
After checking rated voltage, please connect the power.
We appreciate your purchasing HTP-T32G28D.
Before installing the product, please read the following with care.
HTP-T32G28D User Manual
-2-
Table of contents
1. Introduction ...................................................................................................................................... 3
1. About User Manual.................................................................................................................... 3
2. Features .................................................................................................................................... 3
3. Product and Accessories ........................................................................................................... 4
4. Rotation Functions .................................................................................................................... 5
5. System Connections ................................................................................................................. 5
2. Installation ........................................................................................................................................ 7
1. Connecting Network (LAN)........................................................................................................ 7
2. Connecting Audio ...................................................................................................................... 7
3. Connecting Serial Ports............................................................................................................. 7
4. Connecting Sensor & Alarm ...................................................................................................... 7
5. Connecting Power ..................................................................................................................... 8
6. Checking Operating................................................................................................................... 8
3. System Operation............................................................................................................................. 9
1. Remote Video Monitoring ......................................................................................................9
2. Initialization of IP Address ....................................................................................................... 11
4. Remote Configuration..................................................................................................................... 12
1. Using Remote Configuration ................................................................................................... 12
2. HTP-T32G28D Setup .............................................................................................................. 13
2.1 System ........................................................................................................................... 13
2.2 Video.............................................................................................................................. 15
2.3 Audio .............................................................................................................................. 18
2.4 Network.......................................................................................................................... 19
2.5 Serial Port Configuration ................................................................................................ 22
2.6 Event Configuration........................................................................................................ 24
2.7 Preset............................................................................................................................. 27
2.8 User ............................................................................................................................... 28
2.9 Camera .......................................................................................................................... 29
5. APPENDIX : PoE Specification................................................................................................33
HTP-T32G28D User Manual
-3-
1. Introduction
1. About User Manual
The User Manual is provided to advise how to use this premium network camera, HTP-T32G28D. This manual
includes how to trouble shoot in case of problems as well as installation, operation and setting up the HTP-
T32G28D.
2. Features
HTP-T32G28D is a network-based dome camera with remote live monitoring, audio monitoring and control via an
IP network such as LAN, ADSL/VDSL, and Wireless LAN.
Video
-Highly efficient compression algorithm, H.264 & MJPEG dual streaming support
-Compression in various resolution: QCIF, CIF, Half-D1, D1
-Wide range of transmission rates: 32kbps ~ 8Mbps
-Various transmission modes: CBR, VBR
-Motion detection
Audio
-Multi-transmission mode: Simplex (HTP-T32G28D ÆClient PC or Decoder, Client PC or Decoder ÆHTP-
T32G28D), Full Duplex
Network
-Fixed IP & Dynamic IP (DHCP) support
-1:1, 1:N support
-Multicasting
-Automatic transmit rate control according to network conditions
Serial Data
-RS-485 support
-Data pass-through mode: serial data communications between HTP-T32G28D and Decoder
HTP-T32G28D User Manual
-4-
Sensor & Alarm
-Support direct connections of external sensor and alarm devices.
-Event alarm
User Interface
-Diagnose and upgrade through dedicated program called True Manager
-System configuration using Internet Explorer
High Reliability
-Embedded system
-System recovery by dual Watch-dog functions
3. Product and Accessories
HTP-T32G28D System User Manual
S/W CD
<Picture 1> Package
HTP-T32G28D User Manual
-5-
4. Rotation Functions
5. System Connections
HTP-T32G28D IP Cameras can be connected in either 1 to 1 connection where one HTP-T32G28D is connected
one PC client or a decoder system or 1 to many connections where one HTP-T32G28D can be connected
several PCs and decoder systems.
Topology
Generally HTP-T32G28D and a PC or a decoder are connected in a 1 to 1 mode or a 1 to many configuration.
1:1 connection
Camera PC
Site Remote Center
Camera Decoder
Site Remote Center
Decoder Monitor
Remote Center
HTP-T32G28D User Manual
-6-
One HTP-T32G28D is installed at a site where video images are transmitted. A PC or a decoder is installed at a
central location to receive and view the video images on an analog monitor. Audio and serial data are
transferredin either direction.
1:N connection
In this configuration, a site can be monitored from many remote central locations. Although up to 64 PCs or
decoders can be connected to on HTP-T32G28D, in the real network environment, network bandwidth can limit
the maximum connections.
Functionally, the central monitoring system (CMS) software provided can replace the decoder
Multicast
If the network supports multicasting, a large number of decoders can be used to receive video effectively from a
HTP-T32G28D using a single streaming of video and audio.
Relay
Video and audio can be retransmitted from a center to another center. The arrangement is useful when the
network bandwidth to the site is limited while there are more than one center want to monitor the site.
Camera Decoder
Site Center 1
Decoder
Center 2
Camera PC or Decoder
PC or Decoder
PC or Decoder
Remote Center
Site
HTP-T32G28D User Manual
-7-
CMS (Central Monitoring System)
CMS is a Window-based remote monitoring program in order to monitor or control video, audio, and events in
real time from several IP cameras or video servers. Please refer to the CMS User Manual for more in detail.
2. Installation
1. Connecting Network (LAN)
- Connect the power adaptor to HTP-T32G28D
- Connect network cable to Ethernet port.
2. Connecting Audio
Audio is full-duplex. It is possible to set the mode as Tx-only, Rx-only or Tx-Rx.
- Connect audio input and output ports to audio devices accordingly.
- The Audio signal required is line level, so audio equipment with an amp, mixer or other amplifier should be
used.
3. Connecting Serial Ports
RS-485 of HTP-T32G28D can be connected to external equipment such as PT receiver etc. PC client can send
PT commands to the external equipment via the serial port.
When a decoder system instead of PC client is connected to HTP-T32G28D, the serial port and that of the
decoder system works in pass-through mode. That is, data from at one port is delivered to the other port, vice
versa .
4. Connecting Sensor & Alarm
Connect sensor and alarm devices to corresponding terminals accordingly
Camera Decoder
Site Remote Center
Camera CMS
CMS
Site Remote Center
HTP-T32G28D User Manual
-8-
5. Connecting Power
After confirming the power source, connect power adaptor and then 12V DC connector to the system.
6. Checking Operating
Once the power is supplied to the camera, it will start booting.
The system will boot up to an operating mode after approximately 40-60 seconds. The green LED on the
Ethernet port will flash indicating the system is ready.
Software provided on the disc called True Manager allows you to check the IP address and other network details
of the camera. Please refer to the True Manager manual for instructions on how to find the IP address of the
camera and if required changing it.
HTP-T32G28D User Manual
-9-
3. System Operation
1. Remote Video Monitoring
There are two ways to monitor video when the decoder site and HTP-T32G28D are connected.
IP address should be correct, please refer to True Manager Manual and Remote Setting in Chapter 5 for
further details.
Video Monitoring via Decoder System
Once the HTP-T32G28D’s IP address is set in the remote IP address section of the decoder, the decoder system
will connect to the HTP-T32G28D and start receiving the video images.
Normally, a monitor connected to the decoder will display video images.
Video Monitoring by Internet Explorer
If HTP-T32G28D’s IP address is entered in to Internet Explorer, the system will ask for confirmation to install
Active-X control. Once authorized, Internet Explorer will start to display video images from the encoder as shown
below.
http://192.168.10.100
Default ID : admin Password : 1234
HTP-T32G28D User Manual
-10-
Video Selection
HTP-T32G28D is capable of dual streaming. Video Selection allows you to choose Primary Video image
or Secondary Video image. Video Image is displayed according to the resolution set on video
configuration. When dual streaming is not activated and secondary mode is selected, video cannot be
displayed.
Screen Size:
Adjustable Screen Size
Digital Zoom:
Max 5x Digital Zoom is available.
Focus Near, Focus Far, Auto Focus
Adjust the focus
Sensor Input
When the sensor on the HTP-T32G28D is connected and working, the light turns red.
Alarm Output
Alarm Output button can trigger an event directly from the Live View page.
Snapshot
Snapshot button saves a snapshot of the video image currently on display. Captured picture can be
stored as BMP or a JPEG file.
Talk
Transfer audio to audio device connected HTP-T32G28D.
HTP-T32G28D User Manual
-11-
2. Initialization of IP Address
If HTP-T32G28D’s IP address is lost, the HTP-T32G28D can be reset. Press a reset button on the back of
the HTP-T32G28D, this will reset the camera to factory defaults as follows:
cWhile the system is in operation, press the reset button for more than 5 seconds.
dThe system will reboot automatically
eOnce the system has been rebooted, IP address will be set to the following.
-IP mode: Fixed IP
-IP address: 192.168.10.100
-Subnet mask: 255.255.255.0
-Gateway : 192.168.10.1
-Base port : 2222
-Http port : 80
HTP-T32G28D User Manual
-12-
4. Remote Configuration
1. Using Remote Configuration
Remote setting is available by using web browser. Enter the IP address of HTP-T32G28D and then live view
screen appears as below. Press Setup button located in the upper right area of the monitoring screen to go to the
server setup.
For Remote Setting, user should be authorized higher than manager level.
The configurations are grouped into 9 categories: System, Video, Audio, Network, Serial, Event, Preset, User
and Camera. Any configuration changes are not applied until Apply button is pressed. Leaving the page without
pressing Apply button, changes in the page will be discarded.
cEnter IP Address dPress Setup button
HTP-T32G28D User Manual
-13-
2. HTP-T32G28D Setup
2.1 System
HTP-T32G28D User Manual
-14-
System ID
Designate system ID. Designated ID is displayed in Web viewing.
Language
Select language accordingly.
Firmware Version
Displayed current Firmware Version
Board ID
Network board ID of HTP-T32G28D recognized by system
Start Time
Latest system boot date and time
Current Time
Current date & time: enter a new date and time and press Set Current Time button to update date &
time.
Time Zone
Select time zone where the system is installed. Depending on the time zone, Daylight-saving time will be
adjusted automatically.
Automatic synchronization with NTP
Synchronize system time with an NTP server using NTP (network time protocol).
Name of the NTP server should be registered on NTP server Name.
Reboot System
Pressing Reboot Server button will cause the system to reboot.
Do not press the Reboot button unless the server needs a reboot .
Factory Reset
Current IP Address of HTP-T32G28D is changed to default IP Address, 192.168.10.100.
System log and user registrations are also cleared. The other setting value will be remained.
HTP-T32G28D User Manual
-15-

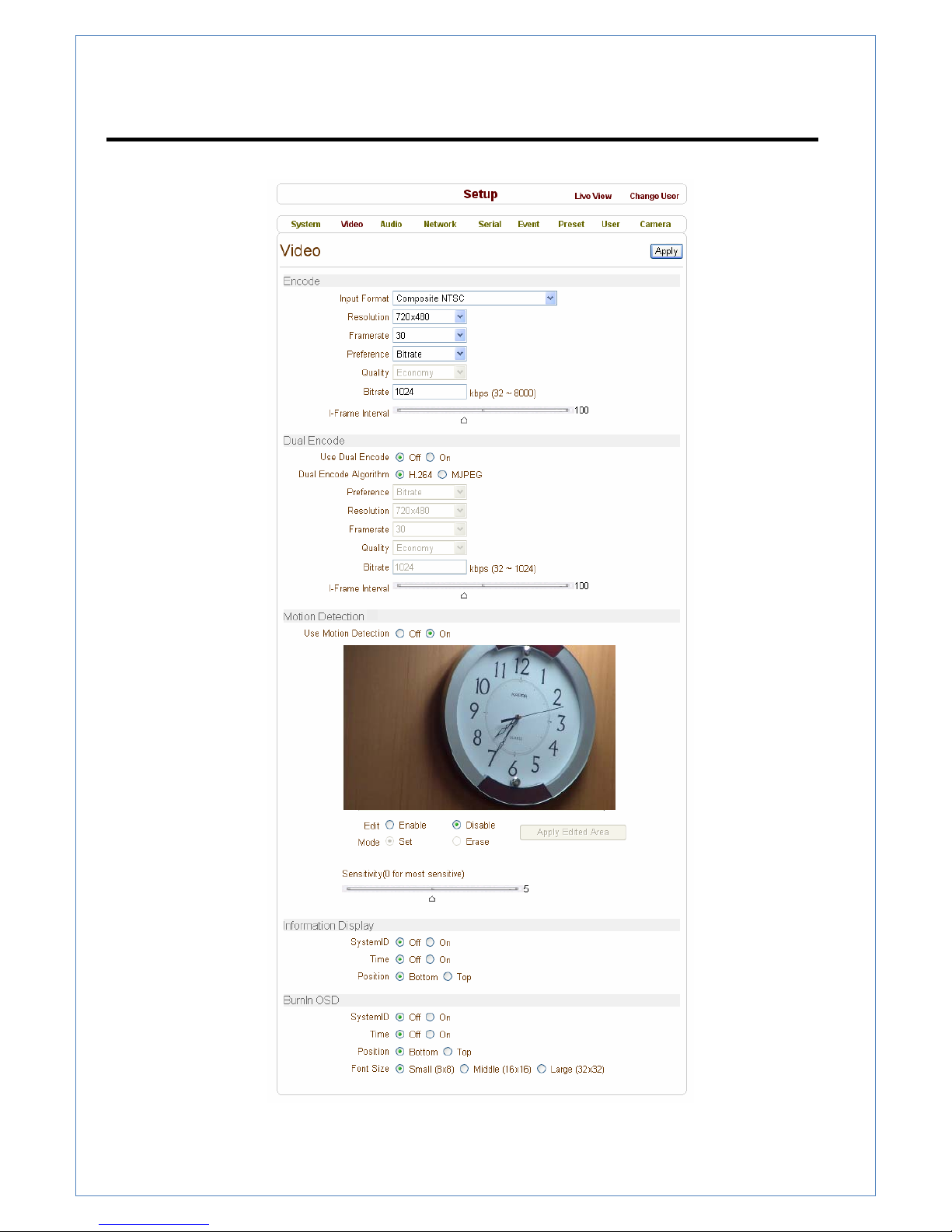

2.2 Video
HTP-T32G28D User Manual
-16-
-ENCODE
Input Format
Choose video type to be used between composite NTSC or composite
Resolution
Selectable video compression resolution as below:
NTSC: 720X480, 720x240, 352X480, 352X240, 176X120
PAL: 720X576, 720X288, 352X576, 352X288, 176X144
Frame Rate
Select video frame rate (the maximum number of frames of video images to compress.)
The frame rate actually transmitted can be affected by the network bandwidth limitations.
Preference
Preference in video compression and transmission: With ‘Bitrate’ selected, the video compression
will be effected by the ‘Bitrate’ value entered. With‘Quality’ selected, the video compression will be
effected by the quality of image selected. Therefore, ‘Bitrate’ and ‘Quality’ corresponds to CBR
(Constant Bitrate) and VBR (Variable Bitrate) respectively.
Quality
VBR (Variable Bit Rate) adjusts the bit rate according to the image complexity, using up bandwidth
for increased activity in the image and less for lower activity in the monitored area.
Bitrate
CBR (Constant Bit Rate) allows you to set a fixed target bit rate that consumes a predictable
amount of bandwidth. As the bit rate would usually need to be increased for increased image
activity,
but in this case it is constrained, the frame rate and image quality are affected negatively.
I-Frame Interval
Setting numbers of P frames to each I frame between 0 and 255. There will be no P-frame if 0 is set.
4
HTP-T32G28D User Manual
-17-
-DUAL ENCODE
Use Dual Encode
The Selection between H.264 and MJPEG is supported. Secondary Video can be used on
Live View window
Dual Encode Algorithm
H.264 and MJPEG can be selected for secondary streaming. Maximum resolution is
720 x 480 and there are 8 steps of resolution. If MJPEG is selected, Preference supports only
Quality mode.
-MOTION DETECTION
Use Motion Detection
Select Motion Detection function

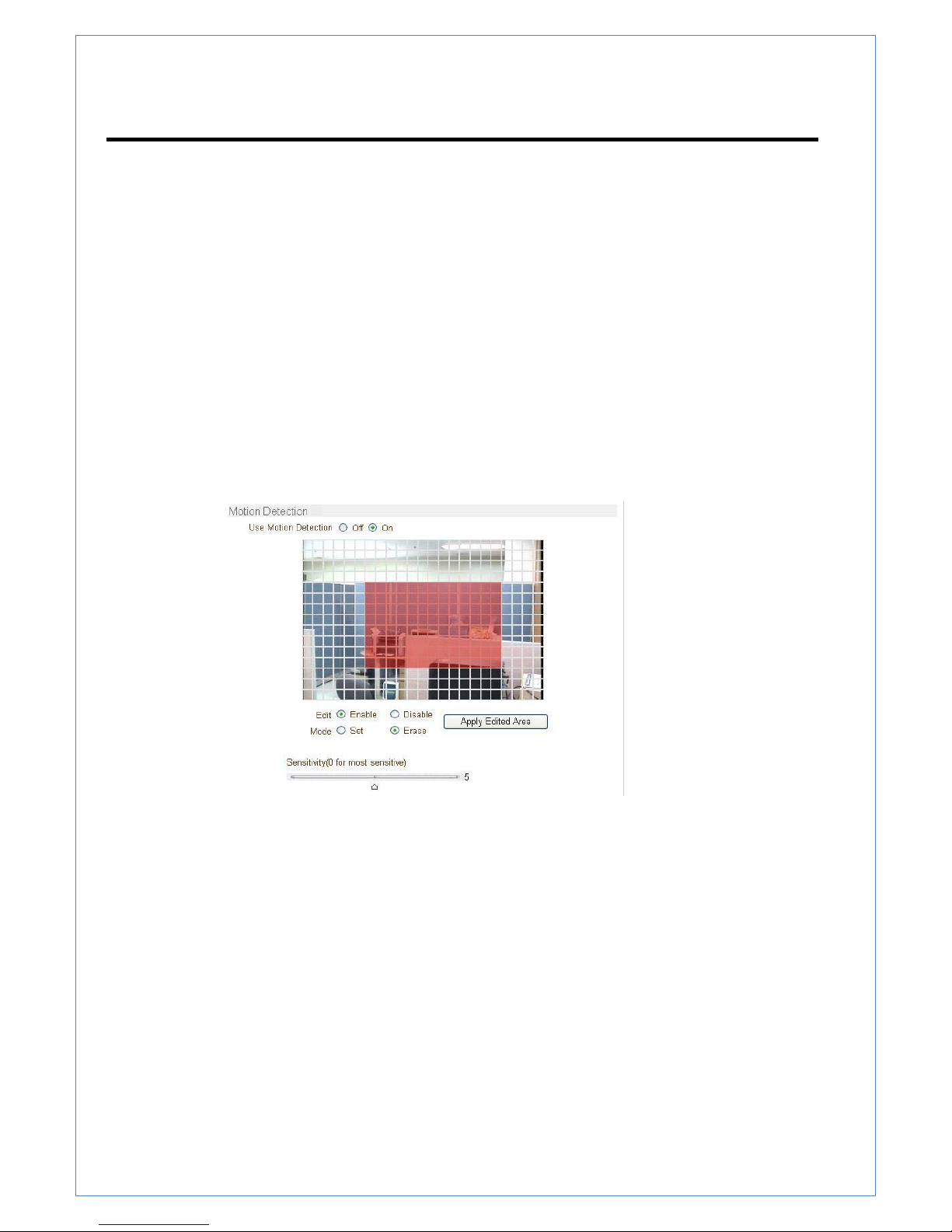

Motion Detection Area Editing
Configure regions for motion detection. Regions of arbitrary shape can be configured by the
following steps.
cEnable Edit item.
dSelect editing Mode. Set is for including cells to motion detection region and Erase is for
excluding.
eSelect cells using the left button of the mouse. Multiple cells can be selected conveniently by
press and dragging.
fPress Apply Edited Area button to save the editing.
HTP-T32G28D User Manual
-18-
Sensitivity
A condition to trigger an event of motion detection. The value determines the sensitivity of the
motion detection within a block: the smaller, the more sensitive.
It is selectable from from 0 to 10.
Information Display
System ID and/or server time can be display over the video window in Web View. Each item
can be turn on or off and position can be configure as well. This information is displayed after the
video is decompressed.
Burn-in OSD
Insert system ID and date/time in the compressed video. System ID and time respectively can be
turned on or off in the video. And position and Font size can be selectable.
2.3 Audio
Mode
Select audio operation mode.
Mode Action
Off No operation
Tx-Only Transmit only
Rx-Only Receive only
Tx & Rx Transmit and Receive
Input Gain
Set audio input gain.
HTP-T32G28D User Manual
-19-
2.4 Network
Table of contents
