Hyper HP20P2BKGL User manual

FIND MY
LOCATION
MODULE
USER GUIDE

HYPER FIND MY LOCATION MODULE
2
Your Hyper backpack features a Find My
compatible location module. It works seamlessly
with the Apple Find My network to provide an
easy, secure way to locate compatible personal
items on a map using the Find My app on your
iPhone®, iPad®, Mac® or the Find Items app on
Apple Watch®.
Simply pair your compatible product with the
Apple Find My app to view it right alongside your
Apple devices. The Find My network is encrypted
and anonymous, so no one else, not even Apple
or the maker of your personal item, can view its
location.
Initial Set Up

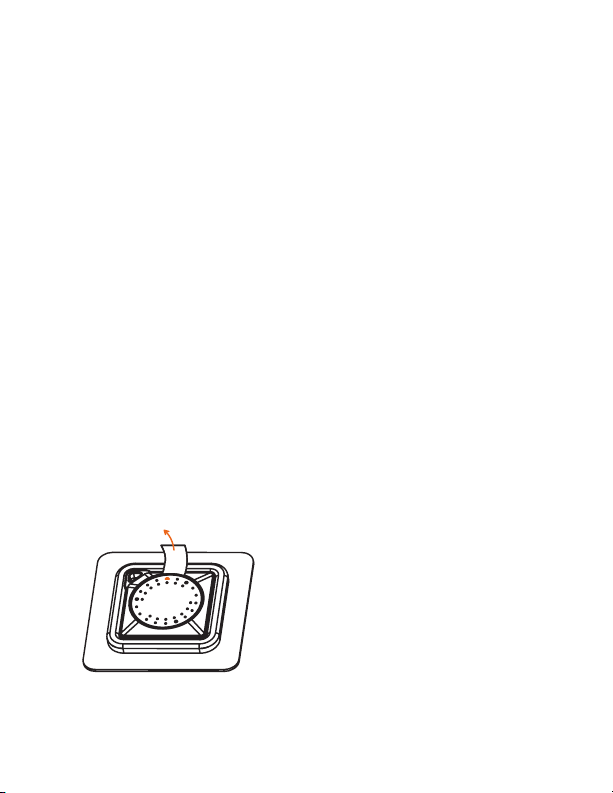

Notice: Before you start, you’ll need to activate
the location module. To do this, open the
zippered Location Module pocket, inside of the
backpack, and remove the protective battery film
from the module (figure 1).
figure 1
To pair your Hyper backpack with the Apple Find
My app, follow these instructions:
1. Open the Find My app on your iPhone, iPad,
iPod touch, Mac or Apple Watch*.
2. In the app, tap “+”, and then “Add Other Item”.
3. While the Find My app is “Searching Items…”,
hold down old the locator module button
down for 5 seconds and then follow the
onscreen instructions.
4. Select the device. Note, the default name of
the device is TBB94104GL. Tap “Connect”.
5. Add a name for this device and tap
“Continue”, “Agree” and “Finish” to complete
the pairing.
You can confirm your connection at any time. To
check your connection, double click the Location
Module button. If it’s connected, it will beep once
and the LED indicator will flash. If the module is
not connected, it will make a three-beep audible
chime signifying that the module needs to be
paired by following the pairing instructions above.
If the location module is unable to pair, you may
need to restore it to the factory settings before it
will connect. For more information, refer to How
to Reset the Location Module.

3
HYPER FIND MY LOCATION MODULE
Using the Find My app with
the Location Module
1. To locate your backpack in the Find My app,
select “Items” and tap your item on the map.
2. To help locate your backpack, select “Play
Sound” to play a chime on the backpack.
3. To locate your backpack on a map, select
“Directions” to open the Maps app and get
turn-by-turn directions to navigate to the
vicinity of the backpack.
4. If your backpack is out of Bluetooth range
of your Apple device, you can select “Lost
Mode”, “Enable”, and then “Continue” to
receive notifications of its location near other
Find My enabled devices.
5. To remove your backpack from the Find My
app, select “Remove Item” and then “Remove”.
The location module will play a chime when the
device is successfully removed.
How to Reset the Location Module
If the location module loses connection and
cannot be paired, it may need to be reset to it’s
factory settings before it can be reconnected.
To reset it, double click the button on the location
module. It will make an audible tone. Within 3
seconds, hold down the button. You’ll hear 3
beeps followed by an audible chime. During this
time, the LED will flash. Once the audible chime
ends, release the button to reset the module to
its factory settings.
The location module is now ready to pair to the
Apple Find My network.
Battery Use and Replacement
The Find My location module is powered by a
CR2032 Coin Cell (watch) battery. The typical
battery life is 250-300 days, depending on
frequency of use.
You can check the battery level status in the
Find My App. If the battery is low, the “Low
Battery” warning will display when you select the
backpack under the “Item” tab,
To replace the battery, open the location module
zippered compartment inside of the backpack.
figure 2
Use your thumbs to twist the battery cover
counterclockwise, until the cover can be removed
(as shown in figure 3).
figure 3

Replace the battery with a new CR2032 coin cell
battery and attach the battery cover by reversing
the removal instructions above (as shown in figure 4).
figure 4
Removing the Location Module
If the location module needs service or warranty
replacement, it will need to be removed from the
backpack.
To remove the location module, use the removal
tool that came with the backpack. As an
alternative, a small paper clip can be used.
From Inside of Backpack
Open the zippered location module compartment
inside of the backpack. Locate the pin hole on the
side of location module (figure 5).
figure 5
Insert the removal tool or paper clip and press to release
the module from the outer mounting frame (figure 6).
figure 6
From Outside of the Backpack
Push down on the right side of the module, as
you insert and press the removal tool so that it
detaches from the outer mounting frame. (figure 7)
figure 7
Use the plastic filler cap (inluded with your backpack)
to fill the hole while the module is out for repair or
replacement. To install the filler cap, revserse the
removal instructions, above, by depressing the pin
hole while pressing the filler cap into place (figure 8).
figure 8
HYPER FIND MY LOCATION MODULE
4
2
1

Frequently Asked Questions
What is the Apple Find My network?
The Apple Find My network provides an easy, secure way to locate compatible personal items on a
map using the Find My app on your iPhone, iPad, or Mac. Simply pair your compatible product with the
Apple Find My app to view it right alongside your Apple devices. The Find My network is encrypted
and anonymous, so no one else, not even Apple or the maker of your personal item, can view its
location.
Is the Backpack certified by Apple to be used with the Find My Network?
Yes, the Backpack has been certified by Apple to be compatible with the Find My network.
What Technology is used to connect to the Find My Network?
The backpack’s location module uses Low Energy Bluetooth.
How accurately can it locate my backpack?
The location is typically accurate within 15-20 feet. However, a lot of factors can influence the exact
location. It leverages the Find My Network and the iOS® operating system which calculates the location
using a combination of Wi-Fi + GPS. Sometimes with this technology obstacles such as doors and walls
can get in the way. It doesn’t use its own maps and these maps can sometimes be inaccurate or errors
can occur. In rare cases its possible for the location to be o by 100M or more. If the location is o by
several miles or more, please check to make sure that your backpack is connected to the Find My
network.
Is the Location Module’s battery replaceable?
Yes, the battery is replaceable and can be replaced with a CR2032 coin cell battery.
How often should I replace the battery?
The typical battery life is between 250-300 days but will vary with frequency of use.
5
HYPER FIND MY LOCATION MODULE

HYPER FIND MY LOCATION MODULE
6
Location Module Specifications
Part number H566A2T
Location technology Apple Find My® (certified)
Connection technology Low energy Bluetooth
Chipset Bluetooth 5.3, 64 MHz ortex-M4 with FPU, 2.4GH
Data transfer rate Bluetooth Max 2Mbp
Antenna On-board antenna
Power saving mode Power o mode/ Sleep mode
Transmitting power 4dbm
Receiving sensitivity -93dbm
Working frequency band Bluetooth: 2.4GHz
Working distance Indoor: 10-20m,
Outdoor: 30-50m
Communication rates Transmitter/receiver frequency range: 2.400 ~ 2.4835 GHz
Encryption Supports AES128/ AES 256
Compatibility iPhone®, iPad®, Mac® or Apple Watch®
System requirements iOS® 14.5 or later, iPadOS® 14.5 or later. The latest version of iOS®, iPadOS®,
or macOS® is recommended. The Find Items app on Apple Watch requires
the latest version of watchOS®
App requirements Apple Find My® App with valid Apple ID
Battery type CR2032 coin cell battery, 225mah / 3.0V
Battery life 250-300 days (typical). Typical life based on an average everyday use of
three sounds played and one Precision Finding event per day. Actual battery
life will vary with frequency of use, environmental conditions, replacement
battery manufacturer, and other factors
Stand-by current Low power consumption < 1uA
Speaker power 90-100dB
Operating temperature 0 - 40ºC
Water resistance rating IPX4 (protection from splashing water)

7
HYPER FIND MY LOCATION MODULE
Technical support
For technical questions, please visit:
Internet
English http://www.Hyper.com/uk/support
French http://www.Hyper.com/fr/support
German http://www.Hyper.com/de/support
Spanish http://www.Hyper.com/es/support
Phone (language answered in):
Austria: 01 795 676 42 (German)
Belgium: 02-717-2451 (French)
Denmark: [phone] (English)
Finland: [phone] (English)
France: 01-6453-9151 (French)
Germany: 0211-6579-1151 (German)
Netherlands: 02 0504 0671 (English)
Norway: [phone] (English)
Portugal: [phone] (English)
South Africa: [phone] (English)
Calls answered 10am-6pm South African time
Spain: 91 745 6221 (Spanish)
Sweden: 08-751-4058 (English)
Switzerland: [phone]
(French or German)
UK: 020-7744-0330 (English)
Eastern Europe and others not listed above:
[phone] (English)
Warranty
2 YEARS LIMITED WARRANTY OR AS REQUIRED BY LOCAL LAWS
We pride ourselves on the quality of our products. For complete
warranty details and a list of our Worldwide oces, please visit www.
HyperShop.Com. Hyper product warranty does not cover any device
or product that is not manufactured by Hyper (including, but not limited
to, laptops, smartphones, devices, or any other product that may be
used in connection with the Hyper product). ©2023 Hyper Products Inc.
46721 Fremont Blvd, Fremont, CA 94538. All rights reserved.
AUSTRALIAN AND NEW ZEALAND CONSUMERS ONLY
Thank you for your purchase. Hyper warrants to the original purchaser
that its products are free from defects in materials and workmanship
and, during the specified warranty period, and lasts as long as the
original purchaser owns the product. The warranty period is stated
on the packaging or in the documentation provided with this Hyper
product. Hyper’s Limited Product Warranty excludes damage caused by
accident, neglect, abuse, misuse, improper care, normal wear and tear,
ownership transfer, or alteration. The limited warranty also excludes any
product that is not manufactured by Hyper (including, without limitation,
laptops, smartphones, devices, tablets, or any other non-Hyper item)
that is used in connection with the Hyper product. In the event that
the Hyper product has a defect in materials or workmanship Hyper
will, after receiving a warranty claim and inspecting the product, at its
discretion, do one of the following: repair, replace, or refund with the
same or a similar product (or part) of no lesser quality and ship it to
the original purchaser at Hyper’s expense. As part of this inspection,
proof of purchase will be required. There is no charge for inspection. To
make a warranty claim, please contact Hyper Australia or New Zealand
(see details below), or return the product to the place of purchase. The
original purchaser must bear the cost of the delivery to Hyper. Under
Australian and/or New Zealand Consumer Laws, in addition to any
warranty Hyper gives, our products come with guarantees that cannot
be excluded. You are entitled to a replacement or refund for a major
failure and compensation for any other reasonably foreseeable loss or
damage. You are entitled to have the products repaired or replaced if
they fail to be of acceptable quality and the failure does not amount
to a major failure.
For any warranty question, contact Targus Australia Pty. Ltd. (i) by mail
at Suite 2, Level 8, 5 Rider Boulevard, Rhodes NSW 2138, by phone
AUS 1800 641 645 or NZ 0800 633 222 or by Email: infoaust@targus.
com. For additional information, check out our website at targus.com/
au/warranty.
Regulatory compliance
(applicable to products with electronic circuitry/parts only)
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

HYPER FIND MY LOCATION MODULE
FCC statement
Tested to Comply
This equipment has been tested and found to
comply with the limits of a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy, and if not
installed and used in accordance with the
instructions may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
o and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the
equipment and receiver;
• Connect the equipment into an outlet on
a circuit dierent from that to which the
receiver is connected;
• Consult the dealer or an experienced radio/
TV technician for help
Changes or modifications not authorized by the
party responsible for compliance could void the
user’s authority to operate this product.
IC statement
This device contains licence-exempt transmitter(s)
/receiver(s) that comply with Innovation, Science
and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference,
including interference that may cause
undesired operation of the device.
Declaration of conformity
Hereby, Hyper, declares that this device is in
compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU.
Hyper recycling directive
At the end of this product’s useful life please
dispose at an appropriate recycling collection
point provided in your country.
Regulatory Compliance
FCC ID: OXM-H566A3T
IC ID: 27357-H566A3T
© 2023 HYPER PRODUCTS INC. All rights reserved. 23229Model: HP20P2
