Hyundai HPACK20V2A4 User manual

WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USING THIS MACHINE.
ORIGINAL INSTRUCTIONS
20V CORDLESS ANGLE GRINDER
20V CORDLESS IMPACT DRILL
HPACK20V2A4

CONTENTS
1. PACKAGE CONTENT LIST 3
2. CORDLESS ANGLE GRINDER 3
3. CORDLESS IMPACT DRILL 18
4. WARRANTY 31
5. PRODUCT FAILURE 32
6. WARRANTY EXCLUSIONS 33

1.PACKAGE CONTENT LIST
Remove all packaging materials.
Remove remaining packaging and packing inserts (if included).
Check that the package contents are complete.
Check the appliance, the power cord, the power plug of charger and all accessories for transportation
damage or not.
Keep the packaging materials as far as possible until the end of the warranty period. Then take it to your
local waste disposal system.
2. CORDLESS ANGLE GRINDER
2.1 INTENDED USE
The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable
for professional use.
WARNING! Read this manual and general safety instructions carefully before using the
appliance, for your own safety. Your power tool should only be passed on together with
these instructions.
WARNING Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious
injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
2.2 SAFETY INSTRUCTIONS
2.2.1 GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Packaging materials are not toys! Children must not play with plastic bags! There
is a danger of suffocation!
1 x Angle grinder
1 x Auxiliary handle
1 x Pin spanner
1x Impact drill
1x Double-end bit
1 x20V/2Ah battery
1x 20V/4Ah battery
1x Fast charger
1 x instruction manual
Note: If any parts are missing or damaged, please contact your dealer.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
instructions, illustrations and specifications provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, fire and/or serious injury.
b) Operations such as sanding, wire brushing and polishing are not recommended to be performed
with this power tool. Operations for which the power tool was not designed may create a hazard and
cause personal injury.
2.2.2 SAFETY INSTRUCTIONS FOR ALL OPERATIONS
Safety Warnings Common for Grinding, Sanding, Wire Brushing, Polishing or Abrasive Cutting-Off
Operations:
a) This power tool is intended to function as a grinder and cut-off tool. Read all safety warnings,
This will ensure that the safety of the power tool is maintained.

c) Do not use accessories which are not specifically designed and recommended by the tool
manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe
operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated speed can break and fly apart.
e) The outside diameter and the thickness of your accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f) Threaded mounting of accessories must match the grinder spindle thread. For accessories
mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange.
Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate
excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels
for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked
wires. If power tool or accessory is dropped, inspect for damage or install an undamaged
accessory. After inspecting and installing an accessory, position yourself and bystanders away
from the plane of the rotating accessory and run the power tool at maximum no-load speed for one
minute. Damaged accessories will normally break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or
safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron
capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of
stopping flying debris generated by various operations . The dust mask or respirator must be capable of
filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause
hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear
personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and
cause injury beyond immediate area of operation.
j) Hold the power tool by insulated gripping surfaces only, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live"
wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged
and your hand or arm may be pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has come to a complete stop. The spinning
accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and
excessive accumulation of powdered metal may cause electrical hazards.
o) Do not operate the power tool near flammable materials. Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in
electrocution or shock.
2.2.3 FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS
Kickback and Related Warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other
accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the
uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is
entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out.

The wheel may either jump toward or away from the operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
a) Maintain a firm grip on the power tool and position your body and arm to allow you to resist
kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or
torque reaction during start-up. The operator can control torque reactions or kickback forces, if proper
precautions are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause
loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent
kickback and loss of control.
2.2.4 ADDITIONAL SAFETY INSTRUCTIONS FOR GRINDING AND CUTTING-OFF OPERATIONS
Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations:
a) Use only wheel types that are recommended for your power tool and the specific guard designed
for the selected wheel. Wheels for which the power tool was not designed cannot be adequately
guarded and are unsafe.
b) The grinding surface of centre depressed wheels must be mounted below the plane of the guard
lip. An improperly mounted wheel that projects through the plane of the guard lip cannot be adequately
protected.
c) The guard must be securely attached to the power tool and positioned for maximum safety, so the
least amount of wheel is exposed towards the operator. The guard helps to protect the operator from
broken wheel fragments, accidental contact with wheel and sparks that could ignite clothing.
d) Wheels must be used only for recommended applications. For example: do not grind with the side
of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these
wheels may cause them to shatter.
e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel.
Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for
cut-off wheels may be different from grinding wheel flanges.
f) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not
suitable for the higher speed of a smaller tool and may burst.
2.2.5 ADDITIONAL SAFETY INSTRUCTIONS FOR CUTTING-OFF OPERATIONS
Additional Safety Warnings Specific for Abrasive Cutting-Off Operations:
a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the
wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of
operation, is moving away from your body, the possible kickback may propel the spinning wheel and the
power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and
hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove
the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur.

Investigate and take corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully
re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback.
Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near
the line of cut and near the edge of the workpiece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback.
2.2.6 SPECIFIC SAFETY INSTRUCTIONS FOR ANGLE GRINDERS
Check that the maximum speed indicated on the grinding disc corresponds to the maximum speed of
the machine. The speed of the machine must not exceed the value on the grinding disc.
Make sure that the dimensions of the grinding disc correspond to the specifications of the machine.
Make sure that the grinding disc has been mounted and fastened properly. Do not use reducing rings or
adapters to make the grinding disc fit properly.
Treat and store grinding discs in conformance with the supplier’s instructions.
Do not use the machine for grinding workpieces with a maximum thickness exceeding the maximum
grinding depth of the grinding disc.
Do not use grinding discs for deburring.
When grinding discs have to be mounted on the thread of the spindle, make sure that the spindle has
sufficient thread. Make sure that the spindle is sufficiently protected and does not touch the grinding
surface.
Before use, inspect the grinding disc for any damage. Do not use grinding discs which are cracked,
ripped or otherwise damaged.
Before use, let the machine run idle for 30 seconds.
Immediately switch off the machine in case of abnormal vibrations or occurrence of another defect.
Carefully inspect the machine and grinding disc before switching the machine on again.
Make sure that sparks do not put people into danger or that they contact highly flammable substances.
Make sure that the workpiece is sufficiently supported or clamped. Keep your hands away from the
surface to be cut.
Always wear safety goggles and hearing protection. If desired or required also use another kind of
protection like for example an apron or helmet.
Ensure that mounted wheels and points are fitted in accordance with the manufacturer’s instructions.
Ensure that blotters are used when they are provided with the bonded abrasive product and when they
are required.
If a guard is supplied with the tool never use the tool without such a guard.
For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long
enough to accept the spindle length.
Ensure that ventilation openings are kept clear when working in dusty conditions.
2.2.7 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER
Batteries
Never attempt to open for any reason.
Do not store in locations where the temperature may exceed 40°C (104°F).
Charge only at ambient temperatures between 4°C and 40°C (39.2°F and 104°F).
Charge only using the charger provided with the tool.
Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged state.
It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The ideal
charge for long-term storage of your Li-ion battery is 40% of capacity.

When disposing of batteries, follow the instructions given in the section “Protecting the environment”.
Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal
directly or via accidental contact with metallic objects, the battery is short circuited and an intense
current will flow causing heat generation which may lead to casing rupture or fire.
Do not heat. If batteries are heated to above 100°C (212°F), sealing and insulating separators and other
polymer components may be damaged resulting in electrolyte leakage and/or internal short circuiting
leading to heat generation causing rupture or file. Moreover do not dispose of the batteries in fire,
explosion and/or intense burning may result.
Under extreme conditions, battery leakage may occur. When you notice liquid on the battery, proceed as
follows:
Carefully wipe the liquid off using a cloth. Avoid skin contact.
In case of skin or eye contact, follow the instructions below:
•Immediately rinse with water. Neutralize with a mild acid such as lemon juice or
vinegar.
•In case of eye contact, rinse abundantly with clean water for at least 10 minutes.
Consult a physician.
Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate
the battery.
Charger
Use the charger provided with the tool only to charge
the battery.
Never attempt to charge non-rechargeable batteries.
Have defective cords replaced immediately.
Do not expose to water.
Do not open the charger.
Do not probe the charger.
The charger is intended for indoor use only.
This charger can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe

way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
without supervision.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
CAUTION: Do not recharge non-rechargeable batteries
2.3 SYMBOLS
Conforms to relevant safety standards
To reduce the risk of injury, the user must read and understand this manual
before using this product.
Wear eye protection.
Do not dispose of old appliances with domestic rubbish
Class II, double isolation(only for charger)
Ne pas exposer le chargeur ni la batterie à l’eau.
Do not incinerate the battery or charger.
Ambient temperature of 40 °C max. (only for the battery)
Use the battery and charger Indoor use only.
Recycling

2.4 YOUR PRODUCT
1) Lock lever for
protection guard
2) Spindle lock button
3) Main handle
4) On/Off switch
5) Air vents
6) Auxiliary handle
7) Guard
8) Grinding disc (not
included)
9) Speed adjuster
10) Release button
11) Battery pack
12) Charger
13) Charger indicator
light
14) Battery capacity
indicator.
15) Slot of charger
2.5 TECHNICAL DATA
Charging time
50min for 2Ah battery
100min for 4Ah battery
Information
The declared vibration total value has been measured in accordance with a standard test method
and may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment of exposure.
Pression acoustique LpA 81.4 dB(A), K= 3 dB(A)
Puissance acoustique LwA 92.4 dB(A), K= 3 dB(A)
Ah，AG(Vibrations): Main handle: 1,799 m/s2; K: 1,5 m/s2
Auxiliary handle: 2,304m/s2; K: 1,5 m/s2
Rated voltage (direct current) 20V d.c.
Rotation speed 4000-8500/min
Max. disc diameter: Ø 125mm
Drive spindle thread: M 14
Charger type HPACK20V2A4
Input 220-240V~ 50-60Hz, 65W
Output 21V d.c., 2.5A
Battery type HPACK20V2A4
20V d.c. 2Ah /4Ah Lithium-ion

Warning
that the vibration emission during actual use of the power tool can differ from the declared total
value depending on the ways in which the tool is used; and
of the need to identify safety measures to protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account of all parts of the operating cycle such as
the times when the tool is switched off and when it is running idle in addition to the trigger time).
Wear hearing protection.
2.5 OPERATION
2.5.1 CHARGING THE BATTERY PACK
IMPORTANT: The battery pack is not fully charged at the factory. Before attempting to charge them,
thoroughly read all of the safety instructions.
1) To assure that the charger you use are applicable to the battery pack.
2) Insert the charger into 220-240V~,50-60Hz outlet. The indicator light (13) become to red light to show
the power is connected.
3) Insert the battery(11) into the slot of charger(15). Make sure the contact with the charger is correct.
4) The indicator light (13) become to green and flash when charging.
5) When fully charged The indicator light (13) become to green light.
6) Frequently monitor the charger and battery pack while connected.
7) Unplug the charger and disconnect it from the battery pack when finished.
8) Allow the battery pack to cool completely before using it.
9) Store the charger and battery pack indoors, out of reach of children.
Note:
If the battery does not fit properly, disconnect it and confirm that the battery pack is the correct
model for this charger as shown on the specification chart. Do not charge any other battery pack
or any battery pack that does not securely fit the charger.
Note:
If battery is hot after continuous use in the tool, allow it to cool down to room temperature before
charging. This will extend the life of your batteries.
Note:
Remove battery pack from charger stand which use your thumb or fingers, press the battery’s
release button in and pull the battery pack offat the same time.
2.5.2 BATTERY CAPACITY INDICATOR
There are battery capacity indicators on the battery pack; you can check the capacity status of the battery if
you squeeze the button . Before using the machine, please pressswitch trigger to check if the battery is full
enough for properlyworking.
Those 3 LED might show the status of the capacity level of the battery: Inserting and removing the
battery.
WARNING: Before making any adjustments ensure this tool is switchedoff with the direction
of rotation selector in the center position

1. Remove the battery: press the battery release latch in and at the same time pull the battery pack off.
2. To insert the battery, push the battery pack onto the contacts of the tool.

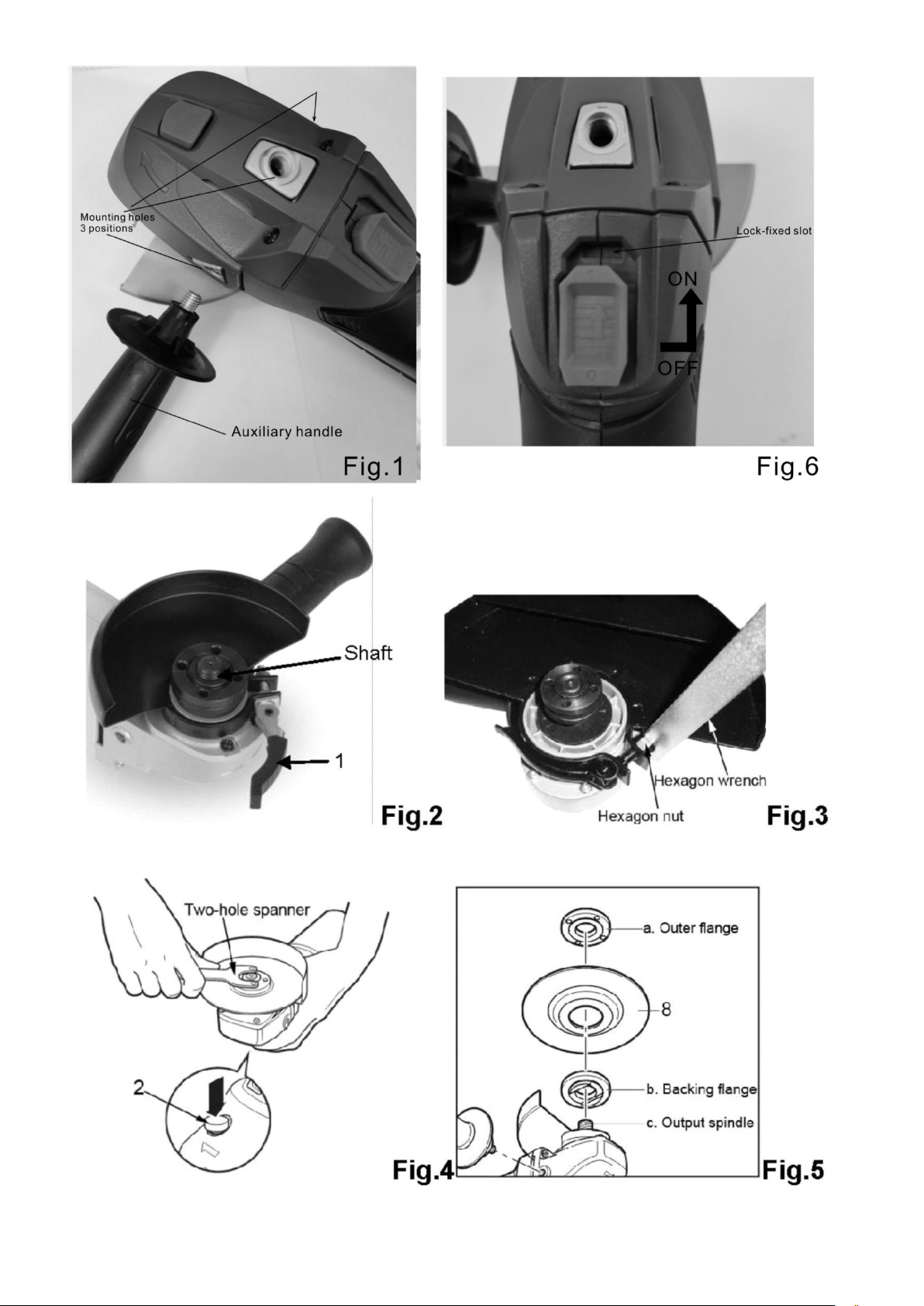

2.5.3 FITTING THE AUXILIARY HANDLE (FIG. 1)
The auxiliary handle (6) can be attached to the angle grinder in 3 different positions: left and right and top of
head.
2.5.4 ASSEMBLY THE PROTECTIVE GUARD (FIG. 2 –3)
1. Loosen the clip of the protective guard (7) by pulling lock lever of protective guard (1) outward.
2. Turn the protective guard so that uncovered part of the disc is as far apart as possible from the hand on
main handle (3).
3. Fix the protection guard by pushing the lock lever inwards (the protective guard should no longer be able
to move).
NOTE: If the protective guard can not be fixed firmly by the lock lever (1), use a hexagon wrench to
tighten the hexagon nut.
2.5.5 REPLACING THE GRINDING DISC (FIG. 4 –5)
Beware –a disc which has been used may be very hot!
Depress and hold down the spindle lock button (2) to secure the spindle.
Turn the shaft until it locks.
Remove the outer flange (a) and backing flange (b) by using the two-hole spanner provided.
Fit the desired disc (8) on the spindle and replace the outer flange and backing flange. Release the
spindle lock.
Important! Only ever press the spindle lock when the motor and grinding spindle are at a
standstill!
You must keep the spindle lock pressed while you change the wheel !
For grinding wheels up to approx. 3 mm thick, screw on the flange nut with the flat side facing the grinding
wheel.
2.5.6 SWITCHING ON / OFF (FIG. 6)
Before engage the ON/OFF switch button, check that the grinding disc is properly fitted and
run smoothly, the outer flange is well tightened.
Connect the battery pack onto the angle grinder body.
To switch on the angle grinder, push the On/Off switch(4) to the right a little and then forward to catch
the lock-fixed slot.
When you press the switch “O”, the tool returns off.
Do not let go of grinder until it has stopped running.

2.5.7 OPERATON MODES
GRINDING
Hold the handle (3) and auxiliary handle (6) firmly and switch on. Avoid blocking the ventilation slots with
your hand, as this may cause the grinder to overheat. Let the disc reach full speed. Apply the grinder to the
item.
Maximum effect is achieved when the grinder is held at an angle of 15-30°in relation to the item. Move the
grinder gently along the item. Give the grinder time to work. It is rarely necessary to press the disc hard
against the surface to be worked. Sparks can occur in the motor compartment during use. This is normal
and does not mean the grinder is defective. Switch off the grinder after use.

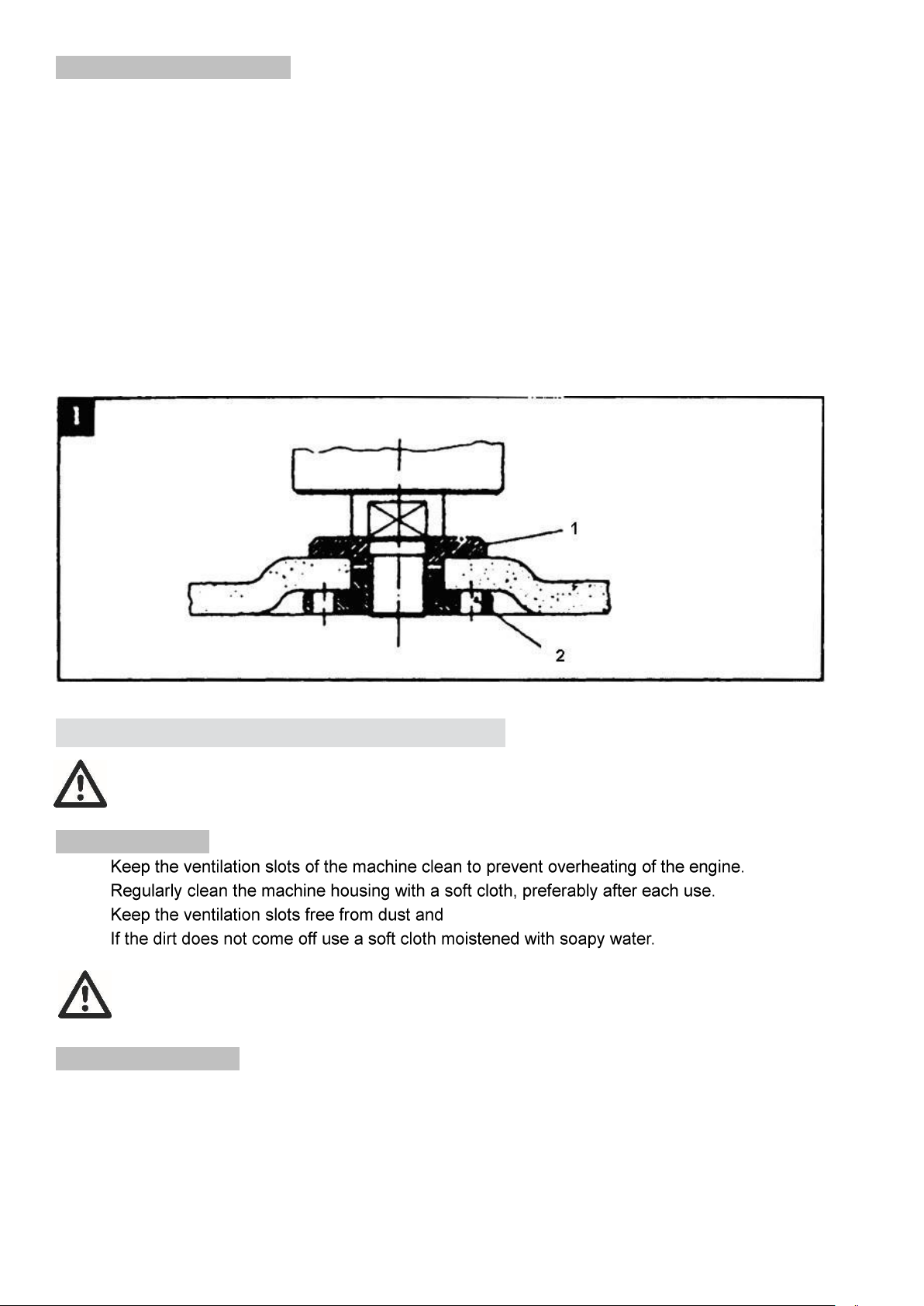

FLANGE ARRANGEMENTS WHEN USING GRINDING WHEELS
Flange arrangements when using a depressed centre or straight grinding wheel.
1 Clamping flange
2 Flange nut
2.6 CLEANING AND MAINTENANCE
Always disconnect the battery pack from the angle grinder before making any adjustment or
attaching any accessories.
2.6.1 CLEANING


dirt.

Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage
the plastic parts.
2.6.2 LUBRICATION
The machine does not require any specific lubrication.

2.7 SERVICE DEPARTMENT
Damaged switches must be replaced by our after-sales service department.
If the connecting cable (or mains plug) is damaged, it must be replaced by a special connecting cable
which is available from our service department. Replacement of the connecting cable should only be
carried out by our service department (see last page) or by a qualified specialist (qualified electrician).
2.8 STORAGE
Thoroughly clean the whole machine and its accessories.
Store it out of the reach of children, in a stable and secure position, in a cool and dry place, avoid too
high and too low temperatures.
Protect it from exposure to direct sunlight. Keep it in the dark, if possible.
Don’t keep it in plastic bags to avoid humidity build-up.
2.9 DISPOSAL
Electrical products should not be discarded with household products. According to the
European Directive 2012/19/EU on waste electrical and electronic equipment and its
implementation into national law, electrical products used must be collected separately and
disposed of at collection points provided for this purpose. Talk with your local authorities or
dealer for advice on recycling.
BATTERY PACK
This product contains Li-ion. To preserve natural resources, please recycle or dispose of batteries
properly. Local, state or federal laws may prohibit disposal of Li-ion batteries in ordinary trash.
Consult you local waste authority for information regarding available recycling and/or disposal
options.

2.10 DELARATION OF CONFORMITY
Serial number: 20210603656-20210603955
is in conformity with the essential requirements and other relevant provisions of the applicable European
Directives, based on the application of European harmonized standards.Any unauthorized modification of
the apparatus voids this declaration.
European Directives (including, if applicable, their amendments up to the date of signature);
Rohs directive 2011/65/EU + (EU) 2015/863
2014/30/EU
2006/42/EC
Cugnaux, 25/05/2021
Philippe MARIE / PDG
Responsible of the technical file: Mr Olivier Patriarca
LVD Directive 2014/35/UE
European harmonized standards
EN 60745-1:2009+A11:2010
EN60745-2-3:2011+A2:2013+A11:2014+A12:2014+A13:2015
EN55014-1:2017; EN55014-2 :2015
EN62233:2008
EN 60335-2-29:2004+A2:2010+A11:2018
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019
EN 61000-3-2:2014
EN 61000-3-3:2013
EN55014-1 : 2017 + A11:2020
BUILDER SAS
32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that,
Product: Angle Grinder 20V
Trade mark: HYUNDAI
Model: HPACK20V2A4

3. CORDLESS IMPACT DRILL
3.1 INTENDED USE
The power tool is intended for driving and drilling through wood, metal, plastics and masonry. Not suitable
for professional use.
WARNING! Read this manual and general safety instructions carefully before using the
appliance, for your own safety. Your power tool should only be passed on together with
these instructions.
3.2 AFETY INSTRUCTIONS
3.2.1 GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings, instructions, illustrations and specifications provided with
this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious
injury.Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the
risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not
use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a
dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce
personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power
source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from
moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these
are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and
ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool
will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from
the power tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects, that can make a connection from one terminal to
another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may
exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature
above 130 °C may cause explosion.
NOTE The temperature „130 °C“ can be replaced by the temperature „265 °F“.
g) Follow all charging instructions and do not charge the battery pack or tool outside the
temperature range specified in the instructions. Charging improperly or at temperatures outside the
specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the
manufacturer or authorized service providers.
3.2.2 DRILL SAFETY WARNINGS
−Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
−Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting
accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed
metal parts of the power tool "live" and could give the operator an electric shock.
3.2.3 SAFETY INSTRUCTIONS WHEN USING LONG DRILL BITS
a) Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the
bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
b) Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher
speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in
personal injury.
c) Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend
causing breakage or loss of control, resulting in personal injury.
3.2.4 SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGER
Batteries
Never attempt to open for any reason.
Do not store in locations where the temperature may exceed 40°C (104°F).
Charge only at ambient temperatures between 4°C and 40°C(39.2°F and 104°F).
Charge only using the charger provided with the tool.
Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in discharged
state.
It is better for Li-ion batteries to discharge and reload them regularly (at least 4 times a year). The
ideal charge for long-term storage of your Li-ion battery is 40% of capacity.
When disposing of batteries, follow the instructions given in the section “Protecting the
environment”.
Do not cause short circuits. If connection is made between the positive (+) and negative (-) terminal
directly or via accidental contact with metallic objects, the battery is short circuited and an intense
current will flow causing heat generation which may lead to casing rupture or fire.
Do not heat. If batteries are heated to above 100°C (212°F), sealing and insulating separators and
other polymer components may be damaged resulting in electrolyte leakage and/or internal short
