ENGLISH
Table of Contents
General Information
Important Tip/Image Sticking Precaution ...............................1
Safety Precaution .................................................................2
Contents of the Package .......................................................6
Products Sold Separately ......................................................6

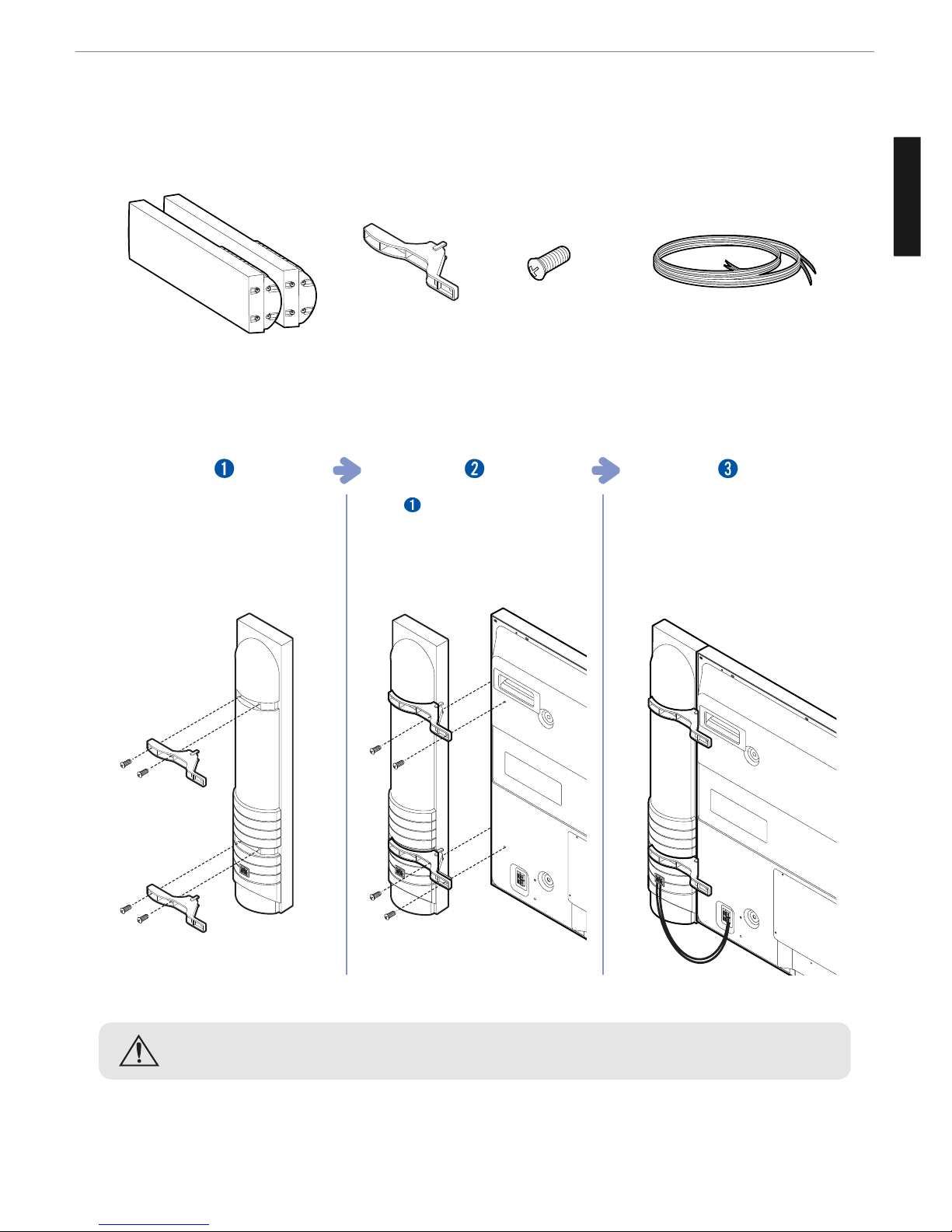

How to Mount and Detach The Speakers (26”/32” LCD TV) ...7
How to adjust the view angle (26”/32” LCD TV) ....................8
Kensington Lock Anti-theft Device (26”/32”/40” LCD TV).......8
How To Install Desktop Stand (42”/50” PDP TV) ....................9
How To Use Speakers (42”/50” PDP TV) .............................10

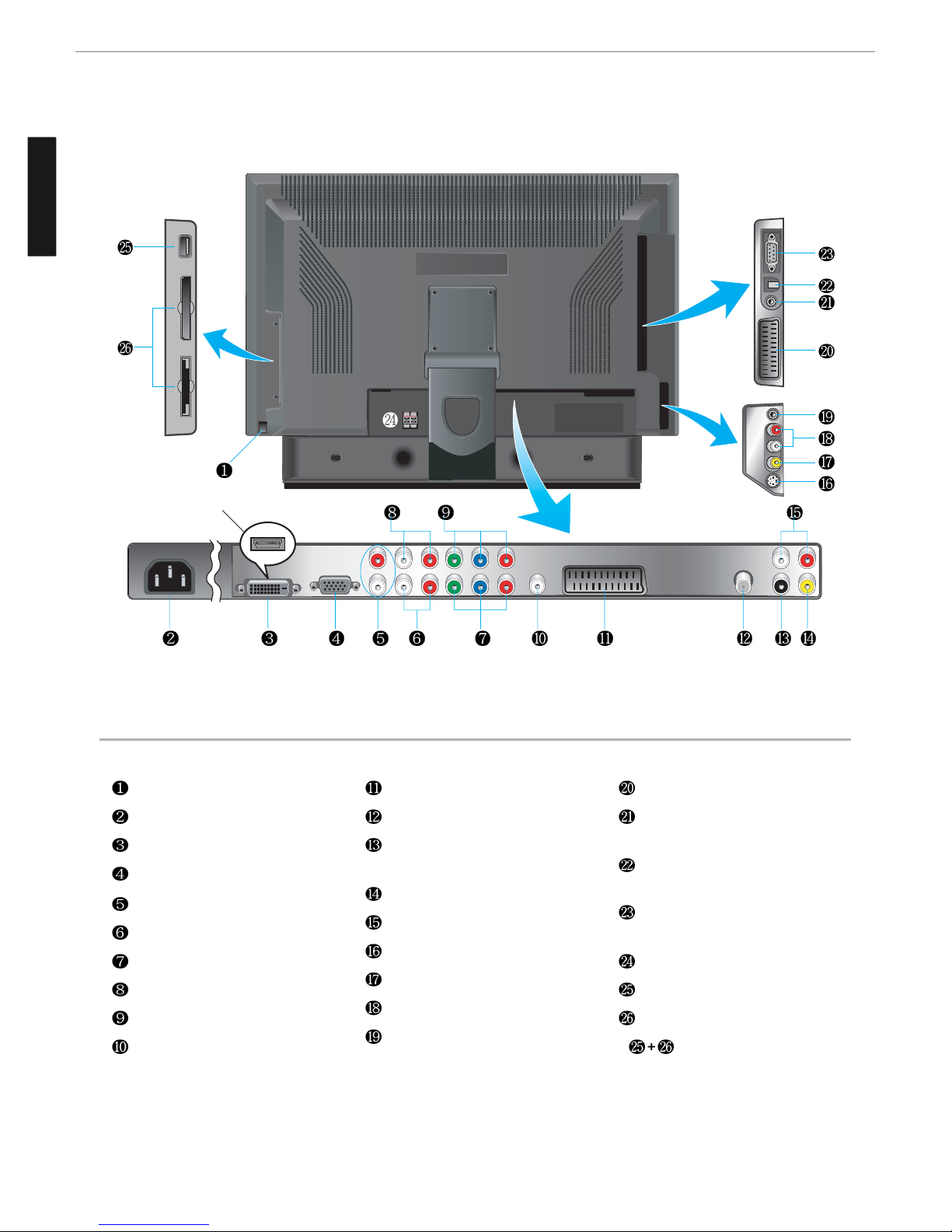

Parts Names and Functions (26”/32” LCD TV) ....................12
Parts Names and Functions (40” LCD TV) ...........................14

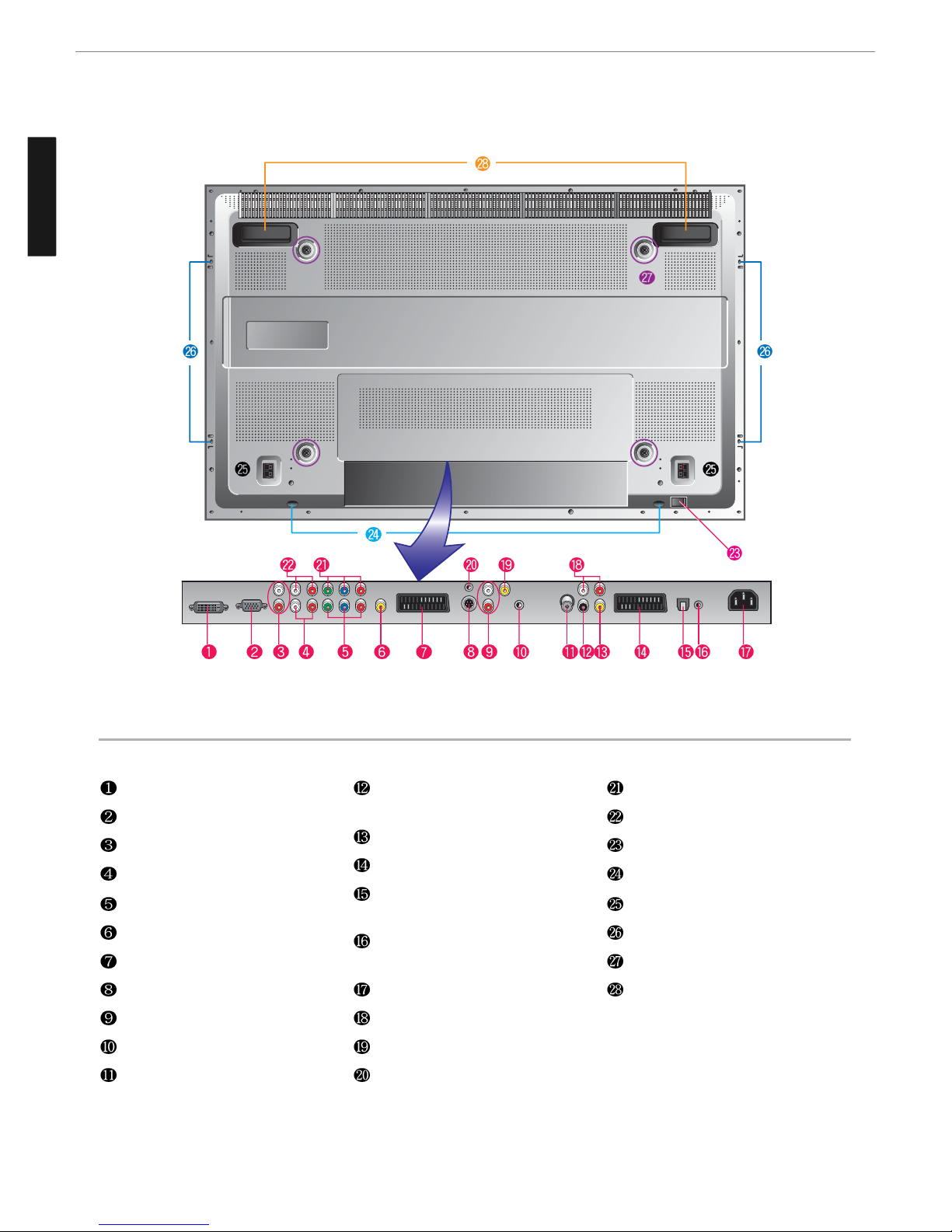

Parts Names and Functions (42”/50” PDP TV) ....................16
Remote Control ...................................................................18
Connections
Connecting Indoor/Outdoor TV Antenna(UHF/VHF) ...............20
Connecting Antenna Input Connection to
External Equipments ...........................................................20
Before Connecting the Video/Audio Connections to
External Devices... .............................................................21
How to Connect a DTV Receiver or DVD Player ....................21
How to Connect a VCR, Cable Receiver, Camcoder,
Game Player .......................................................................22
How to Connect to a PC ......................................................22
Scart Connection to the External Input/Output .....................23
HDMI Connection (For HDMI model only) ............................24
How to Set the OSD Screen ................................................25
Picture Setup
How to Select the Picture Mode ..........................................26
How to Set the Desired Picture ...........................................26
How to Set the Desired Picture in PC, DVI,
HDMI Input Modes ..............................................................27
How to Select a Color Temperature .....................................27
How to Set the Display Scale ..............................................28
How to Set Noise Reduction ................................................28
How to Set Film Mode .........................................................29
How to Set Image Adjust in PC Mode ..................................29
Sound Setup
How to Select the Audio Mode ............................................30
How to Adjust the Desired Audio Mode ..............................30
How to Select AVL ..............................................................31
How to Select S. Mode ........................................................31
How to Select TruSurround XT ............................................32
How to Set the Output of Subwoofer ...................................32
How to Select Earphone ......................................................33
Channel Setup
Automatic Program Searching ............................................34
Manual Program Searching .................................................34
How to Set the Program Edit ...............................................35
Using the LNA(Low-Noise-Amplifier) Feature ......................36
Function Setup
How to Set PIP/TWIN ...........................................................36
How to Set Key-Lock ..........................................................37
Using the Pixel Shift / Full White (Only for the PDP model) ...38
Choosing the Your Languages .............................................39
How to Set Teletext in ATV .................................................39
Selecting Teletext Display Options in ATV Mode ..................40
How to Set Clock, Sleep Time, ON/OFF Time .......................41
DTV Setup
How to Search Automatically ..............................................42
How to Search Manually .....................................................42
How to Check Tuner State ..................................................43
How to Use the Guide (EPG : Electronic Program Guide) ......44
How to Select Channel List .................................................45
How to Set Favorite Channel ...............................................45
How to Use Channel List Mode ...........................................46
How to Lock Channel ..........................................................46
How to Set the Channel Order .............................................47
How to Delete Channel .......................................................47
How to Add Channel ...........................................................48
How to Factory Set .............................................................48
How to TV/RADIO switching ................................................49
How to Subtitle / Audio .......................................................49
How to Select Channel / Information ...................................50
How to Set Teletext in DTV .................................................50
How to Use Memory Mode .............................51
Appendix
How to Use an External Device Using the Remote Control ...59
Troubleshooting ..................................................................61
Product Specifications ........................................................63

1
General Information
ENGLISH
Image Retention Effect (Image Sticking)
1. Cause :
- Image Retention Effect may come from displaying a still picture in a certain period of time with at a certain
area continuously, as feature of Panel. This is caused due to brightness degradation. Many Panel
manufacturers are trying to overcome this limitation.
2. Prevention
- To avoid this matter, use the product after reducing brightness and contrast, especially when a still image is
displayed for a long time.
Once an image retention occurs, use the mode that displays motion. It will reduce this matter.
- Use the fuction, Pixel Shift in still image, in our PDP products. (For more details, see the below page 38)
3. Solution
- The temporary image sticking would decrease with displaying Full-White pattern during 10 hours.
* The permanent image sticking could not take off under the latest technology.
This method may be used to eliminate a temporary retained image that occurs after displaying a still image in a
certain period of time. Since it may take several minutes to several hours to remove image sticking, it is
recommendable to display motion pictures during 2~3 minutes every hour when keeping displaying a still
image. As image sticking is influenced by the brightness of a still image being displayed and its display time, it
is recommended to reduce the brightness of the screen.
* Image Sticking does not come under the warranty.
When watching a still Image within motion pictures and Wide/Zoom1/Zoom2
/14:9/4:3 screen
1. Note :
- When the central area of the screen and the screen edges are fixed, the different brightness level of
the edges may cause image retentions on the edges when watching for a long time
- This phenomenon happens also to products from other manufacturers. Please avoid to watch a still
image for a long time.
- If you watch a still image for a long time, this may damage your TV.
* This matter does not come under the warranty.
Wide,Zoom1, Zoom2, 14:9, 4:3
screen
Box still image
Important Tip
Image Sticking Precaution

2
General Information
ENGLISH
Safety Precaution
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
Do not connect multiple electrical
appliances to a single outlet.
- It may cause a fire due to overheating from
the outlet.
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV, be sure the antenna or
cable system is grounded so as to provide some protection against voltage surges
and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA
No.70-1984, provides information about proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.

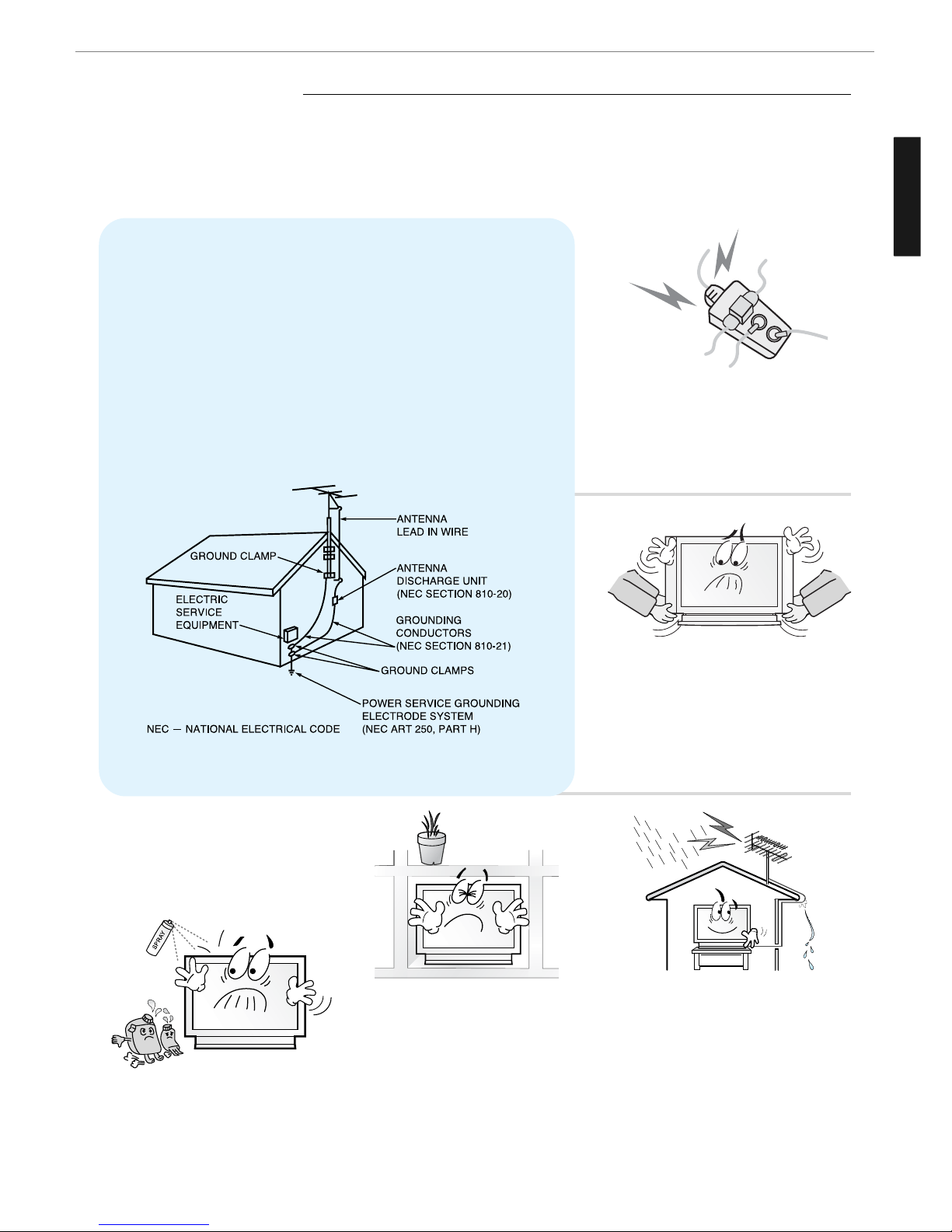

Example of Grounding According to National Electrical Code
Instruction
Do not use or store a flammable
spray or inflammable things near the
TV.
- They may cause explosion or fire.
Do not install the TV in a
bookshelf, closet, or a place with
poor air circulation.
- Fire may be caused due to the rise of
internal temperature.
Make sure to remove the speakers
before moving the TV with speakers
mounted on it.
- When the speakers are detached from the
unit while carrying it, this may cause damage
to the unit or personal injury.
Any necessary action such as making the
antenna cable loop at the entrance of the
building should be taken to prevent rainwater
on the outdoor antenna cable from possibly
running indoor.
- If raindrop gets into the TV, it may cause a
fire or an electric shock.

3
General Information
ENGLISH

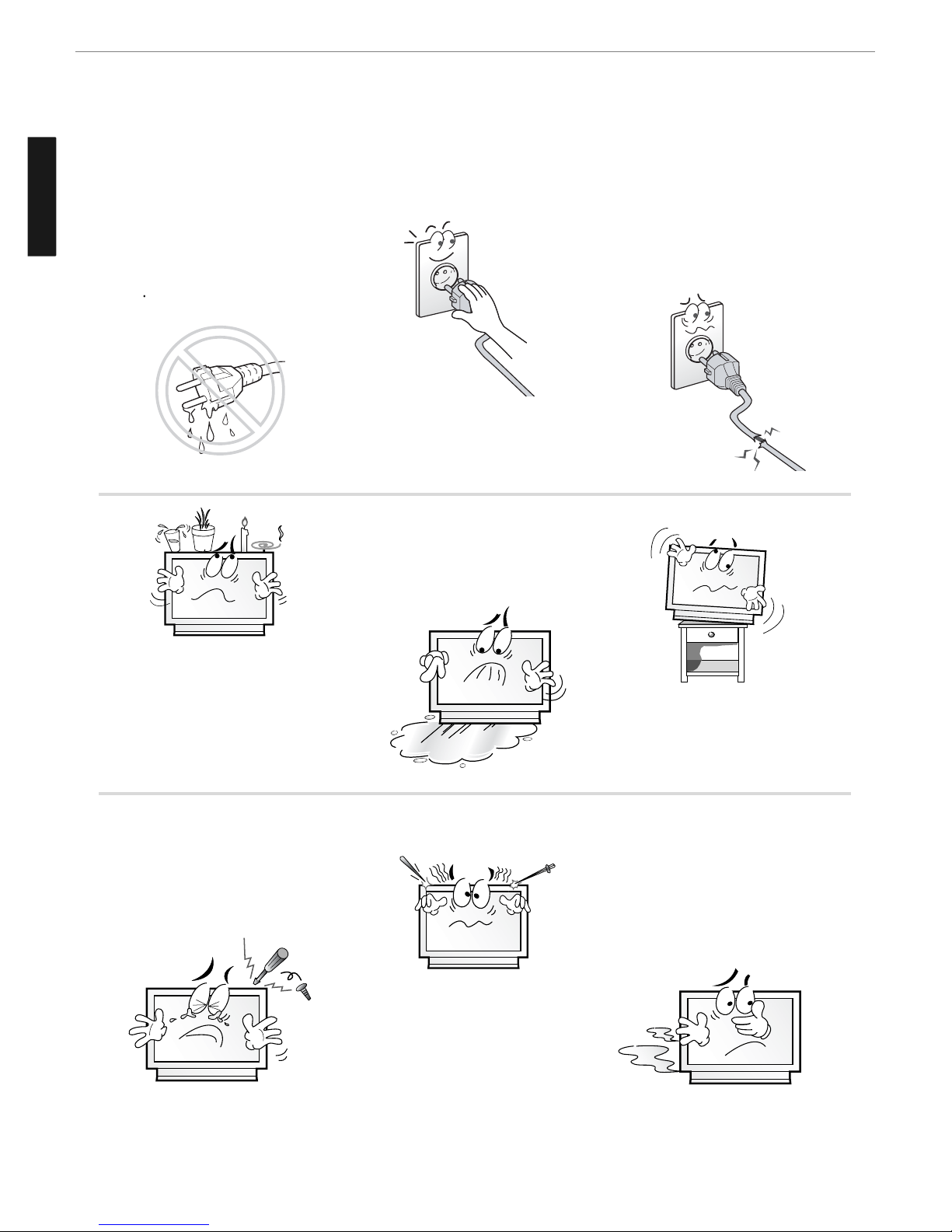

Safety Precaution ......................................................................................Continued from previous page
The contents of this section are provided for the safety of users and their property.
Please read the instructions carefully before using.
If there is a persistent accumulation
of dusts or water on the plug, please
make sure to wipe it off using a dry
cloth.
- It may cause a fire or an electric shock.
Firmly plug in the power cord so that
it does not pull out.
- An unstable connection may cause fire.
Do not use a damaged power cord
or plug, or loose outlet.
- It may cause electric shock or fire.
Do not put a water bowl, vase,
candle, bug repellant smoke,
cigarette, plants, or heavy thing on
the TV.
- It may cause electric shock or fire and also
heavy things may cause injury when they
fall.
Do not install in a place where there
is oil, smoke, excessive humidity, or
where water may be sprinkled on it.
- This may cause electric shock or fire.
Do not install on an unstable place
or small support.
- This may cause the TV to fall, resulting in
serious injury especially to children.
Never attempt to open, fix, or modify
your TV.
- When there is a need for fixing, call a
service center. Fire or electric shock may be
caused.
Do not put a metallic object like chopstick,
wire, or puncher or inflammables like paper
or a match in a vent, headphone jack, or AV
jacks of the TV.
- Electric shock or fire may be caused.
When the TV produces abnormal noise,
burning smell, or smoke, unplug the TV
immediately and call a service center.
- Electric shock or fire may be caused.
