i-onyx VN-855V4 AND User manual

Vicon part number 8009-8181-03-00 Rev 1107 Section 1/3
XX181-03-00
VN-855V4 AND VN-855V4-C
VN-855DNV4 AND VN-855DNV4-C
VN-855WDRV4 AND VN-855WDRV4-C
IP CAMERAS
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not
be used for this purpose.
Warning: To prevent fire or shock hazard, do not expose the unit to rain
or moisture.
Copyright © 2007 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
ViconNet, Kollector and their logos are registered trademarks of Vicon Industries Inc.
I-Onyx and its logo is a trademark of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NY 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288)
TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44 (0) 1489-566300 WEB: www.vicon-cctv.com

FCC Notice
Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a
Class A digital device.
WARNING
This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in
strict accordance with the manufacturer’s instruction, may cause interference to radio and television
reception. It has been type tested and found to comply with the limits for a Class A computing device in
accordance with the specification in subpart B of part 15 of the FCC rules, which are designed to provide
reasonable protection against such interference in a commercial installation. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
•Reorient the receiving antenna.
•Relocate the equipment with respect to the receiver.
•Relocate the equipment away from the receiver.
•Plug the equipment into a different electrical outlet so that the equipment and receiver
are on different branch circuits.
If necessary, the user should consult the dealer or an experienced radio/television technician for additional
suggestions.
The user may find the following booklet prepared by the Federal Communications Commission helpful:
“Interference Handbook, Bulletin CIB-2”
This booklet is available from the U.S. Government Printing Office, Superintendent of Documents, Mailstop
SSOP, Washington, D.C. 20402-9328, ISBN 0-16-045542-1.
Warning: Power must be removed from this unit before removing circuit modules or ribbon cables.
Caution: This unit contains circuit cards with integrated circuit devices that can be damaged by static
discharge. Take all necessary precautions to prevent static discharge

XX181-03-00 Rev 1107 VN-855V4 IP Camera
i
Contents
Important Safeguards ...................................................................................................................................... i
Precautions.......................................................................................................................................................2
Connectors and Controls ............................................................................................................................... 3
OSD Menu for VN-855WDR............................................................................................................................. 8
ViconNet Configuration. ............................................................................................................................... 15
Shipping Instructions.................................................................................................................................... 25
Coaxial Cable Recommendations................................................................................................................ 26
Twisted-Pair Cable ........................................................................................................................................ 27
Network Cable................................................................................................................................................ 28
Technical Information................................................................................................................................... 29
Vicon Standard Equipment Warranty.......................................................................................................... 31

XX181-03-00 Rev 1107 VN-855V4 IP Camera
i
Important
Safeguards
GRAPHIC SYMBOL EXPLANATION
The lightening bolt symbol alerts the user to the presence of
dangerous voltage that may present the risk of electric shock.
The exclamation point symbol alerts the user to the presence
of important operating and maintenance instructions.
1. Read Instructions - Read all safety and operating
instructions before the product is operated.
2. Retain Instructions - Retain all safety and operating
instructions for future reference.
3. Heed Warnings - Pay attention to all product warnings.
4. Follow Instructions - Follow all operating instructions.
5. Cleaning - (Do not use caustic, abrasive or aerosol
cleaners)
For units that CAN BE DISCONNECTED from the power
source, use a damp cloth for cleaning.
For units that CANNOT BE DISCONNECTED from the power
source, use a damp cloth for cleaning and do not allow
moisture or liquids to enter vents.
6. Attachments - Use only Vicon recommended attachments
to prevent unit damage and personal injury.
7. Water and Moisture - Use only products designed for
outdoor environments where they will be exposed to water or
moisture.
8. Accessories - Do not place the unit on an unstable surface
to avoid falling. Use only Viconrecommended mounting accessories.
9. Ventilation - Do not block ventilating slots and openings as
they ensure reliable operation. Do not place the unit near a
heat source or into an enclosure unless recommended by
Vicon.
10. Power Sources - The product should only be operated
from the recommended power source. If not specified, consult
your Vicon dealer or local power company.
11. Grounding - Only products equipped with a 3-prong
grounded plug should be inserted into a grounded power outlet.
Contact an electrician to replace an obsolete outlet. Do not
force a plug into a non-grounded outlet.
12. Power Cord Protection - Power supply cords should not
be routed in trafficked areas or in tight spaces where they will
be pinched or used to bear weight. Allow some slack in the
cord where it enters the unit.
13. Outdoor Cable Grounding - Use only grounded outdoor
cables to protect against voltage surges and static charges.
Section 810 of the National Electrical Code, ANSI/NFPA 70-
1984, provides information on proper grounding of the lead-in
wire to an antenna discharge unit, size of grounding
conductors and the requirements of grounding electrodes.
14. Lightning - Disconnect the product from its power source
and cable system when possible to prevent damage due to
lightning and power-line surges.
15. Power Lines - Do not locate outside cables over power or
utility lines where they can fall and make direct contact.
Contact with power lines can be fatal.
16. Overloading - Do not overload wall outlets and extension
cords to prevent risk of fire and electric shock.
17. Object and Liquid Entry - Never probe through, or spill
liquid into, enclosure openings to prevent risk of fire or electric
shock.
18. Servicing - Refer all servicing to qualified service
personnel.
19. Damage Requiring Service - Obtain service when:
The power-supply cord or plug is damaged.
Objects have fallen or liquid has been spilled into the product.
The product is not designed for outdoor use and has been
exposed to water or moisture.
The product does not operate per the operating instructions.
Perform Vicon recommended adjustments, modifications and
troubleshooting only to avoid unit damage and personal injury.
The product has been dropped. The product shows a
significant change in performance.
20. Replacement Parts - Use only Vicon specified
replacement parts or an approved equivalent to prevent unit
damage and injury.
21. Safety Check - Request safety checks to be performed
following repair or maintenance to verify proper operation.
22. ESD Precaution - Take all normal electrostatic discharge
precautions to avoid component damage during installation
and operation.
23. For 230 VAC Devices- When the disconnect device is not
incorporated in the equipment or when the plug on the power
supply is intended to serve as the disconnect device, follow
the guidelines below:
For permanently connected 230 VAC units, a readily
accessible disconnect device must be incorporated into the
site wiring.
For 230 VAC units with a plug, the outlet must be installed
near the unit and be easily accessible.

XX181-03-00 Rev 1107 VN-855V4 IP Camera
2
1. Installation of the camera must be performed by qualified service personnel in accordance with all
local and national electrical and mechanical codes.
2. Do not attempt to disassemble the camera. In order to prevent electric shock, do not remove screws
or cover. There are no user-serviceable parts inside.
3. Handle the camera with care. The camera could be damaged by improper handling or storage.
4. Do not expose the camera to rain or moisture, or try to operate it in wet areas. Take immediate
action if the camera becomes wet. Turn the power off and refer servicing to qualified service
personnel. Moisture can damage the camera and also create a danger of electric shock.
5. Do not use strong or abrasive detergents when cleaning the camera body.
Use a dry cloth to clean the camera when dirty. In a case where the dirt is hard to remove, use a
mild detergent and wipe gently.
6. Never point the camera toward the sun. Whether the camera is used outdoors or not, never point it
toward the sun. Use caution when operating the camera in the vicinity of spot lights or other bright
lights and light reflecting objects.
7. Do not operate the camera beyond its temperature, humidity or power source ratings.
Do not use the camera in an extreme environment where high temperature or high humidity exists.
Use the camera under conditions where temperatures are between 14°F~122°F (-10°C~+50°C), and
humidity is below 85%. For the correct power supply, refer to the specification sheet.
8. If using 24 VAC power adapter, only use the 24 VAC UL Listed Class 2 power transformer.
9. Only use a Listed Class 2 power source.
Caution: To prevent fire or shock hazard, UL listed wire VW-1, style 1007 should be used for the
cable.

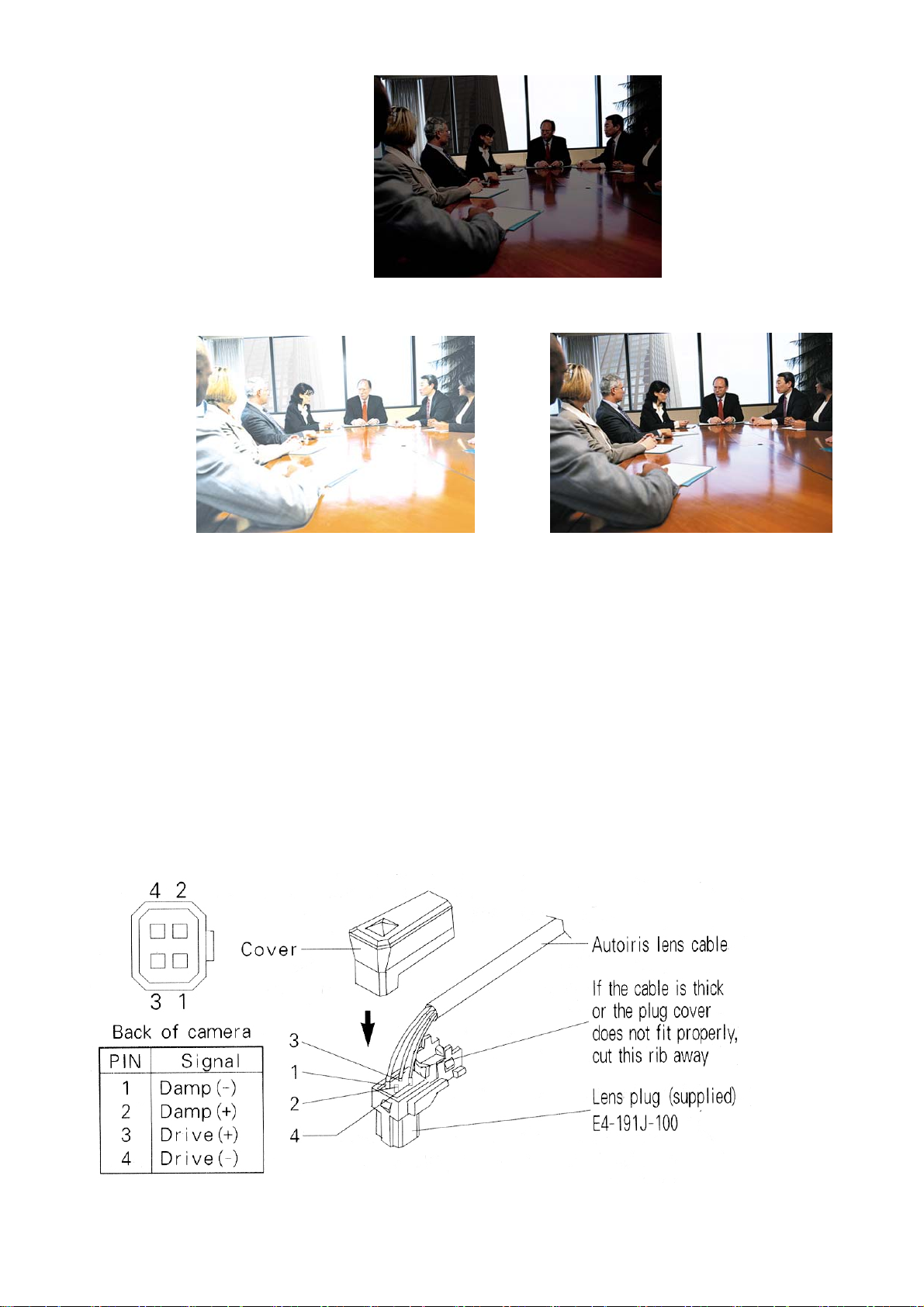

1. Iris lens connector plug for DC drive – 1 pc
2. Dust protective cap – 1 pc
3. Ferrite clamp – 2 pc (WDR only)
4. Power connector – 1 pc
5. 6-pin alarm/mic connector – 1 pc
The I-Onyx™ VN-855 is an integrated camera that captures digital video as well as converts analog video
to digital video and transmits the video over the ViconNet®network (using Version 4 software). The
VN-855 delivers up to 30 fps.
PRECAUTIONS
PACKING LIST

XX181-03-00 Rev 1107 VN-855V4 IP Camera
3
[High-Resolution Model VN-855]
[Day/Night Model VN-855DN]
[WDR Model VN-855WDR]

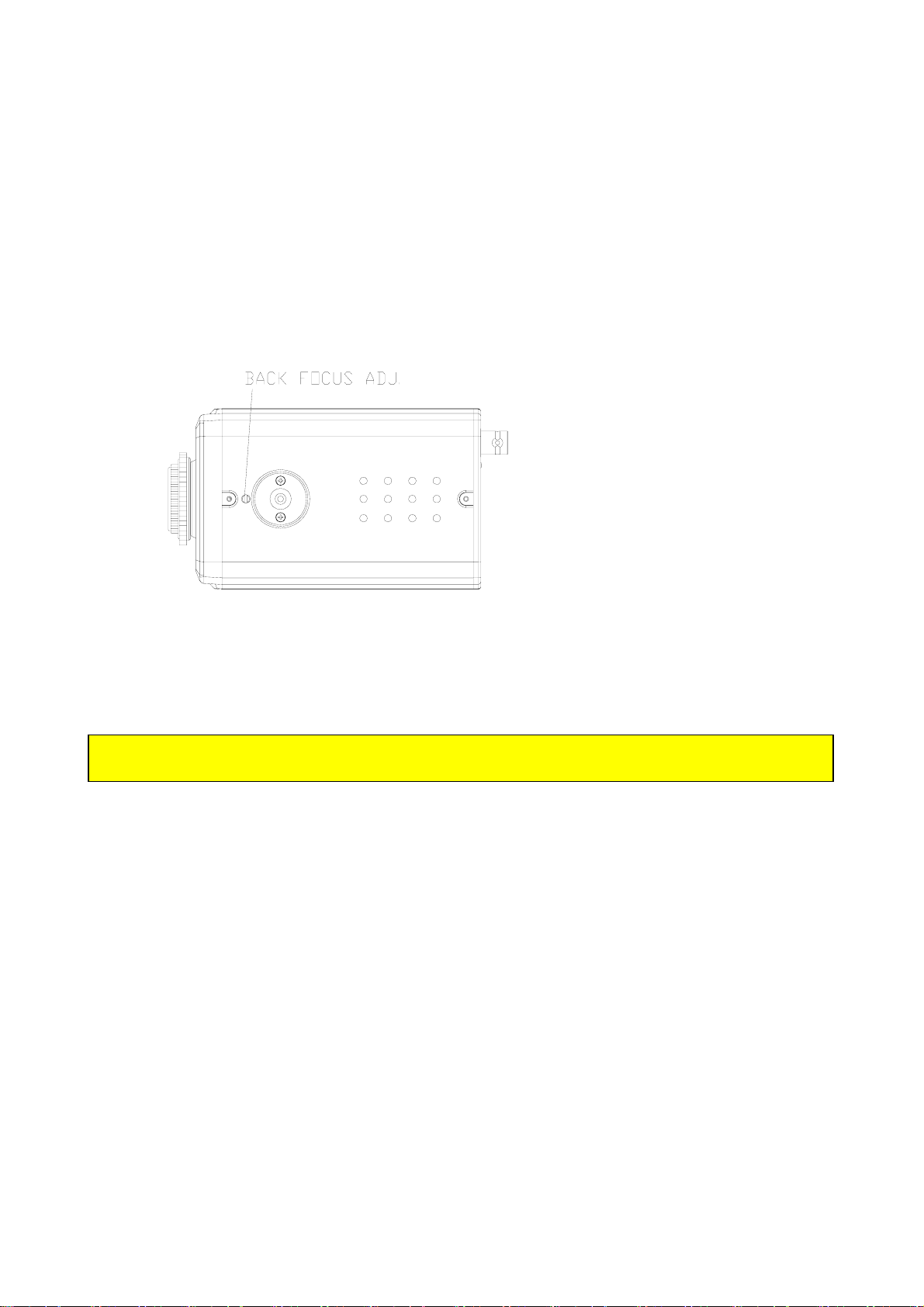

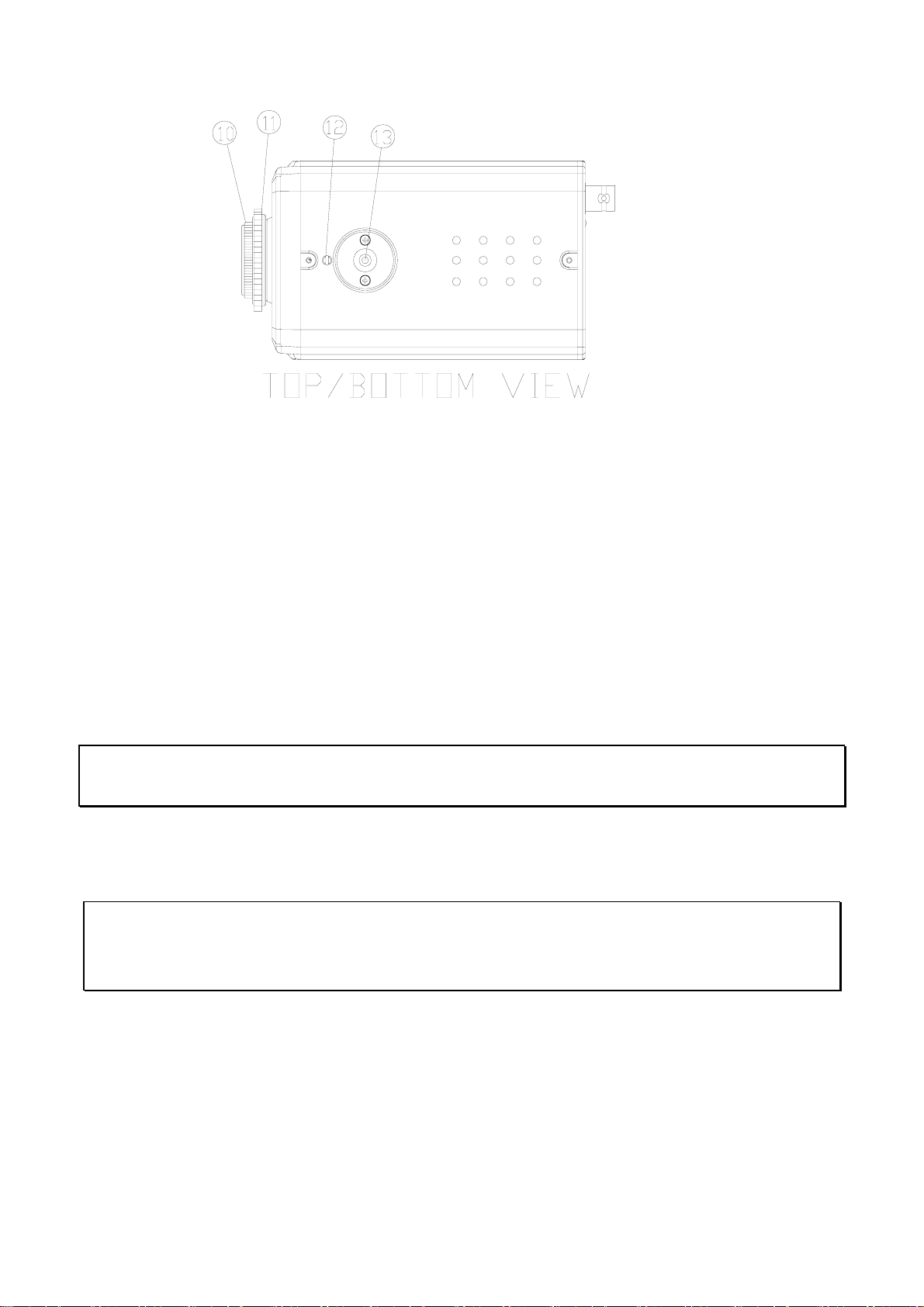

CONNECTORS AND CONTROLS

XX181-03-00 Rev 1107 VN-855V4 IP Camera
4
1. ETHERNET (Network Port)
Connects to Internet, Ethernet (10Base-T/100Base-T). There are 2 LEDs on the RJ-45 connector. The
green LED indicates that there is connection to the Network. The amber LED indicates Network activity
(data flowing to the camera). This connection also provides PoE (Power over Ethernet). When using
PoE, a PoE device, such as the NETSWITCHPOE-24, is required.
2. STATUS
This LED indicates that the camera IP board is live. If the camera is live, the blue LED blinks.
3. ALARM (Alarm Input) and AUDIO (Microphone)
This terminal block input provides 1 alarm and 1 audio input to the camera.
ALARM (Alarm Output) can be defined in the ViconNet application as a relay. It can be set as ON-High,
OFF – Low or Momentary (momentarily ON).
Note: To connect to a relay device, the electrical specifications are: open-drain output accepts voltages up to
5.5 V, 24 mA output drive at 3.3 V, non-inductive.
4. VIDEO OUT (CH1)
1.0 V p-p/75 ohm composite video signal is provided at this BNC connector.
5. MODE SELECT SWITCH – (This switch varies according to model)
Note: The VN-855WDR can be set up through an OSD menu system; refer to the section that follows for
programming the camera. The camera defaults to DIP switch settings. The PRIORITY setting in the
SPECIAL menu must be set to REMOTE in order to set the OSD settings.
1. ELC/ALC Select Switch
This switch is used to select ELC (electronic light control)/EE (electronic exposure) mode or
ALC (automatic light control)/AI (autoiris lens) mode. Pole 4 is set to ON for EE/ELC and OFF for
AI/ALC.
In the EE/ELC mode, a continuously variable electronic shutter is employed to automatically
control the exposure time of the CCD image sensor according to the incoming light level. With this

XX181-03-00 Rev 1107 VN-855V4 IP Camera
5
mode selected, a fixed or manual iris lens can be used instead of an autoiris lens. In the AI/ALC
mode, the CCD shutter speed is fixed to 1/60 (NTSC, 1/50 PAL) sec, and the incoming light level
is controlled by the autoiris lens. When using a DC-drive type of autoiris lens, set this switch to the
AI/ALC position.
Cautions:
1) Under bright lighting conditions such as a sunny day outdoors, use an autoiris lens; the EE/ELC
control range is not wide enough under these conditions.
2) Under certain unique lighting conditions, the following phenomena may appear:
Strong smear and/or blooming on high light objects such as spotlights or windows.
Noticeable flicker in the picture and/or color rendition variations.
To avoid this, use an autoiris lens.
3) When operating in EE/ELC mode with a manual iris lens, the depth of field of the image may be
less than that obtained by using an AI/ALC lens. Depth of field varies inversely with the iris opening.
Thus, using this camera in ELC mode with the manual iris lens fully opened may result in less depth
of field and the distant objects in the picture may be seen out of focus.
Note: When adjusting the focus, it is recommended that the iris be completely open (a dark condition, either
at night or using a filter) so that the depth of field does not influence the adjustment.
4) Fixed iris or manual iris lenses may be used with the linear shutter (EE/ELC mode) when the
scene brightness varies over a limited range.
5) Do not use the EE/ELC mode when an autoiris lens is installed.
2. FLK (flickerless) ON/OFF Switch
This function is only used in Japan. When set to ON, the shutter speed is fixed at a rate of
1/100 (120) sec.
3. BLC (Backlight Compensation) ON/OFF Switch OR WDR (Wide Dynamic Range) ON/OFF Switch
(VN-855WDR only)
If the subject being viewed is too dim because of a bright background, set the BLC switch (Pole 3)
to ON to compensate for the bright background. With BLC on, the background brightness may
saturate in some cases. This function may not operate properly if the object is too small compared to
the area of the background. This function can be used with either the linear shutter (EE/ELC mode)
or an autoiris lens (AI lens/ALC mode). For the VN-855WDR, the Wide Dynamic Range (WDR) function,
which provides the best contrast for high quality images, can be turned ON or OFF.

XX181-03-00 Rev 1107 VN-855V4 IP Camera
6
WITHBLC/WDROFF
WITH BLC ON WITH WDR ON
4. AGC (Automatic gain Control) ON/OFF
This switch is provided for the AGC circuit. The AGC circuit incorporated into the camera boosts the
sensitivity automatically when the scene illumination is insufficient.
5. AGC MAX ON/OFF Switch OR DAY/NIGHT ON/OFF Switch (VN-855DN only)
The automatic MORE-GAIN function automatically adjusts picture gain in accordance with the brightness
of the subject. This function is enabled when set to ON. For the VN-855DN camera, the day/night
function can be turned ON or OFF.
6. AUTOIRIS LENS CONNECTOR FOR DC DRIVE LENS
This connector supplies the control signals to the DC drive autoiris lens.

XX181-03-00 Rev 1107 VN-855V4 IP Camera
7
7. ALC LEVEL ADJUSTMENT POTENTIOMETER FOR DC DRIVE LENS
This potentiometer is used only if the camera is fitted with a DC drive autoiris lens. It is used to control
the amount of light striking the CCD image sensor.
Monitor Screen LEVEL Control Direction
To increase the brightness Clockwise
To decrease the brightness Counterclockwise
8. POWER IN (24 VAC)
This terminal accepts 24 VAC power source. Recommended power supply is minimum 9 W (when not
using PoE).
Caution: To prevent fire or shock hazard, UL Listed wire VW-1, style 1007 should be used for the
cable for 24 VAC input terminal.
9. POWER INDICATOR LED
This LED turns ON only when power is supplied and the DC-DC converter (or the regulator) inside the
camera works properly or PoE is functioning.
10. CCD DUST PROTECTIVE CAP
Remove this cap before installing the lens. Do not handle or leave the camera with cap off.
12. BACKFOCUS ADJUSTMENT
This is used to position the CCD image sensor at the precise point of focus the lens.
Backfocusing Fixed-Focal-Length Lenses
1. Install a lens and connect the camera to a monitor and power supply.
2. Open the iris completely. If an autoiris lens used, reduce the room lighting to allow the lens to open
completely. This gives the most accurate results.
3. Adjust the screw slowly until the sharpest picture is obtained. This completes the adjustment. The
backfocus adjustment screw is held in place by friction, so there is no locking screw.
Backfocusing Zoom Lenses
1. Install a lens and connect the camera to a monitor and power supply. If the lens is motorized, it must
also be connected to a lens control.
2. Position the camera 25~50 feet (8~16 meters) from a flat vertical surface suitable for focusing. A
newspaper works well as a focusing target.
LENS-IRIS level control

XX181-03-00 Rev 1107 VN-855V4 IP Camera
8
3. Open the iris completely. If an autoiris lens used, reduce the room lighting to allow the lens to open
completely. This gives the most accurate results.
4. Zoom the lens in to the maximum telephoto setting. Adjust the optical focus of the lens using the
remote lens control.
5. Zoom out to the maximum wide angle setting. If the picture is no longer in focus, readjust the
backfocus screw.
6. Repeat steps 4~6 until the image remains sharp through the entire zoom range.
This completes the adjustment. The backfocus adjustment screw is held in place by friction, so there
is no locking screw.
13. CAMERA MOUNTING HOLE
There are two mounting holes provided, one each on the top and bottom of the camera.
Settings for the VN-855WDRV4 camera can also be done from an OSD menu system after the camera is
setup in the ViconNet system (ViconNet setup procedure follows). Refer to the most current ViconNet
manual, XX113-0X, for detailed instructions on using ViconNet.
Configuration of the VN-855WDR is done by activating the PTZ driver as SurveyorVFT default
configuration (4800 bps). Be sure the most current PTZ driver is installed. After configuration is
completed, the driver MUST BE DISABLED to prevent confusion about PTZ functions of this
fixed camera during operation.
Enter Preset 94 to enter the menu system. Use AP to make submenu selections, AI to escape submenus,
Pan Left/Right to make changes/selections and Tilt Up/Down to move the cursor in the menu system and
navigate between menus. When using the mouse to set parameters that have a large range of settings,
clicking and holding the mouse will scroll quickly through the numbers.
OSD MENU SET UP FOR VN-855WDRV4 CAMERA

XX181-03-00 Rev 1107 VN-855V4 IP Camera
9
Menu Flow Chart
Caution: In order to change setting values in the menus, first set PRIORITY to REMOTE on
SPECIAL menu. The SPECIAL menu must be set to REMOTE before menu items are set for them to
take effect.
DAY/NIGHT
(COLOR/BW)
LENS
(MANUAL/DC)
WDR
(OFF/BLC/WDR)
AWB
(ATW1/ATW2/AWC/MANUAL)
SPECIAL
EXIT
(QUIT/SAVE/PRESET)
ELC level setting
BLC level and zone setting
SHUTTER SPEED, AGC, FLICKERLESS setting
SHUTTER SPEED, AGC, FLICKERLESS setting
MANUAL RED, BLUE value setting
BLEMISH, PRIORITY, POSI/NEGA, SHARPNESS
WDR level setting
BLC
WDR
BW
MANUAL
MANUAL
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
Main Menu
COLOR

XX181-03-00 Rev 1107 VN-855V4 IP Camera
10
LENS
-Select according to lens type:
Manual Iris Lens: Manual mode
DC Drive Lens: DC mode
-When WDR function is set to ON, mode changes to DC mode, and DC Iris level cannot be setup.
DC Drive Lens
-In Lens menu, select DC using Tilt Up/Down and press AP key. When in DC mode, settings are
done using to Level control potentiometer on the camera.
Manual Iris Lens
-In Lens Menu, select MANUAL using Tilt Up/Down and press AP key.
-In the following screen, adjust the brightness level using Pan Left/Right.
WDR (Wide Dynamic Range)
WDR
-Using this function, both the indoor and outdoor scenes display clearly.
-Select WDR using Tilt Up/Down and press AP key. Select the Level with Pan Left/Right.
BLC (Backlight Compensation)
-In general, Iris is adjusted for a bright area, so the face of a person who stands against a bright
area appears dark.
(ELC)
LEVEL 80
(WDR)
LEVEL 74
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
LENS MANUAL4
WDR WDR
DAY/NIGHT COLOR4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select

XX181-03-00 Rev 1107 VN-855V4 IP Camera
11
-With BLC function, the face displays clearly.
-In the WDR Menu: Select BLC and press AP key.
In the screen that follows, select “Level” and “Area” (Right, Left, Top, Bottom).
The WDR function can be set to OFF.
Day/Night
Color
-In this mode, video output is always color, regardless of illumination.
-In Day/Night Menu: Select Color and press AP key. In the following screen, select Shutter (speed),
AGC (Level) and Flickerless (ON/OFF). Shutter and Flickerless settings are available in Lens DC
mode only. Otherwise the display as N.A.
When Manual mode is selected in Lens Menu, set up of Shutter and Flickerless is not available.
-Shutter mode: Supports 9 levels between 1/100 sec ~ 1/50,000 sec.
-AGC mode: Automatic Gain can be setup as High/Low/Off using Pan Left/Right. In a dark
environment, when AGC gain is set to high, the image becomes brighter.
-Flickerless mode: When ON, shutter speed is fixed at 1/100 sec.
(COLOR)
SHUTTER N.A.
AGC HIGH
FLICKERLESS N.A.
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
(WDR)
LEVEL 3
AREA RIGHT
LENS MANUAL4
WDR BLC
DAY/NIGHT COLOR4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select

XX181-03-00 Rev 1107 VN-855V4 IP Camera
12
Black-and-White (BW)
-In this mode, video output is black-and-white (without IR filter), regardless of illumination.
-This function is useful in a dark environment and is the same as using a black-and-white camera.
-Day/Night Menu: Select BW and enter Preset 94.
In the screen that follows, select Shutter (speed), AGC (Level), and Flickerless (ON/OFF).
AWB
-White Balance function can be setup according to environment.
-In AWB menu, 4 levels (ATW1, ATW2, AWC, Manual) can be setup.
ATW 1
-White Balance is automatically adjusted in the range of 2500K~7500K degrees.
ATW 2
-White Balance is automatically adjusted regardless of the range of color temperature.
(BW)
SHUTTER OFF
AGC HIGH
FLICKERLESS OFF
LENS MANUAL4
WDR OFF
DAY/NIGHT BW4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB ATW1
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB ATW2
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select

XX181-03-00 Rev 1107 VN-855V4 IP Camera
13
AWC
-This function is used to set the best color temperature in the current environment.
If camera has full white screen in front of white paper, and AP key is pressed,
the camera is fixed at the best color temperature. “Wait” displays while it sets.
-When the environment is changed, new settings are needed using the same method.
Manual
-White Balance can be directly adjusted by user.
-In Manual mode, press AP key to get following screen.
-In R Gain and B Gain modes, the value of Red and Blue can be controlled using the keypad.
Considering the change of color, select proper values and fix color temperature.
Caution: Auto White Balance function can work incorrectly in high temperature (bright sky, sunset),
darkness, or drastic change of light.
(MANUAL AWB)
R GAIN 68
B GAIN 64
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB AWC
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB WAIT
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
LENS MANUAL4
WDR OFF
DAY/NIGHT COLOR4
AWB MANUAL
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select

XX181-03-00 Rev 1107 VN-855V4 IP Camera
14
SPECIAL
-In Special menu, if AP key is pressed, Blemish, Priority, Posi/Nega, and Sharpness can be
adjusted.
Blemish
Blemish Mode is selectable between ON and OFF using Pan Left/Right.
When BLEMISH is “ON”, it compensates for pixels with uneven light levels (white spots).
Caution: Before selection of Blemish ON, lens must be covered so the sunlight is blocked to the
CCD.
Priority
Set Priority using Pan Left/Right on Priority Mode. Set to Remote to use the OSD menu system. (This
must be set before making any other menu selections for the settings to take effect.) When setting to
DIP SW, menu setting values will not be applied. Use the DIP switch on the rear of the camera for
settings.
POSI/NEGA
In Posi/Nega mode, brightness of video shows (+: normal, -: reverses to negative image).
Sharpness
In Sharpness mode, outline of video image can be controlled.
At high level, outline is clear; however, when level is too high, noise can occur.
(SPECIAL)
BLEMISH OFF
PRIORITY DIP SW
POSI/NEGA +
SHARPNESS 96
Use AI to exit
LENS MANUAL4
WDR BLC
DAY/NIGHT COLOR4
AWB AWC
SPECIAL 4
EXIT QUIT
Use ▲▼◀▶, AP to select
