iBell RH28-101 User manual

1

2
1. GENERAL POWER TOOL SAFETY WARNINGS __________
2. ROTORY HAMMER SAFETY WARNINGS________________
3. PRODUCT OVERVIEW _________________________________
4. PRODUCT SPECIFICATIONS ___________________________
5. SETUP _________________________________________________
6. PRODUCT FUNCTIONS AND ASSEMBLY________________
7. GENERAL OPERATION ________________________________
8. TROUBLESHOOTING __________________________________
TABLE OF CONTENTS
IBL RH28-101
3
6
7
8
9
10
13
15

3
Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power
tools create sparks which may ignite the dust or fumes.
Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control.
Power tool plugs must match the outlet. Never modify the plug
in any way. Do not use any adapted plugs with earthed(grounded)
power tools. Modified plugs and un-matching outlets will increase
the risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep it away from heat, oil, sharp edges
or moving parts.
When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. Save all warnings and
instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool
WORK AREA SAFETY
ELECTRICAL SAFETY
IBL RH28-101

4
Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs or alcohol. A moment of
inattention while operating power tools may result in serious
personal injury.
Use personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-skid safety shoes,
hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-
position before connecting to power source and/or battery pack,
picking up or carrying the tool.
Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the
power tool may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected
situations.
Dress properly, say no to loose clothing or jewellery. Keep your
hair, clothing away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and
properly used. Use of dust collection can reduce dust-related
hazards.
Have your power tool serviced by a qualified repair-person
using only identical replacement parts.This will ensure that the
safety of the power tool is maintained.
When servicing a power tool, use only identical replacement
parts. Follow instructions in the maintenance section of this
manual. Use of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
PERSONAL SAFETY
IBL RH28-101
SERVICE

5
Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and
off. Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
Store idle power tools out of the reach of children and do not
allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users.
Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
Keep handles and grasping surfaces dry, clean and free from oil
and grease. Slippery handles and grasping surfaces do not allow
for safe handling and control of the tool in unexpected situations.
Even if you are operating this product in accordance with all the
safety requirements, potential risks of injury and damage remain.
The following dangers can arise:
Health defects resulting from vibration emission if the product is
being used over long periods of time or not adequately managed
and properly maintained.
Injuries and damage to property due to broken cutting attachments
or the sudden impact of hidden objects during use.
Danger of injury and property damage caused by other objects or
due to natural reactions or calamities.
POWER TOOL USE AND CARE
IBL RH28-101
RESIDUAL RISKS

6
Wear ear protectors. Exposure to noise can cause hearing loss.
Use auxiliary handle supplied with the tool. Loss of control can
cause personal injury.
Hold power tools by insulated gripping surfaces when
performing an operation where the cutting tool may contact
hidden wiring or its own cord. Contact with a “live” wire will make
exposed metal parts of the tool “live” and shock the operator.
Use clamps or other practical way to secure and support the
work piece to a stable platform. Holding the work by hand or
against your body is unstable and may lead to loss of control.
Wear safety goggles or other eye protection. Hammering
operations cause chips to fly. Flying particles can cause permanent
eye damage. Wear a dust mask or respirator for applications that
generate dust. Ear protection may be required for most
applications.
Keep a firm grip on the tool at all times. Do not attempt to
operate this tool without holding it with both hands. It is
recommended that the auxiliary handle be used at all times.
Operating this tool with one hand will result in loss of control.
Breaking through or encountering hard materials such as
reinforcing bar may be hazardous as well. Tighten the auxiliary
handle securely before use.
Do not operate this tool for long periods of time. Vibration
caused by hammer action may be harmful to your hands and arms.
Use gloves to provide extra cushion and limit exposure by taking
frequent rest periods.
Do not recondition bits yourself. Chisel reconditioning should be
done by an authorized specialist. Improperly reconditioned chisels
could cause injury.
Wear gloves when operating tool or changing bits. Accessible
metal parts on the tool and bits may get extremely hot during
operation. Small bits of broken material may damage bare hands.
ROTORY HAMMER SAFETY WARNINGS
IBL RH28-101

7
PRODUCT OVERVIEW
1. SDS Plus Chuck/Tool Holder
2. Mode Adjustment knob with button
3. ON/OFF Switch
4. Auxiliary Handle
5. Grease box cover
IBL RH28-101

8
Rated voltage
Rated Input Power
Rated no load speed
Weight
Impact rate at nominal speed
Impact energy per stroke
Vibration level
SDS plus Chuck capacity
Max Drill performance
Protection class
: 220V~50Hz
: 1000W
: 750 rpm
: 4.85 Kg
: 4000/min
: 5 J
: 27 m/s2
: 26 mm
: Class II
IBL RH28-101
PRODUCT SPECIFICATIONS
: Concrete –28 mm
Stone –28 mm

9
Unpack all parts and lay them on flat, stable surface. Remove all
packing materials. Make sure the delivery contents are complete
and free of any damage. If you find that parts are missing or
show damage, do not use the product but contact your dealer.
Using an incomplete or damaged product represents a hazard to
people and property.
Ensure that you have all the accessories and tools needed for
assembly and operation. This also includes suitable personal
protective equipment.
A Rotary hammer is a power tool that can perform heavy-duty
tasks such as hammer-drilling and chiselling hard materials. It is
similar to a hammer drill in that it also pounds the drill bit in and
out while it is spinning. However, rotary hammers use a piston
mechanism instead of a special clutch. This causes them to
deliver a much more powerful hammer blow, making it possible
to drill bigger holes much faster.
For safety reasons it is essential to read the entire instruction
manual before first operation and to observe all the instructions
mentioned in it.
SETUP
UNPACKING AND ENSURING
WARNING! The product must be fully assembled before
operation! Do not use a product that is only partly assembled or
assembled with damaged parts! Follow the assembly instructions
step-by-step and use the pictures provided as a visual guide to easily
assemble the product! Do not connect the product to power supply
before it is completely assembled!
INTENDED USE
IBL RH28-101

10
Mode
Description
Hammering only: for light
chipping, chiselling and
demolition applications. In
this mode the tool can also be
used as a lever to free a
jammed drill bit.
Hammer-drilling: for concrete
and masonry drilling
operations.
PRODUCT FUNCTIONS AND ASSEMBLY
IBL RH28-101
To start the tool, simply press the trigger switch
(3). Tool speed is increased by increasing
pressure on the switch trigger. Release the trigger
switch to stop.
ON/OFF TRIGGER SWITCH AND LOCK BUTTON
WARNING! Before plugging in the tool, always
check that the switch trigger actuates properly and
returns to the "OFF" position when released.

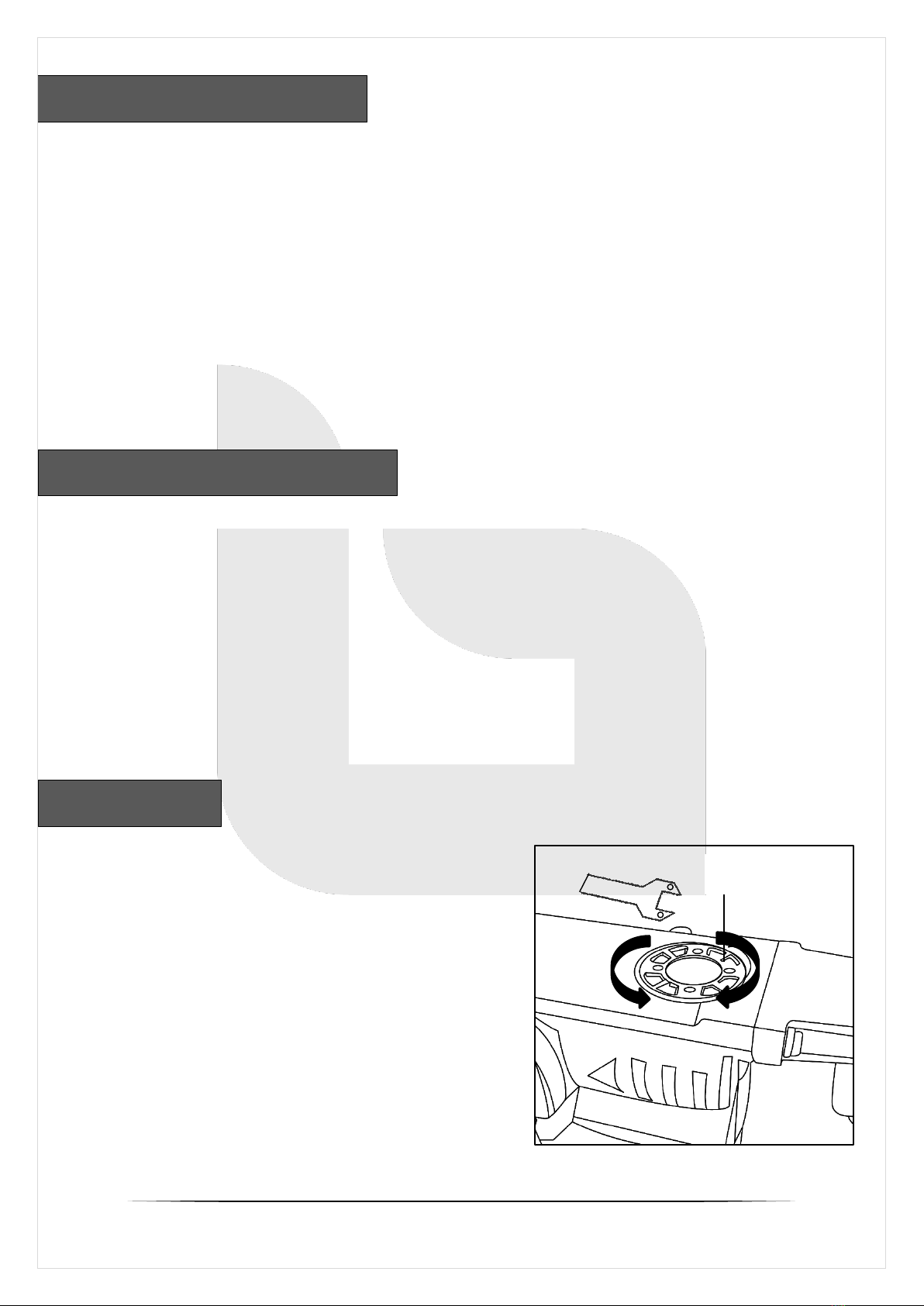

MODE ADJUSTMENT
It is possible to adjust the mode operation knob (2) to hammering
or hammer-drilling operations. To select the operating mode, press
the button on the knob first, then turn the knob until it points to
the required mode. Release the mode selector and check that it is
locked in place.
Never change the mode while the rotary hammer is in running.
3

11
Proper hand position requires one hand
on the side/auxiliary handle (4), while
other hand on the main handle.
Always use the auxiliary handle.
The auxiliary handle can be fitted to
suit both right-handed and left-handed
users.
Loosen the auxiliary handle.
Slide the auxiliary handle clamp over
the collar behind the tool holder.
Rotate the auxiliary handle to the
desired position and tighten the handle.
This tool uses SDS Plus accessories (a cross-section of an SDS Plus
bit shank is shown).
INSERTING AND REMOVING SDS PLUS ACCESSORIES
SDS Plus shank
cross-section
AUXILIARY HANDLE
IBL RH28-101

12
INSERTING/REMOVAL OF BIT:
Insert the bit shank into the SDS Plus tool holder. Push the bit
down and turn it slightly until it fits into the slots.
Pull on the bit to check if it is properly locked. The hammering
function requires the bit to be able to move axially several
centimetres when locked in the tool holder.
To remove a bit, pull back the holder sleeve and pull out the bit.
When boring penetrating large hole use the core bit (for light load)
with the core bit shank provided.
Mount the core bit to the core bit shank. Lubricate the thread of the
core bit shank to facilitate disassembly. Mount the core bit shank to
the rotary hammer. Then suitable drill or chisel bit can be inserted.
When inserting and removing the core bit assembly, turn OFF the
switch and disconnect the plug form the power receptacle.
IBL RH28-101

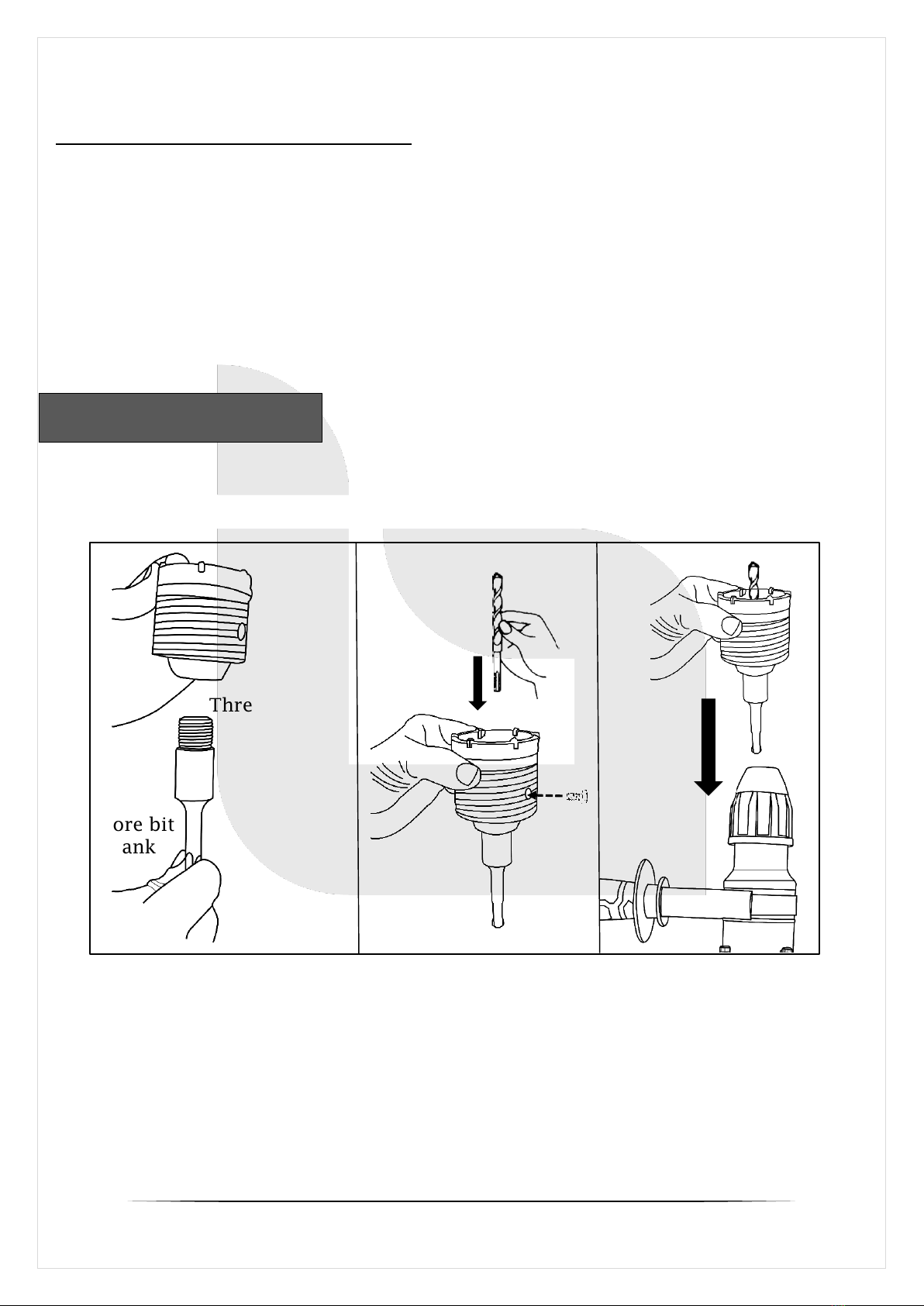

FITTING THE CORE BIT
Core bit
Thread
Core bit
Shank
Drill bit
I II III

13
Set the mode adjustment knob to ‘hammer-drilling’ position for
concrete and masonry drilling operations.
Always operate the tool using both the handles. Always hold the
product perpendicular to the point to be drilled.
Always place the drill tip directly on the point to be drilled first
and then switch the product on.
Pre-drill larger holes with a small diameter drill bit first. Doing so
makes drilling with a larger diameter drill bit easier. Do not
‘always’ drill at top speed.
Switch off the tool when work is finished before unplugging.
Set the mode adjustment knob to the ‘Hammering only’ position
for chisel work using hammering. Follow the same procedures
mentioned above.
GENERAL OPERATION
HAMMER-DRILLING
NOTE: Always switch the product off, disconnect the product from the
power supply and let the product cool down before performing
inspection, maintenance and cleaning work! Only perform repairs and
maintenance work according to these instructions! All further works
must be performed by a qualified specialist!
IBL RH28-101
HAMMERING
WARNING! Applying force more than necessary will not only
accelerate the work at all, but will worsen the tip edge of the drill bit
and reduce the service life of the rotary hammer in addition.
Always apply pressure to your drill bit in a straight line, and if
possible at right angles to the work piece.
Never change the operating mode while the rotary hammer is still
running.

14
Do not use chemical, alkaline, abrasive or other aggressive
detergents to clean this product as they might be harmful to its
surfaces. Regular and proper cleaning will help ensure safe use
and prolong the life of the product. Clean the product with a
dry cloth. Use a brush for areas that are hard to reach.
Always store the product in a place that is inaccessible to
children. We recommend using the original package for storage
or covering the product with a suitable cloth or enclosure to
protect it against dust.
Before and after each use, check the product and accessories (or
attachments) for wear and damage.
Inspecting the drill bits; Since use of a dull tool will cause motor
malfunctioning and degraded efficiency, replace the drill bits
with a new one or re-sharpen when abrasion is noted.
This product does not contain any parts that can be repaired
by the consumer. Contact an authorised service centre or a
similarly qualified person to have it checked and repaired.
CLEANING AND STORAGE
MAINTENANCE AND REPAIR
IBL RH28-101
LUBRICATION
5
This power-tool is grease-lubricated.
A grease refill is only required during
hammer work efficiency is low. Open the
grease box cover (5) at the top of the
hammer using the pin spanner wrench
provided. Then refill the grease provided
with your tool.
Always check there is sufficient grease
in the grease box before usage.

15
Suspected malfunctions are often due to causes that the users can
fix themselves, therefore check the product using this section. In
most cases the problem can be solved quickly.
Problem
Possible Cause
Solution
1. Product does
not start
1.1 No power supply
1.2 Product damaged
1.3 Other electrical
defect to the
product
1.1 Check the plug on
the power supply
1.2 Check it by an
electrician
1.3 Check it by an
electrician
2. Unsatisfactory
result
2.1 Drill bit is worn
2.2 Drill bit not
suitable for
intended operation
2.1 Replace with a new
one
2.2 Use suitable driver
bit
3. Product
suddenly
stops
3.1 Product overloaded
3.1 Remove the
product from
the work-piece and
switch it on again
TROUBLESHOOTING
WARNING! Only perform the steps described within these
instructions! All further inspection, maintenance and repair work must
be performed by an authorised service centre or a similarly qualified
specialist if you cannot solve the problem yourself!
IBL RH28-101

16
Do not dispose this product by normal household waste, but take it to a collection
point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product, user manual or packaging. Re-use, material utilization or
other forms of old appliances, you make an important contribution in protecting our
environment.
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your Local Authority or local store for recycling advice.
CONTACT US
HiTech Machineries & Equipments
IV/540E, Thottumugham, P.O, Aluva
Ernakulam(Dist), Kerala, India- 683105
Toll Free : 1800 103 4090
Whatsapp : [phone]
Website : www.ibelltools.com
Email : [email protected]
