Iberna HUL136.1 User manual

USER MANUAL FOR YOUR
HUL136.1 136 litre
Built-under larder
fridge
NOTE : This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance Please keep it
in a safe place so that it is easily available for future reference, for
you or any person not familiar with the operation of the appliance
DD 26/08/14

2
C ntents
Envir nmental n te 3
Imp rtant safety inf rmati n 4–5
Specificati ns f y ur refrigerat r 6-8
Dimensions 6
Description of the appliance 7
Description of the product features 8
Using y ur refrigerat r 9-10
efore switching on 9
During first use 9
Turning on the appliance and setting the thermostat 10
Arranging and st ring f d in the fridge secti n 11-12
Cleaning and maintenance 12-14
Defrosting the refrigerator compartment 13
Replacing the light bulb 13-14
Installati n 14-24
Electrical connection 14-15
Positioning 15
Aperture and appliance dimensions 16
Supplied installation components 16-17

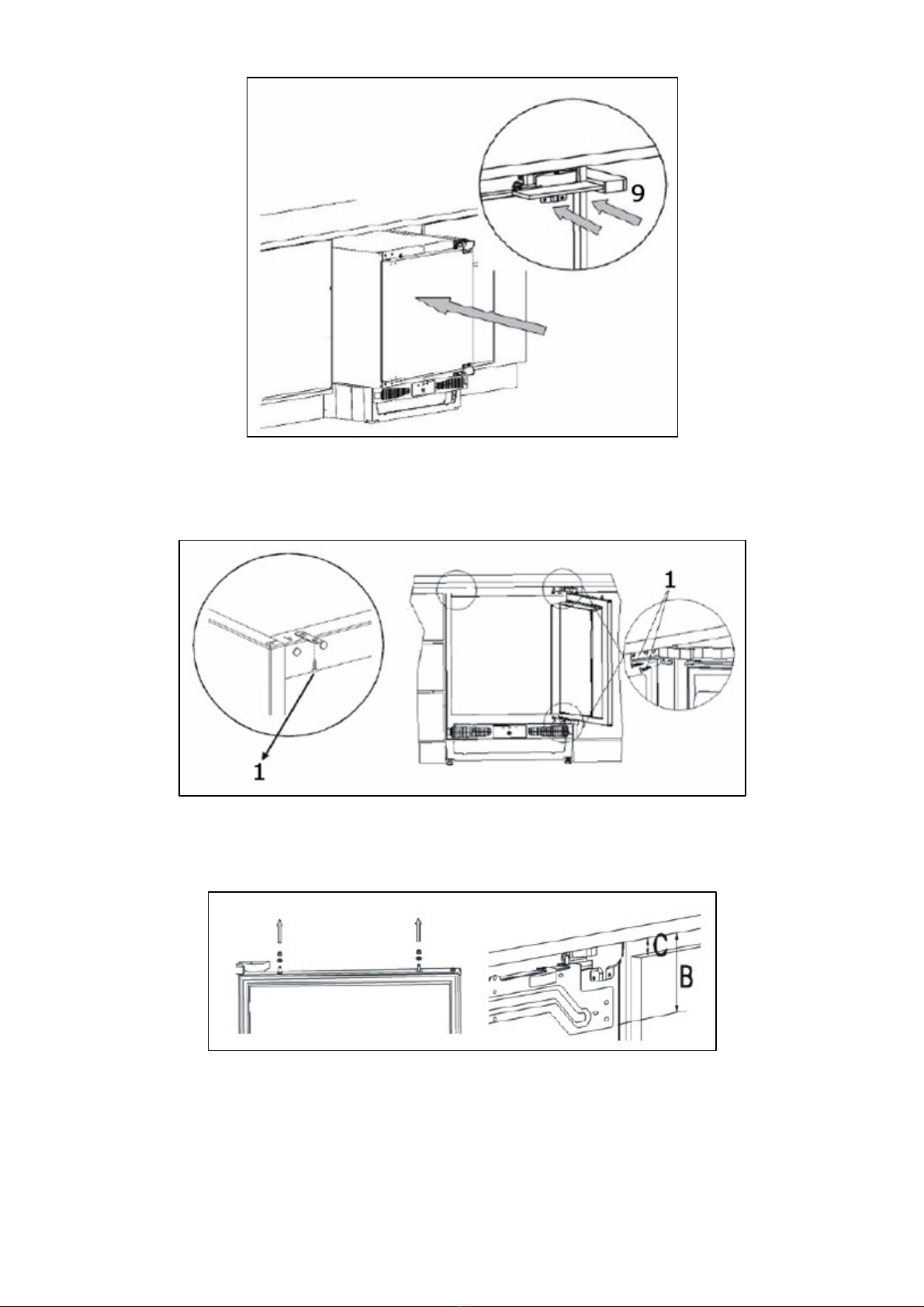

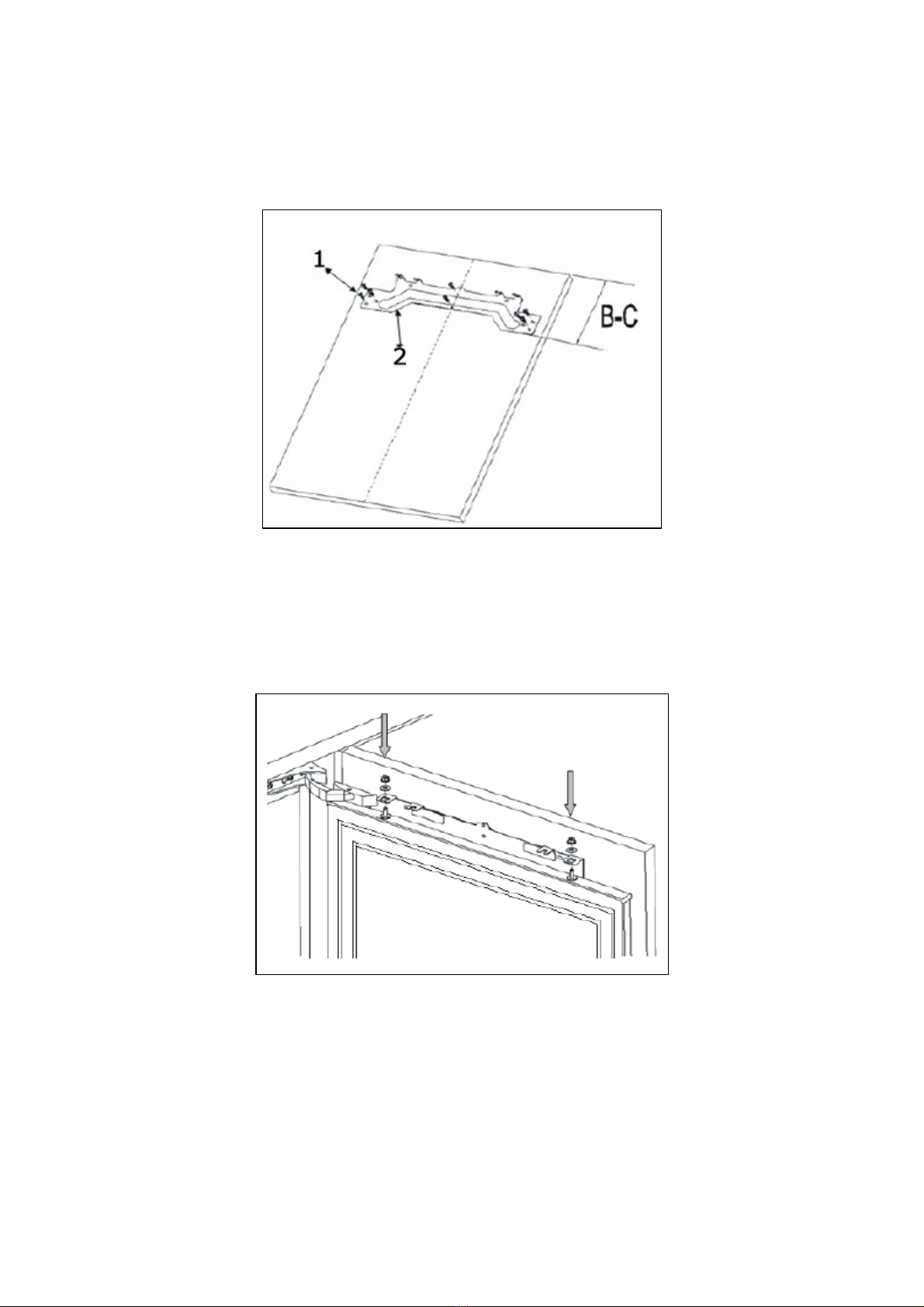

Installing your fridge 17-22
Ventilation requirements 22
Reversing the door of your appliance 23-24
Tr ublesh ting 24-25
Technical data 26
C ntact details 28

3
Envir nmental n te
Note : Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any plug
useless. Cut the cable off directly behind the appliance to prevent
misuse. This should be undertaken by a competent person. Disable
the door lock to make sure that children cannot get stuck inside
the appliance.

4
Imp rtant safety inf rmati n
Your safety is of the utmost importance to us. Please
make sure that you read this instruction booklet
before attempting to install or use the appliance. If
you are unsure of any of the information contained in
this booklet, please contact the Advice Line.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person
Use f the appliance
oYour appliance is only designed to be used in the
home. It is suitable for storing food that needs to
be chilled and refrigerated. If it is used for any
other purpose or it is not used correctly, then the
manufacturer will accept no liability for any
damage that may be caused.
oAltering the specification of the appliance must not be attempted
for reasons of safety.
Bef re using y ur appliance
oCheck the appliance for any signs of transport damage. If you
notice any damage, then you should not connect your appliance
to your mains supply and should contact your retailer.
Refrigerant
oYour appliance contains R600a refrigerant, which is a natural gas
that does not contain CFCs that can damage the environment.
However it is a flammable substance, therefore care should be
taken:
During the transportation and installation of the
appliance, make sure that the refrigeration pipe work
does not get damaged.
If it does become damaged then sources of ignition
and open flames should be avoided. Also the room
that the appliance is situated in should be thoroughly
ventilated.
oDo not place any objects on top of the appliance,
as this may damage the table top.

5
Child safety
oPackaging material should be kept away from
children.
oChildren should not be allowed to touch the
controls or play with the appliance.
General safety
oDo not pull on the power supply cable to remove the plug from
your mains supply socket.
oDo not pull out or insert the plug with wet hands.
oDo not attempt to use your appliance outdoors or
any place where it is likely to come into contact
with the elements.
oefore cleaning the appliance or performing
maintenance work, ensure that the appliance has been
disconnected from your mains supply.
oNever allow the back coils of the appliance to come into contact
with the wall surface.
oAlways ensure that the location where you are installing your
appliance is free of stored items such as papers and other
flammable materials.
oNever block the ventilation openings of the appliance, either on
the inside or its exterior.
oIt is vital to keep your appliance well ventilated,
so that there is proper air flow between the
bottom of the unit and the plinth/kick plate
which it is sitting on.
oDo not place electrical devices inside of the appliance, such as
mixers and electric ice cream makers.
Service
You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Advice Line.
