WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 1
AIO User’s Manual
www.icpdas.com
WF-2000 Series
Wi
-
Fi
I/O
Module

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 2
Warranty
All products manufactured by ICP DAS are under warranty regarding
defective materials for a period of one year from the date of delivery to the
original purchaser.
Warning
ICP DAS assumes no liability for damages resulting from the use of
this product. ICP DAS reserves the right to change this manual at any time
without notice. The information furnished by ICP DAS is believed to be
accurate and reliable. However, no responsibility is assumed by ICP DAS
for its use, or for any infringements of patents or other rights of third
parties resulting from its use.
Copyright
Copyright 2013 by ICP DAS. All rights are reserved.
Trademark
The names used for identification only may be registered trademarks
of their respective companies.
Document Revision
Version Date Description of changes
1.0 2013-11-27 First Release Revision
1.1 2014-03-19 Modify WF-2019 Current Input Wiring
1.2 2014-05-12 Add WF-2026 Product Description

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 3
Table of Contents
1. Introduction.......................................................................................5
1.1 Wireless connection mode ................................................................. 5
1.2 Features............................................................................................. 5
1.2.1 Features Description ........................................................................ 6
1.3 Specifications ..................................................................................... 7
2. Hardware .........................................................................................11
2.1 Front Panel .......................................................................................11
2.1.1 LED Indicator ................................................................................. 12
2.1.2 I/O Connector................................................................................. 12
2.2 Top Panel......................................................................................... 14
2.3 Dimensions ...................................................................................... 15
2.4 Hardware Connection ...................................................................... 17
2.4.1 Power and Serial port connection .................................................. 17
2.4.2 I/O connection ................................................................................ 18
2.5 Jumper Settings ............................................................................... 20
2.5.1 Watchdog Timer Settings ............................................................... 20
2.5.2 AI Settings...................................................................................... 20
2.6 FW / OP Dip-switch.......................................................................... 21
2.6.1 Firmware Update Mode.................................................................. 21
2.6.2 Firmware Operation Mode.............................................................. 23
3. Software...........................................................................................25
3.1 WF-2000 I/O Utility (v2.0 or later) .................................................... 25
3.1.1 Main Screen ................................................................................... 25
3.1.2 Configuration Screen...................................................................... 26
3.1.3 Analog Input Screen....................................................................... 30
4. Application Notes............................................................................36
4.1 Hardware Installation ....................................................................... 36
4.2 WF-2000 series Configuration ......................................................... 37
4.2.1 WF-2000 Series Wireless Network Configuration .......................... 37
4.2.2 PC Connection Configuration......................................................... 38
4.2.3 Access I/O data.............................................................................. 40
5. Modbus Applications ......................................................................44
5.1 What is Modbus TCP/IP?................................................................. 44
5.2 Protocol Description......................................................................... 44
5.2.1 MBAP............................................................................................. 45
5.2.2 Function Code................................................................................ 45
5.2.3 Data................................................................................................ 46

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 4
5.2.4 Response ....................................................................................... 46
5.2.5 Data Encoding................................................................................ 47
5.3 Address Mapping ............................................................................. 48
5.3.1 WF-2017 I/O Address Mapping ...................................................... 48
5.3.2 WF-2019 I/O Address Mapping ...................................................... 48
5.3.3 WF-2026 I/O Address Mapping ...................................................... 49
6. Troubleshooting..............................................................................50
Appendix A. ...........................................................................................52
A.1 Analog Input Type and Data Format Table .................................................... 52
A.2 Analog Output Type and Data Format Table.................................................. 54
A.3 CJC (cold junction compensation) Definition................................................. 55

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 5
1. Introduction
The WF-2000 series I/O modules have WLAN connection complies
with the IEEE802.11b/g standards. With the popularity of 802.11 network
infrastructure, the WF-2000 series I/O modules make an easy way to
incorporate wireless connectivity into monitoring and control systems.
They also support Modbus/TCP and UDP protocol and the network
encryption configuration, which makes perfect integration to SCADA
software and offer easy and safe access for users from anytime and
anywhere.

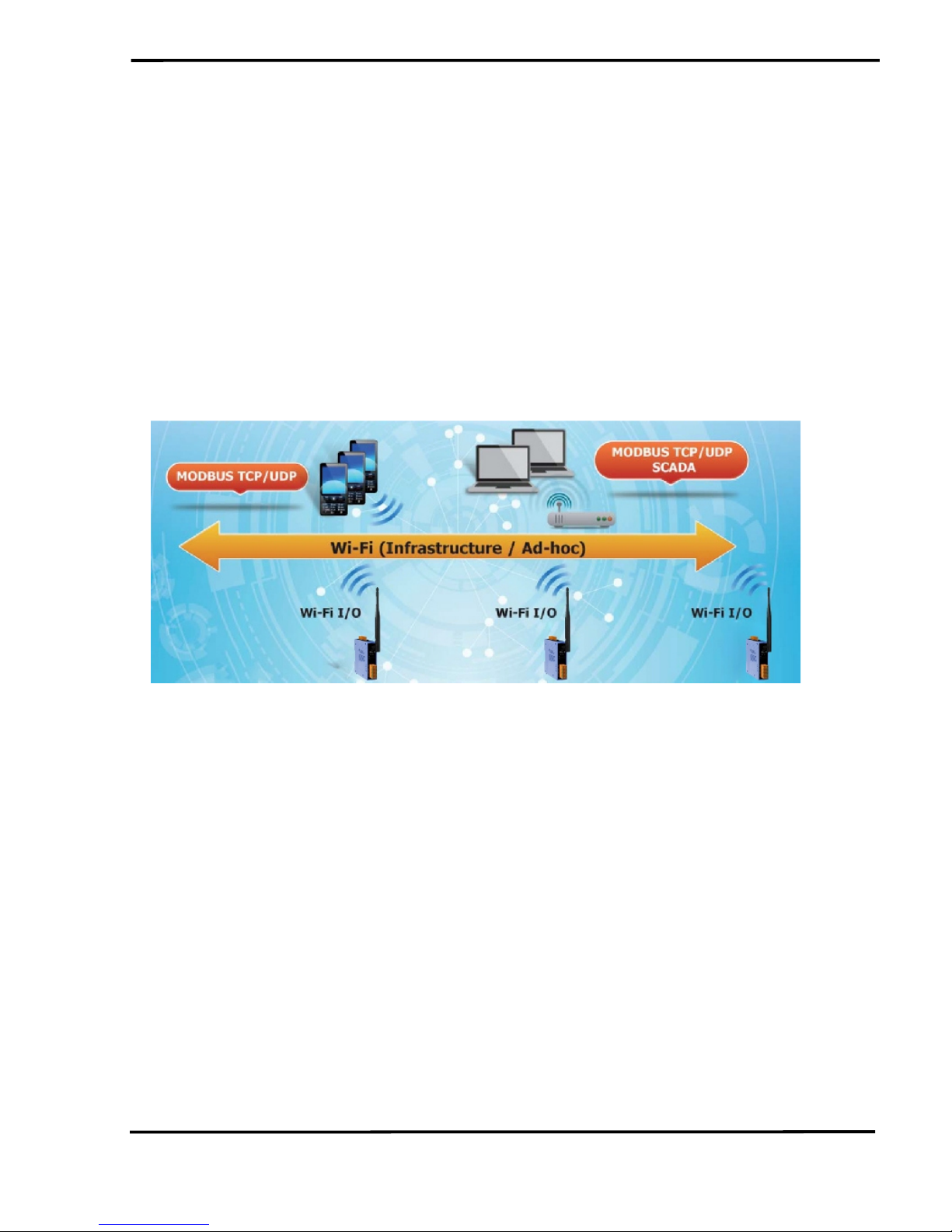

Figure 1-1 Application architecture for the WF-2000 series
1.1 Wireless connection mode
WF-2000 series support AP and Ad-hoc wireless connection modes
of WLAN.
1.2 Features
•RoHS Design
•Compatible with IEEE 802.11b/g standards
•Support infrastructure and ad hoc modes for wireless networks
•Support WEP, WPA and WPA2 wireless encryption
•Support Modbus/TCP and UDP protocols
•Support DHCP network configuration
•Wide operating temperature range
•Built-in Watchdog

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 6
1.2.1 Features Description
The WF-2000 module offers the most comprehensive configuration to
meet specific application requirements. The following list shows the
features designed to simplify installation, configuration and application.
Compatible with IEEE 802.11b/g standards
WF-2000 module complied with IEEE 802.11b/g standard from
2.4~2.5GHz, and it can be used to provide up to 11Mbps for IEEE
802.11b and 54Mbps for 2.4GHz IEEE 802.11g to connect your wireless
LAN.
Support infrastructure and ad hoc modes for wireless networks
Ad hoc mode lets you create a wireless network quickly by allowing
wireless nodes within range (for example, the wireless devices in a room)
to communicate directly with each other without the need for a wireless
access point.
Infrastructure mode is the more common network configuration where
all wireless hosts (clients) connect to the wireless network via a WAP
(Wireless Access Point).
Support WEP, WPA and WPA2 wireless encryption
WEP and WPA are common types of security that are used to protect
wireless networks. When WEP or WPA is turned on, WF-2000 module
uses a special security key combination to allow only devices that know
this key to connect to its wireless network. This applies to laptops, smart
device, or any other wireless device.
Support Modbus/TCP and UDP protocols
The Modbus/TCP and UDP slave function on the WF-2000 module
can be used to provide data to remote HMI/SCADA software built with
Modbus/TCP driver. ICP DAS also provides NAPOPC_ST DA Server for
Modbus/TCP to integrate WF-2000 I/O series real-time data value with
OPC client enabled software.

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 7
Built-in Multi-function I/O
Various I/O components are mixed with multiple channels in a single
module, which provides the most cost effective I/O usage and enhances
performance of the I/O operations.
Built-in Watchdog
Module Watchdog is a built-in hardware circuit that monitors the
operating status of the module and will reset the module if a failure occurs
in the hardware or the software.
1.3 Specifications
Table 1-1 System Specifications
Modules WF-2017 WF-2019 WF-2026
Wi-Fi Interface
Antenna 5 dBi (Omni-Directional)
Output Power 8 dBm @ 11Mbps
Receive Sensitivity -83 dBm @ 11Mbps
Standard Supported IEEE 802.11b/g
Wireless Mode Infrastructure & Ad-hoc
Encryption WEP, WPA and WPA2
UART Interface
Connector 5-pin screw terminal connector(TxD, RxD, GND)
COM1 RS-232
Baud Rate (bps) 115200
Power
Input Voltage Range 10 ~ 30 VDC
Power Consumption 2.0 W 2.2 W 2.2 W
Mechanism
Installation DIN-Rail
Dimensions (H x W x D) 110mm x 106mm x
33mm
110mm x 95mm x
33mm
110mm x 106mm x
33mm
Environment
Operating Temperature -25 ~ +75℃ ℃
Storage Temperature -30℃~ +80℃
Humidity 10% ~ 90%

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 8
Table 1-2 WF-2017 I/O Specification
Modules WF-2017
Analog Input
Channels 8-ch Differential / 16-ch Single-ended(Note), Jumper Selectable
Voltage : ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Input Type
Current : 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable)
Resolution 16 bit
Accuracy ±0.1% FSR
Sampling Rate 10 Hz (Total)
Zero Drift ±20 µV/°C
Span Drift ±25 ppm/℃
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Input Impedance > 2 MΩ> 1 MΩ
Overvoltage protection
Differential
240 Vrms
Single-ended
150 Vrms
Intra-Module Isolation, Field-to-Logic 3000 VDC
Individual Channel Configuration Yes
Note: Differential mode can be used for voltage input and current input.
Single-Ended mode can be used for voltage input only.

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 9
Table 1-3 WF-2019 I/O Specification
Modules WF-2019
Analog Input
Channels 10
Voltage : ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V,
±10 V
Current : ±20 mA (External resistor is required)
Input Type
Thermocouple : J, K, T, E, R, S, B, N, C
Resolution 16 bit
Accuracy ±0.1% FSR
Sampling Rate 10 Hz (Total)
Zero Drift ±20 µV/°C
Span Drift ±25 ppm/℃
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Input Impedance Voltage Input: >400 kΩ, Current Input: 125 Ω
Intra-Module Isolation, Field-to-Logic 3000 VDC
Overvoltage protection 240 Vrms
Individual Channel Configuration Yes
Open Wire Detection Yes (Software programmable)

WF-2000 Series AIO User’s Manual (Ver. 1.2, May./2014) ------------- 10
Table 1-4 WF-2026 I/O Specification
Analog Input
Channels 5
Wiring Differential
Voltage ±150 mVDC, ±500 mVDC, ±1 VDC, ±5 VDC, ±10 VDC
Input Range
Current 0 ~ +20 mA, +4 ~ +20 mA, ±20 mA (Jumper Selectable)
Resolution 16 bit
Accuracy ±0.1% FSR
Sampling Rate 10 Hz (Total)
Zero Drift ±20 µV/°C
Span Drift ±25 ppm/°C
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Voltage 2 MΩ
Input Impedance
Current 140 Ω
Common Voltage Protection ±200 V
Overvoltage Protection 240 Vrms
Overcurrent Protection Yes, 50 mA @ 110 VDC
Virtual Channel to Channel Isolation Yes, 400 VDC
Individual Channel Configuration Yes
Analog Output
Channels 2
Voltage +0 ~ +5 VDC, +0 ~ +10 VDC, ±5 VDC, ±10 VDC
Output Range
Current +0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
Resolution 12 bit
Accuracy ±0.1% FSR
Voltage Output Capability 10 V @ 20 mA
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
