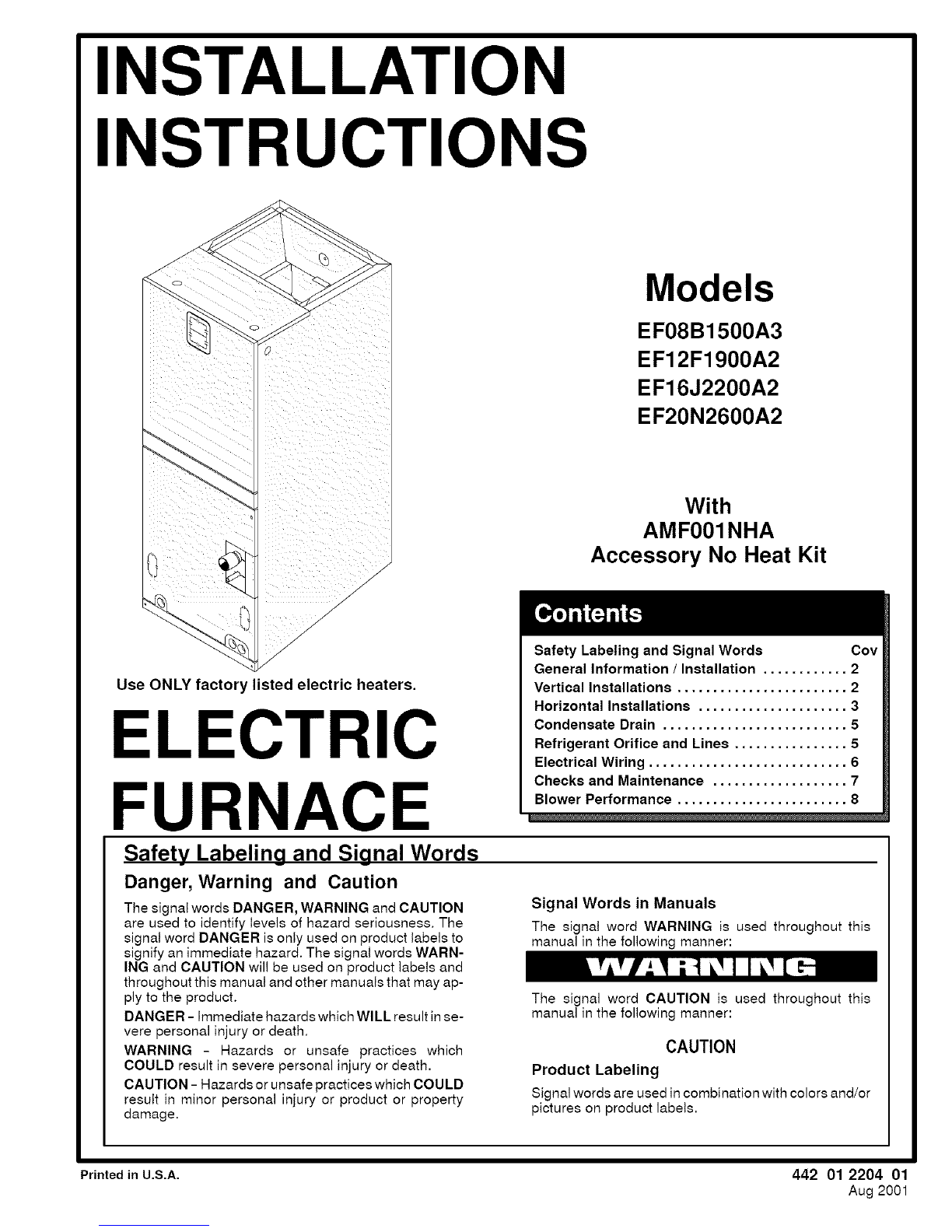

ICP EF08B1500A3 User manual

INSTALLATION
INSTRUCTIONS
//
Use ONLY factor' listed electric heaters.
ELECTRIC
Models
EF08B1500A3
EF12F1900A2
EF16J2200A2
EF20N2600A2
With
AMF001NHA
Accessory No Heat Kit
FURNACE
Safety Labeling and Signal Words
Danger, Warning and Caution
The signal words DANGER, WARNING and CAUTION
are used to identify levels of hazard seriousness. The
signal word DANGER is only used on product labels to
signify an immediate hazard. The signal words WARN-
ING and CAUTION will be used on product labels and
throughout this manual and other manuals that may ap-
ply to the product.
DANGER - Immediate hazards which WILL result in se-
vere personal injury or death,
WARNING - Hazards or unsafe practices which
COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which COULD
result in minor personal injury or product or property
damage.
Safety Labeling and Signal Words Cov
General Information /Installation ............ 2
Vertical Installations ........................ 2
Horizontal Installations ..................... 3
Condensate Drain .......................... 5
Refrigerant Orifice and Lines ................ 5
Electrical Wiring ............................ 6
Checks and Maintenance ................... 7
Blower Performance ........................ 8
Signal Words in Manuals
The signal word WARNING is used throughout this
manual in the following manner:
The signal word CAUTION is used throughout this
manual in the following manner:
CAUTION
Product Labeling
Signal words are used in combination with colors and/or
pictures on product labels.
Printed in U.S.A. 442 01 2204 01
Aug 2001

_Installation Instructions Electric Furnace]
Figure 1 Dimensions and Clearances
14-3/8 '' (EF08)
17-7/8 '' (EF12)
21-1/2" (EF16)
25-1/8" (EF20)
LowVoltage
PilotHole
Alternate
LineVoltage
Pilot Hole
DrainConnections
For Horizontal
Main3/4Fpt
Overflow 3/4 FPT
Main/OverflowDrains
3/4FPT
W
16-3/8'' (EF08)
19-7/e'' (EF12)
23-1/2'' (EF16)
27-1/e'' (EF20)
LineVoltage
Pilot Hole
Suction-
Liquid
FilterDoor
45" (EF08-12)
54" (EF16-20)
21 1/2"
38-20-17
CLEARANCES
NO HEATERS
All Sides .................................. O"
From Supply Duct .......................... O"
Recommended Service From Front .......... 20"
(Service for blower, filter if installed)
WITH HEATERS
All Sides .................................. O"
From First Three
Feet of Supply Duct to Combustibles ........ 1"
From Duct after Three Feet ................. O"
Recommended Service From Front .......... 20"
(Service for blower, filter, heaters if installed)
Fire Hazard
When heaters are installed maintain clear-
ances from combustible materials as speci-
fied on unit rating plate.
Failure to do so can result in fire, property
damage, personal injury or death.
General Information
Installation or repairs made by unqualified persons can
result in hazards to you and others. Installation MUST
conform with local building codes and with the
National Electrical Code NFPA70 current edition.
The information contained in this manual is intended
for use by a qualified service technician familiar with
safety procedures and equipped with the proper tools
and test instruments.
Failure to carefully read and follow all instructions in
this manual can result in equipment malfunction,
property damage, personal injury and/or death.
THESE INSTRUCTIONS ASSUME THAT A TYPICAL INSTAL-
LATION WILL INCLUDE ELECTRIC HEAT AND A COIL. BA-
SIC INSTRUCTIONS ARE PROVIDED BUT THE INSTALLER
WILL HAVE TO REFER TO INSTRUCTIONS FOR OTHER AC-
CESSORIES FOR MORE COMPLETE INFORMATION.
The blower cabinet may be used as an electric furnace or for cool-
ing or heat pump operation with or without electric heat. The cabi-
net can be installed in an upfiow, downflow or horizontal position
(Figure 2). Horizontal installations require ahorizontal kit for prop-
er coil support and drain pan. Downflow installations require a
subbase kit which provides proper clearances and a support to
install a coil.These units are not shipped with air filters installed.
Filter must be field supplied, either washable or disposal type.
Washable filters are available as an accessory.
Location
Select the best position wi_ich suits timeinstallation site conditions.
The location should provide adequate structural support, space in
the front ofthe unit for service access, clearance for return air and
supply duct connections, space for refrigerant piping connections
and condensate drain line connections, and clearance for filter re-
moval.
NOTE: Internal filter can be accessed from separate filter door. If
the filter can NOT be easily accessed, a remote filter is recom-
mended. Refer to ACCA Manual D for remote filter sizing.
Ifthe unit islocated in an area of high humidity, nuisance sweating
of casing may occur. On these installations a wrap of 2" fiberglass
insulation with a vapor barrier should be used.
Upflow Installations
The unit is ready to install in the upflow position without modifica-
tions.
The unit MUST be supported on the bottom ONLY and set on a
supporting frame or shelf. Use screws through the bottom to an-
chor to supporting frame.
Downflow Installations
Refer to instructions with Subbase Kit.
_J 442 01 2204 01

JElectric Furnace Installation Instructions j
Figure 2 Airflow Positions
UPFLOW POSITION
HEATER
BLOWER
FIL_ER
DOWNFLOW POSITION
FILLER
Coil
supop.._
Subbase
\,
38-20-19
HEA'_R
\/
Non-Ducted Return Air Closet Installation
The cabinet can be installed in acloset with a false bottom to form
a return air plenum, or mounted on an open platform inside the
closet. Platform should be high enough to provide a free (open)
area for adequate return airflow into the bottom of the cabinet.
The open area can be on the front side or a combination of front
and sides, providing there isclearance on the sides between cabi-
net and closet. Refer to ACCA Manual D for sizing and free
area recommendations.
NOTE: Local codes may limit application of systems without a
ducted return to single story dwellings.
Horizontal Left and Right Installations
No Coil
Ifa coil is not being installed, the cabinet can be placed on either
side for horizontal airflow as shipped. Refer to instructions with
electric heat for instructions on horizontal applications.
With Coil
All units must have the horizontal drain pan kit insta!led for either
left or right hand applications. For installation ofthe drain pan, re-
fer tothe installation instructions included with the horizontal drain
pan kit, and the following.
CAUTION
A field-fabricated auxiliary drain pan, with a seperate
drain is REQUIRED for all installations over a finished
living space or in any area that may be damaged by
overflow from the main drain pan. In some localities,
local codes require an auxiliary drain pan for ANY hori-
zontal installation.
Figure 3 Airflow Positions
HORIZONTAL LEFT POSITION
,,=,
m
HORIZONTAL RIGHT POSITION
38-20-19
Drain Pan Installation
1,
2.
3.
5.
5.
Position side of coil drain pan into horizontal drain pan
trough on deep end of pan.
Install the coil support bracket on left or right side of the
cabinet.
Install coil drip flanges on the left or right side of the coil,
(same side as horizontal drain pan).
Install drain plugs as required in back side of horizontal
drain pan. Install plugs in A coil drains to prevent air leaks.
Slide coil assembly into cabinet being careful not to tear in-
sulation.
NOTE: Be sure Acoil pan fits into the support bracket on the back
side of the cabinet and that pan is under the flange of the bracket
on the right side. The brackets fit over the top edge of the A coil
drain pan to hold it when it's put into the horizontal position.
6. Referto Restrictor Orifice Selection and change restrictor if
necessary, then install coil access panel.
Cabinet can now be placed on it's side for horizontal airflow.
Suspended Cabinet Installation
1. If the cabinet cannot be supported on a frame or shelf, it
may be suspended.
2. Use metal strapping or threaded rod with angle iron sup-
ports under the auxiliary drain pan to suspend cabinet.
These supports MUST run parallel with the length of the
cabinet (Figure 5).
3. Ensure that there is adequate room to remove service and
access panels after installing supporting brackets.
4. Place Styrofoam blocks in auxiliary drain pan to support
cabinet.
Duct Connections
Supply Duct
Supply duct must be attached to the outside of flange on outlet
end of unit. Flexible connectors may be used if desired. Maintain
clearances from supply duct to combustibles when heaters are
installed. See Figure 1 and unit rating plate.
Return Duct
Return duct should be attached to bottom of unit using sheet met-
al screws or other fasteners.
442 01 2204 01 3[._J

IInstallation Instructions
4/Horizontal Drain Pan
Figure 1
Electric Furnace I
Horizontal Drain Pan
(Left Hand Airflow)
Coil Support Bracket
(Right Hand Air_)
\il Support Bracket
Coil Access Panel
\Drip Flanges
(Left Hand Airflow)
Drip Flanges
(Right Hand Airflow)
Coil Support Bracket
(Left Hand Airflow)
Horizontal Drain Pan
(Right Hand Airflow)
38-20-06
Figure 5 Horizontal Installation
Field-Fabricated
Drain Pan
Supports MUST run parallel with blower cabinet =-_
Filter Installation
Filters must be field supplied. The blower cabinet is set up for an
internal filter or a remote filter grille or other means may be pro-
vided. Refer to ACCA Manual D for remote filter sizing.
To install an internal filter, remove screw securing filter door and
slide filter into unit. Some filters are marked for airflow direction,
make sure arrow points towards blower if marked. Washable fil-
ters are offered as an accessory. Disposable filter sizes are listed
in Filter Static Pressure Drop Table.
Condensate Drain
The unit is provided with 3/4" National Pipe Thread (NPT) con-
densate drains. (Figure 1). Any drain can be used as a primary or
secondary drain. Condensate drain lines should be insta!led in a
manner that does not obstruct access to the filter.
There is a secondary drain fitting supplied with the unit that will
convert any of the primary condensate drain connections into a
secondary drain connection. This fitting should be insta!led in any
of the primary drain connections to convert it to a secondary drain.
1. Connect the drain lines to the appropriate drain fittings. 3/4"
PVC or other type of drain line may be used. The drain line
must not be smaller than the drain fitting.
2. Insta!l a trap in the drain line below the bottom of the drain
pan and pitch the drain lines down from the coil at least I/4"
per foot of run. Horizontal runs over 15 feet long must also
have an anti-siphon air vent (stand pipe), installed ahead
of the horizontal run. An extremely long horizontal run may
require an oversized drain line to eliminate air trapping.
_J 442 01 2204 01

I Electric Furnace
3. Routetotheoutsideortoafloordrain, laundrytrayorwaste
line (sewer). Check local codes before connecting to a
sewer line.
4. Insulate drain lines where sweating could cause water
damage.
5. If a gravity drain cannot be used, install a condensate
pump. Install the pump as close to the indoor section as
possible.
SpecialNoteFor DownflowInstallations
For downflow installations, a secondary overflow drain
connection must be installed to prevent water from dripping onto
live electrical components. Use the secondary fitting on the
evaporator coil.
Waste Line Connection
Ifthe condensate line is to be connected to a waste line, an open
trap must be installed ahead ofthe waste line to prevent escape of
sewer gases. NEVER CONNECT THE DRAIN LINE DIRECTLY
TO A WASTE LINE. ALWAYS INCLUDE AN AIR GAP AND
TRAP, (Figure 6). Be sure to keep the trap filled with water during
the winter or off season.
Restrictor Orifice Selection
A restrictor orifice is located in afitting at the distributor. The facto-
ry installed restrictor orifice is identified on the unit rating plate.
The restrictor orifice may require changing to obtain best perfor-
mance. Refer to the restrictor charts furnished with the outdoor
unit.
Changing Restrictor Orifice
1. Remove the liquid line fitting and replace restrictor orifice.
(STANDARD RIGHT HAND THREAD)
2. Make sure the restrictor is installed with the rounded end to-
ward the feeder tubes. See Figure 7.
Refrigerant Line Connections
Size refrigerant lines according to information provided with out-
door condensing unit. Route the refrigerant lines to the coil in a
manner that will notobstruct service access to the unit or removal
of the filter.
2,
3.
Remove rubber plugs from refrigerant connections using a
pulling and twisting motion. Hold refrigerant lines to avoid
bending or distorting.
Remove the coil door before brazing refrigerant connec-
tions to prevent damage to paint finish.
Fit refrigerant lines into coil connections and remove the
tubing plate and slide plate over the refrigerant lines to as-
sure sufficient room for brazing.
Reinstall tubing plate and door and install the gasket, pro-
vided with the unit, over the suction and liquid lines into the
tubing plate recess to ensure an air seal around the coil.
See Figure 8.
Figure 6
T
Condensate
Line
1Installation Instructions
Condensate Drain to Waste Line
Air Gap Above
uid Level
Sewer Line_q_
Figure 7JRestrictor Orifice
Nut and Liquid Line
_Rounded End
_Feeder Tubes
Figure 8 J Refrigerant Lines
Gasket ,_
Refrigerant k_ne_s__ "
-%
jTubing Plate
Recessed
Area
For Gasket
Electric Heat
Refer to Electric Heat Installation Manual to install heaters.
442 01 2204 01 5L_ J

_Installation Instructions Electric Furnace I
Electrical Wiring
Electrical shock hazard.
Turn OFF electric power at fuse box or service
panel before making any electrical connections
and ensure a proper ground connection is made
before connecting line voltage.
Failure to do so can result in property damage,
personal injury and/or death.
All electrical work MUST conform with the requirements of local
codes and ordinances and the National Electrical Code NFPA 70
current edition.
Electrical Heaters & Operating Controls
Timelow voltage transformer and the fan control are standard on
a!l models and are prewired at the factory. Tooperate the blower
coil, a heater accessory or a no-heat kit must be installed. Line
voltage connections are made to the heater accessory or the no-
heat kit.
Low Voltage Control Connections
The 24 volt power supply is provided by an internally wired low
voltage transformer which is standard on all models. If power
supply is 208 volt, the low voltage transformer must be rewired to
the 208 volt tap. See the unit wiring label.
Field supplied low voltage wiring can enter the unit on the top left
hand corner or the left hand side panel. When using the left hand
side panel entrance, the low voltage wiring must be fed through
the entrance hole in the bottom of the control box.
Install the strain relief bushing (supplied with unit) in the selected
hole and a hole plug (supplied with unit) in the unused hole.
Connect the field wiring at the screw terminals of the control
board. Refer to Figure 9.
Keep the low voltage wiring as short as possible inside the control
box.
Complete connections between indoor blower, outdoor section,
indoor thermostat and electronic outdoor thermostat (accessory)
according to instruction provided with the Condenser Installation
Instructions or those provided with the accessory and refer to Fig-
ure 10.
Install No Heat Kit
If electric heat is not used, install accessory No Heat Kit.
1.. Locate adapter and filler plates, with screws inside pack-
age unless they were preinstalled at the factory.
2.. Ifnecessary, attach adapter plate and filler plate to bracket
as required to match cabinet, Refer to Figure 9.
3.. Secure the no heat accessory with four screws.
4.. Connect the plug from No Heat Kit wiring into the recep-
tacle on the control board on the side of the cabinet.
Overcurrent Protection
The power supply wiring to the unit MUST be provided with over-
current protection. Governing codes may require this to be fuses
ONLY or circuit breakers.
For blower cabinets without heaters, a 15 amp circuit may be
used.
Line Voltage Connections
Line voltage wiring may be brought into the unit through the top
right-hand corner or the right-hand side panel. The correct hole
size required by the conduit fitting must be punched at the pilot
hole location. Plug the unused pilot hole with a hole plug (supplied
with unit). Refer to Figure 9 for line voltage connections.
Grounding
Use a copper conductor (#14AWG) from the unit to a grounded
connection inthe electric service panel or a properly driven and
electrically grounded ground rod.
Line Voltage Connection
1. A disconnect switch MUST be located within sight of the
unit.
2. Provide line voltage power supply (208V-240V) from a
separate 15 amp circuit.
3. Connect line voltage L1 and L2 to the lugs on the No Heat
Kit, Figure 9.
Figure 9 Installing No Heat Accessory
Low Voltage /Matching Receptable
Connections /_;_Z] /For No Heat Kit
_,_ ____/._ or Electric Heater
Adapter Plate _0_"--.._ _
No Heat Kit. '_: _,_ __/
Lugsfor
LineVoltage
and Ground
Connections
No Heat
Model
AMF00tNH
SupplyCircuit
Volts Phase He_z
240 1 60
208 1 60
Supply
Circuit
No.
Single
Single
Maximum
Motor
AMPS.
6.0
6.0
Total
AMPS.
6.0
6.0
No Heat Kit Technical Data
Branch
Circuit
Ampacity
7.5
7.5
Maximum
Overcurrent
Protective
Device
(AMPS.) No.
15 2
15 2
Recommended
SupplyWire
750 C. Copper
Max,
Size Length (Ft)
14 104
14 90
Ground
Wire
No. Size
1 14
1 14
L_J 442 01 2204 01

I Electric Furnace Installation Instructions
Changing Motor Speed
The blower motor comes from the factory wired for medium or
high speed. To change the blower speed, disconnect the black
wire at the blower motor termina! block and reconnect at the de-
sired blower speed tap.
Figure 10 I Typical Low Voltage Connections
Thermostat Cooling Only Outdoor Unit
R
G
Y
W
00 0 OOI)
W 2 W 1 GY O H CR1
Indoor Blower
Y
Y
Cooling with Electric Heat
Thermostat
R
G --
y --
wOwO! (> ()
Y
Y
Outdoor Unit
Heat Pump with Electric Heat
Staging
Thermostat
R
BL
W
-- y
O
Outdoor Unit
Air Flow Check
For proper system operation, the air flow through the indoor coil
should be between 350 and 450 cfm per ton of cooling capacity.
The air flow through the unit can be determined by measuring the
external static pressure to the unit and selecting the motor speed
tap that will most closely provide the required air flow.
1. Set up to measure external static pressure at the supply
and return duct connections (Figure 11).
2. Drill holes in the ducts for pressure taps, pitot tubes, or oth-
er accurate pressure sensing devices.
3. Connect these taps to a level inclined manometer or draft
gauge.
4. Ensure the coil and filter are clean, and all the registers are
open.
5. Determine the external static pressure with the blower op-
erating.
6. Refer to the Air Flow Data (Figure 6) table to find the speed
tap that will most closely provide the required air flow forthe
system.
7. Refer to Changing the Motor Speed in these instructions if
the speed tap is to be changed.
8. Recheck the external static pressure with the new speed
tap, and confirm speed tap selection.
Figure 11 Static Pressure Check
SupplyJ
/nedli°rn
Return _
Maintenance
Filters
Filters must be cleaned when they become dirty. Inspect at least
once per month. The frequency of cleaning depends upon the
hours of operation and the local atmospheric conditions. Clean fil-
ters keep unit efficiency high.
Lubrication
The bearings of the blower motor are permanently lubricated.
Condensate Drains
During the cooling season check the condensate drain lines to be
sure that condensate is flowing from the primary drain but not
from the secondary drain. Ifcondensate ever flows from the sec-
ondary drain the unit should be promptly shut off and the conden-
sate pan and drains cleaned to insure a free flowing primary drain.
442 01 2204 01 7L_

_Installation Instructions Electric Furnace I
Airflow Based on no coil, no filter, no electric heat. Deduct heater static shown in heater static table. Deduct filter
static shown in filter static table. Deduct coil static, See Coil Specification Sheet. Deduct .10 for Horizontal Drain
Pan Kit. Deduct .20 for Downflow Subbase Kit.
I :l;[o}:i SP IN, WG. I=1_;[,"! SP IN, WG.
SPEED Volts 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 SPEED Volts 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
LOW 230V 1053 1013 965 911 856 761 654 552
208V 863 827 788 725 641 568 492 381
MED 230V 1333 1281 1221 1150 1060 990 857 743
208V 1156 1115 1059 997 941 853 738 618
HIGH 230V 1553 1486 1411 1328 1227 1106 1032 865
208V 1394 1336 1272 1195 1096 1023 924 774
LOW 230V 1103 1088 1067 1040 994 921 849 749
208V 872 847 820 788 750 696 630 530
MED 230V 1500 1493 1470 1438 1383 1303 1143 993
208V 1229 1223 1198 1169 1123 1031 926 798
HiGH 230V 1912 1879 1830 1771 1684 1577 1429 1154
208V 1629 1609 1584 1545 1478 1393 1214 1058
I=l;liP, II SP IN. WG. II=l_*_[oll SP IN. WG.
SPEED Volts 0.3 0.4 0.5 0.6 0.7 0.8 0,9 1,0 SPEED Volts 0.3 0.4 0,5 0,6 0,7 0.8 0.9 1,0
LOW 230V 1103 1092 1086 1060 1024 973 906 803
208V 903 893 877 858 830 781 728 642
MED 230V 1498 1473 1451 1409 1352 1277 1173 1044
208V 1246 1239 1222 1202 1160 1098 1014 906
HIGH 230V 1860 1815 1760 1685 1596 1491 1352 1178
208V 1602 1584 1553 1501 1432 1347 1241 1096
LOW 230V 1673 1670 1669 1643 1587 1461 1298 1081
208V 1320 1306 1289 1237 1147 1006 810 576
MED 230V 2060 2030 1980 1912 1835 1723 1594 1444
208V 1676 1656 1613 1531 1381 1201 986 683
HiGH 230V 2554 2459 2352 2242 2116 1966 1809 1606
208V 2420 2334 2244 2137 2021 1875 1732 1558
MODEL
EF08
EF12
EF16
EF20
Ituni¢lii,.-'if.,tl[O!€1=i
NOMINAL
FILTERSIZE
14X20
18X20
20X 20
25X 20
CFM
600 800 1000 1200 1400 1600 1800 2000
0.05 0.09 0.13 0.19 ............
........ 0.09 0.12 0.17 0.22 ......
.............. 0.12 0.15 0.19 ---
.............. 0.09 0.11 0.14 0.18
_J 442 01 2204 01

I Blower Coils Installation Instructions

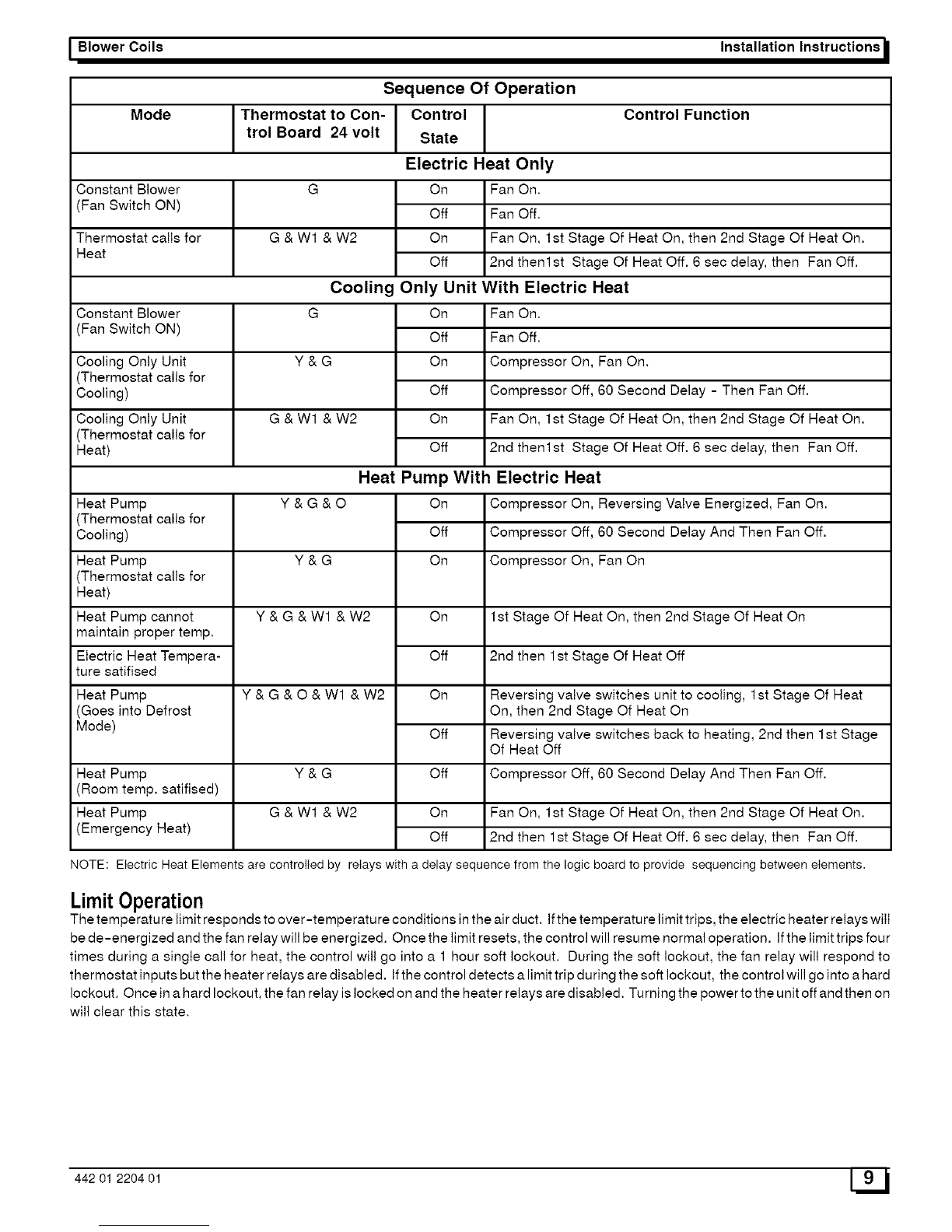

Sequence Of Operation
Mode | Thermostat to Con- Control Function
Jtrol Board 24 volt
Constant Blower
Fan Switch ON) G
Thermostat calls for
Heat
Constant Blower
Fan Switch ON)
Cooling Only Unit
(Thermostat calls for
Cooling)
Cooling Only Unit
(Thermostat calls for
Heat)
Heat Pump
(Thermostat calls for
Cooling)
G&W1 &W2
G
Y&G
G&W1 &W2
Y&G&O
Heat Pump Y & G
(Thermostat calls for
Heat)
Heat Pump cannot Y & G & Wl & W2
maintain proper temp.
Control
State
Electric Heat Only
On Fan On.
Off
On
Off
Fan Off.
Fan On, 1st Stage Of Heat On, then 2nd Stage Of Heat On.
2nd thenlst Stage Of Heat Off. 6 sec delay, then Fan Off.
Electric Heat Tempera-
ture satifised
Heat Pump
(Goes into Defrost
Mode)
Cooling Only
On
Off
On
Off
On
Off
Heat Pump
Room temp. satifised)
Heat Pump
(Emergency Heat)
Y&G&O&WI&W2
Y&G
G&W1 &W2
Unit With Electric Heat
Fan On.
Fan Off.
Compressor On, Fan On.
Compressor Off, 60 Second Delay - Then Fan Off.
Fan On, 1st Stage Of Heat On, then 2nd Stage Of Heat On.
2rid thenlst Stage Of Heat Off. 6 sec delay, then Fan Off.
Heat Pump With Electric Heat
On
Off
On
On
Off
On
Off
Off
On
Off
Compressor On, Reversing Valve Energized, Fan On.
Compressor Off, 60 Second Delay And Then Fan Off.
Compressor On, Fan On
1st Stage Of Heat On, then 2nd Stage Of Heat On
2rid then 1st Stage Of Heat Off
Reversing valve switches unit to cooling, 1st Stage Of Heat
On, then 2nd Stage Of Heat On
Reversing valve switches back to heating, 2rid then 1st Stage
Of Heat Off
Compressor Off, 60 Second Delay And Then Fan Off.
Fan On, 1st Stage Of Heat On, then 2nd Stage Of Heat On.
2rid then 1st Stage Of Heat Off. 6 sec delay, then Fan Off.
NOTE: Electric Heat Elements are controlled by relays with a delay sequence from the logic board to provide sequencing between elements.
LimitOperation
The temperature limit responds to over-temperature conditions in the air duct. Ifthetemperaturelimittrips, theelectricheaterrelayswill
be de-energized and the fan relay will be energized. Once the limit resets, the control will resume normal operation. If the limit trips four
times during a single call for heat, the control will go into a 1 hour soft lockout. During the soft lockout, the fan relay will respond to
thermostat inputs but the heater relays are disabled. Ifthe control detects alimit trip during the soft lockout, the control will go into a hard
lockout. Once in a hard lockout, the fan relay is locked on and the heater relays are disabled. Turning the power tothe unit off and then on
will clear this state.
442 01 2204 01 9L_

IInstallation Instructions Electric Furnace I
POWER SUPPLY: 208/230-1-60 USE COPPER CONDUCTORS ONLY
KEY: HIGH VOLT; -- -- -- LOW VOLT
FAN o,
d_ CNTRL [T_
_(_ BRD _J_
_:_ _:_-I FAN Co_--_--y--
oG_ _q ___y_
oG _nm II LID@O011
;_q>yo ' IOOOG_BK-
r- _LBb
B Y_
_D
G'_D
-R-- I
B_I
Jj
GRD
BASE UNiT WITH NO-HEAT KiT AMF001NH INSTALLED
*SEE iNSTALLATION MANUAL FOR PROPER HEATING AND COOLING
FACTORY PRE-SET SPEED CONNECTIONS FOR YOUR UNIT.
r -- R
@_ _LMT
BL/ I O_Yo
/I r- L q
II
GY_ T
O
B _
3 Kw&
5 Kw
GRD
\ Y
AMFK03CH/AMFK05CH ELECTRIC HEATER
r - R
_i_k.. _ LIMIT
BL 0 /TO Y_
lIFT
I_L I
II ....
B;" \ _,
7.5& 10 Kw
GRD
_' AMFK07CH /AMFK10CH ELECTRIC HEATER
/-- .....
BI< BK
I
15 Kw
BL
I-
II IGY I
LIMIT
20 Kw
AMFK20CH ELECTRIC HEATER
R LIMIT fR
I- -- LIMIT
AMFK25CH ELECTRIC HEATER
LIMIT
25 Kw
30Kw
AMFK14CH ELECTRIC HEATER
*AMFK15CH ELECTRIC HEATER(2LIMFS) BK AMFK30CH ELECTRIC HEATER 1087757
l_J 442 01 2204 01

J Blower Coils
ReplacementParts
Q
Installation Instructions
O
Z2
W
14
Y
10
11
AA
BB
!
T
U
38-20-21
38-20-26
442 01 2204 01 1_

_Installation Instructions Electric Furnace I
KEY DESCRIPTION
NO,
9 Control, Fan Timer
10 Transformer
11 Motor, Blower
11
11
12 Mount, Blower Motor
12
13 Wheel, Blower
13
13
14 Capacitor, 10MFD, 370V
14 15MFD, 370V
H Plate, Tubing
K Grommet, Tubing Plate
K
O Panel, Rear Blower Deck
O
O
O
P Panel, Front Blower Deck
P
P
P
Q PaneI,Side Blower Deck
Q
Q
Q
R Bracket, Control Fan
S Bracket, Drain Pan
S
S
S
T Stop, Coil
U Adapter, Filter
V Panel, Top
V
V
V
W Housing, Blower
W
W
X Panel, Blower Cutoff
X
X
Y Clamp, capacitor
Zl Rail, Blower R.H.
Z2 Rail, Blower LH.
PART
NUMBER
03 04 _@4
<o< o< <
ILl ILl W UJ
1085914 1 ! 1 1
1082611 1 ! 1 1
1083044 !
1083045 ! 1
1083046 1
1002801 ! 1 1
609227 1
600586 !
600587 1
96839 1 1
1094956 ! ! 1
1094959 1
1085601 1 1 1 1
1085603 1 1
1085602 1 1
1082604 1
1082844 1
1082845 1
1082846 1
1086694 1
1085372 1
1085373 1
1085374 1
1082622 2
1082847 2
1082848 2
1082849 2
1085371 1 1 1 1
1082609 !
1082927 !
1082928 1
1082929 1
1083349 2 2 2 2
1084788 1
1087710 1
1087711 1
1087712 1
1087713 1
1087195 1
1087193 1
1087194 1 1
1082607 1
1082616 1
1082949 1 1
1095020 1 1 1 1
1085504 1 1 1 1
1085521 1 1 1 1
¢o _4 _4 @4
O O O O
O O O O
KEY PART _o_ _ _o
NO. DESCRIPTION NUMBER m ,,'T _ _z
CO 04 c.O O
u_° ,,'7 ,,'7
Ill LLI t_l !11
AA Door, Coil Access 1087718 I
AA 1087719 1
AA 1087720 I
AA 1087721 1
AB PANEL, FILL-IN 1087722 I
AB 1087723 1
AB 1087724 I
AB 1087725 1
BB Door, Blower Access I087729 I
BB 1087726 1
BB 1087727 I
BB 1087728 1
CC Door, Filter Access I087730 I
CC 1087731 1
CC 1087732 I
CC 1087733 1
DD Plate, Heater Adapter I084606 I I 1
EE Plate, Heater Filler 1084608 I 1
)( Harness, Wire 1086021 I I I 1
)( Manual, Installation 44201220400 1 1 I 1
442 01 2204 01
