ictor Luxury start VT-368 User manual

276# -3
www.cn-victor.cn
Luxury start
Luxury start
GPS/GSM
CAR ALARM
GPS/GSM
CAR ALARM
fun ction u ser man ual
GPS +GSM
CAR ALARM
PKE
PUSH START
BASIC FUNCTION
OPTIONAL

*GPS +GSM
*CAR ALARM
*PKE
*MULTIFORM ENGINE START
Characteristics of the product
1. GPS location--- you can easily track the location of your car anytime,
Feedback with ext message or multimedia message. No need extra map
platform for this services, no need to extra cost for the platform, only if
your mobile with GPRS, You can easily check the location with multimedia
message, the feedback with location of your car and the map, very conv-
enient and economical, this system with backup battery, if system was cut
off power, the system will feedback you by message and telephone call to
report this emergency with the location.
2. GSM Network---through GSM network, you can easily to operate and
manage the alarm system by sending message or phone call. When your
car was damaged or stealing, this system will report this alarm by sending
message and make phone call, this is much better than the normal car
alarm which the control distance is limited and can not report the alarm to
the car owner. It makes you control the car anytime.
3. Humanization design---the system equipped with transmitters, you can
control the system by mobile also by remote transmitter, you can use re-
mote transmitter when the signal is bad or without signal of GSM network,
you can cancel the remote transmitter if your remote transmitters was lost
or stolen, to disable the remote transmitters.
4. Push star---GPS car alarm system have push star, enables you enjoy a
convenient life with keyless engine start, and also with remote engine star,
low temperature detection, timer enginer start.
5. The installation is same as normal one way car alarm, there is not allo-
wed to operate during driving, the system will feedback with message"the
car is driving, operation negative", if there was no any operation after 30's
when you call the system, the system will hang off the calling and inform
the car owner with message.
6. Dial CPU technology make sure that the system to operate mutiltask
rapidly, 85% of the electronic spare parts are imported, to make sure the
quality and lifetime, please feel free to use.
Product model：VT-368
Luxury start

Installation................................................................ P2-7
1. Specifications
2. Attention
3. Installation
4. VT-368 main unit and spare parts
5. VT-368Wire diagram and central door locking diagram
6. GPS Command code
PKE Function description...............................................P8-15
1. Automatically Lock and Unlock
2. RFID Automatically Identification
3. Auto Anti-Hijacking
4. Transmitters RFIE automatically switch
5. Manually active or Cancel PKE functions
6. Attention
Guarantee card.............................................................P16
INDEX

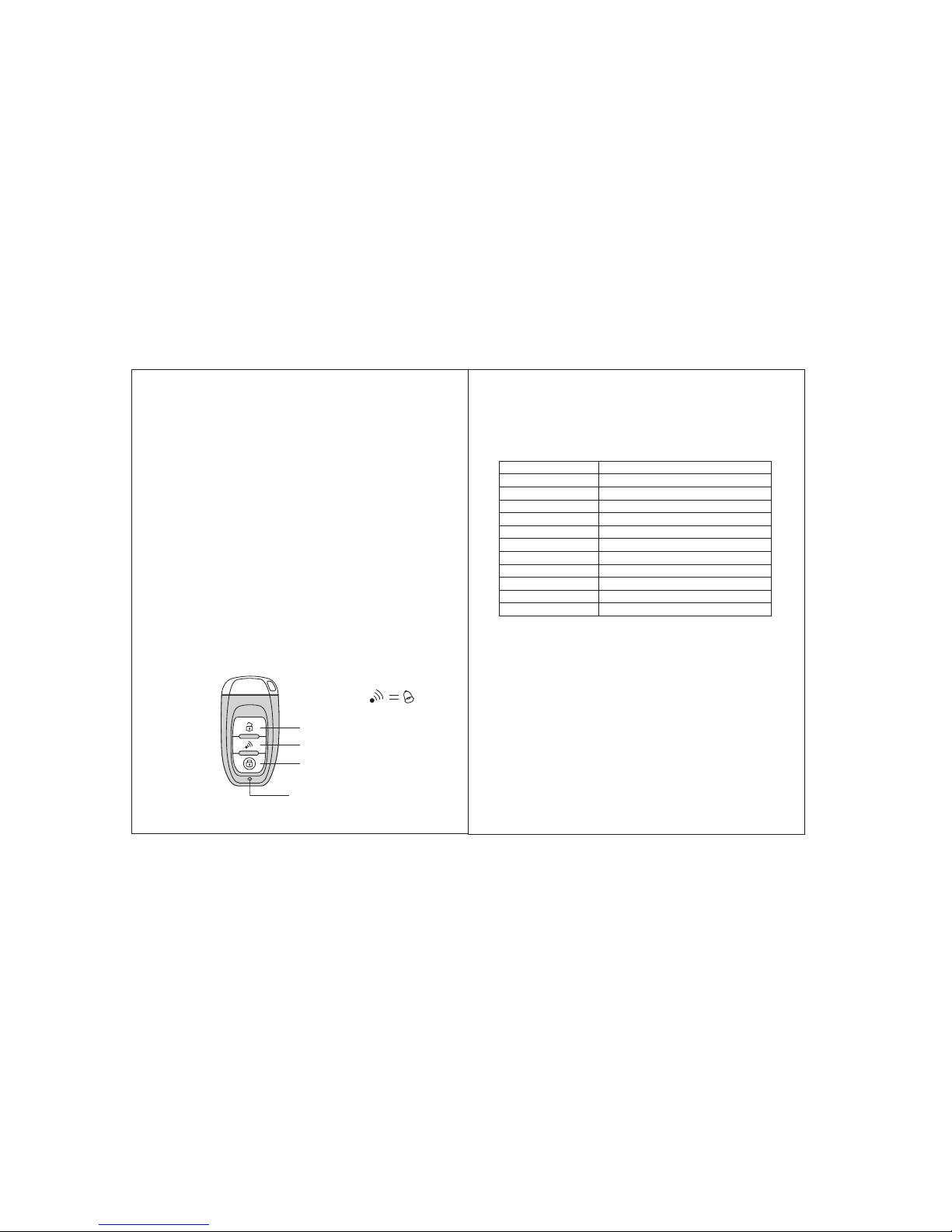

Remote buttons:
Dear Customer :
In oder to make sure you can use the system properly, please read this
user manual first, thanks for choose this system.
1、Specifications:
Installation
2、Attention:
A. Installer must know very well about the diagrams of the car, it can be
only installed by experienced and specialized technicians to instal as the
the installation well or not will directly effects it's working.
B. Please do not plug in or out the SIM card when power connected, to
avoiding damage the card (Please cut off the power and take out build-in
battery when plug in or out the SIM card)
C. The system should be face to up, Placed horizontally, gradient should
not over 45 degree.
D. The system should installed a Secluded place to avoid discharged Ille-
gally, and also should be installed at a place no water to avoid damaged
by water.
E. Please do not install the system near to the engine, to avoid working
improperly and shorten working life .
F. please pack the wires well, and make sure insulation with the car to
avoid accident caused by short circuit.
ITEM DESCRIPTIONS
GPS antenna High sensitive GPS Receiver -169 dbm
GSM antenna High sensitive -106.1---- -107.3TIS
Networks GSM/GPS
GSM Frequency 850/900/1800/1900 Mhz
Transmitter frequency 433Mhz
Resting Current : 20mA
Buil-in Li-on battery 3.7V 650mA
Dimensions 136*88*32 mm?
Weight: 250g
Working temperature: -30℃ +80℃
Operate means: Sending message or phone call
(1) (2)
Lock
LED light
Unlock
Car location

G. After the system connected with power first time, the telephone number
of the first phone call to the main unit is the master telephone no, just dir-
ectly input the 2 command code to operate the system, other telephone
no must input the operation code +2 command code(the operate code is
123456 for factory setting, it must be changed, "+" no need to input, bef-
ore operate please read the command code table)
H. Clear the master telephone no: open the door after disarmed, foot on
bark, turn the key from OFF to ON 3 times, and put the Key at ON position
at the third time, the siren will sound 1 time, then turn off ACC, release the
foot bark and close the door. The system will clear the command telepho-
ne no. If you want set it again, please dial the SIM card no in the main unit,
after connected the new no will be the command telephone no.
3. Installation：
A. Before installation you must prepare one SIM card works GSM network,
Through this no you can contrl this system, and please make sure it have
enough balance to make phone call and with GPRS function active, all
the remote controls and the alarm reports will be fulfilled through this SIM
card. So please protect it and keep it secretly.
B. Please install the GPS alarm system by the installation diagram and the
wire diagram, please install the main unit and the GPS antenna and the
GSM antenna at a secret place.
C. After wires connected, please disconnect the power and the backup
battery, plug in the SIM card, and connect the power first and then plug in
the backup battery, under any status if the power wire was cut off, the sy-
stem will sending message and make phone call to the owner with alarm
report“Attention, system power was cut off” when the system re-conn-
ected with power, the backup battery will be charged and the system will
reply with message“ the external power re-connected”.
D. After 1 minutes when connected with power, please dial the no of the
SIM card inside of the main unit, when hearing “system connected plea-
se operate”it means the system was connected successfully and setting
the mobile no as the main command no(After first time power connected,
the first no dialed the main unit is the command no), if hearing“the no
can not be reached”, or “the no you dial is powered off”it means the
system not connected successfully, and command no setting failed, ple-
ase disarm the system and disconnect with external power and backup
battery, then check the GSM antenna connection and make it connect well,
and check the SIM card be place well, and after checking please re-conn-
ect the po-wer and the battery, and then dial the main unit no again.
Attention: if hearing“the system is calling”, please disarm the system
and disconnected the power and the back up battery for 1 minute, and re-
connect them, after 1 minute disarm the system and open the door, foot
on bark, and turn the key from ACC off to ON 3 times, and stay at ON pos-
ition at the third time, and after siren sound 1 time, turn off ACC, release
the foot bark, and close the door, the system will clear the command no,
and then dial the main unit no with your own mobile to setting the comm-
and No.
E. The system and the mobile connected successfully and setting the m-
obile no as command no it means installation successfully, user can set-
ting other function and operate the system by their own needs.
(3) (4)
R
ON
+12V
ACC
ON
Start
ON
Start
+12V
ON
ACC
Engine Start Moudule Installation Circuit
Brown
Yellow
Red
Black
Brown
Blue
Bypas s moudu le
Engin e
start
conne ction
GND wir e
GND w ire

4. VT-368 Main unit and spare parts
White
Orang e
Yell ow
Orang e/B lac k
White /Bl ack
Yell ow/ Bla ck
Centr al lock
diagr am
Disar m
Arm
Earth ing
Direc tion Li ght
Windo w Risin g
Ignit ion off Tru nk
Optio nal
Siren
Optio nal
PKE Antenna PKE Antenna
Black /Green
Black /Yellow
Black
Red
Brown
Brown
Blue/ White
Blue/ Red
Blue/ Black
Pink
Optio nal Optio nal
Direc tion Li ght
+
-
12V
Battery
LED
Max
X
Reset Switch
Shocking Sensor
Engin e Start C onnec tor
ACC
+12V
Micph one
Plug Fo r Upg ard ing Module
One Button Starter
(Optional)
STARTER ENGING STOP
+
-
S2 S1
Cho osed + wi th PKE
Cho osed - wi thout P KE
S2
S1 Cho ose - ele ctron ic lock
Cho ose + air c ompre ssor lo ck
+
-
Cho ose Sid e door +
Cho ose sid e door -
Central door lock installation
1、If the car has electronic central door locking system, only to identify
the active triger or negative triger, please refer the (chart 2 and 3 for
the central door locking wire diagram)
2、If the car has electronic central door locking system but the driver's
door don't have motor, (other 3doors have motor), only need to add
one motor, please refer the chart 4 for the central door locking wire
diagram)
3、If the car have Air compressor lock, please choose the jumper for the
air compressor inside the main unit of the alarm system, and refer the
chart 5 for central door locking wire diagram .
4、If the car don't have no central door locking system, please install one
complete central door locking system.
(5) (6)
Hand Ba rk
Foot Ba rk
Side Do or
Engin e Hood

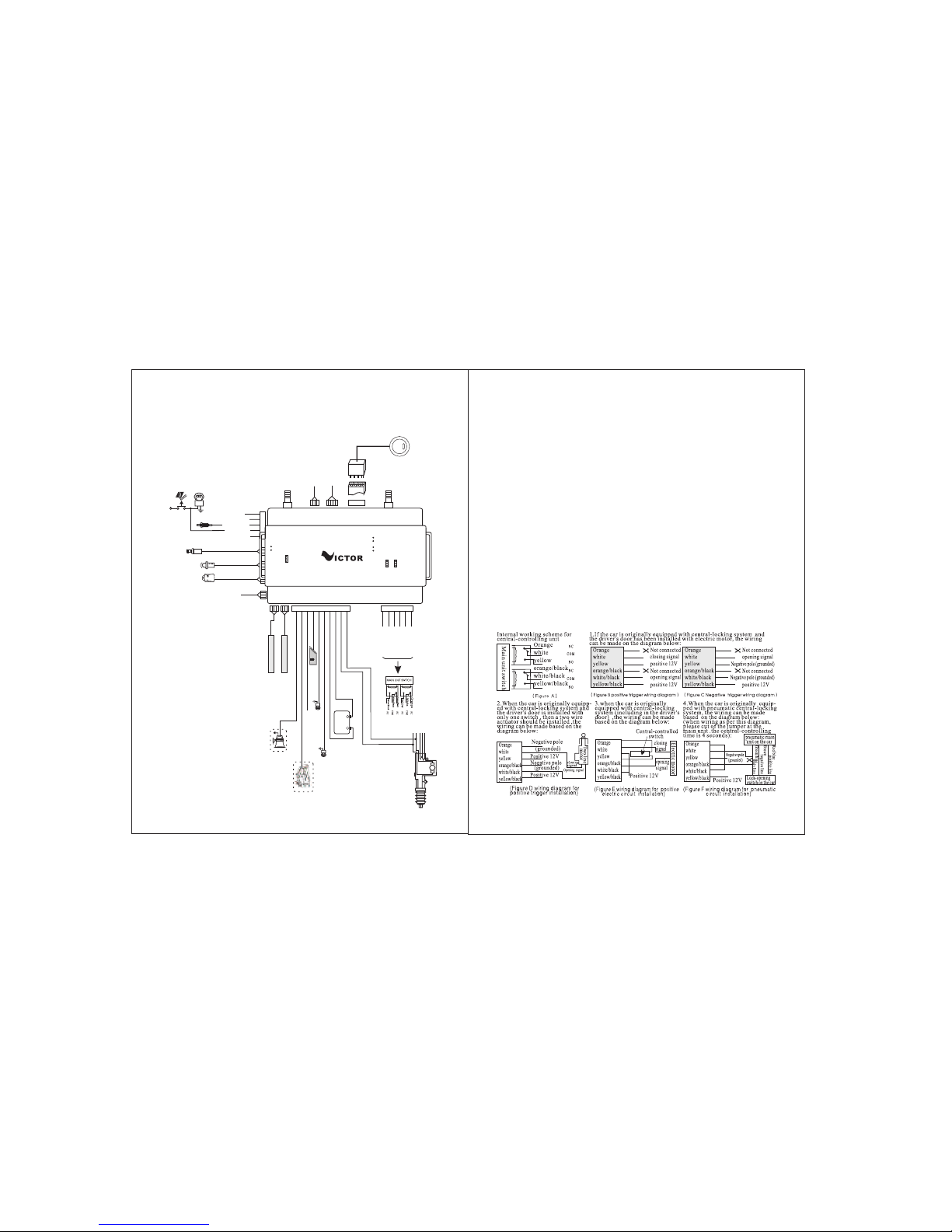

5. VT-368Wire diagram and central door
locking diagram
GSM GPS
+
+
Origi nal car
motor c ircui t

6. GPS Command code
Function setting Command
Function operation
Command
code
Setting new command no
(Must use the command
no to setting)
**new telphone
no**
Download the
command code 00
Setting new PIN code
(Must use the
command no to setting)
88 new PIN
code alarm setting 01
Setting back up telephone
no 1(Must use the
command no to setting)
02
81
telephone no Disarm
Setting back up telephone
no 2(Must use the
command no to setting)
03
82
telephone no
Mute alarm
Turn of the shock sensor
07 Location/panic 04
Turn on the shock
sensor (factory setting)
05
Trunk release
13
Cancel the transmitters
Anti-hijacking
14 06
Active the transmitters
(factory setting)
GPS location
( text message)
15 08
Low temperature
detecting active(Optional)
GPS location
(multimultimedia
message)
18 09
Low temperature
detecting negative(factory
setting)(Optional)
Einge star
19 10
Setting timer engine
start active Engine disable
20 11
Setting timer engine start
negative(factory setting)
Voice monitoring
21 16
No message when arm
the system by transmitter
(factory setting)
Sending message
when arm by
transmitter
31 41
No message when disarm
the system by transmitter
(factory setting)
Sending message
when disarm by
transmitter
32 42
Remark：
1、During the operation by mobile, pres"#" to cancel all orders before.
Setting no command no, new command PIN code, and back up no, must
use the command telephone no, if use other telphone no to operate must
input the command PIN code + 2command code, the "+" no need to input,
( the command pin code is 12346 when come out factory)
7. Transmitter programming ：
When disarm, open the door, turn ACC to ON .
Function model Setting/ way to change Siren sound
1 time
Siren sound
2 tiems
1.Low temperature
detection(Optional)
Press + 2 seconds able ※disable
able ※disable
2.timer engine
start Press + 2 seconds
※able disable
Press seconds
3.door open alert
4.door open delay,
doom light delay.
Press + 2 seconds ※5seconds 30seconds
with “ ” marks are the factory settings ※
8. Function description
8.1 Arming with sound
Engine turn off, get out of the car, press button, doors locked, siren
sound 1 time, direction light flash 1 time, automatically power window
output for 25 seconds, then system in arm status within 3 seconds.
8.2、Alarm triger
Under arming status, if someone force to open the door, or start the engine
illegally or foot on bark or other abnormal situations, the system will make
alarm immediately, siren will make sound, direction light will flash, engine
will be disable to start, 30 seconds later, alarm will stop and system back
into arm status.
8.3、Shock triger
When arming, if the car was attacked the siren will sound 5 seconds and
direction light will flash 5 seconds, if car was attacked continuously, the
siren will sound 30 seconds, direction light will flash 30 seconds.
8.4、Disarm
When arming status, press button, doors open, siren sound 2 times,
direction light flash 2 times. When mute alarm,press button, doors
open, direction light flash 2 times, siren will not sound.
8.5、Open trunk by transmitter
In any status press button for 2 seconds
、
(7) (8)

8.6 Anti-Hijacking
This function is designed for the emergency during driving, Press
button for 2 seconds, Direction light flashing rapidly, then press button
for 1 time within 10 seconds, the direction light will stop flashing, after 15
seconds system will enter into Anti-hijacking status, Siren will sound and
direction light will on, if speed is lower than 20km/H or foot on bark within
15 seconds, engine will be locked, press button for 2 seconds to stop
anti-hijacking.
8.7、Auto re-arm
After disarmed, if there has no any action to be made, system will auto
re-arm, after 30 seconds.
8.8、Auto Central door locking
During driving, Press button or button can lock or unlock the door,
after door were locked porperly, when the key turn to ACC-ON, and foot
on bark after 15 second, the doors will lock automatically, after the key
out, the doors will automatically unlock.
8.9、Disconnection memory
No matter how long the car power was disconnected, 5 seconds after the
power is reconnected, the system will be restored to the state before the
power supply was cut.
8.10、Reminder for doors improperly closed when arming（options can
be done by transmitters）
Mode one: ACC at ON position, open the car door and press + on
remote for 2 seconds,siren chirp once, side door delay time is 5 seconds.
Mode two: ACC at ON position, open the car door and press + on
remote for 2 seconds,siren chirp two, side door delay time is 30 seconds.
Under Mode one: User arm the system by transmitter while the door not
closed properly, 5 seconds later the system will alarm for 10 seconds
automatically as reminding the user to close the door.(System will auto-
matically turns on the dome light delay for 5 seconds)
Under mode two : User arm the system by transmitter while the door not
closed properly, 30 seconds later the system will alarm for 10 seconds
automatically as reminding the user to close the door.(System will auto-
matically turns on the dome light delay for 30 seconds)
8.11、Reminder for doors improperly closed while driving.
When driving, if the door is not closed well, the direction lights will flash
to warn rear vehicles.
Active this function: please open the car door and turn the ACC to ON
、position, press for 2 seconds, siren chirp once and direction light flash
once. Press for 2 seconds again to defective this function,siren chirp
twice and direction light flash twice
8.12、Car finding.
Under arm status, press once, the siren chirp 25 seconds and the
direction lights flashing at the same time to inform the vehicle's location.
Press any button to stop car finding .(Note: this function only available for
4 buttons remote)
8.13、Alarm trigger memory
If the system was triggered under arm status, the siren will chirp once
when open the door after disarmed.
8.14 Intelligent circumstance identification
Under bad weather like heavy rain, snow or thunder, after s was triggered
8 times continuously the system will close vibration trigger function auto-
matically. After four minutes if the conditions better, the system will auto-
matically restore vibration trigger function.
8.15、Close vibration trigger function
1. Under arm status, press and at the same time for 2 seconds,
siren chirp twice and direction lights flash twice, indicating the vibration
trigger function has been closed.
2.Under arm status, press and at the same time for 2 seconds,
siren chirp once and direction lights flash once, indicating the vibration
trigger function has been opened.
8.16、Valet mode ON and OFF
Valet mode ON: ACC/ON step the footbrake,press the for 2 seconds,
the direction lights flash once,siren sound once,
Valet mode OFF: ACC/ON step the footbrake,press the for 2 seconds,
the direction lights flash two times,siren sound two times,
8.17、Electronic/ Pneumatic lock selection
Factory default setting is Electronic lock, installer need to open the battery
cover to change it.
、
(9) (10)

8.18、Learning remote control(2pcs can be learn at one time),the steps
as follow:
1. Under disarm status, open car door and step on foot brake, turn ACC
from OFF to ON for 3 times, finally stop at ON position. LED indicator
light uninterruptedly which indicating the system has enter into lear-
ning status. Or open car door and step on foot brake, turn on the ACC,
press emergency button for 3 times,the system will enter into learning
status.
2. Press any button within 10 seconds, siren chirp once indicating the
first button has been learned successfully.
nd
3. Repeat step 2 to learn the 2 remote(siren chirp twice indicating the
nd nd
2 remote has been learned successfully); After the 2 remote be
learned successfully, the siren will chirp twice indicating the system
is going to exit the state of learning mode.
4. During learning process, turn the car key to OFF position, or no action
to remote control within 10 seconds, the system will exit the state of
learning mode automatically. At this moment the siren will chirp twice
too.
Attention: every time you learn new remotes, the old remotes will be cle-
ared automatically, so you must learn new remotes at the same time.
8.19、Alarm trigger memory--if the system is triggered under arm status,
when you disarm it the siren will chirp different sounds to indicate the
difference:
Triggered area Arm Disarm
Shock sensor LED flash
twice
Siren chirp, Direction lights and
LED flash 3 times
Illegally open
the door LED flash
twice
LED flash
twice
Ignition
Siren chirp, Direction lights and
LED flash 4 times
Siren chirp, Direction lights and
LED flash 5 times
8.20 Remote engine start
This feature can be selected by programming function (the engine can
only be remote start under arm status).
The user can choose one-time start or start by detecting the condition of
the vehicle.
、
A) one-time start
1 Under arm status,press for 2 seconds on remote, siren chirp once
and direction lights flash 3 times, the engine will be start immediately.
2、After engine being started, direction lights will flash 10 seconds indi-
cating the vehicle has been started successfully.
3、Under engine start mode, press on remote to stop the engine and
back to its original state.
4、Under engine start mode, the system will do automatically detecting.
If the doors being opened and trigger alarm, engine will stop immediately.
Siren chirp and direction lights flash 30 seconds, and then back to its
original arm status.(During the alarm triggerment for the engine started
by remote, the system will not detect the shock sensor until engine being
stopped automatically)
5、Under engine start mode,the car owner can press to disarm and
unlock the door and stop the alarm.
6、During the engine start mode, if the engine stop to the start or was
locked, the system will detecting automatically and restart the engine.
7、20 minutes after the engine being started, the siren will chirp 3 times
and system will stop the engine so it back to its original state.
B）Abnormal situations for remote engine start:
1、The handbark was not closed properly, siren chirp 3 time to alert the
user engine can not be started, and back to the original condition.
2、If system failed to start the engine 5 times, and then the siren will make
2 long sound to alert the user engine can not be started.
8.21、Low temperature detecting engine start(Optional)-----This
function can be selected by programming function.
1、Set this feature is turned ON
2、Set arm by press or on remote, siren will chirp 3 times contin-
uously indicating the low-temperature detecting engine start was actived.
3、When the temperature sensor detected the temperature reached the
setting temperature, the system will start engine immediately, and 20
minutes later will turn it off.
4、System will detect the temperature for every 30 minutes, if it is just
reached the set temperature, the car will automatically start for 20 minutes.
5、If the system is continuous detected low temperature and start engine
、
(11) (12)

5 times, this function will be turn off automatically.
6、For re-active this function, please follow step 2.
Attention:
1、The system still under arm status during the process of engine start.
2、If handbrake did not close well, siren will chirp once to indicate when you
press or on remote.
3、If the handbrake did not close well,siren will chirp for 3 long times to warm
owner that the vehicle can not be start normally, the system will back to its
original state.
4、When start the vehicle, it must be placed in neutral or P position. Autom-
atically start function will be turn off after disarm the system.
8.22、Timing automatically start------This function can be selected by
programming function:
1、Set this function is turned ON
2、After press or on remote, the system enter into arm status, then
press for 2 seconds, the engine will be start and 20 minutes later turn
off, indicating system has enter into timing automatically start function.
3、The vehicle will start automatically 20 minutes for every two hours,
and it continue 5 times, then the system will turn off this function.
4、For re-active this function, please repeat the step 2.
Attention:
1、The system still under arm status during the process of engine start.
2、When the handbrake is not effect well,siren will chirp for 3 long times
to warm owner that the vehicle is under abnormal condition and can not
be start normally.
3、When start the vehicle, it must be placed in neutral or P position. Timing
automatically start function will be turn off after disarm the system.
8.23、Low temperature detecting engine start and Timing engine start can
not be use at the same time. Once you choose 'L' mode then the 'T' mode
will be turn off automatically.
8.24、One button start function（please refer to Installation wiring
diagram）Operation method:
1、Press start button by following: open ACC~ON~OFF~ ACC......
2、Step on foot brake when the LED indicator of the push start button turn
to purple, and then press the start button for 2 seconds to STOP.
PKE Function description
With the Automation and the intelligence, and the most advanced RFID
function, can by detecting the transmitter of the owner, to activation related
functions. Remark: this function must be available by using transmitter
with PKE function and PKE function ON.
1. Automatically Lock and Unlock ：
In Arming status, when the user go near the car with the range that the
transmitter can be detected, the siren will sound two times, Direction light
will flash 2 times, the system will automatically unlock and disarm, (if it was
Mute arming status, then the siren will not make sound), the user can drive
the car, if the transmitter without in the detecting range, the system will
active and lock the door immediately, siren will sound one time, direction
light will flash once and arming.
2. RFID Automatically Identification ：
When the user start to drive the car and the key was turn to ON position,
the system will sending signal to transmitter within 5 seconds to identify,
after the identification complete, if fail to receive the signal once, the
system will lock the engine at once, but if detected the transmitter, then
can the drive the car normally, and system will stop the detecting the
transmitter.
3. Auto Anti-Hijacking：
When user drive the car normally and detecting the doors open, the led
indicator will keep on to alert entered the Anti-hijacking status, the system
will identify the user after 1 minute, and the identification will last 1 minute,
during this 1 minute, if the PKE transmitter was detected, then can conti-
nue to drive the car, and during driving will not to detect the transmitter
any more, if can not be detected during this 1 minute, then will make alarm
at once, Siren will sound, the direction light will flash, and lock the engine
after 30 seconds, before and after the alarm stared, the system will always
to detecting the transmitter, once it was detected, the alarm will stop and
can drive the car again, so the user must keep the PKE transmitter with
you and avoid it be robed by the robber, during the auto Anti-hijacking, if
the transmitter was detected within the first 1 minute, the system will exit
the anti-hijacking at once, if the alarm is on, the system will have discon-
nection memory, which mean if cut off the power and then re-connected,
the system will still make alarm and lock the engine, by emergency release
and the press " " button on the transmitter or detected PKE transmitter can
(13) (14)

exit the anti-hijacking mode.
Within auto anti-hijacking and manual anti-hijacking mode, using transm-
itter to stop and exit the anti-hijacking at once. Specially attention: manual
anti-hijacking will make alarm and lock the engine rapidly(Refer the manual
anti-hijacking function), so please make sure the safety of your own, and
operate it within the transmitter signal range, or go the safe place with the
transmitters with you, and let the system enter the auto anti-hijacking mode,
when using the basic transmitter or when PKE function detective, auto
anti-hijacking function will defective automatically, only manual anti-
hijacking can be used.
4. Transmitters RFIE automatically switch：
When the user changing another PKE transmitter, the RFID function of the
transmitter which the user using now will active at once, and the one which
using before will defective at the same time, if change them again, the RFID
function will exchange with each other, this function enable the only one
which using by the user now have the RFID function, the basic transmitter
and the PKE transmitter which not using will not have RFID function.
5. Manually active or Cancel PKE functions ：
Open the main unit cover and choosing by S2.
6. Attention：
PKE function improved the security and the convenience of the car, but
when the PKE function active and using the PKE transmitter, the user must
keep the transmitter on body anywhere, or else the user can not open the
doors, if this was happened, please cancel the PKE function or using basic
transmitter.
(15) (16)
Guarantee Card
CUSTOMER`S NAME:
MODEL NO:
SERIAL NO:
DATE OF PURCHASE:
DEALER` NAME & ADDRESS:
