User’s Manual
REFRIGERATOR
MODEL:IDD273W

Contents
1. SAFETY WARNINGS............................................................................................................ 1
2. INSTALLTION...................................................................................................................... 3
2.1 Location...................................................................................................................... 3
2.2 Reversing the Door Swing（optionnal）................................................................... 3
2.3 Door Handle Install Illumination (optional) ............................................................... 7
2.4 Door Space Requirements.......................................................................................... 8
2.5 Levelling the Unit ....................................................................................................... 8
2.6 Cleaning Before Use ................................................................................................... 8
2.7 Before Using Your Unit............................................................................................... 8
2.8 Interior Accessories.................................................................................................... 9
3. PRODUCT OVERVIEW ...................................................................................................... 10
4. OPERATION...................................................................................................................... 10
4.1 Switching On Your Unit ............................................................................................ 10
4.2 Noise Inside the Unit!............................................................................................... 11
4.3 Tips for Keeping Food in the Unit............................................................................. 11
4.4 Change the Light Bulb .............................................................................................. 11
5. CLEANING ........................................................................................................................ 11
5.1 Defrosting................................................................................................................. 11
5.2 Cleaning the Interior and the Exterior of the Unit ................................................... 11
5.3 Cleaning Tips ............................................................................................................ 12
6. MAINTENANCE ................................................................................................................ 12
6.1 Changing the Internal Light...................................................................................... 12
6.2 Care When Handling / Moving Your Unit................................................................. 12
6.3 Servicing ................................................................................................................... 12
6.4 Switching Of for Long Periods of Time..................................................................... 12
7. Trouble shooting ............................................................................................................. 13
7.1 Warm tips:................................................................................................................ 13
8. TIPS FOR ENERGY SAVING ............................................................................................... 13
9. DISPOSAL ......................................................................................................................... 14

1
1. SAFETY WARNINGS
Warning: risk of fire / flammable materials
This appliance is intended to be used in household and similar applications such as staff
kitchen areas in shops, offices and other working environments; farm houses and by clients in
hotels, motels and other residential type environments; bed and breakfast type environments;
catering and similar non-retail applications.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the
appliance..
WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
WARNING: Please abandon the refrigerator according to local regulators for it use
flammable blowing gas and refrigerant.
WARNING: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
WARNING: Do not locate multiple portable socket-outlets or portable power supplies at
the rear of the appliance.
Do not use extension cords or ungrounded （two prong） adapters.
DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.

2
The refrigerator must be disconnected from the source of electrical supply before attempting
the installation of accessory.
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scrapped it shall be kept away from any fire source and be
recovered by a special recovering company with corresponding qualification other than be
disposed by combustion, so as to prevent damage to the environment or any other harm.
For EN standard: This appliance can be used by children aged from 8 years and above and
persons with reduce physical sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without supervision. Children aged from 3 to 8
years are allowed to load and unload refrigerating appliances.
For IEC standard: This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.)
Children should be supervised to ensure that they do not play with the appliance.
The instructions shall include the substance of the following: To avoid contamination of food,
please respect the following instructions:
–Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
–Clean regularly surfaces that can come in contact with food and accessible drainage systems.
–Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days. （note 1）
–Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
–Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice-cream and making ice cubes. （note 2）
–One -,two -and three-star compartments are not suitable for the
freezing of fresh food. （note 3）
–If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
Note 1,2,3：Please confirm whether it is applicable according to you product compartment type.

3
2. INSTALLTION
2.1 Location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator.
Also avoid direct sunlight as it may increase the electrical consumption. Extreme cold ambient
temperatures may also cause the unit not to perform properly. This unit is not designed for use in
a garage or outdoor installation. Do not drape the unit with any covering.
When installing the unit, ensure that 10 cm of free space is left at both sides, 10 cm at the rear
and 30 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and
improve the efficiency of the cooling process.
2.2 Reversing the Door Swing（optionnal）
Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner

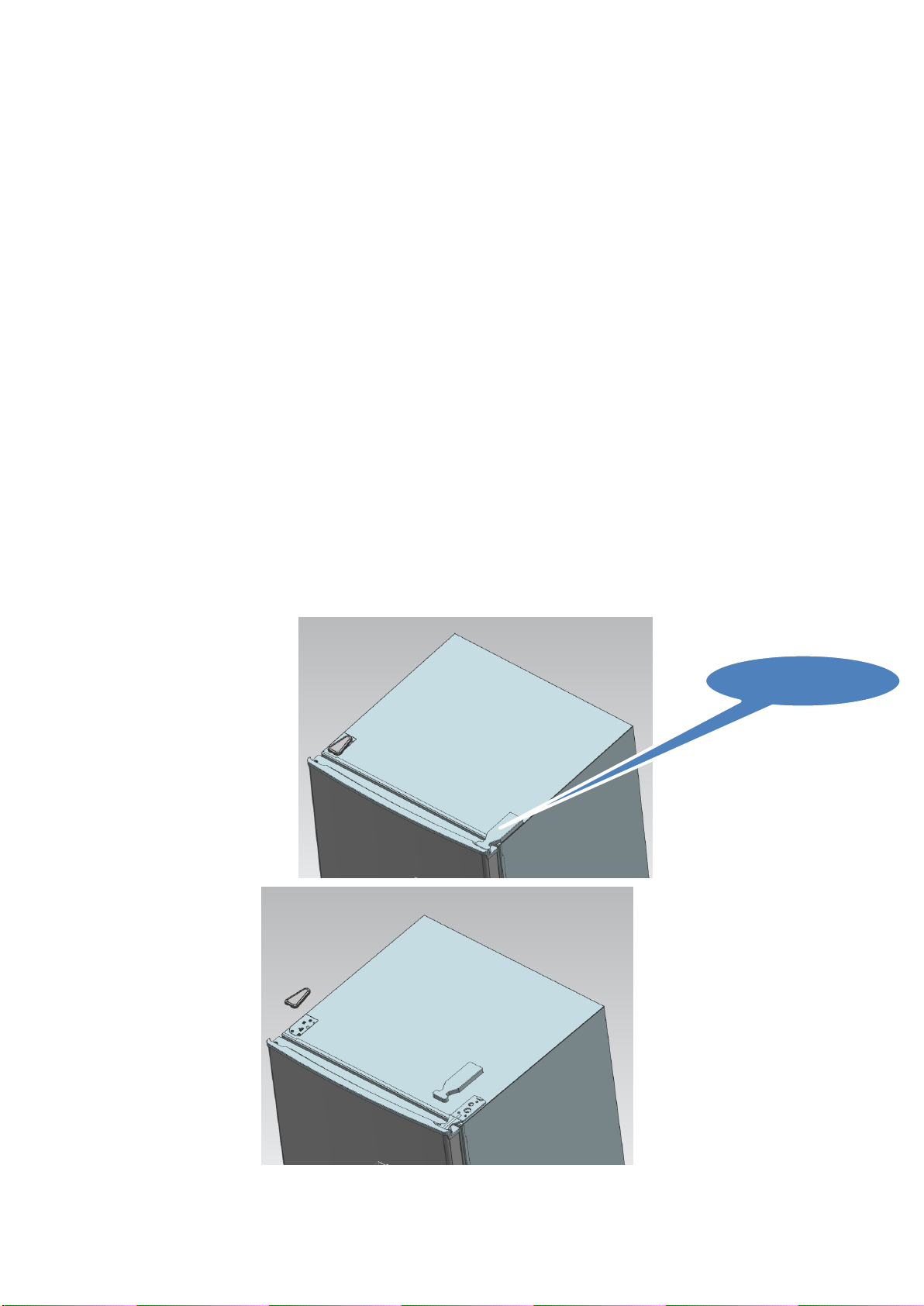

1) Remove the top hinge cover .
The top hinge cover

4
2) Remove the screws fixed the top-hinge with cross-slot screwdriver.
3) Replace the top-hinge and the top-door limit block and the door bearing bush to the other
side.
A. Remove the nut with sleeve.Take off the washer then remove the axes to the other side
and fixed.
B. Remove the door limit block
C. Please taking out another door limit block, with screw mounting to the door

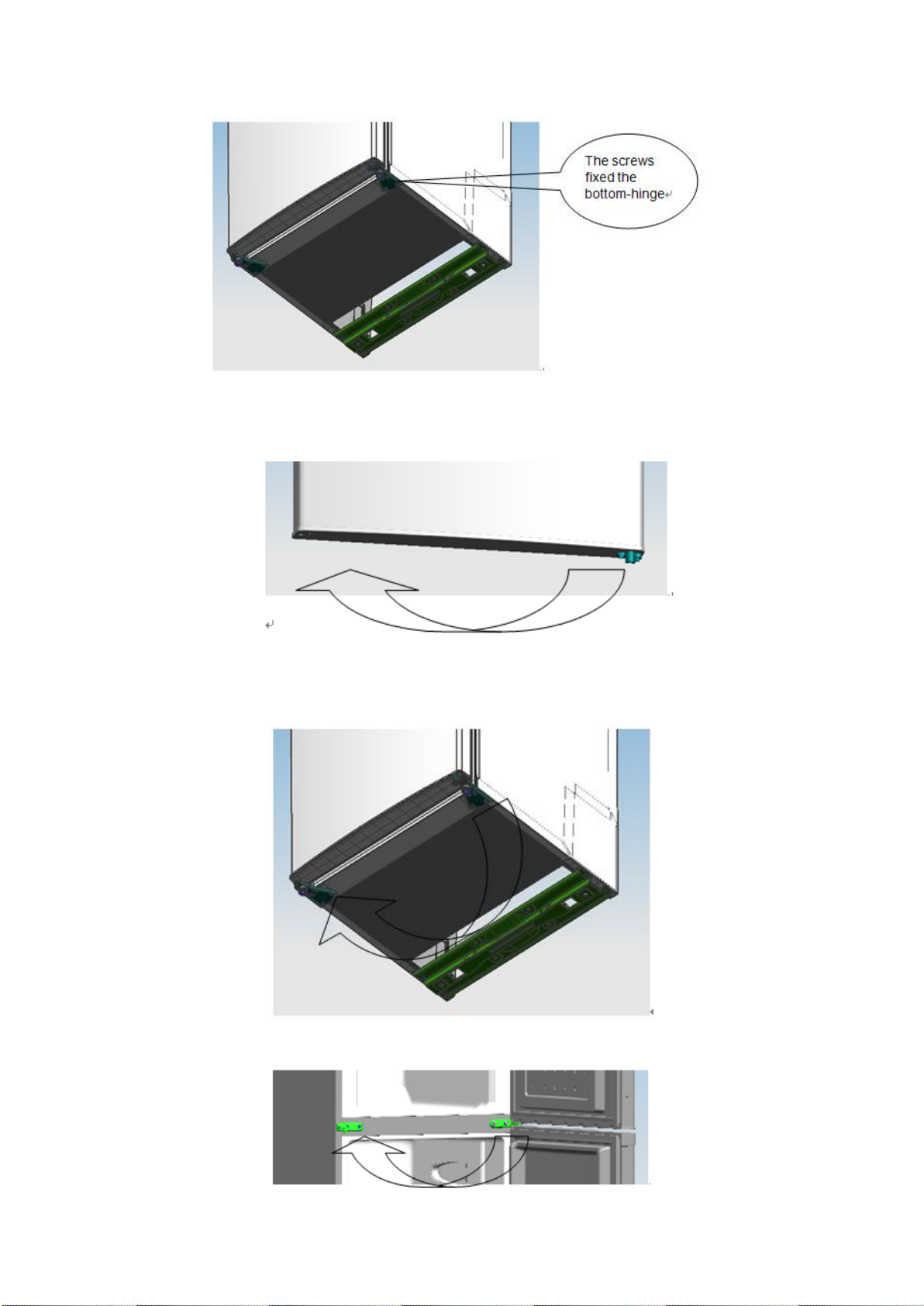

4) Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver .

5

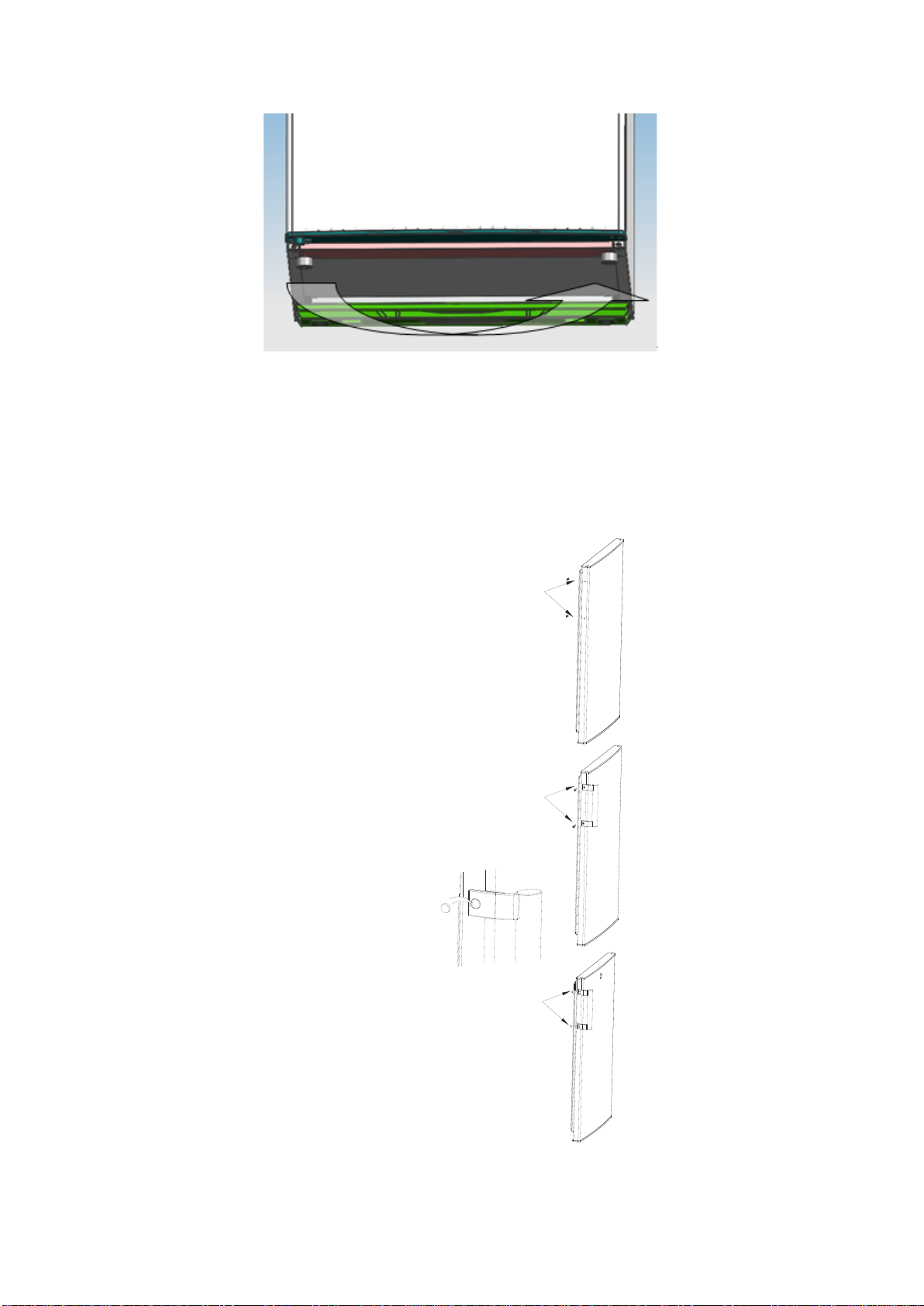

Note：the refrigerator-freezer incline angle less 45°.
5) Replace the bottom door bearing bush and the limit block.
6) Replace the bottom hinge to the other side then fix it with screws.
7) Replace the mid-hinge.

6
8) Set the bottom door right position,fix the mid-hinge.
9) Replace the top-hinge.
10) Set the top door right position,fix the top-hinge and the cover.
11) Install the four screw caps and two catches to corresponding position.
·Ensure the Appliance is unplugged and empty.
·Adjust the two leveling feet to their highest position.
·We recommend you have someone to assist you.
12) replace the leveler to the other side and adjust it to make sure the cabinet level.

7
*The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor

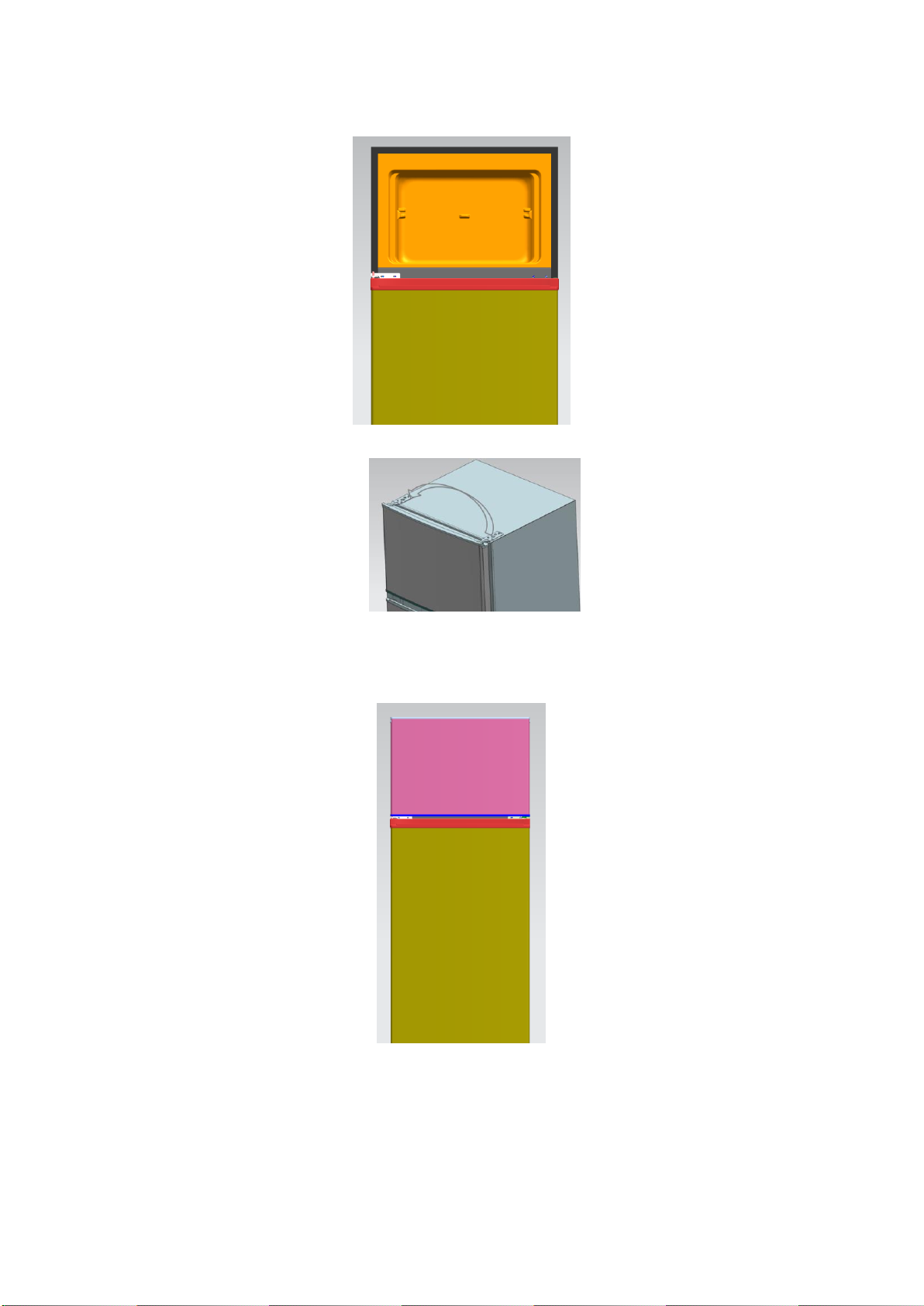

2.3Door Handle Install Illumination (optional)
Note: Figures in the user manual are only for reference. The actual product may differ slightly.
The refrigerator must be disconnected from the source of electrical supply before attempting the
installation of accessory.
Step 1: take out two plug pins from the door (Side of door open)
Step 2: Install the door handle to the door and fasten it with screws
Step 3: Cover screw caps of the handle into screw holes
*The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor

8

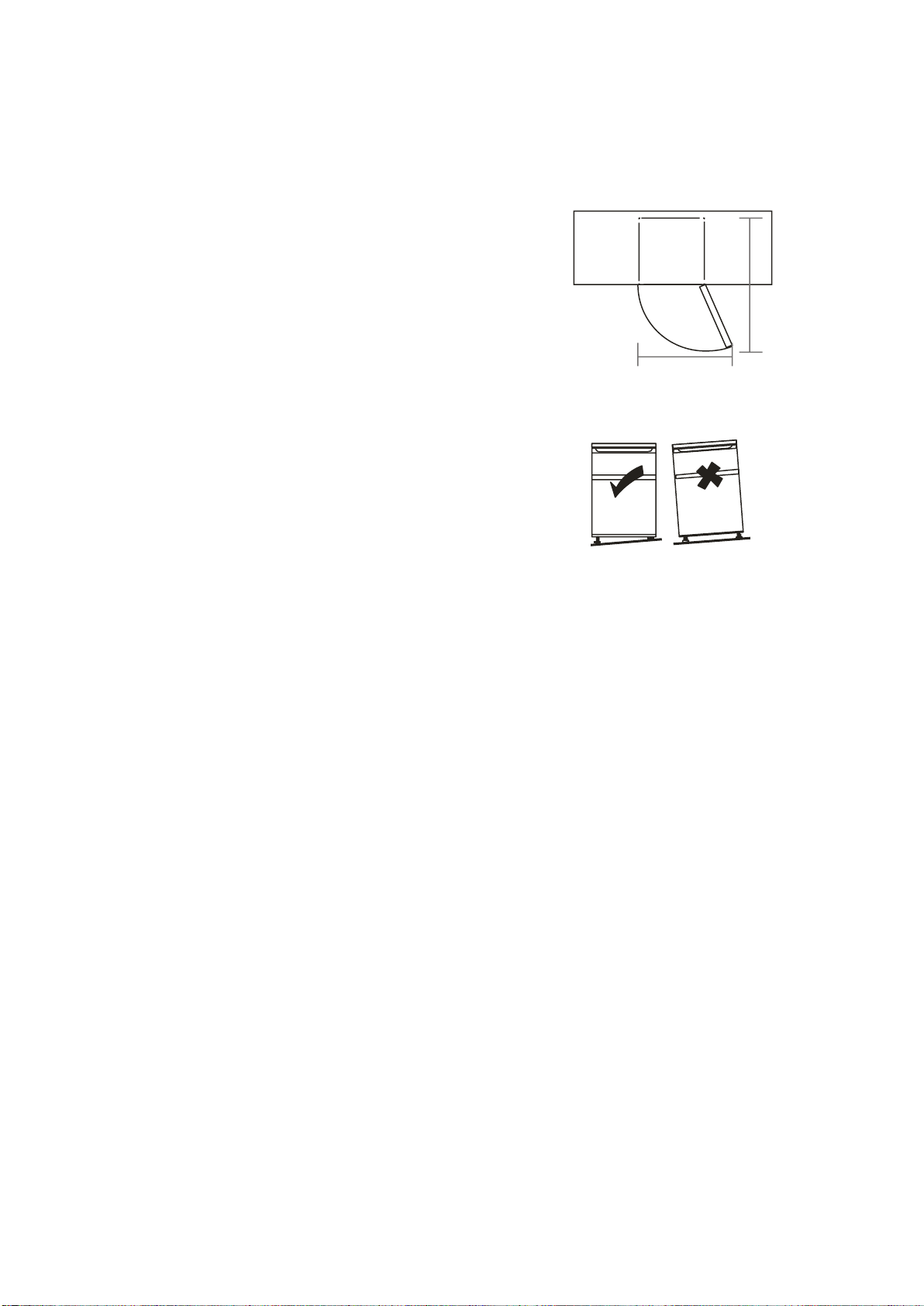

2.4Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥902×1052mm
2.5 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments
will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, clockwise and counterclockwise loosening, tightening.
2.6 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water
and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
2.7 Before Using Your Unit
Do not damage the power cord under any condition so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent
damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to national standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
W
D

9
◆Before Plugging in
You must check that you have a socket which is compatible with the plug supplied
with the unit.
◆Before Turning On!
Do not turn on until two hours after moving the unit.
2.8 Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different
models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do
this, pull the storage shelf forward until it can be swivelled upwards or downwards
and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out
of the appliance, according to your daily use.

10
3. PRODUCT OVERVIEW
*The picture above is only for reference. The actual configuration will depend on the physical
product or statement by the distributor
4. OPERATION
4.1 Switching On Your Unit
Setting“Off”： UnitOff
Setting“Min”： Less Cool Temperature
Setting“Med” or “MID”：Normal Operation(adequate for most situations)
Setting“Max”： Coolest Temperature
◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set the
thermostat to the Coolest setting(position“Max”).This may cause the compressor running
continuously in order to maintain a low temperature in the cabinet.
◆For the first time you install your refrigerator, set the thermostat knob at “Med”.
Give your refrigerator time to cool down completely before adding food. It is the best to wait
24 hours before adding food. The thermostat knob controls the temperature. When the

11
thermostat control knob is set to OFF, the refrigerator will not be running.
4.2 Noise Inside the Unit!
You may notice that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduction of CFC free gases. This is not a fault and will not
affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
4.3 Tips for Keeping Food in the Unit
◆Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
◆Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
◆To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
◆Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
◆To prevent cold air escaping from the unit, try to limit the number of times you open the
door. We recommend that you only open the door when you need to put food in or take food
out.
4.4 Change the Light Bulb
Lamp replacement by professionals
5. CLEANING
5.1 Defrosting
NOTE THIS UNIT DOES NOT HAVE AN AUTO DEFROST SYSTEM.
5.2 Cleaning the Interior and the Exterior of the Unit
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the
cooling effect and energy saving.
Check the door gasket regularly to make sure there are no debris. Clean the door gasket with
a soft cloth dampened with soapy water or diluted detergent.
The interior of the refrigerator should be cleaned regularly to avoid odor.
Please turn off the power before cleaning interior, remove all foods, drinks ,shelves, drawers,
etc.
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of
baking soda and a quart of warm water. Then rinse with water and wipe clean. After
cleaning, open the door and let it dry naturally before turning on the power.
For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or
corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and
when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no
contaminants or bacterials accumulation in these areas.

12
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in
the interior of the refrigerator or contaminated food.
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or
diluted detergent. Dry with a soft cloth or dry naturally.
Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water,
detergent, etc., and then wipe dry.
Do not use hard brushes, clean steel balls, wire brushes, abrasives(such as toothpastes),
organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline
items, which may damage the fridge surface and interior. Boiling water and organic solvents
such as benzene may deform or damage plastic parts.
Do not rinse directly with water or other liquids during cleaning to avoid short circuits or
affect electrical insulation after immersion.
5.3 Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
6. MAINTENANCE
6.1 Changing the Internal Light
Lamp replacement by professionals.
6.2 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted
by holding the edges of the top surface.
6.3 Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out
by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively
technician.
6.4 Switching Of for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty
all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.

13
7. Trouble shooting
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Inoperation
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Long-term operation of
compressor
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door.
Illuminating light does not
shine
Whether the refrigerator is connected to power,
whether the illuminating light is damaged.
The refrigerator door can not
be properly closed.
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Loud noises
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
7.1 Warm tips:
◆The refrigerator enclosure may emit heat during operation specially in summer, this is caused
by the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensation can be wiped away with a dry towel.
◆Buzz: Buzz will be generated by running compressor specially when starting up or shutting
down.
8. TIPS FOR ENERGY SAVING
Try not to open the door too often, especially when the weather is wet and hot. Once you open
the door, close it as soon as possible.
Every now and then check if the appliance is sufficiently ventilated (adequate air circulation
behind the appliance).
In normal temperature conditions, please arrange the thermostat at the middle setting.
Before loading the appliance with packages of fresh food, make sure they are cooled to ambient
temperature.
Ice and frost layer increase energy consumption, so clean the appliance as soon as the layer is 3-5
mm thick.

14
If it is the outer condenser, the rear wall should be always clean free of dust or any impurities.
◆ The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
◆ Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or
spoil.
◆ Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance.
This cuts down on frost build-up inside the appliance.
◆ Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
Liners interfere with cold air circulation, making the appliance less efficient.
◆ Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
9. DISPOSAL
Old units still have some residual value. An environmentally friendly method of disposal will
ensure that valuable raw materials can be recovered and used again. The refrigerant used in your
unit and insulation materials require special disposal procedures. Ensure that none of the pipes
on the back of the unit are damaged prior to disposal. Up to date information concerning options
of disposing of your old unit and packaging from the new one can be obtained from your local
council office.
When disposing of an old unit break of any old locks or latches and remove the door as a
safeguard.

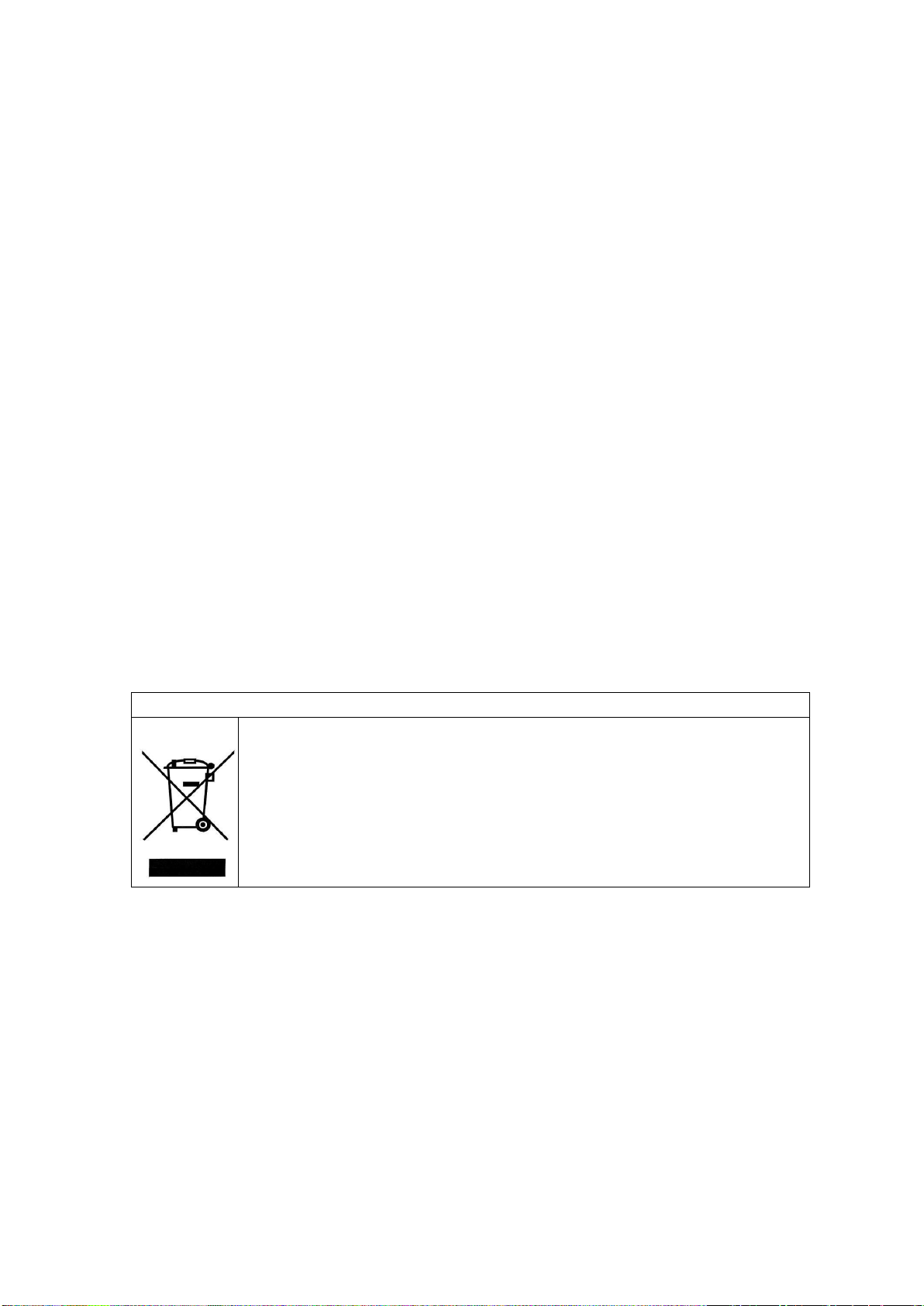

Correct Disposal of this product
Correct Disposal of this product
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To return your used device,
please use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
For more information, please contact the local authority or your retailer where you purchased
the product.

IDD273W

13
Αλλαγή φοράς ανοίγματος πόρτας ....... ..................................................................... 3
7
7
7
8
8
2.7
9
9
9
10
10
10
10
10
Απόψυξη........................................ ...........................................................................
5.3
10
11
11
11
11
11
11
11
12
12

1ΟΔΗΓΙΕΣ ΑΣΦΑΛΕΙΑΣ
Αυτή η συσκευή προορίζεται για χρήση σε οικιακές και παρόμοιες εφαρμογές,
όπως -κουζίνα προσωπικού σε καταστήματα, γραφεία και άλλα περιβάλλοντα- αγροικίες
και πελάτες σε ξενοδοχεία, μοτέλ και άλλα περιβάλλοντα τύπου κατοικίας - περιβάλλοντα
τύπου πανδοχείου (bed & breakfast), τροφοδοσία και παρόμοιες εφαρμογές μη λιανικής
πώλησης.
Εάν το καλώδιο τροφοδοσίας είναι φθαρμένο, πρέπει να αντικατασταθεί από τον
κατασκευαστή ή το εξουσιοδοτημένο κατάστημα τεχνικής υποστήριξης ή από άτομα
με παρόμοια ειδίκευση, προκειμένου να αποφευχθούν τυχόν κίνδυνοι.
Μην αποθηκεύετε σε αυτή τη συσκευή εκρηκτικές ουσίες όπως αεροζόλ με εύφλεκτο
προωθητικό αέριο.
Η συσκευή πρέπει να αποσυνδεθεί μετά τη χρήση και πριν από τη συντήρηση του
χρήστη.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Διατηρείτε ελεύθερες τις οπές εξαερισμού, στο περίβλημα
της συσκευής ή στην ενσωματωμένη δομή της, απομακρύνοντας τυχόν εμπόδια.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Μη χρησιμοποιείτε μηχανικές συσκευές ή άλλα μέσα για να
επιταχύνετε τη διαδικασία απόψυξης, εκτός από εκείνες που συνιστώνται από τον
κατασκευαστή.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Μην προκαλείτε φθορές στο κύκλωμα ψυκτικού μέσου.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Μην χρησιμοποιείτε ηλεκτρικές συσκευές μέσα στα
διαμερίσματα αποθήκευσης τροφίμων της συσκευής, εκτός αν είναι του τύπου που
συνιστάται από τον κατασκευαστή.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Παρακαλείστε να απορρίψετε το ψυγείο σύμφωνα με τους
τοπικούς κανονισμούς σχετικά με την διάθεση της συσκευής λόγω του εύφλεκτου
αερίου εμφύσησης και του ψυκτικού μέσου.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Κατά την τοποθέτηση της συσκευής, βεβαιωθείτε ότι το
καλώδιο τροφοδοσίας δεν έχει παγιδευτεί ή έχει υποστεί φθορά.
ΠΡΟΕΙΔΟΠΟΙΗΣΗ: Μην τοποθετείτε πολλές φορητές πρίζες ή φορητές παροχές
τροφοδοσίας στο πίσω μέρος της συσκευής.
Μην χρησιμοποιείτε καλώδια επέκτασης ή μη γειωμένους αντάπτορες (δύο ακίδων).
ΚΙΝΔΥΝΟΣ: Κίνδυνος παγίδευσης παιδιών. Πριν πετάξετε το παλιό ψυγείο ή τον
καταψύκτη σας:
- Αφαιρέστε τις πόρτες.
- Αφήστε τα ράφια στη θέση τους, ώστε τα παιδιά να μην μπορούν να ανέβουν εύκολα
μέσα.
Το ψυγείο πρέπει να αποσυνδεθεί από την πηγή ηλεκτρικής τροφοδοσίας πριν από
την εγκατάσταση εξαρτήματος.
Το ψυκτικό μέσο και το υλικό αφρισμού κυκλοπεντανίου που χρησιμοποιείται για το
ψυγείο είναι εύφλεκτα. Επομένως, όταν το ψυγείο διαλυθεί, πρέπει να απομακρυνθεί
από οποιαδήποτε πηγή φωτιάς και να ανακυκλωθεί από μια ειδική εταιρεία ανάκτησης
με αντίστοιχη πιστοποίηση διαφορετική από την απόρριψη με καύση, ώστε να
αποφευχθεί η πρόκληση βλάβης στο περιβάλλον ή οποιαδήποτε άλλη βλάβη.
Προειδοποίηση:
κίνδυνος πυρκαγιάς /
εύφλεκτων υλικών
1
