Dear customer:
Thank you for purchasing this device. To ensure that you get the best results from your
new appliance, read the simple instructions in this brochure.
Please ensure that the packing material is disposed of in accordance with the current
environmental requirements.
When disposing of any equipment please contact your local waste disposal
department for advice on safe disposal.
This appliance must be only used for its intended purpose. This appliance is intended
to be used in household.

3
CONTENT
SAFETY INFORMATION ................................................................................................4
OVERVIEW ...................................................................................................................11
INSTALLATION.............................................................................................................12
Space Requirement..............................................................................................................................12
Positioning...............................................................................................................................................12
Location....................................................................................................................................................12
Electrical connection ...........................................................................................................................12
Door Reversibility..................................................................................................................................13
Install door external handle (if external handle is present)...................................................17
Space requirement ...............................................................................................................................17
Levelling the unit ..................................................................................................................................17
USER CONTROL PANEL...............................................................................................18
Temperature setting of the Fridge Compartment ....................................................................18
Temperature setting of the Freezer Compartment...................................................................18
Impact on food storage ......................................................................................................................19
DAILY USE ....................................................................................................................20
First use.....................................................................................................................................................20
Freezing fresh food...............................................................................................................................20
Daily use ...................................................................................................................................................20
Helpful hints and tips...........................................................................................................................22
Cleaning....................................................................................................................................................23
Replace the lamp...................................................................................................................................23
Troubleshooting....................................................................................................................................24

4

SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before
installing and rst using the appliance, read this user manual
carefully, including its hints and warnings. To avoid unnecessary
mistakes and accidents, it is important to ensure that all people
using the appliance are thoroughly familiar with its operation and
safety features. Save these instructions and make sure that they
remain with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on appliance use
and safety.
For the safety of life and property keep the precautions of these
user’s instructions as the manufacturer is not responsible for
damages caused by omission.
Children and vulnerable people safety
• Thisappliancecanbeusedbychildrenagedfrom8yearsand
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given super vision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
• Childrenagedfrom3to8yearsareallowedtoloadandunload
this appliance.
• Childrenshouldbesupervisedtoensurethattheydonotplay
with the appliance.
• Cleaningandusermaintenanceshallnotbemadebychildren
unless they are aged from 8 years and above and supervised.
• Keepallpackagingwellawayfromchildren.Thereisriskof
suocation.
• Ifyouarediscardingtheappliancepulltheplugoutofthe
socket, cut the connection cable (as close to the appliance as
you can) and remove the door to prevent playing children to
suer electric shock or to close themselves into it.

5
• Ifthisappliancefeaturingmagneticdoorsealsistoreplacean
older appliance having a spring lock (latch) on the door or lid, be
sure to make that spring lack unusable before you discard the
old appliance. This will prevent it from becoming a death trap for
a child.
General safety

WARNING!Keepventilationopenings,intheappliance
enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to
accelerate the defrosting process, other than those recommended
by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice
cream makers) inside of refrigerating appliances, unless they are
approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a
long period of time because it could be very hot.*

WARNING! When positioning the appliance, ensure the supply
cord is not trapped or damaged.

WARNING! When positioning the appliance, ensure the supply
cord is not trapped or damaged.
• Donotstoreexplosivesubstancessuchasaerosolcanswitha
ammable propellant in this appliance.
• Therefrigerantisobutane(R-600a)iscontainedwithinthe
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
ammable.
• Duringtransportationandinstallationoftheappliance,be
certain that none of the components of the refrigerant circuit
become damaged.
- avoid open ames and sources of ignition
- thoroughly ventilate the room in which the appliance is
situated

6
• Itisdangeroustoalterthespecicationsormodifythisproduct
in any way. Any damage to the cord may cause a short circuit,
re and/or electric shock.
• Thisapplianceisintendedtobeusedinhouseholdandsimilar
applications such as
- sta kitchen areas in shops, oces and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord,
compressor and etc.) must be replaced by a certied service agent
or qualied service personnel.

WARNING! The light bulb supplied with this appliance is a
“special use lamp bulb”usable only with the appliance supplied.
This“special use lamp” is not usable for domestic lighting.*
• Powercordmustnotbelengthened.
• Makesurethatthepowerplugisnotsquashedordamagedby
the back of the appliance. A squashed or damaged power plug
may overheat and cause a re.
• Makesurethatyoucancometothemainsplugoftheappliance.
• Donotpullthemainscable.
• Ifthepowerplugsocketisloose,donotinsertthepowerplug.
There is a risk of electric shock or re.
• Youmustnotoperatetheappliancewithoutthelamp.
• Thisapplianceisheavy.Careshouldbetakenwhenmovingit.
• Donotremovenortouchitemsfromthefreezercompartment
if you hands are damp/wet, as this could cause skin abrasions or
frost/freezer burns.
• Avoidprolongedexposureoftheappliancetodirectsunlight.

7
Daily use
• Donotputhotontheplasticpartsintheappliance.
• Donotplacefoodproductsdirectlyagainsttherearwall.
• Frozenfoodmustnotbere-frozenonceithasbeenthawedout.
• Storepre-packedfrozenfoodinaccordancewiththefrozenfood
manufacture, instructions.
• Appliance,manufacturesstoragerecommendationsshouldbe
strictly adhered to. Refer to relevant instructions.
• Donotplacecarbonatedofzzydrinksinthefreezer
compartment as it creates pressure on the container, which may
cause it to explode, resulting in damage to the appliance.
• Icelolliescancausefrostburnsifconsumedstraightfromthe
appliance.
To avoid contamination of food, please respect the following
instructions
• Openingthedoorforlongperiodscancauseasignicantincrease
of the temperature in the compartments of the appliance.
• Cleanregularlysurfacesthatcancomeincontactwithfoodand
accessible drainage systems.
• Cleanwatertanksiftheyhavenotbeenusedfor48h;ushthe
water system connected to a water supply if water has not been
drawn for 5 days.
• Storerawmeatandshinsuitablecontainersintherefrigerator,so
that it is not in contact with or drip onto other food.
• Two-starfrozen-foodcompartments(iftheyarepresentedinthe
appliance) are suitable for storing pre-frozen food, storing or
making ice-cream and making ice cubes.
• One-,two-andthree-starcompartments(iftheyarepresentedin
the appliance) are not suitable for the freezing of fresh food.
• Iftheapplianceisleftemptyforlongperiods,switcho,defrost,
clean, dry and leave the door open to prevent mount developing
within the appliance.

8
Care and cleaning
• Beforemaintenance,switchotheapplianceanddisconnect
the mains plug from the mains socket.
• Donotcleantheappliancewithmetalobjects.
• Donotusesharpobjectstoremovefrostfromtheappliance.
Use a plastic scraper.
• Regularlyexaminethedrainintherefrigeratorfordefrosted
water. If necessary, clean the drain. If the drain is blocked, water
will collect in the bottom of the appliance.
Installation
Important! For electrical connection carefully follow the
instructions given in specic paragraphs.
• Unpacktheapplianceandcheckiftherearedamagesonit.
Do not connect the appliance if it is damaged. Report possible
damages immediately to the place you bought it. In that case
retain packing.
• Itisadvisabletowaitatleastfourhoursbeforeconnectingthe
appliance to allow the oil to ow back in the compressor.
• Adequateaircirculationshouldbearoundtheappliance,lacking
this leads to overheating. To achieve sucient ventilation follow
the instructions relevant to installation.
• Whereverpossiblethespacersoftheproductshouldbeagainst
a wall to avoid touching or catching warm parts (compressor,
con-denser) to prevent possible burn.
• Theappliancemustnotbelocatedclosetoradiatorsorcookers.
• Makesurethatthemainsplugisaccessibleaftertheinstallation
of the appliance.
Service
• Anyelectricalworkrequiredtodotheservicingoftheappliance
should be carried out by a qualied electrician or competent
person.

9
• ThisproductmustbeservicedbyanauthorizedServiceCenter,
and only genuine spare parts must be used.
Energy saving
• Don’tputhotfoodintheappliance;
• Don’tpackfoodclosetogetherasthispreventsaircirculating;
• Makesurefooddon’ttouchthebackofthecompartment(s);
• Ifelectricitygoeso,don’topenthedoor(s);
• Don’topenthedoor(s)frequently;
• Don’tkeepthedoor(s)openfortoolongtime;
• Don’tsetthethermostatonexceedingcoldtemperatures;
• Allaccessories,suchasdrawers,shelvesbalconies,shouldbe
kept there for lower energy consumption.
Environment Protection
This appliance does not contain gasses which could damage the
ozone layer, in either its refrigerant circuit or insulation materials.
The appliance shall not be discarded together with the urban
refuse and rubbish. The insulation foam contains ammable
gases: the appliance shall be disposed according to the appliance
regulations to obtain from your local authorities. Avoid damaging
the cooling unit, especially the heat exchanger. The materials used
on this appliance marked by the symbol

are recyclable.

10
The symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it should be taken to the appropriate collection
point for the recycling of electrical and electronic
equipment.Byensuringthisproductisdisposedofcorrectly,you
will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your
local council, your household waste disposal service or the shop
where you purchased the product.
Packaging materials
The materials with the symbol are recyclable. Dispose the
packaging in a suitable collection
containers to recycle it.
Disposal of the appliance
1. Disconnect the mains plug from the mains socket.
2. Cut o the mains cable and discard it.

WARNING! During using, service and disposal the appliance,
please pay attention to symbol similar as left side, which is located
on rear of appliance (rear panel or compressor) and with yellow or
orange color. It’s risk of re warning symbol. There are ammable
materials in refrigerant pipes and compressor.
Please be far away re source during using, service and disposal.

11
OVERVIEW
FridgeBalconies
LED Light
Crisper Cover
Crisper
Freezer
Drawers
Leveling Feet
Note: Above picture is for reference only. Real appliance might be dierent..
Fridge Shelves
Temperature
control knob

12
INSTALLATION
Space Requirement
• Selectalocationwithoutdirectexposuretosunlight;
• Selectalocationwithenoughspacefortherefrigeratordoorstoopeneasily;
• Selectalocationwithlevel(ornearlylevel)ooring;
• Allowsucientspacetoinstalltherefrigeratoronaatsurface;
• Allowclearancetotheright,left,backandtopwheninstalling.Thiswillhelpreduce
power consumption and keep your energy bills lower.
• Keepatlest50mmgapattwosidesandback.
Positioning
Install this appliance at a location where the ambient temperature corresponds to
climate class indicated on the rating plate of the appliance for refrigerating appliances
with climate class::
- SN: extended temperate: this refrigerating appliance is intended to be used at
ambient temperatures ranging from 10 °C to 32 °C;
- N: temperate: this refrigerating appliance is intended to be used at ambient
temperaturesrangingfrom16°Cto32°C;
- ST: subtropical: this refrigerating appliance is intended to be used at ambient
temperaturesrangingfrom16°Cto38°C;
- T: tropical: this refrigerating appliance is intended to be used at ambient
temperaturesrangingfrom16°Cto43°C;
Location
The appliance should be installed well away from sources of heat such as radiators,
boilers, direct sunlight etc. Ensure that air can circulate freely around the back of
the cabinet. To ensure best performance, if the appliance is positioned below an
overhanging wall unit, the minimum distance between the top of the cabi-net and
the wall unit must be at least 100 mm. Ideally, however, the appliance should not be
positioned below overhanging wall units. Accurate leveling is ensured by one or more
adjustablefeetatthebaseofthecabinet.
This refrigerating appliance is not itended to be used as a built-in appliance

WARNING! NIt must be possible to disconnect the appliance from the mains power
supply; the plug must therefore be easily accessible after installation.
Electrical connection
Beforepluggingin,ensurethatthevoltageandfrequencyshownontheratingplate
correspond to your domestic power supply. The appliance must be earthed. The power
supply cable plug is provided with a contact for this purpose. If the domestic power
supply socket is not earthed, connect the appliance to a separate earth in compliance
with current regulations, consulting a qualied electrician. The manufacturer declines
all responsibility if the above safety precautions are not observed. This appliance
complies with the E.E.C. Directives.

13

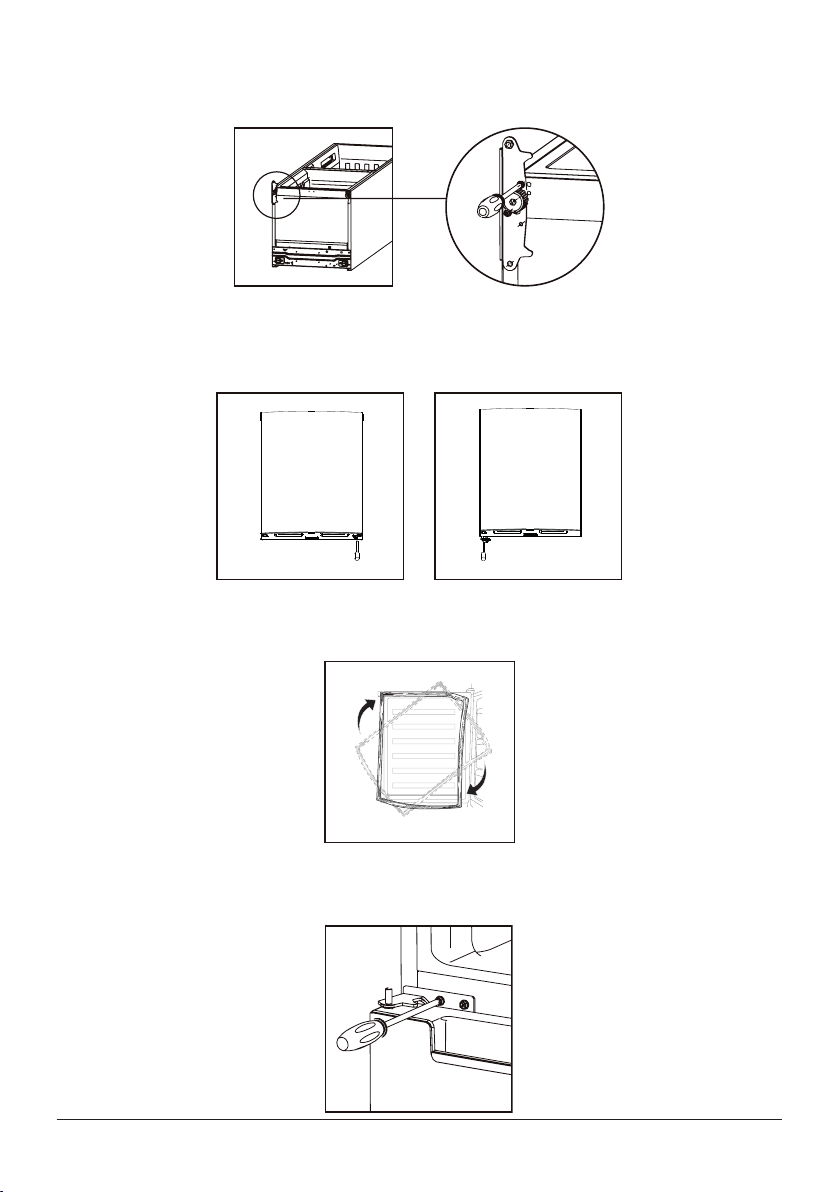

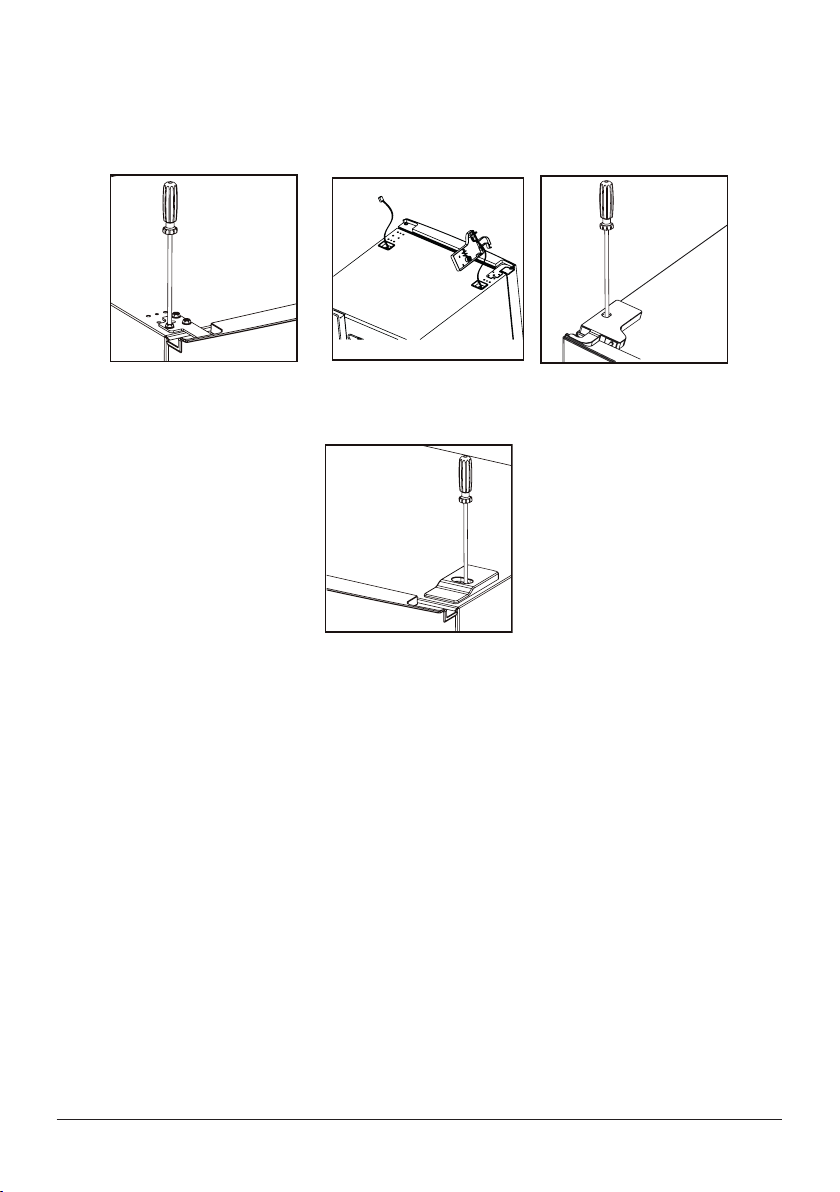

Door Reversibility
Beforereversingthedoor,pleasebepreparedbelowtoolsandmaterial:straight
screwdriver, cross screwdriver, spanner and the components included in the poly bag:
Left Door Hinge
Cover x 1
Left Aid-Closer on Upper
Door x 1
Left Aid-Closer on Lower
Door x 1
1. Unscrew top hinge cover and then unscrew the top hinge. Then lift uppoer door
and place it on a soft pad to avoid scratch and damage.
2. Remove the top left screw cover

14
3. Take o the upper door, take aut the screw from the middle hinge by cross
screwdriver, then take o the lower door.
4. Layingdowntherefrigerator,takeouttheadjustingfeetasbelow,thentakeothe
lower hinge by cross screwdriver.
5. Adjustingthehingecarepositionofthelowerhingeandupperhingetoopposite
position

15
6. Installthelowerhingeundertotherefrigeratorlikebelow,screwingintheadjusting
feet, make sure the position in horizon.
7. Remove the original aid-closers from upper and lower door, then install the aid-
closers from the internal bag (with instruction manuals) to the opposite side.
8. Detach the Fridge and the Freezer door gaskets and then attach them after rotating.
9. Installthelowerdoor,adjustandxthemiddlehingeontothecabinet.

16
10. Place the upper door back on. Ensure the door is aligned horizontally and vertically
so that the seal are closed on all sides before nally tightening the top hinge. Then
insert the top hinge and screw it to the top of unit and then x hinge cover (in
accessary bag) by screw.
11. Fix the screw cover.

17
Install door external handle (if external handle is present)
Space requirement
• Keepenoughspaceofdooropen.
• Itisadvisabletokeepatleast50mmgapatallsides.
A ϲϬϬ"
B 6Ϭ0"
C ϭϴϱϴ
D min=ϱ0"
E min=50"
F 
G ϭϮϬϬ"
H 
/ϭϯϱΣ"
min=50"
ϭϮϬϬ
,
Levelling the unit
Todothisadjustthetwolevellingfeelatfrontoftheunit.
If the unit is not level, the doors and magnetic seal
alignments will not be covered properly.
Doors
Lengthen Shorten

18
USER CONTROL PANEL
Temperature setting of the Fridge Compartment
The fridge temperature setting knob.
• Theknobinfridgecompartmentisusedtoadjusttemperatureoffridge
compartment.
• Theinternaltemperatureiscontrolledbyasensor.Thereare4settings:OFF,COLD,
COLDERandCOLDEST.COLDiswarmestsettingandCOLDESTiscoldestsetting.
• Theappliancemaynotoperateatthecorrecttemperatureifitisinaparticularlyhot
or if you open the door often.
• Neitherfridge,norfreezercompartmentworkswhenthesettingisOFF.
Temperature setting of the Freezer Compartment
The freezer temperature setting slider.
FREEZER CONTROL
• Thissliderinfridgecompartmentisusedtoadjusttemperatureoffreezer
compartment.
• Sliderispositionedtoward

,the temperature in freezer compartment will be higher.
Contrarily, the temperature in freezer compartment will be lower if the slider is
moved toward

.
• Middleposition

of slider is advised position for normal using.
• Togetlowesttemperatureinfreezercompartment,youcanadjustsettingknobat
coldest and position the slider at

.

19

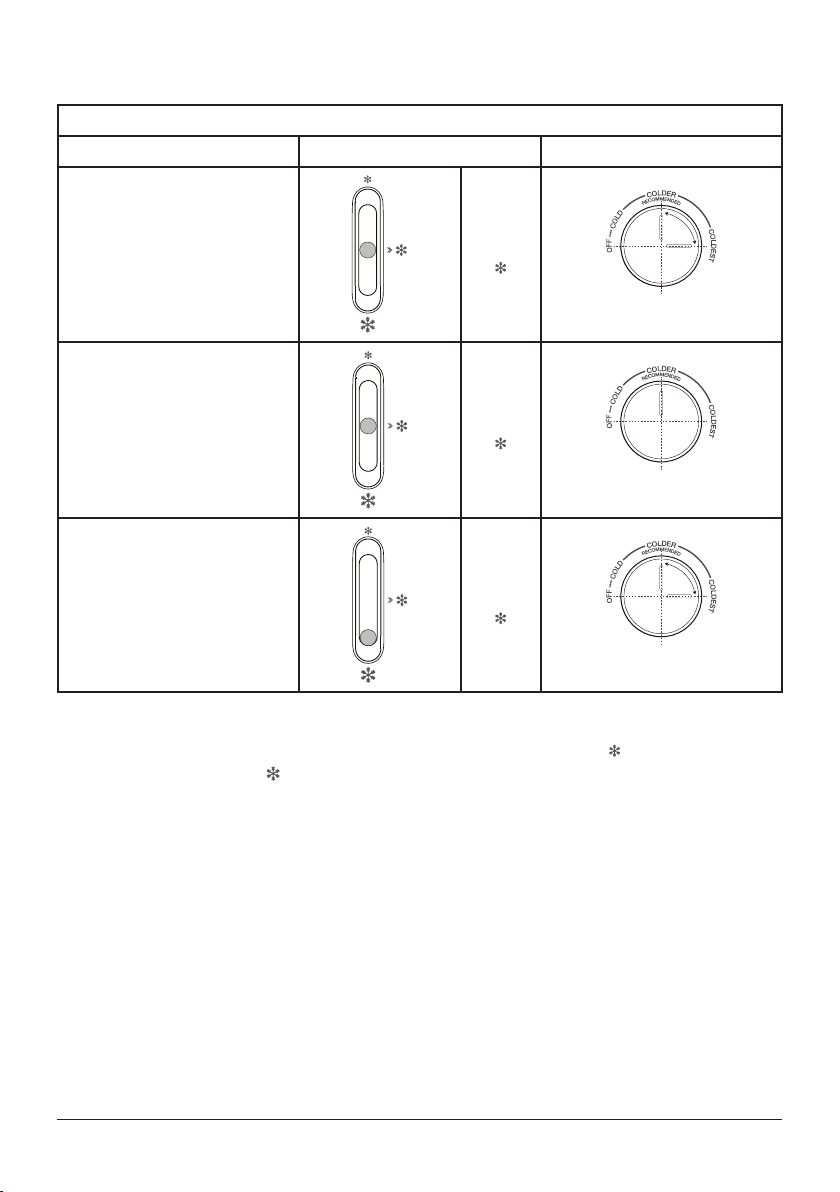

Temperature setting recommendation
Temperature Setting Recommendation
Environment Temperature Freezer compartment Fridge compartment
Summer (Above 38 °C) Set on

Set on colder-coldest
Normal Set on

Set on colder
Winter(Below16°C) Set on

Set on colder-coldest
• Informationabovegiveusersrecommendationoftemperaturesetting.
• Inwinterortemperaturebelow16°C,usersshouldavoidseton

and cold.
• Forenergysaving,the

and coldest set only apply to special need (such as quick-
freezing or ice making), and need turn back after special need.
Impact on food storage
Under recommended setting, the best storage time of fridge compartment is no more
than 3 days.
Under recommended setting, the best storage time of freezer compartment is no more
than 1 month.
The best storage time may reduce under other settings.

20
DAILY USE
First use
Cleaning the interior
Beforeusingtheapplianceforthersttime,washtheinteriorandallinternal
accessories with lukewarm water and some neutral soap so as to remove the typical
smell of a brand new product, then dry thoroughly.
Important! Do not use detergents or abrasive powders, as these will damage the nish.
Freezing fresh food
• Thefreezercompartmentissuitableforfreezingfreshfoodandstoringfrozenand
deep-frozen food for a long time.
• Placethefreshfoodtobefrozeninthebottomcompartment.
• Themaximumamountoffoodthatcanbefrozenin24hoursisspeciedonthe
rating plate.
• Thefreezingprocesslasts24hours:duringthisperioddonotaddotherfoodtobe
frozen.
Daily use
Position dierent food in dierent compartments according to be below table
Refrigerator compartments Type of food
Door or balconies of fridge compartment • Foodswithnaturalpreservatives,such
asjams,juices,drinks,condiments.
• Donotstoreperishablefoods.
Crisper drawer (salad drawer) • Fruits,herbsandvegetablesshouldbe
placed separately in the crisper bin.
• Donotstorebananas,onions,
potatoes, garlic in the refrigerator.
Fridge shelf – middle • Dairyproducts,eggs
Fridge shelf – top • Foodsthatdonotneedcooking,such
as ready-to-eat foods, deli meats,
leftovers.
Freezer drawer(s)/shelf • Foodsforlong-termstorage.
• Bottomdrawer/shelfforrawmeat,
poultry, sh.
• Middledrawer/shelfforfrozen
vegetables, chips.
• Topdrawer/shelfforicecream,frozen
fruit, frozen baked goods.
