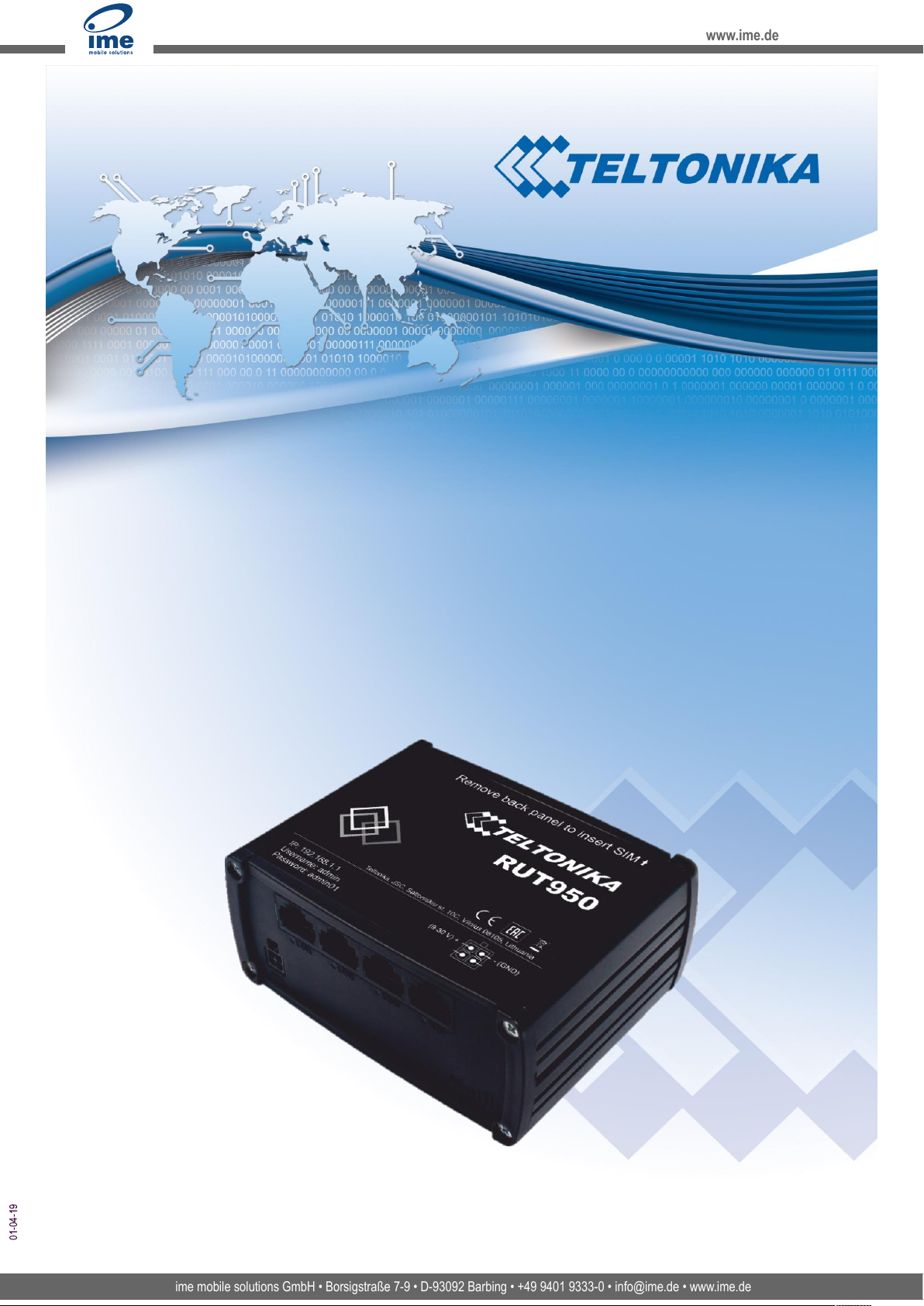

IME Teltonika RUT950 User manual

1
USER MANUAL
RUT950 LTE Router
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

2
Legal notice

of part or all of the contents in this document in any form without the prior written permission of
TELTONIKA Ltd is prohibited. The manufacturer reserves the right to modify the product and manual
for the purpose of technical improvement without prior notice.
Other product and company names mentioned herein may be trademarks or trade names of
their respective owners.
Attention
Before using the device we strongly recommend reading this user manual first.
Do not rip open the device. Do not touch the device if the device block is broken.
All wireless devices for data transferring may be susceptible to interference,
which could affect performance.
The device is not water-resistant. Keep it dry.
Device is powered by low voltage +9V DC power adapter.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

3
Safety information
The RUT950 router must be used in compliance with any and all applicable national and international
laws and with any special restrictions regulating the utilization of the communication module in
prescribed applications and environments.
You have to be familiar with the safety requirements before using the device!
Specifications
Software
RUT950_R_XX.XX.XXX
Frequency bands*
EEE802,11b/g/n 2400 MHz, GSM/3G/4G, UMTS/HSPA+
Max. RF power
20 dBm@WiFi, 33 dBm@GSM/GPRS/EDGE, 24 dBm@LTE/WCDMA
Representative accessories specifications
Power
AC/DC power adapter 9 V 1 A, 2 pin plug
GSM/WCDMA/LTE antenna
703-960/1710-1990/2110-2170/2500-       gain** 1
dBi, omnidirectional, SMA male connector
WiFi antenna
2400-          -SMA
male connector
* Supported frequency bands are dependent on geographical location and may not be available in all markets.
** If an extension cable is used to attach the antenna, the antenna gain may be higher by the amount of cable
attenuation. The user is responsible for the compliance with the legal regulations.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

4
To avoid burning and voltage caused traumas, of the personnel working with the device, please
follow these safety requirements:
The device is intended for supply from a Limited Power Source (LPS) that power
consumption should not exceed 15VA and current rating of over current protective
device should not exceed 2A.
The highest transient over voltage in the output (secondary circuit) of used PSU shall
not exceed 36V peak.
The device can be used with the Personal Computer (first safety class) or Notebook
(second safety class). Associated equipment: PSU (power supply unit) (LPS) and
personal computer (PC) shall comply with the requirements of standard EN 60950-1.
Do not mount or service the device during a thunderstorm.
To avoid mechanical damages to the device it is recommended to transport it packed
in a damage-proof pack.
Protection in primary circuits of associated PC and PSU (LPS) against short circuits
and earth faults of associated PC shall be provided as part of the building
installation.
To avoid mechanical damage to the device it is recommended to transport it packed in a damage-
proof pack. When using the device it should be placed so that its indicating LEDs would be visible as
they inform in which working mode the device is in and if it has any working problems.
Protection against over current, short circuiting and earth faults should be provided as a part of the
building installation.
Signal level of the device depends on the environment in which it is working in. In case the device
starts working insufficiently, please refer to qualified personnel in order to repair this product. We
recommend forwarding it to a repair center or the manufacturer. There are no exchangeable parts
inside the device.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

5
Introduction
Thank you for purchasing a RUT950 LTE router! RUT950 is part of the RUT9xx series of compact
mobile routers with high speed wireless and Ethernet connections.

cumbersome cable connection. Unrestricted, but not forgotten: the router still supports internet
distribution via a broadband cable, simply plug it in to the wan port, set the router to a correct mode
and you are ready to browse.
For in-depth information on how to use and configure a RUT950 router, visit our wiki page:
http://wiki.teltonika.lt/index.php?title=RUT950
Hardware installation
1. Remove the back panel and insert SIM cards that were given by your ISP (Internet Service
Provider). :
2. Attach LTE and WiFi antennas.
3. Connect the power adapter to the socket on the front of the device. Then plug the other end of
the power adapter into the power socket.
4. Connect to the device wirelessly (SSID: Teltonika_Router) or use an Ethernet cable and plug it
into any LAN Ethernet port.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

6
Front and back panels
Front view
1. LAN Ethernet ports
2. WAN Ethernet port
3. LAN LEDs
4. WAN LED
5. Power socket
6. Power LED
7. Mobile connection status LED
8. Mobile signal strength indication LEDs
Back view
1. LTE antenna connectors
2. WiFi antenna connectors
3. Reset button
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

7

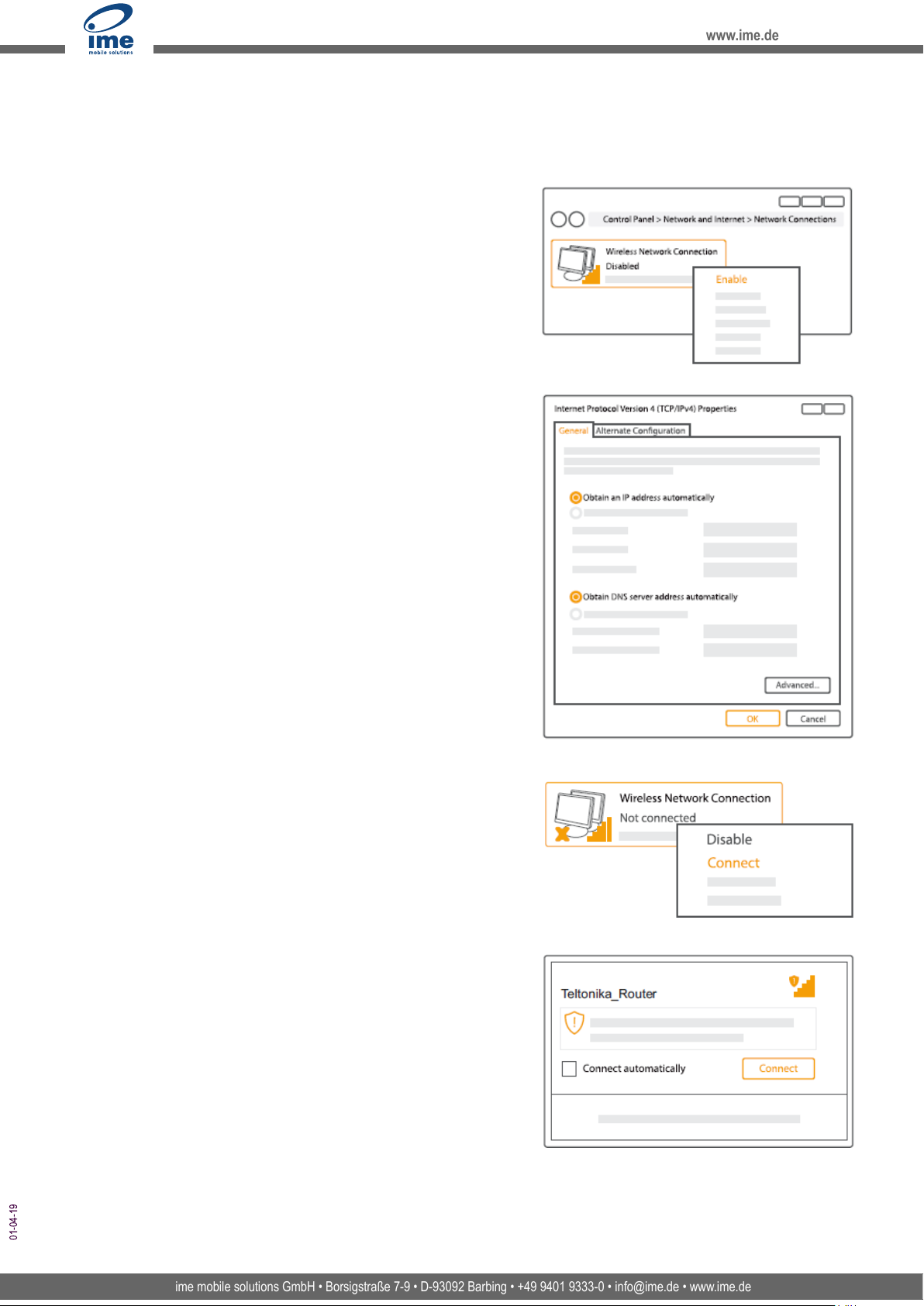

Configure your computer (Windows)
1. Enable the wireless network connection (go to Start >
Control Panel > Network and Internet > Network and
Sharing Center. In the left panel click Change adapter
settings link. Right click on Wireless Network
Connection and select Enable).
2. Setup the wireless network adapter on your computer
(right click on Wireless Network Connection and select
Properties). After that select Internet Protocol Version
4 (TCP/IP) and click Properties).
3. Select Obtain IP address automatically and Obtain
DNS server address automatically if they are not
selected. Click OK.
4. Right click on Wireless Network Connection
and click Connect to see available wireless
networks.
5. Choose the wireless network Teltonika_Router
from the list and click Connect.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

8
Login to device
1. To enter the routers Web interface type http://192.168.1.1 into your internet browsers URL field.
2. Use the following parameters when prompted for authentication:
3. Configuration Wizard will start after logging in. It is necessary to complete Configuration Wizard
to setup the router to the correct mode. You can leave default settings but it is strongly
recommended that you change the default password and enable Wireless Security.
4. Go to Status > Network information and pay attention to Signal Strength. To maximize the
performance try adjusting the antennas or changing the location of your device to achieve the
best signal conditions.
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

9
LED indications
Constant blinking (~ 2Hz) router is turning on
LED turned off no 4G data connection
LED turned on 4G data connection
Connection status LED indication
Green and red blinking alternatively ever 500 ms: no SIM or bad PIN
Green, red and yellow blinking alternatively every 500 ms: connecting to GSM
Red blinking every 1 sec: connected 2G, but no data session established
Yellow blinking every 1 sec: connected 3G, no data session established
Green blinking every 1 sec: connected 4G, no data session established
Red lit and blinking rapidly while data is being transferred: connected 2G with data session
Yellow lit and blinking rapidly while data is being transferred: connected 3G with data session
Green lit and blinking rapidly while data is being transferred: connected 4G with data session
Signal strength LEDs
No. of lit up LEDs
Signal strength value
0
-111 dBm
1
-110 dBm to -97 dBm
2 -96 dBm to -82 dBm
-96 dBm to -82 dBm
3
-81 dBm to -67 dBm
4
-66 dBm to -52 dBm
5
-51 dBm
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

10
Specifications
Ethernet
IEEE 802.3, IEEE 802.3u standards
3 x LAN 10/100Mbps Ethernet ports
1 x WAN 10/100Mbps Ethernet port
Supports Auto MDI/MDIX
Wi-Fi
IEEE 802.11b/g/n WiFi standards
2x2 MIMO
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2, EAP-PEAP encryption methods
2.401 –2.483 GHz WiFi frequency range*
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address
Hardware
High performance 560 MHz CPU with 128 Mbytes of DDR2 memory
5.5/2.5mm DC power socket (terminal block connector optional)
Reset/restore to default button
x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
x Ethernet LEDs, 1 x power LED
1 x bi-color connection status LED, 5 x connection strength LEDs
Optional: Din rail or panels with integrated mounting flanges
Electrical, Mechanical & Environmental
Dimensions (H x W x D) 80mm x 106mm x 46mm
Weight 235g
Power supply 100 –240 VAC -> 9 VDC wall adapter
Input voltage range 9 –30VDC
Power consumption < 7W
Operating temperature -40°to 75°C
Storage temperature -45°to 80°C
Operating humidity 10% to 90% Non-condensing
Storage humidity 5% to 95% Non-condensing
*Supported frequency bands are dependent on geographical location and may not be available in all markets
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

11
GPL
Some products of Teltonika partly contain software code developed by third parties, including
software code subject to the GNU General Public Licens
General Public License and other open source licenses.
In order to comply with the terms of the GPL, Teltonika, where applicable, offers a mail in service of a
machine readable source code of the software subject to the GPL, on an optical media (CD-ROM)
upon request by mail or email. Further information is provided with the relevant products or the
software. You can download the free copies of the respective machine readable source code of the
software which is subject to the GPL and contained in Teltonika products if you follow this internet
link: https://teltonika.lt/gpl/
The respective programs are distributed WITHOUT ANY WARRANTY; without even the implied
warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the respective
GNU General Public License for more details.
Please choose the model and version of your Teltonika product from the list found in the provided link
in order to download the source code. You can also review and print the respective GPL license
terms.
If you have any more questions or suggestions regarding GPL, please contact us at [e-mail]
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19

12
CE Declaration of Conformity
2014/35/EU, 2014/30/EU. The full text of the EU declaration of conformity is available at
the following internet address: http://teltonika.lt/product/rut950/
[EN] English
Hereby, Teltonika declares that the radio equipment type RUT950 is in compliance with
Directives: 2014/53/EU
[BG] Bulgarian


[CZ] Czech
            
2014/53/EU
[DK] Danish
         
direktiverne: 2014/53/EU
[DE] German
          Richtlinien 2014/53/EU
entspricht
[EE] Estonian
        
2014/53/EL
[GR] Greek


[ES] Spanish
Por la presente, Teltonika declara que el equipo de radio tipo RUT950 cumple con las Directivas:
2014/53/UE
[IT] Italian
            
direttive 2014/53/UE
[LV] Latvian

[LT] Lithuanian

[HU] Hungarian
A Teltonika kijelenti, hogy       

[NL] Dutch
Hierbij verklaart Teltonika dat het RUT950-radioapparatuur voldoet aan de richtlijnen: 2014/53/EU
[PL] Polish
       RUT950 jest zgodne z
Dyrektywami: 2014/53/EU
[PT] Portuguese
              
conformidade com as Diretivas: 2014/53/UE
[RO] Romanian
           
2014/53/UE
[SK] Slovak
            

[SI] Slovenian
Teltonika izjavlja, da je radijska oprema tipa RUT950 v skladu z direktivami: 2014/53/EU
[FI] Finish

[SE] Swedish
        
2014/53/EU
[NO] Norwegian
Herme          
2014/53/EU
www.ime.de
ime mobile solutions GmbH • Borsigstraße 7-9 • D-93092 Barbing • [phone] • info@ime de • www ime de
01-04-19
