Imesa LM8PEDP User manual
Operating Instructions
Washing Machine
Imesa LM8PEDP
Dear Imesa customer!
Welcome to the family of Imesa customers.
We hope that you will have many years of use from your new machine.
The machine has many features.To make the most of its functions, we
recommend that you read the operating instructions before using the
machine.The operating instructions include information on how you can
help protect the environment.
2
Translation of the original instructions.
CONTENTS
SAFETY INSTRUCTIONS 3
Child safety 3
Installation 4
Transport/winter storage 4
Packing material 4
Recycling 4
ADVICE AND TIPS BEFORE WASHING 5
Sorting your laundry 5
Clothing 5
Laundry labels 5
Coloured cotton 5
Unbleached linen 5
Wool 5
Detergents 5
USING YOUR WASHING MACHINE 6
Add detergent and fabric softener 6
Programme selection 7
Close the door and press the start button 7
During the programme 7
SETTINGS 8
CARE AND CLEANING 9
Cleaning the detergent compartment 9
Cleaning the outside of the machine 9
Cleaning the inside of the machine to
avoid unpleasant smells 9
Rinse holes under the agitator 9
If you have hard water 9
TROUBLESHOOTING 10
The washer door will not open 10
Opening the door in an emergency 10
The machine will not start 10
After power failure 10
Wet washing still in the machine 10
Error messages 11
TECHNICAL INFORMATION 12
Information for test institute 12
Technical data 12
INSTALLATION 13
Positioning the washing machine 13

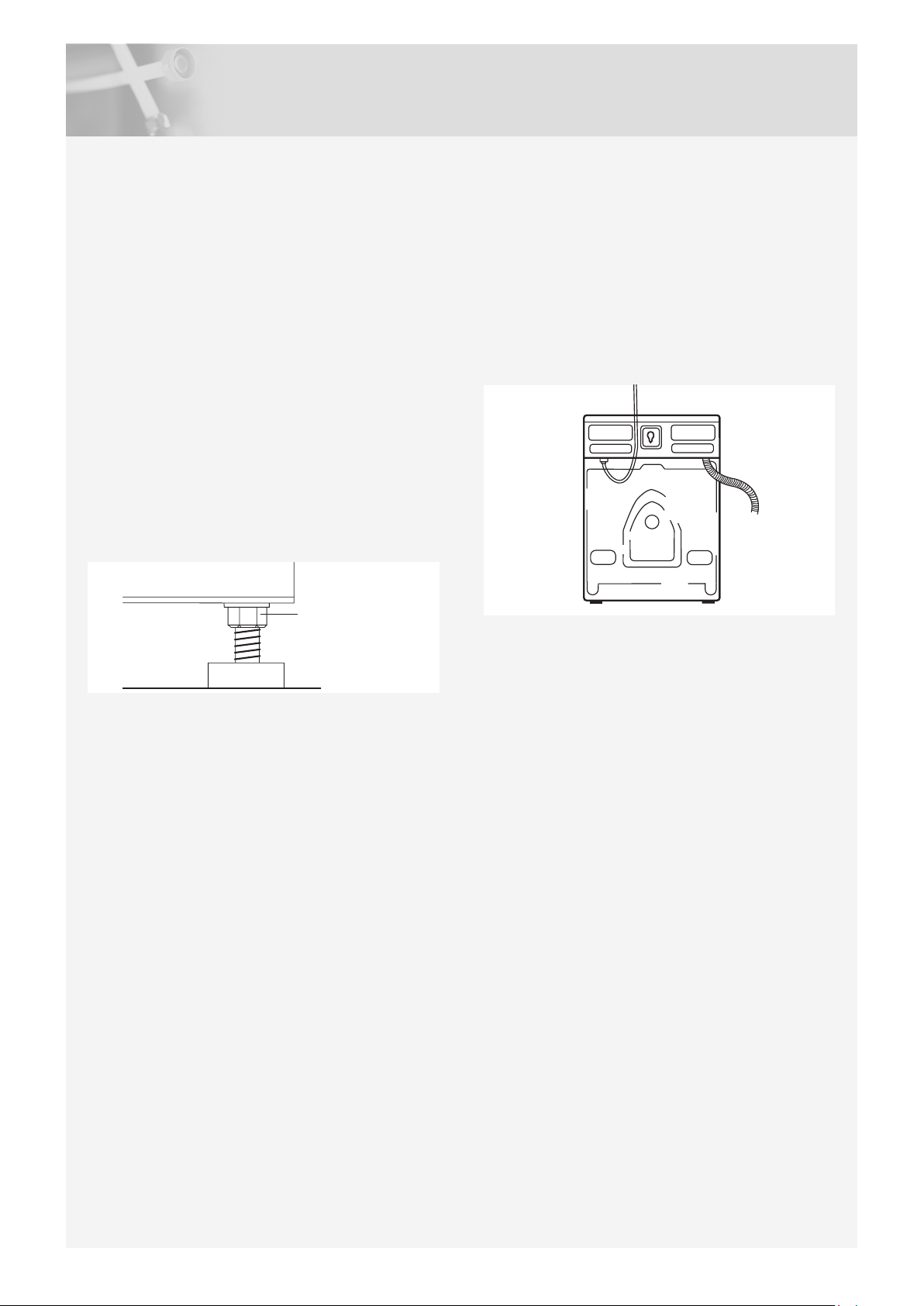

Adjusting the feet 13
Connection to water supply 13
Drainage connection 14
BEFORE CONTACTING THE SERVICE
DIVISION 15
Before contacting the service division 15
PROGRAMME CHART 16
QUICK GUIDE 20
WARNING: Read the instructions before using the machine.
3
SAFETY INSTRUCTIONS
GENERAL
Keep the operating instructions in a safe place.
The machine should only be used for washing items
as described in these instructions. It is not intended for
dry cleaning.
Use only detergent intended for machine washing!
Repairs and maintenance relating to safety or perfor-
Disconnect power to the machine before repair and
service.
Damaged mains cables must only be replaced by a
This machine can be used by children aged 8 and
upwards, and by people with reduced physical capac-
ity, mental ability, memory loss or lacking experience
and knowledge. These individuals must be supervised
when using the machine or have instructions on how
to use the machine and understand the risks that can
occur.
Cleaning and maintenance of the machine must not be
performed by children without supervision.
CHILD SAFETY
Children must be watched to ensure they do not play
with the machine.
Always close the washer door and start the pro-
gramme immediately after you have added detergent.
Do not allow small children to use or play with the
washing machine.
Store detergent and fabric softener out of the reach of
children.
Activate Child-safe start (button lock)
You can activate the Child-safe start option (button lock)
to prevent children from starting the washing machine
(see the Settings section).

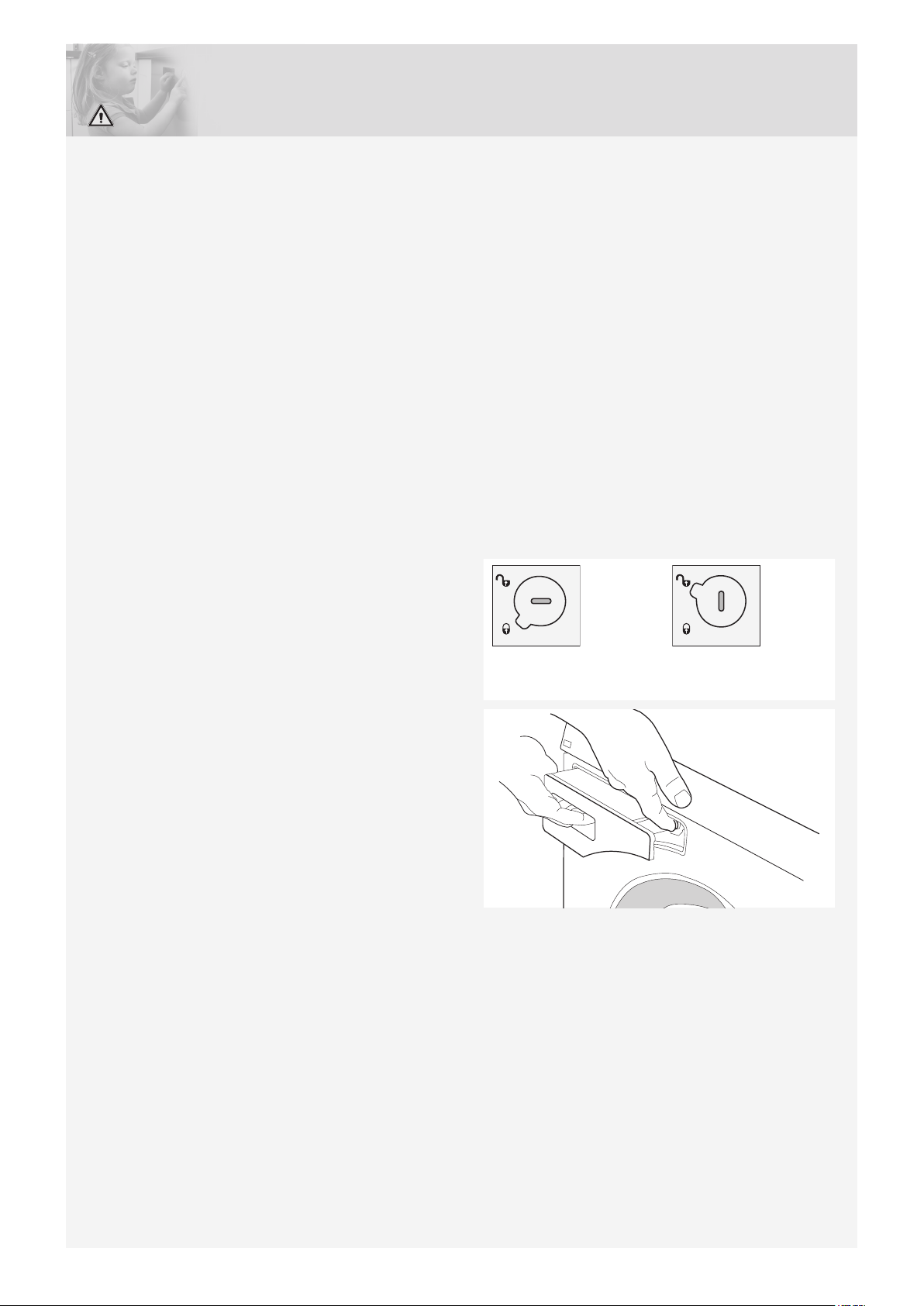

Activate child safety catch (for detergent
compartment)
On the inside of the detergent compartment is a child
safety catch.
Activated child safety
catch
Inactivated child safety
catch
When the child safety catch is activated you must press
the release button to pull out the detergent compartment.
4
INSTALLATION
Conduct installation and connection in accordance
with the separate installation instructions.
Installation of water and electricity, if required, must be
Remove any transport protection devices before using
the machine, see the separate installation instructions.
OVERFLOW GUARD FUNCTION
If the water level in the machine rises above normal,
not dropped within 60 seconds, the programme is
terminated.
TRANSPORT/WINTER STORAGE
If the machine is to be transported or stored in unheated
premises where the temperature can fall below freezing,
do as follows:
supply hose to the intake valve and let the water run
out from the valve and hose.
PACKING MATERIAL
Please sort waste materials in accordance with local
guidelines.
RECYCLING
This washing machine is manufactured and labelled for
recycling. In order to prevent injuries, the machine must
be made unusable once the decision has been taken to
dispose of it. Contact your local authority for information
about where and how your machine should be correctly
recycled.
SAFETY INSTRUCTIONS
5
ADVICE AND TIPS BEFORE WASHING
Here are some tips that may help you before washing.
SORTING YOUR LAUNDRY
Sort items according to:
how soiled they are
colour
material
CLOTHING
1 Do up zips and close Velcro straps so that they don’t
harm fabrics.
2 New coloured items may contain excess dye and
times.
3 Turn delicate items inside out. This reduces the risk of
burling and fading.
4 Empty pockets and wash them inside out if possible.
LAUNDRY LABELS
Look at the item’s laundry label. The table below shows
wash loads. Using modern washing machines and
detergents, for example compact detergents, you can
usually wash at lower temperatures. It is a good idea
results.
COLOURED COTTON
Coloured cotton garments labelled with washing
instruction 60°C must be washed at 60 °C initially to
remove any excess dye. Failure to observe this advice
could lead to the colour running. Use detergent without
bleach to preserve the colour of the fabric.
UNBLEACHED LINEN
Unbleached linen fabrics should be washed at 60 °C,
using detergent without bleach or optical brighteners.
Heavily soiled linen can be washed at higher
temperatures, but not too often as the heat may destroy
the sheen and strength of the linen.
WOOL
These fabrics are labelled for either machine wash or
for hand wash. The machine’s Wool/hand wash, 30 °C
programme is at least as gentle as washing by hand.
RAYON FIBRES AND SYNTHETIC
FIBRES
washing and choose a spin speed of 800 rpm or lower.
NOTE!
Viscose and acetates are fragile when wet.
DETERGENTS
Eco-labelled detergents are less harmful to the
environment. Detergent overdosing does not give better
washing results; it merely causes a greater impact on the
environment. Try to use less detergent, and increase only
NOTE!
Due to environmental concerns, we discourage the use
of strong chemicals.
When using agents for bleaching or stain removal,
there is a risk of rust (corrosion) and discolouration of
the machine.
6
USING YOUR WASHING MACHINE
ADD DETERGENT AND FABRIC
SOFTENER
14
5
6
2 3
1. Pre-wash
2. Main wash with liquid detergent.
Use the separator (A).
3. Main wash with powder detergent.
Do not use the separator.
4. Fabric softener
5. Release button
6. Child safety catch
A
B
C
The quantity of detergent needed depends, amongst
other things, on how hard the water is. See the detergent
pack for details. Phone your local water company to
check the water hardness in your area.
The detergent packaging will have recommendations
for how much detergent you should use. The machine
holds 8 kg of washing. If you only have a small amount
of laundry in the machine, you can reduce the amount of
detergent used.
Follow the manufacturers’ recommendations as regards
which type of detergent is suitable for which temperature.
Powder detergent
Pour the powder into the compartment for the main wash,
and pre-wash as well if desired. Do not use the separator
in the main detergent compartment.
Liquid detergent
When using a liquid detergent, observe the detergent
manufacturer’s recommendations. We recommend using
a laundry ball with thick detergents. In the main detergent
compartment, use the section wall (A). Add the detergent
into the front compartment of the detergent dispenser.
Wash ball or net
If you use a wash ball or net, place it directly in the drum
and select a programme without pre-wash.
NOTE!
Detergent overdosing does not give better washing
results; it merely causes a greater impact on the
environment.
Try using less detergent, and increase only if you are
Fabric softener
Pour the fabric softener into the compartment with the
symbol. Follow the recommendations on the fabric
softener packaging.
Start
Stop
Programme selector Time remainin
Program
Main power switch
7
USING YOUR WASHING MACHINE
Rinse
This programme performs one cold rinse cycle + spin.
Suitable for laundry that just needs to be dampened.
MOP wash, 90 °C
programme has two rinses using much water.
MOP wash, 60 °C
programme has two rinses using much water.
CLOSE THE DOOR AND PRESS THE
START BUTTON
NOTE!
A few seconds after you start a programme the
the hot and the cold supplies. If for some reason no hot
water is available, the machine waits for one minute
DURING THE PROGRAMME
Time remaining
“Programme started” is shown on the display.
Stopping or changing a programme
You can stop a programme by pressing the Stop button
for three seconds. ”Stop” appears in the display. To
restart the machine, select a new programme, add any
extra detergent needed and press the Start button.
NOTE!
Do not open the detergent compartment while the
machine is running.
NOTE!
Otherwise fabric softener will run in too early, which
PROGRAMME SELECTION
The display shows the programme name, the water
temperature and the spin speed.
The washing machine has a number of preselected
programmes when delivered from the factory. The
preselected programmes can be replaced. Contact the
service division for information on which programmes are
available and how to alter the preselected programmes.
White, 90 °C
Programme for normally to heavily soiled laundry. Follow
the washing instructions for each garment. 90 °C is a
good temperature for white and light-coloured cotton,
such as bed linen.
White/Colour, 60 °C
Programme for normally soiled laundry, whites and
colours. Follow the washing instructions for each
garment. 60 °C is a good temperature for garments worn
next to the skin.
White/Colour, 40 °C
Programme for normally soiled laundry, whites and
colours. Follow the washing instructions for each
garment.
Super quick wash, 60 °C
Fast programme for laundry that just needs freshening
up. Follow the washing instructions for each garment.
Garments worn next to the skin ought to be washed at
60°C.
Super quick wash, 40 °C
Fast programme for laundry that just needs freshening
up. Follow the washing instructions for each garment.
Synthetics, 40 °C
Programme for synthetics, delicate blended materials
and permanent press cotton. Suitable for shirts and
blouses. Follow the washing instructions for each
garment. Many synthetics will come clean at 40 °C.
Wool/hand wash, 30 °C
A gentle laundry programme for wool, silk and garments
that should be washed by hand. This programme has a
short spin.
8
SETTINGS
HOW TO CHOOSE THE SETTINGS
2 Press and hold the Stop button and then press the
main power switch. Then press the Stop button 5
times within 10 seconds.
3 Select the setting you want to change by turning the
programme selector.
4 Press the Stop once.
MAKING A SELECTION
Turn the programme selector until the desired selection is
shown in the display.
SAVING A SELECTION
1 Press Stop to save the selection and return to the
settings menu.
2 Press Start to go to the programme menu.
Options
Press Start to save the selection and return directly to the
programme menu, if you do not want to make anymore
settings.
LANGUAGE
Choose from: US English, AU English, Svenska, Dansk,
Norsk,Suomi, Français, Deutsch, Italiano, Espanol,
You can activate the Child-safe start option to prevent
children from starting the machine. choose “Child-safe
Deactivate the Child-safe option temporarily for three
minutes by simultaneously pressing the Start and Stop
buttons.
TEMPERATURE
Choose between: °C and °F.
WATER INTAKE
Connecting to both the hot and cold water supplies
reduces the wash time and reduces the washing
machine’s electricity consumption. At the factory, the
machine is set for connecting to both hot and cold water
supplies. Select cold water if you want to set the machine
for cold water intake only.
Turn the programme selector to choose between: Cold
and Hot.
Press the Stop button once to save the setting.
9
CARE AND CLEANING
CLEANING THE DETERGENT
COMPARTMENT
Pull out the detergent compartment using the release
button.
Rinse the compartment and scrub it clean. The cover in
the fabric softener compartment can be removed.
NOTE!
Do not run the detergent compartment through a
dishwasher!
CLEANING THE OUTSIDE OF THE
MACHINE
Clean the outside of the machine and the program panel
with a mild cleaner. Do not use any solvents, as these
can damage the machine.
NOTE!
Do not hose down the machine with water!
CLEANING THE INSIDE OF THE
MACHINE TO AVOID UNPLEASANT
SMELLS
Run a programme at 90 °C or 95 °C (depending on the
model) with a small amount of detergent once a month to
avoid problems with odours. It is not necessary to put any
washing in the machine.
RINSE HOLES UNDER THE AGITATOR
If you suspect that objects such as nails or paper clips
may have fallen into the wash drum, you should check
the space under the agitator. Such objects can rust and
leave marks on clothing. Nails and other sharp objects
can cause holes in fabrics.
Do as follows:
1 Insert a screwdriver or the like into the hole on the
agitator as illustrated and carefully pry to the left.
2 Use your other hand to grasp the agitator and pull it
towards you.
3 Lift the agitator.
4 Remove any objects.
5 Place the agitator in the mounting hole with the
F-mark towards you. Ensure that all the agitator
fasteners are in their holes in the drum. Push it in until
it catches.
IF YOU HAVE HARD WATER
If you live in an area with hard water (high limescale
content), a greyish-white coating may form on the washer
drum. To remove this, empty a sachet of citric acid,
approx. 20 gram, into the washer drum and run any 90 °C
programme. Repeat if necessary.
10
TROUBLESHOOTING
THE WASHER DOOR WILL NOT OPEN
Check that the main power switch is on.
fuses (circuit breakers).
OPENING THE DOOR IN AN
EMERGENCY
WARNING!
The door may only be opened
manually if the electric power
is cut and the machine has
been drained of water.
1 First empty the water from the washing machine.
Press and hold the Stop button for three seconds to
pump out the water. If this does not work the machine
must be drained manually. See Cleaning the trap
and the drainage pump in the “Care and cleaning”
chapter.
that the plug has been removed from the wall socket.
3 Take the emergency door opening key (C) (see
and insert it into the slot on the right-hand side of the
washing machine door latch. The key is attached on
the back wall of the detergent dispenser. Remove the
detergent dispenser from the washing machine and
take the door opening key.
4 Push the tool downwards to open the washer door.
After use, store the emergency door opening key (C) in
the dedicated compartment (B) (see image in the section
Using your washing machine).
THE MACHINE WILL NOT START
press the Start button.
devices (circuit breakers) in the building.
AFTER POWER FAILURE
Press the main power switch to resume the current
programme.
WET WASHING STILL IN THE MACHINE
A small load can under certain circumstances cause
imbalance Unbalance (see “Unbalance”). Rearrange the
load and start the spin programme, or load more washing
and restart the washing programme.
11
ERROR MESSAGES
If an error occurs during the programme a message is
shown on the display. To exit the message after taking
The error messages that may be shown in the display
are:
Close the Door
Close the washer door and press Start to start the
programme.
Over ow fault
2 See “Drainage error”.
Water outlet fault
Press the Stop button to empty the machine of water
before opening the washer door. If this does not resolve
the problem, call the service division.
Water inlet fault
Check:
that the tap on the water pipe is open.
blocked.
Action:
3 Screw the hose back on and turn on the tap.
5 If this does not resolve the problem, call the service
division.
Wash motor fault
Call the service division!
Unbalance
The machine stops the spin cycle if there is too much
imbalance. The washing machine restarts the spin
cycle and hopefully the washing is better distributed
in the drum. This procedure can be repeated up to 10
programme jumps to the next step.
The error message requires no action.
TROUBLESHOOTING
12
INFORMATION FOR TEST INSTITUTE
Energy labelling
European test standard: EN 60456
Washing program: Standard cotton, 1400 rpm, 8 kg cotton
Connection: Cold water 15 °C
Test method for noise measurement: IEC-60704-2-4
TECHNICAL DATA
Height: 850 mm
Width: 595 mm
Depth: 700 mm
Weight: 82 kg
Cylinder volume: 80 l
Max. washing capacity: 8 kg
Spin speed (rpm): 400-1400
Sound pressure level: The sound pressure level is below 70 dB(A)
Rated power: See type plate.
Heater output: See type plate.
Water pressure: 0,1-1 MPa
1-10 kp/cm2
10-100 N/cm2
Maximum inlet water temperature: 80 °C
Wash drum and liquid compartment material: Stainless steel
Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel.
Water connection: 1.5 m pex pipe
Drain: 1.7 m polypropylene hose 3/4 BSP connection
TECHNICAL INFORMATION
13
INSTALLATION
POSITIONING THE WASHING MACHINE
The washing machine can be installed as a built-in or
with easy access to the plug.
A. Built-in
The washing machine can be installed under a counter
top with a working height of 850-900 mm. Leave a 5 cm
space around the entire machine, including between the
rear edge of the top cover and the wall behind it.
B. Freestanding
The washing machine can be positioned beside or under
a tumble dryer.
ADJUSTING THE FEET
Keep the noise that the machine produces to a minimum
by adjusting the feet so that the machine is steady and
Locking nut
CONNECTION TO WATER SUPPLY
Water connection should be carried out by an
using the accompanyingsupply hose. Water pressure
should be 0.1–1MPa (approx. 1–10kp/cm2; 10–100N/
cm2). There should be a stopcock on the water pipe.
them through so that any dirt is washed away. Otherwise,
Use only the supply hose supplied with the machine. Do
not re-use old hoses or other loose supply hoses.
Water intake
At the factory, the machine is set for connecting to both
hot and cold water supplies. The machine can be set for
cold water intake only. See the section “Settings”.
Hot water connection
A few seconds after you start a programme the washing
and the cold supplies. If for some reason no hot water
is available, the machine waits for one minute and then
If the appliance is not connected to the hot water line,
then deactivate the function in the User Menu.
(See chapter Settings.)
14
INSTALLATION
DRAINAGE CONNECTION
A water outlet hose is included with the machine. This
drain or drainage pipe.
NOTE!
The height of the mouth of the outlet hose must be
lower than the lowest part of the outlet valve.
ELECTRICAL INSTALLATION
If the machine is delivered from the factory with a plug
attached it can be connected to an earthed wall socket.
Otherwise, a permanent connection using a multipolar
Connection on delivery
The machine comes with 3-Phase, 400 V, 50 Hz, heat
output 4400 W and fused 10 A. If a residual current
device is being used, this should be type A.
NOTE!
Repairs and maintenance relating to safety or
professional.
15
1
Model
TYPE
2
3

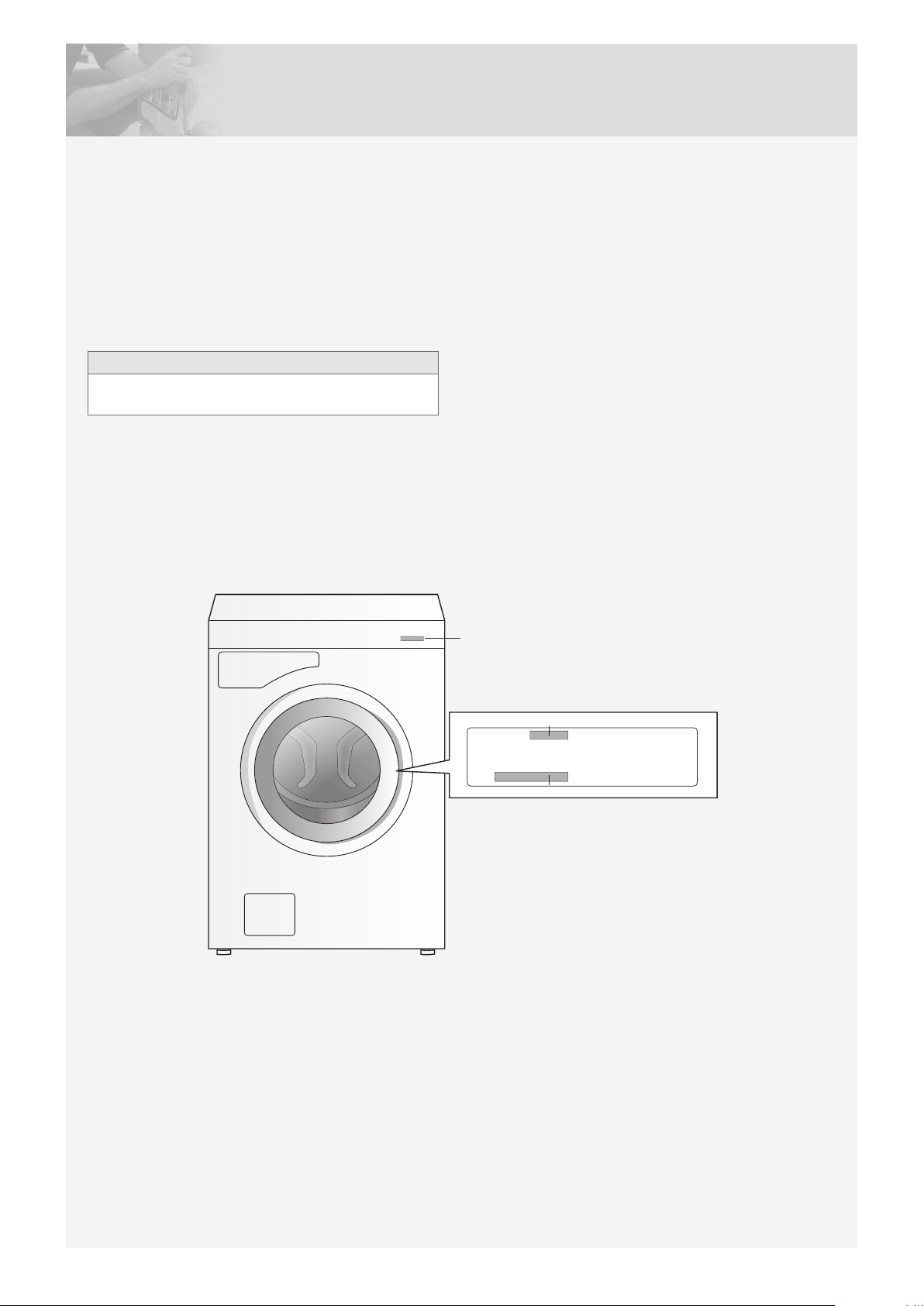

BEFORE CONTACTING THE SERVICE DIVISION
BEFORE CONTACTING THE SERVICE
DIVISION
Before you contact the service division, make sure that
you know the model designation (1), type designation (2)
and serial number (3).
The model designation can be found on the panel. The
type designation and serial number can be found on the
type plate on the inside of the washer door.
NOTE!
For repairs and maintenance, original spare parts must
be used.
16
PROGRAMME CHART
Program Max. load
(kg)
Spin Speed
(rpm)
Consumption values 1)
Water
consumption
(approx. liter)
Energy
consumption
(approx. kWh)
Programme time
(approx. hrs and
min.)
Standard cotton, 60 °C 8 1400 80 1.30 2:16
Standard cotton, 40 °C 8 1400 80 0.70 2:03
Heavy wash, 90 °C 8 1400 80 2.40 1:55
Heavy wash, 60 °C 8 1400 70 1.20 1:39
White, 90 °C 8 1400 70 1.40 1:45
White/Colour, 60 °C 8 1400 65 0.30 1:15
White/Colour, 40 °C 8 1400 65 0.30 0:55
Super quick wash, 60 °C 4 800 45 0.60 0:44
Super quick wash, 40 °C 4 800 40 0.40 0:25
Synthetics, 40 °C 4 600 45 0.40 0:33
Wool/hand wash, 30 °C 3 600 60 0.40 0:35
Rinse 4 1400 20 0.10 0:15
MOP wash, 90 °C 8 1400 55 1.30 1:47
MOP wash, 60 °C 8 1400 50 0.40 1:24
8 1400 55 0.30 0:54
8 1400 55 0.30 0:52
Disinfection, 40 °C 8 1400 75 0.70 1:32
Disinfection, 60 °C 8 1400 75 1.50 1:59
Disinfection, 90 °C 8 1400 85 2.70 1:55
Program A
Program B
Program C
depending on water pressure, water hardness, water supply temperature, room temperature, load weight and content, variations in the power supply and
selected options.
17

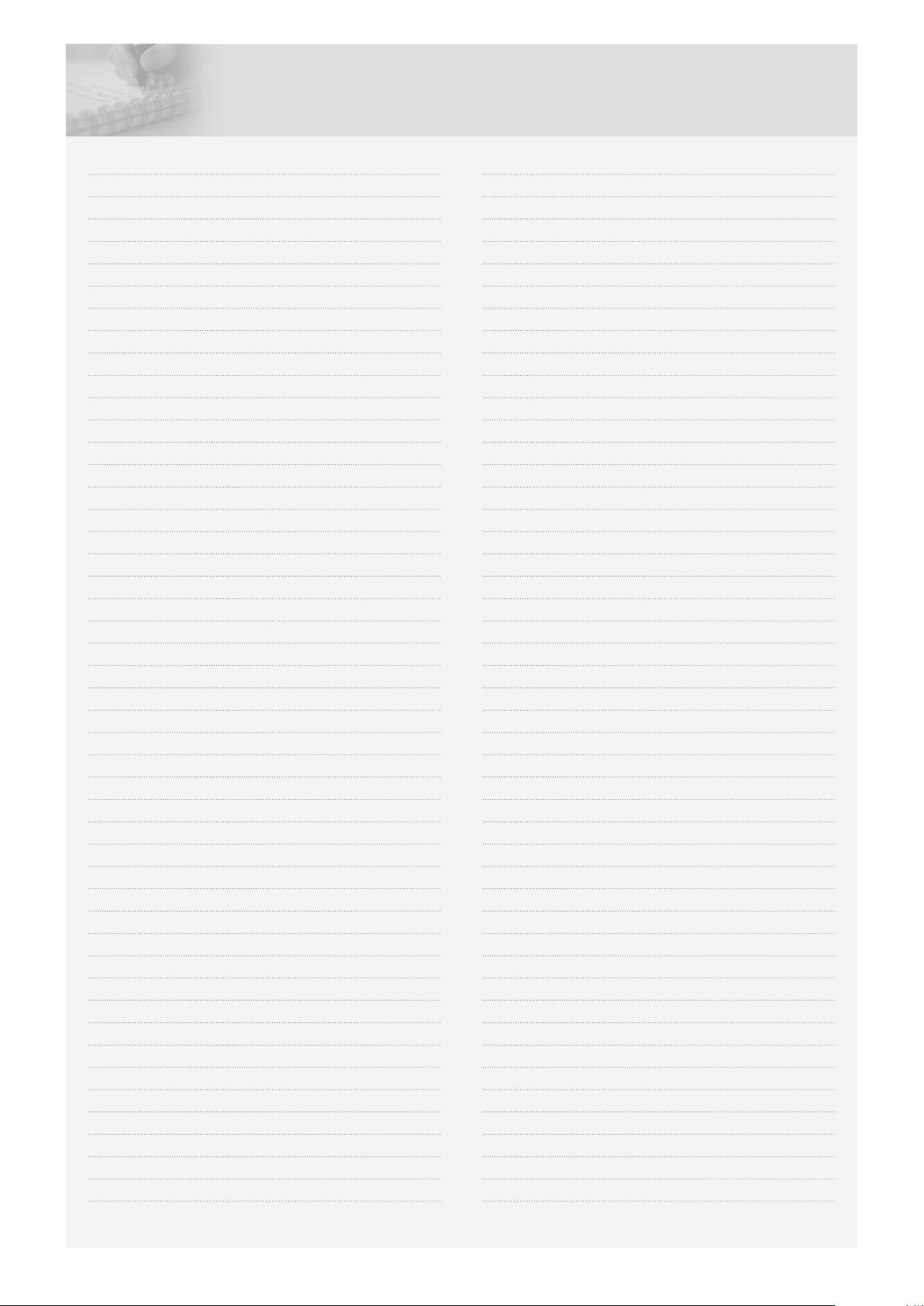

YOUR NOTES
18
YOUR NOTES
19
YOUR NOTES
WM80.C
LM8PEDP IMS
en (04-14)
3.
2.
4.
5.
1.
QUICK GUIDE
SORT THE WASHING, OPEN THE WASHER DOOR
AND LOAD THE WASHING
Refasten zips.
Look at the item’s laundry label.
Sort the washing according to how soiled it is, colour and material.
NB! Place underwired bras in a laundry net.
TURN ON THE MAIN POWER SWITCH
SELECT A PROGRAMME AND ANY OPTIONS
You select a programme by turning the programme selector.
The selected programme is shown in the display.
The available options depend on the selected programme. If the option
is available for the selected programme, the symbols lights up when you
press the button.
CLOSE THE WASHER DOOR AND PRESS THE
START BUTTON
The time remaining is shown in hours and minutes.
ADD DETERGENT AND FABRIC SOFTENER,
AS REQUIRED
The detergent packaging will have recommendations for how much
detergent you should use. With only a small amount of washing in the
machine, you can reduce the amount of detergent used.
We reserve the right to make changes.
Table of contents
Other Imesa Washer manuals
