Indesit PWE 81672 W User manual

1
GB
WASHING MACHINE
Contents
Installation, 2-3
Unpacking and levelling
Connecting the electricity and water supplies
The first wash cycle
Technical data
Description of the washing machine, 4-5
Control panel
Display
Running a wash cycle, 6

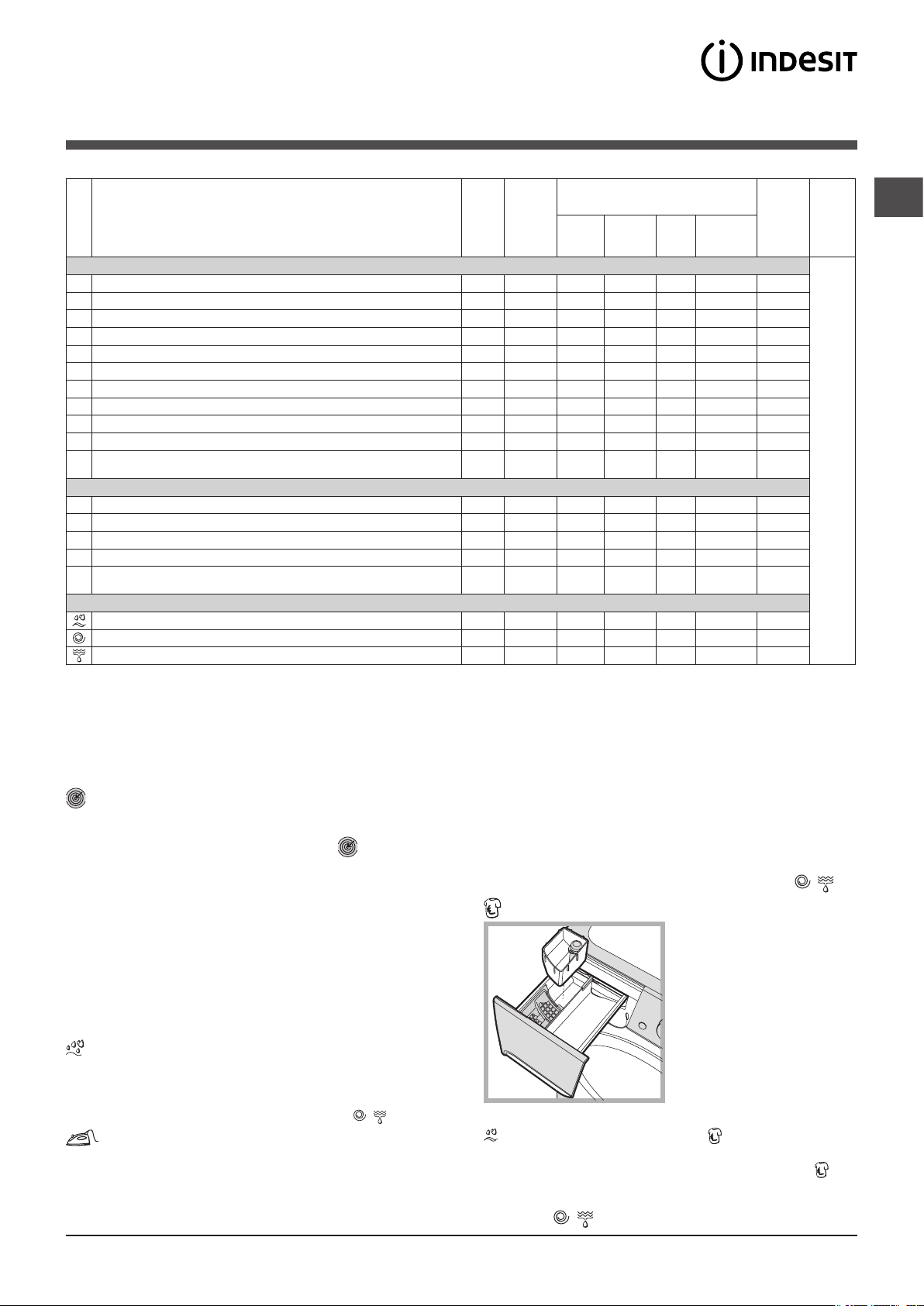

Wash cycles and options, 7
Table of programmes and wash cycles
Wash options
Detergents and laundry, 8
Detergent dispenser drawer
Preparing the laundry
Special wash cycles
Precautions and advice, 9
General safety
Disposal
Care and maintenance, 10
Cutting off the water and electricity supplies
Cleaning the washing machine
Cleaning the detergent dispenser drawer
Caring for the door and drum of your appliance
Cleaning the pump
Checking the water inlet hose
Troubleshooting, 11
Service, 12
PWE 81672 W
Instructions for use
English,1
GB
Français,13
FDE
Deutsch,25
Nederlands,37
NL

2
GB
Installation
! This instruction manual should be kept in a safe place for
future reference. If the washing machine is sold, transferred
or moved, make sure that the instruction manual remains
with the machine so that the new owner is able to
familiarise himself/herself with its operation and features.
! Read these instructions carefully: they contain vital
information relating to the safe installation and operation of
the appliance.
Unpacking and levelling
Unpacking
1. Remove the washing machine from its packaging.
2. Make sure that the washing machine has not been
damaged during the transportation process. If it has been
damaged, contact the retailer and do not proceed any
further with the installation process.
3. Remove the 4 protective
screws (used during
transportation) and the
rubber washer with the
corresponding spacer,
located on the rear part of
the appliance (see figure).
4. Close off the holes using the plastic plugs provided.
5. Keep all the parts in a safe place: you will need them
again if the washing machine needs to be moved to
another location.
! Packaging materials should not be used as toys for
children.
Levelling
1. Install the washing machine on a flat sturdy floor, without
resting it up against walls, furniture cabinets or anything
else.
2. If the floor is not perfectly
level, compensate for any
unevenness by tightening or
loosening the adjustable front
feet (see figure); the angle
of inclination, measured in
relation to the worktop, must
not exceed 2°.
Levelling the machine correctly will provide it with stability,
help to avoid vibrations and excessive noise and prevent it
from shifting while it is operating. If it is placed on carpet or
a rug, adjust the feet in such a way as to allow a sufficient
ventilation space underneath the washing machine.
Connecting the electricity and water
supplies
Connecting the water inlet hose
1. Connect the inlet hose
by screwing it to a cold
water tap using a 3/4 gas
threaded connection (see
figure).
Before performing the
connection, allow the
water to run freely until it is
perfectly clear.
2. Connect the inlet hose
to the washing machine
by screwing it onto the
corresponding water inlet
of the appliance, which is
situated on the top right-
hand side of the rear part of
the appliance (see figure).
3. Make sure that the hose is not folded over or bent.
! The water pressure at the tap must fall within the range
of values indicated in the Technical data table (see next
page).
! If the inlet hose is not long enough, contact a specialised
shop or an authorised technician.
! Never use second-hand hoses.
! Use the ones supplied with the machine.

3
GB
Connecting the drain hose
Connect the drain hose,
without bending it, to a
drain duct or a wall drain
situated between 65 and
100 cm from the floor;
alternatively, placed it over
the edge of a basin, sink
or tub, fastening the duct
supplied to the tap (see
figure). The free end of
the hose should not be
underwater.
! We advise against the use of hose extensions; if it is
absolutely necessary, the extension must have the same
diameter as the original hose and must not exceed 150 cm
in length.
Electrical connections
Before plugging the appliance into the electricity socket,
make sure that:
• the socket is earthed and complies with all applicable
laws;
• the socket is able to withstand the maximum power
load of the appliance as indicated in the Technical data
table (see opposite);
• the power supply voltage falls within the values
indicated in the Technical data table (see opposite);
• the socket is compatible with the plug of the washing
machine. If this is not the case, replace the socket or the
plug.
! The washing machine must not be installed outdoors,
even in covered areas. It is extremely dangerous to leave
the appliance exposed to rain, storms and other weather
conditions.
! When the washing machine has been installed, the
electricity socket must remain within easy reach.
! Do not use extension cords or multiple sockets.
65 - 100 cm
! The cable should not be bent or compressed.
! The power supply cable must only be replaced by
authorised technicians.
Warning! The company shall not be held responsible in the
event that these standards are not observed.
The first wash cycle
Once the appliance has been installed, and before you use
it for the first time, run a wash cycle with detergent and no
laundry, using wash cycle number 2.
Technical data
Model PWE 81672 W
Dimensions
width 59.5 cm
height 85 cm
depth 60 cm
Capacity from 1 to 8 kg
Electrical
connections
please refer to the technical data plate
fixed to the machine
Water connections
maximum pressure 1 MPa (10 bar)
minimum pressure 0.05 MPa (0.5 bar)
drum capacity 62 litres
Spin speed up to 1600 rotations per minute
Test
Programmes
according to
2010/1061
Programme 2: temperature 60°C and 40°C
This appliance conforms to the following
EC Directives:
- 2004/108/EC (Electromagnetic Compa-
tibility)
- 2006/95/EC (Low Voltage)
- 2002/96/EC

4
GB
Description of the washing
machine
Control panel
TEMPERATURE
button
WASH
CYCLE
SELECTOR
KNOB
Detergent dispenser drawer
ON/OFF
button
SPIN
button
START/PAUSE
button and indicator
light
DISPLAY
DELAYED
START
button
OPTION
buttons and
indicator lights
DOOR
LOCKED
indicator light
Detergent dispenser drawer: used to dispense
detergents and washing additives ( see “Detergents and
laundry”).
ON/OFF button: press this briefly to switch the
machine on or off. The START/PAUSE indicator light which
flashes slowly in a blue colour shows that the machine is
switched on. To switch off the washing machine during the
wash cycle, press and hold the button for approximately 3
seconds; if the button is pressed briefly or accidentally the
machine will not switch off.
If the machine is switched off during a wash cycle, this
wash cycle will be cancelled.
WASH CYCLE SELECTOR KNOB: used to set the
desired wash cycle (see “Table of programmes and wash
cycles”).
OPTION buttons and indicator lights: press to select the
available options. The indicator light corresponding to the
selected option will remain lit.
SPIN button: press to reduce or completely exclude
the spin cycle; the value appears on the display.
TEMPERATURE button: press to reduce or
completely exclude the temperature; the value appears on
the display.
DELAYED START button: press to set a delayed start
for the selected wash cycle; the delay period appears on
the display.
START/PAUSE button and indicator light: when the
blue indicator light flashes slowly, press the button to start
a wash cycle. Once the cycle has begun the indicator light
will remain lit in a fixed manner. To pause the wash cycle,
press the button again; the indicator light will flash in an
amber colour. If the symbol is not illuminated, the door
may be opened (wait approximately 3 minutes). To start
the wash cycle from the point at which it was interrupted,
press the button again.
DOOR LOCKED indicator light:
The lit symbol indicates that the door is locked. To prevent
any damage, wait until the symbol turns off before opening
the door (wait approximately 3 minutes).
To open the door while a cycle is in progress, press the
START/PAUSE button; if the DOOR LOCKED symbol is
switched off the door may be opened.
Standby mode
This washing machine, in compliance with new energy
saving regulations, is fitted with an automatic standby
system which is enabled after about 30 minutes if no
activity is detected. Press the ON-OFF button briefly and
wait for the machine to start up again.

5
GB
Display
B
C
A
The display is useful when programming the machine and provides a great deal of information.
The duration of the available wash cycles and the remaining time of a running cycle appear in section A; if the DELAYED
START option has been set, the countdown to the start of the selected wash cycle will appear.
Pressing the corresponding button allows you to view the maximum spin speed and temperature values attained by the
machine during the set wash cycle, or the values selected most recently, if these are compatible with the set wash cycle.
The hour-glass flashes while the machine is processing data, depending on the wash cycle and level selected. After
a maximum of 10 minutes, the “hour-glass” icon remains lit in a fixed manner and the final amount of time remaining is
displayed. The hour-glass icon will then switch off approximately 1 minute after the final amount of time remaining has
appeared.
The “wash cycle phases” corresponding to the selected wash cycle and the “wash cycle phase” of the running wash cycle
appear in section B:
Main wash
Rinse
Spin
Drain
The icons corresponding to “temperature”, “spin” and “delayed start” (working from the left) are displayed in section C.
The “temperature” bars indicate the maximum temperature level which may be selected for the set cycle.
The “spin” bars indicate the maximum spin level which may be selected for the set cycle.
The “delay” symbol , when lit, indicates that the set “delayed start” value has appeared on the display.

6
GB
Running a wash cycle
1. SWITCH THE MACHINE ON. Press the button;
the START/PAUSE indicator light will flash slowly in a
blue colour.
2. LOAD THE LAUNDRY. Open the porthole door.
Load the laundry, making sure you do not exceed
the maximum load value indicated in the table of
programmes and wash cycles on the following page.
3. MEASURE OUT THE DETERGENT. Pull out the
detergent dispenser drawer and pour the detergent into
the relevant compartments as described in “Detergents
and laundry”.
4. CLOSE THE DOOR.
5. SELECT THE WASH CYCLE. Use the WASH CYCLE
SELECTOR knob to select the desired wash cycle. A
temperature and spin speed is set for each wash cycle;
these values may be adjusted. The duration of the cycle
will appear on the display.
6. CUSTOMISE THE WASH CYCLE. Use the relevant
buttons:
Modify the temperature and/or spin
speed. The machine automatically displays the
maximum temperature and spin speed values set for
the selected cycle, or the most recently-used settings
if they are compatible with the selected cycle. The
temperature can be decreased by pressing the
button, until the cold wash “OFF” setting is reached.
The spin speed may be progressively reduced by
pressing the button, until it is completely excluded
(the “OFF” setting). If these buttons are pressed again,
the maximum values are restored.
Setting a delayed start.
To set a delayed start for the selected cycle, press the
corresponding button repeatedly until the required delay
period has been reached. When this option has been
activated, the symbol lights up on the display. To
remove the delayed start setting, press the button until
the text “OFF” appears on the display.
Modify the cycle settings.
• Press the button to enable the option; the indicator
light corresponding to the button will switch on.
• Press the button again to disable the option; the
indicator light will switch off.
! If the selected option is not compatible with the set
wash cycle, the indicator light will flash and the option
will not be activated.
! If the selected option is not compatible with a previously
selected one, the indicator light corresponding to the first
function selected will flash and only the second option will
be activated; the indicator light for the option which has
been activated will be illuminated.
Note: if the option has been selected, none of the
incompatible options may be activated.
! The options may affect the recommended load value
and/or the duration of the cycle.
7. START THE WASH CYCLE. Press the START/
PAUSE button. The corresponding indicator light will
turn blue, remaining lit in a fixed manner, and the door
will be locked (the DOOR LOCKED symbol will be lit).
To change a wash cycle while it is in progress, pause
the washing machine using the START/PAUSE button
(the START/PAUSE indicator light will flash slowly in an
amber colour); then select the desired cycle and press
the START/PAUSE button again.
To open the door while a cycle is in progress, press
the START/PAUSE button; if the DOOR LOCKED
symbol is switched off the door may be opened (wait
approximately 3 minutes). Press the START/PAUSE
button again to restart the wash cycle from the point at
which it was interrupted.
8. THE END OF THE WASH CYCLE. This will be
indicated by the text “END” on the display; when the
DOOR LOCKED symbol switches off the door may be
opened (wait approximately 3 minutes). Open the door,
unload the laundry and switch off the machine.
! If you wish to cancel a cycle which has already begun,
press and hold the button. The cycle will be stopped
and the machine will switch off.
Load balancing system
Before every spin cycle, to avoid excessive vibrations
before every spin and to distribute the load in a uniform
manner, the drum rotates continuously at a speed which
is slightly greater than the washing rotation speed. If,
after several attempts, the load is not balanced correctly,
the machine spins at a reduced spin speed. If the load is
excessively unbalanced, the washing machine performs
the distribution process instead of spinning. To encourage
improved load distribution and balance, we recommend
small and large garments are mixed in the load.

7
GB
Wash cycles and options
Wash options
The “PRIME” technology optimises energy, water and time
consumption according to the quantity of garments actually
inserted in the machine. Moreover, pressing the button
allows for selecting the following options:
- Water: allows for reducing water consumption without
having to renounce impeccable results (recommended for
heavily soiled garments).
- Energy: automatically selected by “PRIME”, this option
reduces energy consumption (recommended for normally
soiled garments).
- Time: allows for reducing wash cycle duration
(recommended for lightly soiled garments).
! This may only be used in conjunction with wash cycles 1,
2, 3, 4, 5 (all three levels) and 6, 7, 8 (- Energy and - Time
levels).
Extra Rinse
By selecting this option, the efficiency of the rinse is increased
and optimal detergent removal is guaranteed. It is particularly
useful for sensitive skin.
! It cannot be used in conjunction with wash cycles 8, , .
Easy iron
By selecting this function, the wash and spin cycles will be modified
in order to reduce the formation of creases. At the end of the cycle
the washing machine will perform slow rotations of the drum, while
the EASY IRON and START/PAUSE indicator lights will flash (blue
and orange respectively). To end the cycle, press the START/PAUSE
button or the EASY IRON button.
For wash cycles number 10-12, the machine will end the cycle
while the laundry is soaking; the EASY IRON and START/PAUSE
indicator lights will flash. To drain the water so that the laundry
may be removed, press the START/PAUSE button or the EASY
IRON button.
! It cannot be used in conjunction with wash cycles 8, 9, 13,
, .
Stain removal This function is particularly useful
for the removal of stubborn stains.
Insert extra compartment 4
(supplied with the appliance) into
compartment 1. When pouring
in the bleach, be careful not to
exceed the “max” level marked
on the central pivot (see figure).
To bleach laundry with no other
washing action, pour the bleach
into extra compartment 4,
select the “Rinse” cycle and
activate the “Stain removal”
option . To bleach during a wash cycle, pour in the detergent
and any fabric softener you wish to use, select the desired wash
cycle and enable the “Stain removal” option. The use of extra
compartment 4 excludes the pre-wash function.
! It cannot be used in conjunction with wash cycles 1, 6, 8, 9,
10, 11, 12, 13, , .
Table of programmes and wash cycles
4
2
31
4
2
1
3
Wash cycles
Description of the wash cycle
Max.
temp.
(°C)
Max.
speed
(rpm)
Detergents Max. load
(kg)
Cycle
duration
Prewash Main wash Bleach Fabric
softener
Daily Programs
1Cottons with Prewash: extremely soiled whites. 90° 1600   -8
2White Cottons: heavily soiled whites. 90° 1600 -    8
2White Cottons (1-2): heavily soiled whites and resistant colours. 60° 1600 -    8
2White Cottons (2): lightly soiled whites and delicate colours. 40° 1600 -    8
3Cottons: heavily soiled whites and resistant colours. 60° 1600 -    8
4Coloured Cottons (3): lightly soiled whites and delicate colours. 40° 1600 -    8
5Synthetics: heavily soiled resistant colours. 60° 800 -    3,5
5Synthetics energetic (4): heavily soiled resistant colours. 40° 800 -    3,5
6 Jeans 40° 800 - -4
7 Shirts 40° 600 -    2
8Mix-Cool 30’: to refresh lightly soiled garments quickly (not suitable
for wool, silk and clothes which require washing by hand). Cold
water 800 - -3
Special cycles
9Wool: for wool, cashmere, etc. 40° 800 - -2
10 Silk/Curtains: for garments in silk and viscose, lingerie. 30° 0 - -2
11 Duvets 30° 1000 - -3
12 Outwear 30° 400 - - - 2,5
13 Sport Shoes 30° 600 - -Max.
2 pairs
Partial cycles
Rinse - 1600 - -   8
Spin - 1600 - - - - 8
Drain - 0 - - - - 8
The duration of the wash cycles can be checked on the display.
The cycle duration indicated on the display or instruction manual is an estimate based on standard conditions. The actual duration may vary in relation to several factors, such as the
temperature and pressure of the incoming water, ambient temperature, amount of detergent, load quantity and type, load balancing and any additional options selected.
For all Test Institutes:
1) Test wash cycle in compliance with regulation 2010/1061: set wash cycle 2 with a temperature of 60°C and 40°C.
2) Long wash cycle for cottons: set wash cycle 2 with a temperature of 40°C.
3) Short wash cycle for cottons: set wash cycle 4 with a temperature of 40°C.
4) Synthetic program along: set wash cycle 5 with a temperature of 40°C.

8
GB
Detergents and laundry
Detergent dispenser drawer
Successful washing results also depend on the correct
dose of detergent: adding too much detergent will not
necessarily result in a more efficient wash, and may in
fact cause build up on the inside of your appliance and
contribute to environmental pollution.
! Do not use hand washing detergents; they create too
much foam.
Open the detergent
dispenser drawer and pour
in the detergent or washing
additive, as follows.
Compartment 1: Pre-
wash detergent (powder)
Before pouring in the
detergent, make sure that
extra compartment 4 has
been removed.
Compartment 2: Washing detergent (powder or liquid)
Liquid detergent should only be poured in immediately
prior to the start of the wash cycle.
Compartment 3: Additives (fabric softeners, etc.)
The fabric softener should not overflow the grid.
extra compartment 4: Bleach
Preparing the laundry
• Divide the laundry according to:
- the type of fabric/the symbol on the label
- the colours: separate coloured garments from whites.
• Empty all garment pockets and check the buttons.
• Do not exceed the listed values, which refer to the
weight of the laundry when dry:
Durable fabrics: max. 8 kg
Synthetic fabrics: max. 3,5 kg
Delicate fabrics: max. 2 kg
Wool: max. 2 kg
Silk: max. 2 kg
How much does your laundry weigh?
1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g
Special wash cycles
Jeans: turn the garments inside out before washing and
use liquid detergent. Use wash cycle 6.
Shirts: use special wash cycle 7 to wash shirts in various
fabrics and colours.
It guarantees maximum care is taken of the garments and
minimises the formation of creases.
4
2
31
4
2
1
3
Mix-Cool 30’: this wash cycle was designed to wash
lightly soiled garments quickly: it lasts just 30 minutes and
therefore saves both energy and time. By selecting wash
cycle 8, it is possible to wash different fabrics (except for
wool and silk items) using a cold cycle, up to a maximum
load of 3 kg.
Wool: wash cycle 9 can be used to wash all woollen
garments in the machine, even those carrying the “hand wash
only” label. To achieve the best results, use a special
detergent and do not exceed the maximum load of 2 kg.
Silk: use special wash cycle 10 to wash all silk garments.
We recommend the use of special detergent which has been
designed to wash delicate clothes.
Curtains: we recommend you fold the curtains and place
them in a pillow case or mesh bag. Use wash cycle 10.
Duvets: to wash double or single duvets (the weight of which
should not exceed 3 kg), cushions or clothes padded with
goose down such as puffa jackets, use the special wash cycle
number 11 “Duvets”. We recommend that duvets are placed
in the drum with their edges folded inwards (see figure) and
that no more than ¾ of the total volume of the drum is used.
To achieve the best results, we recommend that a liquid detergent
is used and placed inside the detergent dispenser drawer.
Outwear ( wash cycle 12): is studied for washing water-
repellent fabrics and winter jackets (e.g. Gore-Tex,
polyester, nylon); for best results, use a liquid detergent
and dosage suitable for a half-load; pre-treat necks, cuffs
and stains if necessary; do not use softeners or detergents
containing softeners. Stuffed duvets cannot be washed
with this programme.
Sport Shoes ( wash cycle 13): is for washing sports
shoes; for best results, do not wash more than 2 pairs
simultaneously.

9
GB
Precautions and tips
! This washing machine was designed and constructed
in accordance with international safety regulations. The
following information is provided for safety reasons and must
therefore be read carefully.
General safety
• This appliance was designed for domestic use only.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
• Do not touch the machine when barefoot or with wet or
damp hands or feet.
• Do not pull on the power supply cable when unplugging the
appliance from the electricity socket. Hold the plug and pull.
• Do not open the detergent dispenser drawer while the
machine is in operation.
• Do not touch the drained water as it may reach
extremely high temperatures.
• Never force the porthole door. This could damage the safety
lock mechanism designed to prevent accidental opening.
• If the appliance breaks down, do not under any
circumstances access the internal mechanisms in an
attempt to repair it yourself.
• Always keep children well away from the appliance while
it is operating.
• The door can become quite hot during the wash cycle.
• If the appliance has to be moved, work in a group of two
or three people and handle it with the utmost care. Never
try to do this alone, because the appliance is very heavy.
• Before loading laundry into the washing machine, make
sure the drum is empty.
Disposal
• Disposing of the packaging materials:
observe local regulations so that the packaging may be
re-used.
• The European Directive 2002/96/EC relating to Waste
Electrical and Electronic Equipment (WEEE) states that
household appliances should not be disposed of using
the normal solid urban waste cycle. Exhausted appliances
should be collected separately in order to optimise the cost
of re-using and recycling the materials inside the machine,
while preventing potential damage to the atmosphere and
to public health. The crossed-out dustbin is marked on all
products to remind the owner of their obligations regarding
separated waste collection. For more information relating
to the correct disposal of household appliances, owners
should contact their local authorities or appliance dealer.

10
GB
2. Unscrew the lid by
rotating it anti-clockwise
(see figure): a little water
may trickle out. This is
perfectly normal.
3. Clean the inside thoroughly.
4. Screw the lid back on.
5. Reposition the panel, making sure the hooks are
securely in place before you push it onto the appliance.
Checking the water inlet hose
Check the inlet hose at least once a year. If there are any
cracks, it should be replaced immediately: during the wash
cycles, water pressure is very strong and a cracked hose
could easily split open.
! Never use second-hand hoses.
Care and maintenance
Cutting off the water and electricity
supplies
• Turn off the water tap after every wash cycle. This will
limit wear on the hydraulic system inside the washing
machine and help to prevent leaks.
• Unplug the washing machine when cleaning it and
during all maintenance work.
Cleaning the washing machine
The outer parts and rubber components of the appliance
can be cleaned using a soft cloth soaked in lukewarm
soapy water. Do not use solvents or abrasives.
Cleaning the detergent dispenser drawer
To remove the drawer, press
lever (1) and pull the drawer
outwards (2) (see figure).
Wash it under running water;
this procedure should be
repeated frequently.
Caring for the door and drum of your
appliance
• Always leave the porthole door ajar in order to prevent
unpleasant odours from forming.
Cleaning the pump
The washing machine is fitted with a self-cleaning pump
which does not require any maintenance. Sometimes, small
items (such as coins or buttons) may fall into the protective
pre-chamber at the base of the pump.
! Make sure the wash cycle has finished and unplug the
appliance.
To access the pre-chamber:
1. Take off the cover panel
on the front of the machine
by first pressing it in the
centre and then pushing
downwards on both sides
until you can remove it (see
figures).
2
1
1
23
