Infineon TLD5099EP User manual

Boost to ground evaluation kit
TLD5099EP
About this document
Product description
The TLD5099EP is an AEC qualified DC/DC boost controller, especially designed to drive LEDs.
• Built in diagnosis and protection features
• Pulse width modulator to implement a dimming function with reduced color shiing
• Spread spectrum modulator to improve the EMI performance
Scope and purpose
Scope of this user manual is to provide to the audience instructions on usage of TLD5099EP boost to ground
evaluation board.
Intended audience
This document is intended for engineers who need to perform measurements and check performances with
TLD5099EP boost to ground evaluation board.
Table of contents
About this document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2 Quick start procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Current adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4 Power derating (battery dependent current) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5 Embedded PWM engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Cold crank survival circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7 Schematics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8 PCB layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
9 Bill of material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10 Eiciency measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
11 Maximizing eiciency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
12 Minimizing EM emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
13 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
User Manual
User Manual Please read the Important Notice and Warnings at the end of this document
www.infineon.com 2020-09-30

1 Description
Evaluation board for high power LED application with TLD5099EP product in boost to ground topology.
Default configuration of the board is boost to ground topology without any additional features enabled. In this
configuration, it can deliver up to 13 W to the load with an eiciency above 90%. Auxiliary circuits, which protect
the DC-DC and the load during short to ground, are present.
The board is also equipped with the following features that are enabled by jumpers:
• Output current adjustment trimmer
• Power derating circuitry
• Embedded PWM engine
• Cold crank survival circuit (CCSC)

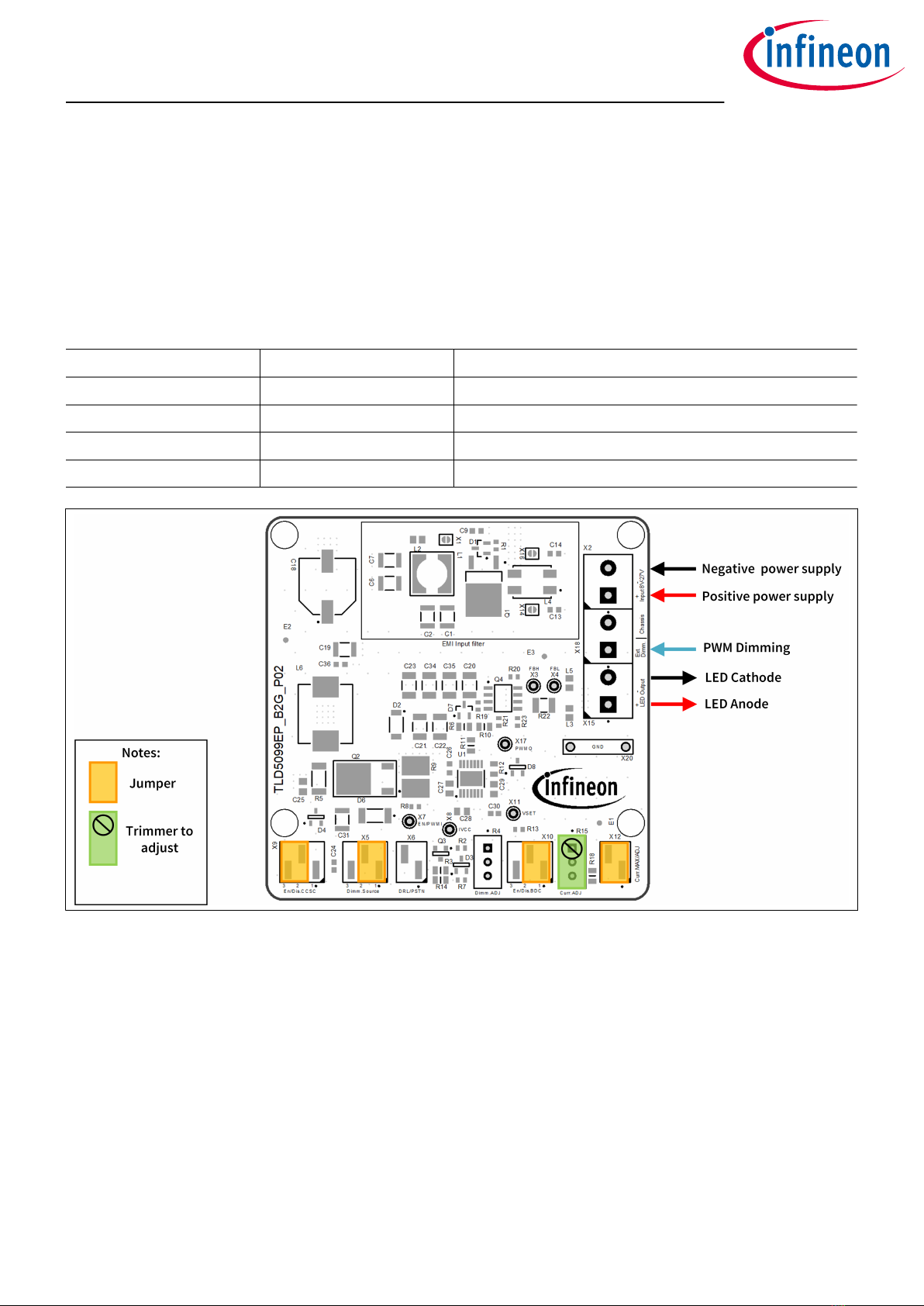

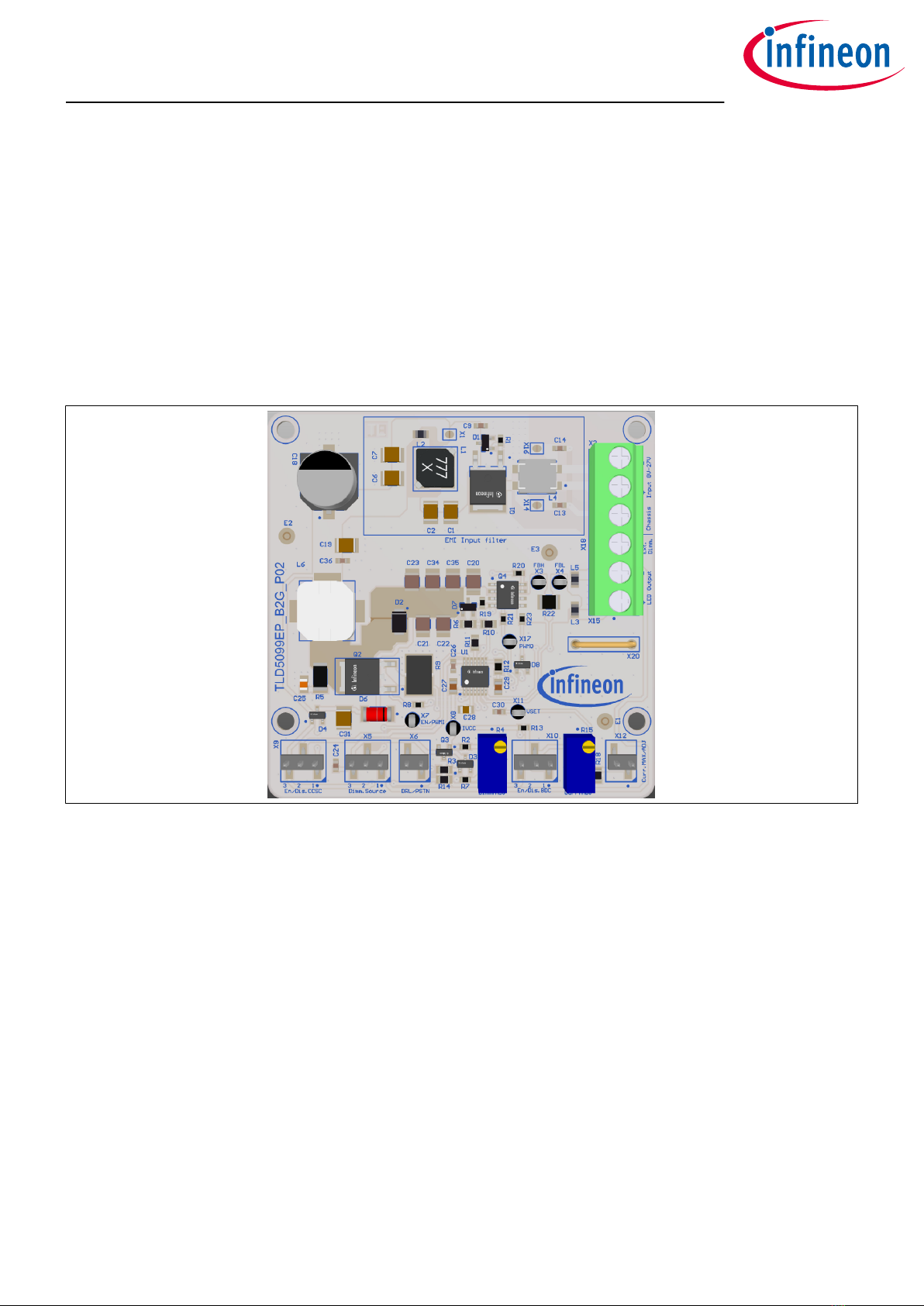

Figure 1 Board picture
Boost to ground evaluation kit
TLD5099EP
1 Description
User Manual 2
2020-09-30

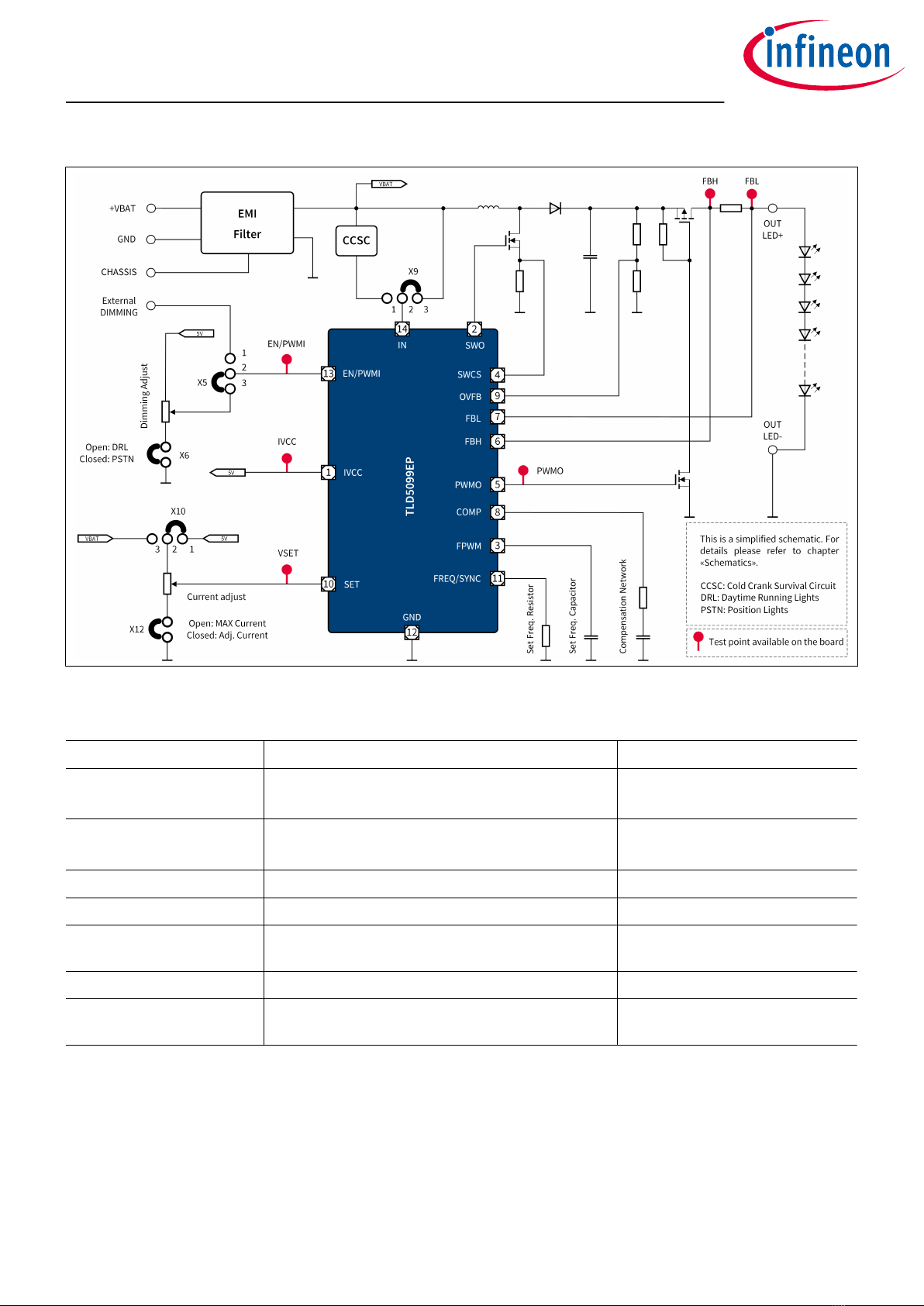

Figure 2 Simplified schematic
Table 1 Performance summary
Parameter Conditions Value
Input supply voltage Jumper X9 in position 2-3 (CCSC deactivated)
Parameter degradation below 6.5 V
8 V to 27 V
Down to 6.5 V for less than 2 s
Input supply voltage Jumper X9 in position 1-2 (CCSC active) 8 V to 27 V
Down to 3.0 V for less than 2 s
Output current Jumper X12 open 350 mA
Switching frequency VIN = 13.2 V; spread spectrum "on" 400 kHz
Eiciency Measured with 12 white standard LED 3 V @
350 mA output current
> 90%
Output voltage range Output voltage related to ground 33 V to 47.4 V
Output overvoltage
protection
Output voltage related to ground 60 V
Boost to ground evaluation kit
TLD5099EP
1 Description
User Manual 3
2020-09-30

2 Quick start procedure
The default configuration of the board has all additional features disabled. In this configuration the output
current cannot be adjusted. The PWM signal has to be applied as digital signal on connector X18 (max. 45 V).
Jumpers are positioned as follows:
Table 2 Jumper position
Jumper number Condition Meaning
X9 Close 2-3 Disable CCSC
X5 Close 2-1 External dimming enabled
X10 Close 2-1 Disable battery dependent current
The default configuration is depicted below:

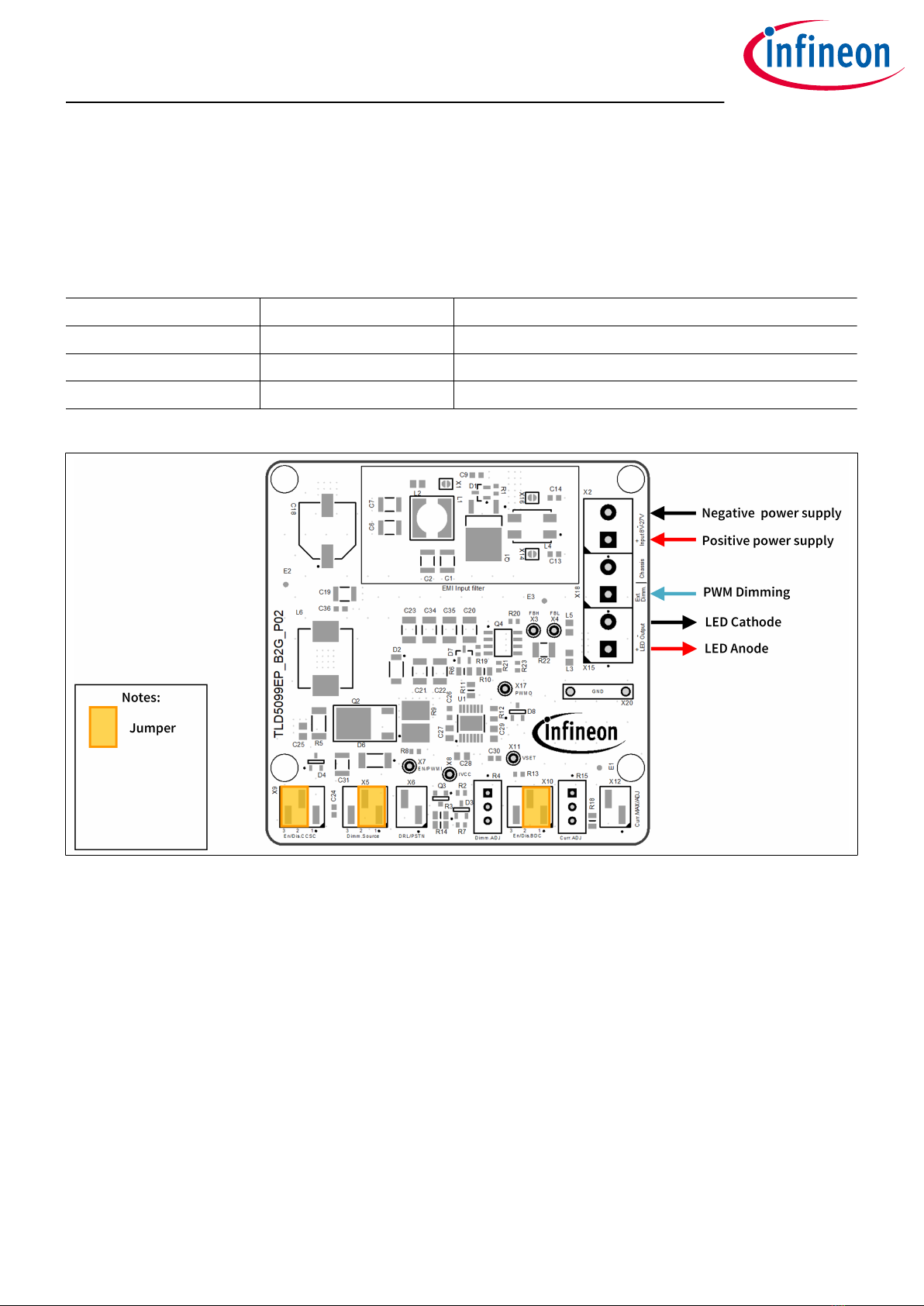

Figure 3 Default configuration of the board
Boost to ground evaluation kit
TLD5099EP
2 Quick start procedure
User Manual 4
2020-09-30

3 Current adjustment
The output current adjustment can be performed by changing the value of trimmer R15 with a screwdriver,
when jumper X10 is closed in position 1-2 and jumper X12 is closed. The output current can vary from 0 to
100% of the maximum output current (in this evaluation board from 0 to 350 mA). By removing jumper X12, the
output current will reach its maximum value. The PWM signal has to be applied as digital signal on connector
X18 (max. 45 V).
Jumpers are positioned as follows:
Table 3 Jumper position
Jumper number Condition Meaning
X9 Close 2-3 Disable CCSC
X5 Close 2-1 External dimming enabled
X10 Close 2-1 Disable battery dependent current
X12 Closed Adjustable output current enabled
Figure 4 Current adjustment
Boost to ground evaluation kit
TLD5099EP
3 Current adjustment
User Manual 5
2020-09-30

4 Power derating (battery dependent current)
The power derating acts by reducing VSET (and thus the output current) when the battery voltage drops below
8 V. It works better when R15 is trimmed to its maximum value. Otherwise a dierent derating profile is applied.
If a dierent derating profile is needed, R14 has to be changed. The aim is to have 1.6 V on pin SET when the
battery voltage reaches the desired threshold, below which the output current must decrease proportionally.
R14 can be calculated using:
(1)
R14 =R15 +R18 ⋅VBATT
1.6−1
where:
• R15 = 10 kΩ
• R18 = 560 Ω
For example, if the power derating should start when the battery voltage drops under 12 V, R14 must be
replaced with a 68 kΩ 0603 resistor (please refer to the TLD5099EP datasheets for more information).
The PWM signal has to be applied as digital signal on connector X18 (max. 45 V).
Jumpers are positioned as follows:
Table 4 Jumper position
Jumper number Condition Meaning
X9 Close 2-3 Disable CCSC
X5 Close 2-1 External dimming enabled
X10 Close 2-3 Enable battery dependent current
X12 Closed Adjustable output current enabled
Figure 5 Power derating
Boost to ground evaluation kit
TLD5099EP
4 Power derating (battery dependent current)
User Manual 6
2020-09-30

5 Embedded PWM engine
The embedded PWM engine provides an internal PWM signal without any external dimming signal required. It
is enabled when jumper X5 is closed in position 2-3. If jumper X6 is open, the EN/PWMI pin is biased at 5 V and
then the duty cycle is 100%. Closing jumper X6, the duty cycle is adjustable by means of trimmer R4. The PWM
frequency is set to 350 Hz. If another PWM frequency is needed, C28 must be changed to a proper value (please
refer to the TLD5099EP datasheets for more information).
Jumpers are positioned as follows:
Table 5 Jumper position
Jumper number Condition Meaning
X9 Close 2-3 Disable CCSC
X5 Close 2-3 Internal dimming enabled
X10 Close 2-1 Disable battery dependent current
X6 Closed Adjustable PWM dimming for position light
Figure 6 Embedded PWM engine
Boost to ground evaluation kit
TLD5099EP
5 Embedded PWM engine
User Manual 7
2020-09-30

6 Cold crank survival circuit
This feature helps the system to survive LV124 test E11 “severe test pulse”, when the input voltage drops below
4.5 V, which is the minimum input voltage for the TLD5099EP. This circuit feeds back the device with the output
voltage when the input voltage drops. To activate this feature, close jumper X9 in position 1-2. Other settings
can be le as preferred.
Note: The CCSC uses a Zener diode to adapt the output voltage to the required voltage for the TLD5099EP, so
that it can derate the eiciency performance.
Figure 7 Cold crank survival circuit
Boost to ground evaluation kit
TLD5099EP
6 Cold crank survival circuit
User Manual 8
2020-09-30

7 Schematics
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
D D
C C B B
A A
08/09/2020 11:46:01Date: Sheet of
Time:
© Infineon Technologies AG 2019. All Rights Reserved. Author: Riccardo Zuin
03-TLD5099EP_B2G_S02_Input Filter.SchDoc
Infineon TechnologiesAG IFI DC ATV BP Via Niccolo Tommaseo 65b 35131 Padova Italy
S02
Title Size: Rev.
A3 Document Name
03-TLD5099EP_B2G_S02_Input Filter.SchDoc
Rel. REL
Variant TLD5099EP_B2G
[No Variations] Approved <Appr.>
SVN Revision: Not in version control
GND
External Dimming
2 3
1
Q1
IPD90P04P4L-04
R1 10k
GND
GND V bat
Ext_Dim
1 2
X14
Solder Jumper 2 Pins
1 2
X16
Solder Jumper 2 Pins50V
C14 470pF
50V C13 470pF
1 4 2 3
ACM70V-701-2PL-TL00
L4 700R
Chassis
1 2
Phoenix Contact
X2 1935776 MIN Input Voltage (V bat): 8V TYP Input Voltage (V bat): 13,2V MAX Input Voltage (V bat): 27V MIN Input Voltage (V bat): 6.5V (for less than 2s)
12
50V
C18 220uF
GNDGND
Vbat_FIL
4A PI type filter. Suitable for switching frequency down to 200kHz
N.M.
50V
C9 100nF
GND GND GND
MPZ2012S101ATD25
L2 100R
1 2
X1
Solder Jumper 2 Pins
GND
50V
C1 10uF 50V
C2 10uF 50V
C6 10uF 50V
C7 10uF
MSS7341T-332NL
L1 3.3uH
1 2
Phoenix Contact X18 1935776
31
NC
2
BZX84C10LT1G
D1
10V
Figure 8 Input filter
Boost to ground evaluation kit
TLD5099EP
7 Schematics
User Manual 9
2020-09-30

1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
D D
C C B B
A A
08/09/2020 11:46:35Date: Sheet of
Time:
© Infineon Technologies AG 2019. All Rights Reserved. Author: Riccardo Zuin
04-TLD5099EP_B2G_S02_Main Power.SchDoc
Infineon TechnologiesAG IFI DC ATV BP Via Niccolo Tommaseo 65b 35131 Padova Italy
S02
Title Size: Rev.
A3 Document Name
04-TLD5099EP_B2G_S02_Main Power.SchDoc
Rel. REL
Variant TLD5099EP_B2G
[No Variations] Approved <Appr.>
SVN Revision: Not in version control
SWO 2
IVCC 1
SWCS 4
FPWM
3
EP 15
COMP
8SET
10
FREQ/SYNC
11
FBH
6
PWMO 5
FBL
7
OVFB 9
GND 12
EN/PWMI
13
IN
14 U1
TLD5099EP
Vbat_FIL
C26 100nF
GND
16V C27 10uF
GND
R2 8.2k
1
2
3
R4 10k
R7 3.3k
GND
32
1Q3
BSS138N
31 NC
2D3
BAS16
GND
Vbat_FIL
IVCC(5V)
IVCC(5V)
Vbat_FIL
EN/PWMI
EN/PWMI
R3 2.2k
Set light, dimming and start-up circuit
DimmingAdjust
GND
Rfreq
GND
Cfpwm (350Hz)
(400kHz Spread Spectrum ON)
1 2
X6 TSM-102-01-S-SV
Open: DRL Closed: PSTN
1 2 3
X5 TSM-103-01-S-SV
Ext_Dim
(1-2) External Dimming (2-3) Internal Dimming
VSET
1 2
X12 TSM-102-01-S-SV
1
2
3
R15 10k
GND
IVCC(5V)
CurrentAdjust
Open: MAX Current
Closed: Adj. Current
R13 22k
VSET
Set output continuous current
GND
C29 100nF
R12 0R
GND
50V C19 10uF
GND
GND
R8 10R 2010
R5 2.2R
GND
12 D2
PMEG6030EP,115
GND GND
0,8V 3,1V
0,1V 1,6V
PWR_Out
GND
PWMO
33,0-47.4V / 350mA
2818 R9 33mR
C28 560pF
X8
5001 IVCC
X11
5001
VSET
X7
5001 EN/PWMI
GND
GND
31 NC
2D4
BAS16
Vbat_FIL
50V C31 10uF
GND
CCSC
CCSC
Cold Crank Survival Circuit (CCSC)
1 2 3
X9
TSM-103-01-S-SV
Vbat_FIL
(3-2) Disable CCSC (1-2) Enable CCSC
1
2
3
X10
TSM-103-01-S-SV
Vbat_FIL
(3-2) Enable V bat depending current (1-2) Disable V bat depending current
35V C30 1uF
35V C24 1uF
100V
C35 4.7uF
100V
C34 4.7uF
GND GND GND
100V C23 4.7uF
100V C22 4.7uF
100V C21 4.7uF
GND
100V
C20 4.7uF
OVFB > 1,25V when V OUT > 60V
23
1
Q2
IPD25N06S4L-30
0805 R10 1k
IVCC(5V)
R11 2k X3
5001
X4
5001
FBH FBL
FBH
FBL
3 1
NC 2 D8 BAS16
R23 10k
IVCC(5V)
50V C36 100nF
GND
100V C25 1nF
FBH
PWR_Out
PWR_Out GND
12
ZMY10-GS08
D6
10V
GND
SPM10054T-470M-HZ
L6 47uH
X20
D3082-05
0805 R6 47k
0805
R14 39k
0805 R18 560R
Figure 9 Main power
Boost to ground evaluation kit
TLD5099EP
7 Schematics
User Manual 10
2020-09-30

1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
D D
C C B B
A A
08/09/2020 11:47:06Date: Sheet of
Time:
© Infineon Technologies AG 2019. All Rights Reserved. Author: Riccardo Zuin
05-TLD5099EP_B2G_S02_Output Stage.SchDoc
Infineon TechnologiesAG IFI DC ATV BP Via Niccolo Tommaseo 65b 35131 Padova Italy
S02
Title Size: Rev.
A3 Document Name
05-TLD5099EP_B2G_S02_Output Stage.SchDoc
Rel. REL
Variant TLD5099EP_B2G
[No Variations] Approved <Appr.>
SVN Revision: Not in version control
PWR_Out
PWMO
2
4
1
3
7, 8
5, 6
Q4A BSO615CGHUMA1
R21 10R
GND
R19 10k
31
NC
2
BZX84C10LT1G
D7
10V
OUT LED+ (33,0-47,4V / 350mA) OUT LED-
GND
X17
5001
PWMO
MPZ2012S102ATD25
L5 1kR
MPZ2012S102ATD25
L3 1kR
Suggested Output: Light White LEDs LED Type: Seoul Semi WICOP-C Number of LEDs in series: 10-15 LED part number: SWW0CS07S
1210
R22 820mR
FBH
FBL
1 2
Phoenix Contact
X15 1935776
R20 22k
Figure 10 Output stage
Boost to ground evaluation kit
TLD5099EP
7 Schematics
User Manual 11
2020-09-30

8 PCB layout
Figure 11 PCB layout top view
Figure 12 PCB layout bottom view
Boost to ground evaluation kit
TLD5099EP
8 PCB layout
User Manual 12
2020-09-30

9 Bill of material
Table 6 Bill of material
Designator Value Manufacturer Manufacturer order
number
C1, C2, C6, C7, C19, C31 10 uF Murata GCM32EC71H106KA03
C9, C26, C36 100 nF AVX 06035C104K4Z2A
C13, C14 470 pF Murata GCM1885C1H471JA16
C18 220 uF Panasonic EEEFK1H221P
C20, C21, C22, C23, C34,
C35
4.7 uF TDK CGA6M3X7S2A475K200AE
C24, C30 1 uF TDK CGA3E1X7R1V105K080AC
C25 1 nF TDK Corporation CGA4F2X7R2A102M085AE
C27 10 uF TDK CGA4J1X7S1C106K125AC
C28 560 pF Murata GCM2165C2A561JA16
C29 100 nF TDK CGA4J2X7R2A104M125AE
D1, D7 10 V ON Semiconductor BZX84C10LT1G
D2 PMEG6030EP,115 Nexperia PMEG6030EP,115
D3, D4, D8 BAS16 Infineon Technologies BAS16
D6 10 V Vishay ZMY10-GS08
L1 3.3 uH Coilcra MSS7341T-332NL
L2 100 Ω TDK Corporation MPZ2012S101ATD25
L3, L5 1 kΩ TDK MPZ2012S102ATD25
L4 TDK ACM70V-701-2PL-TL00
L6 47 uH TDK Corporation SPM10054T-470M-HZ
Q1 IPD90P04P4L-04 Infineon Technologies IPD90P04P4L-04
Q2 IPD25N06S4L-30 Infineon Technologies IPD25N06S4L-30
Q3 BSS138N Infineon Technologies BSS138N
Q4 BSO615CGHUMA1 Infineon Technologies BSO615CGHUMA1
R1, R19, R23 10 kΩ Vishay CRCW060310K0FK
R2 8.2 kΩ Vishay CRCW06038K20FK
R3 2.2 kΩ Vishay CRCW08052K20FK
R4, R15 10 kΩ Vishay T93YA103KT20
R5 2.2 Ω Vishay CRCW20102R20FK
R6 47 kΩ Vishay CRCW080547K0FK
R7 3.3 kΩ Vishay CRCW06033K30FK
R8, R21 10 Ω Vishay CRCW060310R0FK
R9 33 mΩ Vishay WSHM2818R0330FEA
R10 1 kΩ Vishay CRCW08051K00FK
Boost to ground evaluation kit
TLD5099EP
9 Bill of material
User Manual 13
2020-09-30

Table 6 Bill of material (continued)
Designator Value Manufacturer Manufacturer order
number
R11 2 kΩ Vishay CRCW08052K00FK
R12 0 Ω Yageo AC0805JR-070RL
R13, R20 22 kΩ Vishay CRCW060322K0FK
R14 39 kΩ Vishay CRCW080539K0FK
R18 560 Ω Vishay CRCW0805560RFK
R22 820 mΩ Panasonic ERJ14BQFR82U
U1 TLD5099EP Infineon Technologies TLD5099EP
X1, X14, X16 Solder Jumper 2 Pins Infineon Technologies Solder Jumper 2 Pins
X2, X15, X18 1935776 Phoenix Contact 1935776
X3, X4, X7, X8, X11, X17 5001 Keystone 5001
X5, X9, X10 TSM-103-01-S-SV Samtec TSM-103-01-S-SV
X6, X12 TSM-102-01-S-SV Samtec TSM-102-01-S-SV
X20 D3082-05 Harwin D3082-05
Boost to ground evaluation kit
TLD5099EP
9 Bill of material
User Manual 14
2020-09-30

10 Eiciency measurements
Figure 13 Eiciency vs. input voltage
This eiciency performance has been obtained with:
Table 7 Parameters influencing eiciency
Output load: Series of 12 white standard LED with Vj = 3 V kept cooled with forced air
EMI filter: Totally bypassed by closing the jumpers X1, X14 and X16
CCSC: O (jumper X9 closed on 2-3)
Current adjustment: O (jumper X12 le open)
Dimming output: O (jumper X6 le open)
Power derating: O (jumper X10 closed on 1-2)
Eiciency performances can be increased: refer to Chapter 11.
Boost to ground evaluation kit
TLD5099EP
10 Eiciency measurements
User Manual 15
2020-09-30

11 Maximizing eiciency
This evaluation board has been designed to reach a fair compromise between eiciency performance and EM
emissions compliance.
Nevertheless, if the maximum eiciency is needed, the following actions should be considered:
1. Remove the snubber circuit R5, C25 or choose a lower value for the capacitor C25 (for example, 470 pF)
2. Bypass the whole EMI filter by bridging the jumpers X1, X14 and X16
3. Bypass the output ferrite beads L3 and L5
4. Replace the main inductor L6 with one that boasts a lower parasitic DC resistance, for example,
• Vishay IHLP6767GZER470M8A
• Bourns SRP1770TA-470M
5. Turn o the CCSC by placing jumper X9 on position 2-3
6. Bypass gate resistor R8
Boost to ground evaluation kit
TLD5099EP
11 Maximizing eiciency
User Manual 16
2020-09-30

12 Minimizing EM emissions
This evaluation board has been designed to reach a fair compromise between eiciency performance and EM
conducted emissions compliance. Furthermore, this evaluation board can fulfill the class V of the CISPR25 in
conducted emissions from 150 kHz to 108 MHz.
Nevertheless, if the minimum EM emission is required, the following actions should be considered:
1. Choose a higher value for the capacitor C25 (for example, 2.2 nF)
2. Include the whole EMI filter by removing bridges from the jumpers X1, X14 and X16
3. Replace the 10 Ω resistor R8 with a higher value such as 22 Ω or 33 Ω
4. Replace the main inductor L6 with a shielded one (for example, Cyntec VCHE106G-470MS6) and connect
the shield to ground
5. Connect the CHASSIS TERMINAL with a short piece of wire as close as possible to the test ground plane
where the board is placed
Boost to ground evaluation kit
TLD5099EP
12 Minimizing EM emissions
User Manual 17
2020-09-30

13 Revision history
Table 8 Revision history
Document version Date of release Description of changes
Rev. 1.00 2020-01-29 Initial release. Matching to evalboard S01_P01.
Rev. 2.00 2020-09-30 Matching to evalboard S02_P02:
• Connectors re-arranged
• Added ground bar
Boost to ground evaluation kit
TLD5099EP
13 Revision history
User Manual 18
2020-09-30

Trademarks
All referenced product or service names and trademarks are the property of their respective owners.
Edition 2020-09-30
Published by
Infineon Technologies AG
81726 Munich, Germany
© 2020 Infineon Technologies AG
All Rights Reserved.
Do you have a question about any
aspect of this document?
Email: [e-mail]
Document reference
IFX-zsu1578911552162
IMPORTANT NOTICE
The information contained in this application note is
given as a hint for the implementation of the product
only and shall in no event be regarded as a description
or warranty of a certain functionality, condition
or quality of the product. Before implementation
of the product, the recipient of this application
note must verify any function and other technical
information given herein in the real application.
Infineon Technologies hereby disclaims any and all
warranties and liabilities of any kind (including without
limitation warranties of non-infringement of intellectual
property rights of any third party) with respect to any
and all information given in this application note.
The data contained in this document is exclusively
intended for technically trained sta. It is the
responsibility of customer’s technical departments to
evaluate the suitability of the product for the intended
application and the completeness of the product
information given in this document with respect to such
application.
WARNINGS
Due to technical requirements products may contain
dangerous substances. For information on the types
in question please contact your nearest Infineon
Technologies oice.
Except as otherwise explicitly approved by Infineon
Technologies in a written document signed by
authorized representatives of Infineon Technologies,
Infineon Technologies’ products may not be used in
any applications where a failure of the product or
any consequences of the use thereof can reasonably
be expected to result in personal injury.
