infobit iSound PAD150 User manual

iSound PAD150
150W Class D Amplifier with DSP and Dante
User Manual V1.0
www.infobitav.com
[e-mail]

Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lighting strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
Caution

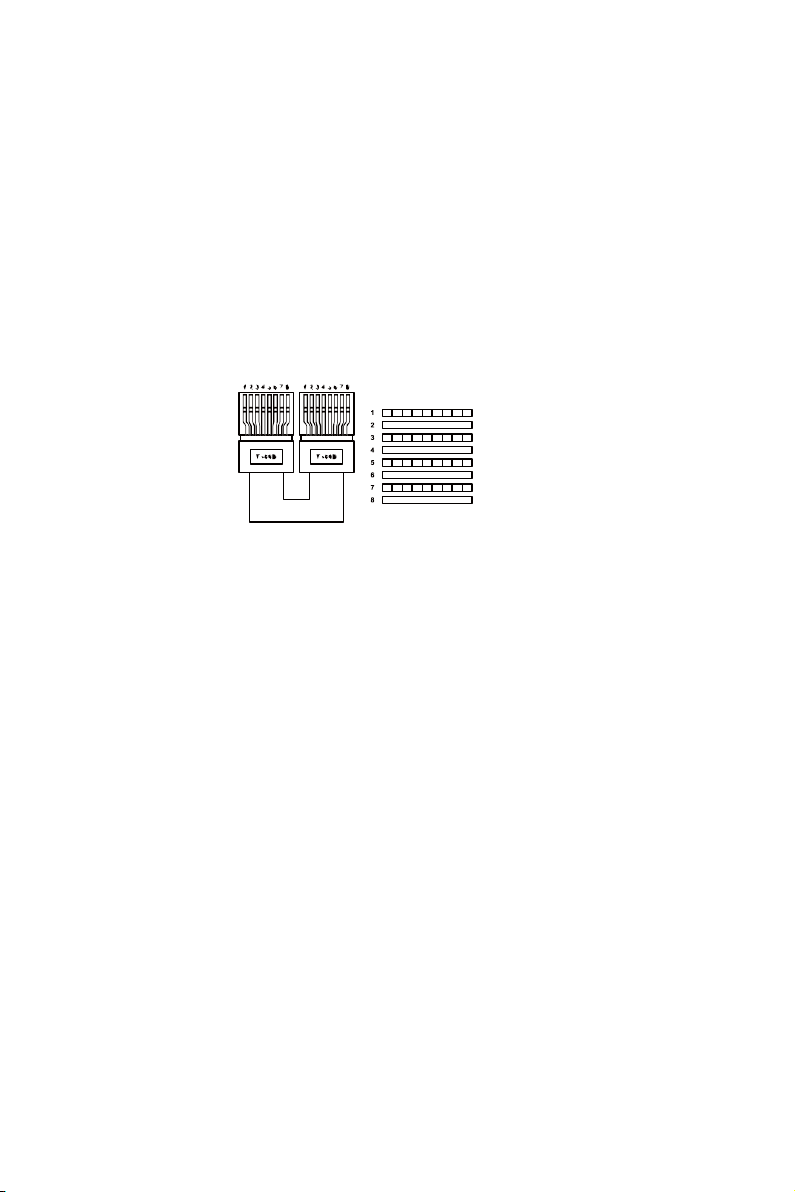

The product requires the use of UTP connectors. Please connect in direct interconnection
method and do not cross connect.
White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown
Direct Interconnection Method
Table of Contents
1. Introduction.....................................................................................................................
1
2. Features...........................................................................................................................
1
3. Package Contents. ........................................................................................................
1
4. Specifications. ................................................................................................................
2
5. Operation Controls and Functions................................................................................
3
5.1 Front Panel. ...............................................................................................................
3
5.2 Rear Panel.................................................................................................................
4
6. Dante Web GUI User Guide ..........................................................................................
5
7. RS-232 Control Command.............................................................................................
10
8. Connection Diagram. ....................................................................................................
15

1 / 15
1. Introduction
This product is a high-performace 150W Class D amplifier, with Hi-Z (70V/100V) or Lo-Z (4Ω/
8Ω) optional. It supports Dante 2CH digital audio and Line balanced analog level inputs and
outputs. With built-in audio DSP processor, the amplifier features stable output frequency
response, excellent signal-to-noise ratio, and ultra-low distortion rate. It can be controlled via
RS-232, LAN and Web GUI.
2. Features
☆ Dante 2CH digital audio and Line balanced analog level inputs
☆ Dante 2CH digital audio, Line balanced analog level and AMP outputs
☆ Built-in audio DSP processor with stable output frequency response, excellent signal-to-
noise ratio, and ultra-low distortion rate
☆ Switching between Lo-Z and Hi-Z can be achieved to adapt to various types of speaker
installation. In Lo-Z output mode, single channel 150W 8 Ω or dual channel 75W 4Ω/8Ω
can be selected. In Hi-Z output mode, single channel 150W to 70V/100V can be provided.
☆ Independent input gain, output EQ and volume control
☆ 48KHz sampling rate, 24bit independent A/D and D/A converters
☆ 2x75W AMP out supports 4Ω/8Ω/70V/100V speaker
☆ 5-12V trigger input
☆ Auto standby
☆ Flexible control via RS-232, LAN and Web GUI
☆ Half rack design
3. Package Contents
① 1 x 150W Class D Amplifier
② 3 x 5pin-3.81mm Phoenix Connector (male)
③ 2 x 4pin-5.08mm Phoenix Connector (male)
④ 6 x Mounting Ear
⑤ 24 x Machine Screw
⑥ 1 x AC (100-240V) Multinational Power Cord (1.5 meters)
⑦ 1 x User Manual

2 / 15
4. Specifications
Technical
Input
1x Dante Network audio input
1x LINE balanced stereo 0dBu/10kΩ input
Output
1x Dante Network audio output
1x Stereo or constant voltage 70V/100V speaker output
1x LINE balanced stereo output
Input Sensitivity
Full [email protected] (0dBu)
Output Power
DC power supply: 2x 75W@4Ω/8Ω ; 1x 150W@8Ω ;
1x 150W@70V/100V
Maximum Voltage Gain
27－30dB SE/39－42dB BTL
Amplifier Type
D Class
Frequency Response
20Hz ~ 20kHz @ ±3dB
Signal to Noise Ratio
87dB 0dBu , 20Hz-10kHz
THD+N
THD+N (1KHz@1W) 0.04%
Control
RS-232 , Web GUI
Video Network
Bandwidth
100M
Audio Format
LINE IN [Analog audio, Balanced 2CH, Max input level
2VRMS]
LINE OUT [Analog audio, Balanced 2CH, Max output level
2VRMS]
DANTE [Digital audio 2x2 in/out, PCM 2CH 44.1K-96KHz
16/24Bit]
AMP OUT [Analog audio, Balanced 2CH, Max output level
24.5VRMS]
70V/100V AMP OUT [Analog audio, Unbalanced 1CH,
Max output level 70V/100VRMS]
Transmission Distance
328ft/100m
ESD Protection
Human-body Model:
±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input:
1x LINE IN [5pin-3.81mm Phoenix Connector]
1x DANTE [RJ45 connector]
Output:
1x LINE OUT [5pin-3.81mm Phoenix Connector]
1x 4/8Ω AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking
phoenix, 5.08mm]
1x 70V/100V AMP OUT [MSTB 2.5-GF-5.08, 4-pin locking
phoenix, 5.08mm]
Control:
1x RS-232/TRG [5pin-3.81mm phoenix connector]
[TRG: 5-12V trigger input to turn on/off the amplifier]
1x LAN [RJ45 connector]

3 / 15
150W CLASS D AMPLIFIER WITH DSP AND DANTE
Mechanical
Housing
Front panel: Aluminum; Rear case: Metal Enclosure
Color
Black
Dimensions
240mm [W]×210mm [D]×44mm [H]
Weight
1.88Kg
Power Supply
DC Input: AC100 - 240V 50/60Hz
Power Consumption
150W (Max)
Operating Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity
20%~90% RH (non-condensing)
5. Operation Controls and Functions

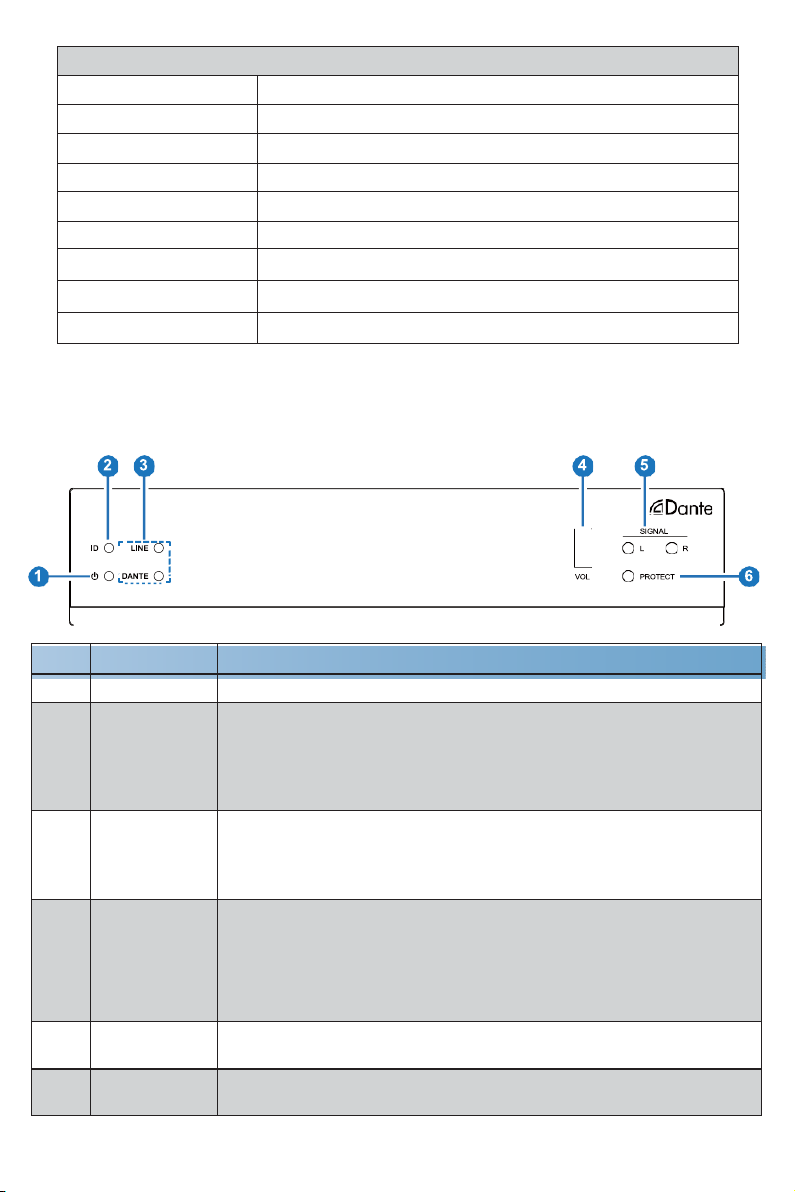

5.1 Front Panel
No.
Name
Function Description
1
Power LED
When the product is powered on, the red power LED is on.
2
ID (show me)
LED
This LED indicates the presence of the product. It can be controlled
through Web GUI or API command. For example, when selecting
the “On” option for “DANTE Identification” on the System page
of the Web GUI, the ID (show me) LED on the front panel will flash,
so that you can find the corresponding machine in the system.
3
LINE/DANTE
LED
Input signal source indicators. When the DANTE or LINE IN port
is selected as the signal input channel, the corresponding green
LINE/DANTE LED is on.
Note: The DANTE port is the signal input channel by default.
4
VOL LED
The main audio volume of the system is displayed in five green
segments, with each segment corresponding to 20% of the volume.
50% of the main audio volume is displayed by default after system
initialization.
Note: The audio volume can be controlled through Web GUI or API
command.
5
SIGNAL L/R
LEDs
Left and right channel signal indicators of the stereo audio. When
there is stereo audio signal, the LEDs will be on.
6
PROTECT
LED
When the machine is protected by overtemperature, overcurrent or
overvoltage, the PROTECT LED is on.

4 / 15

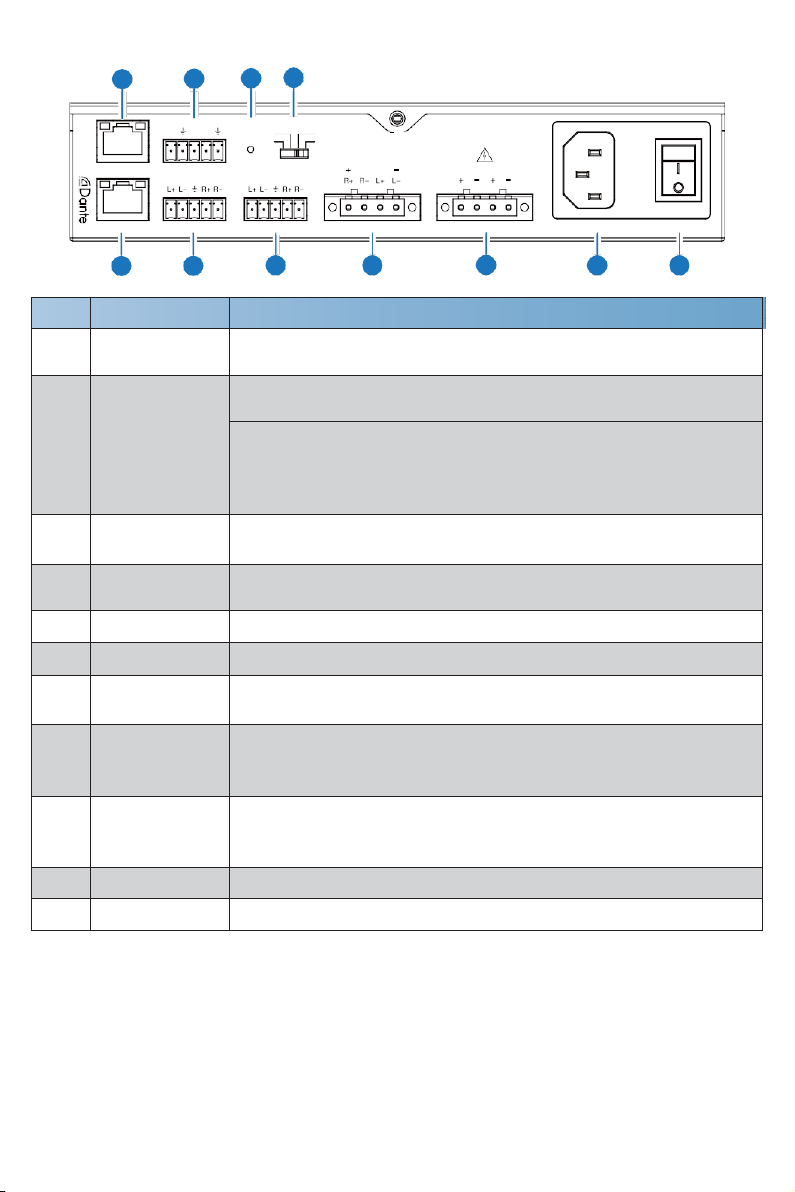

5.2 Rear Panel
1 2 3 4
TX RX T
80 70V
40 100V
LAN RS-232 TRG RESET SPEAKER BRIDGED 70V 100V
DANTE LINE IN LINE OUT
4 / 8 Ω OUT
CLASS 2 WIRING
70 / 100V OUT
CLASS 2 WIRING
100-240V AC 50/60HZ
5 6 7 8 9 10 11
No.
Name
Function Description
1
LAN port
Connect to a PC for Web access. The default IP address is
192.168.0.200.
2
RS-232/TRG
port
RS-232: Serial control port, used for RS-232 signal pass-through
or controlling this product via RS-232 commands.
TRG: T trigger signal input port, effective at high level. When this
port is connected to a 5V/12V current, which is an effective trigger,
the amplifier will be mute. After trigger is disconnected, the
amplifier can output audio normally.
3
RESET button
Press and hold this button for 5 seconds to restore to factory
default settings.
4
SPEAKER
switch
Speaker high-low resistance switch, used to switch among Lo-Z
(4Ω/8Ω), Hi-70V and Hi-100V.
5
DANTE port
Dante audio input and output port, using dynamic IP by default.
6
LINE IN port
Balanced stereo audio input port, with a Max input level of 2Vrms.
7
LINE OUT port
Balanced stereo audio output port, with a Max output level of
2Vrms.
8
4/8Ω OUT port
4/8Ω speaker output port. When this port is connected to a 4/8Ω
speaker and the SPEAKER switch is dialed to 4/8Ω, the audio will
be output from this port normally.
9
70/100V OUT
port
70/100V speaker output port. When this port is connected to a 70/
100V speaker and the SPEAKER switch is dialed to 70/100V, the
audio will be output from this port normally.
10
Power port
100-240V AC 50/60Hz power input port.
11
Power switch
Press the power switch to turn on/off the power supply.

5 / 15
10
169 168 1 30
6. Dante Web GUI User Guide
There is a built-in Dante Web GUI for the amplifier. The operation method is shown as below:
Step 1: Connect the amplifier and PC to the same Ethernet Switch with two Network cables.
Step 2: Set the Network connection setting of PC to be “Obtain an IP address Automatically”.
Step 3: Open the Dante Controller software on the PC, and find the Dante device on the
Routing page, as shown in the figure below.

6 / 15
Step 4: Click the Device Info tab to check the IP address of the Dante device.
Step 5: Input the IP address of Dante device into your browser on the PC to enter the login
interface of the Dante Web GUI.
The default usernames and passwords are as below:
Username
User
Admin
Password
1234
1234
Step 6: Select the default username “Admin” and input the password “1234”, then click the
“Login” button to enter the Information page of Dante Web GUI.

7 / 15
■ Information Page
The Information page provides basic information about the model name, software version
and IP information.
■ Preset Page
You can set up to 5 preset scenes on the Preset page.
① Preset Name: You can name the preset scene. (Chinese name is not supported.)
② Preset Save: Click the Save button to save the scene.
③ Preset Clear: Click the Clear button to clear the saved scene.
④ Preset Recall: Click the Recall button to recall the saved scene.
■ Audio Page

8 / 15
Source Select
① Line In: Click “Line In” to select the LINE IN port as the signal input channel for audio
output.
② Dante In: Click “Dante In” to select the DANTE port as the signal input channel for audio
output.
Input Setting: You can respectively set the output volume or mute/unmute the audio for
Line In\Dante In.
Output Setting
① Master Out: You can respectively set the output volume or mute/unmute the audio for
Speaker Out\Line Out\Dante Out, or set them together when turning on three options
synchronously.
② Speaker Out\Line Out\Dante Out: Click the drop-down list of Mix to select the audio
output channel for Speaker Out\Line Out\Dante Out. You can set the delay, increase/
decrease the audio or mute/unmute the audio.
GEQ Setting
① Output: Click the drop-down list to select the output channel.
② Equalizer: Click the buttons to set the equalizer.
Flat: Set all EG to 0db.
Custom1: Set EQ for custom 1.
Custom2: Set EQ for custom 2.

9 / 15

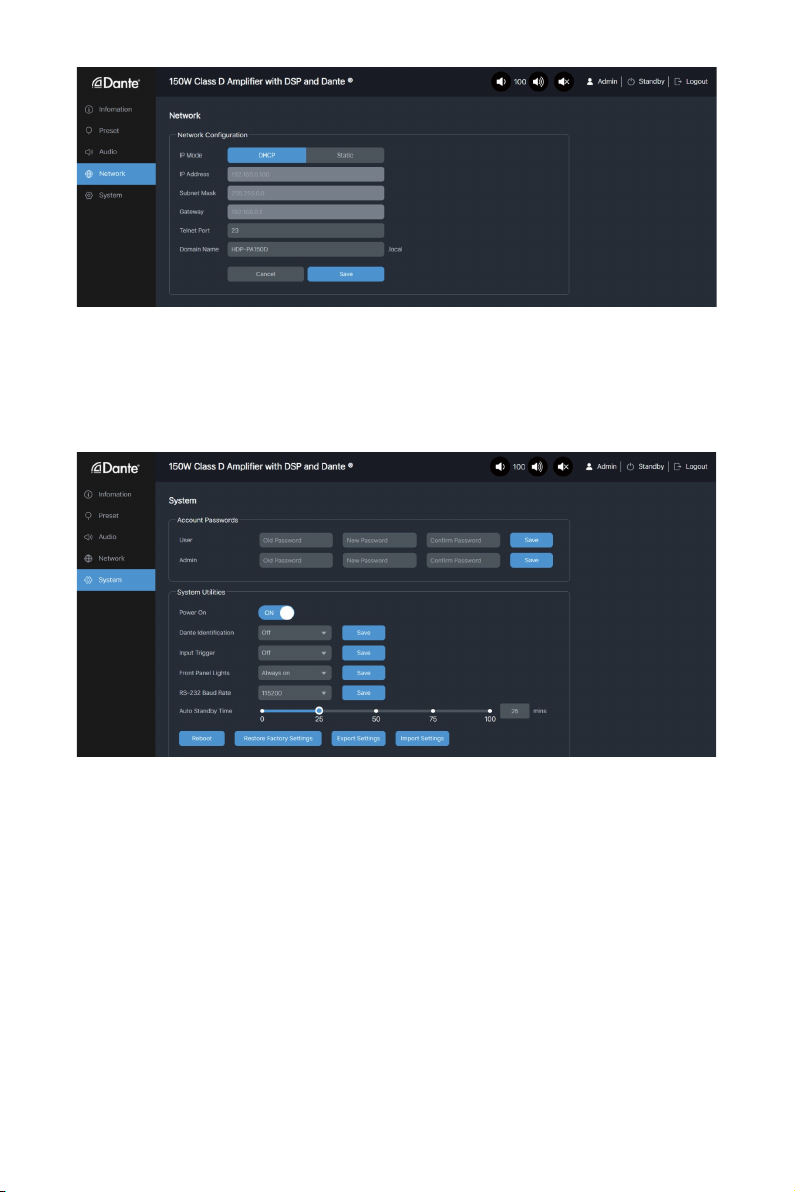

■ Network Page
Network Configuration: You can set the IP Mode (DHCP/Static), IP Address, Subnet
Mask, Gateway, Telnet Port and Domain Name.
Note: The Domain Name “HDP-PA150D.local” can be used to login the Web GUI.
After setting up, click “Save” to take effect, or you can click “Cancel” to cancel the setting.
■ System Page
Account Passwords: You can modify the login password for User and Admin.
After setting up, click “Save” to take effect.
System Utilities
① Power On: Click “ON/OFF” to power on/off the amplifier.
② Dante Identification: Click the drop-down list to set the display status of the ID LED on
the front panel of the amplifier.
③ Input Trigger: Click the drop-down list to set the input trigger mode.
④ Front Panel Lights: Click the drop-down list to set the display status of the VOL LED on
the front panel of the amplifier.
⑤ RS-232 Baud Rate: Click the drop-down list to set the RS-232 baud rate.
After setting up, click “Save” to take effect.
⑥ Auto Standby Time: Drag the slider to set the auto stanby time.
⑦ Reboot: Click “Reboot” to reboot the amplifier.
⑧ Restore Factory Settings: Click this button to restore the amplifier to factory settings.
⑨ Export Settings: Click this button to export configuration files.
⑩ Import Settings: Click this button to import configuration files.

10 / 15
7. RS-232 Control Command
The product also supports RS-232 command control. Connect the RS-232 port of the product
to a PC with a 3-pin phoenix connector cable and an RS-232 to USB cable. The connection
method is as follows.
TX
Ground
RX
3-pin Phoenix Connector
RS-232
RS-232 to USB cable
PC
Then open a Serial Command tool on PC to send ASCII commands to control the product.
The ASCII command list about the product is shown as below.
ASCII Command
Serial port protocol: Baud rate: 115200 (default), Data bits: 8bit, Stop bits:1, Parity bit: none
TCP/IP protocol port: 8000
x - Parameter 1, y - Parameter 2
Command Code
Function Description
Example
Feedback
Default Setting
System Setting
help
Get the list of all commands
help
===================
Help Info
MCU 1.1.0 Web 1.1.0
help
Get the list of all
commands
r type
Get device model
r fw version
Get Firmware version
......................
===================
List all API
commands
?
Get the list of all commands
?
===================
Help Info
MCU 1.1.0 Web 1.1.0
help
Get the list of all
commands
r type
Get device model
r fw version
Get Firmware version
......................
===================
List all API
commands
r type
Get device model
r type
HDP-PA150D
r status
Get device current status
r status
Get the unit all status:
power, FAN, audio
source, in/out volume,
mute,mix,delay time,
L-Inverter,R-Inverter,
ampifier mode,EQ,trigger,
standby time, baud rate,
network status

11 / 15
Command Code
Function Description
Example
Feedback
Default Setting
r fw version
Get Firmware version
r fw version
MCU 1.1.0 Web 1.1.0
s power on
Power on the device
s power on
Power on
System Initializing...
Initialization Finished!
MCU 1.1.0 Web 1.1.0
s power off
Power off the device
s power off
Power off
r power
Get current power state
r power
power on /power off
s reboot
Reboot the device
s reboot
Reboot…
System Initializing...
Initialization Finished!
MCU 1.1.0 Web 1.1.0
s reset
Reset system settings to default
(Should type "Yes" to confirm,
"No" to discard)
s reset
Sure to Reset System
Settings To Default?
Type "Yes" after next
prompt to confirm…
s reset all
Reset system and network
settings to default (Should type
"Yes" to confirm, "No" to discard)
s reset all
Sure to Reset System
and Network Settings To
Default? Type "Yes" after
next prompt to confirm…
s auto stb x
Set system auto standby time
x=0: auto standby off
x=[1-120]: auto standby time (mins)
s auto stb 10
Set auto standby time:
10mins
10
r auto stb
Get system auto standby time
r auto stb
Auto standby time: 10mins
s lcd on/off/15/30/
60
Set volume LCD always on or
auto turn off in power on state or
turn on 15s/30s/60s
s lcd on
s lcd off
s lcd on 15
Set LCD light always on
Set LCD light always off
Set LCD light on 15s
on
r lcd
Get volume LCD on/off status
r lcd
LCD light always on
s idled on/off/15/
30/60
Set ID LED on or auto turn off in
power on state or turn on 15s/
30s/60s
s idled on
s idled on 15
Set ID LED light always
on
Set ID LED light on 15s
off
r idled
Get id LED on/off status
r idled
ID LCD light always on
s trigger on/off x
Set trigger on/off with trigger
level:x
x=0: Low Level (0V) Mute Output
x=1: High Level (5-12V) Mute
Output
s trigger on 1
s trigger off
Set trigger on with high
level
Set trigger off
off
r trigger
Get trigger on/off status
r trigger
Trigger on with high level
s rsb x
Set serial port baud rate to xbps
x=(115200,57600,38400,19200,
9600,4800)
s rsb 115200
Set baud rate to 115200
115200
r rsb
Get serial port baud rate
r rsb
Baud rate 115200
s fan x on/off
Set fan:x auto turn on or always
off
x=[0-2] 0:All, 1:Fan1, 2:Fan2
s fan 0 on
Set all fan on
on
r fan
Get fan status
r fan
All fan on
Input Setting
s input x
Set input source to x
x=[1-2] 1:Line, 2:Dante
s input 1
Set input: Line
r input
Get current input source
r input
Input: Line
s input x vol y
Set input:x volume to y
x=[0-2] 0:All, 1:Line, 2:Dante
y=[0-100] volume value
s input 1 vol 50
Set input line volume: 50
50
r input x vol
Get input:x volume value
x=[0-2] 0:All, 1:Line, 2:Dante
r input 1 vol
Input line volume: 50

12 / 15
Command Code
Function Description
Example
Feedback
Default Setting
s input x vol+
Increase input:x volume
x=[0-2] 0:All, 1:Line, 2:Dante
s input 1 vol+
Increase input line
volume: 52
s input x vol-
Decrease input:x volume
x=[0-2] 0:All, 1:Line, 2:Dante
s input 1 vol-
Decrease input line
volume: 50
s input x mute
on/off
Set input:x mute on/off
x=[0-2] 0:All, 1:Line, 2:Dante
s input 1 mute on
Set input line mute on
r input x mute
Get input:x mute on/off
x=[0-2] 0:All, 1:Line, 2:Dante
r input 1 mute
Input line mute on
Output Setting
s master member
x y z
Set master output member
(x/y/z=0-1)
x=0: Exclude Speaker Out
x=1: Include Speaker Out
y=0: Exclude Line Out
y=1: Include Line Out
z=0: Exclude Dante Out
z=1: Include Dante Out
s master member
1 1 1
Set master member:
1 1 1
1 1 1
r master member
Get master output member
r master member
Master member: 1 1 1
s master vol x
s vol x
Set master output volume to x
x=[0-100] volume value
s master vol 50
s vol 50
Set master volume: 50
50
r master vol
r vol
Get master output volume
r master vol
r vol
Master volume: 50
s master vol+
s vol+
Increase master output volume
s master vol+
s vol+
Increase master volume:
52
s master vol-
s vol-
Decrease master output volume
s master vol-
s vol-
Decrease master volume:
50
s master mute on/off
s mute on/off
Set master output mute on/of
s master mute on
s mute on
Set master mute on
0
r master mute
r mute
Get master output mute on/off
status
r master mute
r mute
Master mute on
s output x vol y
Set output:x volume to y
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[0-100] volume value
s output 1 vol 50
Set output speaker
volume: 50
50
r output x vol
Get output:x volume value
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 vol
Output speaker volume:
50
s output x vol+
Increase output:x volume
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 vol+
Increase output speaker
volume: 52
s output x vol-
Decrease output:x volume
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 vol-
Decrease output speaker
volume: 50
s output x mute
on/off
Set output:x mute on/off
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 mute on
Set output speaker mute
on
r output x mute
Get output:x mute on/off status
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 mute
Output speaker mute on
s output x mix y
Set output:x mix:y
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[1-4] 1:Stereo, 2:Left, 3:Right,
4:Left and Right
s output 1 mix 1
Set output speaker mix:
Stereo
Stereo

13 / 15
Command Code
Function Description
Example
Feedback
Default Setting
r output x mix
Get output:x mix mode
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 mix
Output speaker mix:
Stereo
s output x delay y
Set output:x delay:y
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[0-50]: Delay Time, Millisecond
s output 1 delay 50
Set output speaker delay:
50ms
0
r output x delay
Get output:x delay value
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 delay
Output speaker delay:
50ms
s output x eq y
val z
Set output:x GEQ index:y to
value:z
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[1-31]: EQ index
z=[0-20]: EQ value(dB)
s output 1 eq 1 val
10
Set output speaker GEQ
index 1: 20dB
10
r output x eq y val
Get output:x GEQ index:y value
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[1-31]: EQ index
r output 1 eq 1 val
Output speaker GEQ
index 1: 20dB
s output x eq
preset y
Set output:x GEQ to preset:y
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
y=[1-3] 1:Flat, 2:Custom1,
3:Custom2
s output 1 eq
preset 1
Set output speaker
GEQ: Flat
1
r output x eq preset
Get output:x GEQ preset
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
r output 1 eq
preset
Output speaker GEQ:
Flat
s output x eq clear
Set output:x GEQ clear
x=[0-3] 0:All, 1:Speaker, 2:Line,
3:Dante
s output 1 eq clear
Set output speaker GEQ
clear
Preset Setting
s preset save x
Save the current unit’s settings to
the specified preset:x
All settings except network setting.
x=[1-5]: Preset 1 - Preset 5
s preset save 1
Save to preset 1
s preset recall x
Recall a specified preset:x into unit
All settings except network setting.
x=[1-5]: Preset 1 - Preset 5
s preset recall 1
Recall preset 1
s preset clear x
Clear a specified preset:x
All settings except network setting.
x=[1-5]: Preset 1 - Preset 5
s preset clear 1
Clear preset 1
s preset x name y
Set preset:x name to y
x=[1-5]: Preset 1 - Preset 5
y: Preset name, max 16
characters
s preset 1 name
MeetingRoom 1
Set preset 1 name:
MeetingRoom 1
r preset x name
Get preset:x name
x=[1-5]: Preset 1 - Preset 5
r preset 1 name
Preset 1 name:
MeetingRoom 1
Network Setting
r ipconfig
Get the Current IP Configuration
r ipconfig
IP Mode: DHCP
IP: 192.168.62.106
Subnet Mask:
255.255.255.0
Gateway: 192.168.62.1
TCP/IP port: 8000
MAC: 6C:DF:FB:0C:B3:8E
(Static: 169.254.100.200
255.255.0.0 169.254.100.1)

14 / 15
Command Code
Function Description
Example
Feedback
Default Setting
r mac addr
Get network MAC address
r mac addr
MAC: 6C:DF:FB:0C:B3:8E
s ip mode x
Set network IP mode to static IP
or DHCP
x=[0-1]
0.Static, 1.DHCP
s ip mode 0
IP mode: Static
(Please use "s net reboot!"
command or repower
device to apply new config!)
1
r ip mode
Get network IP mode
r ip mode
IP mode: DHCP
s ip addr xxx.xxx.
xxx.xxx
Set network IP address
s ip addr
192.168.1.100
IP address: 192.168.0.100
(Please use "s net
reboot!" command or
repower
device to apply new
config!)
DHCP on, Device can't
config static address,
set DHCP off first.
r ip addr
Get network IP address
r ip addr
IP: 192.168.0.100
s subnet
xxx.xxx.xxx.xxx
Set network subnet mask
s subnet
255.255.255.0
Subnet Mask:
255.255.255.0
(Please use "s net
reboot!" command or
repower device to apply
new config!)
DHCP on, Device can't
config subnet mask, set
DHCP off first.
r subnet
Get network subnet mask
r subnet
Subnet Mask:
255.255.255.0
s gateway
xxx.xxx.xxx.xxx
Set network gateway
s gateway
192.168.1.1
Gateway: 192.168.1.1
(Please use "s net
reboot!" command or
repower device to apply
new config!)
DHCP on, Device can't
config gateway, set
DHCP off first.
r gateway
Get network gateway
r gateway
Gateway: 192.168.1.1
s tcp/ip port x
Set network TCP/IP port
(x=1~65535)
s tcp/ip port 8000
TCP/IP port: 8000
8000
r tcp/ip port
Get network TCP/IP port
r tcp/ip port
TCP/IP port: 8000
s telnet port x
Set network telnet port
(x=1~65535)
s telnet port 23
Telnet port: 23
23
r telnet port
Get network telnet port
r telnet port
Telnet port: 23
s net reboot
Reboot network modules
s net reboot
Search for IP, Please
wait ...!
IP Mode: DHCP
IP: 192.168.62.106
Subnet Mask:
255.255.255.0
Gateway: 192.168.62.1
TCP/IP port: 8000
Telnet port: 23
MAC: 6C:DF:FB:0C:B3:8E
(Static: 169.254.100.200
255.255.0.0
169.254.100.1)

15 / 15
Command Code
Function Description
Example
Feedback
Default Setting
Password Setting
s admin password
x
Set admin login password
(x=[16 characters max])
s admin password
1234
admin password: 1234
1234
r admin password
Get admin login password
r admin password
admin password: 1234
s user password x
Set user login password
(x=[16 characters max])
s user password
1234
user password: 1234
1234
r user password
Get user login password
r user password
user password: 1234
8. Connection Diagram
PC or Control System
Power Supply
TX RX T
80 70V
40 100V
LAN RS-232 TRG RESET SPEAKER BRIDGED 70V 100V
DANTE LINE IN LINE OUT 4 / 8 Ω OUT
CLASS 2 WIRING
70 / 100V OUT
CLASS 2 WIRING 100-240V AC 50/60HZ
DVD or Blu-ray
Player
4/8Ω Speakers
Amplifier
70/100V Speakers
16×16 DIGITAL MATRIX PROCESSOR WITH DANTE
Audio Processor with DANTE
POWER
STATUS
