Innovatech Easy Edge Predator 850 User manual

TABLE OF CONTENTS
INTRODUCTION ________________________________________________2
SAFETY SYMBOLS ______________________________________________2
DELIVERY______________________________________________________3
GRINDER SPECIFICATIONS _____________________________________3
SAFETY WARNINGS_____________________________________________4
CONTROLS AND FEATURES _____________________________________5
OPERATION ____________________________________________________6
ADJUSTING GRINDER HEAD ____________________________________7
ELECTRICAL ___________________________________________________7
SERVICE _______________________________________________________7
TROUBLESHOOTING____________________________________________8
MAINTENANCE _________________________________________________8
WARRANTY ____________________________________________________9

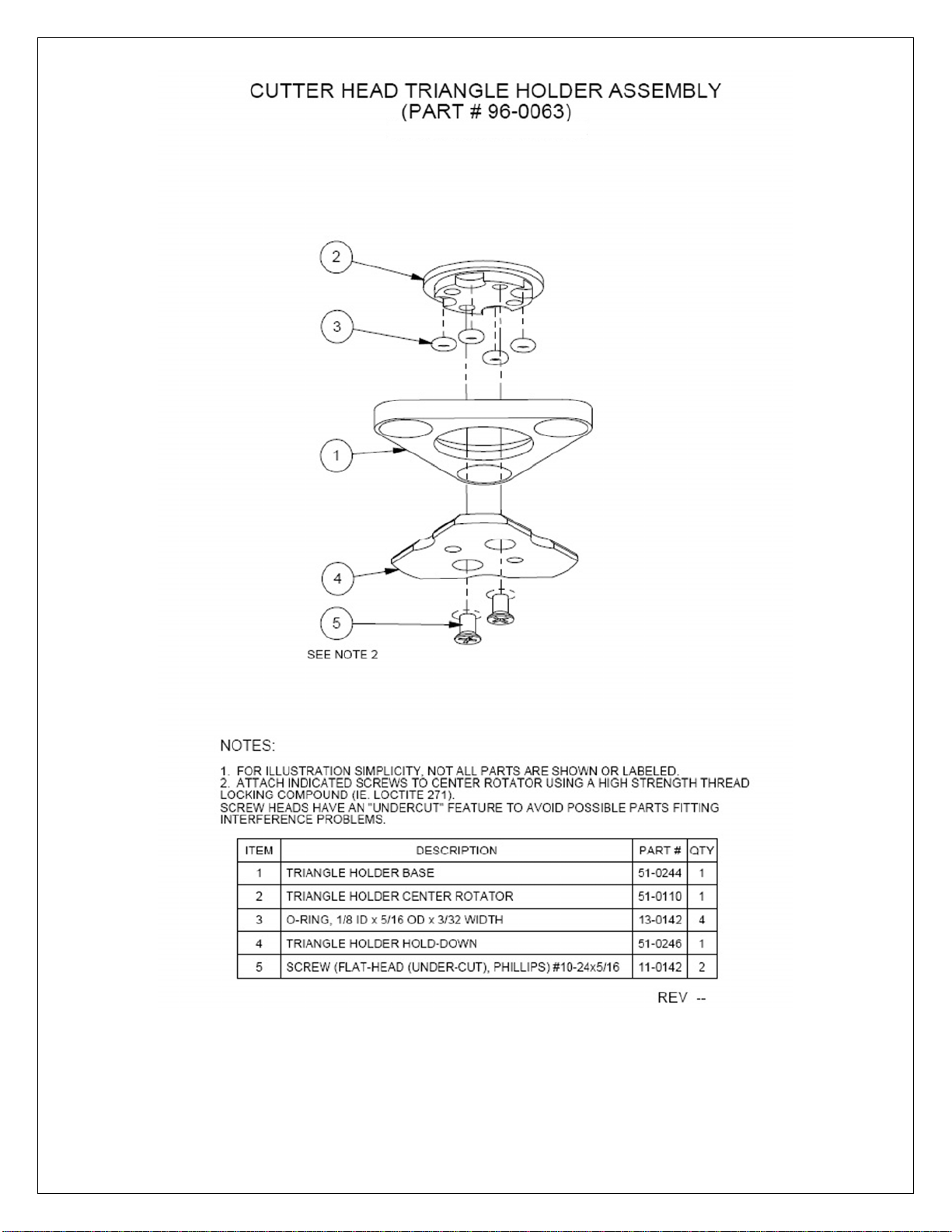

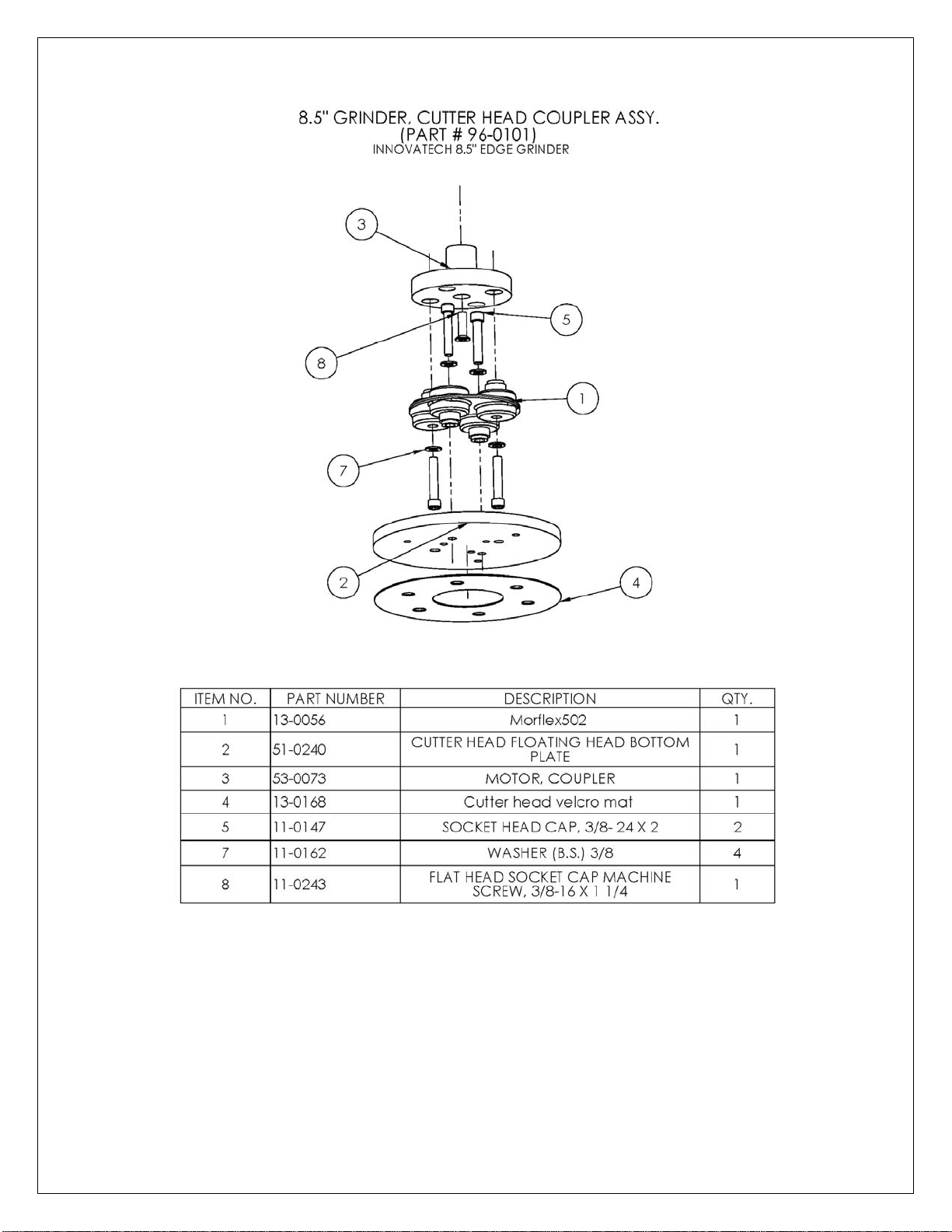

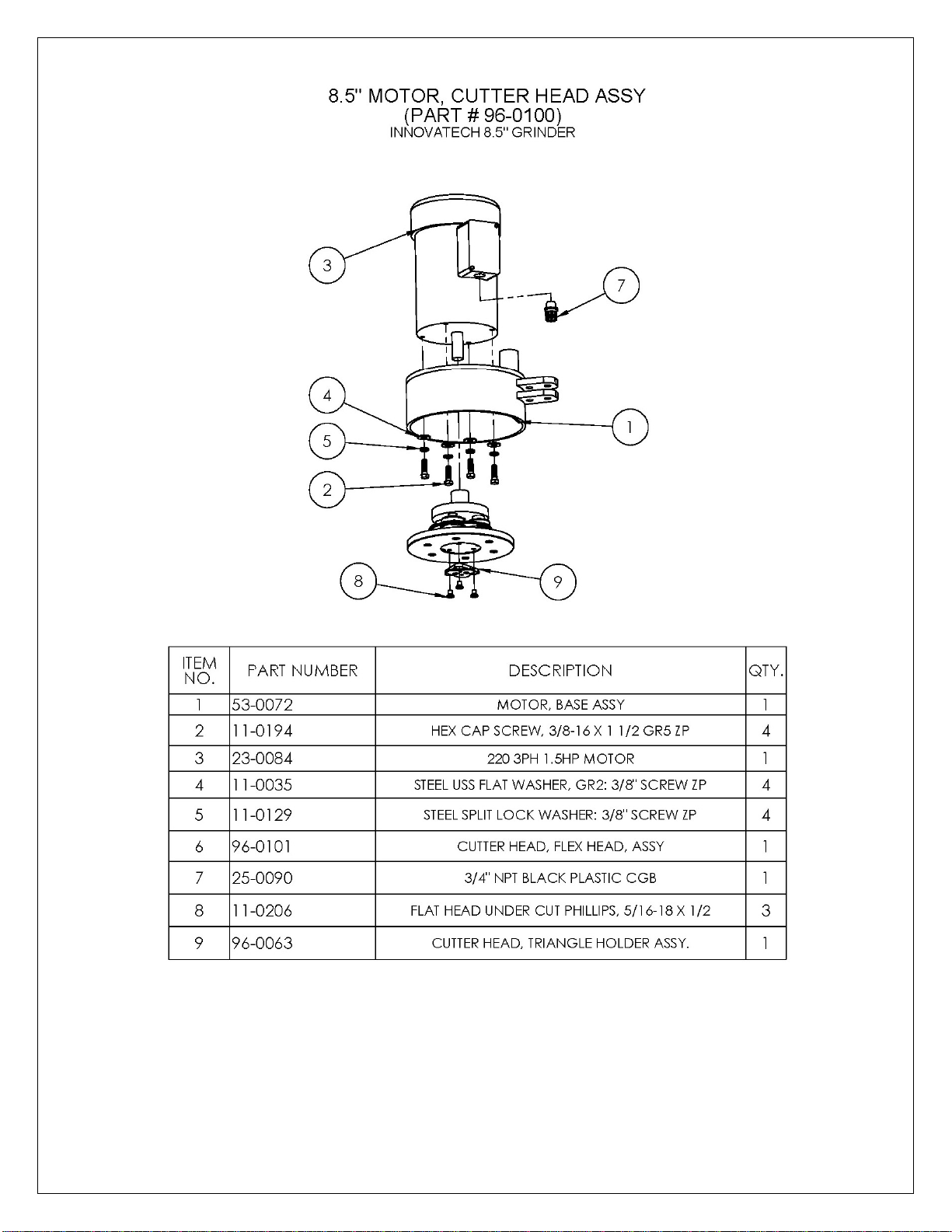

SERVICE PARTS DIAGRAMS_________________________________ 10-18
INNOVATECH CONTACT INFORMATION________________________17
1

INTRODUCTION
Thank you for purchasing Innovatech’s Predator 850 ‘Easy Edge’ Grinder. The Predator Easy Edge Grinder
has many features for making its use easy and effective. Safety, dependability and performance have been
given top priority in the design of this product making it the most versatile edge grinder on the market
with ease of maintenance and operation.
NOTE: READ AND UNDERSTAND THIS MANUAL BEFORE YOU OPERATE OR SERVICE
THIS MACHINE.
SAFETY SYMBOLS
Some of the following symbols may be used on this tool or throughout this manual. Please study and learn
their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
No Load Speed Rotational speed, at no load
…/rpm Per Minute Revolutions, per minute
Read Operators Manual To reduce the risk of injury, user must read and
understand the operators manual before using this
product
Eye Protection Always wear safety goggles with side shields,
and as necessary, a full face shield when
operating this product.
Safety Alert Precautions that involve your safety
No Hands Symbol Failure to keep your hands away from the moving
grinder head will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage, avoid contact
with hot surface.
2

DELIVERY
INCLUDED:
Items included with the Predator 850 Easy Edge Grinder
•Predator 850 Easy Edge Grinder
•Dust Guard
•Manual
•Warranty Card
UNPACKING:
•Carefully remove the Predator 850 Easy Edge tool and any accessories from the box. Make sure
that all items listed in the packing list are included.
•Inspect the tool carefully to make sure no breakage or damage occurred during shipping.
•Do not discard the packing material until you have carefully inspected and satisfactorily operated
the tool.
•If any parts are damaged or missing, please call 1.800.267.6682 for assistance.
WARNING: If any parts are damaged or missing do not operate your Predator 850 Easy Edge until
the parts are replaced. Failure to heed this warning could result in a serious personal injury.
WARNING: Do not attempt to modify this tool or create accessories not recommended for use with
this tool. Any such alteration or modification is misuse and could result in a hazardous condition
leading to possible serious personal injury.
GRINDER SPECIFICATIONS
Dimensions: Head at 0 degrees 18” Wide
Head at 45 degrees 19” Wide
Head at 90 degrees 22” Wide
Height: 43” Tall
Disc Diameter: 8.5”
Weight: 136 lbs.
Down Pressure: 55 lbs.
Input Power: 120 VAC, 60 HZ
Motor Power: 1.5 hp
Max RPM: 1600 rpm
Amperage: 15 amps
Grinding Discs: 1 x 8.5”
3

SAFETY WARNINGS
•Use personal safety equipment such as steel toe shoes, safety glasses and ear plugs
when operating the Predator Easy Edge Grinder.
•Innovatech is not responsible for any hazardous material or condition that is caused or
generated by grinding with the Easy Edge Grinder. It is the responsibility of the operator to
know the composition of material being removed by grinding and to comply with all necessary
safety precautions. The heat caused by grinding may release hazardous gasses
from some coatings or paints. Grinding floor coverings containing asbestos is especially
dangerous and is prohibited by most health authorities. Contact your state or country
department of health or environmental authority for the proper handling procedures.
•Do not leave the machine unattended during operation.
•Do not use grinder in area where there is a risk of explosion or fire.
•Use caution when removing grinding tools after grinding. The tools can become hot.
Use gloves to remove the tooling plates.
•Only persons who have received training should operate or repair the Easy Edge Grinder.
•Do not start the machine with grinder head raised off of the floor.
•Make sure the splash guard is properly positioned before starting the machine.
•Before you start grinding or polishing, check the floor area for bolts or other metal objects,
large holes or uneven joints. Hitting these obstructions may cause damage to the machine,
to the tooling and may cause personal injury.
•Make sure the machine is connected to the correct grounded power supply (up to 120v,
15amp)
•Switch off and disconnect machine power before changing grinding tools.
•Switch off and disconnect machine power supply before working on or repairing machine.
•Be careful when rolling the machine on sloping floors or ramps. The machine can roll very
quickly.
•When grinding glues, epoxy paints or coatings, leaving the machine down on the floor
surface may cause tooling to melt into the floor. To prevent adhesion tip the machine back
as soon as the head comes to a complete stop.
•Always store machine in a dry location.
•Only use Innovatech recommended tooling, accessories that may be suitable for one tool,
may become hazardous when used on another tool.
•When grinding dry, use Innovatech’s recommended dust collection system to control the
dust. Do not operate the Easy Edge Grinder without proper dust collection.
•Keep bystanders, children, and visitors away while operating the Predator Easy Edge.
•Don’t expose power tools to rain or wet conditions. Watering entering a power tool will
increase the risk of electric shock.
•Do not abuse the cord. Never use the cord to carry the tools or pull the plug from the
outlet. Keep cord away from heat, oil, sharp edges, or moving parts. Replace damaged
cords immediately. Damaged cords increase the risk of electric shock.
•When operating a power tool outside, use an outdoor extension cord marked “W-A” or “W”.
These cords are rated for outdoor use and reduce the risk of electric shock.
4
•Stay alert, watch what you are doing and use common sense when operating a power tool.
Do not use tool while tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating power tools may result in serious personal injury.

•Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
•Check for misalignment or binding of moving parts, breakage of parts, and any other
condition that may affect the tool’s operation. If damaged, have the tool serviced before
using. Many accidents are caused by poorly maintained tools.
Always wear eye protection
WARNING
Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contains chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
-lead from lead-based paints,
-crystalline silica from bricks and cement and other masonry products, and
-arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well ventilated area, and work with approved safety
equipment, such as those dust masks that are specifically designed to filter out microscopic
particles.
CONTROLS AND FEATURES
5

OPERATION
Always wear eye protection when working with or near this product.
Before starting:
1. Check the floor carefully and remove all bolts, nails as well as any loose material that could get
caught in the machine.
2. Fit the appropriate tools to the machine.
3. Fit splash guard to the proper height.
4. If you are grinding dry, connect Innovatech’s recommended dust collection system and check
vacuum before starting the grinder.
Starting the machine:
1. Attach appropriate grinding plate.
2. Adjust the head angle to the proper position. The head of the Innovatech Easy Edge Grinder
may be adjusted right or left of the machine axis to either 45 degrees or 90 degrees.
3. Check that the grinding head is level to the floor and adjust ¾” bolts as necessary.
4. Ensure knob/dial is in the off position before plugging into power source.
5. Connect power to the machine. Up to 120 volt, 15 amp power is required. NOTE: IF THE
WRONG POWER IS SUPPLIED TO THE GRINDER, IT MAY DAMAGE THE ELECTRICAL
COMPONENTS.
6. Turn knob/dial to desired speed.
Always grip handle firmly when starting machine. The machine will tend to move from side to
side when starting.
7. When finished with grinding, turn off machine and let the head come to a complete stop before
tilting back the machine.
CAUTION: Tools can be very hot.
Changing of tools:
1. Before working on the grinder, bring the motor to a total stop and disconnect power.
2. Tilt machine back on floor – if machine head is adjusted to 45 degrees machine will tip to the
side when tilting back.
3. USE CAUTION! Tools can be very hot from the friction of grinding. Use gloves for protection.
4. Use tools to turn center of tool holder to remove tool plate.
5. Replace with new tool plate and turn lock into place.
6. Lower machine back down to re-adjust splash guard if necessary. Working height of different
tools varies depending on tools and wear.
Applications:
-You may use this tool for the purposes listed below:
oSurface Preparation
oConcrete Polishing
oConcrete Grinding
WARNING: To prevent loss of control and possible serious personal injury, always operate the grinder
with both hands.
CAUTION: If the grinder is held in one spot too long, it will gouge and/or cut grooves in the floor.
6

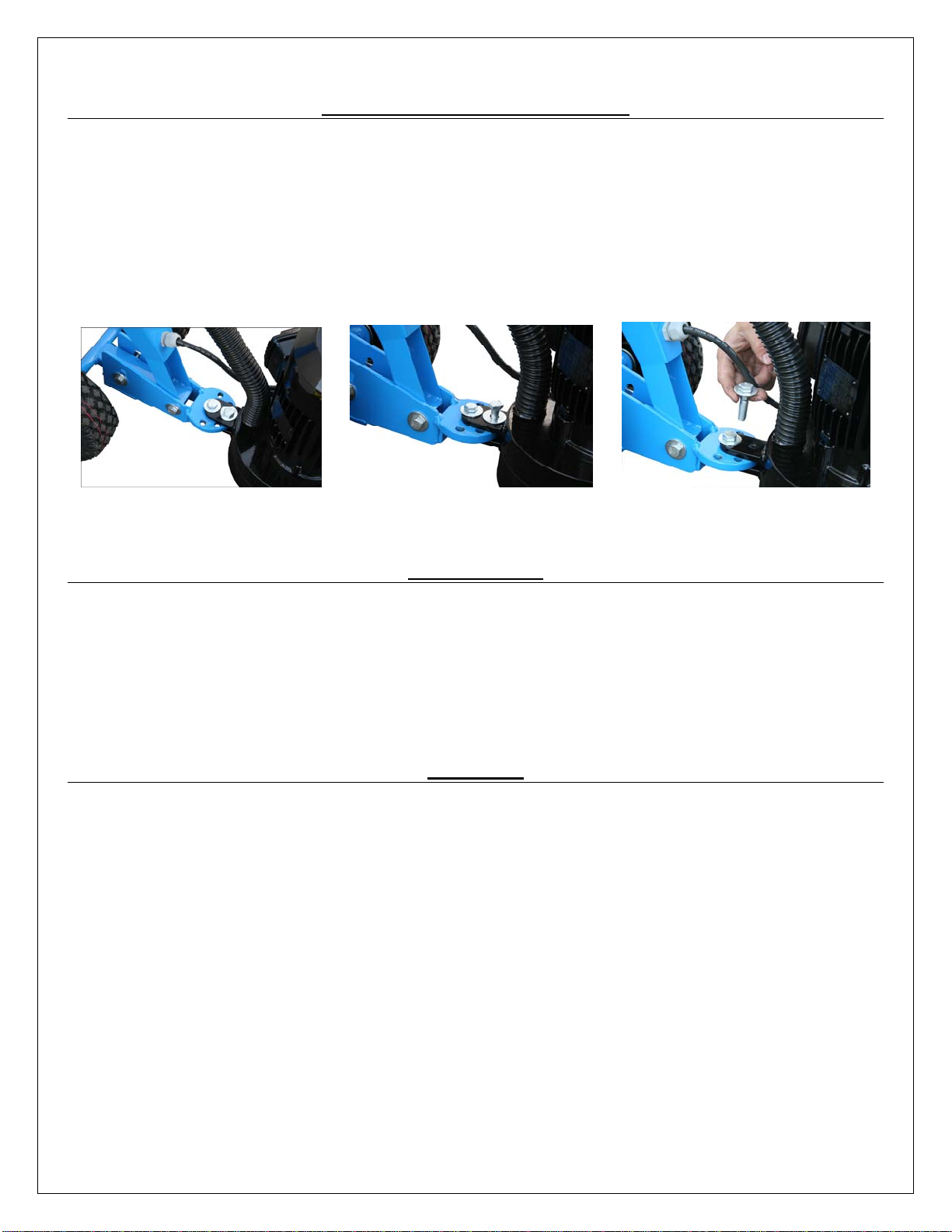

ADJUSTING GRINDER HEAD
1. Remove front alignment pin.
2. Align holes to desired position (Right or Left, to 45 degrees or 90 degrees)
3. Replace alignment pin.
4. Check that the head is level with the floor and adjust leveling bolt as required
The Predator Easy Edge grinder head can be adjusted to grind up to 90 degrees from the
machine axis, enabling the machine to grind right against the wall.

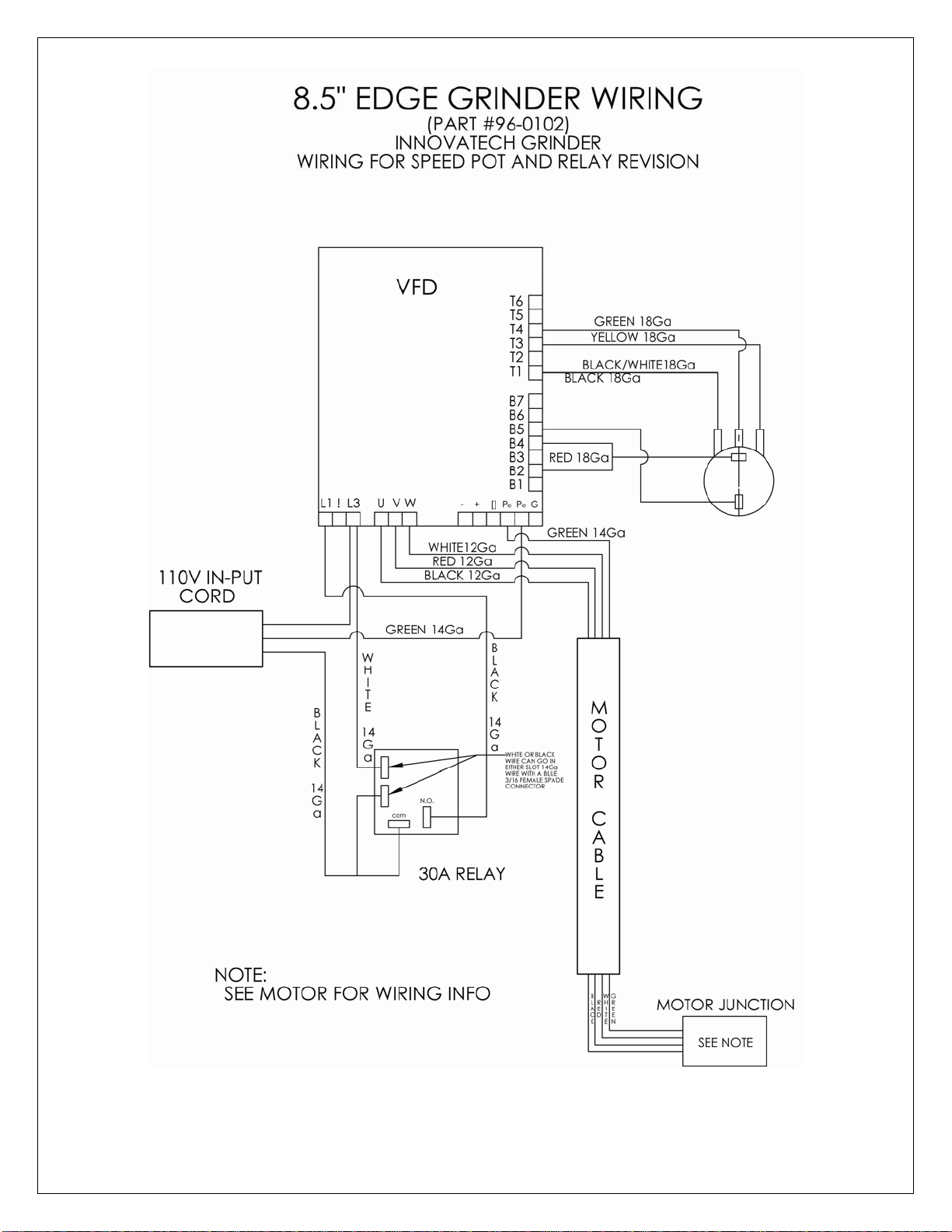

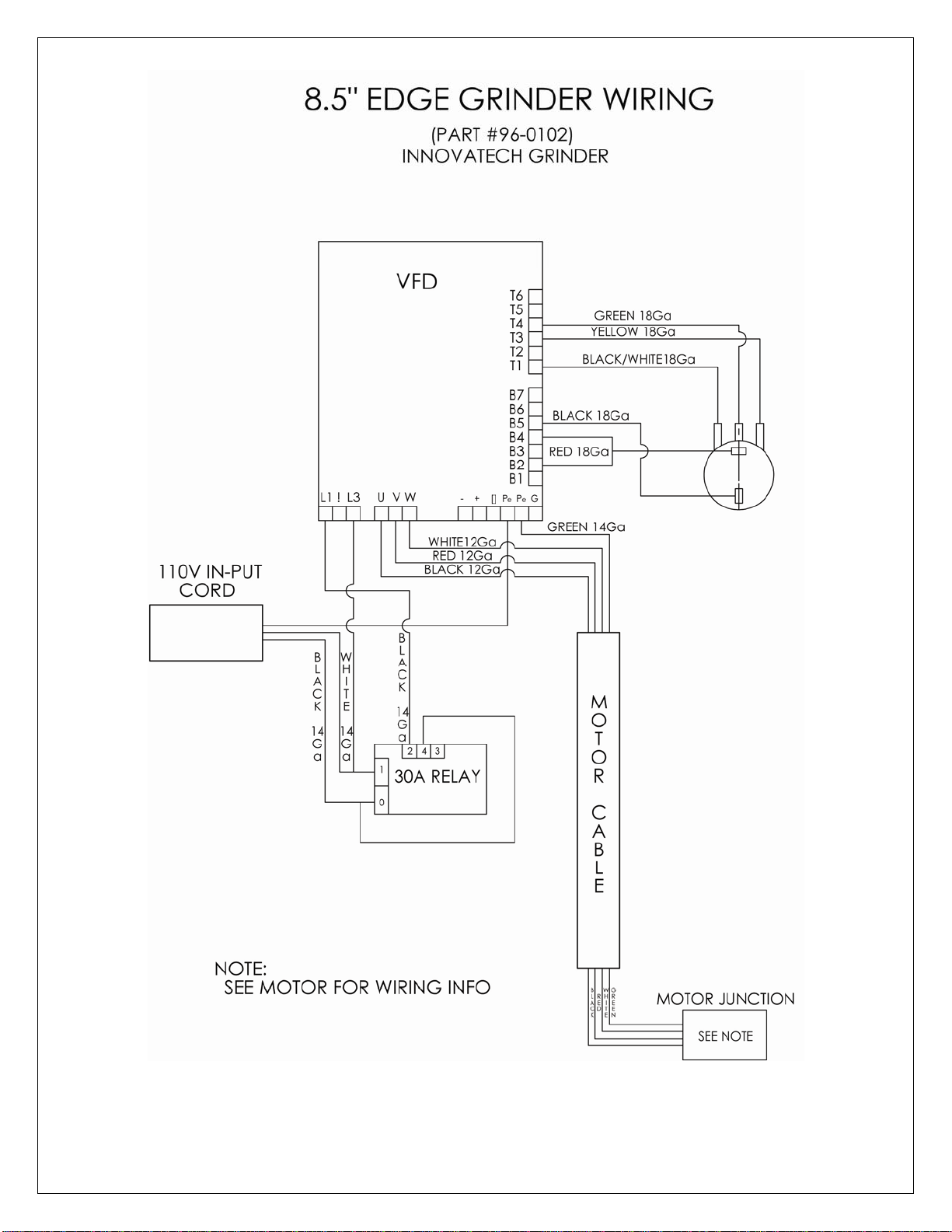

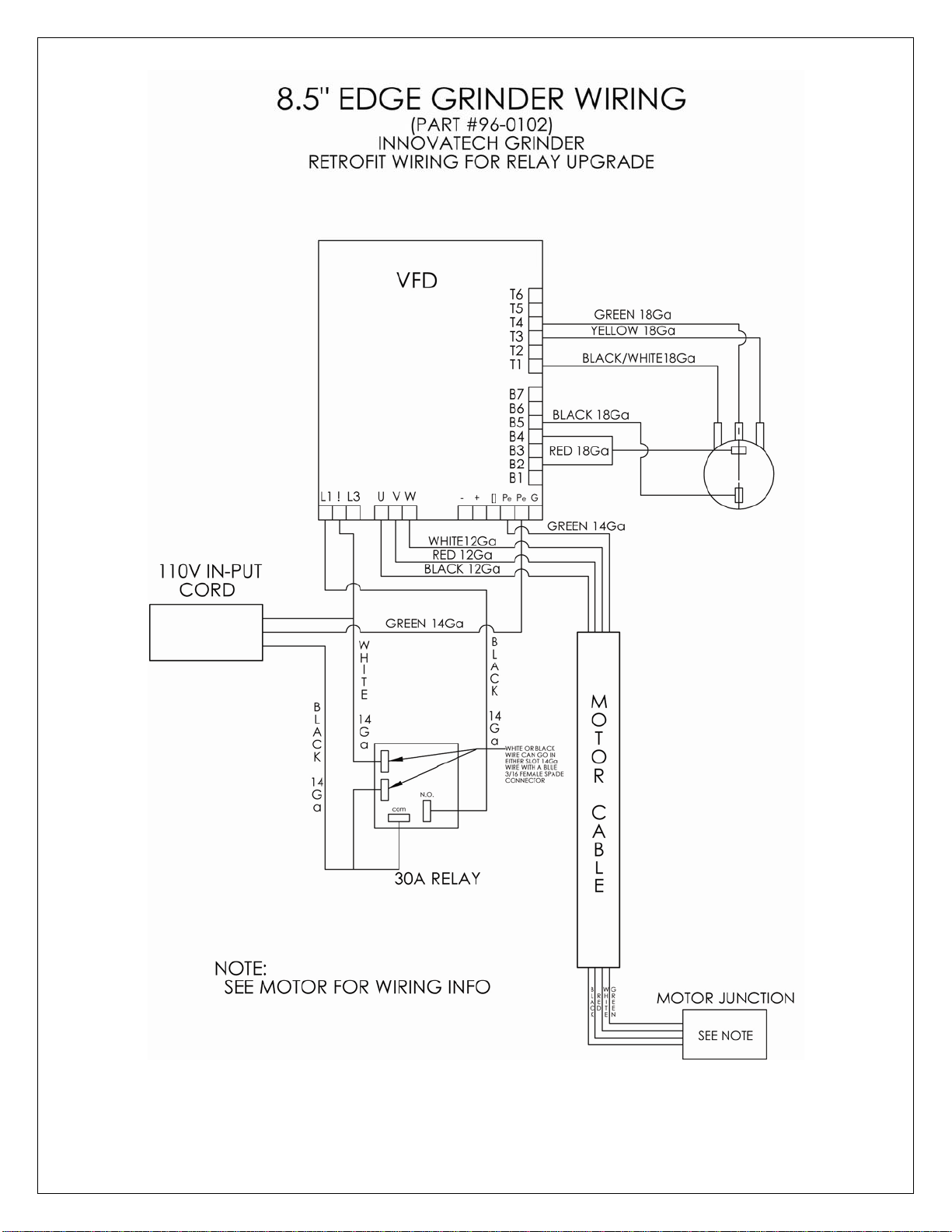

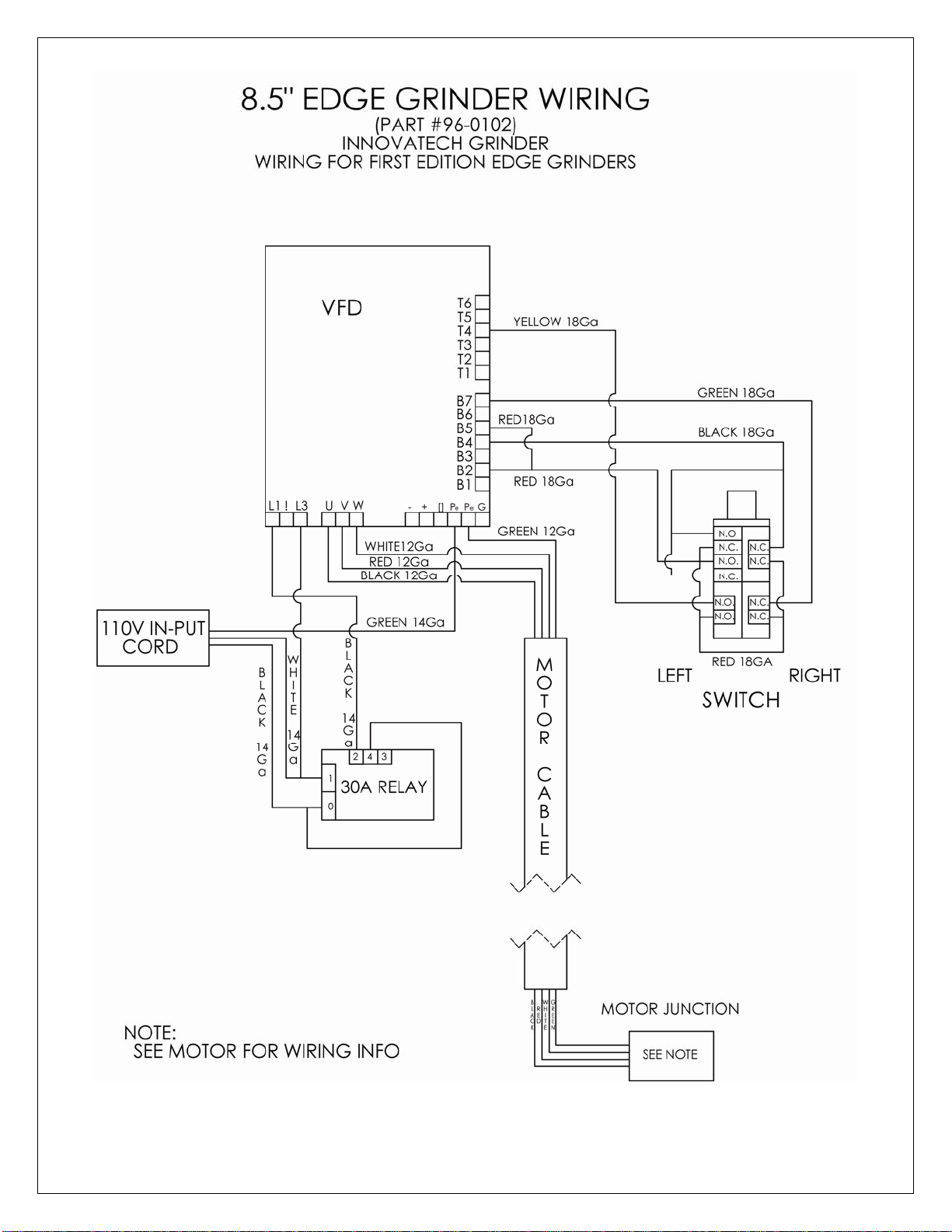

ELECTRICAL
This tool has a precision-built electric motor. It should be connected to a power supply that is 120 volts, 60
Hz, AC only (normal household current). Do not operate this tool on direct current (DC). A substantial
voltage drop will cause a loss of power and the motor will overheat. If the tool does not operate when
plugged into an outlet, double-check the power supply.
SERVICE
A warranty claim is not valid unless a return authorization has been issued by Innovatech. To obtain
warranty service, buyer must contact Innovatech and receive a return authorization number and return
instructions. Buyer then returns the damaged item or part to Innovatech. Customer is responsible for costs
of shipment.
It is the customer’s responsibility to pay for all non-warranty replacement parts. Non-Warranty labor,
service and adjustments are available and will be charged at Innovatech’s current hourly labor rates. Non-
Warranty service will be billed at Innovatech’s current hourly rates. Call Innovatech for current labor rates
or to speak with a Customer Service Technician. Call 1.800.267.6682 and ask for Customer Technical
Support.
7

8
TROUBLESHOOTING
1. Check to be sure Easy Edge Grinder is plugged into appropriate, grounded power outlet (120 volt
60 hz, 15 amp)
2. Check all cord ends for loose connection
3. Check fuse in distribution box or panel – test with meter
4. Check the inverter connector cable to motor.
5. Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
6. Call Innovatech at 1.800.267.6682 and ask to speak with a Customer Technical Support Technician.
There are no customer-serviceable parts in the electronics of the Predator Easy Edge Grinder.
MAINTENANCE
Clean machine after every use. To clean machine, use compressed air. Low pressure water may be used to
clean the grinding head, but avoid getting water on the motor or electrical components. Do not use a high
pressure washer. A complete inspection of the machine for wear and any damage should be done after
each use. If any parts have been damaged or show excessive wear, they should be replaced. When
servicing your Predator 850, use only identical replacement parts. Use of unauthorized parts or failure to
follow Maintenance Instructions may create a risk of shock or injury.

9
WARRANTY
INNOVATECH warrants to the original retail purchaser of the equipment and may not be transferred:
Proof of purchase must be presented when requesting warranty service.
Limited Warranty. The equipment, when first delivered, will conform to the specifications set forth in the Owner’s
Manual and will be without defect in material or workmanship for a period of ninety (90) calendar days after delivery
to the original retail purchaser; or in the case of replacement parts other than belts, for a period of ninety (90) days
after the part is installed or within the warranty period described above, whichever is later, if the original retail
purchaser notifies INNOVATECH (either directly or through one of INNOVATECH’S authorized dealers) of a defect in
material or workmanship or of a non-conformity to the specifications, then, upon confirmation of the defect of non-
conformity and confirmation that the defect or nonconformity is covered within these Limited Warranty conditions,
INNOVATECH will, at it’s election and at it’s expense, either (i) repair or correct the defect and/or non-conformity, or
(ii) replace the part.
A. Limitations. This Limited Warranty does not apply to damage caused by (i) misuse of the equipment
including, without limitation, use of the wrong power source, striking an embedded object such as a
bolt, electrical outlet box, expansion joint or steel reinforcing rod; or (ii) unauthorized alteration,
modification, repair or tampering; or (iii) use of replacement parts not supplied by INNOVATECH; or
(iv) normal wear, discoloration, surface corrosion, deterioration of finishes or paint surfaces, or (v)
other appearance deterioration caused primarily by use. INNOVATECH shall not be responsible and
this Limited Warranty shall not apply to damage caused by improper maintenance or failure to
inspect and maintain the equipment as recommended in the Owner’s Manual.
B. Transportation. Purchaser will pay the cost of transporting defective or non-conforming parts to
INNOVATECH and the cost of returning repaired or replacement parts to the purchaser. Each party
will safely package the parts it sends to the other in accordance with good commercial practice. If
purchaser requests and INNOVATECH agrees, INNOVATECH may perform covered warranty work
where the equipment is located. If INNOVATECH performs the work at the locations, purchaser will
pay the cost of business class transportation and good quality meals and lodging for INNOVATECH’s
technicians.
C. Abuse. INNOVATECH IS NOT RESPONSIBLE FOR DAMAGE, DEFECT, BREAKAGE OR MALFUCTION OF
THE EQUIPMENT THAT IS CUASED BY ABUSE OR BY OPERATION OF THE EQUIPMENT IN A MANNER
WHICH IS NOT RECOMMEDED OR APPROVED BY INNOVATECH.
D. Exclusive Warranty. EXCEPT AS IS EXPRESSLY SET OUT IN THE THIS LIMITED WARRANTY: (i)
INNOVATECH MAKES NO PROMISE OR WARRANTY, EXPRESSED OR IMPLIED, WITH RESPECT TO
THE EQUIPMENT; (ii) INNOVATECH MAKES NO PROMISE OR WARRANTY THAT THE EQUIPMENT IS
FIT FOR ANY PARTICULAR PURPOSE; (iii) INNOVATECH WILL HAVE NO OBLIGATION OR LIABILATIY
TO THE PURCHASER OR TO ANY THIRD PARTY FOR ANY DAMAGE CASUED BY THE EQUIPMENT OR
AS A RESULT OR CONSEQUENCE OF ANY CLAIMED DEFECT IN THE EQUIPMENT, ANY FAILURE TO
WARN OR NOTIFY, OR ANY CLAIMED NON-CONFORMITY TO THE SPECIFICATIONS; AND (iv)
PURCHASER WILL HAVE NO OTHER REMEDIES IN RESPECT OF SUCH DEFECT, NON-CONFORMITY,
DAMAGE OR CONDITION EXCEPT THOSE SET OUT IN THIS LIMITED WARRANTY.
WITHOUT LIMITING THE FOREGOING, AND REGARDLESS OF THE CIRMCUMSTANCES AND EVEN IF
A REMEDY FAILS, INNOVATECH WILL HAVE NO LIABILITY TO THE PURCHASER OR TO ANY THIRD
PARTY FOR (i) LOSS OF REVENUE OR PROFITS, OR (ii) FOR INCIDENTAL, CONSEQUENTIAL OR
PUNITIVE DAMAGES.

10

11

12

13

14

15

16

17

18

INNOVATECH PRODUCTS AND EQUIPMENT COMPANY
832 80th St. S.W.
Everett, WA 98203
Toll Free: 800.267.6682
Local: 425.402.1881
Fax: [phone]
www.InnovatechProducts.com
19
Rev. 12.05.07 version 1.2
