Insignia NS-39D240A13 User manual

WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
Y / VIDEO
Y / VIDEO
Y / VIDEO
Composite video
and analog audio
Identifying cables
Your TV has several connection types for connecting devices. For the best video quality,
connect a device to the best available connection.
You can use the HDMI 1 / DVI jack to connect a DVI device to your TV. You need to attach an
HDMI-to-DVI adapter to the end of the HDMI cable that connects to the DVI device’s jack.
Connection type Video qualityCable connector
HDMI video/audio Best
Component video
and analog audio
Better
Good
OR
OR
AUDIO/VIDEO
OUT
AUDIO/VIDEO
OUT
Note: Cable is not provided.
CABLE
Volume +/-
Menu
Power button
Input
Channel /
Front features
Installing the stand
1Carefully place your TV face-down
on a cushioned, clean surface to
protect the screen from damages
and scratches.
2 Secure the stand to the TV with
the four provided screws.
Installing a wall-mount bracket
1 Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2
Remove the four screws on the back of the TV
that secure the stand column to the TV, then
pull out the stand and stand column.
3 Attach the wall-mount bracket to your TV
using the mounting holes on the back of
your TV. See the instructions that came with
the wall-mount bracket for information
about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cables (good)
Connecting to an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the
back of your TV and to the Antenna/Cable wall jack.
Connecting a Home Theater System
Using Digital audio
Using Analog audio
Connecting power
Plug the AC power cord into the AC IN
jack on the back of your TV, then plug
the other end of the cord into a
power outlet.
39" 1080p LED HDTV

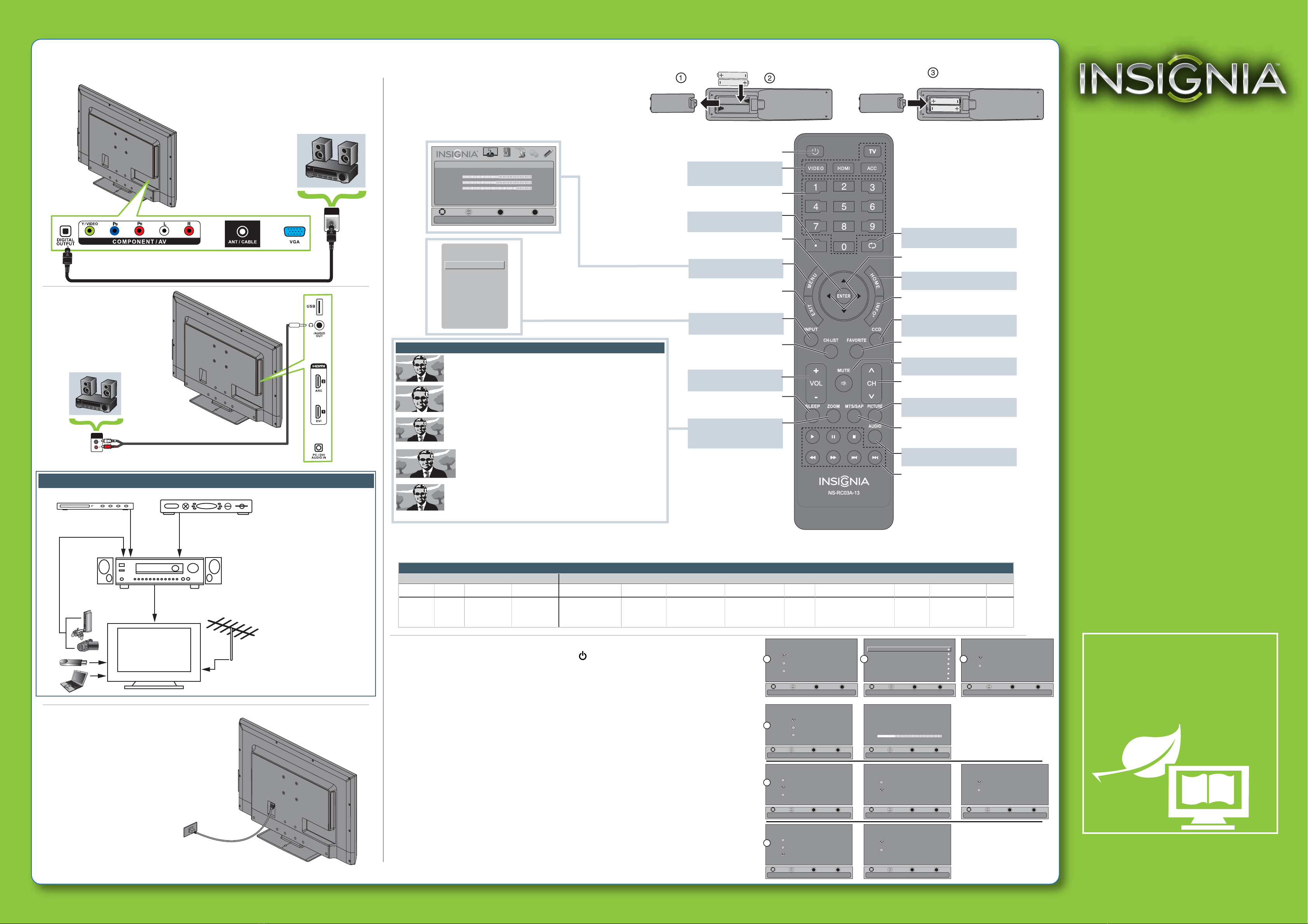

QUICK SETUP GUIDE
NS-39D240A13
Thank You
for purchasing this ne Insignia television. We hope you
enjoy the quality and reliability of this product for years
to come.
_______________________________
Remote
control sensor
Power
indicator
This apparatus is intended to be supported by a UL Listed wall mount bracket.
Warning
Please Note:
Connect your Yellow video
cable to the Green
Y/VIDEO jack.
Note: Cable is not provided.
Note: Cable is not provided.
Note: Cable is not provided.
Remote control
and 2 AAA
batteries
TV stand and 4 screws
M4 type (10 mm length)
Power cord

WE ARE GOING GREEN!
A copy of your User Guide is not provided in
the box but is available online.
Go to www.insigniaproducts.com, click
Support & Service, enter your model
number in the Product Search eld,
then click Search.
One-year limited warranty
See your online User Guide or visit
www.insigniaproducts.com for details.
Need additional help?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features.
Check out our online community forum at
www.insigniaproducts.com for helpful
information from other Insignia TV owners.
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
Distributed by Best Buy Purchasing, LLC
7601 Penn Avenue South, Richeld, MN USA
55423-3645
© 2012 BBY Solutions, Inc.
All rights reserved. INSIGNIA is a trademark of BBY
Solutions, Inc. Registered in some countries. All other
products and brand names are trademarks of their
respective owners.
Y / VIDEO
39" 1080p LED HDTV IQUICK SETUP GUIDE I NS-39D240A13
Antenna or
cable TV
(no box)
Blu-ray player/DVD player/VCR Cable or satellite TV box
AV receiver
Game console
or camera
USB ash drive
Computer
OPTICAL
AUDIO IN
Universal remote TV codes
Universal remote controls Cable/Satellite/Set-top box
Philips RCA One for All Sony Comcast DirectTV Dish Network Time Warner Cox Charter Verizon Cablevision Tivo
0198,
0490
135 0054
450, 461, 456 1326 2002, 1204, 1423, 1517, 0171,
1963, 0463, 0842, 1326, 167,
415, 424, 450, 456, 461, 507,
523, 567, 577, 586
0198,
0490
068, 069, 078, 096,
100, 164, 168, 229,
026
0091
Setting up and using your remote control
1Press the release button on the back of the remote control
to remove the battery compartment cover.
2Insert two AAA batteries into the battery compartment.
Make sure that the + and – symbols on the batteries match
the + and – symbols in the battery compartment.
3Replace the cover.
Programming your remote control
To program your universal remote control to work with your new Insignia TV, see the table for common codes. If you have problems programming your remote or
need a dierent remote control code, visit www.insigniaproducts.com for the latest remote control code information.
068, 069, 078,
096, 100, 164,
168, 229, 026
10171, 11204, 11326,
11517, 11641, 11780,
11892, 11963, 12002
10171, 11204,
11326, 11517,
11564, 11641,
11963, 12002
720
OK
ENTER
MENU EXIT
PICTURE AUDIO CHANNELS SETTINGS PHOTOS
Picture Mode
Brightness
Contrast
Color
Advanced Video
Reset Picture Settings
Energy Savings
48
46
75
MOVE EXIT
PREVIOUS
SELECT
Adjust settings to affect picture quality
TV
Component
VGA
USB
INPUT SOURCE
AV
HDMI1
HDMI2
RECALL
Returns to the previous channel.
Arrows
Navigate in on-screen menus.
HOME
Opens the on-screen menu.
INFO*
Opens a TV status banner.
CCD
Turns closed captioning on or o.
FAVORITE
Opens the Favorite Channel List.
MUTE
Mutes the sound.
Channel
Changes the TV channels.
Selects the video modes.
MTS/SAP
Cycles through mono, stereo, and
secondary audio for analog programs.
AUDIO
Selects the audio modes.
Power
Turns your TV on or o.
Quick Launch Inputs
Selects another video source
connected to your TV.
Numbers
Enter channel numbers.
.
Enters a digital sub-channel
number (e.g. 4.1).
ENTER
Conrms selections or
changes.
MENU
Opens the on-screen menu.
EXIT
Closes the on-screen menu.
INPUT
Opens the Input Source list.
CH-LIST
Opens the channel list.
Volume
Changes the volume.
SLEEP
Sets the sleep timer.
ZOOM
Changes how the picture
displays on the screen.
Media Controls
Control HDMI-CEC devices
connected to your TV.
Normal:
Displays the original 4:3 aspect ratio with vertical black bars on the left
and right hand side of the screen.
Zoom:
Expands the image to ll the screen. The top and bottom of the
image may be cropped.
Wide:
Use this option to view content recorded in a 16:9 (wide-screen) aspect ratio.
Cinema:
Stretches the image at the edges, but keeps a clear image in the center.
Auto:
Automatically adjusts the image based on the screen size and the TV
program. Note: Auto is only available when Auto Zoom in the
CHANNELS menu is set to On.
Aspect ratio options
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select if you have a satellite box.
Antenna
Cable
Satellite Box
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select if you have cable service.
Antenna
Cable
Satellite Box
Choose Your TV Source
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select Antenna if using an antenna for standard or HD TV.
Antenna
Cable
Satellite Box
Choose Your TV Source
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Reduces total power consumption.
Home Mode
Retail Mode
Choose Your Picture Mode
OK
ENTER
MENU EXIT
If Automatic, options are automatically set by TV source.
MOVE EXIT
PREVIOUS
SELECT
Mode
Time Zone
Daylight Savings
Year
Month
Day
Time
Choose Your Time Setting
Manual
Pacific
On
2011
Jan
1
12:25 AM
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Set menu language to English, Français, or Español.
English
Français
Español
Choose Your Menu Language
3
5A
5B
5C
24
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Select if using an antenna for standard or HD TV.
Channel scan may take 20+ minutes.
Scanning for Channels
Digital Channels0
Analog Channels0
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Yes
Do you have a Cable Box?
Yes
No
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Coaxial
AV, Component, or HDMI
How did you connect the cable box to the TV?
OK
ENTER
MENU EXIT
MOVE EXIT
PREVIOUS
SELECT
Coaxial
AV, Component, or HDMI
How did you connect the satellite box to the TV?
Choose Your TV Source
Turning on your TV for the rst time
Front features
Installing the stand
1Carefully place your TV face-down
on a cushioned, clean surface to
protect the screen from damages
and scratches.
2 Secure the stand to the TV with
the four provided screws.
Installing a wall-mount bracket
1 Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2
Remove the four screws on the back of the TV
that secure the stand column to the TV, then
pull out the stand and stand column.
3 Attach the wall-mount bracket to your TV
using the mounting holes on the back of
your TV. See the instructions that came with
the wall-mount bracket for information
about how to correctly hang your TV.
Connecting a DVD or Blu-ray player, cable box,
satellite receiver, camcorder, or game station
Using an HDMI cable (best)
Using component cables (better)
Using composite cables (good)
Connecting to an antenna/cable wall jack
Connect a coaxial cable (not included) to the ANT/CABLE IN jack on the
back of your TV and to the Antenna/Cable wall jack.
Connecting a Home Theater System
Using Digital audio
Using Analog audio
Connecting power
Plug the AC power cord into the AC IN
jack on the back of your TV, then plug
the other end of the cord into a
power outlet.
ENGLISH 12-0859
Connecting a home theater system with multiple devices
We recommend that you
connect the AV receiver’s
HDMI OUT jack to your TV’s
HDMI 2 (ARC) jack.
In the following situations, the
HDMI cable will route Dolby
Digital audio to the AV
receiver, so you do not need to
connect a separate digital
audio cable:
• When you have a game
console connected to one of
your TV’s HDMI jacks.
• When you watch a program
through an antenna or cable
TV connected to the
ANT/CABLE jack.
Note: Cable is not provided.
AUDIO IN
Note: Cable is not provided.
1 Connect your TV’s power cord to a power outlet, then press (power). The Choose Your Menu Language screen opens.
2Press ▲or ▼to highlight a language, then press ENTER. The Choose your Time Settings screen opens with Mode
highlighted.
3
Press◄ or ►to select Auto or Manual, then press ENTER. If you select Auto, the date and time are set automatically
from a digital TV signal. If you select Manual, you can manually set the date and time. Press ENTER.
4 Press ▲or ▼to highlight Home Mode or Retail Mode, then press ENTER. If you select Retail Mode, a message
asks you to conrm your selection. Select Yes or No. Retail mode is not an energy-saving mode.
5 Press ▲or ▼to highlight Antenna, Cable, or Satellite Box, then press ENTER.
A. If you select Antenna, your TV scans for available channels. The scan may take several minutes.
B. If you select Cable, a message asks if you have a cable box.
• Select No if no cable box is connected. Your TV scans for available channels.
The scan may take several minutes.
• Select Yes if a cable box is connected. A message asks how you connected the cable box to your TV:
• Select AV, Component, or HDMI if you connected a cable box to your TV using one of
these cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a cable box to your TV using a coaxial cable. Read the
message, then press ENTER to start the channel scan (VHF channels only).
C. If you select Satellite Box, a message asks how you connected the satellite box to your TV:
• Select AV, Component, or HDMI if you connected a satellite box to your TV using one of
these cables. Read the message, then press ENTER to close the wizard.
• Select Coaxial if you connected a satellite box to your TV using a coaxial cable. Read the
message, then press ENTER to start the channel scan (VHF channels only).
