Quick Start Guide DOSE IT Peristaltic Pump
This quick start guide is intended to provide a quick overview of your DOSE IT’s key
features and to offer basic instructions for getting started. For detailed information
,
please refer to the latest operating instructions (OI) that can be found at www.integra-
biosciences.com in different languages.
Intended use
This is a general-purpose laboratory instrument. Any use of this instrument in a medical or IVD
setting is the sole responsibility of the user. The programmable peristaltic pump DOSE IT is used to
dispense or pump liquids in a volume range of 0.1 ml to 9999 ml in silicone tubings.
Safety information
Regardless of the listed safety notes, all locally applicable regulations must be observed.
1) DOSE IT may only be used by properly trained personnel in a manner specified by INTEGRA
Biosciences.
2) Observe the hazard warnings on the device. Keep your hands out of rotating wheels inside the
pump head. There is a risk to squash your fingers.
3) Servicing work and repairs may only be performed by INTEGRA Biosciences or an authorized
after-sales service member.
4) Regular servicing of the DOSE IT is recommended.
Getting started
Set up the instrument on a planar surface according to the IQ/OQ document (PN 171273).
Supply voltage: 100 .0 W7, 60 Hz– 240 VAC, 50–
Connect the AC adapter cable to the socket on the rear side of the DOSE IT and plug it to the
electricity mains.
a. Operating panel with display and keypad
b. Pump head
c. Back-key
d. Main switch on the rear side
Switch on/off:
Press the main switch.
Switch on the device. The APPLICATIONS window is displayed with three menu options:
•START: To execute the selected program of DISPENSE, PUMP or
CUSTOMIZE type.
•PARAMETER: To define the selected program.
•SYSTEM: To configure general device parameters.
Language selection
Press SYSTEM and Language. Select a language and press SAVE. Set other system parameters
to your requirements.
a
b
d
c

2/3 171254_V04_QSG_DOSE_IT_EN.docx
Tubing selection
The choice of tubing depends on the requirements for speed and precision of dosing. The
larger the inner diameter (ID) of tubing, the faster but less precise is the dispensing.
Precision in the table below is expressed as coefficient of variation (CV) and describes
the scattering range of the dispenses relative to the mean.
Tubing inner diameter
1 mm
2 mm
3 mm
4 mm
6 mm
Dosing volume at CV <1 %
>0.5 ml
>1 ml
>3 ml
>7 ml
>15 ml
Speed range (ml/min)
0.6 52–
2.1 203–
4.8 475–
8.4 837–
16 1634 –
To dispense with CV <1 dosing volume (e.g. 5 ml, i.e. >3 ml)the desiredthe table forsearch%,
8 mm tubing is only recommended for PUMPThethe appropriate tubing ID (e.g. 3 mm).readand
modes.

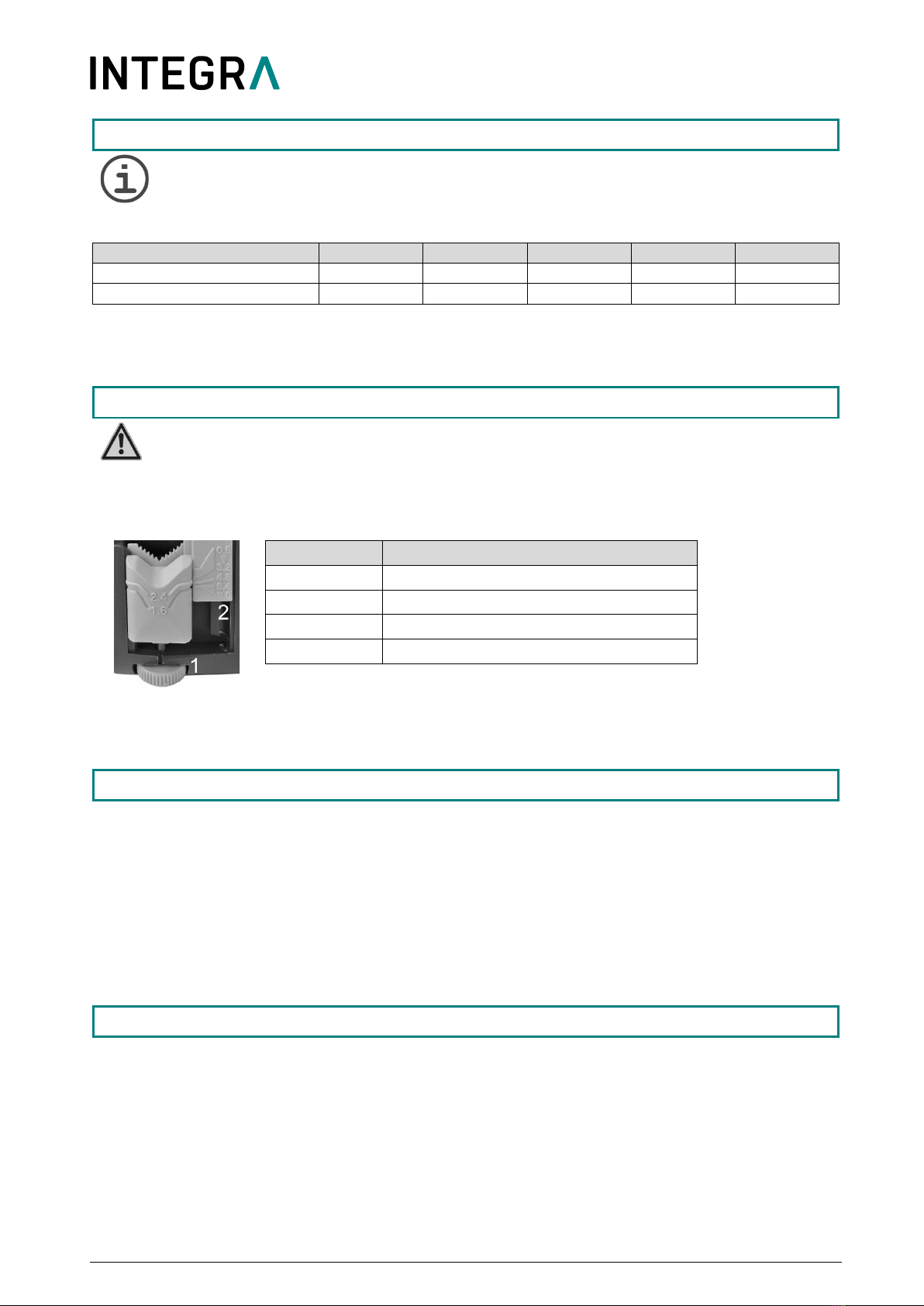

Loading the tubing in the pump head
Always switch off the DOSE IT when loading the tubing and when manipulating the open
pump head.
•Open the cover of the pump head. The adjustment of the screws (1) on both sides of the pump
head depends on the tubing inner diameter (ID). Adjust the 1.6 marking of the clamps as
follows:
Tubing ID
1.6 marking of the clamps
1 mm
between 3.2 and 4.8 scale values
2 mm
matches the 4.8 value on the scale (2)
3 mm
matches the 6.4 value on the scale (2)
4mm 8–
as low as possible, completely open
•Place the tubing into the pump head. Make sure that the tubing runs over the rollers and
centrally through the two V-shaped clamps. Carefully close the pump head.
•Connect the dispensing and aspiration tubes with tube collar, if required.
Adapt a dispensing program
In the APPLICATION window the first programs are already pre-defined with default values.
•Select a program to be defined using the arrow keys and press PARAMETER in order to adjust
the program.
•Using the arrow keys, select a parameter you wish to change. Press CHANGE and follow the
information on the screen.
•Use the DISPENSE type for dosing and the PUMP mode for continuously pumping of a liquid.
•The CUSTOMIZE type allows to define a program consisting of up to 20 single steps, see OI.
The predefined programs DENSITY GRADIENT, DISH COATING and DILUTION 1 TO 10 are
examples of this.
Run a dispensing program
•Select a previously defined program and press START.
•Put the tubing end with the aspiration tube in the liquid and hold the PRIME key pressed until
the tubing is completely filled without bubbles.
•The first time you start a program or use a tubing, carry out a calibration of the dosing volume
by pressing CALIBRATE and follow the instructions on the screen. To reduce the measurement
error, press repeatedly DOSING and dispense up to ten samples. Press CONTINUE, enter the
measured volume and press CHANGE. Press CONTINUE to end the calibration.
•Press START. While dispensing, you can PAUSE and adjust the program at any time.

171254_V04_QSG_DOSE_IT_EN.docx 3/3
Maintenance
The DOSE IT requires periodical cleaning in order to ensure safe and reliable operation.
Always switch off the device and disconnected form the electricity supply when carrying
out maintenance work.
Cleaning:
•If the DOSE IT get soiled, it can be cleaned with a cloth moistened with soapy water or with a
70 % solution of ethanol.
Decontamination:
•The silicone tubing, tubes and tube collars can be autoclaved at 121 °C for at least 20 min. If
the surface of the DOSE IT has been contaminated, wipe it with a lint-free cloth lightly soaked
with a suitable disinfectant and wipe dry directly.
Greasing:
•Check the moving parts of the pump head from time to time for freedom of movement.
Occasionally lightly grease the lever and the rollers with Teflon lubrication oil, see OI.
