Intel PRO/100 - NetportExpress - Print Server User manual

Intel NetportExpress
™
Print Server
Setup Guide

About NetportExpress™ PRO and PRO/100
print servers
Intel NetportExpress™ PRO and PRO/100 print servers provide high
performance and centralized management for printers on
multiprotocol networks. With NetportExpress print servers, you can
locate printers anywhere on the LAN (Local Area Network).
The NetportExpress print servers support most makes and models of
printers on networks running IPX/SPX*, NetBEUI, TCP/IP, and
AppleTalk* Phase II protocols.
Copyright © 1997 Intel Corporation. All rights reserved.
First edition, August 1997 P/N 679939-001
Intel Corporation
5200 N.E. Elam Young Parkway
Hillsboro, Oregon 97124-6497
Intel Corporation assumes no responsibility for errors or omissions in this
guide. Nor does Intel make any commitment to update the information
contained herein.
*Other product and corporate names may be trademarks of other companies
and are used only for explanation and to the owners’ benefit, without intent to
infringe.
PARALLEL1 PARALLEL2 SERIAL
POWERBNCRJ-45TEST
NetportExpress PRO
Activity
Transmit
Receive
PC-3782
NetportExpress
print server
Parallel
Parallel
Serial
Macintosh* Windows* UNIX* NetWare* OS/2*

Contents
HardwareInstallation ..............................................2
PRO/100, external and internal PRO print servers
SoftwareInstallation ...............................................6
Installing the CD-ROM and running setup
NovellNetWare* NDSConfiguration ............................8
Print server mode, Remote printer mode
NovellNetWareBinderyConfiguration ........................ 10
Print server mode, Remote printer mode
MicrosoftNetworkPrinting ...................................... 12
Windows* 95, Windows NT*, Windows for Workgroups, IP address
LANManager*/LAN ServerConfiguration .................... 16
Printing using netuse
AppleTalk*Configuration........................................ 18
Printer connectivity
UNIX*Configuration ............................................. 19
IP address, proprint, lpr/lpd printing, firmware updates using tftp
AIX*Configuration ............................................... 27
lpr/lpd printing
Managing theNetportExpress™ Print Server ................ 30
Changing configurations, firmware updates, advanced settings
Troubleshooting .................................................. 33
Hardware, software, printing solutions
LimitedWarranty/ComplianceStatements .................... 40
Product information
CustomerSupport ................................................ 42
Numbers to call for help, World Wide Web access
Index ............................................................... 43

2
PARALLEL 1 PARALLEL 2 SERIAL
PARALLEL PORT
POWER
RJ45
Activity
Transmit
Receive
DIAG
NetportExpress PRO/100
TM
SW1 10/100
PC-3773
Hardware Installation
NetportExpress PRO/100 Single-port and
3-port print servers (Ethernet only)
1Connect the network cable to the
RJ-45 connector. Use Category 5
cable to connect to a 100Mbps
network. Use Category 3 or 5 cable
to connect to a 10Mbps network.
4Press the “diag” button
to send a test page from
the NetportExpress print
server to your printer. The
test page includes the
Device ID and other
configuration information.
2Plug the power
cable into the print
server.
Tips for installing the PRO/100 print server
•Whentheactivitylightissolidgreen,the NetportExpressprint serverisready.The
othertwo lights mayblink, indicating communication withthe network. IftheActivity
lightflashes red, see the troubleshooting section ofthismanual.
•ThePRO/100 automaticallysensesthe speedyourEthernet network isrunning:
10Mbps or 100Mbps.
•TheprintserveralsosensestheNovellNetWareframetype: 802.2,802.3,Ethernet II,
or SNAP.
CAUTION Whenconnectingthe power cable, use thepowersupplythat comes with
yourPRO/100. Another power supplycould cause your PRO/100to malfunction.
Continue with Software Installation, page 6 . . .
Activity light
Device ID and Network
address (located on
bottom)
3Connect the
printer cable(s)
to the printer(s)
and to the print
server port(s).

3
PARALLEL 1 PARALLEL 2 SERIAL
POWER
BNC
RJ-45
Activity
Transmit
Receive
DIAG
NetportExpress PRO
TM
DB-9 POWER
RJ-45 DIAG
1 2
PC-3774
External NetportExpress PRO print servers
(Ethernet andToken Ring)
Tips for installing the External PRO print server
•Whentheactivitylightissolidgreen, the NetportExpressprintserveris ready.The
othertwo lights mayblink, indicating communication withthe network. IftheActivity
lightflashes red, see the troubleshooting section ofthismanual.
•ThePROsenses the Novell NetWare frame type: 802.2,802.3, Ethernet II, or SNAP.
•Thetoken ringversionautosenses dataratespeeds whenbothswitchesareinthe
default UP position. (See page 34 for list of settings.)
CAUTION Whenconnectingthe power cable, use thepowersupplythat comes with
your PRO. Another power supply could cause your PRO to malfunction.
Continue with Software Installation, page 6 . . .
1Connect the network cable (Category 3 or 5).
The PRO Ethernet uses a BNC or an RJ-45
connector. The PRO token ring uses an RJ-45 or
DB-9 connector.
2Plug the power
cable into the print
server.
3Connect the
printer cable(s)
to the printer(s)
and to the print
server port(s).
4Press the
“diag” button to
send a test page
from the
NetportExpress
print server to your
printer. The test
page includes the
Device ID and
other configuration
information.
Ethernet
connectors
Token Ring
connectors
Activity light
Switches
Device ID and Network
address (located on
bottom)

4
Hardware Installation
Internal NetportExpress PRO print server
(Ethernet andToken Ring)
PC-3124
ExamplesofinsertingNetportExpress PRO printservercardsin
printers.Your printer may look different from those shown. Make sure
the printer connector on the card is fully seated into the printer slot
connector.
PC-3126
Device ID
Switches
Printer
connector
RJ-45 and DB-9
network connectorsDiagnostics
button
TokenRing
Card
Device ID
Printer
connector
RJ-45
and BNC
network
connectors
Diagnostics
button
Ethernet Card
10Base-T
BNC
10Base-T
PC-3775

5
To install the internal PRO print server card
in your printer
1Power down the printer and disconnect the printer power cable.
2If necessary, remove the cover plate from the printer MIO
(Modular Input/Output) slot.
3Record the NetportExpress print server device ID so you can refer
to it later.
4Check the back of the MIO slot to see where the connector is.
5Insert the print server card, making sure you align the connector
on the card with the connector at the back of the MIO slot. When
correctly seated, the face plate on the card should rest flat against
the printer frame.
6Secure the print server card by tightening the screws. Alternate
tightening them to keep the card stable in the slot.
7Attach the network cable for your type of network.
8Plug in the printer power cable and power on the printer.
9Press the diagnostics button on the NetportExpress print server
card to print a test page. The test page includes the Device ID and
other configuration information.
Tips for installing the internal print server
•ThePRO internal printservercardconnectsto MIO printerslots.
•Toget acompletelist ofallsupportedprinters,seeIntel’s automatedcustomer
supportservicesinformationatthebackofthismanual.
•TheHP LaserJet* 4Si and 5Si printers havetwoMIOslots.InstalltheNetportExpress
PROprintservercardinto the lower slot. For instructions, install theNetport Manager
softwareonany networked Windows workstation and refer to online Help, or see
Intel’sonlinesupportdocuments.
•Thetokenringcard autosensesdataratespeedswhen bothswitchesareinthedefault
UP position. (See page 34 for list of settings.)
Continue with Software Installation, page 6. . .

6
Software Installation
UNIX and AIX software installation
Turn to the NOS Configuration section in this manual for UNIX or
AIX systems.
Novell and Microsoft networks software installation
Installing Netport Manager software on one Windows-based
workstation lets you manage all of your NetportExpress print servers.
You can run Netport Manager on Windows 3.1x, Windows for
Workgroups 3.11, Windows 95, and Windows NT 3.51 or 4.0 systems.
ToinstallNetportManager
1Insert the CD-ROM in the selected Windows system.
•Windows 95 or Windows NT 4.0 systems. The setup program
should automatically appear. If it does not, choose Start and
Run and browse to the CD-ROM drive.
•Windows 3.1x orWindows NT 3.51. From Program Manager,
click the File menu and then click Run. Browse to the CD-
ROM drive.
2Run setup.exe fromtheroot directory.
3Install Netport Manager, then turn to the appropriate NOS section
to configure the NetportExpress print server for your system.
Note: If only the IP protocol is running on the system where you install
Netport Manager, the NetportExpress print server must have an
IP address to communicate with Netport Manager. To see if the
print server has an IP address, print a test page. To assign an IP
address, see page 15.
To configure the print server for your NOS,turn to . . .
Novell NetWare NDS Configuration .........................page 8
Novell NetWare Bindery Configuration ...................page 10
Microsoft Network Printing ......................................page 12
LAN Manager/LAN Server Configuration ................page 16
AppleTalk Configuration ..........................................page 18
UNIX Configuration ..................................................page 19
AIX Configuration .....................................................page 27
Note: You can configure each port on the NetportExpress print server
for multiple protocols.

7
Making installation diskettes
You can make installation diskettes for the following:
•Netport Manager
•Port Monitor (for Microsoft Network printing)
Making installation disks lets you install these programs on any
system that has a 3-1/2 inch diskette drive. To make the diskettes,
insert the CD-ROM into a CD-ROM drive. When the setup screen
appears, click Make Setup Disks.
Web Netport Manager
If you do not have a Windows-based workstation on your network for
running Netport Manager, you can set up your NetportExpress print
server using your Web browser. The print server contains a Web server
that lets you view and change settings on the print server from your
Web browser. This method requires an IP address for the
NetportExpress print server.
•To find out if the print server has an IP address, print a test page by
pressing the “diag” button on the print server.
•To set an IP address, see “Setting an IP address” on pages 15 and 20.
•To access Web Netport Manager, see “Using Web Netport Manager”
on page 31.

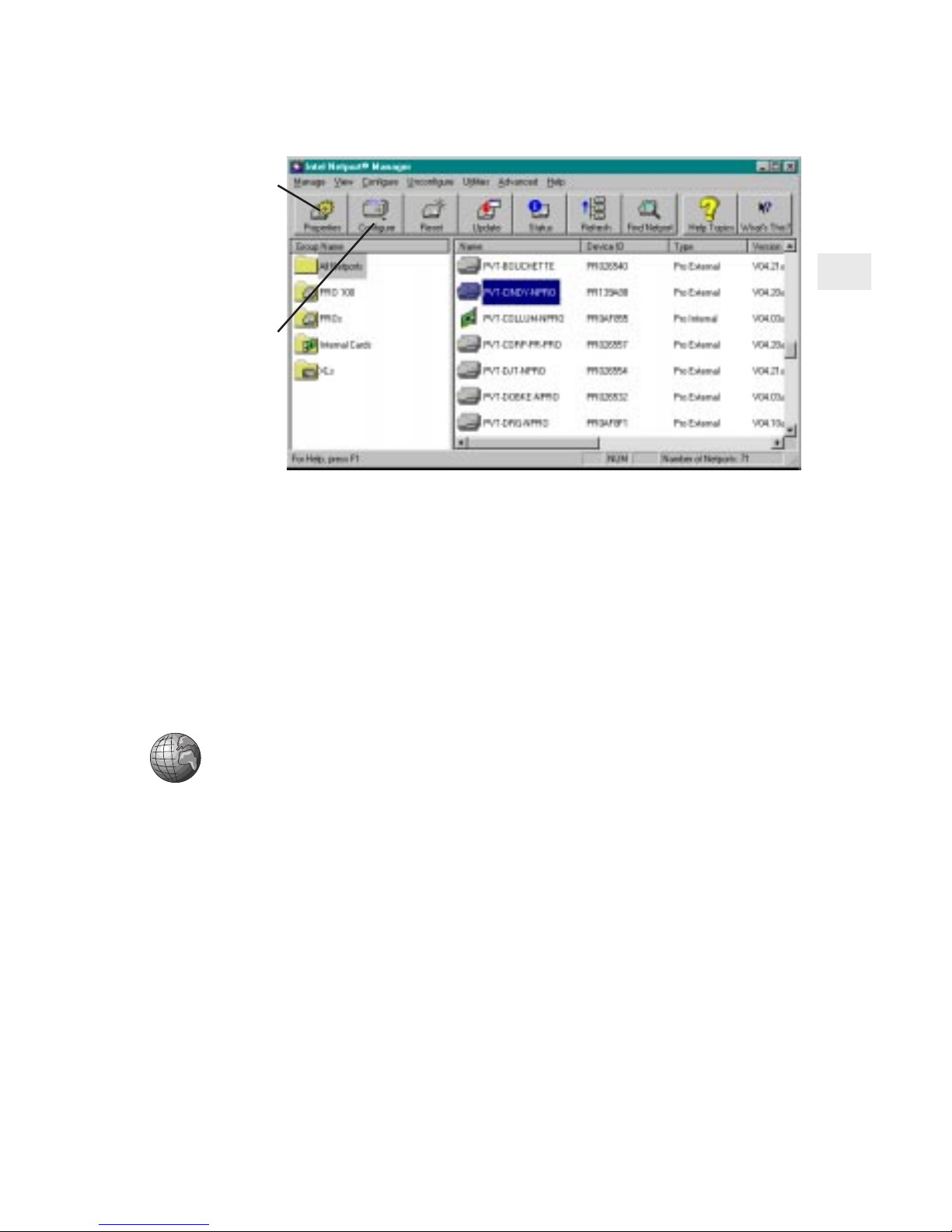

Click
Properties
button
to set the
Netport Name
and hardware
settings
Click
Configure
button to
configure the
NetportExpress
print server
Netport Manager MainWindow

8
Novell NetWare NDS Print Server Mode
Configuration
In this mode, the NetportExpress print server replaces the NetWare
printserverprogram.TheNetportExpressprintserverpollstheNetWare
file server queue for print jobs, then sends each job directly to the
printer. This speeds up the printing process. Print server mode is
recommendedbecauseit provides thebestprintingperformance. It
requiresoneNetWareuserlicenseforeachprintserver(including
multi-portprintservers).
To set up the print server for NDS print server mode
Note: Netport Manager will create any queues or print servers you
need for your NetWare setup. You don’t have to create these
objects in NWADMIN or PCONSOLE.
1Log in as Admin at the workstation where you installed Netport
Manager.
2Start Netport Manager.
3Select the print server whose Device ID matches the number of
the NetportExpress print server you installed.
4Click the Configure button.
5Select Novell NDS Print Server.
6Select a context for the print server. The context is the container
where the print server object will be created.
7For each printer connected to the print server, click a Port tab and
assign an existing queue or add a new queue.
•To assign an existing queue, double-click the queue to add it
to the Assigned Queues list.
•To add a new queue, click New Queues and create the queue.
8Click OK and exit Netport Manager.
To set up a workstation to print
At each workstation that will print to this printer, use the capture
command or the workstation’s print utility to redirect printing to the
NetWare queue you set up. For instructions see the NetportExpress
Help section on NetWare printing.
Tip for NDS print server mode
For advancedsetupparameterssuchasLIP (LargeInternetPackets),see“Managingthe
NetportExpressPrintServer,” page30.

9
Novell NetWare NDS Remote Printer Mode
Configuration
In this mode, PSERVER.NLM polls the NetWare file server queue for
waiting print jobs, then sends the print job to the Netport print server,
which then sends the data to the printer. This mode does not require a
NetWare user license for each NetportExpress print server, but is not
recommended because it is much slower than print server mode.
To set up the print server for Novell NetWare NDS remote
printermode
1Log in as Admin at the workstation where you installed Netport
Manager.
2If a print server does not already exist, create a print server using
NWADMINorPCONSOLE.
3Start Netport Manager.
4Select the print server whose Device ID matches the number of
the NetportExpress print server you installed.
5Click the Configure button.
6Select Novell NDS Remote Printer.
7Select a context for the print server. The context is the container
where the print server object was created.
8Select the Novell NDS print server you created in NWADMIN or
PCONSOLE.
9For each printer connected to the print server, click a Port tab and
assign an existing queue or add a new queue.
•To assign an existing queue, double-click the queue to add it
to the Assigned Queues list.
•To add a new queue, click New Queues and create the queue.
10 Click OK and close Netport Manager.
11 Unload and then reload PSERVER.NLM to enable the changes.
To set up a workstation to print
At each workstation that will print to this printer, use the capture
command or the workstation’s print utility to redirect printing to the
NetWare queue you set up. For instructions see the NetportExpress
Help section on NetWare printing.

10
1
2
Novell NetWare Bindery Print Server Mode
Configuration
To set up the print server for bindery print server mode
Note: Netport Manager will create any queues or print servers you
need for your NetWare setup. You don’t have to create these
objects in NWADMIN or PCONSOLE.
1Log in as Supervisor at the workstation where you installed
Netport Manager.
2Start Netport Manager.
3Select the print server whose Device ID matches the number of
the NetportExpress print server you installed.
4Click the Configure button.
5Select Novell Bindery Print Server.
6Select the file server where the print server will be created.
7For each printer connected to the print server, click a Port tab and
assign an existing queue or add a new queue.
•To assign an existing queue, double-click the queue to add it
to the Assigned Queues list.
•To add a new queue, click New Queues and create the queue.
8Click OK and exit Netport Manager.
To set up a workstation to print
At each workstation that will print to this printer, use the capture
command or the workstation’s print utility to redirect printing to the
NetWare queue you set up. For instructions see the NetportExpress
Help section on NetWare printing.
Tip for bindery print server mode
For advancedsetupparameterssuchasLIP (LargeInternetPackets),see“Managingthe
NetportExpressPrintServer,”page30.
In this mode, the NetportExpress print server replaces the NetWare
printserverprogram.TheNetportExpressprintserverpollstheNetWare
file server queue for print jobs, then sends each job directly to the
printer. This speeds up the printing process. Print server mode is
recommendedbecauseit provides thebestprintingperformance. It
requiresoneNetWareuserlicenseforeachprintserver(including
multi-portprintservers).

11
Novell NetWare Bindery Remote Printer
Mode Configuration
To set up the print server for bindery remote printer mode
1Log in as Supervisor at the workstation where you installed
Netport Manager.
2If a print server does not already exist, create a print server using
NWADMINorPCONSOLE.
3Start Netport Manager.
4Select the print server whose Device ID matches the number of
the NetportExpress print server you installed.
5Click the Configure button.
6Select Novell Bindery Remote Printer.
7Choose the file server where the Novell bindery print server is
located. (This is the file server where PSERVER is running.)
8Select the PSERVER you want to use from the Novell bindery
print server list.
9For each printer connected to the print server, click a Port tab and
assign an existing queue or add a new queue.
•To assign an existing queue, double-click the queue to add it
to the Assigned Queues list.
•To add a new queue, click New Queues and create the queue.
10 Click OK and close Netport Manager.
11 Unload and then reload PSERVER.NLM at the file server chosen
in step 7 to enable the changes.
To set up a workstation to print
At each workstation that will print to this printer, use the capture
command or the workstation’s print utility to redirect printing to the
NetWare queue you set up. For instructions see the NetportExpress
Help section on NetWare printing.
In this mode, PSERVER.NLM polls the NetWare file server queue for
waiting print jobs, then sends the print job to the NetportExpress print
server, which then sends the data to the printer. This mode does not
requirea NetWareuserlicenseforeach NetportExpressprintserver,
but is not recommended because it is much slower than print server
mode.

12
Microsoft Network Printing
To set up the print server for Microsoft network
printing
1Start Netport Manager.
2Select a NetportExpress print server in the Netport Manager
window.
3Click the Configure button.
4Click Microsoft Network Printing.
5Specify a Name and Domain for the print server.
6For each printer connected to the print server, click a Port tab and
specify a port name for the printer connected to that port.
Setting upWorkstations to print
To print from Windows 95 and Windows NT systems, install the Intel
NetportExpress Port Monitor. The Port Monitor installs on the system
as a local port that you can share with other systems.
Printing Options
• Print sharing: Install
the NetportExpress
Port Monitor on one
Windows system and
share the port with
other Windows
systems. The system
with the Port Monitor
spools print jobs and
sends them to the
NetportExpress print
server.
• Direct printing: Install
the NetportExpress
Port Monitor on each
Windows system and
print directly to the
NetportExpress print
server.
PARALLEL1 PARALLEL2 SERIAL
POWER BNC RJ-45 TEST
NetportExpress PRO
Activity
Transmit
Receive
PARALLEL1 PARALLEL2 SERIAL
POWERBNCRJ-45TEST
NetportExpress PRO
Activity
Transmit
Receive
TheNetportExpressprint server can printjobsfromnetworkedworksta-
tionsrunningWindows*95,WindowsNT*,orWindowsforWorkgroups*.
UsingNetportExpressPortMonitor with a Windows 95orWindowsNT
workstation, you can also share printing with other systems, including
WindowsforWorkgroupsandLANManageror LANServer.

13
To set up a Windows 95 workstation
1Insert the NetportExpress Print Server CD into the CD-ROM
drive.
2If Setup doesn’t run automatically, run setup.exe from the CD.
3In Setup, click the NetportExpress Port Monitor button. When
setup is finished, you can set up printing on the workstation.
4From My Computer, double-click the Printers folder.
5Double-click Add Printer and follow the steps to set up a tempo-
rary local printer on LPT1. Do not print a test page.
6After you finish the Add Printer Wizard, right-click the new
printer and click Properties.
7Click Details and then click Add Port.
8Click Other, select Intel NetportExpress Network Port, and then
click OK.
9Click Browse to select the Domain, the Netport print server, and
Port where your printer is connected to the NetportExpress print
server.
10 To share the printer: in Properties, click the Sharing tab. Select
Shared As and specify a Share Name.
To set up a Windows NT 4.0 system
1Insert the NetportExpress Print Server CD into the CD-ROM
drive.
2If Setup doesn’t run automatically, run setup.exe from the CD.
3In Setup, click the NetportExpress Port Monitor button. When
setup is finished, you are ready to set up printing on the system.
4From My Computer, double-click the Printers folder.
5Double-click Add Printer and select My Computer.
6Follow the steps to set up a temporary local printer on LPT1. Do
not print a test page.
7After you finish the Add Printer Wizard, right-click on the new
printer and click Properties.
8Click Ports and then click Add Port.
9Select Intel NetportExpress Network Port and click New Port.
10 Click Browse to select the Domain, Netport print server, and Port
where your printer is connected to the NetportExpress print
server.
11 To share the printer: in Properties, click the Sharing tab. Select
Shared and specify a Share Name.
Setting up a system to print directly or to share printing

14
To set up a Windows NT 3.51 system
1Insert the NetportExpress Print Server CD into the CD-ROM
drive.
2Run setup.exe from the CD.
3In Setup, click the NetportExpress Port Monitor button. When
setup is finished, you are ready to set up printing on the system.
4Start Print Manager.
5From the Printer menu, click Create Printer.
6In the Create Printer window, type a printer name.
7Select a driver for the printer.
8In the Print to list, select Other.
9Select Intel NetportExpress Network Port and click OK.
10 Click Browse to select the domain, NetportExpress print server,
and port where your printer is connected to the print server.
11 To share the printer: in Print Manager, select the printer. From
the Printer menu, select Properties. Click Share This Printer on the
Network and specify a Share Name.
Setting up systems to print to a shared printer
To set up a Windows 95 or Windows NT 4.0 workstation to
print to a shared printer
1From My computer, open the Printers folder.
2Open Add Printer to start the Add Printer Wizard.
3Select Network Printer and specify the Share Name you set up
on the system where you installed the NetportExpress Port
Monitor.
To set up a Windows NT 3.51 workstation to print to a shared
printer
1Start Print Manager and click the Printer menu.
2Choose Connect to Printer.
3Select the new printer in the Shared Printers list and specify the
Share Name you set up on the system where you installed the
NetportExpress Port Monitor.
Printing withWindows forWorkgroups
Note: Windows for Workgroups cannot run the NetportExpress Port
Monitor. However, you can share printing with a Windows 95 or
Windows NT system that is running NetportExpress Port
Monitor. See pages 12-13.

15
To set up a Windows for Workgroups workstation to print to
asharedprinter
1From Print Manager, click the Printer menu, and then click
Connect to Printer.
2In the Connect to Printer window, select the Share Name for the
printer you set up on the Windows 95 or Windows NT system
where you installed the NetportExpress Port Monitor.
To set up a Windows for Workgroups workstation to print
directly to a printer
1Start Print Manager on the Windows for Workgroups system.
2OpenPrinters.
3From the Printers menu, choose Connect to Printer.
4Select the new printer in the Show Shared Printers list. The
NetportExpress print server will appear in the domain you
configured in Netport Manager.
Printing inWindows NT using LPR
You can print in Windows NT using lpr. This topic is covered in the
NetportExpress Help. The NetportExpress print server must have an
assigned IP address to print using lpr.
Setting an IP address in Windows NT using ARP (Address
Resolution Protocol)
1Make sure you are in the same network segment as the
NetportExpress print server.
2From a Windows NT or Windows 95 workstation, go to the
command prompt.
3Type:arp -s ip_address network_address
where
ip_address is the IP address you want toassign to the
NetportExpress print server.
network_address isthe12-characternetworkaddressprinted
on the bottom of the NetportExpress print server. For Windows
NT, the address must be typed in this format: xx-xx-xx-xx-xx-xx.
Example: 00-A0-C9-12-34-56
4Set the IP address on the print server by typing
ping ip_address
where ip_address is theaddressyouusedinstep3.

16
LAN Manager/LAN Server Configuration
TosetuptheNetportExpressprintserver
Note: Netport Manager runs only on a Windows-based workstation. If
you have only OS/2* workstations on your network, you can use
Web Netport Manager to configure your NetportExpress print
server. See “Using Web Netport Manager” on page 31.
1Start Netport Manager.
2Select the print server whose Device ID matches that of the
NetportExpress print server you installed.
3Click the Configure button.
4Select Microsoft Network Printing (for LAN Manager) or select
LANServer.
5Choose the Domain where you want the NetportExpress print
server to reside.
6For each printer connected to the print server, click a Port tab and
specify a port name for the printer connected to that port.
To set up printing on an OS/2 workstation for Microsoft LAN
Manager
1At the OS/2 command prompt on the LAN Manager server,
redirect printing to the NetportExpress print server by typing on
one line:
NET USE LPT2 : \\ NETPORT \ PORT
where
LPT2 istheDeviceID.
NETPORT is the name you’ve given the print server.
PORT is the port name you used for the shared printer.
2Click Print Manager on the same server, choose
Configure/Queue from the menu, and click Add.
3Set the Name, Description, Queue and other entries you want,
then click Add.
4Click OK.
5Return to the OS/2 command prompt and type: NET ADMIN
In Microsoft LAN Manager and IBM LAN Server printing, the worksta-
tion sends a print job to a printing process, and the job is put in a print
queue and sent to the NetportExpress print server. The print server then
routes the job to the printer through one of its connected ports.
If you have a Windows 95 or Windows NT workstation on the network,
you can also print using Microsoft network printing. See pages 12-15.

17
6From the main menu, choose View/Share the Resource, then click
Add.
7From the list box, choose Printer, then click Add.
8Set the Queue name by using the name of the queue you set up in
the steps above.
9Input the Share Name and other required settings, then click OK.
10 Click Finish. Set the required entry for the next screen, then click
OK/Finish.
11 From the main menu, click View/Exit and return to the command
prompt.
12 At the command prompt, confirm the settings by typing:
NET SHARE
Note: To stop redirection, use a command such as
NET USE LPT2: /DELETE
To set up printing on an OS/2 workstation for IBM LAN
Server
1At the OS/2 command prompt on the LAN Server server, redirect
printing to the NetportExpress print server by typing on one line:
NET USE LPT2 : \\ NETPORT \ PORT
where
LPT2 istheDeviceID.
NETPORT is the name you’ve given the print server.
PORT is the port name you used for the shared printer.
2On the OS/2 desktop, open Templates.
3Drag and drop the printer template to a folder on the desktop.
4In the Create a Printer window, type the printer name you want.
5Choose LPT1.
6From the driver list, choose Corresponding Printer Drivers.
7Click Create.
8Click OK.
9Indicate whether you want the system to install an equivalent
WIN-OS2 printer configuration, and share the printer you created.
Note: To stop redirection, use a command such as
NET USE LPT2: /DELETE
Toshare the printeryoucreated
Click the top-left corner of the printer icon. When a drop-down menu
appears, choose Share Printer to share the printer on the network.

18
AppleTalk Configuration
ToconfiguretheNetportExpressprintserverforAppleTalk
1At the Windows workstation where you installed Netport Man-
ager, start that program.
2Select the print server whose Device ID matches the number of
the NetportExpress print server you have installed.
3Click the Configure button.
4Select AppleTalk.
5Select a zone name for the NetportExpress print server in the
AppleTalk Zone field.
6Click on a Port tab.
7Type a Chooser Name so the printer will appear in the Chooser on
Macintosh workstations.
8Identify the Printer Type where the print server is connected. This
must match the printer driver name shown in the Chooser. The
default LaserWriter* will work for any PostScript* printer.
9Select the Font Group that resides on the printer. Default is 35.
Note: If your printer supports bi-directional communication
capability, the default will be “automatically set by printer.”
10 Click OK to complete the set up.
To set up a workstation to print
1At an Apple workstation, open Chooser.
2Select the printer driver for the printer connected to the
NetportExpress print server. If you’re using a PostScript printer,
you can select either LaserWriter or the PostScript printer icon for
your printer.
3If the Chooser window displays an AppleTalk Zone list, select the
zone you specified when setting up the print server.
4Select the Chooser name for the NetportExpress print server you
want the Macintosh workstation to use.
5Close the Chooser window.
The NetportExpress print server can service print jobs submitted by
Macintosh* workstations connected to an Ethernet or token ring net-
work.
To print using LocalTalk*, connect the print server through a router to
an Ethernet segment.
