Intelligent Cleaning Equipment iW90-D.A.T. Programming manual

Operator & Parts Manual
2320609U
REV.01(05-2020)
INTELLIGENT CLEANING EQUIPMENT
iW90 D.A.T.
Dispersion Application Tool

SAFETY PRECAUTION. . . . . . . . . . . . . . . . . . . . . . 2
HANDLE ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . 3
OPERATION OF DISINFECTION . . . . . . . . . . . . . . . . . 4-5
MACHINE COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-11
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
WEAR&TEAR PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ICE iW90 D.A.T 1
TABLE OF CONTENTS

SAFETY PRECAUTION
2 ICE iW90 D.A.T
OPERATOR
Carefully read and understand this manual before operating this machine.
This machine must be grounded!
This machine shall be grounded while in use to protect theoperator from electric shock.
Grounding provides a path of least resistance for electric current. This machine is equipped
with a cord having an equipment-grounding conductor and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. Do not remove the ground pin under any circumstances.

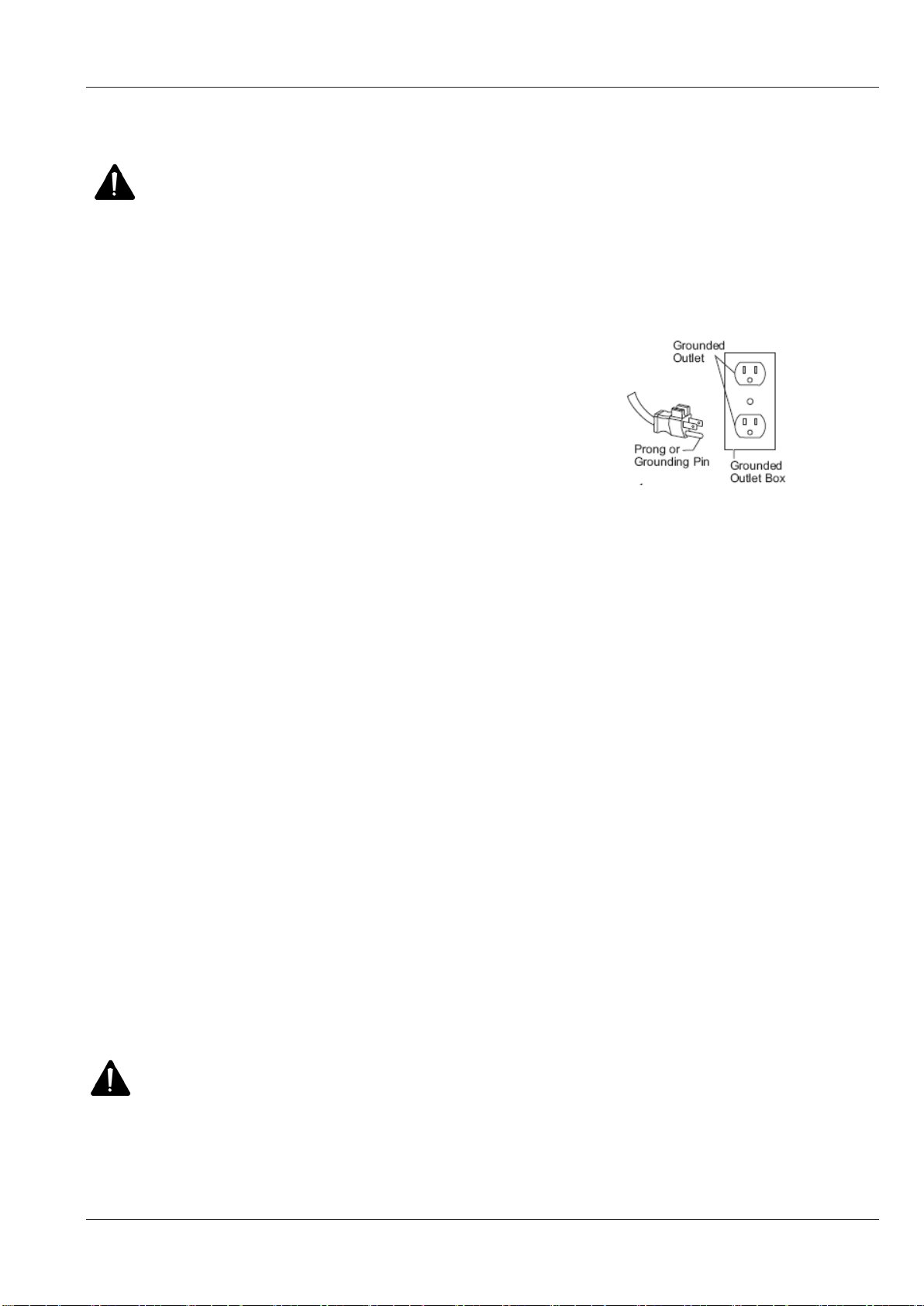

This machine is for use on a nominal 120-volt circuit
and has a grounding plug that resembles the plug
illustrated in Figure. Make sure that the machine is
connected to an outlet having the same conguration as
the plug. No adapter should be used with this machine.
This machine is intended for commercial use. It is constructed for use in an indoor environment
and is nor intended for any other use. Use only recommended accessories.
1. Do not operate machine:
– Unless trained and authorized. – Unless you have read and
– In ammable or explosive areas. understand the operators manual.
– With a damaged cord or plug – With the use of extension cords.
– If not in proper operating condition. – In outdoor areas and standing water.
2. Before operating machine:
– Make sure all safety devices are in place and operating properly.
3. When using machine:
– Do not run machine over cord. – Do not pull machine by cord or plug.
– Do not pull cord around – Do not unplug by pulling on the cord.
sharp edges or corners. – Do not stretch cord.
– Do not handle plug with wet hands. – Keep cord away from heated surfaces.
– Report machine damage or faulty
operation immediately.
To avoid electrical shock,please replace the power cord immediately if any damage is
being detected. The replacement must be performed only by an authorized person or
by our customer service center.
4. Before leaving or servicing machine:
– Turn o󰀨 machine. – Unplug cord from outlet.
5. When servicing machine:
– Unplug cord from outlet. – Use manufacturer supplied or
approved replacement parts.

ICE iW90 D.A.T 3
OPERATOR
Handle Assembly Instructions

Operation of Disinfection
4 ICE iW90 D.A.T
OPERATOR
Read operators manual thoroughly prior to operating or servicing
this machine.
Be sure that the handle is properly assembled on machine body prior to
operating .
DISPERSING
1) Remove clear window .
2) Connect drain hose to the machine body.
3) Make sure that the tank is full with disinfectant cleaner.
6) When using for disinfection,make sure to turn the power switch to “on”
position.
7)To prevent odors in the disinfection tank, once not in use,drain contents in
disinfection tank.
DRAINING THE TANK
1) Unplug machine from power outlet.
2) Transport machine to nearest oor drain of bucket.
3) Remove drain hose from rear of machine, and drain the contents of the
tank.
4) After the contents have drained, remove the clear window and rinse the tank
with clean water.
5) Place drain hose back in the correct drain hose clip.
Disinfectant cleaner should not exceed the Maximum Water Mark.
The distance between the Maximum Water Mark and the Bend Surface is
80mm.
Do not use an extension cord in conjunction with the standard power cord.
4) Attach appropriate accessory tool for the job to be completed.
5) Make sure the Main Power Switch is in the OFF position, then plug
power cord into a grounded outlet.

1) Unplug machine as soon as you are done using it.
2) Check power cord for any damage. If any damage is detected, replace the
cord immediately.
3) Lubricate casters with a water resistant lubricant every month
4) Check machine for loose or missing nuts and bolts, and replace as
necessary.
5) Check the lter, and clean it after each use
6) Clean the outside of the machine with a mild cleaner.
STORAGE
1) Unplug machine from power source and wrap cord on handle.
2) Store in upright position in a dry area.
3) Store with clear window o󰀨 unit so that tank may breathe.
5ICE iW90 D.A.T
MAINTENANCE
To keep the machine performing well for many years, please follow the
following maintenance procedures.
Always conrm that the machine is unplugged prior to performing any
maintenance or repairs.

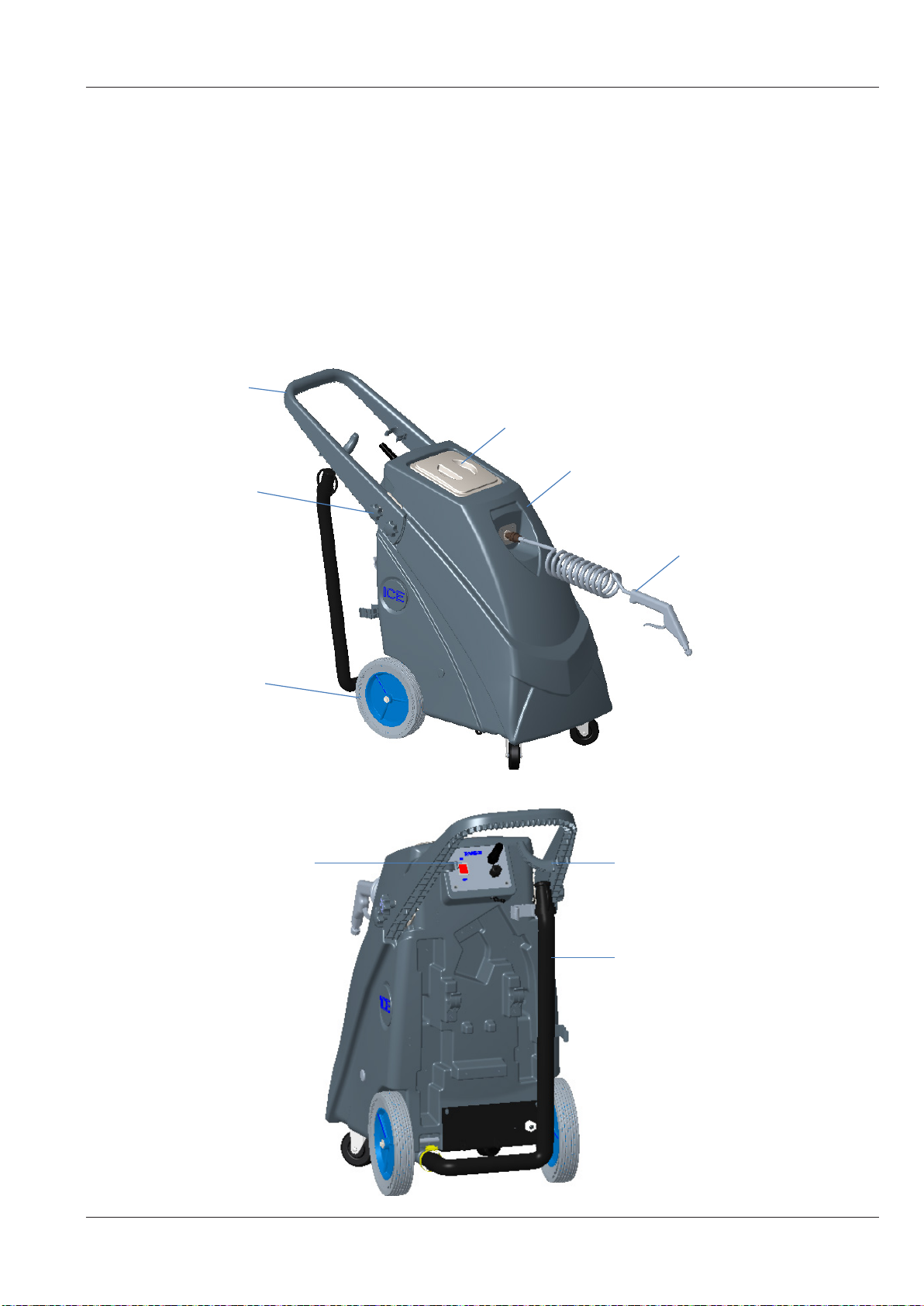

MACHINE COMPONENTS
6 ICE iW90 D.A.T
OPERATOR
1.Handle 2. Knob
3.10" Wheel 4. Spray Gun assembly
5.Tank 6. Fill Lid
7.On/O󰀨 Switch 8. Drain Hose
9.Wire Hook
1
2
3
4
5
6
7
8
9

7
ICE iW90 D.A.T
OPERATOR

ICE iW90 D.A.T
8
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 2320202 Handle 1
2 2320405U Cord 1
3 6210519U Power Cord 1
4 2110108 Switch 1
5 6210123 Connector 1
6 2320409 Power Cord 1
7 2320411 Strain Relief 1
8 4020310 Strain Relief 1
9 1221510 Screw,Ph, M5 X 10 4
10 2320401 Panel, Switch 1
11 2320220 Bend 1
12 1321210 Screw, Ph, St4 X10 4
13 2320216 Clear Window 1
14 2320417 Warning Decal 1
15 2320218 Gasket, Clear Window 1
16 2030414 Warning Decal 1
17 2320416 Decal,Panel 1
18 2320217 Rubber Hinge 1
19 1421409 Washer,Plain,Φ4.3XΦ9X0.8 6
20 1221410 Screw, Ph, M4 X10 2
21 6150711 Stainless Steel Clip 2
22 2310125 Clamp, Hose 2
23 1221520 Screw, Ph, M5 X20 4
24 1436010 Retaining Ring, Φ10 4
25 1421020 Washer,Plain,Φ10.5XΦ20X2 4
26 1422026 Washer, Lock,Φ10 4
27 2320219 Knob 4
28 2320248 DRAIN HOSE 1
29 2320240 Bracket,Left, Handle 1
30 1222510 Screw,Fh, M5 X10 8
31 2310130 Clamp, Pick-up Tool 2
32 1221514 Screw, Ph, M5 X14 4
33 4010316 Logo 2
34 2320604U Serial Decal 1
35 1962050 Clamp, Φ27~Φ51 1
36 1021616 Screw,Hex, M6 X16 6

OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO REQ'D
37 1422616 Washer Lock Φ6 2
38 1421622 Washer,Plain,Φ8XΦ28X3 2
39 2320223 Wheel,10" 2
40 2320312 Washer,Wheel,Al 2
41 2320211 Axle 1
42 1436013 External Retaining Ring Φ13 2
43 2310139 Right Sticker 1
44 7000283 Cap 2
45 1421618 Washer,Plain, Φ6.4×Φ18×1.6 4
46 2320210 3.5" Caster 2
47 2320201 Tank 1
48 2310120 Silencer Cotton 1
49 2310140 Left Sticker 1
50 2320241 Bracket Right ,Handle 1
51 1422411 Lock Washer M4 2
52 1221412 Screw, Ph, M4 X12 2
9ICE iW90 D.A.T

ICE iW90 D.A.T
10
OPERATOR

11
ICE iW90 D.A.T
OPERATOR
PARTS LIST
DIA
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 6180575 Stainlesssteelnozzle 1
2 6210426 Cap(Include RUBBER WASHER) 1
3 6110421 Strainer-Brass 1
4 6210425 Adapter 1
5 6180102 Gun Shell 1
6 6180104 Coiled spray hose 1
7 6180103 Adapter 1
8 6180208 Coupler Quick Connect 1
9 1221420 Screw,RHM,M4X20,SST 4
10 1422411 Lock Washer M4 4
11 1421409 Washer,Plain,Φ4.3XΦ9X0.8 4
12 1123406 Nut Lock M4 5
13 1421132 Flat Washer Φ13×Φ32×1.5 2
14 6180101 Plate 1
15 2020206 Gasket,Intake 1
16 6180128 Barb Hose 2
17 1962016 Clamp, Hose 3/8" 4
18 1884001 Solution Hose ,3/8" 2.5m
19 6180125 Coupling 1
20 6110411 Strainer Line 1
21 6150195 Pump,120V,100PSI 1
22 6180210 Elbow Nylon 90 DEG 2
23 2320403 Strain Relief 1
24 1221410 Screw M4x10 PH 1
25 1123507 Nut Lock M5 4
26 1421515 Flat Washer M5×Φ16×1.0 8
27 2320226 Bottom Plate, Assy 1
28 1422513 Lock Washer M5 4
29 1221530 Screw,M5 X 30,PH 4
30 1221616 Screw, Ph, M6 X16 5
31 1422616 Washer Lock Φ6 5
32 1421617 Washer, Plain Φ6.5XΦ16X2 5
33 6210720 Bleeder Hose Assembly 1
34 1869611 PVC Hose 0.737m
35 6311008 Clamp 1
36 6311060 Washer, Rubber 1
37 6311080 Nipple, Plug. Brass 1

ICE iW90 D.A.T12
OPERATOR
TECHNICAL DATA
Model iW90 D.A.T.
Voltage 115Vac
Power 114W
Current 1.25A
Frequency 50-60Hz
Capacitor 20 Gallons
Pump 100PSI
Flow rate 1.4Gpm
Sound pressure level
at workstation 40 dB(A)
Weight 84Lbs
Length of Power cord 50Ft
Dimensions 46.30in(L)x17.90in(W)x43.30in(H)
SPECIFICATIONS

13ICE iW90 D.A.T
OPERATOR
Wiring Diagram
iW90 D.A.T.

ICE iW90 D.A.T14
OPERATOR
WEAR &TEAR PARTS
DIA
NO
PART
NUMBER DESCRIPTION NO REQ'D
1 2320210 3.5" Caster 2
2 2320223 Wheel,10" 2
