OWNER'S MANUAL
R-410A Duct Free Split System
Air Conditioner and Heat Pump
Product Family: DFF4(A/H)H, DFC4(A/H)3
Please read the operating instructions and safety precautions carefully and thoroughly before installing and
operating your room air conditioner or heat pump.
TABLE OF CONTENTS
PAGE
SAFETY PRECAUTIONS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PART NAMES 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISPLAY PANELS 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL FUNCTIONS 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CLEANING, MAINTENANCE AND TROUBLESHOOTING 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTE TO EQUIPMENT OWNER:
Thank you for your purchase. Please read this Owner's Information Manual carefully
before installing and using this appliance and keep this manual for future reference.
For your convenience, please record the model and serial numbers of your new
equipment in the spaces provided. This information, along with the installation data and
dealer contact information, will be helpful should your system require maintenance or
service.
UNIT INFORMATION
Model # _________________________________
Serial # _________________________________
INSTALLATION INFORMATION
Date Installed ____________________________
DEALERSHIP CONTACT INFORMATION
Company Name: ______________________________
Address:_____________________________________
____________________________________________
Phone Number:______________________________
Technician Name:_____________________________

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
2 421 02 9300 00
SAFETY PRECAUTIONS
PERSONAL INJURY, DEATH, OR PROPERTY
DAMAGE HAZARD
Failure to follow this warning could result in personal
injury, death, or property damage.
Read and follow all instructions and warnings,
including labels shipped with or attached to unit
before operating your new air conditioner.
!WARNING
Any time you see this symbol in manuals, instructions
and on the unit, be aware of the potential for personal injury.
There are three levels of precaution:
DANGER identifies the most serious hazards which will
result in severe personal injury or death.
WARNING signifies hazards that could result in personal
injury or death.
CAUTION is used to identify unsafe practices which would
result in minor personal injury or product and property
damage.
NOTE is used to highlight suggestions which will result in
enhanced installation, reliability, or operation.
PERSONAL INJURY, DEATH AND / OR PROPERTY
DAMAGE HAZARD
Failure to follow this warning could result in personal
injury, death or property damage.
Improper installation, adjustment, alteration, service,
maintenance, or use can cause explosion, fire,
electrical shock, or other conditions which may cause
personal injury or property damage.
Consult a qualified installer, service agency, your
distributor or branch for information or assistance.
The qualified installer or service agency must use
factory-authorized kits or accessories when
modifying this product.
!WARNING
GENERAL
The high wall fan coil unit provides quiet, maximum comfort.
In addition to cooling and/or heating, the high wall fan coil
unit matched with an outdoor condensing unit will filter and
dehumidify the air in the room to provide maximum comfort.
IMPORTANT: The high wall fan coil unit should be installed
by authorized personnel only; using approved tubing and
accessories. If technical assistance, service or repair is
needed, contact the installer or local dealer.
The high wall fan coil unit can be set up and operated from
the remote control (provided). If the remote is misplaced,
the system can be operated from the “Auto” setting on
the unit.
Operating Modes:
The high wall fan coil unit has five operating modes.
SFan only
SAuto (heat pump models only)
SHeating (heat pump models only)
SCooling
SDehumidification (DRY)
Fan Only
In Fan Only mode, the system filters and circulates room air
without changing room air temperature.
Auto
In Auto mode, the system will automatically cool or heat the
room according to the user-selected set point.
Heating
In Heating mode, the system heats and filters room air.
Cooling
In Cooling mode, the system cools, dries and filters room air.
Dehumidification (DRY)
In Dehumidification mode, the system dries, filters and
slightly cools room air temperature. This mode does not
take the place of a dehumidifier.
Remote Control
The remote control transmits commands to set up and
operate the system. The controller has a window display
panel that shows the current system status. The controller
can be secured to a surface when used with the mounting
rack provided.

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
421 02 9300 00 3

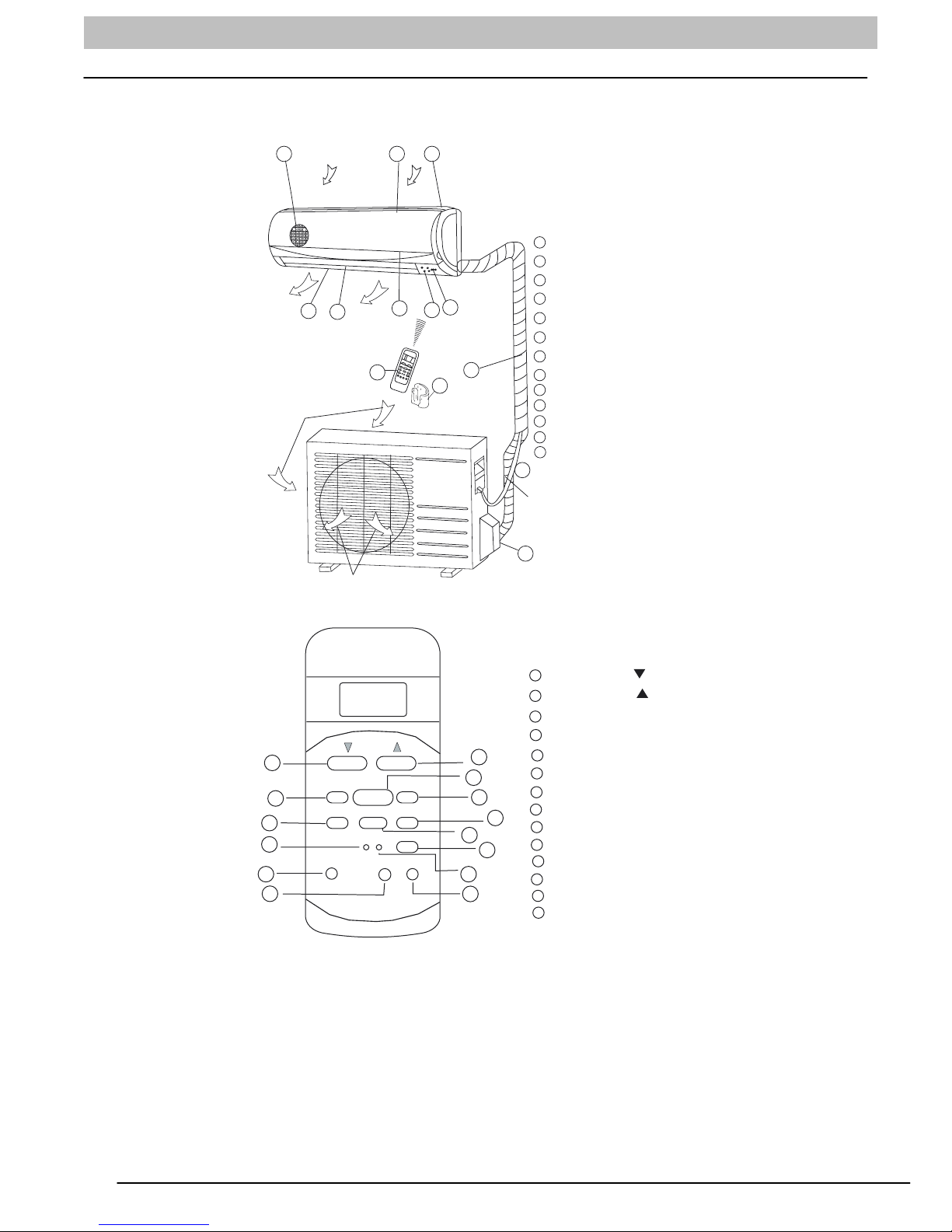

PART NAMES
Air outlet
Air outlet
Air inlet
Air inlet
3
11
12
13
8
7
456
9
21
Front panel frame
Front panel
Air filter
Horizontal air flow grille
Vertical air flow louver
Room temperature senso
r
Display panel
Infrared signal receiver
Remote controller
Interconnecting tubing
Connective cable
Service valve
1
3
4
5
6
7
8
9
11
12
13
2
INDOOR
UNIT
OUTDOOR
UNIT
Remote controller holder
10
10
Indoor/Outdoor Unit
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
1
2
4
5
6
7
3
8
9
10
11
12
13
14
SET TEMPERATURE( F)
SWING
LED
DISPLAY TURBO
O
TEMP Button
RESET Button:
SLEEP Button:
1
6
ON/OFF Button:
9
TEMP Button
2
AIR DIRECTION Button:
MODE Selection Button
3
FAN SPEED Button:
8
TIMER ON Button:
10
11
4
5
SWING Button
LED DISPLAY Button:
7
TIMER OFF Button:
12
LOCK Button:
13
TURBO Button:
14
Remote Controller

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
4 421 02 9300 00

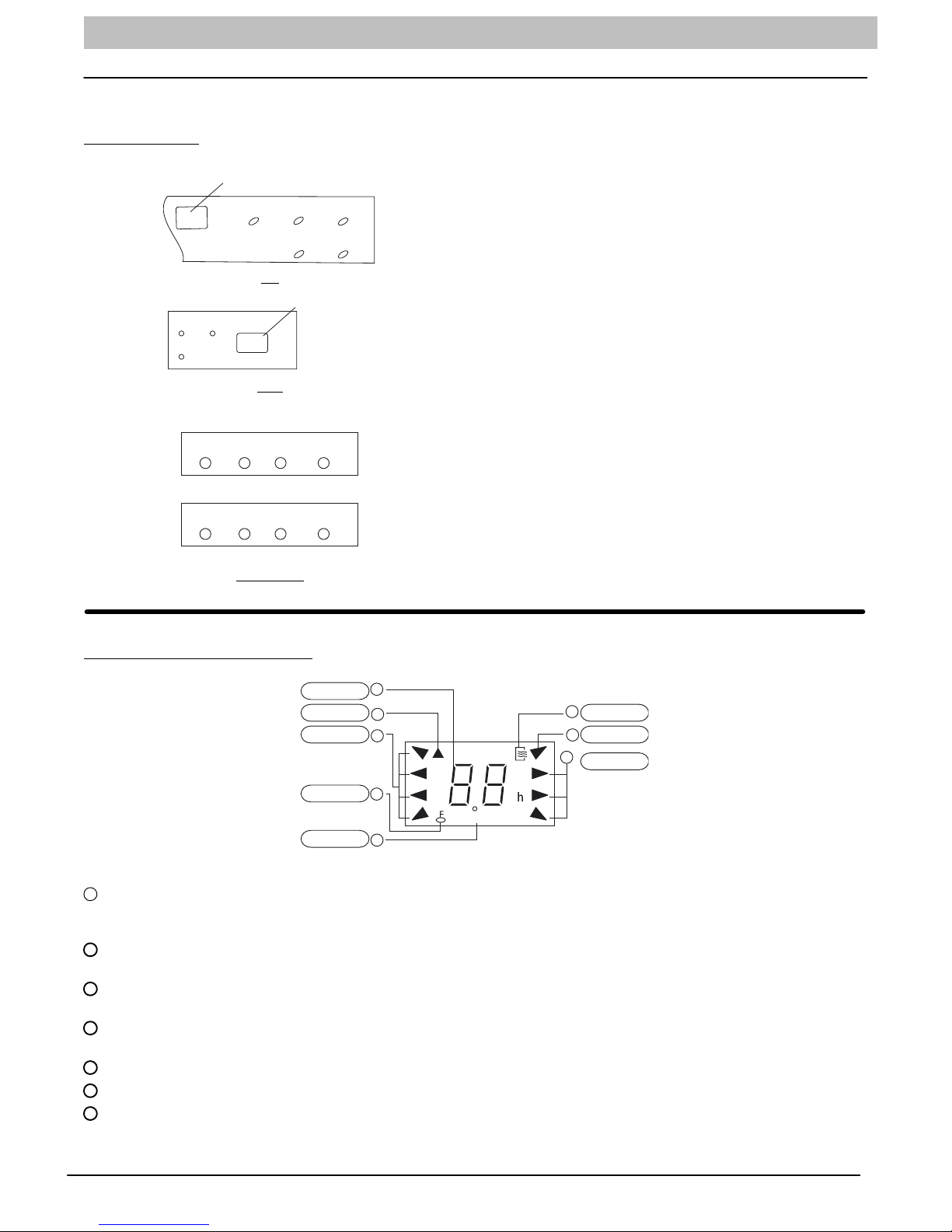

UNIT DISPLAY PANELS
NOTE: The display panel on the indoor unit will look like one of the following. Some of the functions will appear on
either the display panel, remote controller, or both.
On the Unit:
Infrared signal receptor
OPERATION TIMER
PRE-DEF
AUTO
ECON
9K
TIMER OPERATION
PRE-DEF
Infrared signal recepto
r
12K
AUTO
AUTO
TIMER
TIMER
PRE.-DEF.
OPERATION
OPERATION
Cooling Only
FAN ONLY
Cooling/ Heating
18K - 24K
OPERATION:
This indicator flashes once per second after power is on and
illuminates when the unit is in operation.
TIMER:
This indicator illuminates when TIMER is set ON or OFF.
PRE.-DEF indicator (heat pump units only):
Pre-Def indicator illuminates when the coil is warming up to
prevent cold blow or when unit goes into defrost mode.
AUTO indicator:
When air conditioner is set to AUTO mode, the indicator
illuminates.
FAN ONLY indicator:
When air conditioner is set to FAN ONLY mode, this
indicator illuminates.
NOTE: All the pictures in this manual are for
demonstration purposes only. The actual shape of your
air conditioner may be slightly different, but the
operation instructions are the same.
Remote Control Display
1
2
5
4
6
4
3
Display Panel
TRANSMI-
SSION Indicator
OPERATION
MODE Indicator
LOCK Indicator
TIMER
DISPLAY Indicator
DIGITAL
DISPLAY area
ON/OFF Indicator
FAN SPEED Indicator
TIMER ON OFF
OPERATION
MODE Indicator
7
A07540
1DIGITAL DISPLAY area: What is displayed in this area depends on the mode in which the unit is running in. The set point
will show if the unit is running in any mode besides Fan Only Mode. When the unit is running in Fan Only mode, nothing is
displayed. When Timer is on, TIMER ON OFF indicator will appear.
2TRANSMISSION Indicator: This indicator flashes once when remote controller transmits signals to the indoor unit.
An audible “beep” will also be heard.
3ON/OFF Indicator: This symbol appears when the unit is turned on by the remote controller, and disappear when the unit is
turned off.
4OPERATION MODE Indicator: Shows the current operating mode -- “AUTO”, “COOL”, “DRY”, “HEAT” (Cooling only model
without), or “FAN”.
5LOCK Indicator: Appears when settings are locked.
6TIMER DISPLAY Indicator: Displays “TIMER ON”,“TIMER OFF”, “TIMER ON-OFF” when both are used.
7FAN SPEED Indicator: Indicates fan speed selected. If “AUTO“ is selected, nothing is displayed.
NOTE: Symbols shown in this manual are for the purpose of demonstration. During actual operation, only the
relevant symbols are displayed.

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
421 02 9300 00 5

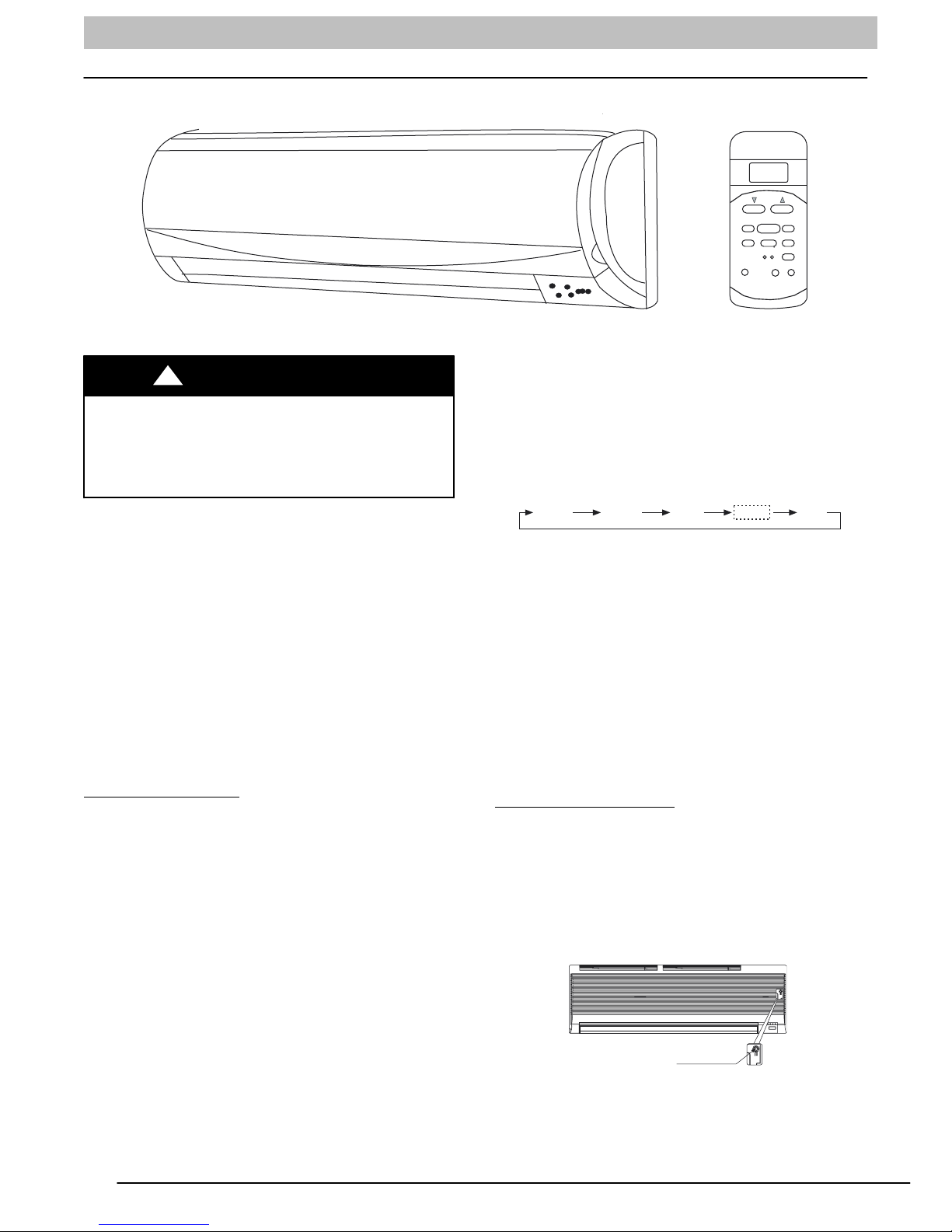

REMOTE CONTROL
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
SET TEMPERATURE( F)
SWING
LED
DISPLAY TURBO
O
A07542
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage.
Handle the controller with care and avoid getting the
controller wet.
CAUTION
!
IMPORTANT: The remote control can operate the unit from
a distance of up to 16 ft. (4.88 m) as long as there are no
obstructions. This is one-way communication only (from
remote control to fan coil).
The remote control can perform the following basic
functions:
STurn the system ON and OFF
SSelect operating mode
SAdjust room air temperature set point and fan speed
SAdjust airflow direction
Refer to the Remote Control Function section for detailed
description of all the capabilities of the remote controller.
Battery Installation
Two AAA 1.5 v alkaline batteries (included) are required for
operation of the remote control.
To install or replace batteries:
1. Slide the back cover off the control to open the battery
compartment.
2. Insert batteries. Follow the polarity markings inside
the battery compartment.
3. Replace battery compartment cover.
NOTE:
1. When replacing batteries, do not use old batteries or a
different type battery. This may cause the remote control to
malfunction.
2.If the remote is not going to be used for several weeks,
remove the batteries. Otherwise battery leakage may
damage the remotecontroller.
3. The average battery life under normal use is about 6
months.
4. Replace the batteries when there is no audible beep from
the indoor unit or if the Transmission Indicator fails to light.
Remote Control Operation - Quick Start
NOTE: When transmitting a command from the remote
control to the unit, be sure to point the controller toward the
right side of the unit. the unit will confirm receipt of a
command by sounding an audible beep.
1. Turn the unit on by pushing the ON/OFF button.
2. Select the desired mode by pushing the mode button.
AUTO COOL DRY
HEAT
FAN
NOTE: Cool only units have no heat mode.
3. Select the temperature set point by pointing the
controller toward the unit and pressing the
increase/decrease temperature set point buttons until
the desired temperature appears on screen.
4. Select the desired fan speed by pressing the FAN
SPEED button to select desired fan speed.
NOTE: If unit is operating in Dry mode the fan will only
operate in low speed and cannot be changed.
5. Set the airflow direction. When the unit is turned on,
the louvers default to the cooling or heating position.
The user can adjust louver position by pushing the air
direction button or have continuous louver movement
by pushing the swing button.
Emergency Operation
If the remote control is lost, damaged, or the batteries are
exhausted, the MANUAL button can be used to run the unit.
Open the front cover panel and press the MANUAL button
once briefly when the system is off.
To stop emergency operation, push the MANUAL button
twice or operate the remote control. If the MANUAL button
is only pushed once, the system will enter TEST mode and
run for 30 minutes.
Manual button
A07364
The set conditions of emergency operation are as follows:
SPreset set point: 76_F (24_C)
SFan speed: AUTO
SDischarge air direction: Pre-set position based on
operation in “Cool”or “Heat” mode.

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
6 421 02 9300 00

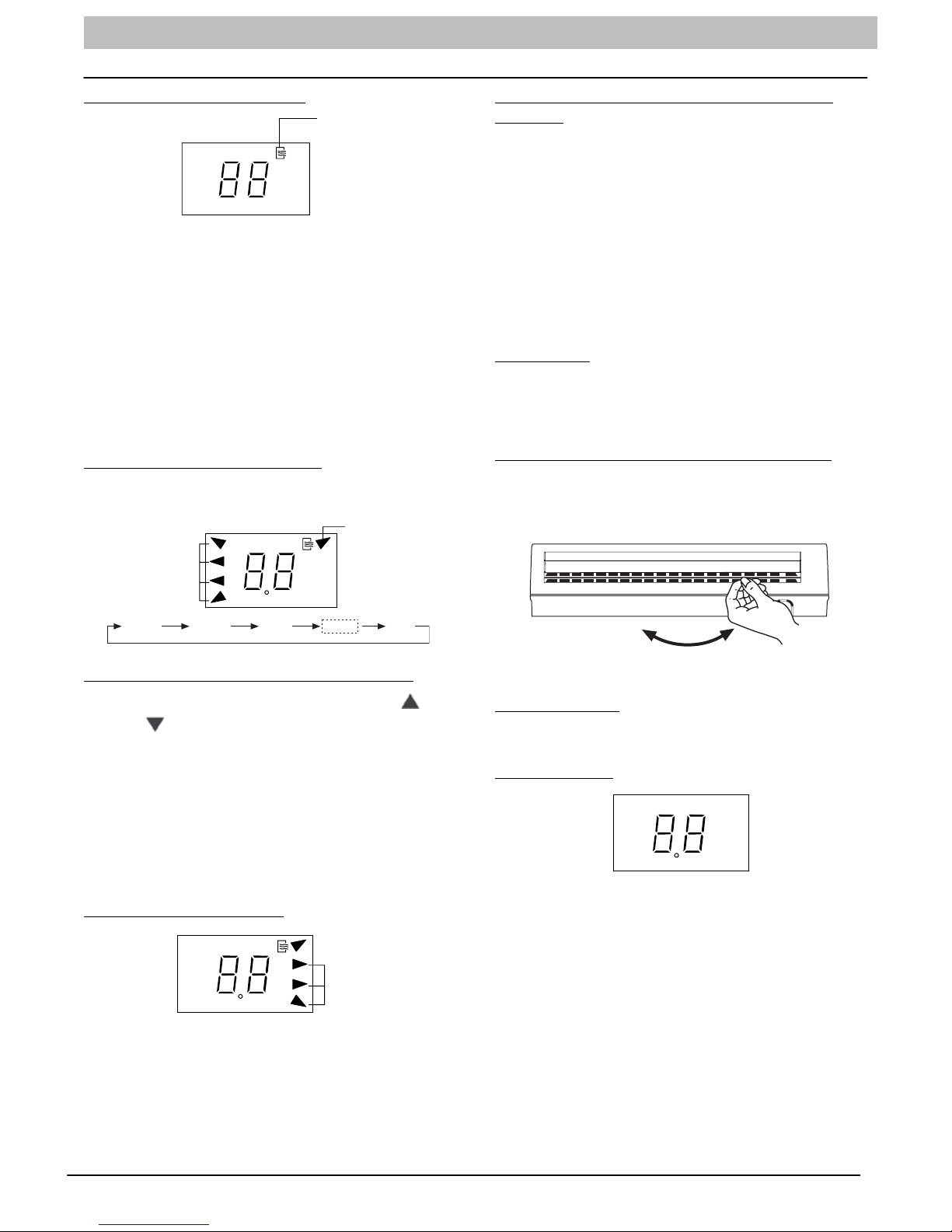

REMOTE CONTROL FUNCTIONS
Pressing the On/Off Button
ON/OFF
Indicator
When the air conditioner is not in operation, the remote
control will display the last set point and mode.
SPress the On/Off button to start the unit.
- The unit will start in the last operating mode and
set point. The ON/OFF indicator will appear.
SPress button On/Off to stop the unit.
- All indicator lights on the unit will go out, and the
remote control will display the set point and mode.
NOTE: If the On/Off button is pressed too soon after a stop,
the compressor will not start for 3 minutes due to the
inherent protection against frequent compressor cycling.
The unit will only emit an audible beep when the signals are
received correctly.
Selecting an Operating Mode
Use the Operating Mode button to select one of the
available modes.
Auto
Cool
Dry
Heat
Fan
AUTO COOL DRY
HEAT
FAN
A07548
Setting the Room Temperature Set Point
Pressing the increase temperature set point and
decrease buttons will raise or lower the temperature.
The unit will confirm signal receipt with a beep and the value
of the set temperature on the display will change
accordingly.
The temperature can be set between 62_F (17_C) and 84_F
(29_C).
NOTE: In Cooling mode, if the temperate selected is higher
than the room temperature, the unit will not start. The same
applies for the Heating mode if the selected temperature is
lower than the room temperature.
Selecting the Fan Speed
high
medium
low
The fan speed can be selected by pressing the FAN
SPEED button.
NOTE: When fan is in AUTO mode, no speed will be
displayed.
NOTE: When the unit is on, the fan will run continuously in
cooling or heating. When in heating, there might be
situations where the fan will slow down or shut off to prevent
cold blow.
Selecting the Horizontal Direction Louver
Position
The airflow direction can be adjusted to optimize air
distribution.
Press the AIR DIRECTION button repeatedly to choose one
of the louver positions.
In the Cooling, Dehumidification, and Fan Only mode, the
louver will swing in the cooling range. In the Heating mode,
the louver will swing in the heating range.
NOTE: Always use the remote control to adjust the louver
position, otherwise abnormal operation may occur. If the
louver is manually adjusted out of its range, turn the unit off
and then on again.
Auto Swing
To have the louver moving continuously, push the SWING
button.
Push again to stop the louver.
Selecting Vertical Direction of the Louver
The vertical louvers can be adjusted manually to direct the
airflow to achieve the optimal comfort in the space.
A07543
Timer Function
TIMER ON (to start the unit) and TIMER OFF (to stop the
unit) can be used separately or together.
Timer ON only
TIMER ON
This function will allow the unit to start automatically after a
set number of hours. The TIMER ON can be set while the
unit is on or off.
UNIT ON
-Press the TIMER ON button. “0:00” will be displayed.
Every time you push the button, the time increases by
increments of .5 hours until 10 hours is reached. After 10
hours, the increases are in increments of 1 hour.
- When the TIMER ON is set, the TIMER light on unit
illuminates. The unit will shut off and it will start again after
the set time elapses.
UNIT OFF
-Set the timer described in the UNIT ON section.
-The unit will start when the set time elapses.

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
421 02 9300 00 7

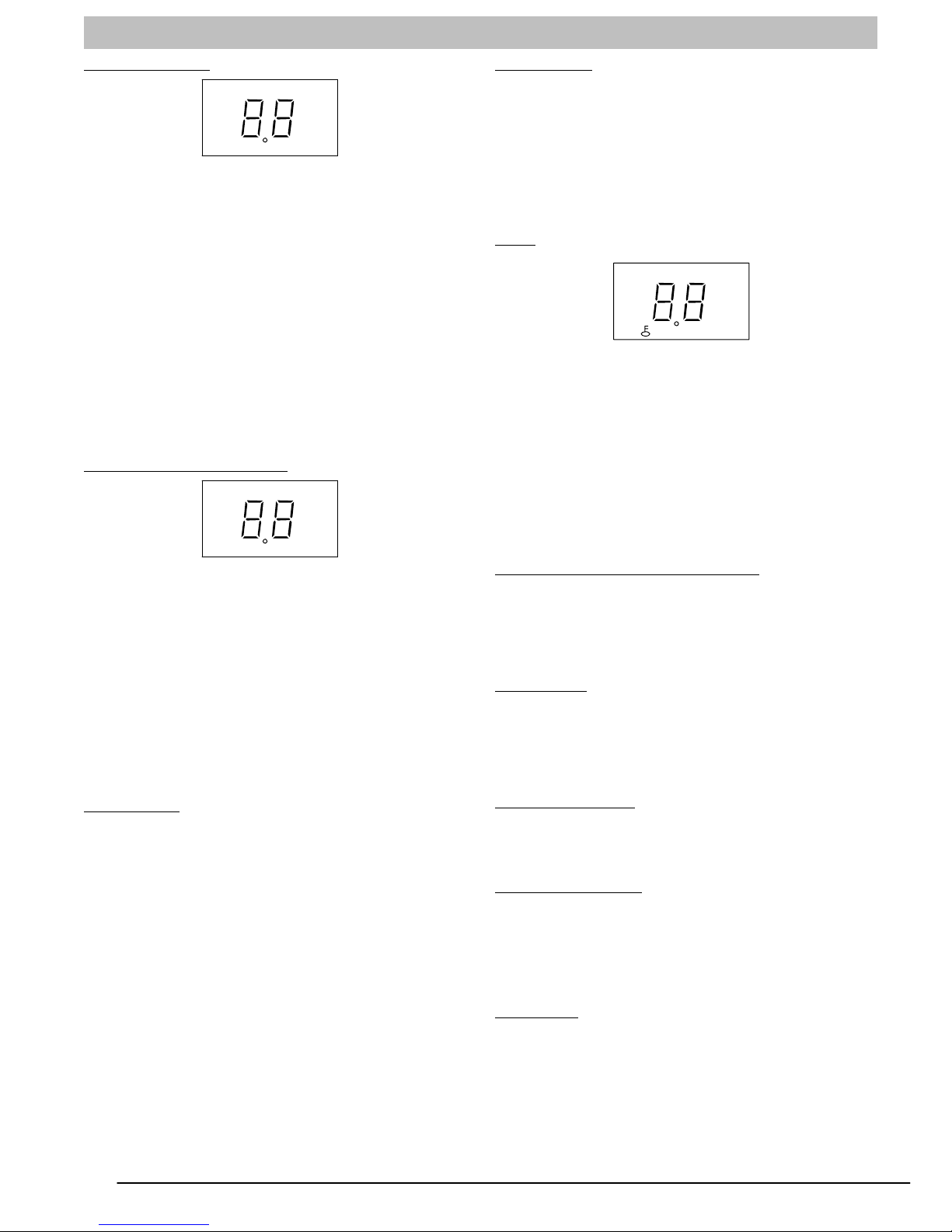

Timer OFF only
TIMER OFF
This function will allow the unit to stop automatically after a
set number of hours. The timer can be set while the unit is
on or while it is off.
UNIT ON
-Press the TIMER OFF button. “0:00” will be displayed.
Every time the button is pushed, the time increases in
increments of .5 hours until 10 hours is reached. After 10
hours is reached, the time increases in increments of 1 hour.
-When the TIMER OFF is set, the timer light on the unit
illuminates and the unit turns off automatically when the set
time elapses.
UNIT OFF
-Set the TIMER off as described in the UNIT ON section.
-The unit will turn on and will turn off after set time elapses.
-If TIMER OFF is set back to “0” before the set time
elapses, the unit will continue running.
Timer ON and Timer OFF
TIMER ON OFF
Use both functions to program the unit to turn on and shut
off at specified times.
UNIT OFF
-Set TIMER ON as previously described.
-Set TIMER OFF as previously described.
-The unit will start automatically after the set TIME ON
elapses and will turn off after the set TIME OFF elapses.
UNIT ON
-Set TIME OFF as previously described.
-Set TIME ON as previously described.
-The unit will turn off automatically after the set TIME OFF
elapses and will turn on after the set TIME ON elapses.
Sleep Mode
This mode is used to conserve energy and can be used
when the unit is in the COOL, HEAT or AUTO mode only.
Cool Mode
-Push the SLEEP button. An audible “beep” will be heard.
No indication is shown on the remote controller or on unit.
-After 1 hour the set point will be raised by 1.8_F (1_C).
-After another hour, the set point will be raised by another
1.8_F (1_C) and the fan will run in low speed.
-The unit will shut off 7 hours after setting the SLEEP
mode.
-The SLEEP mode will be cancelled if any button on the
remote controller is pressed.
Heat Mode
-Same as cooling mode but set points will be lowered by
1.8_F (1_C).
Turbo Mode
This function is available in COOL mode on 9k and 12k
cooling only units. Use the TURBO mode to cool the room
rapidly.
-Press the TURBO button. An audible “beep” will be heard.
-The fan will run on high speed.
-Press the TURBO button again to cancel. An audible
“beep” will be heard.
Lock
Use this function to lock the settings on the remote
controller and to prevent the settings being changed.
The LOCK button is recessed and a paper clip or a pointed
object will be required to operate it.
-Use the remote controller to set the desired conditions of
operation.
-Use a paper clip or similar pointed object to press the
recessed button. A LOCK will be displayed and the settings
cannot be changed.
-To cancel the LOCK mode, press the lock button again.
Resetting the Remote Controller
If the remote control is not functioning properly, it can be
reset by pressing the reset button with a paper clip or tip of a
pen. Current settings will be cancelled and the controller will
return to the initial settings and will be in standby mode.
Push the ON/OFF button to activate it.
Time Delay
If the On/Off button is pressed too soon after a stop, the
compressor will not start for 3 minutes due to the inherent
protection against frequent compressor cycling. The unit will
only emit an audible beep when the signals are received
correctly.
Heating Features
If the unit is in the heating mode, there will be a delay when
the fan starts. The fan will start only after the coil is warmed
up to prevent cold blow.
Defrost Operation
In heating mode, if the outdoor coil is frosted, the indoor fan
and outdoor fan will turn off while system removes the frost
on the outdoor coil.
The system will automatically revert to normal operation
when frost is removed from the outdoor unit.
Auto Start
If the power fails while the unit is operating, the unit stores
the operating condition, and it will start operation
automatically under those conditions when the power is
restored.

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
8 421 02 9300 00
CLEANING, MAINTENANCE, AND TROUBLESHOOTING
ELECTRICAL SHOCK HAZARD
Failure to follow this caution may result in personal
injury or death.
Always turn off power to the system before
performing any cleaning or maintenance to the
system. Turn off the outdoor disconnect switch
located near outdoor unit. Be sure to disconnect
indoor unit if on a separate switch.
CAUTION
!
EQUIPMENT DAMAGE/OPERATION HAZARD
Failure to follow this caution may result in equipment
damage or improper unit operation.
Operating the system with dirty air filters may damage
the indoor unit and could cause reduced cooling
performance, intermittent system operation, frost
build-up on indoor coil or blown fuses.
CAUTION
!
Periodic Maintenance
Periodic maintenance is recommended to ensure proper
operation of the unit. Recommended maintenance intervals
may vary depending on the installation environment, e.g.,
dusty zones, etc. Refer to Table 1.
CUT HAZARD
Failure to follow this caution may result in personal
injury. The coil fins are very sharp. Use caution when
cleaning.
CAUTION
!
Cleaning the Coil
Clean the coil at the beginning of each cooling season, or
when necessary. Use a vacuum cleaner or a long-bristle
brush to avoid damage to the coil fins.
Air Filters
Remove and clean the air filters once a month.
NOTE: If air filters show signs of excessive wear or are torn,
they must be replaced. Contact your local dealer for
replacement filters.
1. Open front panel on unit.
2. Pull filters down to remove.
3. Vacuum filters.
4. Clean with warm water.
5. Shake filter to remove excess water and dry
thoroughly.
6. Replace filter by sliding filter behind front grille until
filter snaps in place.
7. Close front panel on unit.
EQUIPMENT DAMAGE HAZARD
Failure to follow this caution may result in equipment
damage.
When cleaning the front panel, do not use water
hotter than 105_F (40.56_C) and do not pour water
onto the fan coil. Do not use abrasive or petroleum
based cleaners as they may damage the front panel.
CAUTION
!
Indoor Unit Front Panel
To clean the front panel on the indoor unit, wipe the outside
with a soft, dry cloth. If necessary, a mild liquid detergent
can be applied and wiped off with a dry cloth.
Preparing for Extended Shutdown Period
Clean the filters and reposition them in the unit. Operate the
unit in Fan only mode for 12 hours to dry all internal parts.
Turn main power supply off and remove batteries from the
remote control.
System Operation Recommendations
The items outlined in the following list will help to assure
proper system operation:
SReplace both remote control batteries at the same time.
SPoint the remote control toward the unit display panel
when transmitting a command.
SKeep doors and windows closed while unit is operating.
SContact an authorized service representative if a
problem arises that cannot be easily resolved.
SDo not perform cleaning or maintenance activities while
unit is on.
SKeep display panel on unit away from direct sunlight and
heat as this may interfere with remote control
transmissions.
SDo not block air intakes and outlets on the indoor or
outdoor units.
Energy Saving Recommendations
The following recommendations will add greater efficiency to
the ductfree system:
SSelect a comfortable thermostat setting and leave it at
chosen setting. Avoid continually raising and lowering
the setting.
SKeep unit filter clean. Frequent cleaning may be
necessary depending on indoor air quality.
SUse drapes, curtains or shades to keep direct sunlight
from heating room on very hot days.
SDo not obstruct air intake on front panel.
STurn on air conditioning before indoor air becomes too
uncomfortable.
Troubleshooting
Refer to Table 2 before contacting your local dealer.

OWNER'S MANUAL Duct Free Split System - High Wall: DFC4(A/H)3, DFF4(A/H)H
421 02 9300 00 9
Table 1—Periodic Maintenance
INDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR
Clean Air Filter*
Change Remote Control Batteries
S
S
S
OUTDOOR UNIT EVERY MONTH EVERY 6 MONTHS EVERY YEAR
Clean Outdoor Coil from Outside
Clean Outdoor Coil from Inside†
Blow Air Over Electric Parts†
Check Electric Connection Tightening†
Clean Fan Wheel†
Check Fan Tightening†
Clean Drain Pans†
S
S
S
S
S
S
S
* Increase frequency in dusty zones.
{Maintenance to be carried out by qualified service personnel. Refer to the Installation Manual
Table 2—Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
Unit/System Does Not Work •The circuit breaker has tripped or a fuse
has blown.
•Power failure.
•Diagnostic lights illuminate.*
•Voltage is too low.
•Reset the circuit breaker or replace the fuse with
the specified replacement fuse.
•Restart operation when the power is restored.
•Call your service representative.
•Call your service representative.
Cooling is Not Working
Properly
•The filter is blocked with dust.
•Temperature is not set properly.
•A window or door is open.
•The outdoor unit is obstructed.
•The fan speed is too low.
•The operation mode is in Fan instead of
Cool.
•Clean the air filter.
•Check the temperature and reset if necessary.
•Close the window or door.
•Remove the obstruction.
•Change the fan speed selection.
•Change the operating mode to Cool or reset the
unit.
Heating is Not Working
Properly
•The filter is blocked with dust.
•Temperature is set too low.
•A window or door is open.
•The outdoor unit is obstructed.
•Clean the air filter.
•Check the temperature and reset if necessary.
•Close the window or door.
•Remove the obstruction.
Unit Stops During Operation •The Off timer is not operating correctly.
•Diagnostic lights illuminate.*
•Restart the operating mode.
•Call your service representative.
* Diagnostic lights are a combination of lights that will illuminate in the display area on the unit. They are a combination of the lights you see during normal
operation.
