Intraphex TD-cadicue2013-V2 User manual

TD-cadicue2013-V2
INSTALLATION
MANUAL
V.2
NAVIGATION/VIDEO/camera INTEGRATION
MODULE
APPLICATIONS:
2013
Srx, xts, ats
With Cue system

www.INTRAPHEX.com
[e-mail]
SUPPORT: 810.355.2266
EXT 4
Fax: [phone]
FACETIME VIDEO TECH SUPPORT:
[email protected]
Contacts

What’s In The Box
Contents
 RGB/VIDEO
INTERFACE
 T-HARNESS
 INSTALL/USERS
GUIDES
 RCA HARNESS
 CAN BOX
 INTERFACE POWER
HARNESS
 GPS ANTENNA
 8GB SD CARD WITH
NAVIGATION
SOFTWARE
 EXTERNAL SPEAKER

 THE CANBUS INTERFACERFACE CAN SUPPLY POWER AND GROUND TO
THE ADDED DEVICES SUCH AS THE REVERSE CAMERA. THE MAXIMUM
OUTPUT FOR THESE IS 1 AMP. IF THE DEVICE THAT YOU PLAN TO USE
DRAWS MORE CURRENT THAN THIS, IT WILL BE NECESSARY TO USE A
RELAY .
CAN INTERFACE 6 PIN HARNESS
RED CAN GENERATED 12V ACC (MAX 1amp)
YELLOW 12V BATTERY (MAX 1 amp)
BLACK GROUND
GREEN CAN GENERATED REVERSE 12V (MAX 1 amp)
GREY NOT USED
WHITE NOT USED
CAN BOX

 NOT ALL HARNESSES WILL BE USED IN TYPICAL INSTALLATION, SUCH AS
AUDIO RCA HARNESS AND MOMENTARY SWITCH.

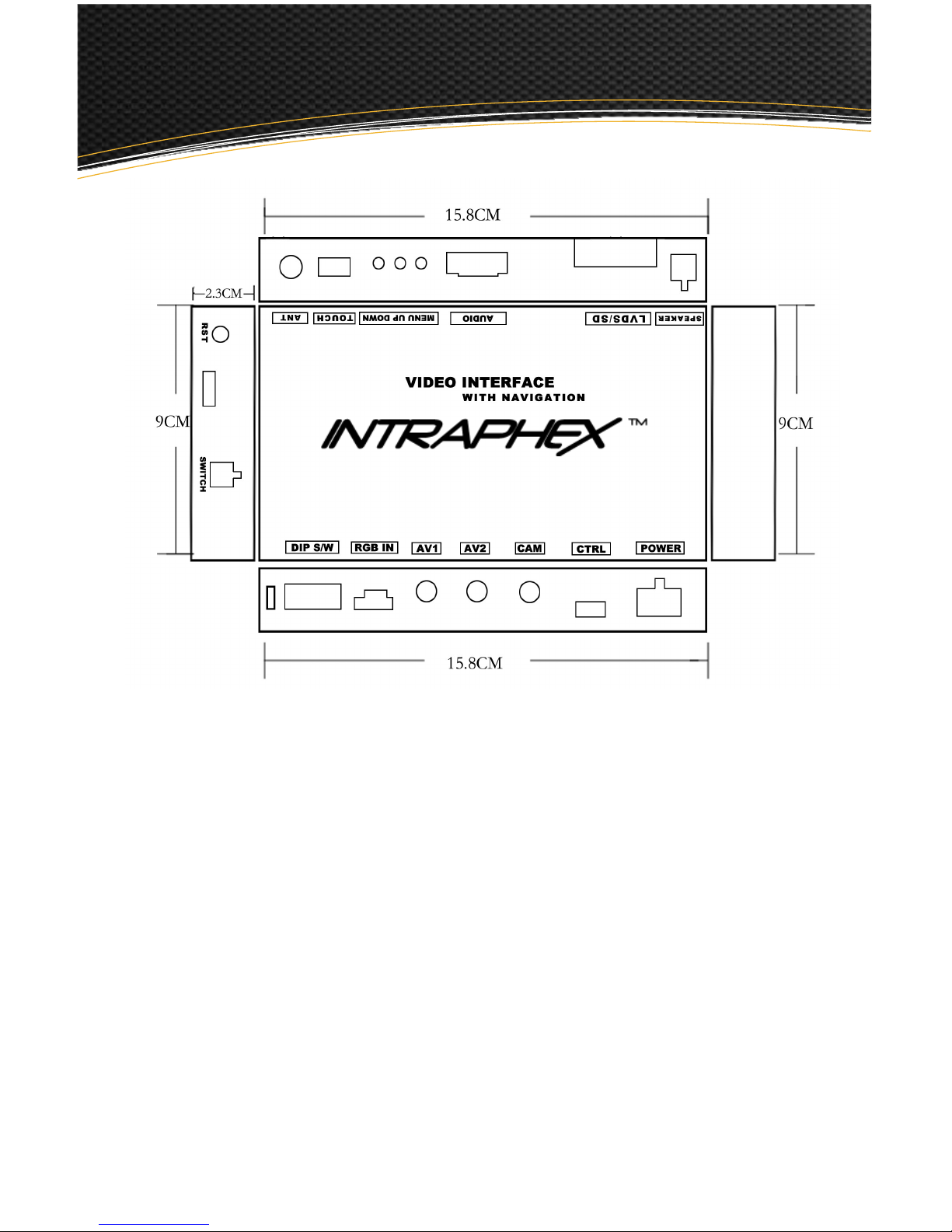

INTERFACE

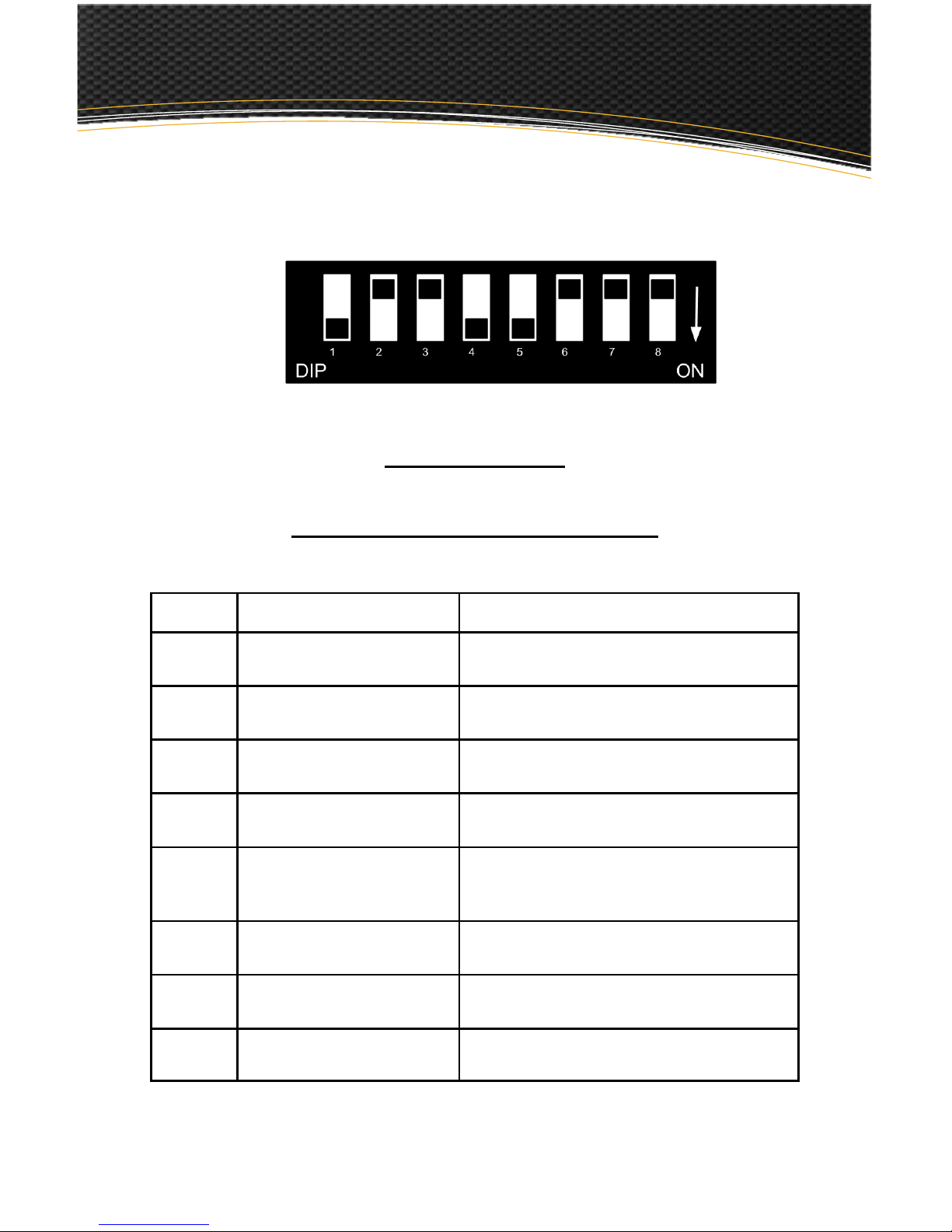

DIP SWITCH SETTINGS
DIP DOWN UP
1RGB (NAVI) INPUT ON RGB (NAVI) INPUT OFF
2VIDEO 1 ON VIDEO 1 OFF
3VIDEO 2 ON VIDEO 2 OFF
4RGB RES 800X480 HD RGB RES 480X234
5GREEN WIRE TRIGGER TO
CAMERA INPUT
GREEN WIRE TRIGGER TO OEM DISPLAY
FACTORY CAMERA
6NO FUNCTION NORMAL OPERATION (DEFAULT)
7NO FUNCTION NORMAL OPERATION (DEFAULT)
8NO FUNCTION NORMAL OPERATION (DEFAULT)

 REMOVE DECORATIVE TRIM BEZEL
SURROUNDING THE RADIO CONTROLS
AND LCD MONITOR. THERE ARE 6 CLIPS
AND TWO 7MM SCREWS THAT HOLD IT
IN PLACE.
 HERE IS THE BACK OF THE BEZEL FOR
REFERENCE OF WHERE THE CLIP AND
SCREWS ARE LOCATED.
 ONCE 7MM SCREWS HAVE BEEN
REMOVED, GENTLY PULL THE TRIM
BEZEL TO RELEASE THE CLIPS.
 REMOVE THE FOUR 7MM SCREWS
HOLDING THE MONITOR/CD
MECHANISM IN PLACE.
 INSTALLATION SHOWN IN 2013 SRX OTHER VEHICLES WILL VARY

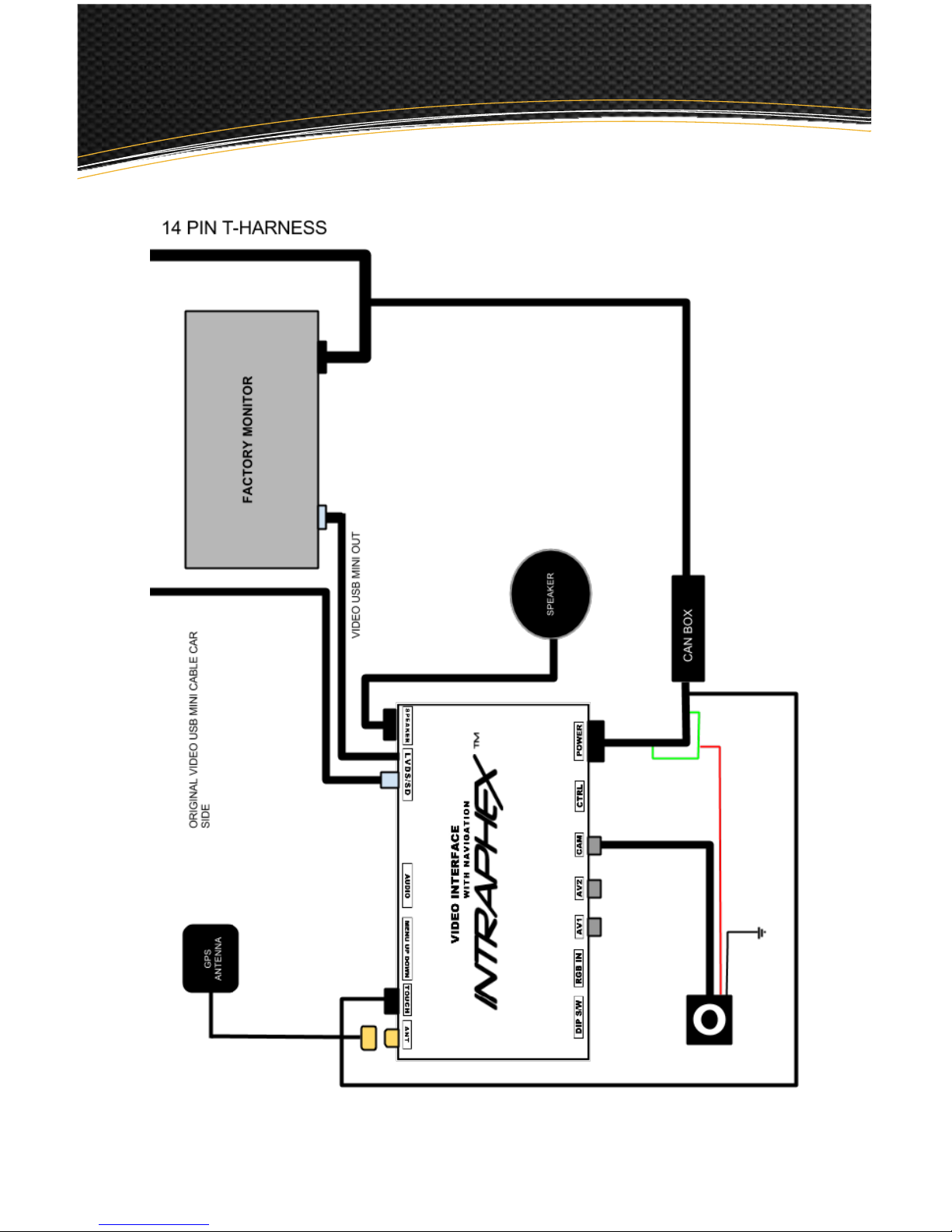

 UNPLUG BLACK MINI USB CONNECTOR
FROM BACK OF MONITOR. PLUG CAR
SIDE OF MINI USB CABLE TO FEMALE
USB CONNECTOR ON CADICUE
INTERFACE. PLUG MALE SIDE FROM
INTERFACE BACK INTO LCD MONITOR.
 UNPLUG 14 PIN BLACK CONNECTOR
FROM MONITOR ASSEMBLY. PLUG CAR
SIDE MALE 14 PIN CONNECTOR INTO
FEMALE SIDE OF INTRAPHEX PROVIDED
T-HARNESS. PLUG MALE SIDE OF
INTRAPHEX T-HARNESS BACK INTO
MONITOR ASSEMBLY.
 YOU CAN NOW INSTALL YOUR BACKUP
CAMERA. THE GREEN WIRE ON THE 6 PIN
MOLEX CONNECTOR TO THE INTERFACE IS
CAN GENERATED REVERSE SIGNAL
(12v—1amp). YOU CAN POWER YOUR
CAMERA FROM THIS WIRE. IF YOU PLAN TO
USE THE REVERSE LAMP WIRE TO POWER
YOUR CAMERA YOU MUST USE A RELAY.
 PLUG YOUR VIDEO SIGNAL FROM CAMERA INTO THE CAMERA VIDEO IN
PORT ON THE INTERFACE.
 YOU CAN NOW PLUG THE CAN BOX INTO THE T-HARNESS. FIND A
SUITABLE LOCATION TO MOUNT THE INTERFACE AND REASSEMBLE THE
DASH. BE SURE THAT YOUR DIP SWITCHES ARE SET CORRECTLY
ACCORDING TO YOUR DESIRED FEATURES. SEE DIP SWITCH SETTING
DIAGRAM IN THE FRONT OF THIS MANUAL.
 INSTALLATION SHOWN IN 2013 SRX OTHER VEHICLES WILL VARY

 ONCE ALL CONNECTIONS HAVE BEEN MADE YOU CAN TURN THE IGN ON
AND PRESS AND HOLD THE TOUCH SCREEN UNTIL THE INTERFACES
SWITCHES TO THE NAVIGATION INPUT. PRESSING AND HOLDING THE
TOUCH SCREEN IN THE TOP LEFT CORNER WILL SWITCH THE INTERFACE
BETWEEN NAVIGATION/VIDEO 1/VIDEO2/FACTORY SCREEN DEPENDING
ON WHICH DIPSWITCHES YOU HAVE SET.

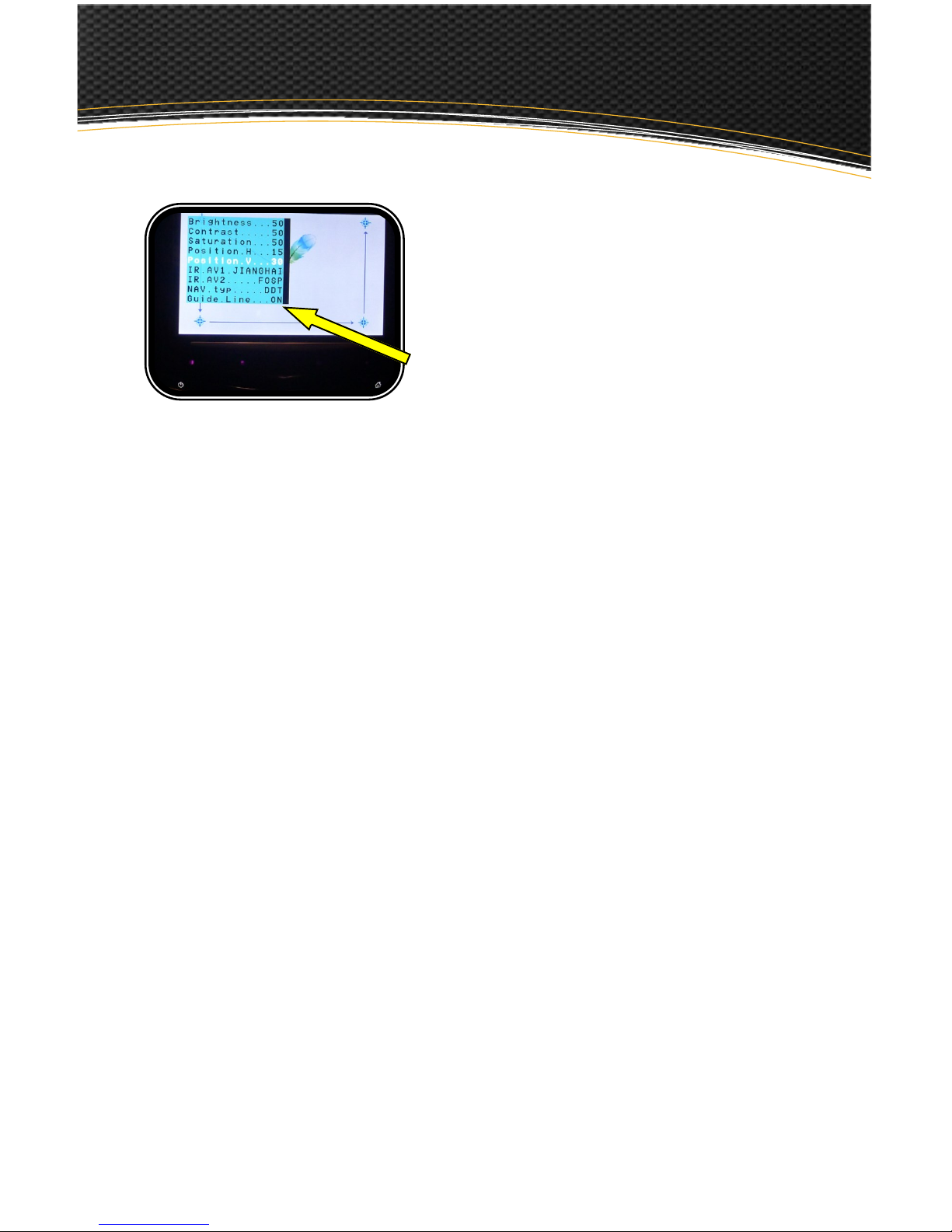

 YOU CAN ADJUST THE CONTRAST AND BRIGHTNESS IN THE SCREEN
SETTINGS TO GET DESIRED SCREEN IMAGE.
 PRESS THE “X” BUTTON AT THE TOP RIGHT CORNER AND THEN “YES” TO
SAVE.
 INSERT THE SD CARD.
 YOU CAN NOW PRESS THE NAVIGATION ICON TO LAUNCH THE
NAVIGATION SOFTWARE.
 IF YOU HAVE ANY QUESTIONS ABOUT THIS SETUP, PLEASE CONTACT TECH
SUPPORT 810-355-2266 MONDAY-FRIDAY 9-5 EST.
 MOUNT GPS ANTENNA. IT CAN BE
MOUNTED UNDER DASH PANEL AS
LONG AS IT HAS A CLEAR VIEW OF THE
SKY THROUGH PLASTIC ONLY. MOUNT
SPEAKER IN DESIRED LOCATION, AND
CONNECT GPS ANTENNA AND SPEAKER
TO INTERFACE.
