1 User and safety instructions
Thank you for purchasing this high quality product from inVENTer!
This section provides an overview of the basic safety precautions for safe and proper operation
of your ventilation system.
1.1 User information
Safety and warning instructions
The safety and warning instructions in these installation instructions have a uniform structure and
are marked with a symbol on the left side of the instruction. A signal word in front of the text also
indicates the hazard level. If several hazard levels exist, the highest level safety instruction is
always used.
The safety and warning instructions contain the following information:
SIGNAL WORD: Type and origin of the hazard. Possible consequences of the hazard!
Measures to avoid the hazard.
The signal word indicates the severity of the potential hazard unless the preventive measures are
taken:
DANGER means: Imminent danger of serious injury or death.
WARNING means: Possible danger of serious injury or death.
CAUTION means: Direct danger of minor/signicant injury.
NOTICE means: Direct or possible risk of property damage due to an adverse event/state.
If you see these signs, ensure you observe the described measures to prevent possible hazards
and/or damage.
Other symbols used in this documentation
In addition to the safety instructions, the following symbols are used:
A TIP symbol indicates practical and useful tips for handling your ventilation system.
Before each step, any additional tools and materials required for the activity are listed.
Red bar over a graphic: graphic shows the interior wall.
Blue bar over a graphic: graphic shows the exterior wall.
► Action required: This prompts the user to perform a specic action.
Check the results requires you to check the results of the action you have performed.
Action focus: To be taken into account in the corresponding assembly step.
i
!

5
USER AND SAFETY INSTRUCTIONS
5
iV14-MaxAir ventilation device | Installation instructions
1.2 Safety instructions
The installation instructions are part of your iV14-MaxAir ventilation device and must be available
at all times (see www.inventer.eu/downloads). When handing the system to a third party,
the information regarding access to the installation instructions must be handed over also.
Before performing any work on the device/system, read the installation instructions carefully
and observe all notices that refer to the installation process in this section. Also note the safety
instructions that precede the described handling instructions.
Non-observance of safety instructions could result in injury and/or property damage.
These installation instructions only cover the standard variant (referred to as the "Standard
variant" in the following text) of the iV14-MaxAir ventilation device. Information on the variants
can be found in the separate installation instructions for the respective components.
Intended use
The ventilation device is designed to ventilate dwellings and similar residential spaces and other
areas where people spend time e.g. living rooms and bedrooms, o󰀩ces, basements and attics. It
is controlled via an inVENTer system control device (hereinafter referred to as the "controller").
General information
• Always observe the relevant standards, regulations and guidelines when installing the
equipment / system. In particular also applicable building regulations, re safety regulations and
accident prevention regulations of the employers' liability insurance association.
• Use the device/system exclusively for the applications that are described in this documentation
and only in conjunction with components that are recommended, authorised and described by
inVENTer GmbH in this documentation.
Changes or modications to the equipment/system are not permitted.
• Your ventilation system is exclusively designed for use in ambient temperatures between
-20 and 50 °C.
• Trouble-free and safe operation of the equipment / system depends on proper transportation,
proper storage and installation, as well as careful operation and cleaning / care.
• The ventilation device is based on the free movement of air between individual pairs of ventila-
tion devices. Therefore, internal doors must not have air-tight seals. Provide suitable air transfer
measures to create a room network (cross ventilation).
Installation and assembly
• CAUTION: The system may only be installed by qualied personnel.
• Before starting work, you should have a project plan showing the number of ventilation devices,
the location of the ventilation devices, the ventilation principle (cross ventilation, single room
ventilation, extract ventilation) and the associated controllers. The exact positioning of the
individual devices and control devices must be checked at the installation site and, if necessary,
adapted to the local conditions with the involvement of the responsible planner or user.
For optimum functionality, it is recommended to install the device at an appropriate place in the
upper wall area.
• WARNING: For joint operation with replaces, safety measures must be taken to prevent a
negative pressure from developing in the building. The responsible chimney sweep and/or
building planner decides which measures need to be carried out.

6
USER AND SAFETY INSTRUCTIONS
6iV14-MaxAir ventilation device | Installation instructions
• NOTICE: The ventilation device is not suitable for drying out buildings. Do not put it into opera-
tion until the construction work has been completed.
• NOTICE: Contamination of components, e.g. by plaster residue, will damage the components!
Seal the ventilation device/air outlets of the ventilation device so they are dust-tight throughout
the construction work. Do not remove the thread locks until nal assembly.
• NOTICE: Do not install the device near indoor air thermostats or in the immediate vicinity of/
above sensitive pictures or furniture.

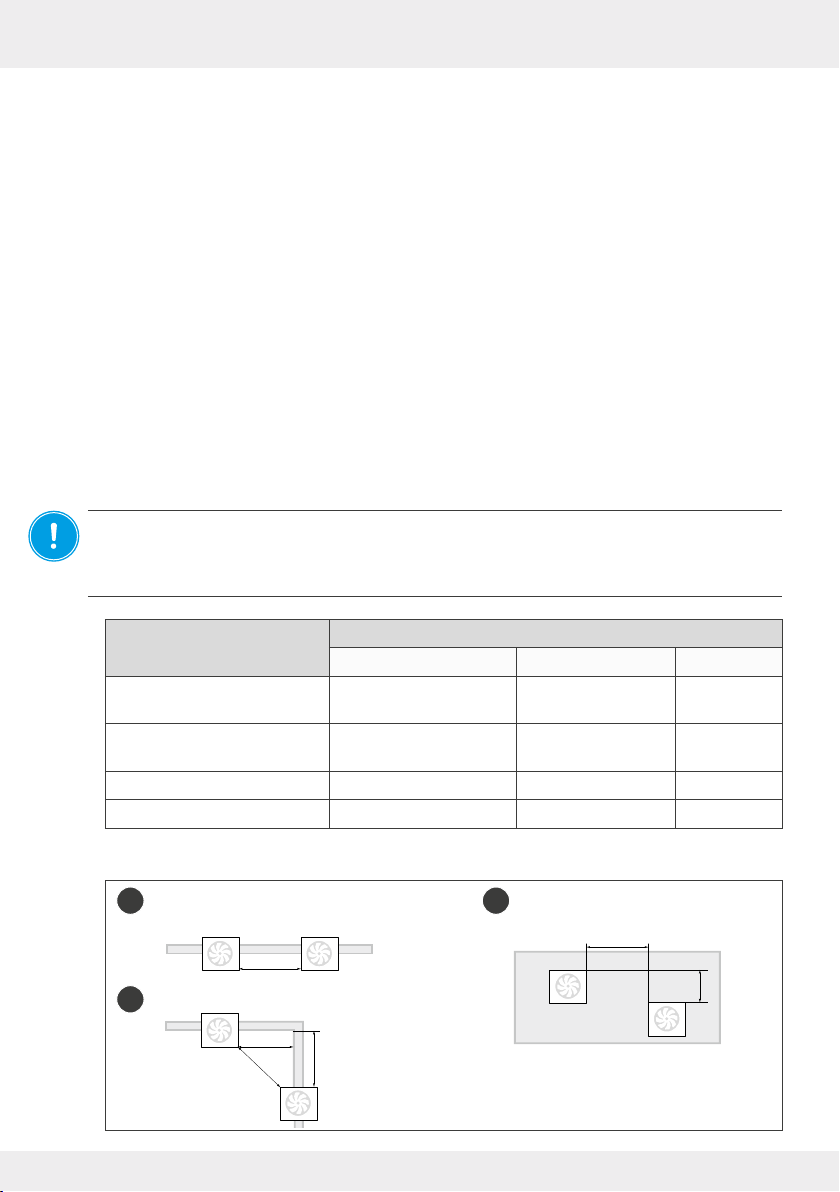

• NOTICE: Observe the specied minimum clearances on both sides of the wall and frontally
to prevent unintentional mixing of di󰀨erent air ows and to ensure access to the device and its
components. A minimum distance of 1.2 m must be maintained between adjacent air openings.
(, page 14 f.).
• NOTICE: The wall sleeve must be integrated into the building envelope (airtightness level) in
accordance with the current state of the art, taking into account construction-related and
physical specications ("RAL installation"). Material for this is must be provided on site.
• NOTICE: When bringing the wall construction up to the wall sleeve, observe the necessary
blocking levels to avoid interrupting the composite thermal insulation system. Consult your
planner before installation if you are at all uncertain!
• NOTICE: Install the wall sleeve with a slope of 1 – 2° to the exterior wall to ensure the drainage
of any condensate that may form.
• NOTICE: Do not install the ventilation device in places where direct contact with water spray is
possible. Observe the specications of VDE 0100 when choosing the installation location.
• NOTICE: Store components standing outside the wall sleeve and do not throw them to avoid
damage and breakage of the components, especially the thermal accumulator.
• NOTICE: In order to avoid algae growth around the external terminations, the instructions
for installation must be followed exactly (apply all sealing tapes!). We recommend a biocidal
pre-treatment/water-repellent pre-treatment of the façade surface around the external
terminations. Consult your planner about this!
• NOTICE: When installing components in (exterior) walls with insulation, use insulation wall-
plugs to ensure that the components are securely fastened.
Insulation wallplugs are not included in the scope of supply, they are available as an option!
• NOTICE: Only use permanently elastic sealing compound suitable for outdoor use to seal the
joints at all external edges!
• NOTICE: The ventilation device has scratch-sensitive plastic surfaces. Do not touch the com-
ponents with oily and/or dirty hands. Avoid contact with sharp or pointed objects, e.g. rings.
Cabling / connection of the reversible fan
• CAUTION: The system's electrical connections may only be carried out by qualied
electricians.
• NOTICE: The reversible fan operates with protective extra-low voltage.
It must not be connected directly to the 230 V power grid.
• NOTICE: Laying cables whose sheathing is not resistant to plastering under plaster leads to
short circuits and cable re! Lay cables without a plaster-resistant cable sheath in the conduit.
• NOTICE: The use of too small a cable cross-section leads to too great a voltage drop and/
or contact is not guaranteed! For the fan BUS, use a cable cross-section of at least 0.75 mm²
(stranded wire). Use wire ferrules with collars to connect the strands.
• When using several ventilation devices controlled by several controllers, you must ensure that
the ventilation devices are synchronised with each other (see installation instructions for con-
trollers). You should connect all controllers via a mains fuse in the house distribution board.
If your device has a fault, contact your nearest distributor or our technical service.
Any kind of use other than the intended use will exclude all liability claims.

7
USER AND SAFETY INSTRUCTIONS
7
iV14-MaxAir ventilation device | Installation instructions
Improper use
Any use that is not mentioned in the intended use section, is considered to be improper.
Especially do not install / operate the device in areas which the following may occur:
• Environment containing strong oils or lubricants.
• Flammable, aggressive and corrosive gases, liquids or vapours.
• Extreme dust exposure.
• Ambient temperatures outside the range of -20 to 50 °C.
• Prevent obstacles that hinder access to, or removal of, components of the ventilation device.
The ventilation device is not to be used as an opening to the outside and/or for the purpose of
smoke removal/smoke extraction in basements without windows.
Qualied personnel
The equipment/system may only be set up, operated and cleaned in conjunction with this
documentation and the documentation for the controllers.
Installation, electrical connection and commissioning of the equipment/system may only be
performed by qualied personnel. Qualied personnel within the meaning of the safety notices
in this documentation are persons who are authorised to install, put it into operation and identify
equipment, systems and circuits in accordance with established safety procedures.
Conformity
The ventilation device complies with the technical safety requirements and standards of electrical
appliances for domestic use. It conforms to current European Union and United Kingdom
directives. The full text of the EU declaration of conformity is available at the following Internet
address: https://www.inventer.eu/downloads/ .

8
SYSTEM OVERVIEW: IV14-MAXAIR VENTILATION DEVICE
8iV14-MaxAir ventilation device | Installation instructions
2 System overview: iV14-MaxAir ventilation device
The iV14-MaxAir ventilation device is a decentralised ventilation device with heat recovery and is
designed for increased air ow requirements (performance-plus device). It is suitable for installa-
tion in new buildings as well as for retrotting in older buildings and is particularly suitable for use
in large living spaces and similar commercial premises (e.g. o󰀩ces, doctors' surgeries, lounges,
etc.). Installation is generally carried out in the exterior wall.
The ventilation device consists of a wall sleeve in which the thermal accumulator insert is
mounted. A lockable inner cover conceals the iV14-MaxAir discreetly from the interior. The lter
integrated into the inner cover ensures that no pollen or dust from outside enters the interior.
Outside, a driving rain-proof cover conceals the components of the ventilation device.
The thermal accumulator insert includes a ceramic thermal accumulator and inVENTron, two
guiding vane elements and the Xenion EFP reversible fan. The guiding vanes on both sides
of the fan serve to straighten the air ow and ensure more e󰀩cient ow through the thermal
accumulator. The unique geometry of the Xenion EFP reversible fan e󰀨ectively reduces sound
transmission.
The standard length of the wall sleeve is 495 mm. For thicker walls, a wall sleeve and insert with
a length of 745 mm can be ordered as an alternative. Both versions can be shortened on site.
The ventilation device is controlled via one of the following inVENTer system controllers1):
• Pure • sMove • MZ-Home
Components
• Inner cover incl. ISO Coarse 60 % lter
• Thermal accumulator insert (thermal
accumulator, inVENTron)
• Wall sleeve
• External termination2)
• Pollen and activated carbon lter (optional)
• Sound and wind protection accessories
(optional)
Models
The ventilation devices of the iV14-MaxAir product range di󰀨er in their external terminations.
Additional inner covers are also available. This documentation only contains information on the
standard version of the ventilation device. For information on the variants of the external and
internal terminations, please refer to the separate installation instructions for the respective
component:
• Standard variant: iV14-MaxAir ventilation devices with Flex driving rain-proof weather
protection hood (white/grey/anthracite/custom colour).
• Corner variant: iV14-MaxAir Corner ventilation devices (hereinafter referred to as the "Corner
variant") for integration of the external termination in the window reveal (white/grey/anthracite/
custom colour).
• Nordic variant: iV14-MaxAir Nordic variants (in the further text "Nordic variant") for the integra-
tion of the external termination in clinker brick walls (white/grey/anthracite/custom colour).
1) The installation and operating instructions for the controller are not part of this documentation.
2) All external terminations are available in stainless steel or optionally in aluminium [increased salt resistance].

9
SYSTEM OVERVIEW: IV14-MAXAIR VENTILATION DEVICE
9
iV14-MaxAir ventilation device | Installation instructions
2.1 Construction
Figure 1: Overview of the iV14-MaxAir ventilation device
Components
Thermal accumulator insert
(thermal accumulator, inVENTron)
Flair inner cover
External termination:
Flex weather protection hood
1 Weather protection hood cover
2 Weather protection hood base plate
3 R-D200 wall sleeve
4 Fixing elements (4 x)
5 Recess for controller connecting
cable
6 Thermal accumulator with insulation
7 Thermal accumulator handle
8 R-D200 guiding vane
9 Xenion EFP reversible fan
10 Slim guiding vane (narrow)
11 Guiding vane knob
12 BUS plug connection
13 Inner cover base plate
14 ISO Coarse 60 % dust lter
15 Inner cover panel
16 Spacer (4 x)
Wall sleeve
Flex
180°
A
B
C
D
Standard variant
A
B
D
C
1
2
1
2
14
12
3
11
13
6
5
16
7
8
9
15
4
10

10
SYSTEM OVERVIEW: IV14-MAXAIR VENTILATION DEVICE
10 iV14-MaxAir ventilation device | Installation instructions
2.2 Function
Decentralised ventilation
Decentralised ventilation systems combine extract and supply air and are based on free air
movement between individual pairs of ventilation devices (cross-ventilation). The cross-ventila-
tion principle allows the air to circulate through the entire residential device and also su󰀩ciently
ventilate interior living spaces. Each ventilation device is mounted in its own air duct so as not to
obstruct other ventilation processes.
The decentralised iV ventilation systems with heat recovery consist of ventilation devices
arranged in pairs with simple air ow. They operate according to the principle of heat recovery by
changing the direction of the fan. The integrated thermal accumulator is charged with the thermal
energy of the room air as it ows externally (extract air). After 70 seconds, the reversing fan
changes the direction of rotation each time. After the direction of rotation has changed, the heat
accumulator releases the stored heat energy to the incoming fresh air (supply air).
For this principle to work correctly and to ensure pressure stability in the room, the supply air
volume must always correspond to the extract air volume, i.e. at least two ventilation devices are
required. These are operated in pairs in push-pull mode: another ventilation device is assigned to
the ventilation device that delivers supply air and at the same time removes used extract air from
the interior to the outside.
You operate the iV ventilation systems intuitively with the matching inVENTer controllers.
Di󰀨erent operating modes or the air volume ows can be set individually.
The most important components of the iV system are the ceramic thermal accumulator, the
reversing fan, air guiding vanes for straightening the air volume ow, lters for di󰀨erent hygienic
requirements, a closable inner cover and an outer cover. A control device (controller) completes
the system.
70 s

11
SYSTEM OVERVIEW: IV14-MAXAIR VENTILATION DEVICE
11
iV14-MaxAir ventilation device | Installation instructions
Ventilation device iV14-MaxAir
The iV14-MaxAir ventilation device is used to provide ventilation for living spaces and living space-
like commercial premises. An integrated ceramic thermal accumulator ensures optimum heat
recovery.
The iV14-MaxAir ventilation device is a ventilation device with simple airow and works according
to the principle of heat recovery by changing the direction of the fan.
Thanks to a high pressure build-up and the active speed control of the motor (integrated wind
pressure stabiliser) in the Xenion EFP reversible fan, the air ow in the system is kept almost
constant even in the event of weather-related pressure uctuations. Thus, the sensitivity of the
air ow to pressure uctuations corresponds to class S2 according to EN 13141-8 (max. 20 % air
ow deviation at ± 20 Pa).
In order to ensure the full functioning of the ventilation device throughout the entire year, a tem-
perature sensor is integrated into the Xenion EFP reversible fan. This measures the temperature
of the air ow. If the temperature falls below +5 °C, the reversible fan is automatically switched to
extract air mode for 4 cycles. This allows the thermal accumulator to heat up again and prevents
cooling of the interior due to cold supply air. During this phase, the operating mode that has been
set on the controller is ine󰀨ective. Subsequently, the controller switches the ventilation device
back to the originally selected mode.
As standard, a washable ISO Coarse 60 % class dust lter is integrated into the inner cover. This
lters coarse dust and allergenic particles (such as coarse ower pollen) from the air before they
can enter the interior. The dust lters can be used regardless of the season.
Optional pollen and activated carbon lters are available for special requirements.

12
SYSTEM OVERVIEW: IV14-MAXAIR VENTILATION DEVICE
12 iV14-MaxAir ventilation device | Installation instructions
2.3 Control elements

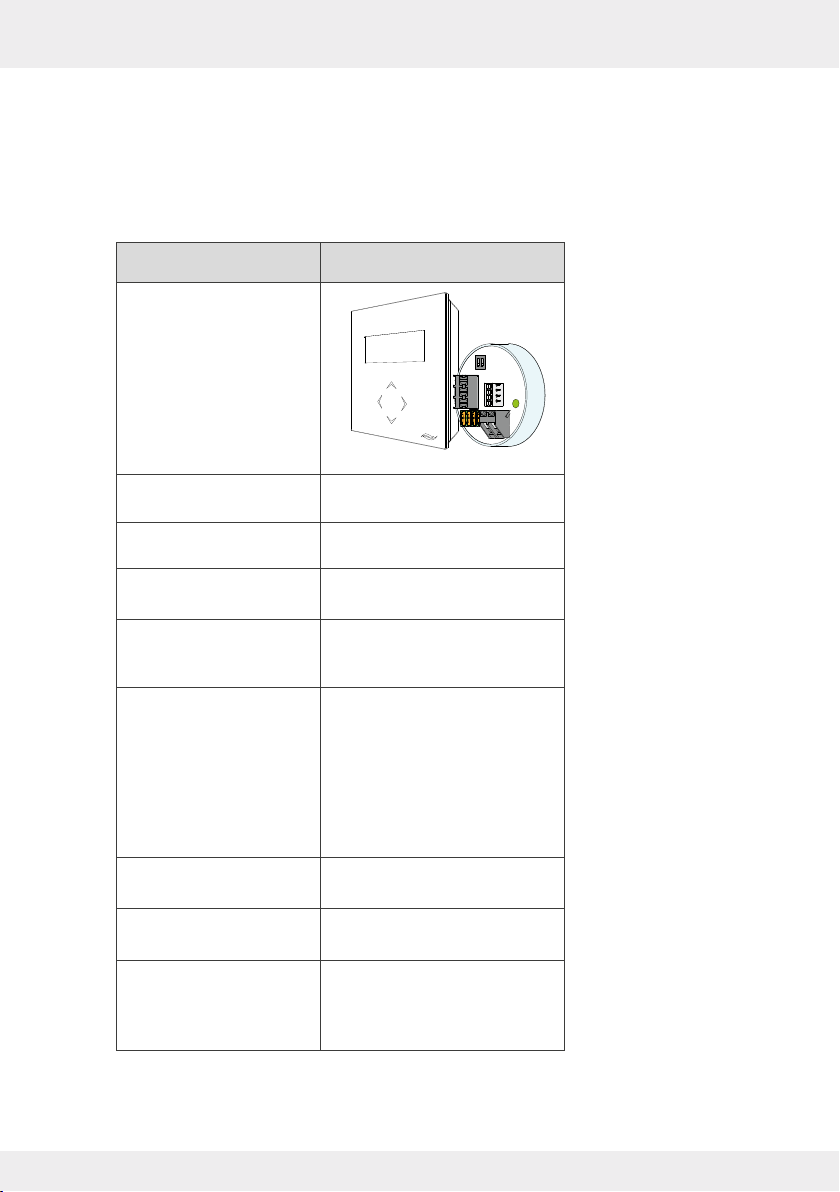

The ventilation device is operated via an inVENTer system controller.
Depending on the controller, di󰀨erent operating modes and functions can be set.
Basic controls
Designation Pure sMove
Number of controllable
ventilation devices
Max. 2 s4: Max. 2
s8: Max. 4
Multi-zone control No No
Operating concept •Switch •Touch
Operating modes •Heat recovery
•Unidirectional ventilation
•OFF (standard version only)
•Heat recovery
•Unidirectional ventilation
•OFF (standard version only)
Functions •Pause-Function (1 h) •Pause-Function (1 ... 8 h)
•Boost-Function (1 h)
Fan speed 3 Output levels, predened innitely adjustable,
4 Output levels, predened
Device communication Cable Cable
External interface 1 potential-free switching
contact per Control module:
•Pressure switch (NC)
•Other sensors (NO)
1 potential-free switching con-
tact per controller:
•Pressure switch (NC)
•Other sensors (NO)

13
SYSTEM OVERVIEW: IV14-MAXAIR VENTILATION DEVICE
13
iV14-MaxAir ventilation device | Installation instructions
Multi-zone control
Designation MZ-Home
Number of controll-
able ventilation devices
Max. 8
(excl. sensors)
Multi-zone control max. 4 zones with max. 2 devices
[plus sensors] per zone
Operating concept •Touch
•Weekly timer
Operating modes •Heat recovery
•Through-ventilation
•OFF
Functions •Pause function (1... 8h)
per zone
•Dehumidication with variable
air volume ow
Fan speed 4 Output levels,
freely selectable
Device communication Cable
External interface 1 potential-free switching contact
per Clust-Air module (max. 4)
•Pressure switch (NC/NO)
•Other sensors (NO)
For detailed information, see the controller's installation and operating instructions.
Operating Unit & Clust-Air module
ON
1 2

14
PREPARING FOR INSTALLATION
14 iV14-MaxAir ventilation device | Installation instructions
3 Preparing for installation
3.1 Installation position
• The installation location can be derived from the position suggested by the ventilation
planning. The exact positioning of the individual devices and control devices must be checked
on site and, if necessary, adjusted. Consult the responsible planner about this!
For optimum function, it is recommended that the ventilation device is installed at the appropri-
ate point in the upper wall area (e.g. 1.80 m from the upper edge of the nished oor [UEFF]).
• Do not place the ventilation device near radiators, indoor air thermostats, sensitive furniture or
above pictures.
• Do not install the ventilation device in places where direct contact with water spray is possible.
Observe the specications of VDE 0100 when choosing the installation location.

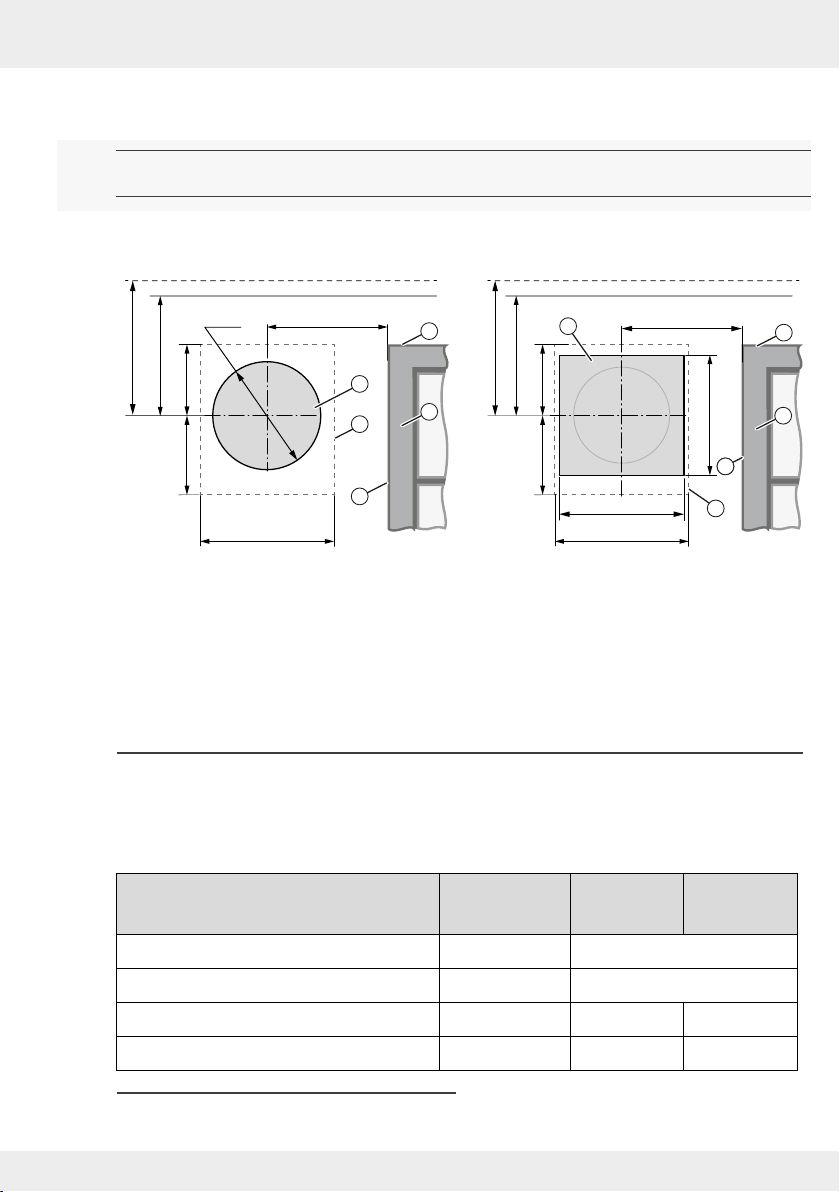

Minimum distances of the wall opening for the ventilation device:
• Minimum distances to components / building elements on the interior and exterior wall:
NOTICE: Malfunction due to incorrect positioning of the ventilation device.
• Note insulation thickness and possibly shutters!
• Do not install near radiators!
• Observe minimum distance of 1.2 m to adjacent air openings!
Component termination Distance from centre of hole on the
Exterior wall [mm] Interior wall [mm] frontal [mm]
Flex weather protection hood 450 (top)
250 (side, bottom) – –
Corner external termination 250 ... 385 to the reveal
250 (top, bottom, side)
Nordic external termination 250 circumferential
Flair inner cover – 250 circumferential 300
• between two ventilation devices (pair of devices) operating in push-pull mode in a room
1,2 m
1,0 m
1,0 m
1,4 m
y
1,2 m – 0,75 y
1,2 m
1,0 m
1,0 m
1,4 m
y
1,2 m – 0,75 y
1,2 m
1,0 m
1,0 m
1,4 m
y
1,2 m – 0,75 y
B
A C
Horizontal or vertical on the same wall
Installation over corner
Installation with height o󰀨set

15
PREPARING FOR INSTALLATION
15
iV14-MaxAir ventilation device | Installation instructions
3.2 Position of the wall opening
For the positioning of the wall sleeve of other variants of your ventilation device ,see the
installation instructions for your specic external termination.
Standard ventilation device variant:
Position of wall opening Position of Simplex wall installation system
Figure 2: Dimensioned drawing of the iV14-MaxAir wall opening (interior view)
1 Wall opening (Fig. 2, left)
Simplex wall installation system (Fig. 2, right)
2 Contour of weather protection hood3)
3 Reveal
4 Door/window frame
5 Bottom edge of lintel4)
1) Minimum distance to adjoining components on the interior wall: 3) Recommendation: Attach the hood at lintel height
2) Minimum distance to adjoining building components on the exterior wall 4) Note insulation thickness and any roller shutters
3.3 Dimensions
Designation Depth/length
[mm] Width [mm] Height [mm]
Wall opening for wall sleeve Wall thickness1) Ø225
R-D200 wall sleeve 495 (745) Ø200
Flex weather protection hood 23 – 88 279 313
Flair V-233x233 inner cover 612) 233 233
1) with render, insulation, masonry and plaster 2) Open
≥250
≥ 2501)
260
249
Ø225
1483)
165
1483)
165
≥250
≥ 2501)
279
4
5
2
1
279
≥ 4502) ≥ 4502)
4
43
2
1
3
5

16
PREPARING FOR INSTALLATION
16 iV14-MaxAir ventilation device | Installation instructions
313
88
265
Wandstärke ≥ 280 61
Ø200
Ø233
1 – 2° 1
5
3
4
2
76
3.4 Sectional drawing of the ventilation device
For sectional drawings of other variants of your ventilation device, see the installation instructions
for your specic external termination.
Sectional drawing of the iV14-MaxAir ventilation device, standard variant
Figure 3: Sectional drawing of the iV14-MaxAir ventilation device with Flex weather protection hood
A Interior plaster/ interior structure
B Masonry
C Insulation
D Render
1 Inner cover base plate
2 Inner cover panel
3 R-D200 wall sleeve
4 Flex weather protection hood
5 End-stop tape
6 Thermal accumulator
7 inVENTron R-D200:
Xenion EFP reversible fan embedded in
double guiding vane
A
DCB

17
PREPARING FOR INSTALLATION
17
iV14-MaxAir ventilation device | Installation instructions
3.5 Dimensional drawings of components
Flex weather protection hood
Weather protection hood cover Weather protection hood base plate
Figure 4: Dimensional drawing of Flex weather protection hood
1 Weather protection hood base plate
2 Fixing hole exterior wall (4x)
3 Simplex xing hole (4x)
4 Sealing tape guide
5 Weather protection hood cover
6 Protective grid
7 Drip rail
Flair inner cover
Figure 5: Dimensional drawing of the Flair V-233x233 inner cover white SDE
1 Inner cover panel
2 Sound insulation insert SDE (optional)
3 Retaining plate IB V-233x233
4 Inner cover base plate
5 Spacer (4 x)
6 Interior wall xing hole (4 x)
215
A - A
4x
Ø
4,8
215
□ 233
A
A61
6
3
1
2
4
4
5
279
313
A
A
A ─ A
23
88
Ø
168
21
252
221
148
4 x Ø 4,8
194,5
194,5
7
4 x Ø 4,8
Ø
211
7
5
6
1
5
1
2
3
4

18
INSTALLATION AND ASSEMBLY
18 iV14-MaxAir ventilation device | Installation instructions
4 Installation and assembly
Read the section carefully before installation to avoid installation errors. The installation and
connection of the ventilation device must be carried out by qualied personnel.
4.1 Check the scope of supply
Check the delivery for completeness and transport damage upon receipt using the delivery note.
Report missing items immediately.
These assembly instructions describe the standard version of the product. For the scope of
delivery of the external termination variants, wall sleeves for integrating the Connect controller
platform, the Connect AP/UP and Undercover inner cover panels, please refer to the separately
available installation instructions for the respective system component.
1 External termination
1 a: Flex WSH cover
1 b: Flex WSH base plate
1 c: End-stop tape
1 d: Sealing tape
1 e: Exterior wall xing elements
Wall sleeve R-D200
2 a: Styrofoam discs
2 b: Mounting wedges set
iV14-MaxAir thermal accumulator
insert
3 a: Insulated thermal accumulator
3 b: R-D200 guiding vane
3 c: Xenion EFP reversible fan
sheathed
3 d: Slim guiding vane (16 mm)
3 e: BUS plug connection
Flair inner cover
4 a: Interior wall xing material
4 b: ISO Coarse 60 % dust lter
The Flex weather protection hood is
available in di󰀨erent colours and mate-
rials (stainless steel / aluminium [with
increased salt resistance]) and must
be ordered according to the desired
colour and properties.
4x
4x
4x
4x
4x
1
2
3
4
i
4d
4c
4b
WSH = Weather protection hood
3b
3a 3c
3d
3e
2a
2
1a 1b
1c
1d
1e
4a
2b

19
INSTALLATION AND ASSEMBLY
19
iV14-MaxAir ventilation device | Installation instructions
4.2 Create wall opening
CAUTION
Falling masonry when creating the wall opening
can lead to physical injuries and /or damage to property!
• Install protection against falling masonry on building exterior.
• Remove objects from the immediate vicinity of the building's exterior.
In new buildings we recommend the use of the optional Simplex D200 wall installation system,
D225 wall block, or Woodplex for timber post and beam construction.
Observe the minimum distances and the installation position of the ventilation device.
Consult your planner before installation if you are at all uncertain!
Create the wall opening through core drilling
Power drill with core drilling attachment or milling drill Ø 225 mm
Requirements:
• The masonry must be dry and in a load-bearing
condition.
• No load-bearing elements in the position of the drill
hole.
►Drill a wall opening, Ø 180 mm at installation
position of ventilation device.
The wall sleeve must have a slope of 1 – 2°
to the exterior wall side. Alternatively the
drilling can be carried through with a slope.
The wall opening for the ventilation device has
been created.
Ø225
!

20
INSTALLATION AND ASSEMBLY
20 iV14-MaxAir ventilation device | Installation instructions
4.3 Laying the cables to the wall opening of the ventilation device
CAUTION
Exposed electrical components.
Injury caused by live components (16 V DC)!
• Installation and connection must only be performed by qualied and trained personnel.
Once the wall opening has been created, the cables necessary for operating the ventilation
system are laid to the wall opening for the ventilation device. They connect the valve gate of the
ventilation device with the control components and thus establish signal transmission and/or
voltage transmission between the controller and the Xenion EFP reversible fan.
NOTICE: Cable to the wall opening of the ventilation device not
laid. No connection of the reversible fan possible!
Routing of the cables to the wall opening for the ventilation device
must be done in this installation step. The routing of the connecting
cables between the controllers and the Xenion EFP reversible fan
is not part of this documentation. For more information, see the in-
stallation and operating instructions for the corresponding controller.
45°
Cable to the wall opening of the ventilation device
The following cables, depending on the control device, are laid to the wall opening for the ventila-
tion device:
Use Cable type Cable origin
Pure Operating voltage fan
and device
communication
Stranded cable
6 – 16 V DC,
e.g.: LiYY 3x0.75 mm²
Pure control module
sMove sMove operating device
MZ-Home Clust-Air module
CAM17 in the
ventilation zone
