IOGear GWMHDKIT22 User manual

Quick Start Guide
GWMHDKIT22
PART NO. Q1503
www.iogear.com
Expandable Wireless HDTV
Connection Kit

1
Package Contents
Product Introduction
1 x GWMHDKIT22 Transmitter
1 x GWMHDKIT22 Receiver
1 x Remote Control
2 x 3 Foot HDMI Cable
1 x IR Blaster Cable
1 x IR Receiver Extender Cable
2 x Antennas
2 x DC5V/2A Wall Mount Switching Power Supply
1 x Quick Start Guide
This wireless HDMI video extender includes transmitter and
receiver that will allow an HDMI signal to be extended up to
150 feet. IR passback allows you to control the source device
from the receiver side using the video source remote control.
This wireless matrix extender not only supports point to point
configuration, but also supports one to many (1 to 2) and
many to many (2 to 2, 2 to 1) configuration.

2
Features
System Requirements
1 HDMI source device (DVD, PS3, Set top box, PC, etc.)
1 HDMI display device (SDTV, HDTV, projector with HDMI port, etc.)
1. Smart portable design, great performance.
2. Highest resolution up to 1080p full HD.
3. Strong interference rejection ability by using 5GHz frequency with
WPA encryption.
4. Supports point to point, point to multi point (1 to 2) and multi point
to multi point (2 to 2, 2 to 1) configuration.
5. Supports IR pass-back with 20-60KHz frequency.
6. Supports push button control to set channels and IR controller to
switch and choose input sources from receiver side (remotely).
7. 150 feet long range transmission.

3

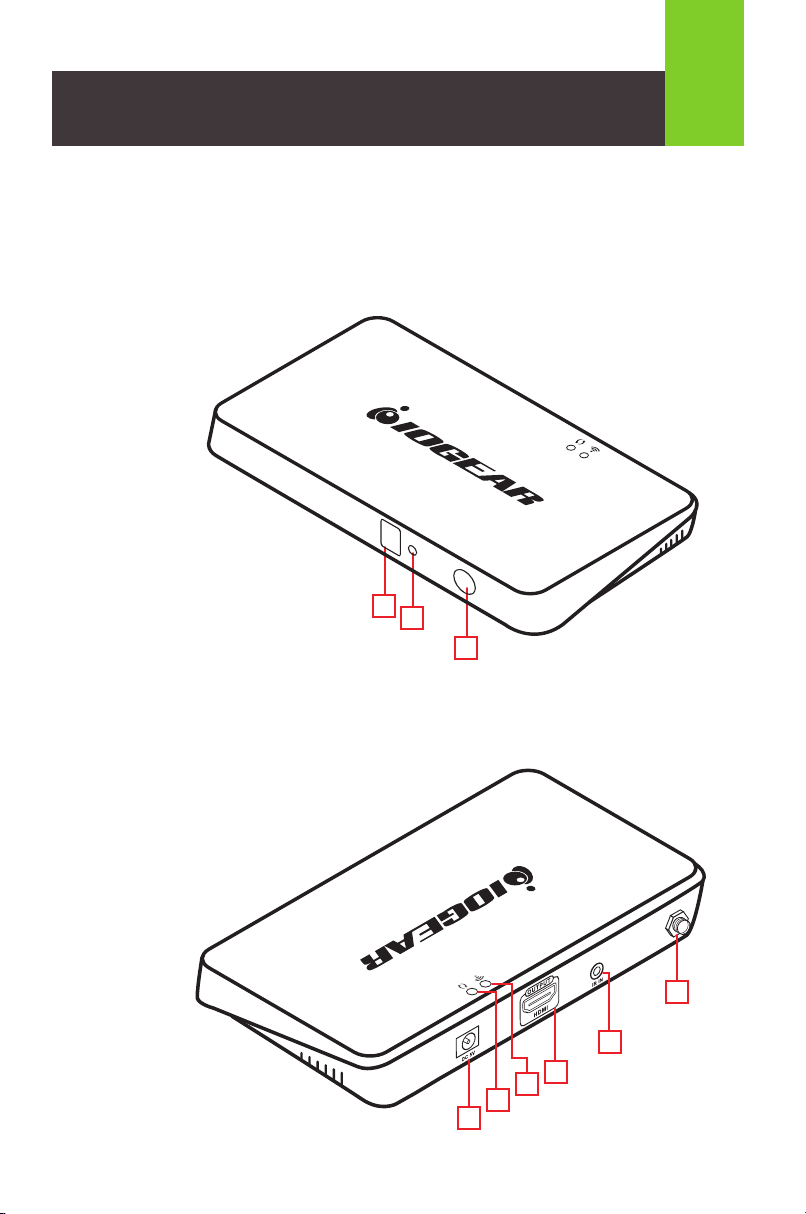

Overview
A. Input Channel indicator
B. Channel selector button
C. IR remote control window
Transmitter Front
Transmitter Back
1. Smart portable design, great performance.
2. Highest resolution up to 1080p full HD.
3. Strong interference rejection ability by using 5GHz frequency with
WPA encryption.
4. Supports point to point, point to multi point (1 to 2) and multi point
to multi point (2 to 2, 2 to 1) configuration.
5. Supports IR pass-back with 20-60KHz frequency.
6. Supports push button control to set channels and IR controller to
switch and choose input sources from receiver side (remotely).
7. 150 feet long range transmission.
D. Power input
E. HDMI input
F. HDMI input signal indicator
G. Wireless signal indicator
H. IR blaster cable connector
I. Antenna connector
D
GH
EF
I
AB
C

4
Overview
A. Input Channel indicator
B. Channel selector button
C. IR remote control window
D. Power input
E. Data transmission indicator
F. Wireless connection indicator
G. HDMI output connector
H. IR receiver extender
cable connector
I. Antenna connector
Receiver Back
Receiver Front
D
G
H
EF
I
AB
C

5
Hardware Installation
Please read safety instructions carefully before installation and
operation:
1. Please pay attention to all the warnings and hints for this device.
2. Do not expose this unit to rain, moisture or liquid.
3. Do not insert any foreign object into the device.
4. Opening the enclosure will void the warranty.
5. Place the device in a well ventilated area.
6. Use DC5V/2A power adapter only. Make sure the specification
matched if using 3rd party DC adapters.
Note:
1) Transmission distance will vary due to the environment.
2) Obstructions such as wall, brick or glass will shorten the signal
cover range or cause signal degradation.
3) It is recommended that the distance between each unit should
be more than 15 feet.
Connection Options
1 Transmitter 1 Receiver
1 Transmitter 2 Receivers
2 Transmitters 1 Receiver
2 Transmitters 2 Receivers

6

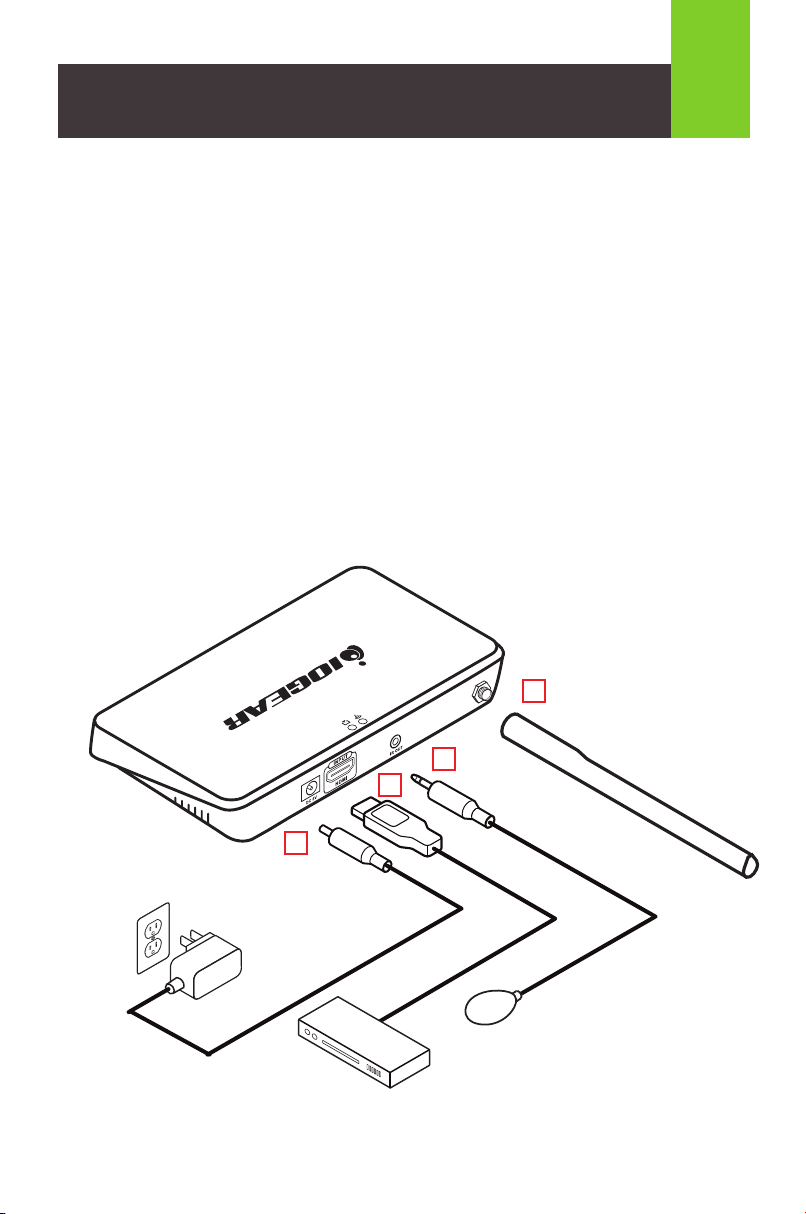

Hardware Installation
STEP 1
Install the antenna to the transmitter
Transmitter
STEP 2
Connect the IR blaster cable to the connector
STEP 3
Connect one side of the HDMI cable to the transmitter and
the other side to your video source
STEP 4
Connect DC5V/2A power adapter to the Transmitter power
input port
1
2
3
4

7
Hardware Installation
STEP 7
Connect one side of the HDMI cable to the receiver and the
other side to your HDMI display device
STEP 5
Install the antenna to the receiver
Receiver
STEP 6
Connect the IR receiver extender cable to the connector
STEP 8
Connect DC5V/2A power adapter to the Receiver power
input port
Note:
Wireless connection indicator of the transmitter and receiver will
light up when the transmitter and receiver connection is estab-
lished wirelessly. If your video source and your display is on, you
should be able to see the content of the source on your display.
5
6
7
8

8
Specification
Items Specifi cation
Power supply
Voltage/Current DC5V/2A
Power consumption TX < 7W Rx < 5W
HDMI performance
and interface
HDMI compliance HDMI 1.3
HDCP compliance HDCP 1.2
HDMI resolution supported
480i@60Hz, 480p@60Hz, 576i@50Hz,
576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Supports audio formats PCM
Maximum transfer rate 10.2Gbps
Input and output TMDS signal 0.5 ~ 1.5Vp-p (TMDS)
Input and output DDC signal 5Vp-p (TTL)
Input cable length supported ≤ 5m (AWG26 HDMI 1.3 cable standard)
Output cable length supported ≤ 5m (AWG26 HDMI 1.3 cable standard)
IR performance and
interface IR remote control Support IR passback with 20-60KHz frequency
Wireless performance
and interface
Transmission method 5.8G Wireless transmission
Transmission distance 50 Meters (164 Feet)
Latency ≤ 200 ms
Protection level Electrostatic protection of the whole machine
1a Contact discharge level 3
1b Air discharge level 3
Standard EC61000-4-2
Operating
environment
Working temperature0 ~ 50°C (32 ~ 122°F)
Storage temperature -10 ~ 70°C (14 ~ 158°F)
Humidity (no condensation) 0 ~ 90%
Body properties
Dimension 3.7 (W) x 4.75 (D) x .79 (H) in
Material Plastic
Processing technology Sandblasting
Colour Black
Weight TX: 200g (.44lb), RX: 200g (.44lb)
ReliabilityMean time between failures (MTBF) >30000 Hours

Compliance Information
Limited Warranty
Contact
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential setting.
This product generates, uses, and can radiate radio frequency energy and, if not
installed and used as directed, it may cause harmful interference to radio
communications. Although this product complies with the limits for a Class B
digital device, there is no guarantee that interference will not occur in a particular
installation.
CE Statement
This device has been tested and found to comply with the following European
Union directives: Electromagnetic Capability (2004/108/EC), Low Voltage
(2006/95/EC) and R&TTED (1999/5/EC).
This product carries a 1 Year Limited Warranty. For the terms and
conditions of this warranty, please go to http://www.iogear.com/
support/warranty
Register online at http://www.iogear.com/register
Important Product Information
Product Model
Serial Number
WE’RE HERE TO HELP YOU!
NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support
IOGEAR
iogear.custhelp.com
[e-mail]
www.iogear.com
