IPinium Tina 1200RU User manual

Thawing cabinet
Tina 1200RU
Installation Instructions
Made in
Sweden by
DOC.NO STO 9170-02
EDITION 1 2014.11

2
Producer: SteelTech i Alingsås AB. Lärkvägen 4. SE-441 40 Alingsås. Sweden
Phone: [phone] . Fax: [phone]
E-mail: [email protected] .www steeltech.se
Contents Page
General instructions 3
Installation 4
Electrical connection 4
Water and drainage connection 4
Refrigerant connection 4
Testing 4
Technical specification 5-6

3
Installation instructions
Safety instructions
· Switch off the power before attempting to rectify faults
or operating failures in the cabinet.
– Turn the Selector switch to position 0. (See Opera-
tion maunal)
– Wait approximatly 3 minutes to give the electrical
cooling valve time to close completely.
– Switch off “Main circuit breaker” (NOT included in the
delivery).
Warning! Electricity!
A warning sign indicates the electrical cabinet. The door
of the electrical cabinet and other cover panels may only
be opened by technicians who are trained for such work.
Warning!
· DO NOT rinse the thawing cabinet EXTERNALLY.
· If water comes into contact with live components it
could be fatal. Always take care when cleaning, espe-
cially when close to electrical components.
· Use a damp cloth for cleaning.
Warning!
Note that the thawing cabinet’s internal plates can be-
come hot during the cleaning programme and as a result
cause injury if touched.
It is also important to take care when opening the cabinet
door. Heat escapes and can cause injury.
Technical data
Rating plate
Rating plates stating the machine’s serial number are at-
tached at the bottom of the thawing cabinet’s left side
and the rear of the electrical cabinet, as well as on the EU
declaration which accompanies the machine on delivery.
Noise level: <70 dB A
Enclosure class: IPX4
General instructions
If the instructions in this and other documentation for the
equipment are not followed, it could endanger safety and
void the supplier’s guarantee and liability for the product.
· Read the instructions in this document carefully, since
they contain important safety information about instal-
lation, operating reliability, use and maintenance of
the product. Keep these instructions in a handy place
so that they are accessible to all users.
· Installation and testing must be carried out by techni-
cians who are trained for such work, and in accordance
with the manufacturer’s instructions.
· The product must be installed and connected to the
necessary services in accordance with the relevant
standards and directives.
· All servicing, maintenance and repairs must be carried
out by technicians who are trained for such work. Use
only original spare parts. See the Service Instructions*
and Spare Parts Catalogue*.
· This product may only be operated and looked after
by trained personnel (operators).
* Not supplied. May be ordered from the manufacturer or manufacturer’s
representative.
CE directives
Tina 1200RU has been manufactured in accordance with
EU directives LVD 2006/95/EG, EMC 2004/108/EG and is
CE-marked.

4
Installation
Drainage connection
The cabinet should be placed so that the discharge water
can flow freely from the discharge pipe to the floor drain
or some other drainage system.
Refrigerant connection
Connect Refrigerant pipes to the central cooling system
or compressor pedestal (S501400001). The coolant
used should be R134a. Pipe dimensions, suction pipe
Ø5/8” and fluid pipe Ø1/4”. The evaporation temperature
should be between –5 and –10°C, overheating 3-
8°C. The cooling components are pressure tested at
1820 kPa (18.2.bar).
Testing
The Selector switch in position 1:
· Both fans start at low speed..
· The steam generator is emptied, before being refilled.
· After 5 min. voltage is supplied to the cooling circuit’s
solenoid valve and the cabinet temperature is lowered
to 36°F(+2°C).
The Selector switch in the cleaning position:
· Both fans start at high speed.
· The steam generator is emptied, before being refilled.
· The steam generator and the air heater start to give off
heat.
Note! The Selector switch should be allowed to stand for
at least 3 min. in one position before being changed to
the other. (See Operation manual)
Accessories
See the Operation manual.
Other documentation
Manufacturer’s Declaration
Operation manual
Electrical diagram
Refrigeration flow chart
Service Instructions*
Spare Parts Catalogue*
* Not supplied. May be ordered from the manufacturer or manufacturer’s
representative.
Placement
Leave the packaging on the cabinet during handling until
the cabinet is in place. (This is to reduce the risk of dam-
age to the large side panels.) The floor under the cabinet
may have a drop of max. ±1°. The cabinet should be po-
sitioned so that the waste water can flow freely from the
discharge pipe to the drain in order to minimise the risk of
slipping. Check that the cabinet is stable.
Note: the cabinet shall be welded on to a foundation.
Make sure that the cabinet is installed in level and that
the door closes in a proper way after welding.
Electrical connection
Electrical connection work must be carried out in ac-
cordance with all relevant standards and regulations.
On installation, the machine must be connected via a main
circuit breaker to keep it separate from the mains, with a
break length of at least 3 mm. Not included in the delivery.
· Check the rating plate to ensure that the machine’s op-
erating voltage matches the mains voltage.
· Check that the distribution box is capable of carrying the
required current and that it is adequately earthed.
· Both the power and pilot circuit (where appropriate)
should be fused. The fuses should have the required
rated current in order to deliver the required power to
the cabinet.
· The connection cable must have suffitient length in order
to be able to fold the electrical box forward.
· If you are in any doubt about the effectiveness of the
earthing provisions then the installation must be checked
by a qualified electrician.
· Connect the electrical cables as indicated by the cable
markings and wiring diagram.
· The connection cable must be oil resistant, class:
H07RN-F.
· Once the machine has been connected and switched
on, you should check that the mains voltage does not
fluctuate more than 10% from the rated voltage.
Water connection
Cold water with min. pressure 100 kPa (1 bar), max. pres-
sure 700 kPa (7 bar) and min. flow capacity 0.1 m3/h. DN15
(G 1/2”) int. thread. Incoming water pipe should be fitted
with a shut off valve. Connected water should be decalci-
fied.
Basic adjustment of the radiator coupling
Open the valve extremely little. The flow have to be 1 l /
min.

5

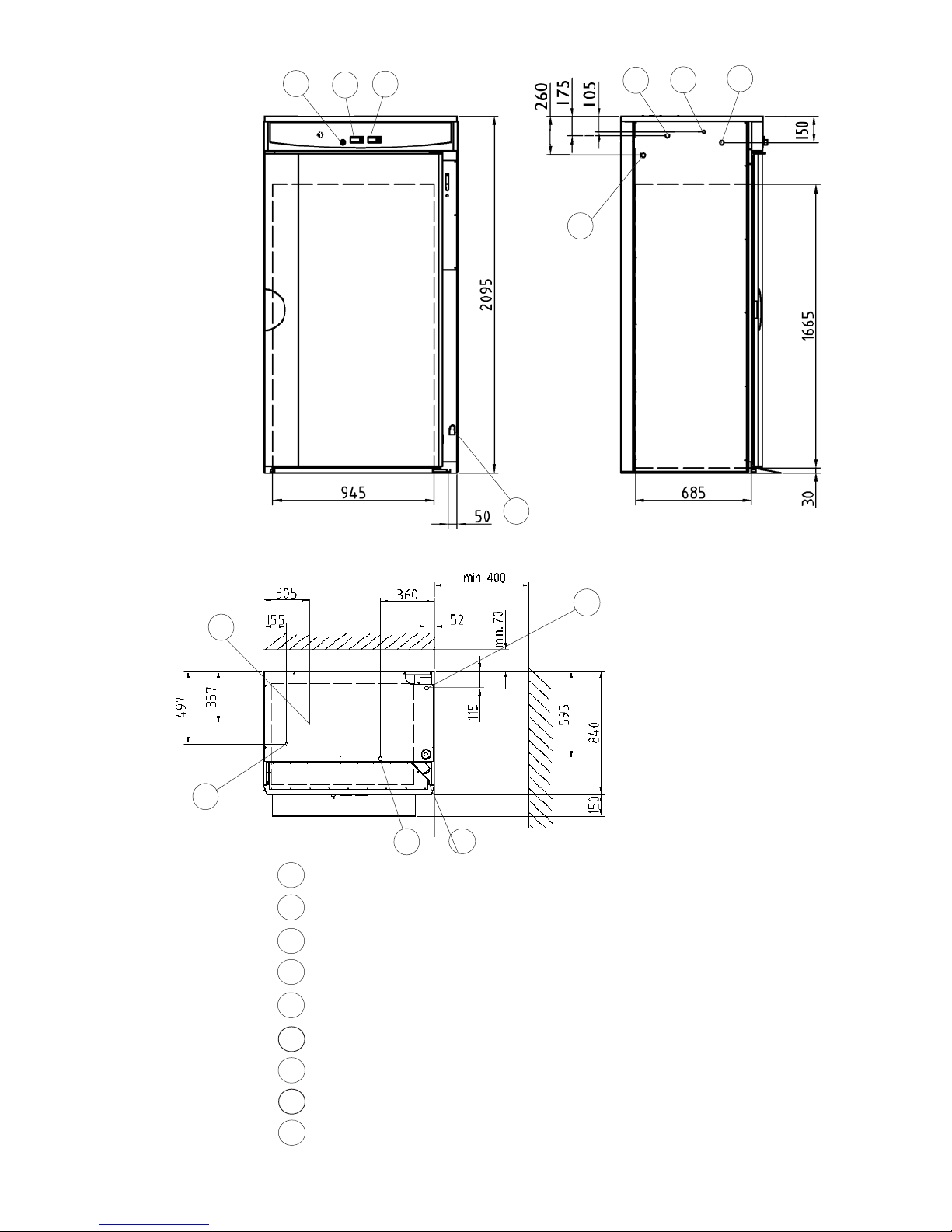

Refrigerant connection, fluid pipe Ø 1/4”
Water connection DN20 (G 3/4”) ext. thread
Electrical connection
Drainage
Refrigerant connection, suction pipe Ø 5/8”
1
2
3
4
5
Display, Target temperature
6
7
Selector switch, Cleaning-0-Thawing
Deliming tube
8
9
Display, Cabinet temperature
1
2
3
5
8
67
1
2
4
5
4
9

6
Technical specification
Model S503501301
Mains voltage 440 V ~3 60 Hz.
Cooling system Remote (Central cooling)
Total Power - kW 4
Compressor output - kW -
Max. phase current - A 9.1
Productivity per cycle - kg 150
Refrigerant R134a
Refrigerant weight - g _
Cooling Power - kW 1.5
Evaporation temperature - °C _
Total weight - kg 250
Volume - litre 1200
Door hung Right

7

8
iPinium AB
Box 2105, S-612 22 Finspång, Sweden
Tel: [phone] Fax: [phone]
E-post: [email protected]
www.iPinium.se
