1. Introduction
This document contains information on preparation procedures of the iON FM navigation user terminal for
operation.
Version Date Prepared by Revisions
1.0 14.03.2016 V. Golovin Main document
1.0.2 07.04.2016 V. Golovin Revisions: minor changes in sections 1.4.6, 1.4.7, 2.2, 2.3, 4.3.4, 4.4.1
1.1 15.07.2016 V. Golovin Added: Section 4.3.5 “Aggregation” Tab
Changes: Section 4.31.1 – adjustments of data (configuration app.)
1.1.1 30.08.2016 V. Golovin Revisions: maximal voltage (1.4.6)
1.2 06.12.2016 V. Golovin Revisions: configurator updates (4.3, 4.3.1–4.3.8, 4.4, 4.4.1–4.4.4, 4.5)
1.2.1 07.12.2016 V. Golovin Revisions: corrections in chapter 4.4
1.2.2 23.01.2017 V. Golovin Revisions: corrections in chapter 1.2
1.2.3 09.06.2017 V. Golovin Revisions: figure in chapter 1.4.3
1.2.4 27.07.2017 V. Golovin Revisions: adjustment of working with CAN-LOG (4.5)
1.2.5 17.08.2017 V. Golovin Revisions: parameters of frequency input (1.4.6)
1.2.6 08.11.2017 V. Golovin Revisions: added parameters I/O (1.4.6)
1.1. Warnings and Recommendations
Before starting to use the device, please read the safety rules described in this section.
CAUTION! The device uses the cellular technology and can cause radio interference to medical and other
equipment. Thus, if you are in the area where use of cellular devices is not allowed, disable the controller.
CAUTION! The controller can cause interference to cardiac pacemaker or hearing aids. Switch off the device
in medical centres.
CAUTION! Switch off the device if you are in the area of blasting operations. The controller can cause inter-
ference when the operations are underway. Thus, follow the instructions and directions in such areas.

6
1.2. Technical Specifications*
General Features
Navigation receiver GPS/GLONASS
Frequency bands GSM/GPRS 900/1800 MHz
Antennas External GPS/GLONASS antenna
External GSM antenna
Flash-memory 16 MB
SIM card holder Inside the case
Built-in accelerometer Three-axis
Electrical Specifications
Supply voltage from 8 to 48 V
Current consumption in various modes
(at 12V power voltage), not exceeding
●100 mA (operating mode, the battery is charged)
●250 mA (operating mode, the battery is discharged)
●up to 10 mA (sleep mode)
Built-in battery Li-Pol, 550 mAh
Connectors and Interfaces
Microfit 10 connector Device power
RS485 interface
4 multipurpose inputs (analog, discrete [logic], frequency, pulse)***
2 outputs (open collector)***
FAKRA SMB connector Connection of an external GPS/GLONASS antenna
FAKRA SMB connector Connection of an external GSM antenna
SIM card Mini SIM - standard SIM card (or SIM-chip**)
Micro USB connector (inside the hous-
ing)
Connection to a PC for configuration
Physical Specifications
Dimensions 94 × 74 × 20 mm
Net weight net, not exceeding 90 g
Gross weight, not exceeding 120 g
Operating temperature from -30ºС to +80ºС
* technical specifications are subject to change by the manufacturer without prior notice
** optional
*** total number of inputs/outputs amounts to 6

7
1.3. Package Contents
The delivery package of the iON FM navigation user terminal contains the following components*:
Indication Name Quantity
iON FM 1 pcs
GSM antenna 1 pcs
GPS/GLONASS antenna 1 pcs
10-pin interface cable 1 pcs
* the package collection and content are subject to change by the manufacturer without prior notice

8
1.4. Device Overview
1.4.1. Device Overview and Purpose
iON FM is a navigation user terminal (NUT) designed for installation on the object of observance, collec-
tion, storage and transmission of data to the server for further processing. The navigation terminal receives
location and time data from the GPS/GLONASS satellites. The collected data is transmitted to the server over
the GSM network using the GPRS packet-switched service. The data on the server is available to a user through
the dispatching software.
It is necessary to remember that iON FM is just a part of the tracking system. m. The navigation terminal
itself is responsible for data acquisition and transmission from the surveillance object to the server where the
data is processed and provided to an end user.
Overall, the tracking system enables you to complete a wide range of tasks:
●safety issues — vehicle travel data, operating disturbances, etc.;
●efficiency improvement — control of a vehicle use only in authorized operations, efficiency analysis
of the performed tasks;
●ensuring operation transparency — all data on vehicle travels, fuel consumption and other data is
transmitted to the server and available online;
●statistical data collection — in the process of vehicle operation an end user is provided with various
data which can simplify and even improve efficiency of performing tasks. Moreover, this data helps to make
calculations of different economy-related measurements.
1.4.2. Navigation Terminal Functions
The iON FM navigation terminal as a part of the tracking system fulfils the following functions:
●fixes the vehicle location (space coordinates) using GPS/GLONASS module;
●determines overload, direction change, turns using the built-in accelerometer;
●collects data from the sensors:
•digital sensors;
•analog sensors.

9

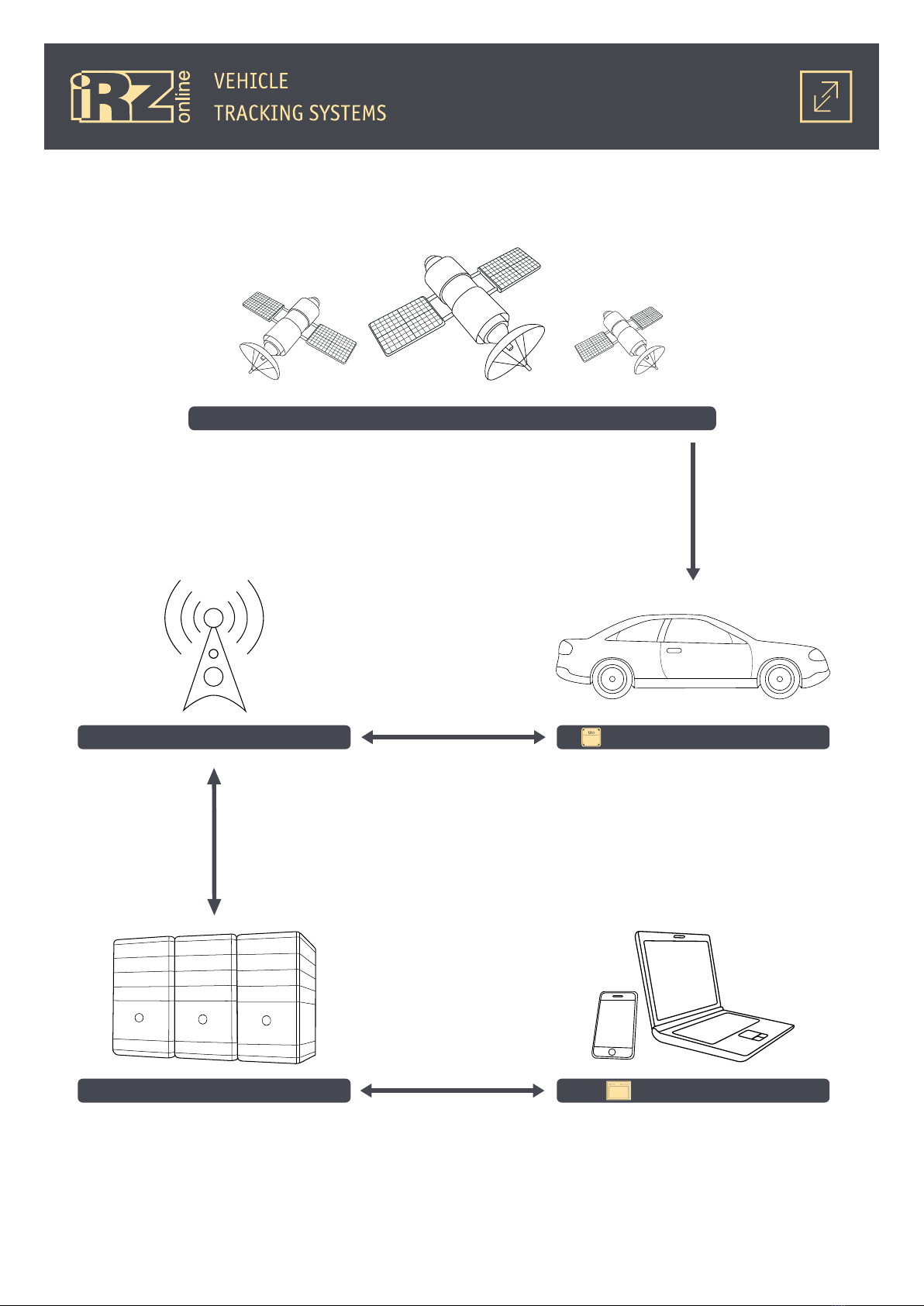

1.4.3. The Tracking System Operation Diagram
GPS/GLONASS Satellites
GSM Base Station Navigation Terminal
Tracking System Servers Web browser
Internet
Internet
GSM/GPRS
User devices
Monitored object (vehicle)
location data
user commands
user commands, location data,
sensors data, etc.
location data,
sensors data, etc.
Fig. 1.1. The Tracking System Operation Diagram

10
1.4.4. Navigation Terminal Connectors
iON FM is a compact device encased in a plastic housing which supports connection to external power, as
well as to various external devices and sensors.
Interface connector is situated outside of the casing, while SIM card access, Micro USB connector and a
battery are fitted inside.

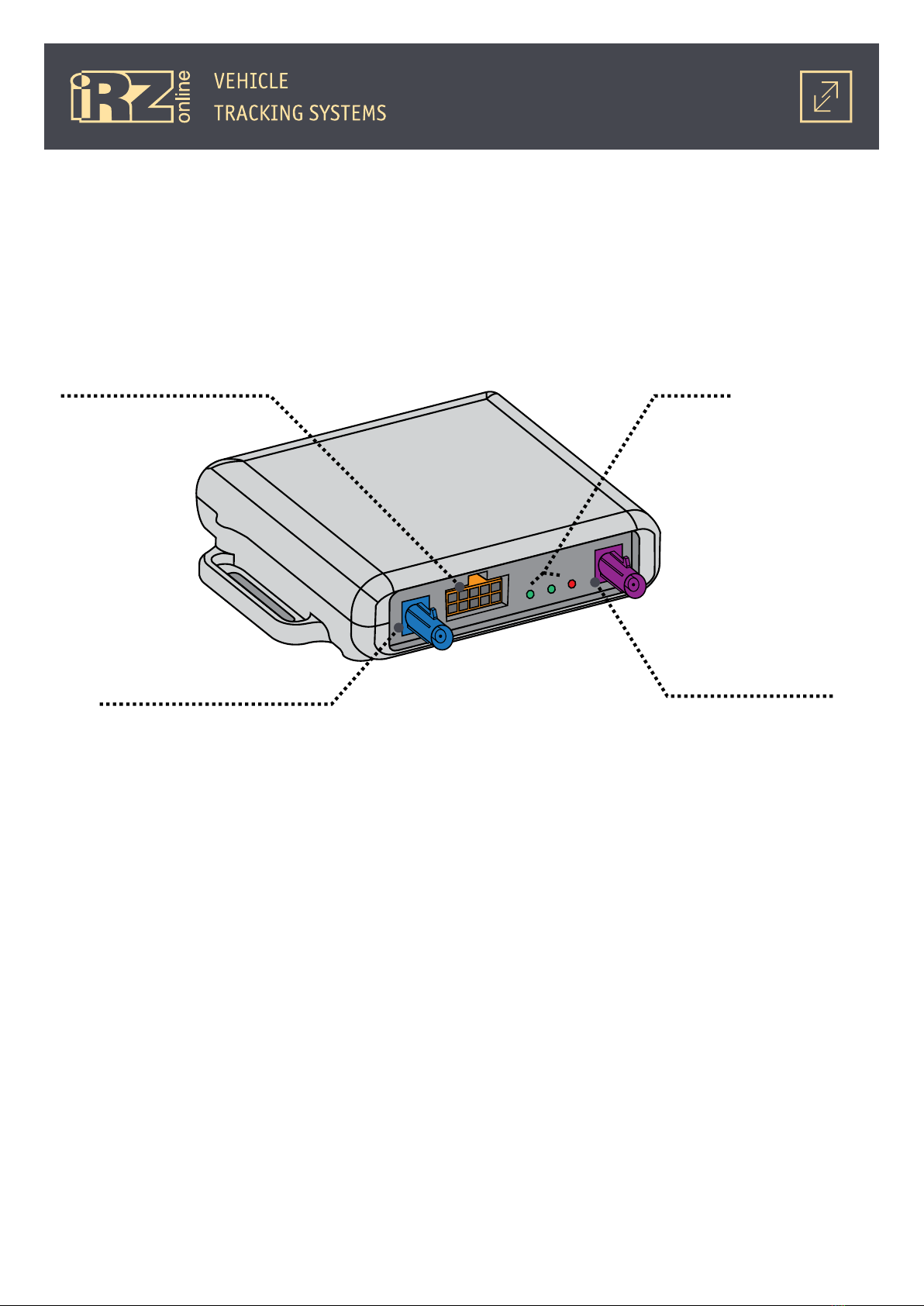

Navigation terminal connectors are shown in the figure:
Microfit 10 Connector LEDs
FAKRA connector
GSM antenna
FAKRA connector
GPS/GLONASS antennas
Fig. 1.2. iON FM navigation terminal connectors
