IST ATEX HR 600 User guide

SOLVENT RECLAIMER
ATEX
HR 600
USE AND MAINTENANCE GUIDE
EDITION 12/11/2015 COD. 53460.03 TRANSLATION FROM THE ORIGINAL

3
OPERATORS AND SERVICE TECHNICIANS SHALL READ THIS
HANDBOOK THOROUGHLY BEFORE STARTING TO USE THE
MACHINE OR CARRYING OUT MAINTENANCE. THIS HANDBO-
OK MUST BE KEPT NEAR THE MACHINE SO THAT IT MAY BE
READILY CONSULTED AND MUST ALWAYS ACCOMPANY THE
MACHINE EVEN IF SOLD ON AT A LATER DATE.
CAUTION
CAUTION
FOR THE SAKE OF CLARITY SOME OF THE ILLUSTRATIONS IN
THIS MANUAL SHOW THE MACHINE WITHOUT ITS GUARDS.
NEVER USE THE MACHINE WITHOUT THE GUARDS UNLESS
YOU ARE SPECIFICALLY TOLD TO DO SO FOR SERVICING
PURPOSES.

4
CONTENTS
CAUTION
This use and maintenance guide is to be considered as a part of the system itself. Read the
notes and instructions it contains carefully, as they supply important information concerning
safe operation and maintenance. Keep the guide in a safe place for further reference.
1 INTRODUCTION................................................................................................................... 7
1.1 TRAINING USING THE MANUAL...................................................................................... 7
1.2 HOW TO READ AND USE THE GUIDE............................................................................. 8
1.3 KEEPING THE GUIDE....................................................................................................... 8
1.4 SYMBOLS USED IN THE GUIDE...................................................................................... 9
1.5 NORMS.............................................................................................................................. 9
1.6 CONDITIONS FOR WARRANTY VALIDITY - RESPONSIBILITY....................................10
2 GENERAL INFORMATION..................................................................................................11
2.1 DETAILS ABOUT THE SYSTEMAND THE MANUFACTURER.......................................11
2.2 IDENTIFICATION PLATE..................................................................................................11
2.3 PICTOGRAPHS ON THE SYSTEM................................................................................. 12
2.4 SAFETY INSTRUCTIONS................................................................................................ 14
2.5 DANGEROUS CHEMICAL REACTIONS......................................................................... 15
2.5.1 PEROXIDES ............................................................................................................. 15
2.5.2 NITRIC SUBSTANCES AND NITRATES.................................................................. 16
2.5.3 NITROCELLULOSE.................................................................................................. 16
2.5.4 EXOTHERMIC REACTIONS....................................................................................16
2.5.5 PRECAUTIONS AGAINST ELECTROSTATIC CHARGES....................................... 17
2.5.6 SPILL......................................................................................................................... 17
2.5.7 COMMON RECLAIMING SOLVENTS LIST.............................................................. 18
3 SYSTEM DESCRIPTION.................................................................................................... 19
3.1 GENERAL DESCRIPTION............................................................................................... 19
3.2 DIMENSIONS AND OVERALL SIZES ............................................................................. 21
3.3 TECHNICAL DATAAND FEATURES............................................................................... 22
3.4 GENERAL MACHINE DESCRIPTION AND ITS USE...................................................... 23
3.5 EMISSIONS OF HAZARDOUS MATERIALS OR SUBSTANCES...................................24
3.6 IMPROPER USE OF THE SYSTEM................................................................................ 25
4 DELIVERY AND SET-UP.................................................................................................... 27
4.1 DELIVERY........................................................................................................................ 27
4.2 UNPACKING THE SYSTEM ............................................................................................27
4.3 LIFTING THE SYSTEM....................................................................................................27
4.4 MACHINE INSTALLATION............................................................................................... 28
4.4.1 POSITION COLLECTING TANKS (optional)............................................................. 28
4.5 INSTALLING THE SYSTEM............................................................................................. 29
4.5.1 ENVIRONMENTAL LIGHTING MINIMUM LEVEL.................................................... 30
4.5.2 CONNECTION DIRTY SOLVENT TANK .................................................................. 31
4.5.3 CONNECTION CLEAN SOLVENT TANK ................................................................ 32
4.6 PNEUMATIC CONNECTION ...........................................................................................33
I

5
CONTENTS
II
4.7 HYDRAULIC CONNECTION ........................................................................................... 33
4.7.1 NITROCELLULOSE KIT (optional).......................................................................... 34
4.8 DEMISTER KIT (optional) ................................................................................................ 34
4.9 ELECTRIC CONNECTION .............................................................................................. 35
4.10 FILLING LIQUID RING VACUUM AND VERIFY ROTATION DIRECTION ................... 36
5 OPERATING INSTRUCTIONS ........................................................................................... 37
5.1 CONTROLS...................................................................................................................... 37
5.1.1 EXTERNAL CONTROL PANEL................................................................................. 37
5.1.2 INTERNAL CONTROL PANEL.................................................................................. 38
5.1.3 INTERNAL POWER PANEL......................................................................................38
5.2 OPERATING AND FUNCTIONING.................................................................................. 40
5.3 RECLAIMING CYCLE PROGRAMMING ........................................................................ 40
5.3.1 MENU FUNCTIONS OUT FROM THE PROGRAM.................................................. 41
5.3.2 PROGRAMMED PARAMETERS WITH PASSWORD.............................................. 42
5.3.3 PROGRAMMED PARAMETERS.............................................................................. 52
5.3.4 SCRAPER DELAY ................................................................................................... 53
5.3.5 PRECYCLE SELECTION .........................................................................................54
5.3.6 CHARGE Nr. ............................................................................................................. 55
5.3.7 PRE-CYCLE DURATION ......................................................................................... 56
5.3.8 SET Nr. SELECTION ................................................................................................ 57
5.3.9 OIL TEMPERATURE 01° pSET ................................................................................ 58
5.3.10 PRE-CYCLE DURATION 01° pSET ....................................................................... 59
5.3.11 TIME “ON” LOADING..............................................................................................60
5.3.12 TIME “OFF” LOADING............................................................................................ 61
5.3.13 REFILL END CYCLE SELECTION......................................................................... 62
5.3.14 SELECT CYCLE NUMBERS ................................................................................. 63
5.3.15 RESIDUES UNLOAD.............................................................................................. 64
5.3.15.1 FINAL DISCHARGE............................................................................................. 65
5.3.16 TEMPERATURES AND TIMES SELECTION................................................... 66
5.3.17 TEMPERATURES AND TIMES SETTING FOR MULTI
SET POINT CYCLE PROGRAM............................................................................ 70
5.3.18 CLEANING RESIDUES ..........................................................................................76
5.4 RECLAIMING CYCLE...................................................................................................... 79
5.4.1 CYCLE START.......................................................................................................... 80
5.4.2 CYCLE END..............................................................................................................80
5.5 UNLOADING RESIDUES.................................................................................................81
5.5.1 MANUAL RESIDUAL DISCHARGING...................................................................... 81
5.5.2 AUTOMATIC RESIDUAL UNLOADING WITH CONTINUOUS CYCLE.................... 81
5.5.3 MANUAL SCRAPER................................................................................................. 82
5.6 CHECKING RESIDUES................................................................................................... 84
5.7 SWITCHING THE SYSTEM OFFAFTER USE................................................................ 84
5.8 HAZARDS FROM WORKING USE.................................................................................. 84
6 MAINTENANCE............................................................................................................... 85
6.1 SAFETY INSTRUCTIONS ............................................................................................... 85
6.2 MAINTENANCE ...............................................................................................................85
6.3 REPLACING DIATHERMIC OIL....................................................................................... 86

6
CONTENTS
III
6.4 TEFLON BLADE REPLACEMENT................................................................................... 90
6.5 DEMISTER MAINTENANCE (optional)............................................................................91
6.6 WATER CONDENSER..................................................................................................... 91
6.7 TANK LID SEAL................................................................................................................ 91
6.8 SAFETY VALVE................................................................................................................91
7 ALARMS - TROUBLE SHOOTING .................................................................................... 93
7.1 ALARM MESSAGES ON THE DISPLAY.......................................................................... 93
7.2 PROBLEMS AND SOLUTIONS ....................................................................................... 99
8 DE-COMMISSIONING THE SYSTEM .............................................................................. 101
8.1 DISASSEMBLY AND SCRAPPING................................................................................ 101
8.2 DISPOSAL OF SCRAP .................................................................................................. 101
9 WIRING DIAGRAM.......................................................................................................... 103
10 PNEUMATIC DIAGRAM ..................................................................................................116
11 DIATHERMIC OIL MSDS.................................................................................................117
EC DECLARATION OF CONFORMITY OF A MACHINE ................................................... 127

7
1
INTRODUCTION
1.1 TRAINING USING THE MANUAL
TheUse andMaintenance Manualispartofthe machineand itsaim togive youallthenecessary
information to:
- use it with security conditions
- install it correctly
- to deep the functioning knowledge and its limits
- to work correctly and with security conditions
- make productions changes and maintenance, in a correct and secure way
- clean the tank
- environmental constraints operating
- its disposal with security conditions and in compliance with the existing norms protecting the
worker and environment health
Also to identify and inform risks of the residuals
For its particular technical data together with the kind of the product to be reclaimed, the
IST RECLAIMER needs, to work properly, that nearby there is an easy access to the up-
dated solvent(s) MSDS, copy of the Use and Maintenance Manual, and furthermore the IST
RECLAIMER has to be operated by a personnel that:
- knows and understand the language in which the manual is written
- has at least 2 years experience in using solvents
- knows the risks that can occur working with solvent, and also the use of the solvent to reclaim
- has an easy access and can read, understand and interpret the IST RECLAIMER MANUAL
- knows and use the DPI requested
- knows and understand the expressed pictograms messages
- knows and understand the command actuators and the security devices
THOSE RESPONSIBLES FOR COMPANY ALLOCATION WHERE THE MACHINE
IS INSTALLED MUST, AS PER THE EXISTING NORMS, READ AND UNDERSTAND
THIS DOCUMENT AND MUST MAKE IT READ BY THE MAINTENANCE OPERATOR
SPECIALLY THE PART OF HIS COMPETENCE AND VERIFY THAT IT HAS BEEN
TOTALLY UNDERSTOOD.
So, as it is ordered by the current regulatory framework referred to health and security in the
working place, the names of the operators that have been instructed about the content of the
Use Maintenance Manual must be communicated, by the ordered, by fax (in letterhead) to IST
S.p.A. In case of staff turnover for the IST RECLAIMER, the customer has to send always by
fax (in letterhead) the names of the formed operators about the Use and Maintenances Manual.

8
1
INTRODUCTION
1.3 KEEPING THE GUIDE
The UseAnd Maintenance Guide must be kept clean and secure and in the event of a change
in ownership, it must be passed on to the new owner.
In the event of a change in ownership, the customer shall provide I.S.T. with all the data con-
cerning the new owner, in order to simplify exchange of information between the parties and
any updating of this Use And Maintenance Guide .
Handlethis Guide withclean handsand avoidplacingit ondirty surfacestoensure thatit always
stays in good condition.
It must be kept in a room protected from the damp and heat and must always be available within
reach, for consultation.
No part shall be removed, modified or torn out.
1.2 HOW TO READ AND USE THE GUIDE
The guide is divided into sections, chapters and paragraphs, so that information is structured
in the clearest possible manner. The pages are progressively numbered.
Information research can be based on both key words in the section titles and by consulting
the contents.
The technical instructions, drawings and documents included in this Guide are confidential and
are the exclusive property of I.S.T. and may not be reproduced in any manner, either completely
or in part.
The customer is also responsible for ensuring that, in the event of the guide being modified,
only the latest version is available in the department where the system is used.
IT IS FORBIDDEN TO USE THE IST RECLAIMER WITHOUT THE COMPANY
RESPONSIBLE AGREEMENT AND HIS SECURITY OF THE LEVEL OF
UNDERSTANDING BY THE OPERATORS OF THE USER MANUALAND MSDS
OF THE SOLVENTS THAT ARE TO BE RECLAIMED.
The assumption of the IST RECLAIMER by the customer means that they must comply with
the above exposed.

9
1
INTRODUCTION
DANGER
CAUTION
Indicates situations or problems that can jeopar-
dise the users’ safety due to risk of industrial
accidents or death.
Indicates situations or problems concerning the
system’s efficiency of operation, which do not
jeopardise the users’ safety.
ATTENTION Indicates important general information which
doesnotjeopardise theusers’safety orthecorrect
operating of the system.
1.4 SYMBOLS USED IN THE GUIDE
1.5 NORMS
This use and maintenance guide has been drawn up in conformity with the following instruction
manual standards.
For the Reclaimer specific directives and norms, consult the machine EC DECLARATION OF
CONFORMITY

10
1
INTRODUCTION
1.6 CONDITIONS FOR WARRANTY VALIDITY - LIABILITY
I.S.T. S.p.A. warrants that the products supplied are as established in the agreement in terms
of quality and type and that they are free of defects which may cause them to be unsuitable
for their specific intended use. The warranty for manufacturing defects is exclusively limited to
product defects resulting from defects in the materials used or from design and manufacturing
problems attributable to I.S.T. S.p.A.
In addition, the warranty does not cover defects due to normal wear and
tear of the products in relation to parts subject to fast and continuous wearing out.
The warranty on the products purchased may be claimed only on condition that the same pro-
ducts have been paid in full. Unless otherwise agreed in writing, the warranty has a 12 month
term starting from the date of installation and shall not exceed 18 months following the delivery
date.On stipulating thesales agreement,the warranty termmay beextended to 24/ 36months,
subject to prior technical analysis of the application specifications for the machine/equipment.
The above mentioned warranty may be claimed on condition that the products have been pro-
perly used, in compliance with the instructions provided in the Use and Maintenance Manual,
that the products have not been repaired, modified or tampered without the prior written con-
sent of I.S.T. S.p.A., and that the defects found have not been caused by chemical or electric
substances. The Purchaser shall verify that the products are conform and free of defects within
7 days as of the product delivery date and, however, always before using the product in any
manner whatsoever.
The Purchaser shall report any evident defects or faults found in writing, by and not later than
7 days as of the product delivery date, while any hidden and/or functioning defects (which can
therefore be identified only after using the product) shall be reported within 7 days as of their
discoveryand however, notafter thewarranty termexpiry.All warrantyclaimsshall besubmitted
to I.S.T. S.p.A. in writing, based on the instructions and methods given by the same, providing a
detailed list of the defects or non-conformities found. The Purchaser shall no longer be entitled
to any warranty claim if they do not allow I.S.T. S.p.A. to perform reasonable checks as may
be required.
Following a regular warranty claim from the Purchaser, with the aim of providing the best pos-
sible service to cost ratio, I.S.T. S.p.A. may:
a) repair the defective products; it is understood that all the expenses resulting from the repair
operations performed by I.S.T. S.p.A. shall be borne by the same.
b) send to the Purchaser’s Headquarters (DAP Incoterms 2010) components of the same type
and in the same quantity as those found defective; in this case, the repair under warranty may
onlybe performedby experienced/qualifiedpersonnel andonlysubjecttoa writtenauthorization
from I.S.T. S.p.A., which shall always contain specific instructions.
c) issue credit notes in favour of the Purchaser - for amounts not exceeding the costs which
would be incurred if the repair was carried out at I.S.T. S.p.A.’s plants - only subject to I.S.T.
S.p.A.’s prior approval of the cost estimate that the Purchaser shall communicate before per-
forming any repairs. In these cases, I.S.T. S.p.A. may request that the defective products be
returned, and such products will become their property.
In the event that the defects found are not attributable to I.S.T. S.p.A., the expenses incurred
for product repairs and replacements shall be calculated and invoiced to the Purchaser.
The warranty herein includes and replaces all legal warranties for defects and conformities and
fully relieves I.S.T. S.p.A. from any other possible liability connected with the products supplied;
in particular, the Purchaser may not claim other damage compensations and in no event may
I.S.T. S.p.A. be held liable for indirect or consequential damages.

11
GENERAL INFORMATION
2
2.1 DETAILS ABOUT THE SYSTEM AND THE MANUFACTURER
Manufacturer: I.S.T. - ITALIA SISTEMI TECNOLOGICI S.p.A.
via S. Anna, 590
41122 MODENA (MO) - ITALIA
Phone [phone] - Fax [phone]
V.A.T. Number: 02799130360
Equipment: SOLVENT RECLAIMER
type: HR
model: 600
2.2 IDENTIFICATION PLATE
The identification plate is located on the side of the system.
Do not tamper with the system and/or the data engraved on the plate, under
any circumstances.

12
GENERAL INFORMATION
2
2.3 PICTOGRAPHS ON THE SYSTEM
Prohibition,necessity anddanger pictographsare presenton thesystem. Followtheinstructions
carefully, as non-observance may cause serious personal injury.
Make sure that the pictographs are always present and legible, if not apply or replace them.
DANGER OF ELECTROCUTION
Presence of electrically powered components.
NO SMOKING AND/OR USING NAKED FLAMES
DO NOT USE WATER TO PUT OUTA FIRE
In the event of a fire use appropriate dust or CO2extin-
guishers.
DANGER OF BURNS
Presence of components subjected to high temperatures,
risk of burning the hands.
DANGER OF HANDS CRUSHING
Presence of components that can be dangerous for fin-
gers or hands.
PROHIBITION TO REMOVE PROTECTION AND/OR
SECURITY DEVICES.
PROHIBITION TO NON AUTHORIZED PERSONS.

13
GENERAL INFORMATION
2
GLOVES MUST BE USED FOR PROTECTING THE
HANDS.
A MASK MUST BE USED TO PREVENT INHALING TO-
XIC SUBSTANCES.
GOGGLES OR SHIELDS MUST BE USED TO PRO-
TECT THE EYES AND FACE.
OBLIGATION TO USE SECURITY SHOES TO PROTECT
THE FEET.
OBLIGATION TO USE THE HELMET TO PROTECT THE
HEAD.
OBLIGATION TO READ CAREFULLY THE MANUAL
BEFORE USING THE MACHINE OR BEFORE MAKINGANY
MAINTENANCE WORK.

14
GENERAL INFORMATION
2
2.4 SAFETY INSTRUCTIONS
Non-observance of the most elementary care and safety precautions is almost
always the main cause of industrial injuries.
- Read this Guide carefully before starting up, operating and carrying out maintenance opera-
tions on the system;
- Use the machine within the established limits defined for its technical performance;
- All operating and maintenance operations must be carried out by qualified personnel, accor-
ding to the regulations concerning industrial accidents, although not specifically mentioned in
the Guide;
- Always keep the system’s signals and protections against accidents in good condition; if they
areremoved duringmaintenance operations,they mustbe restoredbefore starting thesystem
again;
- Do not open the covers and guards while the system is in operation;
- Do not wear rings, wristwatches, jewellery and loose clothing which could get entangled in
the moving parts; it is advisable to wear suitable clothing to prevent accidents. Always follow
the safety instructions applicable;
- Do not tamper with the safety devices installed on the system;
- Cleanthe machine coversand control panelsusing asoft cloth soakedin amildcleaning solu-
tion; do not use solvents such as alcohol or petrol as this may damage the system‘s surfaces.
- Keep all-round the machine clean to avoid falling or sliding.
- Do not use the system if it is damaged; inform the person in charge of maintenance regarding
functioning faults;
- Do not carry out any operation without previous authorisation and do not allow unauthorised
persons to handle the system;
- Disconnect the powersupply beforecarrying outany maintenanceoperations onthe electrical
components;
- The control board must always be kept closed;
- Do not open the tank lid during the distillation cycle: you run the risk of being splashed with
toxic gaseous substances at very high temperatures;
- Always wear gloves to protect the hands, a mask to avoid inhaling toxic substances and
goggles for protecting the eyes, when loading or unloading the tank;
- Do not wear clothing that may cause electrostatic charges as this may lead to the solvent
fumes catching fire;
- Do not smoke or use a naked flame near the machine while the machine is being used or
while maintenance or other operations are being carried out .
- In the event of the system catching fire, disconnect the power supply immediately and put out
the fire using a dust or CO2fire extinguisher. Do not use water.
- Pregnant women or people that have Pace Maker are not allowed to work with the reclaimer.
- Do not use cellular phones near the reclaimer.

15
GENERAL INFORMATION
2
2.5 DANGEROUS CHEMICAL REACTIONS
The operator must have sufficient knowledge of the solvent‘s characte-
ristics and reactions, the dangers it can provoke and the precautions to
be taken. This information is contained in the technical and safety data
sheet which must be supplied together with the solvent.
It is advisable to keep the solvent data sheets ( together with this Guide
if possible) within easy reach, ready for rapid consultation.
Onlyinflammablesolvents belonging toexplosive groups IIAand IIB and
with self-ignition higher than 250°C can be reclaimed.
The operator runs the risk of being exposed to dangerous chemical reac-
tions if unsuitable solvents are introduced into the reclaimer.
2.5.1 PEROXIDES
It is essential to avoid any reaction due to the presence of peroxides which may be formed in
the absence of stabilisers and in the presence of oxygen. Solvents such as:
Tetrahydrofuran (or THF or Tetramethylene Oxide, or 1.4 -Epoxybutane )
Diethyl Ether ( or Ethyl Ether , or Ether or Ether Oxide or Common Ether )
Disopropyl Ether ( or Isopropyl Ether, or DIPE )
1.4 Dioxane ( or Dioxane, or p-Dioxane or Diethylene Oxide )
Ethyl Cellosolve ( or Ethylene glycol-Monoethyl Ether, or 2-Etoxyethanol )Alcohol oxides and
Ketones
Butyl Cellosolve ( or Ethylene glycol-Monobutyl Etherem or 2-Butoxyethanol )
The person who uses the solvents mentioned above must be aware of the
possibilityof formationof peroxidesin theabsence ofstabilisers, asdanger
from these solvents is not restricted to the distillation process alone, but is
also present during handling phases (storage, operation, etc. ).
The safety data sheet of such solvents must contain all the necessary
information regarding formation of peroxides and the precautions to be
taken (stabilisers, type, quantity and analysis methods).

16
GENERAL INFORMATION
2
2.5.2 NITRIC SUBSTANCES AND NITRATES
It is forbidden to use the system with substances and solvents which may cause reactions due
to the heating of nitric substances (Nitromethane, Aromatic nitrates) and nitrates (Nitric Acid
Ester) as there is risk of explosion.
2.5.3 NITROCELLULOSE
Specialcare must beexercised inthecase ofsolvents contaminatedwithNitro-
cellulose as a residual component, as in some types of ink or paint. The safety
data sheets of products containing Nitrocellulose (paints, ink or other products)
must indicate the contents.
Forreclaiming solvents containingNitrocellulose contactI.S.T.AfterSales Service andtake into
consideration the following points:
- never allow the temperature to exceed 120°C while heating the diathermic oil;
If the reclaimer is NOT arranged beforehand with nitricellulose kit: keep the
reclaimer in an area away from the production area, from operating stations and
otherinstallations, preferablyin theopen, whileensuringadequateprotectionagainst
atmospheric conditions.
- never set the thermostats in such a manner as to cause drying of the residue;
- in the event of long term storage of cleaning solutions, there is a possibility of formation of
peroxides. Therefore it is necessary to check the solution to detect the presence of peroxides
before starting the distillation process. If they are present, appropriate steps must be adopted
for their elimination ( for example, by adjusting the pH to an alkaline value);
Only for NOT continuous cycle models: unload the distillation residue at the
end of each operating cycle in order to avoid build-up of residual sludge containing
Nitrocellulose,since, thehigher theconcentration, thegreater isthe riskof dangerous
conditions.
- special care must be taken while disposing of distillation residue sludge containing Nitrocellu-
lose. Use metallic containers with lids and dilute with a small amount of water to prevent the
sludge from drying up completely (as this condition favours the self-ignition of Nitrocellulose).
2.5.4 EXOTHERMIC REACTIONS
Avoid recovery of solvents or mixtures and pollutants which may produce exothermic reactions
(reactions followed by development of uncontrolled heat).
Read the safety chart concerned carefully.

17
GENERAL INFORMATION
2
2.5.5 PRECAUTIONS AGAINST ELECTROSTATIC CHARGES
- The operator must not use clothing which could provoke electrostatic charges (for example,
clothes made of synthetic fibres).
- Clean the tank and other parts of the system using a slightly damp cloth (not made of synthetic
fibres).
- Ensure that the power supply system is equipped with a suitable earth lead.
2.5.6 SPILL
Any leakage of contaminated solvent or reclame solvent around the reclaimer
must be removed immediately following the instructions on the safety data
sheet of the solvent (SECTION 6- MEASURES IN CASE OF ACCIDENTAL
SPILLAGE)

18
GENERAL INFORMATION
2
2.5.7 COMMON RECLAIMING SOLVENTS LIST
(TECHNICAL REGULATION CEI EN 500 14: 1998-06)
Subdivision A
1. HYDROCARBONS
- Alkanes:
E.g.: hexane, cyclohexane, etc.
- Alkenes:
E.g.: propene (propylene).
Aromatic hydrocarbons:
E.g.: styrene, etc.
- benzenoids:
E.g.: toluene, xylene, etc.
- Mixed hydrocarbons:
E.g.: cleaning solvent, kerosene, etc.
2. COMPOUNDS CONTAINING OXYGEN
- Alcohols and phenols:
E.g.: propanol, etc
- ketones:
E.g.: acetone, ethyl acetate, etc.
- Esters:
E.g.: butyl acetate, methyl acetate, etc.
3. COMPOUNDS CONTAINING HALOGENS
- Compounds without oxygen:
E.g.: methyl chloride, chloroethylene, etc.
Subdivision B
1. HYDROCARBONS

19
SYSTEM DESCRIPTION
3

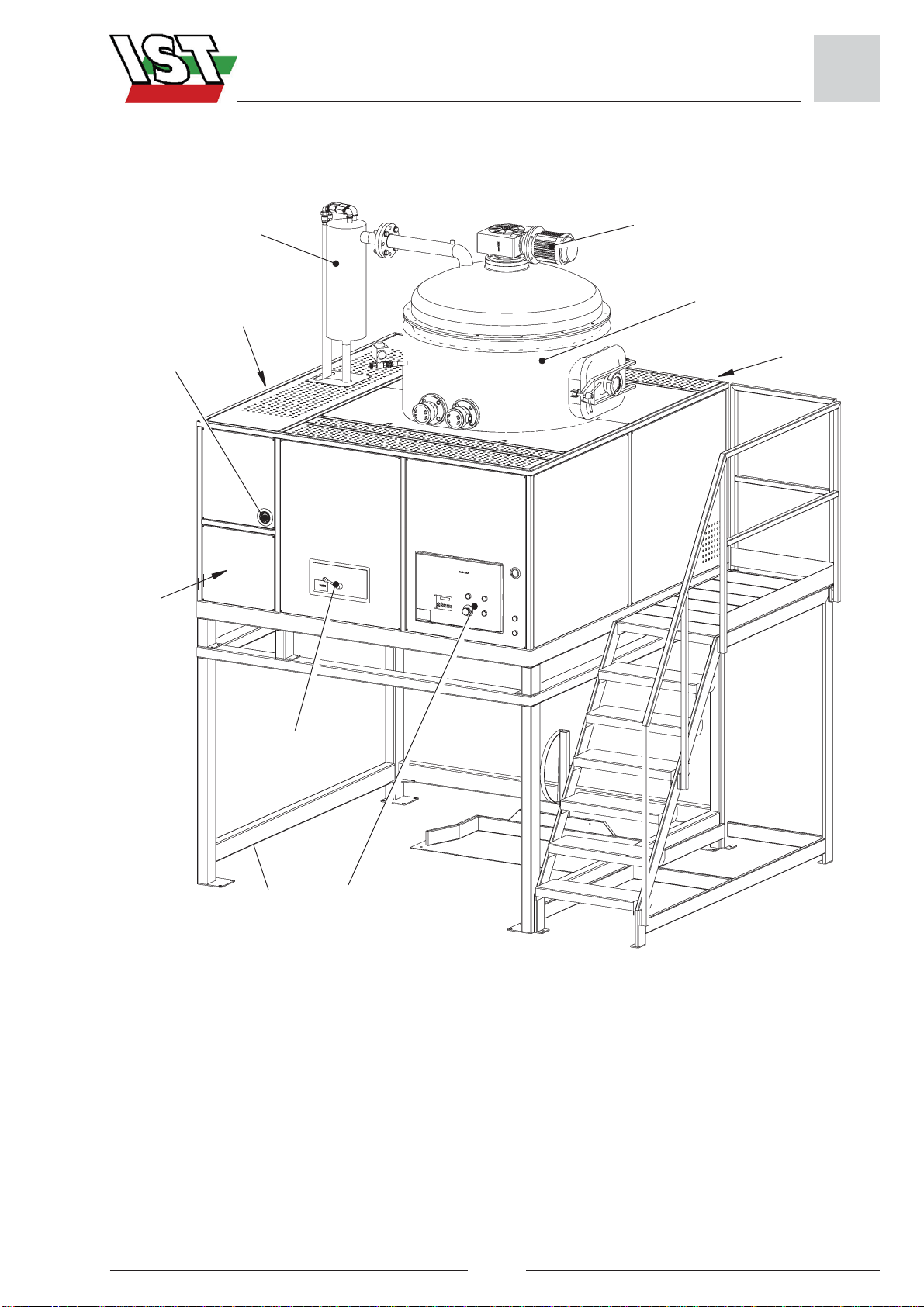

3.1 GENERAL DESCRIPTION
1 - CONTROL BOARD
2 - GENERAL SWITCH
3 - SCRAPPER MOTOR
4 - GAUGE VACUUM INDICATOR
5 - BODY BASE SUPPORT
6 - TANK WITH SCRAPER
7 - WATER COOLED CONDENSER
8 - HIGH SPEED RECIRCULATING
PUMP
9 - HEAT EXCHANGER
10 -LIQUID RING VACUUM
1
2
3
4
5
6
7
8
10
9

20
SYSTEM DESCRIPTION
3
11 - RESIDUAL COLLECTING TANK (OPTIONAL)
12 - RESIDUAL UNLOADING VALVE
13 - OIL PRESSURE VALVE
11 12
13
